Spring Boot定时任务-SpringBoot整合Quartz

 1.Quartz介绍

• 由java编写的开源作业调度框架
• 是OpenSymphony开源组织在Job scheduling领域又一个开源项目，它可以与J2EE与J2SE应用程序相结合也可以单独使用。Quartz可以用来创建简单或为运行十个，百个，甚至是好几万个Jobs这样复杂的程序。

2.Quartz 的使用思路

1. job - 任务 - 你要做什么事？
2. Trigger - 触发器 - 你什么时候去做？
3. Scheduler - 任务调度 - 你什么时候需要去做什么

3.整合步骤

1.修改pom文件

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>1.5.10.RELEASE</version>
  </parent>

  <groupId>com.panyuro</groupId>
  <artifactId>springboot-Quartz</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <name>springboot-Quartz Maven Webapp</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>
  </properties>

  <dependencies>

    <!-- springBoot的启动器 -->
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <!-- Quartz坐标 -->
    <dependency>
      <groupId>org.quartz-scheduler</groupId>
      <artifactId>quartz</artifactId>
      <version>2.2.1</version>
      <exclusions>
        <exclusion>
          <artifactId>slf4j-api</artifactId>
          <groupId>org.slf4j</groupId>
        </exclusion>
      </exclusions>
    </dependency>

    <!-- 添加Scheduled坐标 -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context-support</artifactId>
    </dependency>

    <!-- Sprng tx 坐标 -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
    </dependency>

    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.12</version>
      <scope>test</scope>
    </dependency>
  </dependencies>

  <build>
    <finalName>springboot-Quartz</finalName>
    <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
      <plugins>
        <plugin>
          <artifactId>maven-clean-plugin</artifactId>
          <version>3.1.0</version>
        </plugin>
        <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
        <plugin>
          <artifactId>maven-resources-plugin</artifactId>
          <version>3.0.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>3.8.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-surefire-plugin</artifactId>
          <version>2.22.1</version>
        </plugin>
        <plugin>
          <artifactId>maven-war-plugin</artifactId>
          <version>3.2.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-install-plugin</artifactId>
          <version>2.5.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-deploy-plugin</artifactId>
          <version>2.8.2</version>
        </plugin>
      </plugins>
    </pluginManagement>
  </build>
</project>

2.创建任务

2.1 定义业务层 service的接口及实现类

public interface UserService {
    public void addUser();
}

@Service
@Transactional
public class UserServiceImp implements UserService {
    @Override
    public void addUser() {
        System.out.println("增加一个对象"+new Date());
    }
}

2.2 创建 Job 类

**
 * 创建具体任务
 */
public class QuartzJob implements Job {
    @Autowired
    UserService userService;
    @Override
    public void execute(JobExecutionContext jobExecutionContext) throws JobExecutionException {
        this.userService.addUser();
    }
}

3.编写一个 MyAdaptableJobFactory

         我们要实现将Service层里的userService对象注入给job，来完成具体的service层任务，则需要二者都在spring容器中。而JobDetailFactoryBean.setJobClass(QuartzJob.class)是通过AdaptableJobFactory反射直接初始化job对象的，不经过spring容器。因此我们需要编写一个 MyAdaptableJobFactory继承AdaptableJobFactory类，重写里面的create方法，完成将job对象也注入进spring容器中。

@Component("myAdaptableJobFactory")
public class MyAdaptableJobFactory extends AdaptableJobFactory {

    //AutowireCapableBeanFactory 可以将一个对象添加到SpringIOC容器中，并且完成该对象注入
    @Autowired
    private AutowireCapableBeanFactory autowireCapableBeanFactory;

    /**
     * 该方法需要将实例化的任务对象手动的添加到springIOC容器中并且完成对象的注入
     */
    @Override
    protected Object createJobInstance(TriggerFiredBundle bundle) throws Exception {
        Object obj = super.createJobInstance(bundle);
        //将obj对象添加Spring IOC容器中，并完成注入
        this.autowireCapableBeanFactory.autowireBean(obj);
        return obj;
    }
}

4.编写 Quartz 的启动类

**
 * Quartz配置类
 */
@Configuration
public class QuartzConfig {
    /**
     * 1.创建Job对象
     */
    @Bean
    public JobDetailFactoryBean jobDetailFactoryBean(){
        JobDetailFactoryBean factory = new JobDetailFactoryBean();
        //关联我们自己的Job类
        factory.setJobClass(QuartzJob.class);
        return factory;
    }

    /**
     * 2.创建Trigger对象
     * 简单的Trigger
     */
	@Bean
	public SimpleTriggerFactoryBean simpleTriggerFactoryBean(JobDetailFactoryBean jobDetailFactoryBean){
		SimpleTriggerFactoryBean factory = new SimpleTriggerFactoryBean();
		//关联JobDetail对象
		factory.setJobDetail(jobDetailFactoryBean.getObject());
		//该参数表示一个执行的毫秒数
		factory.setRepeatInterval(2000);
		//重复次数
		factory.setRepeatCount(4);
		return factory;
	}

    /**
     * 3.创建Scheduler对象
     */
    @Bean
    public SchedulerFactoryBean schedulerFactoryBean(SimpleTriggerFactoryBean simpleTriggerFactoryBean,MyAdaptableJobFactory myAdaptableJobFactory ){
        SchedulerFactoryBean factory = new SchedulerFactoryBean();
        //关联trigger
        factory.setTriggers(simpleTriggerFactoryBean.getObject());
        factory.setJobFactory(myAdaptableJobFactory);
        return factory;
    }
}

5.编写启动类

@SpringBootApplication
@EnableScheduling
public class App {
    public static void main(String[] args) {
        SpringApplication.run(App.class, args);
    }
}

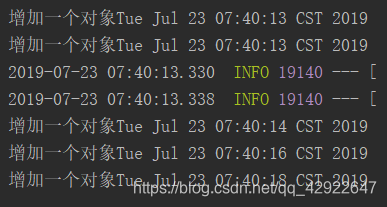

测试结果：

注：刚开始存在一定的误差。
