Body estimation 代码复现之：基于 keras 的 StackHourglass 的数据预处理思路，及标签和数据产生过程分析

代码来源：
https://github.com/yuanyuanli85/Stacked_Hourglass_Network_Keras/blob/master/src/data_gen/data_process.py

代码

import numpy as np
import scipy


def get_transform(center, scale, res, rot=0):
    """
    General image processing functions
    """
    # Generate transformation matrix
    h = 200 * scale
    t = np.zeros((3, 3))
    t[0, 0] = float(res[1]) / h
    t[1, 1] = float(res[0]) / h
    t[0, 2] = res[1] * (-float(center[0]) / h + .5)
    t[1, 2] = res[0] * (-float(center[1]) / h + .5)
    t[2, 2] = 1
    if not rot == 0:
        rot = -rot  # To match direction of rotation from cropping
        rot_mat = np.zeros((3, 3))
        rot_rad = rot * np.pi / 180
        sn, cs = np.sin(rot_rad), np.cos(rot_rad)
        rot_mat[0, :2] = [cs, -sn]
        rot_mat[1, :2] = [sn, cs]
        rot_mat[2, 2] = 1
        # Need to rotate around center
        t_mat = np.eye(3)
        t_mat[0, 2] = -res[1] / 2
        t_mat[1, 2] = -res[0] / 2
        t_inv = t_mat.copy()
        t_inv[:2, 2] *= -1
        t = np.dot(t_inv, np.dot(rot_mat, np.dot(t_mat, t)))
    return t


def transform(pt, center, scale, res, invert=0, rot=0):
    # Transform pixel location to different reference
    t = get_transform(center, scale, res, rot=rot)
    if invert:
        t = np.linalg.inv(t)
    new_pt = np.array([pt[0] - 1, pt[1] - 1, 1.]).T
    new_pt = np.dot(t, new_pt)
    return new_pt[:2].astype(int) + 1


def crop(img, center, scale, res, rot=0):
    # Preprocessing for efficient cropping
    ht, wd = img.shape[0], img.shape[1]
    sf = scale * 200.0 / res[0]
    if sf < 2:
        sf = 1
    else:
        new_size = int(np.math.floor(max(ht, wd) / sf))
        new_ht = int(np.math.floor(ht / sf))
        new_wd = int(np.math.floor(wd / sf))
        img = scipy.misc.imresize(img, [new_ht, new_wd])
        center = center * 1.0 / sf
        scale = scale / sf

    # Upper left point
    ul = np.array(transform([0, 0], center, scale, res, invert=1))
    # Bottom right point
    br = np.array(transform(res, center, scale, res, invert=1))

    # Padding so that when rotated proper amount of context is included
    pad = int(np.linalg.norm(br - ul) / 2 - float(br[1] - ul[1]) / 2)
    if not rot == 0:
        ul -= pad
        br += pad

    new_shape = [br[1] - ul[1], br[0] - ul[0]]
    if len(img.shape) > 2:
        new_shape += [img.shape[2]]
    new_img = np.zeros(new_shape)

    # Range to fill new array
    new_x = max(0, -ul[0]), min(br[0], len(img[0])) - ul[0]
    new_y = max(0, -ul[1]), min(br[1], len(img)) - ul[1]
    # Range to sample from original image
    old_x = max(0, ul[0]), min(len(img[0]), br[0])
    old_y = max(0, ul[1]), min(len(img), br[1])
    new_img[new_y[0]:new_y[1], new_x[0]:new_x[1]] = img[old_y[0]:old_y[1], old_x[0]:old_x[1]]

    if not rot == 0:
        # Remove padding
        new_img = scipy.misc.imrotate(new_img, rot)
        new_img = new_img[pad:-pad, pad:-pad]

    new_img = scipy.misc.imresize(new_img, res)
    return new_img


def normalize(imgdata, color_mean):
    '''
    :param imgdata: image in 0 ~ 255
    :return:  image from 0.0 to 1.0
    '''
    imgdata = imgdata / 255.0

    for i in range(imgdata.shape[-1]):
        imgdata[:, :, i] -= color_mean[i]

    return imgdata


def draw_labelmap(img, pt, sigma, type='Gaussian'):
    # Draw a 2D gaussian
    # Adopted from https://github.com/anewell/pose-hg-train/blob/master/src/pypose/draw.py

    # Check that any part of the gaussian is in-bounds
    ul = [int(pt[0] - 3 * sigma), int(pt[1] - 3 * sigma)]
    br = [int(pt[0] + 3 * sigma + 1), int(pt[1] + 3 * sigma + 1)]
    if (ul[0] >= img.shape[1] or ul[1] >= img.shape[0] or
            br[0] < 0 or br[1] < 0):
        # If not, just return the image as is
        return img

    # Generate gaussian
    size = 6 * sigma + 1
    x = np.arange(0, size, 1, float)
    y = x[:, np.newaxis]
    x0 = y0 = size // 2
    # The gaussian is not normalized, we want the center value to equal 1
    if type == 'Gaussian':
        g = np.exp(- ((x - x0) ** 2 + (y - y0) ** 2) / (2 * sigma ** 2))
    elif type == 'Cauchy':
        g = sigma / (((x - x0) ** 2 + (y - y0) ** 2 + sigma ** 2) ** 1.5)

    # Usable gaussian range
    g_x = max(0, -ul[0]), min(br[0], img.shape[1]) - ul[0]
    g_y = max(0, -ul[1]), min(br[1], img.shape[0]) - ul[1]
    # Image range
    img_x = max(0, ul[0]), min(br[0], img.shape[1])
    img_y = max(0, ul[1]), min(br[1], img.shape[0])

    img[img_y[0]:img_y[1], img_x[0]:img_x[1]] = g[g_y[0]:g_y[1], g_x[0]:g_x[1]]
    return img


def transform_kp(joints, center, scale, res, rot):
    newjoints = np.copy(joints)
    for i in range(joints.shape[0]):
        if joints[i, 0] > 0 and joints[i, 1] > 0:
            _x = transform(newjoints[i, 0:2] + 1, center=center, scale=scale, res=res, invert=0, rot=rot)
            newjoints[i, 0:2] = _x
    return newjoints


def generate_gtmap(joints, sigma, outres):
    npart = joints.shape[0]
    gtmap = np.zeros(shape=(outres[0], outres[1], npart), dtype=float)
    for i in range(npart):
        visibility = joints[i, 2]
        if visibility > 0:
            gtmap[:, :, i] = draw_labelmap(gtmap[:, :, i], joints[i, :], sigma)
    return gtmap

import os
import numpy as np
from random import shuffle
import scipy.misc
import json
import data_process
import random


class MPIIDataGen(object):

    def __init__(self, jsonfile, imgpath, inres, outres, is_train):
        '''

        :param jsonfile: 标签存放路径
        :param imgpath: 图片存放路径
        :param inres: 输入图片尺寸
        :param outres: 最终的输出图片尺寸
        :param is_train: 当前 generator 是为了 train 还是 val
        '''
        self.jsonfile = jsonfile
        self.imgpath = imgpath
        self.inres = inres
        self.outres = outres
        self.is_train = is_train
        '''keypoint 的个数为 16 个'''
        self.nparts = 16
        self.anno = self._load_image_annotation()

    def _load_image_annotation(self):
        # load train or val annotation
        with open(self.jsonfile) as anno_file:
            anno = json.load(anno_file)

        '''按照标签的 isValidation 将数据集标签分为训练和测试两个部分'''
        val_anno, train_anno = [], []
        for idx, val in enumerate(anno):
            if val['isValidation'] == True:
                val_anno.append(anno[idx])
            else:
                train_anno.append(anno[idx])

        if self.is_train:
            '''如果当前的 MPIIDataGen 是为了 train 的，那么返回的就是 train 的标签'''
            return train_anno
        else:
            return val_anno

    def get_dataset_size(self):
        return len(self.anno)

    def get_color_mean(self):
        '''
        表示在 rgb 通道每个通道分别的平均值是多少，方便后面按照通道为标准进行标准化
        :return:
        '''
        mean = np.array([0.4404, 0.4440, 0.4327], dtype=np.float)
        return mean

    def get_annotations(self):
        return self.anno

    def generator(self, batch_size, num_hgstack, sigma=1, with_meta=False, is_shuffle=False,
                  rot_flag=False, scale_flag=False, flip_flag=False):
        '''
        Input:  batch_size * inres  * Channel (3)
        Output: batch_size * oures  * nparts
        '''
        train_input = np.zeros(shape=(batch_size, self.inres[0], self.inres[1], 3), dtype=np.float)
        gt_heatmap = np.zeros(shape=(batch_size, self.outres[0], self.outres[1], self.nparts), dtype=np.float)
        meta_info = list()

        if not self.is_train:
            '''当进入到 val 的阶段的时候，一定不能对标签进行 shuffle，也一定不能开 rot_flag'''
            assert (is_shuffle == False), 'shuffle must be off in val model'
            assert (rot_flag == False), 'rot_flag must be off in val model'

        while True:
            '''只有当 train 的时候，可以选择是否进行 shuffle，val 的时候一定不能 shuffle，train 的时候可以选择不 shuffle'''
            if is_shuffle:
                shuffle(self.anno)

            for i, kpanno in enumerate(self.anno):

                _imageaug, _gthtmap, _meta = self.process_image(i, kpanno, sigma, rot_flag, scale_flag, flip_flag)
                _index = i % batch_size

                train_input[_index, :, :, :] = _imageaug
                gt_heatmap[_index, :, :, :] = _gthtmap
                meta_info.append(_meta)

                if i % batch_size == (batch_size - 1):
                    out_hmaps = []
                    for m in range(num_hgstack):
                        out_hmaps.append(gt_heatmap)

                    if with_meta:
                        yield train_input, out_hmaps, meta_info
                        meta_info = []
                    else:
                        yield train_input, out_hmaps

    def process_image(self, sample_index, kpanno, sigma, rot_flag, scale_flag, flip_flag):
        '''

        :param sample_index:
        :param kpanno: 一张照片对应的 annotation，所有照片的 anno 都在 self.anno 中
        :param sigma:
        :param rot_flag:
        :param scale_flag:
        :param flip_flag:
        :return:
        '''
        '''通过 anno 得到对应图片的路径'''
        imagefile = kpanno['img_paths']
        '''读到这张图片'''
        image = scipy.misc.imread(os.path.join(self.imgpath, imagefile))
        # get center
        '''得到这个图片中心点的位置 objpos = object position
            'objpos': [594.0, 257.0],'''
        center = np.array(kpanno['objpos'])

        '''得到这个图片的所有 points 的信息，最后一个 1 或者 0 代表是否可见
            'joint_self': [[620.0, 394.0, 1.0],
              [616.0, 269.0, 1.0],
              [573.0, 185.0, 1.0],
              [647.0, 188.0, 0.0],
              [661.0, 221.0, 1.0],
                ...............      '''
        joints = np.array(kpanno['joint_self'])

        '''得到这个图片的缩放的尺度
             'scale_provided': 3.021,'''
        scale = kpanno['scale_provided']

        # Adjust center/scale slightly to avoid cropping limbs
        if center[0] != -1:
            center[1] = center[1] + 15 * scale
            scale = scale * 1.25

        # filp
        if flip_flag and random.choice([0, 1]):
            image, joints, center = self.flip(image, joints, center)

        # scale
        if scale_flag:
            scale = scale * np.random.uniform(0.8, 1.2)

        # rotate image
        if rot_flag and random.choice([0, 1]):
            rot = np.random.randint(-1 * 30, 30)
        else:
            rot = 0

        cropimg = data_process.crop(image, center, scale, self.inres, rot)
        cropimg = data_process.normalize(cropimg, self.get_color_mean())

        # transform keypoints
        transformedKps = data_process.transform_kp(joints, center, scale, self.outres, rot)
        gtmap = data_process.generate_gtmap(transformedKps, sigma, self.outres)

        # meta info
        metainfo = {'sample_index': sample_index, 'center': center, 'scale': scale,
                    'pts': joints, 'tpts': transformedKps, 'name': imagefile}

        return cropimg, gtmap, metainfo

    @classmethod
    def get_kp_keys(cls):
        keys = ['r_ankle', 'r_knee', 'r_hip',
                'l_hip', 'l_knee', 'l_ankle',
                'plevis', 'thorax', 'upper_neck', 'head_top',
                'r_wrist', 'r_elbow', 'r_shoulder',
                'l_shoulder', 'l_elbow', 'l_wrist']
        return keys

    def flip(self, image, joints, center):

        import cv2

        joints = np.copy(joints)

        matchedParts = (
            [0, 5],  # ankle
            [1, 4],  # knee
            [2, 3],  # hip
            [10, 15],  # wrist
            [11, 14],  # elbow
            [12, 13]  # shoulder
        )

        org_height, org_width, channels = image.shape

        # flip image
        flipimage = cv2.flip(image, flipCode=1)

        # flip each joints
        joints[:, 0] = org_width - joints[:, 0]

        for i, j in matchedParts:
            temp = np.copy(joints[i, :])
            joints[i, :] = joints[j, :]
            joints[j, :] = temp

        # center
        flip_center = center
        flip_center[0] = org_width - center[0]

        return flipimage, joints, flip_center

通过 Generator 产生训练和测试数据的思路

• 根据 annotation 文件将数据切分成训练数据和测试数据
• 通过 process_image 进行数据的增强处理
  • 按照喜好进行放缩，翻折，剪裁，旋转操作
  • 通过 crop 裁剪出 image 中的主要的 person 的区域并对新图像进行 normalize
  • 注意，对应的 keypoint 的标签也要做同样的操作
  • 通过进行变换的 keypoints 点生成他们高斯点的标签(gtmap 中的每个通道都是一个 )
  • 最后返回
• 将得到的数据分成多个 batch；然后将这个 batch 的 gtmaps 标签复制 num_hgstack 份，这是因为在训练的时候，每个 stack 都要进行监督也就是需要一份 gtmaps 进行 loss 的计算
• 最后通过 yield 方法构成一个生成器，每次产生一个 batch 的 train 数据和 out_hmaps 标签，假设 batch = 64，那么每次产生的 train 数据应该是 (64,256,256,3) 而 out_hmaps 的数据维度应该是 (num_hgstack, 64, 64,64)

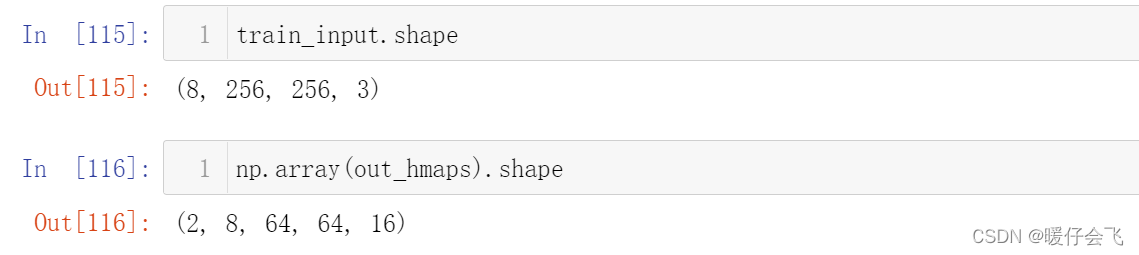

验证维度

• 首先将文章最开始的 github 代码下载下来

• 下载 MPII 数据集和标签，按照 github 中的文档结构放到 data 文件夹中


  • 其中 image 是所有的 MPII 图片数据
  • 和 image 并列的放置 annotations

• 在 MPIIDataGen 中给合适的路径即可

train_gen = MPIIDataGen("../../data/mpii/mpii_annotations.json","../../data/mpii/images/",(256,256),(64,64),True)

gen = train_gen.generator(batch_size=8
                   ,num_hgstack=2)

train_input, out_hmaps = next(gen)
