直方图

1 svg直方图

1.1 基本语法

获取屏幕分辨率&浏览器可用宽度

var w=window.innerWidth
|| document.documentElement.clientWidth
|| document.body.clientWidth;

var h=window.innerHeight
|| document.documentElement.clientHeight
|| document.body.clientHeight;

x=document.getElementById("demo");
x.innerHTML="浏览器的内部窗口宽度：" + w + "，高度：" + h + "。"

绘制一个矩形

//SVG添加图形
var myRect=document.createElement("rect");
hist.appendChild(myRect);
myRect.outerHTML="<rect x=20 y=50 width=100 height=300 style='fill:blue'/>";

添加文本

//SVG添加文本
var svgText=document.createElement("text");
hist.appendChild(svgText);
svgText.outerHTML="<text x=0 y=20 style='font-family:微软雅黑;fill:rgb(0,0,255);font-size:20'> "+w+" </text>";

随机色彩

var hiscolor=Math.round(Math.random()*255);
myRect[i].outerHTML="<rect x="+(i*120)+" y="+(300-rand)+" width=100 height="+rand+" style='fill:rgb("+(hiscolorR)+","+(hiscolorG)+","+(hiscolorB)+")'/>";

1.2 源码

<html>
    <body>
        <svg id="mysvg" width=800 height=600
        </svg>

        <script>
            var w=window.innerWidth || document.documentElement.clientWidth || document.body.clientWidth;
            var h=window.innerHeight || document.documentElement.clientHeight || document.body.clientHeight;
            var svg=document.getElementById("mysvg");
            svg.setAttribute("width",w);
            svg.setAttribute("height",h);
            var rec=new Array(10);
            var txt=new Array(10);
            for(var i=0;i<10;i++){
                rec[i]=document.createElement("rect");
                svg.appendChild(rec[i]);
                txt[i]=document.createElement("text");
                svg.appendChild(txt[i]);
                var height=Math.floor(Math.random()*255);
                rec[i].outerHTML="<rect x="+(i*w/rec.length)+" y="+(h-height)+" width="+(0.9*w/rec.length)+" height="+height+" style='fill:rgb("+(255-height/2)+","+(height)+","+(height*200%255)+")'/>";
                txt[i].outerHTML="<text x="+(i*w/rec.length+0.5*w/rec.length)+" y="+(h-height)+">"+height+"</text>";
            }
        </script>
    </body>
</html>

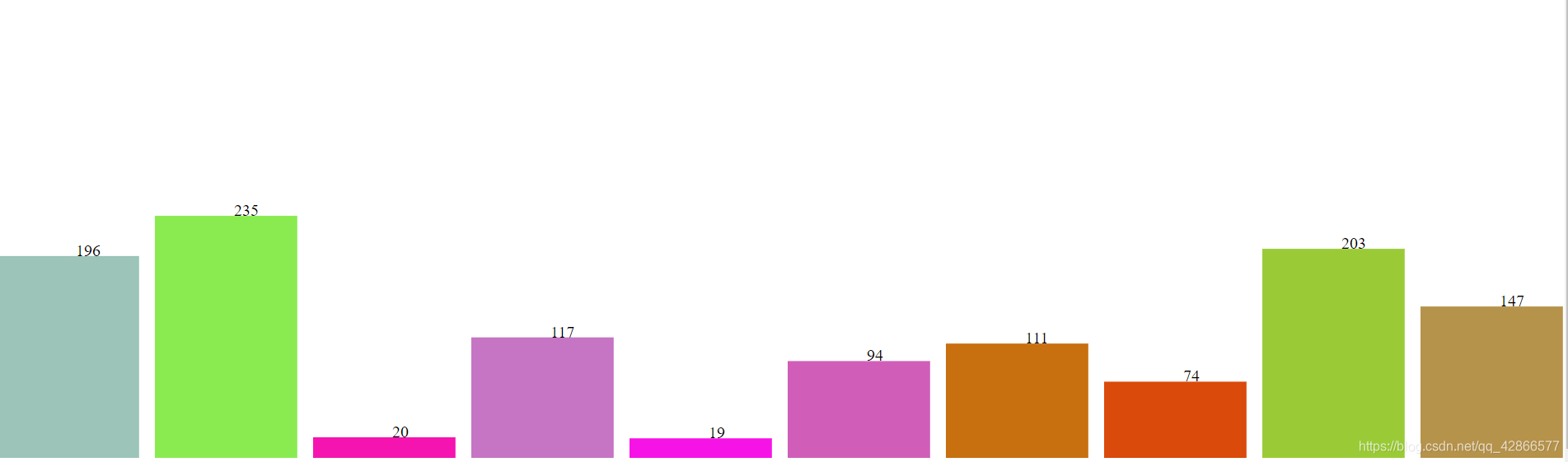

1.3 效果图

在这里插入图片描述

2 D3直方图

2.1 基本语法

D3库的准备
下载地址：http://d3js.org
引用方式：

<!-- 最好本地引用 -->
<script src=“d3.v3.min.js” charset=“utf-8”>
</script>
<!-- 网络引用 -->
<script src=“http://d3js.org/d3.v3.min.js” charset=“utf-8”>
</script>

标签	用法	示例
select	返回第一个元素	.select(“body”)
selectAll	返回所有元素	.selectAll(“.content”)
append	添加元素	.append(name)
remove	删除元素	.remove()
data	绑定数据	.data(datasets)
text	添加文字	.text( function(d) { return d } )
style	修改样式	.style(“color”,“red”).style(“font-size”,“72px”)
attr	设定属性	.attr(“width”, width).attr(“height”, height)

2.2 代码

<html>
<head>
    <meta http-equiv="Content-Type" content="text/html" ; charset="utf-8"><!--字符集是utf-8-->
</head>
<body>
    <script src="d3.v3.min.js"></script>
    <script>
        var w = window.innerWidth || document.documentElement.clientWidth || document.body.clientWidth;
        var h = window.innerHeight || document.documentElement.clientHeight || document.body.clientHeight;
        w = w * 0.98;
        h = h * 0.90;

        var tv = new Array("湖南卫视", "江苏卫视", "浙江卫视", "东方卫视", "北京卫视",
            "深圳卫视", "广东卫视", "安徽卫视", "天津卫视", "山东卫视", "黑龙江卫视",
            "重庆卫视", "辽宁卫视", "湖北卫视", "江西卫视", "内蒙古卫视", "吉林卫视",
            "四川卫视", "贵州卫视", "东南卫视", "云南卫视", "山西卫视");
        var view = new Array(0.444, 0.382, 0.266, 0.255, 0.178,
            0.137, 0.134, 0.109, 0.065, 0.057, 0.043,
            0.040, 0.036, 0.035, 0.035, 0.028, 0.024,
            0.024, 0.018, 0.017, 0.016, 0.015);

        var svg = d3.select("body")
            .append("svg")
            .attr("width", w)
            .attr("height", h);

        svg.selectAll("rect")
            .data(view)
            .enter()
            .append("rect")
            .attr("y", function (d, i) {//d是绑定的数据，i是数据的下标
                return (h / view.length) * i+10;
            })
            .attr("x", 100)
            .attr("height", function (d, i) {
                return (h / view.length) - 10;
            })
            .attr("width", function (d) {
                return Math.round(d * 2500);
            })
            .attr("fill", function (d, i) {
                return "rgb(" + 10 * i + "," + 20 * i + ",200 )";
            });

        svg.selectAll("text1")
            .data(view)
            .enter()
            .append("text")
            .attr("x", function (d) {
                return Math.round(d * 2500) + 110;
            })
            .attr("y", function (d, i) {
                return (h / tv.length) * i + 24;
            })
            .text(function (d) {
                return d;
            })
            .style("font-size", "80%")
            .attr("fill", function (d, i) {
                return "rgb(0,0,0)";
            });

        svg.selectAll("text2")
            .data(tv)
            .enter()
            .append("text")
            .attr("x", 20)
            .attr("y", function (d,i) {
                return (h / tv.length) * i+24;
            })
            .text(function (d) {
                return d;
            })
            .style("font-size", "80%")
            .attr("fill", function (d, i) {
                return "rgb(" + 5 * i + "," + 10 * i + ",  0 )";
            });
    </script>
</body>
</html>

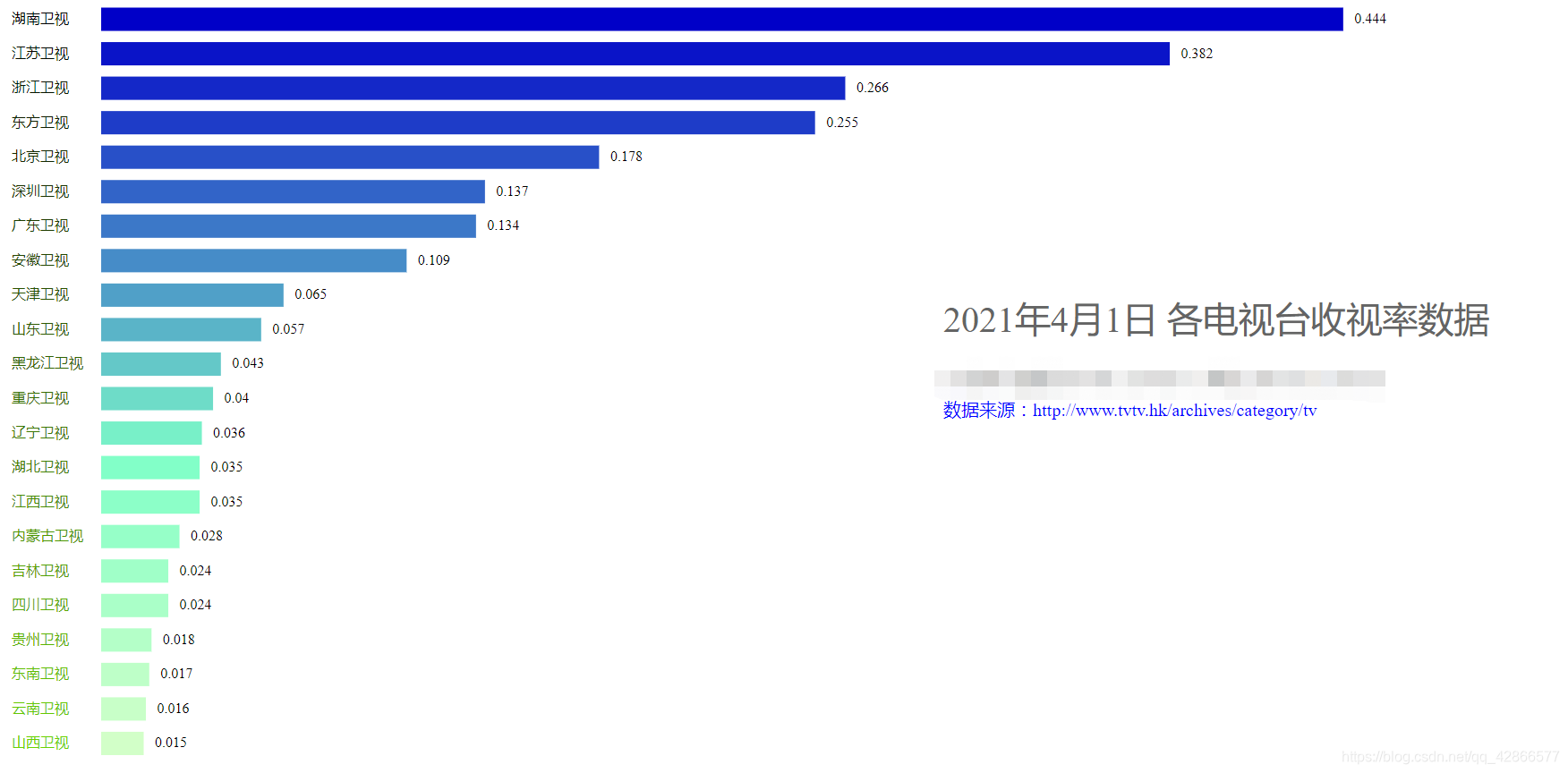

2.3 效果图

在这里插入图片描述

分形和二叉树

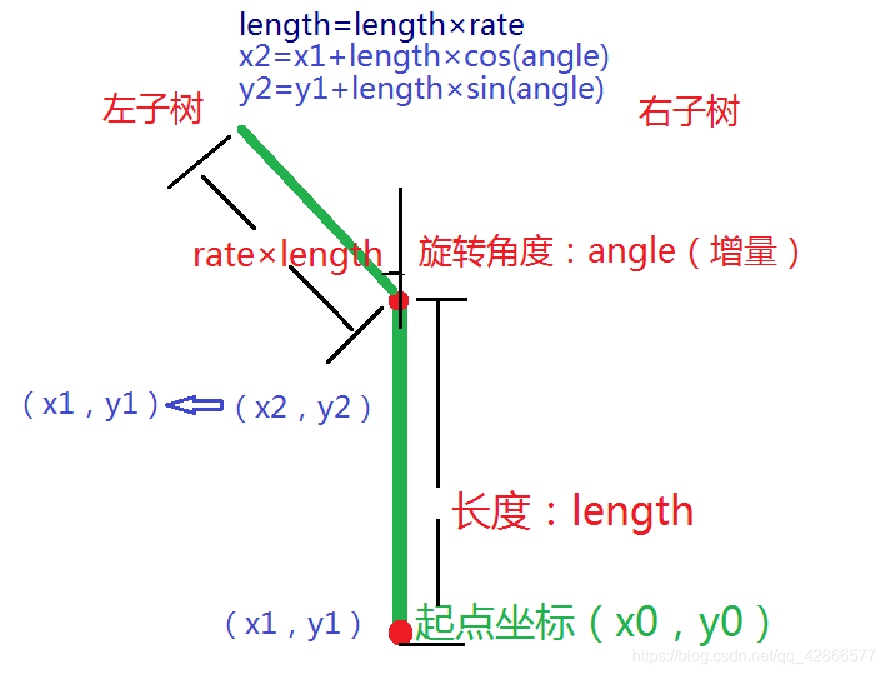

1 递归示意

在这里插入图片描述

2 递归实现

2. 1 主要代码

//初值:
show(myWidth/2,(int)(myHeight*3/4),200,0.5,-Math.PI/2,14,g2);
//绘直线:
//起点:
x1=x0;
y1=y0;
//终点:
x2=(int)(x1+length*Math.cos(angle));
y2=(int)(y1+lenght*Math.sin(angle));
lineL=new Line2D.Double(x1,y1,x2,y2);
g2.draw(lineL);
//左子树:
show(x2,y2,length*rate,0.6,angle-Math.PI/4,count-1,g2);
//右子树:
show(x2,y2,length*rate,0.6,angle+Math.PI/4,count-1,g2);

2.2 完整代码

<html>
    <body>
        <svg id="svg01">
        </svg>
        <script>
            var w=window.innerWidth;
            var h=window.innerHeight;
            var svg=document.getElementById("svg01");
            w=w*0.98;
            h=h*0.98;
            svg.setAttribute("width",w);
            svg.setAttribute("height",h);

            var x0=w/2;
            var y0=h;
            var L=200;
            var rate=0.8;
            var a=-Math.PI/2;
            var count=10;

            function show(x0,y0,L,rate,a,count){
                var x1=x0;
                var y1=y0;
                var x2=x1+L*Math.cos(a);
                var y2=y1+L*Math.sin(a);

                var L=L*rate*(0.9+Math.random()*0.5);
                var aL=a-Math.PI/6*(0.8+Math.random()*0.5);
                var aR=a+Math.PI/6*(0.8+Math.random()*0.5);
                var lineX=document.createElement("line");
                svg.appendChild(lineX);
                //lineX.outerHTML="<line x1="+x1+" y1="+y1+" x2="+x2+" y2="+y2+" stroke='blue' stroke-width=4 />";
                lineX.outerHTML="<line x1="+x1+" y1="+y1+" x2="+x2+" y2="+y2+" stroke='blue' stroke-width="+(count/3+0.5)+" />";

                if(count>0){
                    show(x2,y2,L*rate,rate,aL,count-1);
                    show(x2,y2,L*rate,rate,aR,count-1);
                }
            }
            show(x0,y0,L,rate,a,count);

        </script>
    </body>
</html>

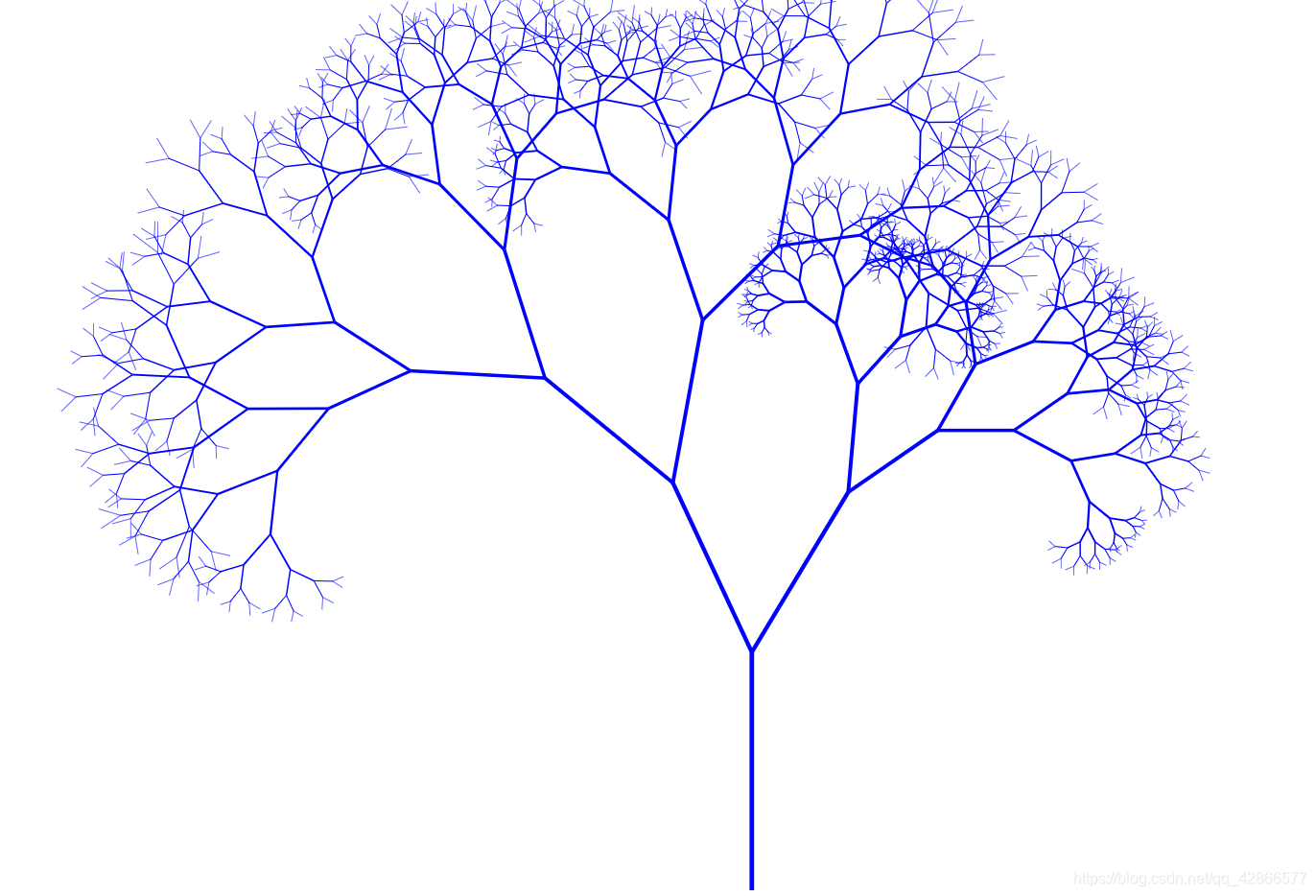

2.3 成果展示

在这里插入图片描述

3 文字二叉树

3.1 设置字号

Font font1 = new Font("微软雅黑", Font.BOLD, count*3);
g2.setFont(font1);

3.2 画字符

String str="窗外微云湿翠峦";
g2.drawString(str,(int)x1,(int)y1);
length=count*5*str.length();
//用正态分布调整角度:
java.util.Random rt = new java.util.Random(); double au=0.8,ap=0.2;
double angleAddL=au+ap*rt.nextGaussian();
double angleAddR=au+ap*rt.nextGaussian();

3.3 源码

<html>
    <meta http-equiv="Content-Type" content="textt/html"; charset=utf-8>
    <body>

        <svg id="svg01">
            <!-- <text x=200 y=200 fill="red">春江潮水连海平</text>
            <text x=200 y=200 fill="green" transform="rotate(45)">海上明月共潮生</text>
            <text x=200 y=200 fill="green" transform="rotate(45,200,200)">春江水暖鸭先知</text>        -->
        </svg>

        <script>

            var w=window.innerWidth;
            var h=window.innerHeight;
            var svg=document.getElementById("svg01");
            w=w*0.98;
            h=h*0.98;
            svg.setAttribute("width",w);
            svg.setAttribute("height",h);

            var x0=w/2;
            var y0=h;
            var L=300;
            var rate=0.8;
            var a=-Math.PI/2;
            var count=7;
            var fontsize=20;
            var str="春江潮水连海平";
            function show(x0,y0,L,rate,a,count){
                var fontsize=count*2;
                var L=str.length*fontsize;
                var x1=x0;
                var y1=y0;
                var x2=x1+L*Math.cos(a);
                var y2=y1+L*Math.sin(a);

                var L=L*rate*(0.5+Math.random()*0.5);
                var aL=a-Math.PI/6*(0.5+0.5*Math.random()*0.5);
                var aR=a+Math.PI/6*(0.5+0.5*Math.random()*0.5);
                //var lineX=document.createElement("line");
                //svg.appendChild(lineX);
                //lineX.outerHTML="<line x1="+x1+" y1="+y1+" x2="+x2+" y2="+y2+" stroke='blue' stroke-width=4 />";
                //lineX.outerHTML="<line x1="+x1+" y1="+y1+" x2="+x2+" y2="+y2+" stroke='blue' stroke-width="+(count/3+0.5)+" />";
                var words=document.createElement("text");
                svg.appendChild(words);
                //words.outerHTML="<text x="+x1+" y="+y1+" fill='green'>春江潮水连海平</text>"
                //words.outerHTML="<text x="+x1+" y="+y1+" transform='rotate(-90,"+x1+","+y1+")' fill='green'>春江潮水连海平</text>"
                //*180/Math.PI用来把弧度数换算成角度数
                words.outerHTML="<text x="+x1+" y="+y1+" transform='rotate("+a*180/Math.PI+","+x1+","+y1+")' fill='green' font-size="+fontsize+">"+str+"</text>"

                if(count>0){
                    show(x2,y2,L,rate,aL,count-1);
                    show(x2,y2,L,rate,aR,count-1);
                    if(count==1){
                        var apple=document.createElement("circle");
                        svg.appendChild(apple);
                        apple.outerHTML="<circle cx="+x1+" cy="+y1+" r=4 fill='red' />";
                    }
                }
            }
            show(x0,y0,L,rate,a,count);
        </script>
    </body>
</html>

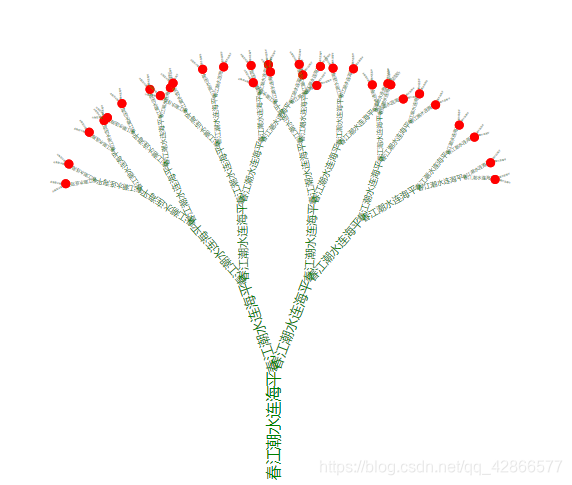

3.3 效果图

在这里插入图片描述

饼图和环图

1 基本语法

1.1 Path路径

下面的命令可用于路径数据：
M = moveto
L = lineto
H = horizontal lineto
V = vertical lineto
C = curveto
S = smooth curveto
Q = quadratic Belzier curve
T = smooth quadratic Belzier curveto
A = elliptical Arc
Z = closepath

例如画出下面这个三角形：
在这里插入图片描述
代码如下：

<svg width="100%" height="100%" version="1.1"
xmlns="http://www.w3.org/2000/svg">

<path d="M250 150 L150 350 L350 350 Z" />

</svg>

1.2 圆弧绘制

var dataset = { startAngle: 0 , endAngle: Math.PI * 0.75 };
//创建一个弧生成器
var arcPath = d3.svg.arc()
				.innerRadius(50)
				.outerRadius(100);
//添加路径
svg.append("path")
	.attr("d",arcPath(dataset))
	.attr("transform","translate(250,250)")
	.attr("stroke","black")
	.attr("stroke-width","3px")
	.attr("fill","yellow");

1.3 添加文字

//添加文字
svg.selectAll("text")
	.data(dataset)
	.enter()
	.append("text")
	.attr("transform",function(d){
		return "translate(250,250)" +
				"translate(" + arcPath.centroid(d) + ")";
	})
	.attr("text-anchor","middle")
	.attr("fill","white")
	.attr("font-size","18px")
	.text(function(d){ return Math.floor((d.endAngle - d.startAngle)*180/Math.PI) + "°"; });

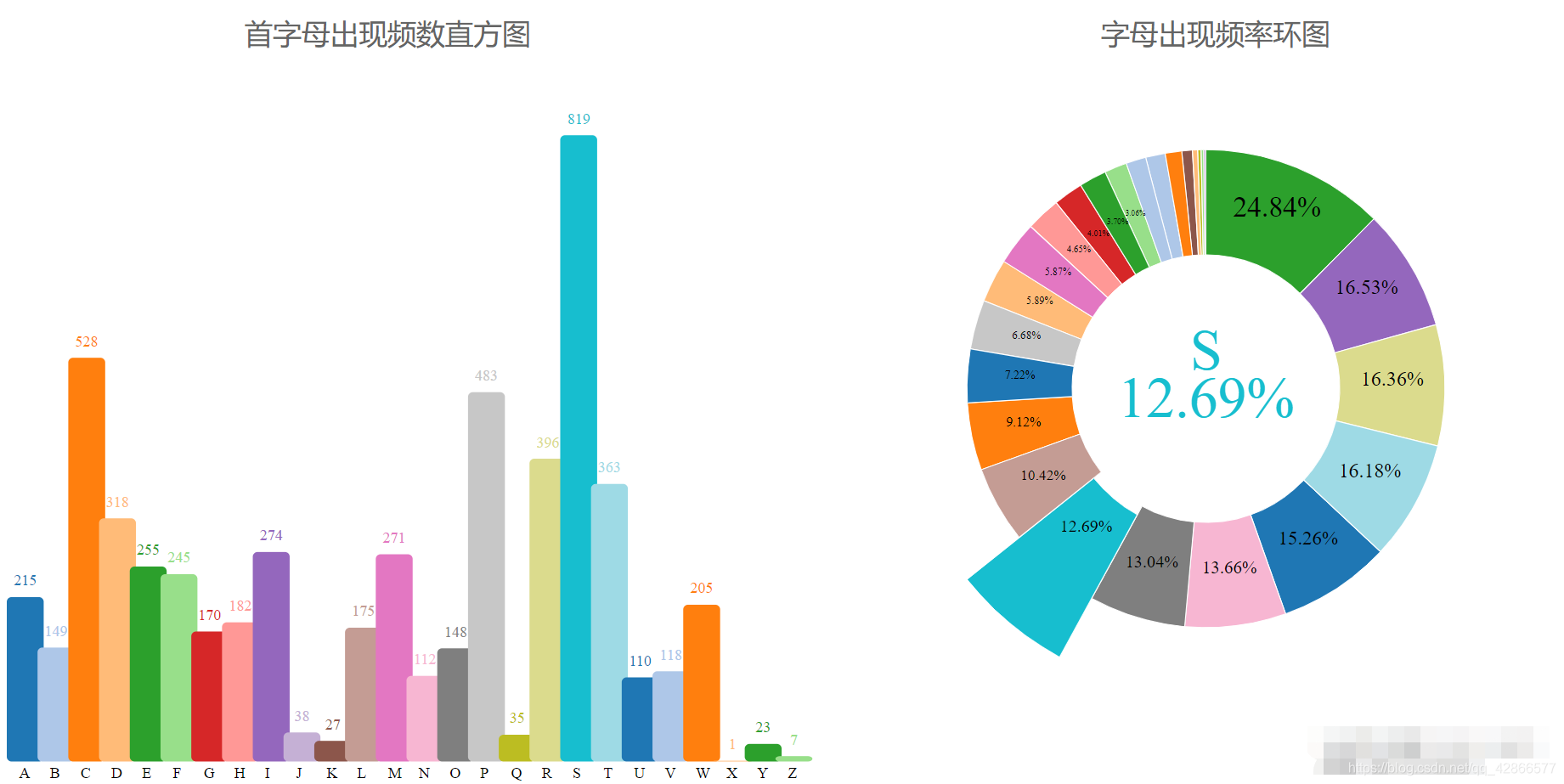

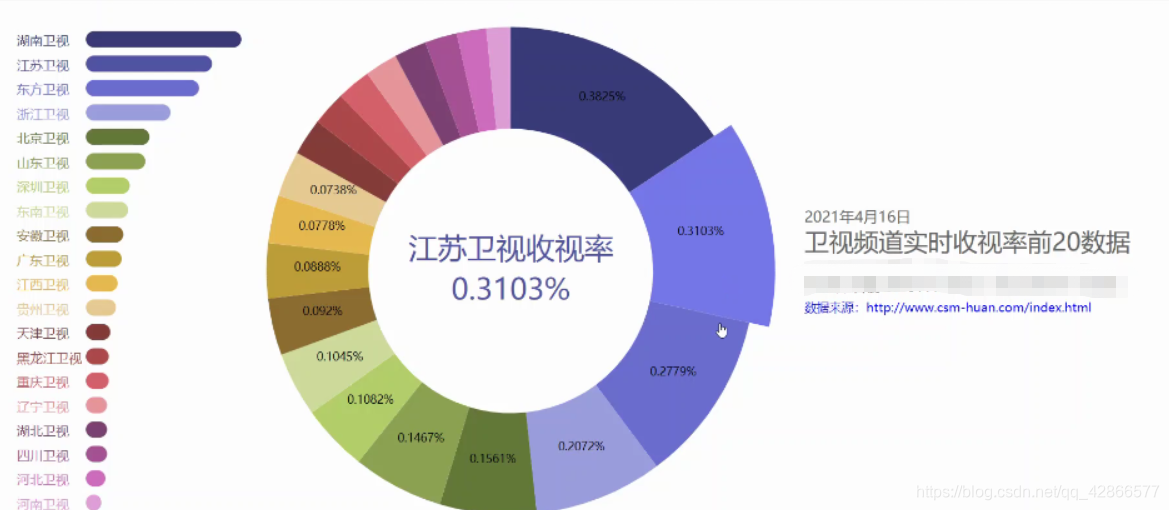

2 综合实验

2.1 实验要求

选择小组感兴趣的主题数据，主要使用直方图和饼图，设计实现可视化作品，考虑数据质量，色彩，交互，布局。

2.2 代码

<html>
<head>
    <meta http-equiv="Content-Type" content="text/html" ; charset="utf-8"><!--字符集是utf-8-->
    <title>环图</title>
</head>
<body>
    <script src="https://d3js.org/d3.v4.min.js"></script>
    <script>
        var w = window.innerWidth || document.documentElement.clientWidth || document.body.clientWidth;
        var h = window.innerHeight || document.documentElement.clientHeight || document.body.clientHeight;
        w = w * 0.98;
        h = h * 0.90;

        var dataset = [["湖南卫视", 0.3825],["江苏卫视", 0.3103], ["东方卫视", 0.2779], ["浙江卫视", 0.2072], ["北京卫视", 0.1561], ["山东卫视", 0.1467],
            ["深圳卫视", 0.1082], ["东南卫视", 0.1045], ["安徽卫视", 0.092], ["广东卫视", 0.0888], ["江西卫视", 0.0778], ["贵州卫视", 0.0738], ["天津卫视", 0.0595],["黑龙江卫视", 0.0554],
            ["重庆卫视", 0.055],["辽宁卫视", 0.0529], ["湖北卫视", 0.0523], ["四川卫视", 0.0519],  ["河北卫视", 0.0478], ["河南卫视", 0.0389]
        ];
        //转化数据为适合生成饼图的对象数组
        var pie = d3.pie()
            .value(function (d) { return d[1]; });
        var width = 600;
        var height = 600;

        var outerRadius = width / 2;//外半径
        var innerRadius = width / 3-25;//圆环内半径

        //用svg的path绘制弧形的内置方法
        var arc = d3.arc()//设置弧度的内外径，等待传入的数据生成弧度
            .outerRadius(outerRadius)
            .innerRadius(innerRadius);
        var arc2 = d3.arc()//设置弧度的内外径，等待传入的数据生成弧度
            .outerRadius(outerRadius+25)
            .innerRadius(innerRadius);

        var svg = d3.select("body")
            .append("svg")
            .attr("width", w)
            .attr("height", h);

        var color = d3.scaleOrdinal(d3.schemeCategory20b);//创建序数比例尺和包括20中颜色的输出范围

        // 开始绘制，先为每个扇形及其对应的文字建立一个分组g
        var arcs = svg.selectAll("g")
            .data(pie(dataset))
            .enter()
            .append("g")
            .attr('cursor', 'pointer')
            //移到图表中心
            .attr("transform", "translate(" + (w / 3+120) + "," + h / 2 + ")");//translate(a,b)a表示横坐标起点，b表示纵坐标起点
        //为组中每个元素绘制弧形路路径
        arcs.append("path")//每个g元素都追加一个path元素用绑定到这个g的数据d生成路径信息
            .attr("fill", function (d, i) {//填充颜色
                return color(i);
            })
            .attr("d", arc)//将角度转为弧度（d3使用弧度绘制
            .on('mouseover', function (d, i) {
                d3.select(this)
                    .attr("fill", d3.rgb(color(i)).brighter())
                    .transition()
                    .attr("d", function (d) {
                        return arc2(d);
                    })
                svg.append("text")
                    .attr("id", "info")
                    .attr("x", width / 2 + 322)
                    .attr("y", height / 2 + 10)
                    .attr("text-anchor", "middle")
                    .attr("font-size", 36)
                    .attr("fill", color(i))
                    .text(d.data[0]+"收视率");
                svg.append("text")
                    .attr("id", "value")
                    .attr("x", width / 2 + 322)
                    .attr("y", height / 2 + 60)
                    .attr("text-anchor", "middle")
                    .attr("font-size", 36)
                    .attr("fill", color(i))
                    .text(d.value + "%");
            })
            .on('mouseout', function (d, i) {
                d3.select(this)
                    .attr("fill", color(i))
                    .transition()
                    .duration(800)
                    .attr("d", function (d) {
                        return arc(d);
                    });
                d3.select("#info")
                    .remove();
                d3.select("#value")
                    .remove();
            });

        //为组中每个元素添加文本
        arcs.append("text")//每个g元素都追加一个path元素用绑定到这个g的数据d生成路径信息
            .attr("transform", function (d) {
                return "translate(" + arc.centroid(d) + ")";//计算每个弧形的中间点
            })
            .attr("text-anchor", "middle")
            .attr("font-size", 14)
            .attr("fill", "black")
            .text(function (d) {
                if (d.value > 0.07)
                return d.value+"%";//这里已经转为对象了
            });

        let label = svg.selectAll('.label')      //添加左侧的标签
            .data(pie(dataset))
            .enter()
            .append('g')
            .attr("transform", "translate(" + (width / 2 + outerRadius * 2) + "," + 10 + ")");
        label.append('rect')        //标签中的矩形
            .attr("fill", function (d, i) {//填充颜色
                return color(i);
            })
            .attr('x', -800)
            .attr("y", function (d, i) {
                return (height - outerRadius-200) / 2 + (i - 1) * 30;
            })
            .attr('rx', '10')     //rx=ry 会出现圆角
            .attr('ry', '10')
            .attr('cursor', 'pointer')
            .attr('width', function (d) {
                return Math.round(d.data[1] * 500);
            })
            .attr('height', 20)
            .on('mouseover', function (d, i) {
                d3.select(this)
                    .attr("fill", d3.rgb(color(i)).brighter())
                svg.append("text")
                    .attr("id", "info")
                    .attr("x", width / 2 + 322)
                    .attr("y", height / 2 + 10)
                    .attr("text-anchor", "middle")
                    .attr("font-size", 36)
                    .attr("fill", color(i))
                    .text(d.data[0] + "收视率");
                svg.append("text")
                    .attr("id", "value")
                    .attr("x", width / 2 + 322)
                    .attr("y", height / 2 + 60)
                    .attr("text-anchor", "middle")
                    .attr("font-size", 36)
                    .attr("fill", color(i))
                    .text(d.value + "%");
            })
            .on('mouseout', function (d, i) {
                d3.select(this)
                    .attr("fill", color(i))
                d3.select("#info")
                    .remove();
                d3.select("#value")
                    .remove();
            });
        label.append("text")
            .attr("x", -885)
            .attr("y", function (d, i) {
                return (height - outerRadius - 165) / 2 + (i - 1) * 30;
            })
            .attr("font-size", 16)
            .attr("fill", function (d, i) {//填充颜色
                return color(i);
            })
            .text(function (d,i) {
                return d.data[0];
            });

    </script>
</body>
</html>

2.2 效果图

在这里插入图片描述

JSP连接数据库

1 基本语法

1.1 加载驱动程序

String driverName="com.mysql.jdbc.Driver";

1.2 定义数据库和数据表

//数据库
String dbName="engword";
//数据表
String tableName="map_enword";

1.3 定义用户名和密码

String userName="root";
String userPasswd="2017";

1.4 建立链接

Class.forName(driverName).newInstance();
Connection connection=DriverManager.getConnection(url);

1.5 陈述&得到回答

Statement statement=connection.createStatement();
String sql="Select * from "+tableName+" order by english";
ResultSet rs=statement.executeQuery(sql);
int count=0;
		while(rs.next())
		{
			count++;
			if (count<10)
				out.print(rs.getString(2)+"<br>");
		}
		out.print(count);
		out.print("<br>");

1.6 关闭链接

rs.close();                                              //数据取完
statement.close();                           //陈述结束
connection.close();                          //断开链接

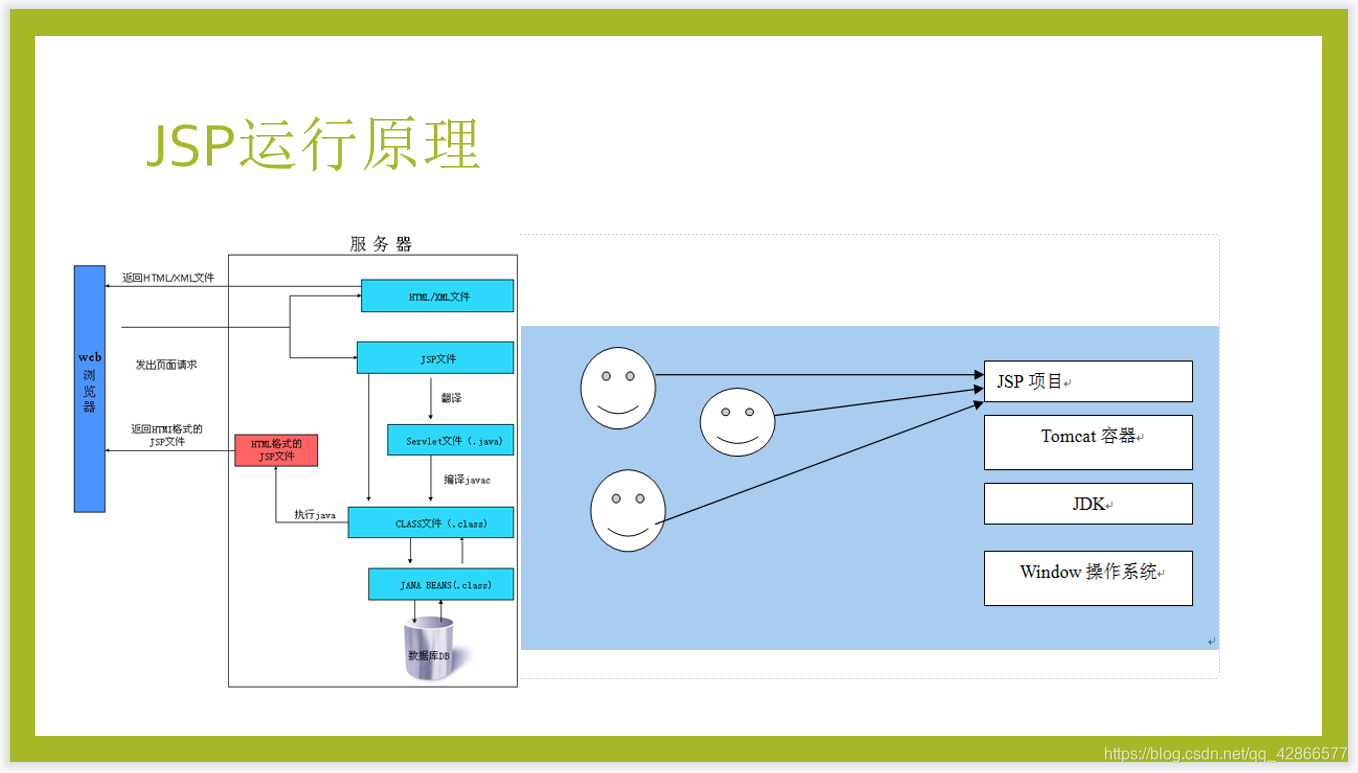

1.7 JSP运行原理

在这里插入图片描述

1.8 JSP 向 js 中传递数组

var dataset =new Array(26);
<%   for(int i=0;i <count.length;i++){   %>
	dataset[ <%=i%> ]= " <%=count[i]%> ";
<%   }   %>

1.9 易错提示

这里我单独写了一篇博客：JSP连接数据库失败的问题

2 综合实验

2.1 要求

链接数据库，可视化英文字母的百分比（饼图），英文首字母的词数（直方图）

2.2 代码

<!DOCTYPE html>
<body>
<div id="wc"></div>
<%@ page contentType="text/html; charset=UTF-8" %>
<%@ page language="java"%>
<%@ page import="com.mysql.cj.jdbc.Driver" %>
<%@ page import="java.sql.*" %>
<%
						//驱动程序名
						String driverName="com.mysql.cj.jdbc.Driver";
						//数据库用户名
						String userName="root";
						//密码
						String userPasswd="******";
						//数据库名
						String dbName="Data_v";
						//表名
						String tableName="map_enword";
						//联结字符串
						String url="jdbc:mysql://localhost:3306/Data_v?useSSL=false&allowPublicKeyRetrieval=true&serverTimezone=UTC";
						Class.forName("com.mysql.cj.jdbc.Driver").newInstance();
						Connection connection=DriverManager.getConnection(url,userName,userPasswd);
						Statement statement = connection.createStatement();

						int count[]=new int[26];
						int count2[]=new int[26];
						for(int i=0;i<26;i++){
							int aa=Integer.valueOf('a')+i;
							char cha = (char) aa;
							//out.print(aa);
							//out.print(cha);

							//String sql="SELECT * FROM "+tableName+" where english like 'a%' "+"order by english";
							String sql="SELECT * FROM "+tableName+" where english like '"+cha+"%' "+"order by english";
							ResultSet rs = statement.executeQuery(sql);
							// 输出每一个数据值

							String str;
							int j=0;
							while(rs.next()) {
								//rs.getString(1)代表取当前行的第1列，也可以直接写列名
								str=(rs.getString("english")).substring(0,1);
								//out.print(str+" ");
								j++;
							}
							count[i]=j;
							//out.print(" "+j+" <br>");
							rs.close();
						}


						//String sql="SELECT * FROM "+tableName+" where english like 'a%' "+"order by english";
						String sq2="SELECT english FROM "+tableName;
						ResultSet rs2 = statement.executeQuery(sq2);
						// 输出每一个数据值

						int j=0;
						String str2;
						while(rs2.next()) {
							for(int i=0;i<26;i++){
								int aa=Integer.valueOf('a')+i;
								char cha = (char) aa;
								int find=0;
								str2=(rs2.getString("english"));
								find=str2.indexOf(cha);
								while(find!=-1){
									count2[i]++;
									find=str2.indexOf(cha,find+1);
								}
							}
						}
						//out.print(" "+j+" <br>");
						rs2.close();
						statement.close();
						connection.close();
%>
<script src="d3.v3.min.js"></script>
		<script>
		    var w=window.innerWidth
|| document.documentElement.clientWidth
|| document.body.clientWidth;

			var h=window.innerHeight
|| document.documentElement.clientHeight
|| document.body.clientHeight;
			w=w*0.98;
			h=h*0.98;
			var color=d3.scale.category20();


			var dataset=new Array(26);
			<%for(int i=0;i<count.length;i++){%>
				dataset[<%=i%>]="<%=count[i]%>";
			<%}%>
			var ww=w/dataset.length;
			var svg=d3.select("body")
			          .append("svg")
					  .attr("width",w)
					  .attr("height",h);

			var rect=svg.selectAll("rect")
			            .data(dataset)
				        .enter()
			            .append("rect")
                          .attr("x",function(d,i){return i*w/2/dataset.length})
						  .attr("y",function(d){return h-d*0.8-20})
						  .attr("rx",'5')
						  .attr("ry",'5')
						  .attr("width",ww/2*1.2)
						  .attr("height",function(d){return d*0.8})
						  .attr("fill",function(d,i){return color(i)})
						  .on('mouseover', function (d, i) {
              					d3.select(this)
                   				.attr("fill", d3.rgb(color((5+i)%20)))

							})
							.on('mouseout', function (d, i) {
               					d3.select(this)
                   				.attr("fill", color(i))
                   				.duration(800)
							})

			svg.selectAll("text")
			.data(dataset)
			.enter()
			.append("text")
            .attr("x",function(d,i){return i*w/2/dataset.length})
			.attr("y",function(d){return h-d*0.8})
            .text(function(d){return d})
			.attr("dx",ww/2*0.6)
			.attr("dy","-2em")
			.attr("text-anchor","middle")
            .attr("fill",function(d,i){return color(i)});

			svg.selectAll("text1")
			.data(dataset)
			.enter()
			.append("text")
            .attr("x",function(d,i){return i*w/2/dataset.length})
			.attr("y",h-3)
            .text(function(d,i){return String.fromCharCode(65+i)})
			.attr("dx",ww/2*0.4)
            .attr("fill","black");

			var width = 600;
        	var height = 600;
			var dataset2=new Array(26);
			<%for(int i=0;i<count2.length;i++){%>
				dataset2[<%=i%>]="<%=count2[i]%>";
			<%}%>
        	var piee=d3.layout.pie()
        	.value(function(d){
            	return d;
        	});
        	//pie()算出来弧度数
        	var piedata=piee(dataset2);
        	//内半径100，外半径300
        	//var arcPath=d3.svg.arc()
        	var arc=d3.svg.arc()
        	.innerRadius(140)
        	.outerRadius(250);
        	//svg需要selectAll
			var arc2=d3.svg.arc()
        	.innerRadius(150)
        	.outerRadius(320);
        	//svg需要selectAll
        	svg.selectAll("path")
        	.data(piedata)
        	.enter()
        	.append("path")
        	//function(d,i) i这里没什么用，d是所有的dataset元素
        	.attr("d",function(d){
            //打印结果，在页面元素的Console里
            //console.log(arcPath(d))
            //打印pie()的输出，弧度数
            //return arcPath(d)
            	return arc(d)
        	})
        	.attr("fill",function(d,i){
				return color(i);
			})
        	.attr("stroke","white")
        	.attr("transform","translate("+w*0.75+","+h/2+")")
			.on('mouseover', function (d, i) {
              	d3.select(this)
                   	.attr("fill", d3.rgb(color(i)))
                   	.transition()
                   	.attr("d", function (d) {
                       	return arc2(d);
                    })
				svg.append("text")
                	.attr("id", "info")
                	.attr("text-anchor", "middle")
                	.attr("font-size", 60)
                	.attr("fill", color(i))
					.attr("transform","translate("+w*0.75+","+(h/2-20)+")")
					.attr("text-anchor","middle")
                	.text(String.fromCharCode(65+i));
            	svg.append("text")
                	.attr("id", "value")
                	.attr("text-anchor", "middle")
                	.attr("font-size", 60)
                	.attr("fill", color(i))
					.attr("transform","translate("+w*0.75+","+(h/2+30)+")")
					.attr("text-anchor","middle")
                	.text(((d.endAngle-d.startAngle)/Math.PI*100).toFixed(2) + "%");
            })
			.on('mouseout', function (d, i) {
               	d3.select(this)
                   	.attr("fill", color(i))
                   	.transition()
                   	.duration(800)
                   	.attr("d", function (d) {
                       	return arc(d);
                   	});
               	d3.select("#info")
                   	.remove();
               	d3.select("#value")
                   	.remove();
			})
        	svg.selectAll("text2")
        	.data(piedata)
        	.enter()
        	.append("text")
        	.attr("fill","black")
			.attr("font-size",function(d){
				return (d.endAngle-d.startAngle)*100/Math.PI+5;
			})
        	.attr("text-anchor","middle")
        	.attr("transform",function(d,i){
            	var x=arc.centroid(d)[0]
            	var y=arc.centroid(d)[1]
            //一定要将表达式放在一对括号里，否则不会显示
            	return "translate("+(w*0.75+x)+","+(h/2+y)+")";
        	})
        	.text(function(d){
				var rate=(d.endAngle-d.startAngle)/Math.PI*100;
				if(rate<=3){
				}
				else{
					return (rate.toFixed(2) + "%");
				}
			});
		//根据，自动换行
		var label="18计科 石璇 201811113023，申汶 201811113018 ";
		var text=svg.append("text")
		.attr("x",w-300)
		.attr("y",h-50)
		.attr("font-size",20)
		.attr("fill", "rgb(100,100,100)");

		var strs = label.split("，") ;
		console.log(strs);
        text.selectAll("tspan")
		.data(strs)
		.enter()
		.append("tspan")
		.attr("x",text.attr("x"))
		.attr("dy","1em")
		.text(function(d){
			return d;
		});

		svg.append("text")
		.attr("x",w/4-170)
		.attr("y",50)
		.attr("fill","black")
		.attr("font-size",30)
		.attr("fill", "rgb(100,100,100)")
		.text("首字母出现频数直方图");

		svg.append("text")
		.attr("x",w*0.75-110)
		.attr("y",50)
		.attr("fill","black")
		.attr("font-size",30)
		.attr("fill", "rgb(100,100,100)")
		.text("字母出现频率环图");
		</script>

</body>

2.3 效果图

在这里插入图片描述

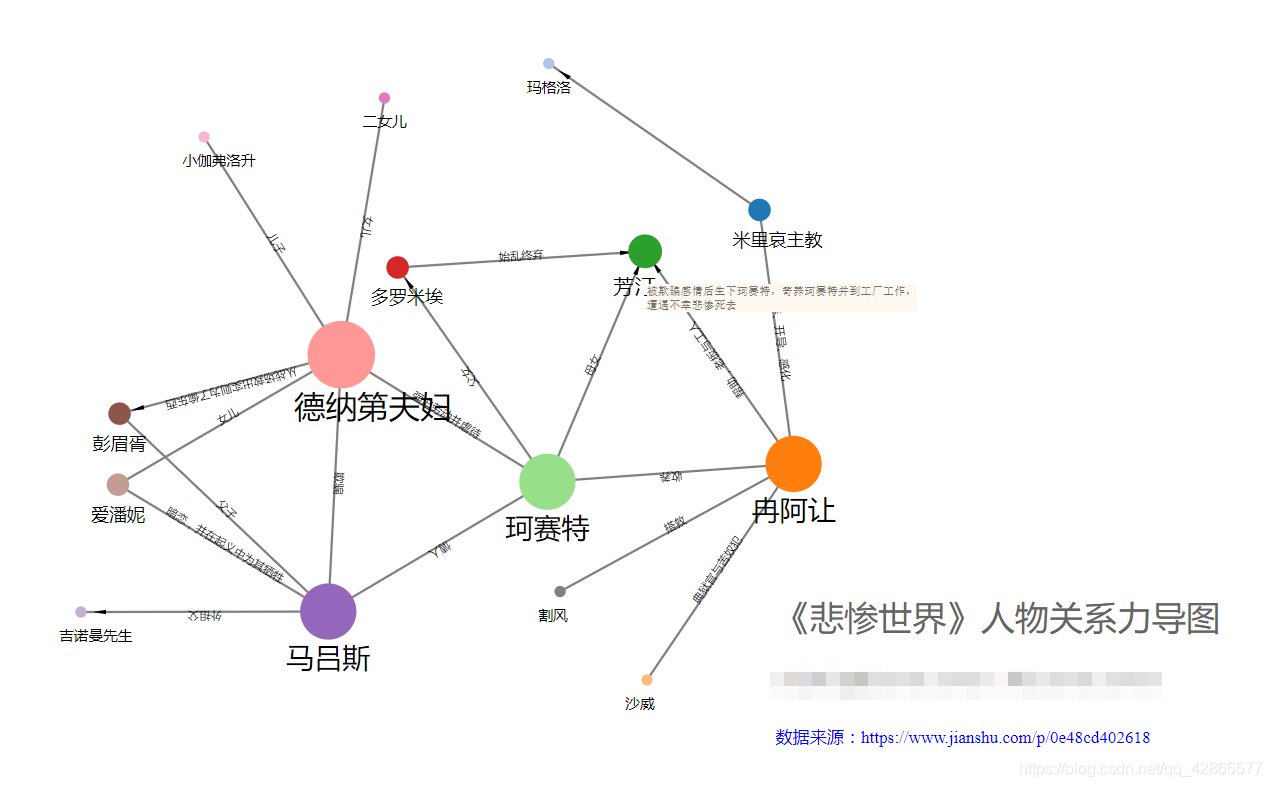

力导向图

1 基本语法

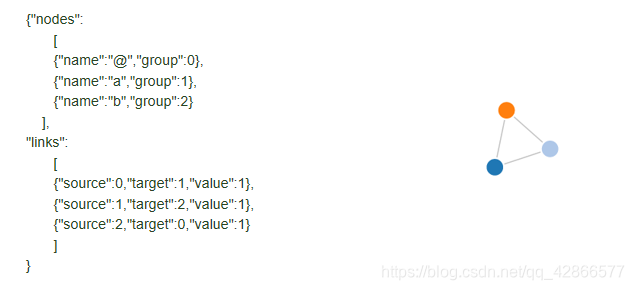

1.1 两种方式

转换为Json格式的文本文件
拼写Json格式字符串

1.2 svg.layout.force数据准备：节点、边

var force=d3.layout.force()
.nodes(nodes)
.links(edges)
.size([width,height])
.linkDistance(200)
.charge(-600) .start();

1.3 添加结点文字

var texts=svg.selectAll(".forceText")
.data(nodes)
.enter()
.append("text")
.attr("class","forceText")
 .attr("x",function(d){return d.x;})
.attr("y",function(d){return d.y;})
.style("stroke", "#336666")
.style("stroke-family","仿宋")
.style("font-size","10px")
.attr("dx","-1.5em")
.attr("dy","1.5em")
.text(function(d){return d.name;});

1.4 添加边文字

var edges_text = svg.selectAll(".linetext")
        .data(edges)
        .enter()
        .append("text")
        .attr("class","linetext")
        .text(function(d){return d.relation;})
        .style("stroke","gray")
        .style("font-size",8);

2 代码

<html>
	<head>
		<meta http-equiv="Content-Type" content="text/html;charset=utf-8">
        <style>
            .tooltip{
				position: absolute;
				width: 240px;
				height: auto;
				font-family: simsun;
				font-size: 10px;
				text-align: left;
				color: rgb(119, 111, 111);
				border-width: 1px solid rgb(245, 241, 241);
				background-color: rgb(253, 249, 238);
				border-radius: 3px;
			}
        </style>
    </head>
	<body>
		<script src="d3.v3.js"></script>
		<script>
            var nodes=[{"name":"米里哀主教","group":0,"describe":"视众生平等，苦众生苦，观众生相"},
		{"name":"玛格洛","group":1},
		{"name":"冉阿让","group":2,"describe":"因偷一块面包被判入狱十九年，出狱后被米里埃主教感化，改名在马德兰当上市长，帮助芳汀、收养珂赛特，战争中放走沙威，被不知真相的马吕斯鄙视遗憾死去"},
		{"name":"沙威","group":3,"describe":"在冉阿让担任玛德兰市长时揭发他，一直追杀冉、沙威，在街堡战争被掳获冉救助，放过冉后自杀"},
		{"name":"芳汀","group":4,"describe":"被欺骗感情后生下珂赛特，寄养珂赛特并到工厂工作，遭遇不幸悲惨死去"},
		{"name":"珂赛特","group":5,"describe":"幼年遭受非人待遇，甘于接受命运安排，勇于追求爱情"},
		{"name":"多罗米埃","group":6},
		{"name":"德纳第夫妇","group":7,"describe":"战后搜刮钱财巧合救了彭眉胥，虐待珂赛特并骗取钱财，利用自己的女儿赚钱，试图敲诈马吕斯"},
		{"name":"马吕斯","group":8,"describe":"共和派，参战被冉阿让救出，钟情于珂赛特"},
		{"name":"吉诺曼先生","group":9,"describe":"影响马吉斯政治态度"},
		{"name":"彭眉胥","group":10,"describe":"幼年收祖父影响误解父亲，父亲死后发现父亲是英雄脱离外祖父独自闯荡，滑铁卢战役男爵"},
		{"name":"爱潘妮","group":11},
		{"name":"二女儿","group":12},
		{"name":"小伽弗洛升","group":13,"describe":"救了一个快冻死的姑娘和两个孩子，街垒战争中做出巨大贡献最终牺牲"},
		{"name":"割风","group":14,"describe":"年轻时被马德兰市长所救，多年后帮助冉逃脱沙威的追捕"}];

        var edges=[{"source":0,"target":1,"value":10,"name":"兄妹"},
		{"source":0,"target":2,"value":10,"name":"收养、开导、感化"},
		{"source":3,"target":2,"value":10,"name":"典狱官与苦奴犯"},
		{"source":2,"target":4,"value":10,"name":"帮助，老板与工人"},
		{"source":2,"target":5,"value":10,"name":"收养"},
		{"source":6,"target":4,"value":10,"name":"始乱终弃"},
		{"source":5,"target":4,"value":10,"name":"母女"},
		{"source":5,"target":6,"value":10,"name":"父女"},
		{"source":7,"target":5,"value":10,"name":"强迫劳动并虐待"},
		{"source":5,"target":8,"value":10,"name":"情人"},
		{"source":8,"target":9,"value":10,"name":"外祖父"},
		{"source":7,"target":8,"value":10,"name":"欺骗"},
		{"source":11,"target":8,"value":10,"name":"暗恋，并在起义中为其牺牲"},
		{"source":10,"target":8,"value":10,"name":"父子"},
		{"source":11,"target":7,"value":10,"name":"女儿"},
		{"source":12,"target":7,"value":10,"name":"女儿"},
		{"source":13,"target":7,"value":10,"name":"儿子"},
		{"source":7,"target":10,"value":10,"name":"从战场救出实则为了偷东西"},
		{"source":14,"target":2,"value":10,"name":"搭救"}];
		    var width=(window.innerWidth||document.documentElement.clientWidth||document.body.clientWidth)*0.98;
		    var height=(window.innerHeight||document.documentElement.clientHeight||document.body.clientHeight)*0.9;

            var color=d3.scale.category20();
			var force = d3.layout.force()
				.nodes(nodes)
				.links(edges)
				.size([width, height])
				.linkDistance(230)
				.charge(-1000)
				.on("tick", tick)
				.start();

			var svg = d3.select("body")
						.append("svg")
						.attr("width", width)
						.attr("height", height);

			svg.append("text")
            .attr("x", function (d, i) {
                return width / 2 + 300 ;
            })
            .attr("y", height-150)
            .text("《悲惨世界》人物关系力导图")
            .attr("fill", "rgb(100,100,100)")
            .style("font-size", "190%");

            //绘制箭头
            var defs = svg.append("defs");
            var radius=10;
			var arrowMarker = defs.append("marker")
									.attr("id","arrow")
									.attr("markerUnits","strokeWidth")
									.attr("markerWidth","6")
									.attr("markerHeight","4")
									.attr("viewBox","0 0 6 4")
									.attr("refX",12+radius/8-2)   //实际是radius/strokeWidth
									.attr("refY",2)
									.attr("orient","auto");

			var arrow_path = "M0,1 L6,2 L0,3 L0,0";

			arrowMarker.append("path")
						.attr("d",arrow_path);

            //提示框部分
		    var tooltip=d3.selectAll("body")
                    .append("div")
                    .attr("class","tooltip")
                    .style("opacity",0.0);
			//用路径创建边
			var path = svg.selectAll("path")
				          .data(edges)
			              .enter()
						  .append("path")
				          .attr("id", function(d,i) {
						       return "edgepath" +i;
				          })
				         .attr("class","edges");

            var link=svg.selectAll(".link")
				            .data(edges)
							.enter()
							.append("line")
							.attr("class","link")
							.attr("stroke","gray")
							.attr("stroke-width",2)
                            .attr("marker-end","url(#arrow)");

			var circle = svg.selectAll("circle")
				            .data(nodes)
			                .enter()
							.append("circle")
				            .attr("r",function(d){return d.weight*5})
							.attr("fill",function(d,i){return color(i);})
				            .call(force.drag)
                            .on("mouseover",function(d,i){
                                tooltip.html(d.describe)
                               .style("left",(d3.event.pageX)+"px")
                               .style("top",(d3.event.pageY+20)+"px")
                               .style("opacity",1.0);
                            })
                            .on("mouseout",function(d,i){
                                tooltip.style("opacity",0.0);
                            });

			var nodetext = svg.selectAll(".nodeText")
				          .data(nodes)
			              .enter()
						  .append("text")
                          .attr("font-size",function(d,i){
                              return d.weight*3+10;
                          })
						  .attr("class","nodeText")
						  .attr("x",function(d){return d.x;})
						  .attr("y",function(d){return d.y;})
						  .attr("dx","-1.5em")
						  .attr("dy","2em")
						  .text(function(d) { return d.name; });

			var pathtext = svg.selectAll('g')
				              .data(edges)
				              .enter()
							  .append("text")
                              .attr("font-size","10")
							  .append('textPath')
							  .attr("text-anchor", "middle")//居中
						      .attr("startOffset","50%")
							  .attr('xlink:href', function(d,i) { return "#edgepath" + i; })
							  .text(function(d) { return d.name; });

			function tick() {
			  path.attr("d", function(d) {
					var dx = d.target.x - d.source.x;//增量
					var	dy = d.target.y - d.source.y;
					return "M" + d.source.x + ","+ d.source.y + "L" + d.target.x + "," + d.target.y;
				  });
			  circle.attr("transform", function(d) {
				return "translate(" + d.x + "," + d.y + ")";
			  });
			  nodetext.attr("x",function(d){return d.x;});
			  nodetext.attr("y",function(d){return d.y;});
              link.attr("x1",function(d){return d.source.x})
					    .attr("y1",function(d){return d.source.y})
					    .attr("x2",function(d){return d.target.x})
					    .attr("y2",function(d){return d.target.y});
			}

		</script>
	</body>
</html>

3 效果图

在这里插入图片描述

词云图

1 内容

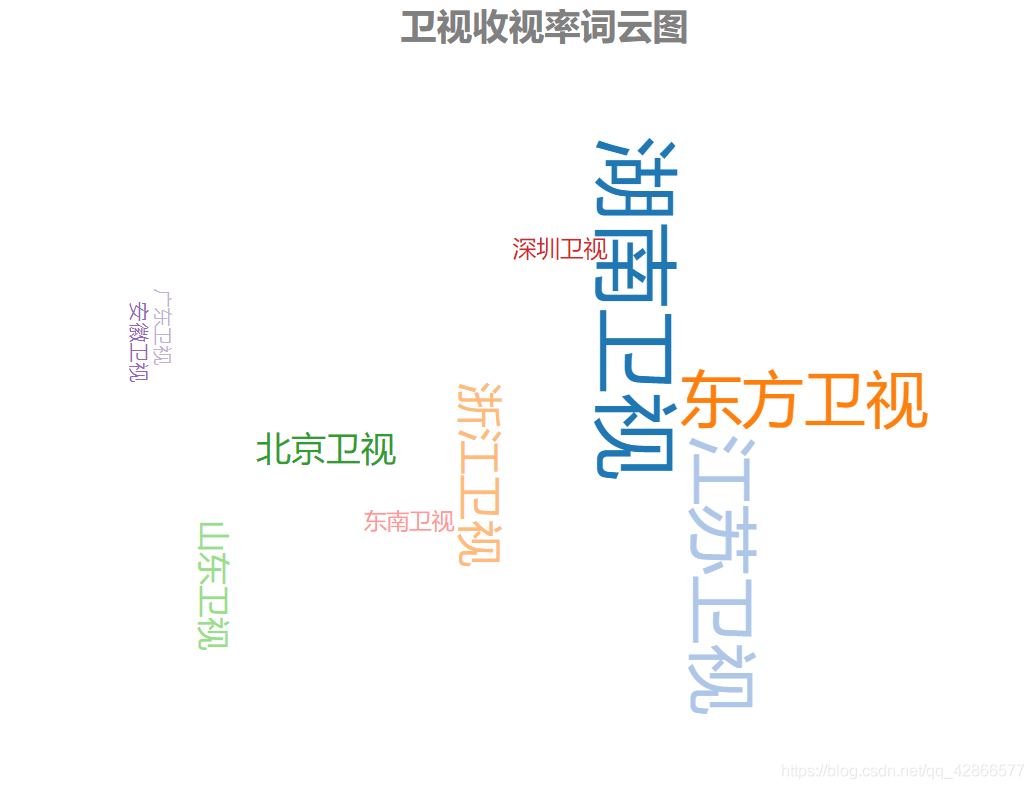

连接数据库卫视收视率词云图可视化

2 代码

<!DOCTYPE html>
<body>
<div id="wc"></div>
<%@ page contentType="text/html; charset=UTF-8" %>
<%@ page language="java"%>
<%@ page import="com.mysql.cj.jdbc.Driver" %>
<%@ page import="java.sql.*" %>
<%
                        out.print("<center><h1><font color=grey>卫视收视率词云图</h1></center>");
						//驱动程序名
						String driverName="com.mysql.cj.jdbc.Driver";
						//数据库用户名
						String userName="root";
						//密码
						String userPasswd="******";
						//数据库名
						String dbName="mydata";
						//表名
						String tableName="startvratings";
						//联结字符串
						String url="jdbc:mysql://localhost:3306/mydata?useSSL=false&allowPublicKeyRetrieval=true&serverTimezone=UTC";
						Class.forName("com.mysql.cj.jdbc.Driver").newInstance();
						Connection connection=DriverManager.getConnection(url,userName,userPasswd);
						Statement statement = connection.createStatement();

						String tv[]=new String[10];
						double ratings[]=new double[10];
						//String sql="SELECT * FROM "+tableName+" where english like 'a%' "+"order by english";
						String sql="SELECT * FROM "+tableName;
						ResultSet rs = statement.executeQuery(sql);
						String str;
						for(int i=0;i<10&&rs.next();i++){
							tv[i]=rs.getString(2);
							//out.print(tv[i]);
							str=rs.getString(3);
							ratings[i]=Double.valueOf(str).doubleValue();//将String类型转换成Double类型
							//out.print(ratings[i]);
						}
						rs.close();
						statement.close();
						connection.close();
%>
	<script src="d3.v3.min.js"></script>
	<script src="d3.layout.cloud.js"></script>
	<script>
        var w=window.innerWidth||document.documentElement.clientWidth||document.body.clientWidth;
        var h=window.innerHeight||document.documentElement.clientHeight||document.body.clientHeight;
        w=w*0.98;
        h=h*0.9;
		 var fill = d3.scale.category20();
		 var datas = new Array(10);
		 var temp = new Array();//定义一个字典
		 <%for(int i=0;i<10;i++){ %>
				 temp={text:"<%=tv[i]%>",size:<%=ratings[i]%>};
				 //console.log(temp);
				 datas[<%=i%>]=temp;
		  <%}%>
		//console.log(datas);
		var wc=d3.layout.cloud()
				  .size([w, h])
				  .words(datas)
				  .padding(0)
				  .rotate(function() { return ~~(Math.random()*2)*90; })
				  .font("Impact")
				  .fontSize(function(d) { return ((d.size*1000)/5); })
				  .on("end", draw)//布局结束以后调用draw
				  .start();

		  function draw(datas) {
			d3.select("body").append("svg")
				.attr("width", w)
				.attr("height", h)
			  .append("g")
				.attr("transform", "translate(300,200)")
			  .selectAll("text")
				.data(datas)
			  .enter().append("text")
				.style("font-size", function(d) { return (d.size) + "px"; })
				.style("font-family", "Impact")
				.style("fill", function(d, i) { return fill(i); })
				.attr("text-anchor", "middle")
				.attr("transform", function(d) {
				  return "translate(" + [(w/5+d.x), (h/5+d.y)] + ")rotate(" + d.rotate + ")";//d.x和d.y是layout算出来的
				})
				.text(function(d) { return d.text; });
		  }
	</script>

	</body>
</html>
