k8s - pod compute resource

Resource requests and limits of Pod and Container

Each Container of a Pod can specify one or more of the following:

spec.containers[].resources.limits.cpu
spec.containers[].resources.limits.memory
spec.containers[].resources.limits.hugepages-
spec.containers[].resources.requests.cpu
spec.containers[].resources.requests.memory
spec.containers[].resources.requests.hugepages-

Meaning of CPU

CPU 资源的限制和请求以 cpu 为单位。

Kubernetes 中的一个 cpu 等于：

• 1 AWS vCPU
• 1 GCP Core
• 1 Azure vCore
• 1 Hyperthread 在带有超线程的裸机 Intel 处理器上
  允许浮点数请求。具有 spec.containers[].resources.requests.cpu 为 0.5 的容器保证了一半 CPU 要求 1 CPU的一半。表达式 0.1 等价于表达式 100m，可以看作 “100 millicpu”。有些人说成是“一百毫 cpu”，其实说的是同样的事情。具有小数点（如 0.1）的请求由 API 转换为100m，精度不超过 1m。因此，可能会优先选择 100m 的形式。

CPU 总是要用绝对数量，不可以使用相对数量；0.1 的 CPU 在单核、双核、48核的机器中的意义是一样的。

Meaning of memory

内存的限制和请求以字节为单位。您可以使用以下后缀之一作为平均整数或定点整数表示内存：E，P，T，G，M，K。您还可以使用两个字母的等效的幂数：Ei，Pi，Ti ，Gi，Mi，Ki。例如，以下代表大致相同的值：

128974848, 129e6, 129M, 123Mi
下面是个例子。

以下 Pod 有两个容器。每个容器的请求为 0.25 cpu 和 64MiB（226 字节）内存，每个容器的限制为 0.5 cpu 和 128MiB 内存。您可以说该 Pod 请求 0.5 cpu 和 128 MiB 的内存，限制为 1 cpu 和 256MiB 的内存。

apiVersion: v1
kind: Pod
metadata:
  name: frontend
spec:
  containers:
  - name: db
    image: mysql
    env:
    - name: MYSQL_ROOT_PASSWORD
      value: "password"
    resources:
      requests:
        memory: "64Mi"
        cpu: "250m"
      limits:
        memory: "128Mi"
        cpu: "500m"
  - name: wp
    image: wordpress
    resources:
      requests:
        memory: "64Mi"
        cpu: "250m"
      limits:
        memory: "128Mi"
        cpu: "500m"

具有资源请求的 Pod 如何调度

When you create a Pod, the Kubernetes scheduler selects a node for the Pod to run on. Each node has a maximum capacity for each of the resource types: the amount of CPU and memory it can provide for Pods. The scheduler ensures that, for each resource type, the sum of the resource requests of the scheduled Containers is less than the capacity of the node. Note that although actual memory or CPU resource usage on nodes is very low, the scheduler still refuses to place a Pod on a node if the capacity check fails. This protects against a resource shortage on a node when resource usage later increases, for example, during a daily peak in request rate.

具有资源限制的 Pod 如何运行

When the kubelet starts a Container of a Pod, it passes the CPU and memory limits to the container runtime.

When using Docker:

The spec.containers[].resources.requests.cpu

is converted to its core value, which is potentially fractional, and multiplied by 1024. The greater of this number or 2 is used as the value of the –cpu-shares flag in the docker run command.

这里切docker 相关参数的说明文档，简单来说，request CPU可以决定比例，sum则决定Node CPU的容量

CPU share constraint
By default, all containers get the same proportion of CPU cycles. This proportion can be modified by changing the container’s CPU share weighting relative to the weighting of all other running containers.

To modify the proportion from the default of 1024, use the -c or --cpu-shares flag to set the weighting to 2 or higher. If 0 is set, the system will ignore the value and use the default of 1024.

The proportion will only apply when CPU-intensive processes are running. When tasks in one container are idle, other containers can use the left-over CPU time. The actual amount of CPU time will vary depending on the number of containers running on the system.

For example, consider three containers, one has a cpu-share of 1024 and two others have a cpu-share setting of 512. When processes in all three containers attempt to use 100% of CPU, the first container would receive 50% of the total CPU time. If you add a fourth container with a cpu-share of 1024, the first container only gets 33% of the CPU. The remaining containers receive 16.5%, 16.5% and 33% of the CPU.

On a multi-core system, the shares of CPU time are distributed over all CPU cores. Even if a container is limited to less than 100% of CPU time, it can use 100% of each individual CPU core.

For example, consider a system with more than three cores. If you start one container {C0} with -c=512 running one process, and another container {C1} with -c=1024 running two processes, this can result in the following division of CPU shares:

PID    container	CPU	CPU share
100    {C0}		0	100% of CPU0
101    {C1}		1	100% of CPU1
102    {C1}		2	100% of CPU2

The spec.containers[].resources.limits.cpu

is converted to its millicore value and multiplied by 100. The resulting value is the total amount of CPU time that a container can use every 100ms. A container cannot use more than its share of CPU time during this interval.

Note: The default quota period is 100ms. The minimum resolution of CPU
quota is 1ms.

limit CPU，直接决定周期内可使用的CPU时间片

The spec.containers[].resources.limits.memory

is converted to an integer, and used as the value of the --memory flag in the docker run command.

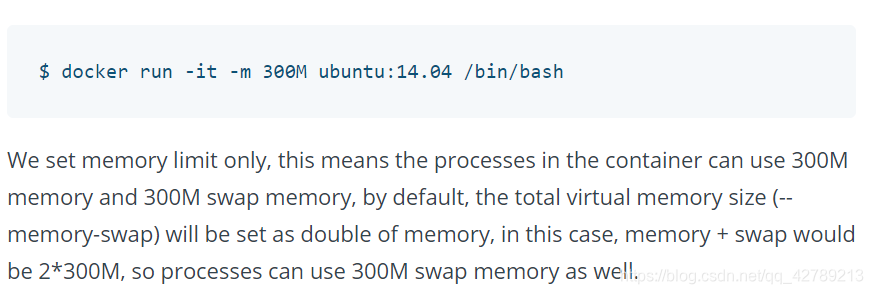

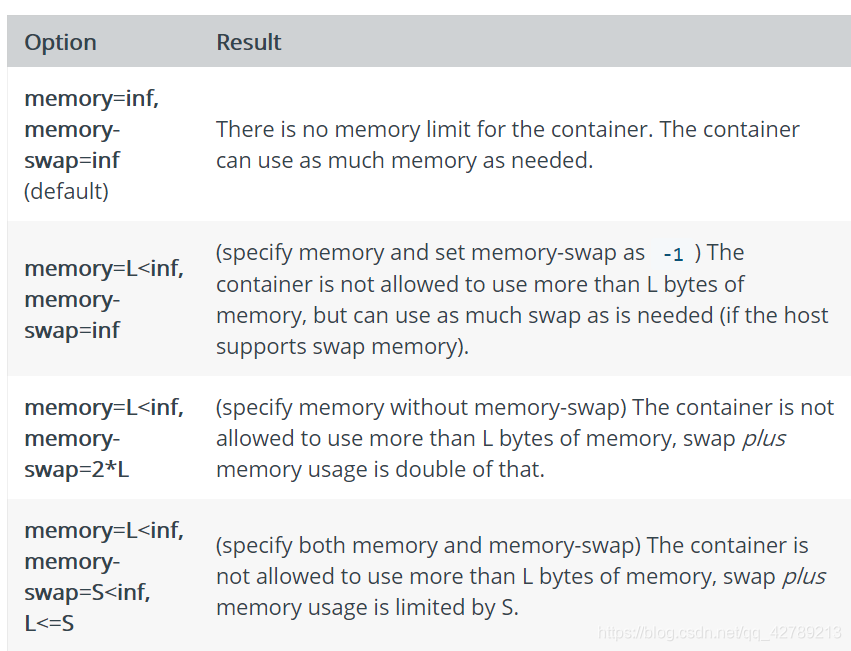

limit memory，传递到docker命令，文档如下，行为是超过该值会被docker杀死。这里关于memory还有一些点，docker内想看真实内存要看/sys/fs/cgroup/memory/memory.limit_in_bytes.free命令看到的是整个宿主机的内存，如果docker中的应用会进行内存操作，需要用合适的配置告诉应用实际内存值。


Kubernetes enforces swap to be disabled since 1.8.因此不能认为有默认2倍的swap。
If a Container exceeds its memory limit, it might be terminated. If it is restartable, the kubelet will restart it, as with any other type of runtime failure.

If a Container exceeds its memory request, it is likely that its Pod will be evicted whenever the node runs out of memory.
request memory的作用，当超过内存重启时，换一个node

A Container might or might not be allowed to exceed its CPU limit for extended periods of time. However, it will not be killed for excessive CPU usage.

To determine whether a Container cannot be scheduled or is being killed due to resource limits, see the Troubleshooting section.

监控计算资源使用

kubectl top pod/node
