FastDFS分布式文件系统搭建

于 2020-04-22 00:32:01 发布
阅读量278 收藏 1
点赞数 1
分类专栏： 文件系统
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.youkuaiyun.com/qq_42761527/article/details/105650559
版权

目录

一.实验环境

二.集群部署

所有节点安装libfastcommon服务

所有节点安装FasDFS服务

配置storage存储端

在storage存储端安装nginx模块

在storage配置client

三.集群测试（client）

一.实验环境

角色IP地址安装的软件包
tracker（跟踪器）192.168.43.101/24libfastcommon、fastd
storage（存储器）192.168.43.102/24libfastcommon、fastd、nginx、

 fastdfs-nginx-module

二.集群部署

所有节点安装libfastcommon服务

  • 设置基础环境
hostnamectl set-hostname tracker/storage
su
#关闭防火墙和核心防护
systemctl stop firewalld
setenforce 0
  • 安装环境依赖包
yum -y install libevent  libevent-devel perl  \
make gcc zlib  zlib-devel pcre pcre-devel  \
gcc-c++  openssl-devel

  • 安装libfastcommon

wget https://github.com/happyfish100/libfastcommon/archive/V1.0.38.tar.gz
 tar zxf V1.0.38.tar.gz -C /opt/
cd /opt/libfastcommon-1.0.38/

  • 编译安装

./make.sh && ./make.sh install

  • 建立软件链接，便于系统识别

ln -s /usr/lib64/libfastcommon.so /usr/local/lib/libfastcommon.so
ln -s /usr/lib64/libfdfsclient.so /usr/local/lib/libfdfsclient.so
ln -s /usr/lib64/libfdfsclient.so /usr/lib/libfdfsclient.so

所有节点安装FasDFS服务

  • 安装fastDFS
wget https://github.com/happyfish100/fastdfs/archive/V5.11.tar.gz
 tar zxf V5.11.tar.gz -C /opt/
cd /opt/fastdfs-5.11/
#编译安装
./make.sh && ./make.sh install
  • 复制模板文件
#切换配置文件模板路径
cd /etc/fdfs/
cp tracker.conf.sample tracker.conf        //客户端上传配置文件
cp storage.conf.sample storage.conf        //文件存储服务器配置文件
cp client.conf.sample client.conf            //跟踪服务器配置文件

配置tracker跟踪端

  • 建立数据文件、日志文件存储目录
#-m指定文件权限
[root@tracker ~]# mkdir -m 755 -p /opt/fastdfs
  • 修改tracker的配置文件
[root@tracker ~]# vi /etc/fdfs/tracker.conf
port=22122         //tracker服务默认端口22122即可

base_path=/opt/fastdfs      //tracker存储data和log的跟路径，必须提前创建好

http.server_port=8080     //tracker服务器上启动http服务进程
  • 开启服务器并且设置开启自启
[root@tracker ~]# fdfs_trackerd /etc/fdfs/tracker.conf start

[root@tracker ~]# netstat -natp | grep 22122
tcp        0      0 0.0.0.0:22122           0.0.0.0:*               LISTEN      2616/fdfs_trackerd

[root@tracker ~]# vi /etc/rc.local
#末行添加
fdfs_trackerd   /etc/fdfs/tracker.conf start

配置storage存储端

  • 建立数据、日志文件存储目录
[root@storage ~]# mkdir -m 755 -p /opt/fastdfs
  • 编辑storage配置文件
vim /etc/fdfs/storage.conf

group_name=group1
#默认组名，根据实际情况修改，一个group内可以有多个storage

port=23000
#storge默认23000，同一个组的storage端口号必须一致

base_path=/opt/fastdfs
#storage日志文件的根路径

store_path_count=1
#与下面路径个数相同，默认为1

store_path0=/opt/fastdfs
#提供的存储路径（默认与日志文件存放在一起）

tracker_server=192.168.45.101:22122
#tracker服务器IP

http.server_port=80
#http访问文件的端口默认为8888，nginx中配置的监听端口保持一致
  • 开启服务并且设置开启自启
[root@storage ~]# fdfs_storaged  /etc/fdfs/storage.conf start


[root@storage ~]# netstat -atnp | grep 23000
tcp        0      0 0.0.0.0:23000           0.0.0.0:*               LISTEN      2468/fdfs_storaged
[root@storage ~]#
  • 检查storage是否与tracker端关联成功
[root@storage ~]# fdfs_monitor /etc/fdfs/storage.conf
[2020-04-22 00:13:31] DEBUG - base_path=/opt/fastdfs, connect_timeout=30, network_timeout=60, tracker_server_count=1, anti_steal_token=0, anti_steal_secret_key length=0, use_connection_pool=0, g_connection_pool_max_idle_time=3600s, use_storage_id=0, storage server id count: 0

server_count=1, server_index=0

tracker server is 192.168.43.101:22122

group count: 1

Group 1:
group name = group1
disk total space = 10230 MB
disk free space = 5427 MB
trunk free space = 0 MB
storage server count = 1
active server count = 1
storage server port = 23000
storage HTTP port = 80
store path count = 1
subdir count per path = 256
current write server index = 0
current trunk file id = 0

	Storage 1:
		id = 192.168.43.102
		ip_addr = 192.168.43.102 (storage)  ACTIVE
		http domain =
		version = 5.11
		join time = 2020-04-21 21:48:49
		up time = 2020-04-21 21:48:49
		total storage = 10230 MB
		free storage = 5427 MB
		upload priority = 10
		store_path_count = 1
		subdir_count_per_path = 256
		storage_port = 23000
		storage_http_port = 80
		current_write_path = 0
		source storage id =
		if_trunk_server = 0
		connection.alloc_count = 256
		connection.current_count = 0
		connection.max_count = 1
		total_upload_count = 2
		success_upload_count = 2
		total_append_count = 0
		success_append_count = 0
		total_modify_count = 0
		success_modify_count = 0
		total_truncate_count = 0
		success_truncate_count = 0
		total_set_meta_count = 0
		success_set_meta_count = 0
		total_delete_count = 2
		success_delete_count = 2
		total_download_count = 0
		success_download_count = 0
		total_get_meta_count = 0
		success_get_meta_count = 0
		total_create_link_count = 0
		success_create_link_count = 0
		total_delete_link_count = 0
		success_delete_link_count = 0
		total_upload_bytes = 811380
		success_upload_bytes = 811380
		total_append_bytes = 0
		success_append_bytes = 0
		total_modify_bytes = 0
		success_modify_bytes = 0
		stotal_download_bytes = 0
		success_download_bytes = 0
		total_sync_in_bytes = 0
		success_sync_in_bytes = 0
		total_sync_out_bytes = 0
		success_sync_out_bytes = 0
		total_file_open_count = 2
		success_file_open_count = 2
		total_file_read_count = 0
		success_file_read_count = 0
		total_file_write_count = 4
		success_file_write_count = 4
		last_heart_beat_time = 2020-04-22 00:13:27
		last_source_update = 2020-04-21 23:13:15
		last_sync_update = 1970-01-01 08:00:00
		last_synced_timestamp = 1970-01-01 08:00:00
[root@storage ~]#

在storage存储端安装nginx模块

  • 编译安装nginx和fastdfs-nginx-module
[root@storage]# tar zxvf nginx-1.12.0.tar.gz -C /opt
[root@storage]# tar zxvf fastdfs-nginx-module-1.20.tar.gz -C /opt


# 修改/opt/fastdfs-nginx-module-1.20/src/config文件
[root@storage fastDFS]# vim /opt/fastdfs-nginx-module-1.20/src/config
ngx_module_incs="/usr/include/fastdfs /usr/include/fastcommon/"
CORE_INCS="$CORE_INCS /usr/include/fastdfs /usr/include/fastcommon/"


#编译安装
cd /opt/nginx-1.12.0/
[root@storage nginx-1.12.0]# ./configure \
--prefix=/usr/local/nginx \
--add-module=/opt/fastdfs-nginx-module-1.20/src/            //添加模块

make && make install

##复制模块
[root@storage nginx-1.12.0]# cd /opt/fastdfs-nginx-module-1.20/src
[root@storage src]# cp mod_fastdfs.conf /etc/fdfs/

#修改fastdfs-nginx-module模块配置文件mod-fasts.conf
[root@storage src]# cd /etc/fdfs/
[root@storage fdfs]# vim mod_fastdfs.conf
#检查一下配置
base_path=/opt/fastdfs         //存放数据文件、日志的路径
tracker_server=192.168.45.101:22122    //tracker端的地址和端口
url_have_group_name = true  //url是否包含group名称
storage_server_port=23000           //需要和storage配置的相同
store_path_count=1              //存储路径个数，需要和store_path个数匹配
store_path0=/opt/fastdfs               //文件存储的位置

#修改nginx配置文件
[root@storage fdfs]# vim /usr/local/nginx/conf/nginx.conf
#server中空行处添加
location ~/M00 {
                root /opt/fastdfs/data;
                ngx_fastdfs_module;
}
#创建软链接
[root@storage fdfs]# ln -s /usr/local/nginx/sbin/nginx /usr/local/sbin/

#检测nginx的配置
[root@storage fdfs]# nginx -t
ngx_http_fastdfs_set pid=5285
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful
[root@storage fdfs]# nginx
ngx_http_fastdfs_set pid=5286
[root@storage fdfs]# netstat -natp | grep nginx
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      5287/nginx: master


#拷贝fastdfs解压目录中的http.conf和mime.types不做这步可能会导致报错
[root@storage fdfs]# cd /opt/fastdfs-5.11/conf/
[root@storage conf]# cp mime.types http.conf /etc/fdfs/

在storage配置client

  • 正常集群中我们可以再开一台虚拟机作为client，本实验直接使用storage充当client
vim /etc/fdfs/client.conf
base_path=/opt/fastdfs
#tracker服务器文件路径

tracker_server=192.168.43.101:22122
#tracker服务器IP地址和端口号

http.tracker_server_port=8080
#tracker服务器的http端口号，必须和tracker的设置对应起来
#tracker服务器中的/etc/fdfs/tracker.conf的http.server_port=8080

三.集群测试（client）

  • 上传文件
[root@storage ~]# ls
1.gif  anaconda-ks.cfg      fastdfs-nginx-module-1.20.tar.gz  libfastcommon-1.0.39.tar.gz  公共  视频  文档  音乐
1.jpg  fastdfs-5.11.tar.gz  initial-setup-ks.cfg              nginx-1.12.0.tar.gz          模板  图片  下载  桌面
[root@storage ~]# /usr/bin/fdfs_upload_file /etc/fdfs/client.conf 1.jpg
group1/M00/00/00/wKgrZl6fHp6AEXeNAAB-Lk5Q1rw893.jpg
[root@storage ~]#

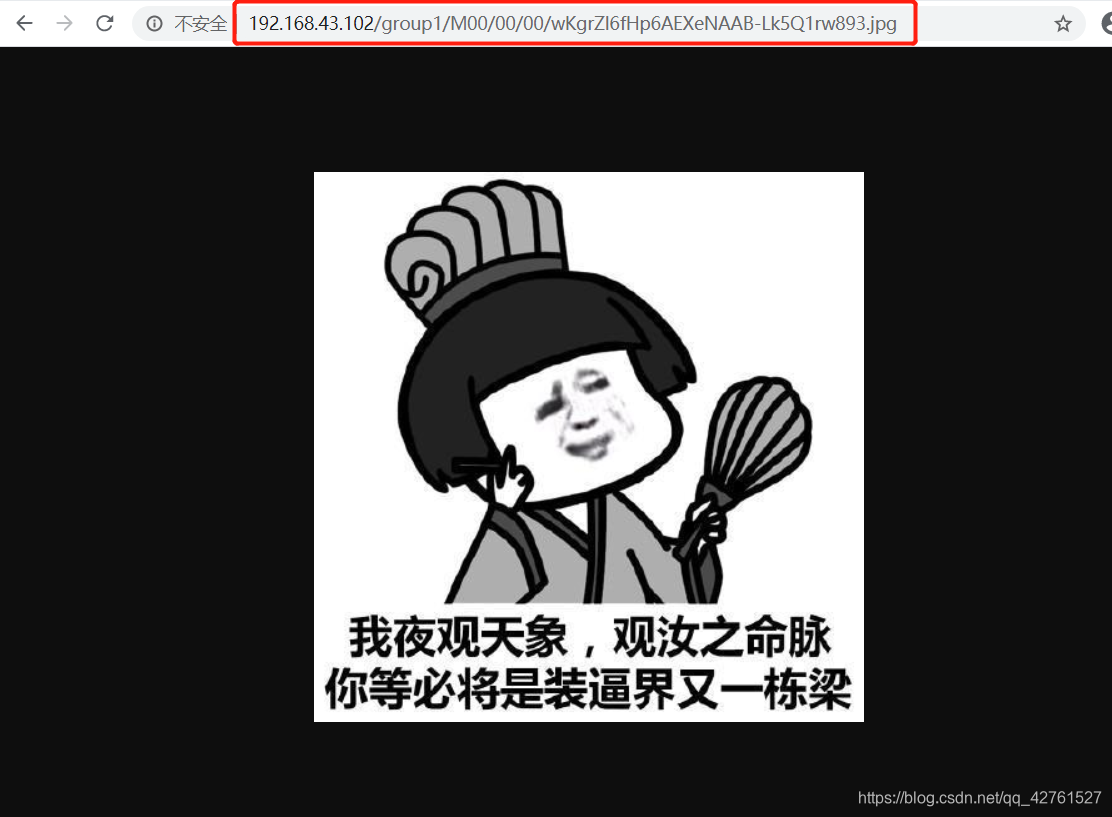

  • 测试结果

  • 下载文件
[root@storage ~]# ls
anaconda-ks.cfg      fastdfs-nginx-module-1.20.tar.gz  libfastcommon-1.0.39.tar.gz  公共  视频  文档  音乐
fastdfs-5.11.tar.gz  initial-setup-ks.cfg              nginx-1.12.0.tar.gz          模板  图片  下载  桌面
[root@storage ~]# /usr/bin/fdfs_download_file /etc/fdfs/client.conf group1/M00/00/00/wKgrZl6fHp6AEXeNAAB-Lk5Q1rw893.jpg download.jpg
[root@storage ~]# ls
anaconda-ks.cfg  fastdfs-5.11.tar.gz               initial-setup-ks.cfg         nginx-1.12.0.tar.gz  模板  图片  下载  桌面
download.jpg     fastdfs-nginx-module-1.20.tar.gz  libfastcommon-1.0.39.tar.gz  公共                 视频  文档  音乐
[root@storage ~]#
  • 删除文件
[root@storage ~]# /usr/bin/fdfs_delete_file /etc/fdfs/client.conf group1/M00/00/00/wKgrZl6fHp6AEXeNAAB-Lk5Q1rw893.jpg
[root@storage ~]#
