该文章展示了如何使用WebSocket进行实时通信，客户端通过SockJS和STOMP库建立连接，并订阅服务端的/topic和/user话题。服务端使用SpringBoot的WebSocket功能，配置消息代理和拦截器，处理客户端连接和断开，并通过SimpMessagingTemplate发送消息。此外，还涉及到了Nginx的配置以支持WebSocket协议。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

客户端

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN">
<html>
<head>
    <title>websocket client</title>
	<script src="http://cdn.bootcss.com/sockjs-client/1.1.1/sockjs.min.js"></script>
    <script src="http://cdn.bootcss.com/stomp.js/2.3.3/stomp.js"></script>
    <script src="http://cdn.bootcss.com/jquery/3.1.1/jquery.min.js"></script>
    <script type="text/javascript">
	var stompClient = null;
    //加载完浏览器后  调用connect（），打开双通道
    $(function(){
    //打开双通道
    connect()
    })
    //强制关闭浏览器  调用websocket.close（）,进行正常关闭
    window.onunload = function() {
        disconnect()
    }
    function connect(){
	    // 当前登录的用户id
        var userId="4a85f897fc48360be1f8e6abeec40c16";
		//连接SockJS的endpoint名称为"webSocket"
        var socket = new SockJS('http://xxx.xxx.xxx.xxx:8080/webSocket');
		//使用STMOP子协议的WebSocket客户端
        stompClient = Stomp.over(socket);
		// socket 链接传递 Authorization:token 信息
		var headers={
			"Authorization": "token"
		}
		//
		var testMsg = JSON.stringify({'message':'Hello WebSocket!','userId':userId});
		//连接WebSocket服务端
        stompClient.connect(headers,function(frame){
            console.log('Connected:' + frame);
            //通过stompClient.subscribe订阅/topic/getResponse 目标(destination)发送的消息
            stompClient.subscribe('/user/'+userId+'/single/ip',function(response){
				console.log("点对点消息");
				console.log(response);
                var message=JSON.parse(response.body);
                console.log(message);
				showResponse(message);
            });
			 stompClient.subscribe('/topic',function(response){
				console.log("订阅消息");
				console.log(response);
                var message=JSON.parse(response.body);
                console.log(message);
            });
            // 客户端给服务端发送消息
			stompClient.send("/app/testSendMsg",{},testMsg);
        });
    }
    //关闭双通道
    function disconnect(){
        if(stompClient != null) {
            stompClient.disconnect();
        }
        console.log("Disconnected");
    }
    function showResponse(message){
        var response = $("#response");
		var msg = JSON.parse(message.responseMessage);
        response.append("<p>只有userID为"+msg.userId+"的人才能收到</p>");
    }
    </script>
</head>
<body>
    <pre id="response"></pre>
</body>
</html>

服务端

pom

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-websocket</artifactId>
</dependency>

初始化config

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Lazy;
import org.springframework.messaging.simp.config.ChannelRegistration;
import org.springframework.messaging.simp.config.MessageBrokerRegistry;
import org.springframework.web.socket.config.annotation.EnableWebSocketMessageBroker;
import org.springframework.web.socket.config.annotation.StompEndpointRegistry;
import org.springframework.web.socket.config.annotation.WebSocketMessageBrokerConfigurer;

/**
 * webSocket 初始化类
 */
@Configuration
// @EnableWebSocketMessageBroker 注解用于开启使用 STOMP 协议来传输基于代理（MessageBroker）的消息，这时候控制器(controller)
// 开始支持@MessageMapping,就像是使用 @requestMapping 一样。
@EnableWebSocketMessageBroker
public class WebSocketConfig implements WebSocketMessageBrokerConfigurer {

    @Lazy
    @Autowired
    private WebsocketUserInterceptor websocketUserInterceptor;


    @Override
    public void registerStompEndpoints(StompEndpointRegistry registry) {
        //注册一个名为 /oauth/ws 的 Stomp 节点(endpoint),并指定使用 SockJS 协议。
        registry.addEndpoint("/webSocket")
            .setAllowedOrigins("*")
            .withSockJS();
    }

    @Override
    public void configureMessageBroker(MessageBrokerRegistry registry) {
        //点对点应配置一个/user消息代理，广播式应配置一个/topic消息代理
        registry.enableSimpleBroker("/topic","/user");
        //客户端向服务端发起请求时，需要以/app为前缀。
        registry.setApplicationDestinationPrefixes("/app");
        //点对点使用的订阅前缀（客户端订阅路径上会体现出来），不设置的话，默认也是/user/
        registry.setUserDestinationPrefix("/user");
    }

    /**
     * 采用自定义拦截器，获取connect时候传递的参数
     * @param registration
     */
    @Override
    public void configureClientInboundChannel(ChannelRegistration registration) {
        registration.interceptors(websocketUserInterceptor);
    }
}

拦截器

@Slf4j
@Component
public class WebsocketUserInterceptor implements ChannelInterceptor {

    @Autowired
    private WebSocketServer webSocketServ;

    @Override
    public Message<?> preSend(Message<?> message, MessageChannel channel) {
        StompHeaderAccessor accessor = MessageHeaderAccessor.getAccessor(message, StompHeaderAccessor.class);
        if (StompCommand.CONNECT.equals(accessor.getCommand())) {
            log.info("【webSocket】 --- 连接success");
            Object raw = message.getHeaders().get(SimpMessageHeaderAccessor.NATIVE_HEADERS);
            if (raw instanceof Map) {
                Object tokenObj = ((Map) raw).get(JwtTokenUtil.AUTH_HEADER_KEY);
                if (tokenObj instanceof LinkedList) {
                    String token = ((LinkedList) tokenObj).get(0).toString();
                    //设置当前访问器的认证用户
                    String userId = this.getUserIdFromToken(token);
                    accessor.setUser(new WebsocketUserVO(userId));
                    webSocketServ.pushOnlineUser(userId);
                    log.info("【webSocket】 --- userId:{} 上线了，在线数量：{}",userId,webSocketServ.getOnlineUserSize());
                }
            }
        }
        return message;
    }

    /**
     * 发送消息调用后立即调用 一般用于监听上下线
     */
    @Override
    public void postSend(Message<?> message, MessageChannel channel, boolean sent) {
        try {
            StompHeaderAccessor accessor = StompHeaderAccessor.wrap(message);//消息头访问器

            if (accessor.getCommand() == null){ return;}// 避免非stomp消息类型，例如心跳检测
            switch(accessor.getCommand()){
                case DISCONNECT:
                    //点击断开连接，这里会执行两次，第二次执行的时候，message.getHeaders.size()=5,第一次是6。直接关闭浏览器，只会执行一次，size是5。
                    log.info("【webSocket】 --- 断开连接");
                    MessageHeaders headers = message.getHeaders();
                    if(ObjectUtil.isNotNull(headers)) {
                        Object header = headers.get(SimpMessageHeaderAccessor.USER_HEADER);
                        log.info("【webSocket】 --- header：{}", header.toString());
                        if (ObjectUtil.isNotNull(header)) {
                            WebsocketUserVO vo = (WebsocketUserVO) header;
                            webSocketServ.removeOnlineUser(vo.getName());
                            log.info("【webSocket】 断开连接 --- userId:{} 下线了，在线数量：{}", vo.getName(), webSocketServ.getOnlineUserSize());
                        }
                        break;
                    }
                case MESSAGE:
                    break;
                case SEND:
                    break;
            }
        } catch (Exception e) {
            log.info("【webSocket】 断开连接 - 异常：{}", e.getMessage());
        }
    }


    // 解析token获取userId
    private String getUserIdFromToken(String token){
        token = token.replace(JwtTokenUtil.TOKEN_PREFIX,"");
        LoginUser user = JSON.parseObject(JWT.decode(token).getSubject(),LoginUser.class);
        String userId = user.getUserId();
        log.info("【webSocket】解析token获取userId:{}",userId);
        return userId;
    }
}

WebSocketServer

@Component
public class WebSocketServer {

    public static String WEB_SOCKET_KEY="webSocket:register:";

    @Autowired
    private StringRedisTemplate stringRedisTemplate;

    // 用户上线
    public void pushOnlineUser(String id) {
        stringRedisTemplate.opsForValue().set(WEB_SOCKET_KEY+id,id);
    }

    // 用户下线
    public void removeOnlineUser(String id) {
        stringRedisTemplate.delete(WEB_SOCKET_KEY+id);
    }

    // 获取在线用户数量
    public Integer getOnlineUserSize() {
        return this.getOnlineUserList().size();
    }

    // 获取在线用户集合
    public List<String> getOnlineUserList() {
        Set<String> keys = stringRedisTemplate.keys(WEB_SOCKET_KEY + "*");
        return stringRedisTemplate.opsForValue().multiGet(keys);
    }
}

实体bean

public class WebsocketUserVO implements Principal {

    private  String name;
    public WebsocketUserVO(String name) {
        this.name = name;
    }

    @Override
    public String getName() {
        return name;
    }
}

/**
 * 服务器向浏览器发送消息用这个类
 */
public class Server2ClientMessage {

    private String responseMessage;

    public Server2ClientMessage(String responseMessage) {
        this.responseMessage = responseMessage;
    }

    public String getResponseMessage() {
        return responseMessage;
    }

    public void setResponseMessage(String responseMessage) {
        this.responseMessage = responseMessage;
    }
}

/**
 * 浏览器向服务器发送消息用这个类
 */
public class Client2ServerMessage {

    private String userId;

    private String message;

    public String getUserId() {
        return userId;
    }

    public void setUserId(String userId) {
        this.userId = userId;
    }

    public String getMessage() {
        return message;
    }

    public void setMessage(String message) {
        this.message = message;
    }
}

测试controller

@Controller
public class SockertController {

  @Autowired
  private SimpMessagingTemplate simpMessagingTemplate;

  @MessageMapping("/testSendMsg")
  public BaseResponse testSendMsg(Client2ServerMessage socketBean) {
    System.out.println("收到客户端消息："+ JSON.toJSON(socketBean));

	System.out.println("开始发送服务器端消息");
    Server2ClientMessage message = new Server2ClientMessage("{\"userId\":\""+socketBean.getUserId()+"\"}");
    // 点对点消息
    simpMessagingTemplate.convertAndSendToUser(socketBean.getUserId(),"/single/ip",message);
    // 广播消息
    simpMessagingTemplate.convertAndSend("/topic",message);
    System.out.println("结束发送服务器端消息");
    return BaseResponse.success("操作成功");
  }
}

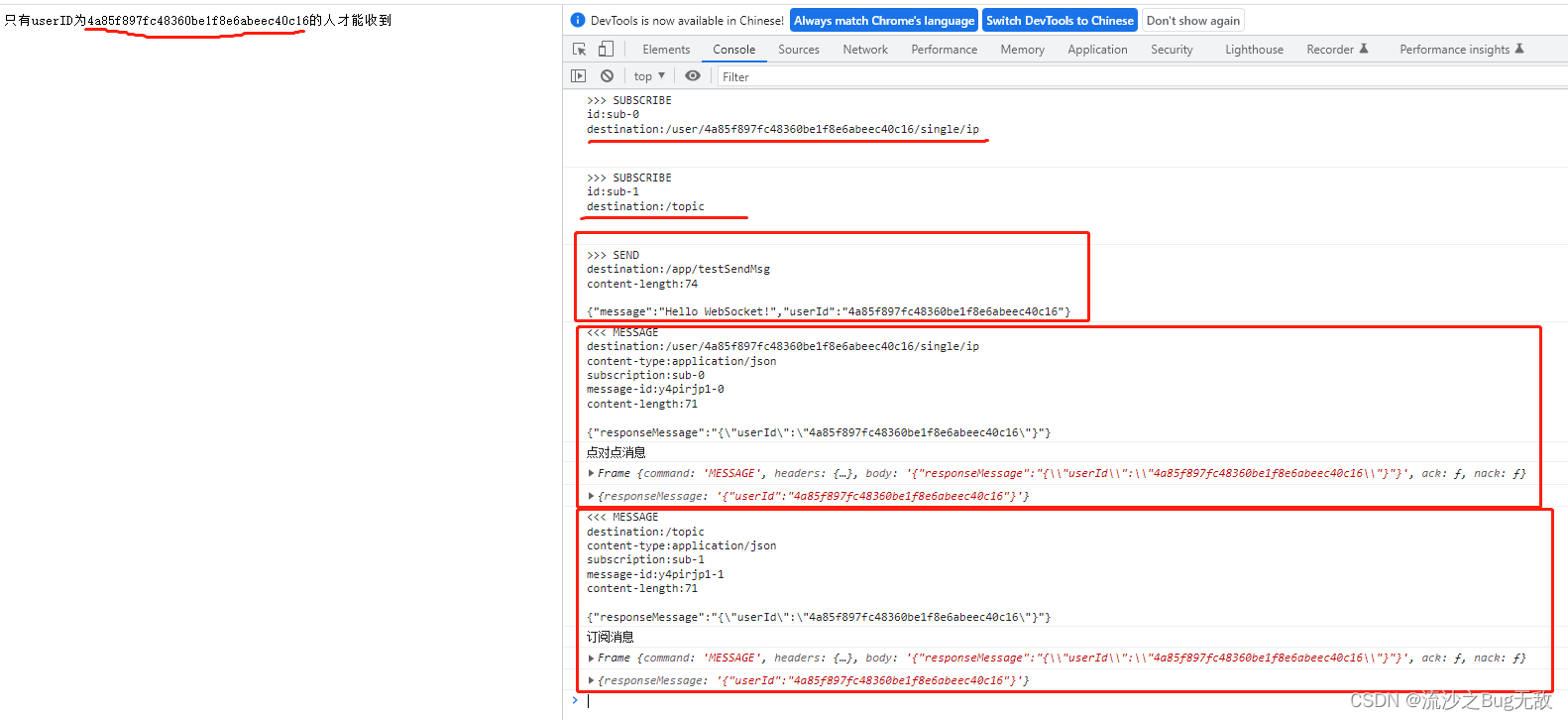

测试效果

在这里插入图片描述

nginx配置协议升级

proxy_http_version 1.1
proxy_set_header Upgrade $http_upgrade
proxy_set_header Connection 'upgrade'
