前言

一、GateWay的自动配置

springboot 在引入一个新的组件时，一般都会有对应的XxxAutoConfiguration类来对该组件进行配置，GateWay也不例外，在引入了以下配置后，就会生成对应的GatewayAutoConfiguration自动配置类

    <!-- gateway网关 -->
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-gateway</artifactId>
    </dependency>

GatewayAutoConfiguration自动配置类信息如下：

@Configuration(proxyBeanMethods = false)
//spring.cloud.gateway.enabled配置项必须为true，自动配置才生效，默认为true
@ConditionalOnProperty(name = "spring.cloud.gateway.enabled", matchIfMissing = true)
@EnableConfigurationProperties
//自动配置前置条件：引入了WebFlux 和 HttpHandler 组件
@AutoConfigureBefore({ HttpHandlerAutoConfiguration.class,
		WebFluxAutoConfiguration.class })
//自动配置后置组件：负载均衡组件
@AutoConfigureAfter({ GatewayLoadBalancerClientAutoConfiguration.class,
		GatewayClassPathWarningAutoConfiguration.class })
@ConditionalOnClass(DispatcherHandler.class)
public class GatewayAutoConfiguration {
	..... // 初始化各种bean
}

从配置类上的注解，可以了解到

spring.cloud.gateway.enabled配置项必须为true，自动配置才生效，默认为true
在使用Gataway之前，必须存在WebFlux 和 HttpHandler 组件
注入Gataway之后，需要对请求负载到某一台服务器上，所以后置组件为负载均衡组件

自动配置类GatewayAutoConfiguration在内部初始化了很多bean，列举几个重要的如下：

PropertiesRouteDefinitionLocator：用于从配置文件（yml/properties）中读取路由配置信息！
RouteDefinitionLocator：把 RouteDefinition 转化为 Route
RoutePredicateHandlerMapping：类似于 mvc 的HandlerMapping，不过这里是 Gateway实现的。用于匹配对应的请求route
GatewayProperties：yml配置信息封装在 GatewayProperties 对象中
AfterRoutePredicateFactory：各种路由断言工厂，正是这些断言工厂在启动时已经生成对应的bean，我们才可以在 yml 中配置一下，即可生效
RetryGatewayFilterFactory：各种 Gateway 过滤器，正是这些过滤器在启动时已经生成对应的bean，我们才可以在 yml 中配置一下，即可生效
GlobalFilter实现类：全局过滤器

GateWay的源码执行流程

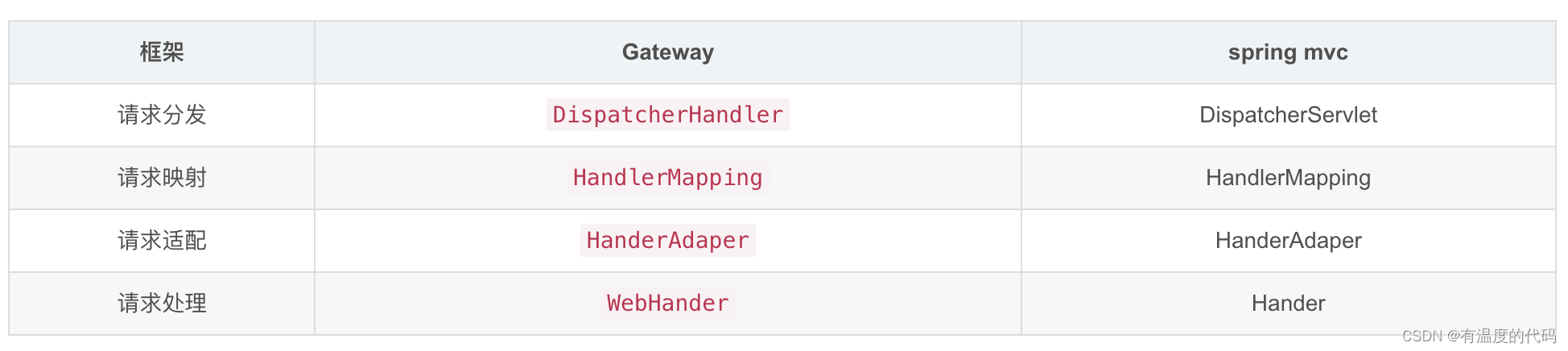

GateWay采用的是webFlux的响应式编程，其整个流程与spring mvc 类似

在这里插入图片描述

二 ServerWebExchange

SpringCloud gateway的上下文是ServerWebExchange，请求的信息都存储在ServerWebExchange中，在网关上的后续操作都是基于上下文操作的，在http请求到达网关之后，网关入口是ReactorHttpHandlerAdapter#apply方法，去获取请求的request和response，构建当次请求的上下文供后续filter使用

public class ReactorHttpHandlerAdapter implements BiFunction<HttpServerRequest, HttpServerResponse, Mono<Void>> {
	@Override
	public Mono<Void> apply(HttpServerRequest reactorRequest, HttpServerResponse reactorResponse) {
		NettyDataBufferFactory bufferFactory = new NettyDataBufferFactory(reactorResponse.alloc());
		try {
		    //获取请求的Request，构建ReactorServerHttpRequest
			ReactorServerHttpRequest request = new ReactorServerHttpRequest(reactorRequest, bufferFactory);
			//构建ServerHttpResponse
			ServerHttpResponse response = new ReactorServerHttpResponse(reactorResponse, bufferFactory);

			if (request.getMethod() == HttpMethod.HEAD) {
				response = new HttpHeadResponseDecorator(response);
			}
			//交给HttpWebHandlerAdapter构建上下文ServerWebExchange
			return this.httpHandler.handle(request, response)
					.doOnError(ex -> logger.trace(request.getLogPrefix() + "Failed to complete: " + ex.getMessage()))
					.doOnSuccess(aVoid -> logger.trace(request.getLogPrefix() + "Handling completed"));
		}
		catch (URISyntaxException ex) {
			if (logger.isDebugEnabled()) {
				logger.debug("Failed to get request URI: " + ex.getMessage());
			}
			reactorResponse.status(HttpResponseStatus.BAD_REQUEST);
			return Mono.empty();
		}
	}
}

构建完request和response后，交给HttpWebHandlerAdapter构建上下文ServerWebExchange

public class HttpWebHandlerAdapter extends WebHandlerDecorator implements HttpHandler {
	public Mono<Void> handle(ServerHttpRequest request, ServerHttpResponse response) {

		if (this.forwardedHeaderTransformer != null) {
			request = this.forwardedHeaderTransformer.apply(request);
		}
		//构建请求的上下文
		ServerWebExchange exchange = createExchange(request, response);

		LogFormatUtils.traceDebug(logger, traceOn ->
				exchange.getLogPrefix() + formatRequest(exchange.getRequest()) +
						(traceOn ? ", headers=" + formatHeaders(exchange.getRequest().getHeaders()) : ""));

		return getDelegate().handle(exchange)
				.doOnSuccess(aVoid -> logResponse(exchange))
				.onErrorResume(ex -> handleUnresolvedError(exchange, ex))
				.then(Mono.defer(response::setComplete));
	}
}

三、Route和RouteDefinition

我们在配置文件中配置的一个路由规则，对应到Java类就是GatewayProperties，Spring boot会将配置文件映射为Java类，例如如下配置

spring:
  cloud:
    gateway:
      routes:
      - id: add_request_header_route
        uri: http://localhost:8080
        predicates:
        - Path=/test/**
        filters:
        - AddRequestHeader=NAME, test

RouteDefinition：路由定义，是GatewayProperties类中的一个属性，网关启动后，Springboot帮我们做了映射，上述配置的路由就设置到了 GatewayProperties对象中。
Route：是从路由定义

路由信息映射到GatewayProperties后如何获取其中的RouteDefinition？

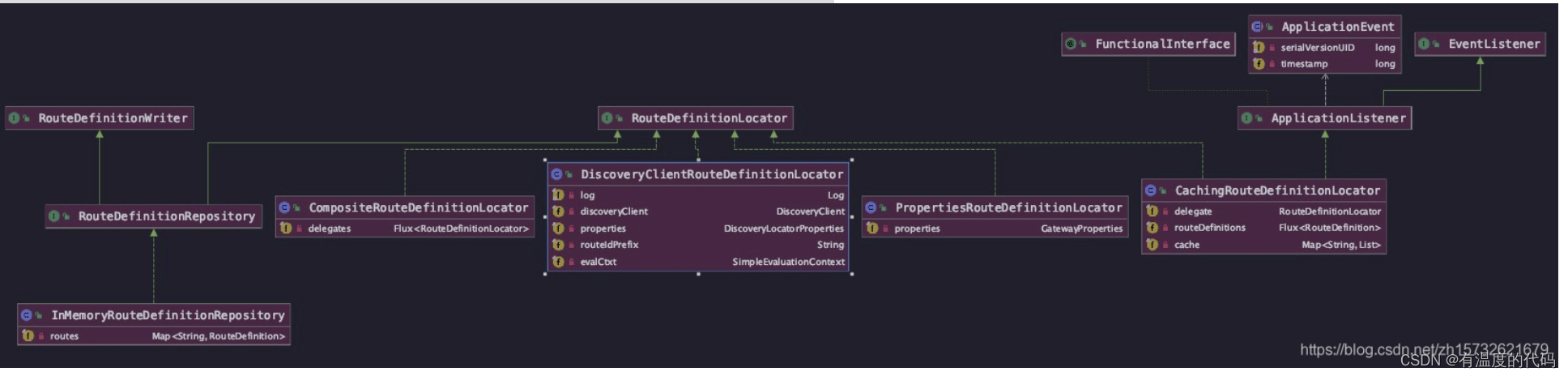

答案是通过RouteDefinitionLocator，RouteDefinitionLocator有5个实现类

在这里插入图片描述
PropertiesRouteDefinitionLocator：从Properties中读取

public class PropertiesRouteDefinitionLocator implements RouteDefinitionLocator {

	private final GatewayProperties properties;
	//构造函数设置properties
	public PropertiesRouteDefinitionLocator(GatewayProperties properties) {
		this.properties = properties;
	}
	//从properties中读取RouteDefinition
	@Override
	public Flux<RouteDefinition> getRouteDefinitions() {
		return Flux.fromIterable(this.properties.getRoutes());
	}
}

InMemoryRouteDefinitionRepository：对RouteDefinition进行增、删、查操作，基于内存存储
CompositeRouteDefinitionLocator：组合的Locator，在构造函数中设置委托，将PropertiesRouteDefinitionLocator和InMemoryRouteDefinitionRepository组合

public class CompositeRouteDefinitionLocator implements RouteDefinitionLocator {

	private final Flux<RouteDefinitionLocator> delegates;
	//将PropertiesRouteDefinitionLocator和InMemoryRouteDefinitionRepository组合
	public CompositeRouteDefinitionLocator(Flux<RouteDefinitionLocator> delegates) {
		this.delegates = delegates;
	}
	//委托给PropertiesRouteDefinitionLocator或InMemoryRouteDefinitionRepository执行读取
	@Override
	public Flux<RouteDefinition> getRouteDefinitions() {
		return this.delegates.flatMap(RouteDefinitionLocator::getRouteDefinitions);
	}

}

GatewayFilter对比GlobalFilter
上述两种Filter作用不同，是在什么时候整合的？优先级如何处理？
每个Filter中都有一个Order属性，在执行时是在FilteringWebHandler#handle方法中对GlobalFilter和GatewayFilter进行的整合和排序，具体执行在FilteringWebHandler#filter方法

/**
* 整合Filter
*/
public Mono<Void> handle(ServerWebExchange exchange) {
		// 根据Route信息取出配置的GatewayFilter集合
		Route route = exchange.getRequiredAttribute(GATEWAY_ROUTE_ATTR);
		List<GatewayFilter> gatewayFilters = route.getFilters();
		// 取出globalFilters
		List<GatewayFilter> combined = new ArrayList<>(this.globalFilters);
		// 将GatewayFilter添加到combined
		combined.addAll(gatewayFilters);
		// combined根据Order排优先级
		AnnotationAwareOrderComparator.sort(combined);

		if (logger.isDebugEnabled()) {
			logger.debug("Sorted gatewayFilterFactories: " + combined);
		}

		return new DefaultGatewayFilterChain(combined).filter(exchange);
}

/**
* 执行Filter
*/
public Mono<Void> filter(ServerWebExchange exchange) {
			return Mono.defer(() -> {
				if (this.index < filters.size()) {
					GatewayFilter filter = filters.get(this.index);
					DefaultGatewayFilterChain chain = new DefaultGatewayFilterChain(this,
							this.index + 1);
					return filter.filter(exchange, chain);
				}
				else {
					return Mono.empty(); // complete
				}
			});
}

在这里插入图片描述

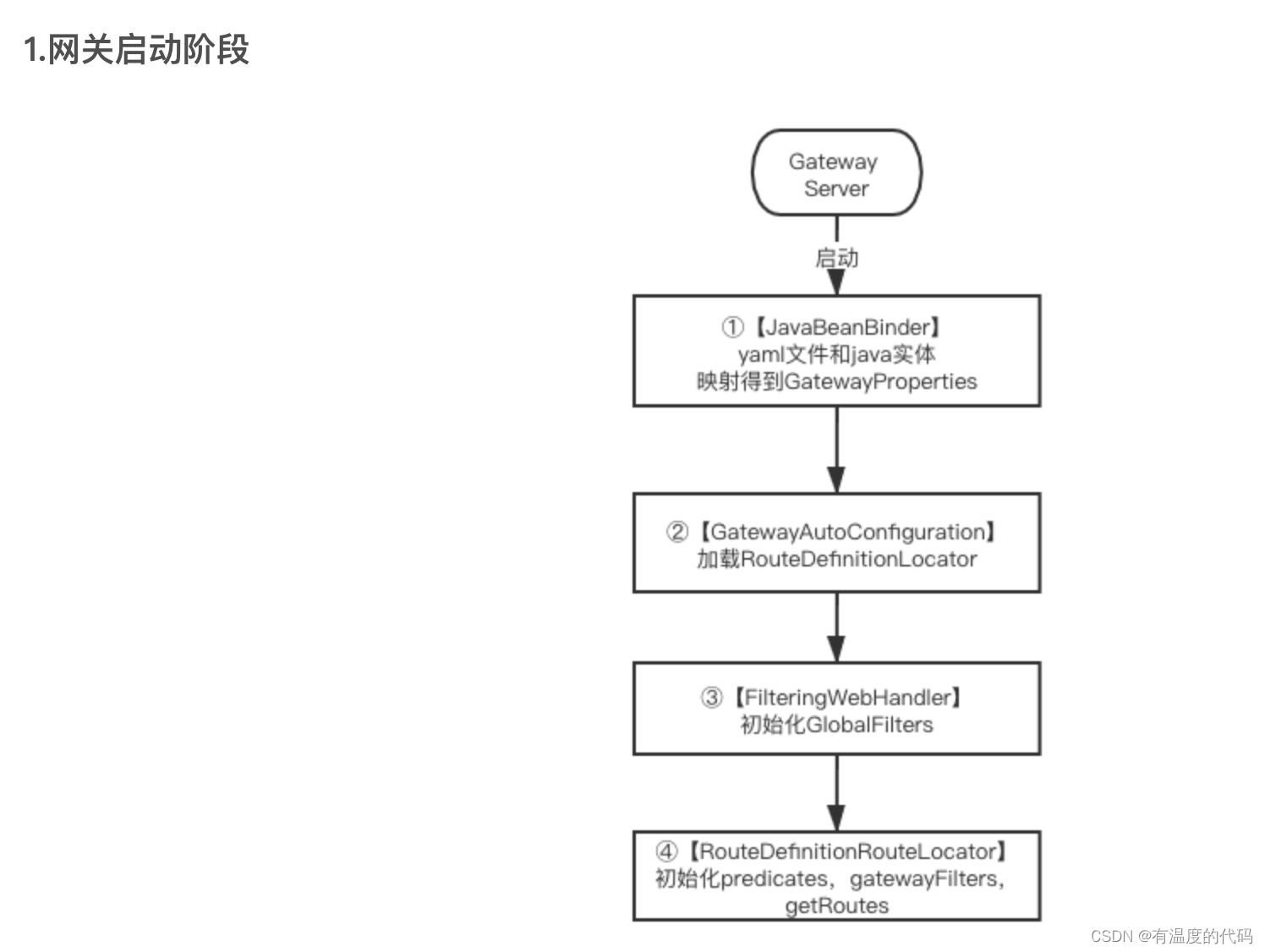

五、源码分析

在这里插入图片描述

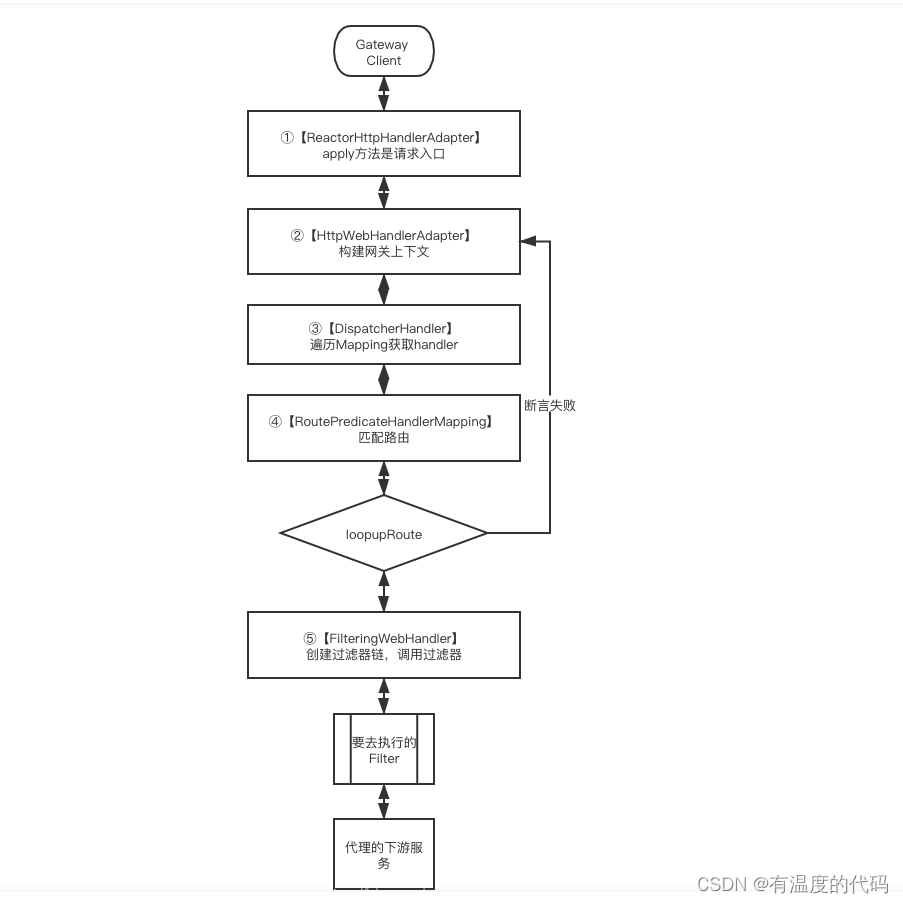

2.请求处理阶段

在这里插入图片描述

所有请求都会经过 gateway 的DispatcherHandler中的handle方法！可以看到该方法使用的就是webFlux的响应式编程

@Override
	public Mono<Void> handle(ServerWebExchange exchange) {
		if (this.handlerMappings == null) {
			return createNotFoundError();
		}
		if (CorsUtils.isPreFlightRequest(exchange.getRequest())) {
			return handlePreFlight(exchange);
		}
		return Flux
				// 1.遍历所有的 handlerMapping
				.fromIterable(this.handlerMappings)
				// 2.获取对应的handlerMapping ，比如常用的 RequestMappingHandlerMapping、RoutePredicateHandlerMapping
				.concatMap(mapping -> mapping.getHandler(exchange))
				.next()
				.switchIfEmpty(createNotFoundError())
				// 3.获取对应的适配器，调用对应的处理器
				.flatMap(handler -> invokeHandler(exchange, handler))
				// 4.返回处理结果
				.flatMap(result -> handleResult(exchange, result));
	}

其实这就是 gateway的核心逻辑

①：进入路由断言HandlerMapping，扫描yml文件，匹配路由信息

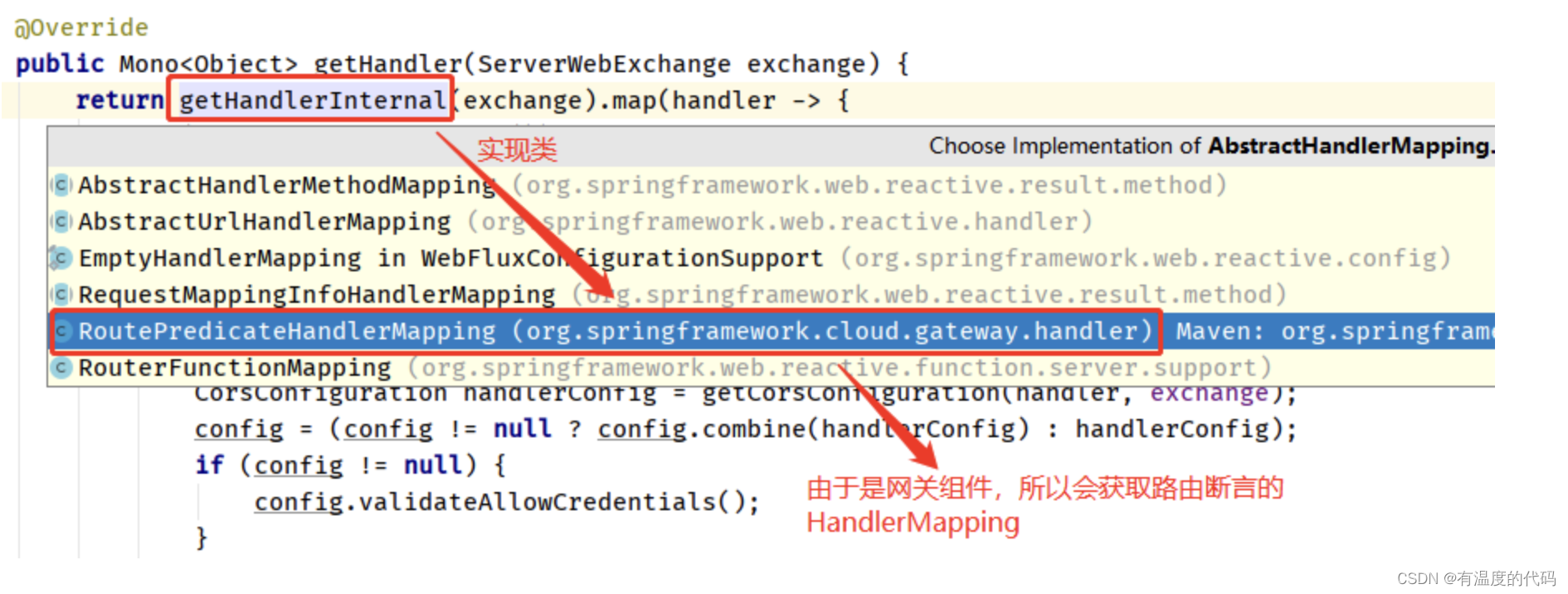

上文核心逻辑代码中getHandler(exchange)方法是获取对应的HandlerMapping。由于是网关组件，当请求进入时，会先判断路由，所以会进入实现类RoutePredicateHandlerMapping中
在这里插入图片描述

org.springframework.cloud.gateway.handler.RoutePredicateHandlerMapping # getHandlerInternal 方法如下：

	@Override
	protected Mono<?> getHandlerInternal(ServerWebExchange exchange) {

		if (this.managementPortType == DIFFERENT && this.managementPort != null
				&& exchange.getRequest().getURI().getPort() == this.managementPort) {
			return Mono.empty();
		}
		exchange.getAttributes().put(GATEWAY_HANDLER_MAPPER_ATTR, getSimpleName());

		//寻找并匹配路由
		return lookupRoute(exchange)
				.flatMap((Function<Route, Mono<?>>) r -> {
					//移除上下文中旧的属性
					exchange.getAttributes().remove(GATEWAY_PREDICATE_ROUTE_ATTR);
					if (logger.isDebugEnabled()) {
						logger.debug(
								"Mapping [" + getExchangeDesc(exchange) + "] to " + r);
					}
					//把该路由与上下文绑定，后续负载均衡会用
					exchange.getAttributes().put(GATEWAY_ROUTE_ATTR, r);
					//返回 webHandler
					return Mono.just(webHandler);
				}).switchIfEmpty(Mono.empty().then(Mono.fromRunnable(() -> {
					exchange.getAttributes().remove(GATEWAY_PREDICATE_ROUTE_ATTR);
					if (logger.isTraceEnabled()) {
						logger.trace("No RouteDefinition found for ["
								+ getExchangeDesc(exchange) + "]");
					}
				})));
	}

其中lookupRoute方法会找到yml中配置的所有的路由断言工厂（Before、After、Path等等），并执行apply方法，进行路由匹配，判断是否允许请求通过！执行顺序由springboot自动配置时自己制定

	protected Mono<Route> lookupRoute(ServerWebExchange exchange) {
		// getRoutes 获取所有的断言工厂
		return this.routeLocator.getRoutes()
				.concatMap(route -> Mono.just(route).filterWhen(r -> {
					exchange.getAttributes().put(GATEWAY_PREDICATE_ROUTE_ATTR, r.getId());
					// 先获取Route内部的predicate属性
					//然后调用apply方法 执行断言！判断请求是否通过
					return r.getPredicate().apply(exchange);
				})

其中getRoutes()方法就是通过RouteDefinitionRouteLocator从配置文件中获取所有路由的，然后把找到的路由转换成Route

	public Flux<Route> getRoutes() {
		// getRouteDefinitions() 从配置文件中获取所有路由
		Flux<Route> routes = this.routeDefinitionLocator.getRouteDefinitions()
				// convertToRoute()：把找到的路由转换成Route
				.map(this::convertToRoute);

Route内部结构如下

public class Route implements Ordered {
 	//路由id
	private final String id;
	//请求URI
	private final URI uri;
	//排序
	private final int order;
	//断言
	private final AsyncPredicate<ServerWebExchange> predicate;
	//过滤器
	private final List<GatewayFilter> gatewayFilters;
	//元数据
	private final Map<String, Object> metadata;

②：找到对应的适配器HandlerAdaptor，执行过滤器链

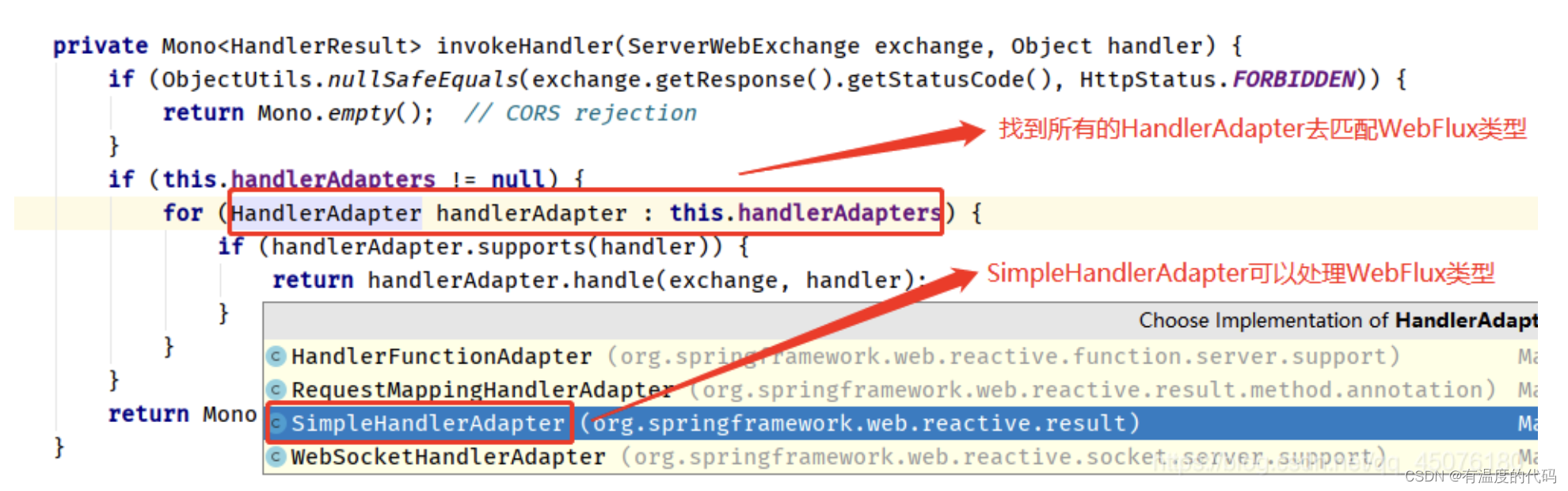

Gateway由于在第①步匹配路由后返回的是webHandler类型的，所以也需要找到对应的HandlerAdaptor，进入获取对应的适配器方法 invokeHandler(exchange, handler)中

SimpleHandlerAdapter 中的handle方法如下

public class SimpleHandlerAdapter implements HandlerAdapter {

	@Override
	public Mono<HandlerResult> handle(ServerWebExchange exchange, Object handler) {
		//处理WebHandler 类型
		WebHandler webHandler = (WebHandler) handler;
		Mono<Void> mono = webHandler.handle(exchange);
		return mono.then(Mono.empty());
	}
}

其中webHandler.handle方法就是处理所有过滤器链的方法，该过滤器链包括globalFilters和gatewayFilters

	@Override
	public Mono<Void> handle(ServerWebExchange exchange) {
		// 1. 根据路由与上下文绑定关系，获取对应的路由Route
		Route route = exchange.getRequiredAttribute(GATEWAY_ROUTE_ATTR);
		List<GatewayFilter> gatewayFilters = route.getFilters();
		// 2. 收集所有的 globalFilters 并放入List<GatewayFilter>
		//注意这里使用了适配器模式
		List<GatewayFilter> combined = new ArrayList<>(this.globalFilters);
		// 3. 把 gatewayFilters 也放入List<GatewayFilter>，形成一条过滤器立案
		combined.addAll(gatewayFilters);
		// 4. 根据order排序
		AnnotationAwareOrderComparator.sort(combined);

		if (logger.isDebugEnabled()) {
			logger.debug("Sorted gatewayFilterFactories: " + combined);
		}
		// 5. 执行过滤器链中的每一个过滤器方法！
		return new DefaultGatewayFilterChain(combined).filter(exchange);
	}

注意：在组装过滤器链的时候，是把globalFilters和gatewayFilters两种过滤器都放进了List中，这是怎么做的呢？
这其实用到了一种适配器的设计模式！

如果放入的是globalFilters，会先把globalFilters转化成GatewayFilterAdapter。 GatewayFilterAdapter在内部集成了GlobalFilter，同时也实现了GatewayFilter，使 globalFilters和gatewayFilters在适配器类GatewayFilterAdapter中共存！
如果放入的是gatewayFilters，直接放入即可！

	//使用适配器类GatewayFilterAdapter 解决了 globalFilters想要放入List<GatewayFilter>中的类型不一致问题
	private static class GatewayFilterAdapter implements GatewayFilter {

		//集成了`GlobalFilter`
		private final GlobalFilter delegate;

		GatewayFilterAdapter(GlobalFilter delegate) {
			this.delegate = delegate;
		}
		//调用filter时，调的是globalFilters的filter方法！
		@Override
		public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
			return this.delegate.filter(exchange, chain);
		}
		@Override
		public String toString() {
			final StringBuilder sb = new StringBuilder("GatewayFilterAdapter{");
			sb.append("delegate=").append(delegate);
			sb.append('}');
			return sb.toString();
		}
	}

然后在执行过滤器链中的globalFilters和gatewayFilters的filter方法时，就会为请求加上请求头、请求参数等扩展点！

3：Gateway的负载均衡是如何实现的？

Gateway的负载均衡只需要在yml中配置 uri: lb://mall-order即可实现负载均衡，底层是由全局过滤器LoadBalancerClientFilter的filter方法去做的！

	public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
		// 1. 根据路由与上下文绑定关系
		// 获取原始的url：http://localhost:8888/order/findOrderById/1
		URI url = exchange.getAttribute(GATEWAY_REQUEST_URL_ATTR);
		String schemePrefix = exchange.getAttribute(GATEWAY_SCHEME_PREFIX_ATTR);
		if (url == null
				|| (!"lb".equals(url.getScheme()) && !"lb".equals(schemePrefix))) {
			return chain.filter(exchange);
		}

		addOriginalRequestUrl(exchange, url);

		if (log.isTraceEnabled()) {
			log.trace("LoadBalancerClientFilter url before: " + url);
		}
		// 2. 通过ribbon的负载均衡算法，根据服务名 去nacos选择一个实例！
		// 该实例就有order服务真正的 url 地址：http://localhost:9001/order/findOrderById/1
		final ServiceInstance instance = choose(exchange);

		if (instance == null) {
			throw NotFoundException.create(properties.isUse404(),
					"Unable to find instance for " + url.getHost());
		}
		// 3. 拿到原生的 uri ：http://localhost:8888/order/findOrderById/1
		URI uri = exchange.getRequest().getURI();

		String overrideScheme = instance.isSecure() ? "https" : "http";
		if (schemePrefix != null) {
			overrideScheme = url.getScheme();
		}
		// 4. 拿服务实例instance的uri替换原生的uri地址 得到 新的url
		// 新的url: http://localhost:8888/order/findOrderById/1
		URI requestUrl = loadBalancer.reconstructURI(
				new DelegatingServiceInstance(instance, overrideScheme), uri);

		if (log.isTraceEnabled()) {
			log.trace("LoadBalancerClientFilter url chosen: " + requestUrl);
		}
		// 5. 再次记录上下文关系
		exchange.getAttributes().put(GATEWAY_REQUEST_URL_ATTR, requestUrl);
		// 6. 执行过滤器链中的其他过滤请求
		return chain.filter(exchange);
	}

参考文档：https://blog.youkuaiyun.com/qq_45076180/article/details/117112434
https://blog.youkuaiyun.com/zh15732621679/article/details/116902385
https://blog.youkuaiyun.com/cnm10050/article/details/127261680
