基于qt的聊天系统LTalk项目介绍

LTalk

部分界面

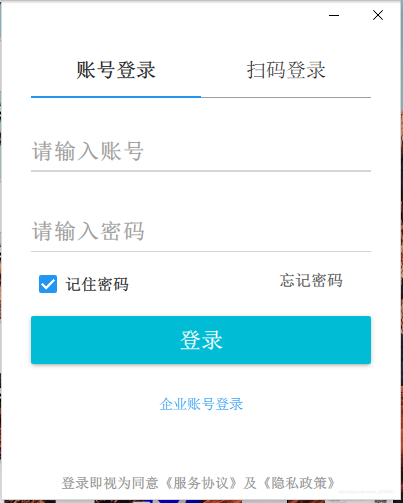

登录界面

学习该项目之前你应该了解

• CMake基础编译 -推荐使用高版本Cmake,最好是兼容交叉编译安卓的版本
• QML技术，Qt库，qt使用5.13.1版本
• Golang，使用Golang go version go1.15.6 windows/amd64
• Docker
• Redis,Mysql,Sqlite:redis

使用到的第3方库

• Qt,gRPC,qtprotobuf,sqlite_orm,fluid

第一章

如何编写基于qml的界面

• 使用 fluid+framelesshelper

main函数

#include <QDir>
#include <QApplication>
#include <QQmlApplicationEngine>
#include <QtQml>

#include "framelessquickhelper.h"//framelesshelper第3方库
int main(int argc, char *argv[]) {
  QCoreApplication::setAttribute(Qt::AA_DontCreateNativeWidgetSiblings);

#if (QT_VERSION < QT_VERSION_CHECK(6, 0, 0))
    QGuiApplication::setAttribute(Qt::AA_EnableHighDpiScaling);
    QGuiApplication::setAttribute(Qt::AA_UseHighDpiPixmaps);
#if (QT_VERSION >= QT_VERSION_CHECK(5, 14, 0))
    QGuiApplication::setHighDpiScaleFactorRoundingPolicy(Qt::HighDpiScaleFactorRoundingPolicy::PassThrough);
#endif
#endif

  QApplication a(argc, argv);

    QFont font;
    font.setPixelSize(20);
    font.setWeight(70);
    a.setFont(font);
  qmlRegisterType<FramelessQuickHelper>("wangwenx190.Utils", 1, 0, "FramelessHelper");//注册第3方库，便于后面qml使用

  QQmlApplicationEngine engine;

  engine.addImportPath(QCoreApplication::applicationDirPath() + QLatin1String("/lib/qml"));
  engine.addImportPath("qrc:/");
  engine.load("qrc:/login.qml");//加载登录界面

  return a.exec();
}

login.qml

• 如果你使用的和我不是一个版本的Qt那么请修改对应QtQuick的版本否则无法显示

import QtQuick 2.13
import QtQuick.Window 2.13
import QtQuick.Controls 2.13
import "qrc:/" as Components //自己内部实现的控件
import wangwenx190.Utils 1.0//framelesshelper
import QtQuick.Controls.Styles 1.4
import QtQuick.Controls.Material 2.12
import Fluid.Controls 1.1 as FluidControls //fluid

import Qt.labs.platform 1.1

FluidControls.ApplicationWindow {
    id: window
    width: 400
    height: 500
    visible: true
    maximumHeight: 500
    maximumWidth: 400
    minimumWidth: 400
    minimumHeight: 500
    color: "#f0f0f0"
    title: qsTr("LTalk")

    Material.primary: Material.LightBlue
    Material.accent: Material.Blue
    property int sideMargin: 30
    property int _flh_margin: ((window.visibility === Window.Maximized) || (window.visibility === Window.FullScreen)) ? 0 : (1 / Screen.devicePixelRatio)

    FramelessHelper {
        id: framelessHelper
    }

    Rectangle {
        id: mainContainer
        color: "#ffffff"
        anchors.fill: parent
        clip: true

         Keys.onPressed: {
          if ((event.key == Qt.Key_Enter) || (event.key == Qt.Key_Return)) {
               if(!isInvaild()) {
                        HttpApiEngine.login(usernameInput.text,passwordInput.text);
                }
          }

        }
        Rectangle {
            id:toolBtnRect
            anchors.right: parent.right
            anchors.top: parent.top
            z: 10
            Row {
                anchors.top: parent.top
                anchors.right: parent.right

                Components.MinisizeButton{
                    id: minisizeButton
                    onClicked: window.showMinimized()
                    Component.onCompleted: framelessHelper.addIgnoreObject(minisizeButton)
                }

                Components.CloseButton {
                    id: closeButton
                    onClicked: window.setVisible(false)
                    Component.onCompleted: framelessHelper.addIgnoreObject(closeButton)
                }
            }
        }

        Rectangle {
            id: formSection
            color: "#00000000"
            anchors.fill: parent

            Row {
                id:loginMode
                anchors.top: parent.top
                anchors.topMargin:50
                anchors.left:parent.left
                anchors.right:parent.right
                anchors.leftMargin:sideMargin
                anchors.rightMargin:sideMargin
                anchors.horizontalCenter: parent.horizontalCenter
                Components.UnderlineButton {
                    id:accoutLogin
                    width:window.width/2 - sideMargin
                    height:40
                    checked:true
                    text: qsTr("账号登录")
                    font.pixelSize:20
                    onClicked: {
                            accoutLogin.checked = true
                            qrCodeLogin.checked = false
                    }
                }
                Components.UnderlineButton {
                    id:qrCodeLogin
                    width:window.width/2 - sideMargin
                    height:40
                    text: qsTr("扫码登录")
                    font.pixelSize:20
                    onClicked: {
                            qrCodeLogin.checked = true
                            accoutLogin.checked = false
                    }
                }

            }

            TextField {
                id: usernameInput
                anchors.left: parent.left
                anchors.top: loginMode.bottom
                anchors.leftMargin: sideMargin
                anchors.rightMargin: sideMargin
                anchors.topMargin: 40
                anchors.horizontalCenter: parent.horizontalCenter
                width:300
                height:50
                font.bold:true
                font.letterSpacing : 1
                font.pixelSize:22
                z: 20
                placeholderText:qsTr("请输入账号")
                background: Rectangle {
                    y: usernameInput.height - height - usernameInput.bottomPadding + 8
                    implicitWidth: 120
                    height: usernameInput.activeFocus || usernameInput.hovered ? 2 : 1
                    color: "#aaaaaa"
                    opacity:0.5
                }
            }

            TextField {
                id: passwordInput
                anchors.left: parent.left
                anchors.top: usernameInput.bottom
                anchors.leftMargin: sideMargin
                anchors.rightMargin: sideMargin
                anchors.topMargin: 30
                anchors.horizontalCenter: parent.horizontalCenter
                z: 20
                width:300
                height:50
                font.bold:true
                font.letterSpacing : 1
                font.pixelSize:22
                echoMode:TextInput.Password
                placeholderText:qsTr("请输入密码")
                 background: Rectangle {
                    y: passwordInput.height - height - passwordInput.bottomPadding + 8
                    implicitWidth: 120
                    height: passwordInput.activeFocus || passwordInput.hovered ? 2 : 1
                    color: "#aaaaaa"
                    opacity:0.5
                }

            }
            Row{
                id:passWordRow
                anchors.top: passwordInput.bottom
                anchors.left: parent.left
                anchors.leftMargin: sideMargin
                anchors.rightMargin: sideMargin
                anchors.right: parent.right
                CheckBox {
                    checked: true
                    anchors.left: parent.left
                    font.pixelSize: 16
                    text: qsTr("记住密码")


                Components.StandardButton {
                    id: forgotPasswordButton
                    anchors.right:parent.right
                    text: qsTr("忘记密码")
                    textColor: "#545454"
                    buttonColor: "#ffffff"
                }
            }
            Button {
            id:loginButton
            text: qsTr("登录")
            highlighted: true
            anchors.top: passWordRow.bottom
            anchors.topMargin: 50
            anchors.left:passWordRow.left
            anchors.right:passWordRow.right
            height:60
            font.pixelSize:22
            font.bold: true
            Material.background: Material.Cyan
            contentItem: Text {
                text: loginButton.text
                font: loginButton.font
                color: "white"
                horizontalAlignment: Text.AlignHCenter
                verticalAlignment: Text.AlignVCenter
                elide: Text.ElideRight
            }


            onClicked:{
                    if(!isInvaild()) {
                        HttpApiEngine.login(usernameInput.text,passwordInput.text);
                    }
            }


            }
            Button {
                anchors.top: loginButton.bottom
                anchors.topMargin: 10
                anchors.horizontalCenter: parent.horizontalCenter

                text: qsTr("企业账号登录")
                flat: true
                highlighted: true



            }

            Label {
                id: termLabel
                color: "#8E8E8E"
                text: qsTr("登录即视为同意《服务协议》及《隐私政策》")

                anchors.bottomMargin: 10
                anchors.bottom: parent.bottom
                font.pixelSize: 14
                anchors.horizontalCenter: parent.horizontalCenter

                MouseArea {
                    anchors.fill: parent
                    cursorShape: Qt.PointingHandCursor
                }
            }
        }
    }
    Rectangle {
        id: windowFrame
        anchors.fill: parent
        color: "transparent"
        border {
            color: framelessHelper.nativeFrameColor
            width: window._flh_margin
        }
    }

    FluidControls.SnackBar {
        id: snackBar
        duration:10000

        fullWidth: true
    }
    Component.onCompleted: framelessHelper.removeWindowFrame()

    function isInvaild() {
        if(usernameInput.text === "" || usernameInput.text === "") {
            snackBar.open("输入框不能为空","重试");
            return true;
        }
        return false;
    }


}

UnderlineButton.qml

import QtQuick 2.12
import QtQuick.Controls 2.12
import QtQuick.Controls.Material 2.12

AbstractButton {
    id: control
    text: qsTr("Button")
    font.bold: control.checked

    background: Rectangle {
        y: control.height - height - control.bottomPadding + 8
        implicitWidth: 120
        height: control.checked ? 2 : 1
        color: control.checked ? control.Material.accentColor : control.Material.hintTextColor
    }

    contentItem: Text {
        text: control.text
        font: control.font
        color: control.enabled ? control.Material.foreground : control.Material.hintTextColor
        elide: Text.ElideRight
        verticalAlignment: Text.AlignVCenter
        horizontalAlignment:Text.AlignHCenter
    }


}

MinisizeButton.qml

import QtQuick 2.13
import QtQuick.Controls 2.13

ToolButton {
    id: button

    implicitWidth: 45
    implicitHeight: 30

    contentItem: Image {
        anchors.fill: parent
        source: "qrc:/resource/icons/button_minimize_black.svg"
    }

    background: Rectangle {
        visible: button.down || button.hovered
        color: button.down ? "#808080" : (button.hovered ? "#c7c7c7" : "transparent")
    }
}

CloseButton.qml

import QtQuick 2.13
import QtQuick.Controls 2.13

ToolButton {
    id: button

    implicitWidth: 45
    implicitHeight: 30

    contentItem: Image {
        anchors.fill: parent
        source: button.down
                || button.hovered ? "qrc:/resource/icons/button_close_white.svg" : "qrc:/resource/icons/button_close_black.svg"
    }

    background: Rectangle {
        visible: button.down || button.hovered
        color: button.down ? "#8c0a15" : (button.hovered ? "#e81123" : "transparent")
    }
}
