S(Stockwell)变换的Matlab代码

S变换简介

S变换，又称为Stockwell变换，由R. G. Stockwell于1996年提出。具体的定义如下：

S变换在傅里叶域的表示形式为：

离散的S变换为：

S变换克服了短时傅里叶变换固定窗函数宽度的缺陷，采用了一个随频率变化的高斯窗函数。它的窗函数宽度与频率的倒数成正比，高频时用窄窗，低频用宽窗。所以具有多分辨率分析的思想，也可以看作相位校正的小波变换。

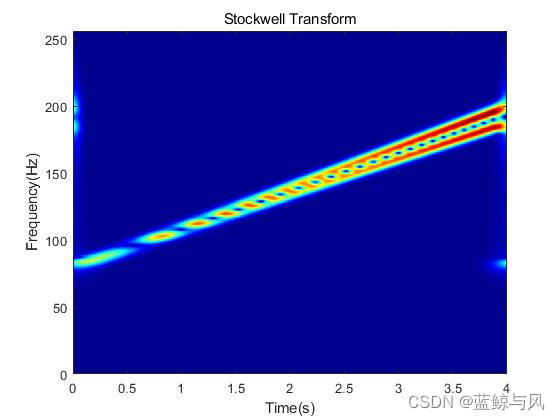

Stockwell版S变换程序

function [st, t, f] = st(timeseries, minfreq, maxfreq, samplingrate, freqsamplingrate)
% Returns the Stockwell Transform of the timeseries.
% Code by Robert Glenn Stockwell.
% Reference is "Localization of the Complex Spectrum: The S Transform"
% from IEEE Transactions on Signal Processing, vol. 44., number 4, April 1996, pages 998-1001.
%
%-------Inputs Needed------------------------------------------------
%
%   *****All frequencies in (cycles/(time unit))!******
%	"timeseries" - vector of data to be transformed
%-------Optional Inputs ------------------------------------------------
%
%"minfreq" is the minimum frequency in the ST result(Default=0)
%"maxfreq" is the maximum frequency in the ST result (Default=Nyquist)
%"samplingrate" is the time interval between samples (Default=1)
%"freqsamplingrate" is the frequency-sampling interval you desire in the ST result (Default=1)
%Passing a negative number will give the default ex.  [s,t,f] = st(data,-1,-1,2,2)
%-------Outputs Returned------------------------------------------------
%
% st     -a complex matrix containing the Stockwell transform.
%			 The rows of STOutput are the frequencies and the
%         columns are the time values ie each column is
%         the "local spectrum" for that point in time
%  t      - a vector containing the sampled times
%  f      - a vector containing the sampled frequencies
%--------Additional details-----------------------
%   %  There are several parameters immediately below that
%  the user may change. They are:
%[verbose]    if true prints out informational messages throughout the function.
%[removeedge] if true, removes a least squares fit parabola
%                and puts a 5% hanning taper on the edges of the time series.
%                This is usually a good idea.
%[analytic_signal]  if the timeseries is real-valued
%                      this takes the analytic signal and STs it.
%                      This is almost always a good idea.
%[factor]     the width factor of the localizing gaussian
%                ie, a sinusoid of period 10 seconds has a
%                gaussian window of width factor*10 seconds.
%                I usually use factor=1, but sometimes factor = 3
%                to get better frequency resolution.
%   Copyright (c) by Bob Stockwell
%   $Revision: 1.2 $  $Date: 1997/07/08

% This is the S transform wrapper that holds default values for the function.
TRUE = 1;
FALSE = 0;
%%% DEFAULT PARAMETERS  [change these for your particular application]
verbose = FALSE;
removeedge = FALSE;
analytic_signal = TRUE;
factor = 1;
%%% END of DEFAULT PARAMETERS

%%%START OF INPUT VARIABLE CHECK
% First:  make sure it is a valid time_series
%         If not, return the help message
if verbose
    disp(' ')
end % i like a line left blank

if nargin == 0
    if verbose
        disp('No parameters inputted.')
    end
    st_help
    t = 0;
    st = -1;
    f = 0;
    return
end

% Change to column vector
if size(timeseries, 2) > size(timeseries, 1)
    timeseries = timeseries';
end

% Make sure it is a 1-dimensional array
if size(timeseries, 2) > 1
    error('Please enter a *vector* of data, not matrix')
    return
elseif (size(timeseries) == [1, 1]) == 1
    error('Please enter a *vector* of data, not a scalar')
    return
end

% use defaults for input variables

if nargin == 1
    minfreq = 0;
    maxfreq = fix(length(timeseries)/2);
    samplingrate = 1;
    freqsamplingrate = 1;
elseif nargin == 2
    maxfreq = fix(length(timeseries)/2);
    samplingrate = 1;
    freqsamplingrate = 1;
    [minfreq, maxfreq, samplingrate, freqsamplingrate] = check_input(minfreq, maxfreq, samplingrate, freqsamplingrate, verbose, timeseries);
elseif nargin == 3
    samplingrate = 1;
    freqsamplingrate = 1;
    [minfreq, maxfreq, samplingrate, freqsamplingrate] = check_input(minfreq, maxfreq, samplingrate, freqsamplingrate, verbose, timeseries);
elseif nargin == 4
    freqsamplingrate = 1;
    [minfreq, maxfreq, samplingrate, freqsamplingrate] = check_input(minfreq, maxfreq, samplingrate, freqsamplingrate, verbose, timeseries);
elseif nargin == 5
    [minfreq, maxfreq, samplingrate, freqsamplingrate] = check_input(minfreq, maxfreq, samplingrate, freqsamplingrate, verbose, timeseries);
else
    if verbose
        disp('Error in input arguments: using defaults')
    end
    minfreq = 0;
    maxfreq = fix(length(timeseries)/2);
    samplingrate = 1;
    freqsamplingrate = 1;
end
if verbose
    disp(sprintf('Minfreq = %d', minfreq))
    disp(sprintf('Maxfreq = %d', maxfreq))
    disp(sprintf('Sampling Rate (time   domain) = %d', samplingrate))
    disp(sprintf('Sampling Rate (freq.  domain) = %d', freqsamplingrate))
    disp(sprintf('The length of the timeseries is %d points', length(timeseries)))

    disp(' ')
end
%END OF INPUT VARIABLE CHECK

% If you want to "hardwire" minfreq & maxfreq & samplingrate & freqsamplingrate do it here

% calculate the sampled time and frequency values from the two sampling rates
t = (0:length(timeseries) - 1) * samplingrate;
spe_nelements = ceil((maxfreq - minfreq + 1)/freqsamplingrate);
f = (minfreq + [0:spe_nelements - 1] * freqsamplingrate) / (samplingrate * length(timeseries));
if verbose
    disp(sprintf('The number of frequency voices is %d', spe_nelements))
end


% The actual S Transform function is here:
st = strans(timeseries, minfreq, maxfreq, samplingrate, freqsamplingrate, verbose, removeedge, analytic_signal, factor);
% this function is below, thus nicely encapsulated

%WRITE switch statement on nargout
% if 0 then plot amplitude spectrum
if nargout == 0
    if verbose
        disp('Plotting pseudocolor image')
    end
    pcolor(t, f, abs(st))
end


return


%^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
%^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
%^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
%^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
%^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^


function st = strans(timeseries, minfreq, maxfreq, samplingrate, freqsamplingrate, verbose, removeedge, analytic_signal, factor);
% Returns the Stockwell Transform, STOutput, of the time-series
% Code by R.G. Stockwell.
% Reference is "Localization of the Complex Spectrum: The S Transform"
% from IEEE Transactions on Signal Processing, vol. 44., number 4,
% April 1996, pages 998-1001.
%
%-------Inputs Returned------------------------------------------------
%         - are all taken care of in the wrapper function above
%
%-------Outputs Returned------------------------------------------------
%
%	ST    -a complex matrix containing the Stockwell transform.
%			 The rows of STOutput are the frequencies and the
%			 columns are the time values
%
%
%----------------------------------------------------------------------

% Compute the length of the data.
n = length(timeseries);
original = timeseries;
if removeedge
    if verbose
        disp('Removing trend with polynomial fit')
    end
    ind = [0:n - 1]';
    r = polyfit(ind, timeseries, 2);
    fit = polyval(r, ind);
    timeseries = timeseries - fit;
    if verbose
        disp('Removing edges with 5% hanning taper')
    end
    sh_len = floor(length(timeseries)/10);
    wn = hanning(sh_len);
    if (sh_len == 0)
        sh_len = length(timeseries);
        wn = 1 & [1:sh_len];
    end
    % make sure wn is a column vector, because timeseries is
    if size(wn, 2) > size(wn, 1)
        wn = wn';
    end

    timeseries(1:floor(sh_len/2), 1) = timeseries(1:floor(sh_len/2), 1) .* wn(1:floor(sh_len/2), 1);
    timeseries(length(timeseries)-floor(sh_len/2):n, 1) = timeseries(length(timeseries)-floor(sh_len/2):n, 1) .* wn(sh_len-floor(sh_len/2):sh_len, 1);

end

% If vector is real, do the analytic signal

if analytic_signal
    if verbose
        disp('Calculating analytic signal (using Hilbert transform)')
    end
    % this version of the hilbert transform is different than hilbert.m
    %  This is correct!
    ts_spe = fft(real(timeseries));
    h = [1; 2 * ones(fix((n - 1)/2), 1); ones(1-rem(n, 2), 1); zeros(fix((n - 1)/2), 1)];
    ts_spe(:) = ts_spe .* h(:);
    timeseries = ifft(ts_spe);
end

% Compute FFT's
tic;
vector_fft = fft(timeseries);
tim_est = toc;
vector_fft = [vector_fft, vector_fft];
tim_est = tim_est * ceil((maxfreq - minfreq + 1)/freqsamplingrate);
if verbose
    disp(sprintf('Estimated time is %f', tim_est))
end

% Preallocate the STOutput matrix
st = zeros(ceil((maxfreq - minfreq + 1)/freqsamplingrate), n);
% Compute the mean
% Compute S-transform value for 1 ... ceil(n/2+1)-1 frequency points
if verbose
    disp('Calculating S transform...')
end

if minfreq == 0
    st(1, :) = mean(timeseries) * (1 & [1:1:n]);
else
    st(1, :) = ifft(vector_fft(minfreq+1:minfreq+n).*g_window(n, minfreq, factor));
end

%the actual calculation of the ST
% Start loop to increment the frequency point
for banana = freqsamplingrate:freqsamplingrate:(maxfreq - minfreq)
    st(banana/freqsamplingrate+1, :) = ifft(vector_fft(minfreq+banana+1:minfreq+banana+n).*g_window(n, minfreq+banana, factor));
end % a fruit loop!   aaaaa ha ha ha ha ha ha ha ha ha ha
% End loop to increment the frequency point
if verbose
    disp('Finished Calculation')
end

%%% end strans function

%------------------------------------------------------------------------
function gauss = g_window(length, freq, factor)

% Function to compute the Gaussion window for
% function Stransform. g_window is used by function
% Stransform. Programmed by Eric Tittley
%
%-----Inputs Needed--------------------------
%
%	length-the length of the Gaussian window
%
%	freq-the frequency at which to evaluate
%		  the window.
%	factor- the window-width factor
%
%-----Outputs Returned--------------------------
%
%	gauss-The Gaussian window
%

% vector(1, :) = [0:length - 1];
% vector(2, :) = [-length:-1];
% vector = vector.^2;
% vector = vector * (-factor * 2 * pi^2 / freq^2);
% % Compute the Gaussion window
% gauss = sum(exp(vector));
%%

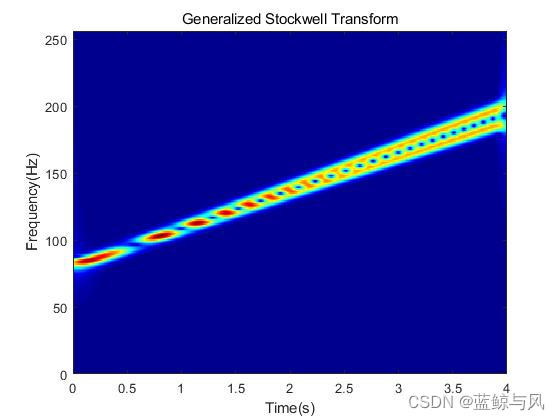

lamda=15;%5  15
p=1;%0.5
vector(1,:)=[0:length-1];
vector(2,:)=[-length:-1];
vector=vector.^2;
vector=vector*(-factor*lamda^2*pi^2/(freq.^(2*p)));
gauss=sum(lamda*freq.^p*exp(vector));

%-----------------------------------------------------------------------

%^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^%
function [minfreq, maxfreq, samplingrate, freqsamplingrate] = check_input(minfreq, maxfreq, samplingrate, freqsamplingrate, verbose, timeseries)
% this checks numbers, and replaces them with defaults if invalid

% if the parameters are passed as an array, put them into the appropriate variables
s = size(minfreq);
l = max(s);
if l > 1
    if verbose
        disp('Array of inputs accepted.')
    end
    temp = minfreq;
    minfreq = temp(1);
    if l > 1
        maxfreq = temp(2); end;
    if l > 2
        samplingrate = temp(3); end;
    if l > 3
        freqsamplingrate = temp(4); end;
    if l > 4
        if verbose
            disp('Ignoring extra input parameters.')
        end
    end;

end

if minfreq < 0 || minfreq > fix(length(timeseries)/2);
    minfreq = 0;
    if verbose
        disp('Minfreq < 0 or > Nyquist. Setting minfreq = 0.')
    end
end
if maxfreq > length(timeseries) / 2 || maxfreq < 0
    maxfreq = fix(length(timeseries)/2);
    if verbose
        disp(sprintf('Maxfreq < 0 or > Nyquist. Setting maxfreq = %d', maxfreq))
    end
end
if minfreq > maxfreq
    temporary = minfreq;
    minfreq = maxfreq;
    maxfreq = temporary;
    clear temporary;
    if verbose
        disp('Swapping maxfreq <=> minfreq.')
    end
end
if samplingrate < 0
    samplingrate = abs(samplingrate);
    if verbose
        disp('Samplingrate <0. Setting samplingrate to its absolute value.')
    end
end
if freqsamplingrate < 0 % check 'what if freqsamplingrate > maxfreq - minfreq' case
    freqsamplingrate = abs(freqsamplingrate);
    if verbose
        disp('Frequency Samplingrate negative, taking absolute value')
    end
end

% bloody odd how you don't end a function \

%^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^% \
function st_help
disp(' ')
disp('st()  HELP COMMAND')
disp('st() returns  - 1 or an error message if it fails')
disp('USAGE::    [localspectra,timevector,freqvector] = st(timeseries)')
disp('NOTE::   The function st() sets default parameters then calls the function strans()')
disp(' ')
disp('You can call strans() directly and pass the following parameters')
disp(' **** Warning!  These inputs are not checked if strans() is called directly!! ****')
disp('USAGE::  localspectra = strans(timeseries,minfreq,maxfreq,samplingrate,freqsamplingrate,verbose,removeedge,analytic_signal,factor) ')

disp(' ')
disp('Default parameters (available in st.m)')
disp('VERBOSE          - prints out informational messages throughout the function.')
disp('REMOVEEDGE       - removes the edge with a 5% taper, and takes')
disp('FACTOR           -  the width factor of the localizing gaussian')
disp('                    ie, a sinusoid of period 10 seconds has a ')
disp('                    gaussian window of width factor*10 seconds.')
disp('                    I usually use factor=1, but sometimes factor = 3')
disp('                    to get better frequency resolution.')
disp(' ')
disp('Default input variables')
disp('MINFREQ           - the lowest frequency in the ST result(Default=0)')
disp('MAXFREQ           - the highest frequency in the ST result (Default=nyquist')
disp('SAMPLINGRATE      - the time interval between successive data points (Default = 1)')
disp('FREQSAMPLINGRATE  - the number of frequencies between samples in the ST results')

% end of st_help procedure

Dash版S变换程序

function ST=stran(h)

% Compute S-Transform without for loops

%%% Coded by Kalyan S. Dash %%%
%%% IIT Bhubaneswar, India %%%

[~,N]=size(h); % h is a 1xN one-dimensional series

nhaf=fix(N/2);

odvn=1;

if nhaf*2==N
    odvn=0;
end

f=[0:nhaf -nhaf+1-odvn:-1]/N;

Hft=fft(h);

%Compute all frequency domain Gaussians as one matrix

invfk=[1./f(2:nhaf+1)]';

W=2*pi*repmat(f,nhaf,1).*repmat(invfk,1,N);

G=exp((-W.^2)/2); %Gaussian in freq domain

% End of frequency domain Gaussian computation

% Compute Toeplitz matrix with the shifted fft(h)

HW=toeplitz(Hft(1:nhaf+1)',Hft);

% Exclude the first row, corresponding to zero frequency

HW=[HW(2:nhaf+1,:)];

% Compute Stockwell Transform

ST=ifft(HW.*G,[],2); %Compute voice

%Add the zero freq row

st0=mean(h)*ones(1,N);

ST=[st0;ST];

end

博主自己编写的S变换

function wcoefs = myst(t,Sig,freqlow,freqhigh,alpha)
%==================%
% Stockwell transform ver 1.0 (2021-09-24)
% Copyright (c) by Jinshun Shen,Xidian University
%jsshen@stu.xidian.edu.cn
%This program can not be used for commercialization without the authorization of its author
%======输入======%
%t:时间序列
% Sig: 输入信号
%freqlow,freqhigh:频率范围
%alpha:频率分辨率
%======输出======%
% wcoefs: ST变换计算结果

if (nargin <= 2)

error('At least 2 parameters required');

end

if (nargin < 5)
    alpha=0.05;
elseif (nargin < 4)
    freqhigh=log(length(t));
elseif (nargin < 3)
    freqlow=0;
end

if size(t,1)>1%t是列向量,则转置
    t=t';
end
if size(Sig,1)>1%Sig是列向量,则转置
    Sig=Sig.';
end
% 信号的长度
SigLen = length(Sig);
% 时间的长度
TimeLen = length(t);
dt=t(2)-t(1);
fre=freqlow:alpha:freqhigh;%产生频率范围
% time=1:TimeLen;
if SigLen > TimeLen%信号长度大于时间长度，时间补0
    t=[t  zeros(1,SigLen-TimeLen)];
end
if SigLen < TimeLen%信号长度小于于时间长度，信号补0
    Sig=[Sig  zeros(1,TimeLen-SigLen)];
end
% 总频率数量
nLevel=length(fre);
% 分配计算结果的存储单元
wcoefs = zeros(nLevel,TimeLen);
temp=zeros(1,TimeLen);
for m = 1:nLevel
% 计算各频率上的ST系数
% 提取频率参数
f= fre(m);
    for n=1:TimeLen
        %计算高斯窗函数
        Gauss_st=(f/(sqrt(2*pi)))*exp(-0.5*(n*dt-t).^2*(f)^2).*exp(-1i*2*pi*f*t);
        temp(n)=trapz(t,Sig.*Gauss_st);%效率低，精度稍高
    end
wcoefs(m,:)=temp;
end
end

主函数

clear;
close all;
clc
%%
fs=2^9;    %采样频率
dt=1/fs;    %时间间隔
timestart=0;
timeend=4;
t=(0:(timeend-timestart)/dt-1)*dt+timestart;
k2=27;
k1=30;
f0=80;
f1=80;
y1=exp((1i)*pi*k2*t.*t+2*pi*1i*f0*t).*(t>=timestart& t<timeend);
y2=exp((1i)*pi*k1*t.*t+2*pi*1i*f1*t).*(t>=timestart& t<timeend);
y=y1+y2;

frelow=0;
frehigh=256;
alpha=1;
fre=frelow:alpha:frehigh;
%%
[st_matrix_z,st_times,st_frequencies] = st(y);
myst = myst(t,y,frelow,frehigh,alpha);
fmin=0;
fmax=256;
df=1;
totalscal=(fmax-fmin)/df;
f=fmin:df:fmax-df;%预期的频率

figure()
imagesc(t,f,abs(st_matrix_z));
axis([timestart timeend fmin fmax])
colormap(jet);
set(gca,'ydir','normal')
xlabel('Time(s)')
ylabel('Frequency(Hz)')
title('Stockwell Transform')


figure()
imagesc(t,fre,abs(myst));
axis([timestart timeend frelow frehigh])
colormap(jet);
set(gca,'ydir','normal')
xlabel('Time(s)')
ylabel('Frequency(Hz)')
title('My Stockwell Transform')

仿真结果

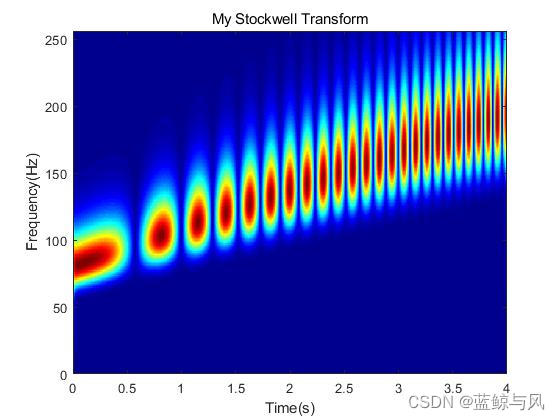

第一幅图是Stockwell版S变换结果，第二幅图是博主自己写的S变换程序的结果。Stockwell版S变换结果明显优于博主的S变换结果，原因在于Stockwell版S变换程序没有使用1996年论文中的形式，它可以看出一种广义的S变换，或者称自适应的S变换。Stockwell版S变换在实际操作中不太好用，如果参数设置不合适，则无法呈现正确的结果。而博主自己写的S变换程序是严格遵循1996年论文中的形式，它可以自由的设置最低频率，最高频率，频率间隔，比较好操作，但是运行比较慢。后续，我会上传一种广义的S变换程序，它的结果如第三幅图所示。

R. G. Stockwell, L. Mansinha, and R. Lowe, “Localization of the
complex spectrum: the S transform,” IEEE transactions on signal
processing, vol. 44, no. 4, pp. 998–1001, 1996.
