如何在项目当中集成Swagger-API开发

目录

1.介绍

2.应用

---

1.介绍



• 关于“介绍”最具有权威性，不用多说一定是官方了，Swagger官网地址：https://swagger.io/ 结。
• 对Swagger官方从不同角度如：设计、开发、文档、测试、监控、规范等等。

2.应用

• 添加maven依赖

  <!--swagger相关依赖-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.2.2</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.2.2</version>
        </dependency>



• 配置类

package com.swagger.test.config;

import io.swagger.annotations.Api;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
public class Swagger2Configuration {

    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                 //  加了api注解Controller
                .apis(RequestHandlerSelectors.withClassAnnotation(Api.class))
                .paths(PathSelectors.any())
                .build();
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                // 接口文档头
                .title("Swagger接口文档")
                // 接口文档描述
                .description("Swagger相关接口的文档")
                // 服务器地址
                .termsOfServiceUrl("http://www.SwaggerTest.com")
                // 项目版本号
                .version("1.0")
                .build();
    }

}

• 测试接口

  package com.swagger.test.controller;

  import io.swagger.annotations.Api;
  import io.swagger.annotations.ApiImplicitParam;
  import io.swagger.annotations.ApiImplicitParams;
  import io.swagger.annotations.ApiOperation;
  import org.springframework.stereotype.Controller;
  import org.springframework.web.bind.annotation.PostMapping;
  import org.springframework.web.bind.annotation.RequestMapping;
  import org.springframework.web.bind.annotation.RequestMethod;
  import org.springframework.web.bind.annotation.ResponseBody;

  /**
   * 测试Swaager2接口
   *
   * @author: @xxx
   * @create: 2019-07-02 15:53
   */
  @Api(value = "TestSwaager2Controller",description = "test接口")
  @Controller
  public class TestSwaager2Controller {


      @ApiOperation(value = "这是一个测试Swaager接口实例，好好验证哦。不然")
      @ApiImplicitParams({@ApiImplicitParam(name = "name", dataType = "String", required = true,paramType = "query"),
              @ApiImplicitParam(name = "desc", dataType = "String", required = true,paramType = "query")
      })
      @ResponseBody
      @RequestMapping(value = "/swaager/swaagerTest", method = RequestMethod.POST)
      public String Test(String name, String desc) {
          return "这是一个测试Swaager接口实例-----------{"+String.format("%s",name)+"},----------{"+String.format("%s",desc)+"}";

      }

  }

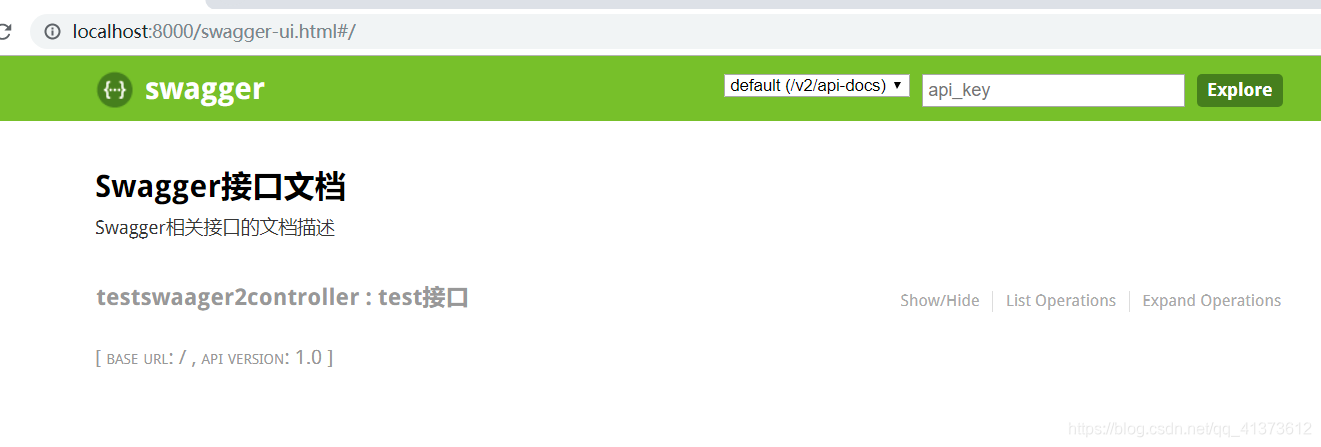

  最后我们在浏览器中输入地址 http://localhost:8000/swagger-ui.html，OK就是这样



 总结：后面学习一些Swagger常用注解基本用法、描述，并会记录在我的博客当中，“锲而不舍，金石可镂”。
