感谢大佬写的插件vue-pdf。我整理啦一下我遇到的问题。

于 2020-04-13 17:39:13 发布
阅读量7.9k 收藏 7
点赞数 3
分类专栏： 图片预览 文章标签： js vue
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.youkuaiyun.com/qq_41309944/article/details/105493554
版权
本文介绍在Vue项目中实现PDF预览的方法，包括安装vue-pdf插件、创建公共组件进行预览、下载、旋转及翻页等功能，并解决显示不全与旋转问题。

摘要生成于 C知道 ，由 DeepSeek-R1 满血版支持， 前往体验 >

vue项目中要用到pdf预览，于是开始百度找，也许是缘分找到啦vue-pdf插件
第一步肯定是安装插件

npm install --save vue-pdf

第二步创建一个公共组件
用来点击放大用的，有需要可以使用，没需要可以忽略这一步。
this.$refs.referencePdf.open(文件的地址，文件的主键)

<template>
  <div class="workfloeStyle">
    <el-dialog title="PDF文件预览" :visible.sync="dialogTableVisible" width="70%" center style="margin-bottom:3vh">
      <el-row :gutter="20">
        <el-col :span="6" :offset="1">
          <el-button type="text" @click="fileDownload">下载文件</el-button>
          <el-button type="text" @click.stop="clock">顺时针旋转</el-button>
          <el-button type="text" @click.stop="counterClock">逆时针旋转</el-button>
        </el-col>
      </el-row>
      <div v-show="fileType === 'pdf'">
        <pdf
          :src="src"
          height="300px"
          :page="currentPage"
          :rotate="pageRotate"
          @num-pages="pageCount=$event"
          @page-loaded="currentPage=$event"
          @loaded="loadPdfHandler"
        />
      </div>
      <span slot="footer" class="dialog-footer">
        <el-row type="flex" class="row-bg" justify="center">
          <el-col :span="3"><el-button type="text" @click="changePdfPage(0)">上一页</el-button></el-col>
          <el-col :span="3"><el-button type="text" disabled style="color:black">{{ currentPage }} / {{ pageCount }}</el-button></el-col>
          <el-col :span="3"><el-button type="text" @click="changePdfPage(1)">下一页</el-button></el-col>
        </el-row>
      </span>
    </el-dialog>
  </div>
</template>

<script>
import pdf from 'vue-pdf'
export default {
  components: { pdf },
  data() {
    return {
      dialogTableVisible: false,
      currentPage: 0, // pdf文件页码
      pageCount: 0, // pdf文件总页数
      fileType: 'pdf', // 文件类型
      pageRotate: 0,
      fileID: '',
      src: '' // pdf文件地址
    }
  },
  mounted() {
  },
  methods: {
    open(url, fileID) {
      this.dialogTableVisible = true
      this.src = url
      this.fileID = fileID
      this.loadPdfHandler()
    },
    fileDownload() {
      location.href = `nifa-autonomy-file/upload/download/${this.fileID}`
    },
    changePdfPage(val) {
      if (val === 0 && this.currentPage > 1) {
        this.currentPage--
      }
      if (val === 1 && this.currentPage < this.pageCount) {
        this.currentPage++
      }
    },
    clock() {
      this.pageRotate += 90
    },
    counterClock() {
      this.pageRotate -= 90
    },
    // pdf加载时
    loadPdfHandler(e) {
      this.currentPage = 1 // 加载的时候先加载第一页
      this.pageRotate = 0
    }
  }
}
</script>

<style lang="scss">
</style>

第三步在父组件中引用

import pdf from 'vue-pdf'
components: { pdf }
<pdf
 v-if="testmsgY==='pdf'"
   :src="urlY" //后台返回的地址
   :page="1"
 />

到这里就ok啦，但是突然发现，有问题，比如显示不全，比如有的pdf打开是横向的，需要旋转，但是第一次点击旋转没有效果。所以更换啦下面这个文件

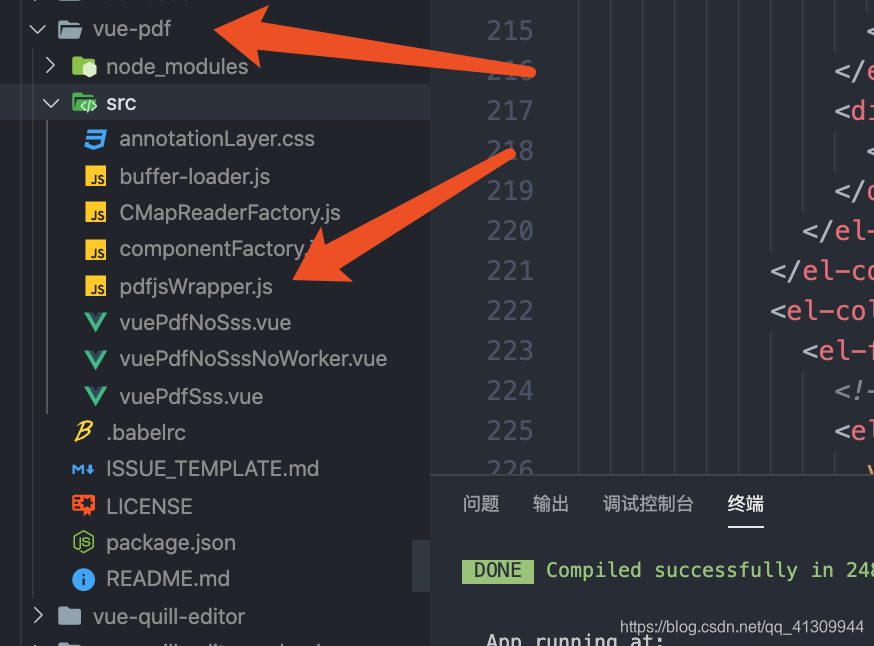

打开node包在这里插入图片描述
找到pdfjsWrapper.js
在这里插入图片描述
复制代码，覆盖源码

import { PDFLinkService } from 'pdfjs-dist/lib/web/pdf_link_service';

var pendingOperation = Promise.resolve();

export default function(PDFJS) {

	function isPDFDocumentLoadingTask(obj) {

		return typeof(obj) === 'object' && obj !== null && obj.__PDFDocumentLoadingTask === true;
	}

	function createLoadingTask(src, options) {
		let CMAP_URL = 'https://unpkg.com/pdfjs-dist@2.0.943/cmaps/'
		var source;
		if ( typeof(src) === 'string' )
			source = { url: src };
		else if ( src instanceof Uint8Array )
			source = { data: src };
		else if ( typeof(src) === 'object' && src !== null )
			source = Object.assign({}, src);
		else
			throw new TypeError('invalid src type');

		// source.verbosity = PDFJS.VerbosityLevel.INFOS;
		// source.pdfBug = true;
		// source.stopAtErrors = true;
		source.cMapUrl=CMAP_URL,
		source.cMapPacked=true
		var loadingTask = PDFJS.getDocument(source);
		loadingTask.__PDFDocumentLoadingTask = true; // since PDFDocumentLoadingTask is not public

		if ( options && options.onPassword )
			loadingTask.onPassword = options.onPassword;

		if ( options && options.onProgress )
			loadingTask.onProgress = options.onProgress;

		return loadingTask;
	}


	function PDFJSWrapper(canvasElt, annotationLayerElt, emitEvent) {

		var pdfDoc = null;
		var pdfPage = null;
		var pdfRender = null;
		var canceling = false;

		canvasElt.getContext('2d').save();

		function clearCanvas() {

			canvasElt.getContext('2d').clearRect(0, 0, canvasElt.width, canvasElt.height);
		}

		function clearAnnotations() {

			while ( annotationLayerElt.firstChild )
				annotationLayerElt.removeChild(annotationLayerElt.firstChild);
		}

		this.destroy = function() {

			if ( pdfDoc === null )
				return;

			// Aborts all network requests and destroys worker.
			pendingOperation = pdfDoc.destroy();
			pdfDoc = null;
		}

		this.getResolutionScale = function() {

			return canvasElt.offsetWidth / canvasElt.width;
		}

		this.printPage = function(dpi, pageNumberOnly) {

			if ( pdfPage === null )
				return;

			// 1in == 72pt
			// 1in == 96px
			var PRINT_RESOLUTION = dpi === undefined ? 150 : dpi;
			var PRINT_UNITS = PRINT_RESOLUTION / 72.0;
			var CSS_UNITS = 96.0 / 72.0;

			var iframeElt = document.createElement('iframe');

			// function removePrintContainer() {

			// 	iframeElt.parentNode.removeChild(iframeElt);
			// }
			function removePrintContainer() {
				printContainerElement.parentNode.removeChild(printContainerElement);
		  }

			new Promise(function(resolve, reject) {

				iframeElt.frameBorder = '0';
				iframeElt.scrolling = 'no';
				iframeElt.width = '0px;'
				iframeElt.height = '0px;'
				iframeElt.style.cssText = 'position: absolute; top: 0; left: 0';

				iframeElt.onload = function() {

					resolve(this.contentWindow);
				}

				window.document.body.appendChild(iframeElt);
			})
			.then(function(win) {

				win.document.title = '';

				return pdfDoc.getPage(1)
				.then(function(page) {

					var viewport = page.getViewport({ scale: 1 });
					win.document.head.appendChild(win.document.createElement('style')).textContent =
						'@supports ((size:A4) and (size:1pt 1pt)) {' +
							'@page { margin: 1pt; size: ' + ((viewport.width * PRINT_UNITS) / CSS_UNITS) + 'pt ' + ((viewport.height * PRINT_UNITS) / CSS_UNITS) + 'pt; }' +
						'}' +

						'@media print {' +
							'body { margin: 0 }' +
							'canvas { page-break-before: avoid; page-break-after: always; page-break-inside: avoid }' +
						'}'+

						'@media screen {' +
							'body { margin: 0 }' +
						'}'+

						''
					return win;
				})
			})
			.then(function(win) {

				var allPages = [];

				for ( var pageNumber = 1; pageNumber <= pdfDoc.numPages; ++pageNumber ) {

					if ( pageNumberOnly !== undefined && pageNumberOnly.indexOf(pageNumber) === -1 )
						continue;

					allPages.push(
						pdfDoc.getPage(pageNumber)
						.then(function(page) {

							var viewport = page.getViewport({ scale: 1 });

							var printCanvasElt = win.document.body.appendChild(win.document.createElement('canvas'));
							printCanvasElt.width = (viewport.width * PRINT_UNITS);
							printCanvasElt.height = (viewport.height * PRINT_UNITS);
							return page.render({
								canvasContext: printCanvasElt.getContext('2d'),
								transform: [ // Additional transform, applied just before viewport transform.
									PRINT_UNITS, 0, 0,
									PRINT_UNITS, 0, 0
								],
								viewport: viewport,
								intent: 'print'
							}).promise;
						})
					);
				}

				Promise.all(allPages)
				.then(function() {

					win.focus(); // Required for IE
					if (win.document.queryCommandSupported('print')) {
						win.document.execCommand('print', false, null);
						} else {
						win.print();
					  }
					removePrintContainer();
				})
				.catch(function(err) {

					removePrintContainer();
					emitEvent('error', err);
				})
			})
		}

		this.renderPage = function(rotate) {
			if ( pdfRender !== null ) {

				if ( canceling )
					return;
				canceling = true;
				pdfRender.cancel();
				return;
			}

			if ( pdfPage === null )
				return;
			// rotate = (pdfPage.rotate === undefined ? 0 : pdfPage.rotate) + (rotate === undefined ? 0 : rotate);
			rotate = rotate === undefined ? 0 : rotate
			var scale = canvasElt.offsetWidth / pdfPage.getViewport({ scale: 1 }).width * (window.devicePixelRatio || 1);
			var viewport = pdfPage.getViewport({ scale:scale, rotation:rotate });

			emitEvent('page-size', viewport.width, viewport.height);

			canvasElt.width = viewport.width;
			canvasElt.height = viewport.height;
			pdfRender = pdfPage.render({
				canvasContext: canvasElt.getContext('2d'),
				viewport: viewport
			});

			annotationLayerElt.style.visibility = 'hidden';
			clearAnnotations();

			var viewer = {
				scrollPageIntoView: function(params) {
					emitEvent('link-clicked', params.pageNumber)
				},
			};

			var linkService = new PDFLinkService();
			linkService.setDocument(pdfDoc);
			linkService.setViewer(viewer);

			pendingOperation = pendingOperation.then(function() {

				var getAnnotationsOperation =
				pdfPage.getAnnotations({ intent: 'display' })
				.then(function(annotations) {

					PDFJS.AnnotationLayer.render({
						viewport: viewport.clone({ dontFlip: true }),
						div: annotationLayerElt,
						annotations: annotations,
						page: pdfPage,
						linkService: linkService,
						renderInteractiveForms: false
					});
				});

				var pdfRenderOperation =
				pdfRender.promise
				.then(function() {

					annotationLayerElt.style.visibility = '';
					canceling = false;
					pdfRender = null;
				})
				.catch(function(err) {

					pdfRender = null;
					if ( err instanceof PDFJS.RenderingCancelledException ) {

						canceling = false;
						this.renderPage(rotate);
						return;
					}
					emitEvent('error', err);
				}.bind(this))

				return Promise.all([getAnnotationsOperation, pdfRenderOperation]);
			}.bind(this));
		}


		this.forEachPage = function(pageCallback) {

			var numPages = pdfDoc.numPages;

			(function next(pageNum) {

				pdfDoc.getPage(pageNum)
				.then(pageCallback)
				.then(function() {

					if ( ++pageNum <= numPages )
						next(pageNum);
				})
			})(1);
		}


		this.loadPage = function(pageNumber, rotate) {
			pdfPage = null;
			if ( pdfDoc === null )
				return;
			pendingOperation = pendingOperation.then(function() {
				return pdfDoc.getPage(pageNumber);
			})
			.then(function(page) {
				pdfPage = page;
				this.renderPage(rotate);
				emitEvent('page-loaded', page.pageNumber);
			}.bind(this))
			.catch(function(err) {

				clearCanvas();
				clearAnnotations();
				emitEvent('error', err);
			});
		}

		this.loadDocument = function(src) {

			pdfDoc = null;
			pdfPage = null;

			emitEvent('num-pages', undefined);

			if ( !src ) {

				canvasElt.removeAttribute('width');
				canvasElt.removeAttribute('height');
				clearAnnotations();
				return;
			}

			// wait for pending operation ends
			pendingOperation = pendingOperation.then(function() {

				var loadingTask;
				if ( isPDFDocumentLoadingTask(src) ) {

					if ( src.destroyed ) {

						emitEvent('error', new Error('loadingTask has been destroyed'));
						return
					}

					loadingTask = src;
				} else {

					loadingTask = createLoadingTask(src, {
						onPassword: function(updatePassword, reason) {

							var reasonStr;
							switch (reason) {
								case PDFJS.PasswordResponses.NEED_PASSWORD:
									reasonStr = 'NEED_PASSWORD';
									break;
								case PDFJS.PasswordResponses.INCORRECT_PASSWORD:
									reasonStr = 'INCORRECT_PASSWORD';
									break;
							}
							emitEvent('password', updatePassword, reasonStr);
						},
						onProgress: function(status) {

							var ratio = status.loaded / status.total;
							emitEvent('progress', Math.min(ratio, 1));
						}
					});
				}

				return loadingTask.promise;
			})
			.then(function(pdf) {

				pdfDoc = pdf;
				emitEvent('num-pages', pdf.numPages);
				emitEvent('loaded');
			})
			.catch(function(err) {

				clearCanvas();
				clearAnnotations();
				emitEvent('error', err);
			})
		}

		annotationLayerElt.style.transformOrigin = '0 0';
	}

	return {
		createLoadingTask: createLoadingTask,
		PDFJSWrapper: PDFJSWrapper,
	}
}

搞定。。。
