Spring Security Oauth2核心组件之AuthorizationCodeServices

我们知到授权服颁发Token我们可以存储在授权服中，也可以存储在MySQL中，当然也可以存储在Redis中，这个我们是通过TokenStore来实现的，这个我这里就不做重点介绍了，但是授权服中不止给第三方办法Token，当我们在做授权码认证的时候我们还向客户端颁发了一个授权码！那么AuthorizationCodeServices对象就是关于这个授权码颁发后怎么存储的对象！

1、AuthorizationCodeServices

public interface AuthorizationCodeServices {

	//为指定的身份验证创建授权代码。
	String createAuthorizationCode(OAuth2Authentication authentication);

	//使用授权码。
	OAuth2Authentication consumeAuthorizationCode(String code)throws InvalidGrantException;
}

2、RandomValueAuthorizationCodeServices

我们自定义的AuthorizationCodeServices基本上都继承这个类

public abstract class RandomValueAuthorizationCodeServices implements AuthorizationCodeServices {

	private RandomValueStringGenerator generator = new RandomValueStringGenerator();

	public String createAuthorizationCode(OAuth2Authentication authentication) {
		String code = generator.generate();
		store(code, authentication);
		return code;
	}

	public OAuth2Authentication consumeAuthorizationCode(String code) throws InvalidGrantException {
		OAuth2Authentication auth = this.remove(code);
		if (auth == null) {throw new InvalidGrantException("Invalid authorization code: " + code);}
		return auth;
	}

   protected abstract void store(String code, OAuth2Authentication authentication);
	protected abstract OAuth2Authentication remove(String code);

}

RandomValueAuthorizationCodeServices为我们指定了授权码的生成方式，同时也开放了授权码的存储和删除。这为我们后面AuthorizationCodeServices的自定义提供了方便，因为我们只要继承RandomValueAuthorizationCodeServices，实现他的store和remove方法就行了。

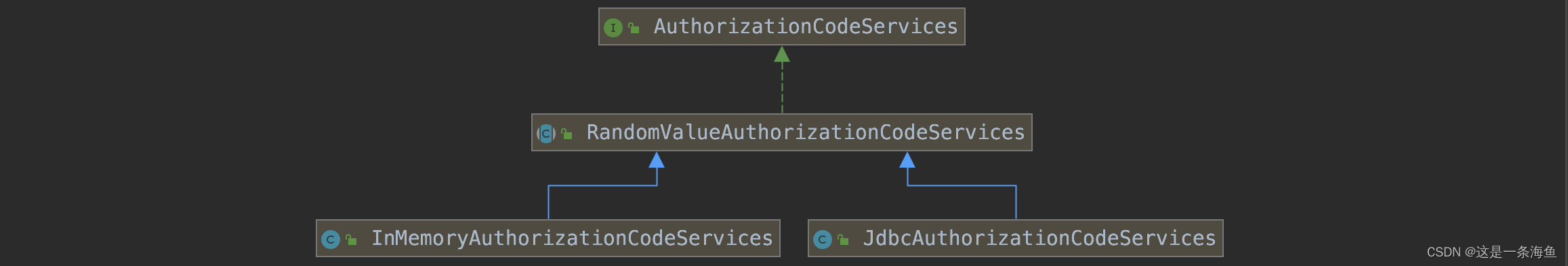

RandomValueAuthorizationCodeServices有2个子类InMemoryAuthorizationCodeServices和JdbcAuthorizationCodeServices，一个是把授权码存储到内存中，另一个是把授权码存储到数据库中。

3、AuthorizationCodeServices的注册逻辑

@Configuration
@Import(TokenKeyEndpointRegistrar.class)
public class AuthorizationServerEndpointsConfiguration {

	private AuthorizationServerEndpointsConfigurer endpoints = new AuthorizationServerEndpointsConfigurer();
    //忽略代码....
	@Bean
	public AuthorizationEndpoint authorizationEndpoint() throws Exception {
		AuthorizationEndpoint authorizationEndpoint = new AuthorizationEndpoint();
		FrameworkEndpointHandlerMapping mapping = getEndpointsConfigurer().getFrameworkEndpointHandlerMapping();
		authorizationEndpoint.setUserApprovalPage(extractPath(mapping, "/oauth/confirm_access"));
		authorizationEndpoint.setProviderExceptionHandler(exceptionTranslator());
		authorizationEndpoint.setErrorPage(extractPath(mapping, "/oauth/error"));
		authorizationEndpoint.setTokenGranter(tokenGranter());
		authorizationEndpoint.setClientDetailsService(clientDetailsService);
		//默认的AuthorizationCodeServices在这里注册
		//底层调用的是AuthorizationServerEndpointsConfigurer的authorizationCodeServices()方法
		authorizationEndpoint.setAuthorizationCodeServices(authorizationCodeServices());
		authorizationEndpoint.setOAuth2RequestFactory(oauth2RequestFactory());
		authorizationEndpoint.setOAuth2RequestValidator(oauth2RequestValidator());
		authorizationEndpoint.setUserApprovalHandler(userApprovalHandler());
		authorizationEndpoint.setRedirectResolver(redirectResolver());
		return authorizationEndpoint;
	}
 //忽略代码....
}

AuthorizationServerEndpointsConfigurer的authorizationCodeServices方法

public final class AuthorizationServerEndpointsConfigurer {

	 private AuthorizationCodeServices authorizationCodeServices() {
			if (authorizationCodeServices == null) {
				authorizationCodeServices = new InMemoryAuthorizationCodeServices();
			}
			return authorizationCodeServices;
		}
}

如果我们没有注册AuthorizationCodeServices，那么默认注册InMemoryAuthorizationCodeServices

4、把授权码存储到Redis中

需要导入的依赖

<dependency>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-data-redis</artifactId>
</dependency>

<dependency>
  <groupId>org.apache.commons</groupId>
  <artifactId>commons-pool2</artifactId>
</dependency>

相关配置

spring.redis.host=127.0.0.1
spring.redis.port=6379
spring.redis.database=0

Redis配置类

@Configuration
public class RedisConfiguration {
    /**
     * 注入 RedisConnectionFactory
     */
    @Autowired
    private RedisConnectionFactory redisConnectionFactory;

    /**
     * 实例化 RedisTemplate 对象
     */
    @Bean
    public RedisTemplate<String, Object> functionDomainRedisTemplate() {
        RedisTemplate<String, Object> redisTemplate = new RedisTemplate<>();
        initDomainRedisTemplate(redisTemplate, redisConnectionFactory);
        return redisTemplate;
    }


    /**
     * 设置数据存入 redis 的序列化方式
     */
    private void initDomainRedisTemplate(RedisTemplate<String, Object> redisTemplate, RedisConnectionFactory factory) {
        redisTemplate.setKeySerializer(new StringRedisSerializer());
        redisTemplate.setHashKeySerializer(new StringRedisSerializer());
        Jackson2JsonRedisSerializer<Object> jackson2JsonRedisSerializer = new Jackson2JsonRedisSerializer<>(Object.class);
        redisTemplate.setHashValueSerializer(jackson2JsonRedisSerializer);
        redisTemplate.setValueSerializer(jackson2JsonRedisSerializer);
        redisTemplate.setConnectionFactory(factory);
    }
}

基于RedisTemplate实现

@Service
public class RedisRepository {
    /**
     * Spring Redis Template
     */

    @Autowired
    private RedisTemplate<String, Object> redisTemplate;

    public RedisRepository(RedisTemplate<String, Object> redisTemplate) {
        this.redisTemplate = redisTemplate;
    }

    /**
     * 获取链接工厂
     */
    public RedisConnectionFactory getConnectionFactory() {
        return this.redisTemplate.getConnectionFactory();
    }

    /**
     * 获取 RedisTemplate对象
     */
    public RedisTemplate<String, Object> getRedisTemplate() {
        return redisTemplate;
    }

    /**
     * 清空DB
     *
     * @param node redis 节点
     */
    public void flushDB(RedisClusterNode node) {
        this.redisTemplate.opsForCluster().flushDb(node);
    }

    /**
     * 添加到带有 过期时间的  缓存
     *
     * @param key   redis主键
     * @param value 值
     * @param time  过期时间(单位秒)
     */
    public void setExpire(final byte[] key, final byte[] value, final long time) {
        redisTemplate.execute((RedisCallback<Long>) connection -> {
            connection.setEx(key, time, value);
            return 1L;
        });
    }

    /**
     * 添加到带有 过期时间的  缓存
     *
     * @param key      redis主键
     * @param value    值
     * @param time     过期时间
     * @param timeUnit 过期时间单位
     */
    public void setExpire(final String key, final Object value, final long time, final TimeUnit timeUnit) {
        redisTemplate.opsForValue().set(key, value, time, timeUnit);
    }

    public void setExpire(final String key, final Object value, final long time) {
        this.setExpire(key, value, time, TimeUnit.SECONDS);
    }

    public void setExpire(final String key, final Object value, final long time, final TimeUnit timeUnit, RedisSerializer<Object> valueSerializer) {
        byte[] rawKey = rawKey(key);
        byte[] rawValue = rawValue(value, valueSerializer);

        redisTemplate.execute(new RedisCallback<Object>() {
            @Override
            public Object doInRedis(RedisConnection connection) throws DataAccessException {
                potentiallyUsePsetEx(connection);
                return null;
            }

            public void potentiallyUsePsetEx(RedisConnection connection) {
                if (!TimeUnit.MILLISECONDS.equals(timeUnit) || !failsafeInvokePsetEx(connection)) {
                    connection.setEx(rawKey, TimeoutUtils.toSeconds(time, timeUnit), rawValue);
                }
            }

            private boolean failsafeInvokePsetEx(RedisConnection connection) {
                boolean failed = false;
                try {
                    connection.pSetEx(rawKey, time, rawValue);
                } catch (UnsupportedOperationException e) {
                    failed = true;
                }
                return !failed;
            }
        }, true);
    }

    /**
     * 一次性添加数组到   过期时间的  缓存，不用多次连接，节省开销
     *
     * @param keys   redis主键数组
     * @param values 值数组
     * @param time   过期时间(单位秒)
     */
    public void setExpire(final String[] keys, final Object[] values, final long time) {
        for (int i = 0; i < keys.length; i++) {
            redisTemplate.opsForValue().set(keys[i], values[i], time, TimeUnit.SECONDS);
        }
    }


    /**
     * 一次性添加数组到   过期时间的  缓存，不用多次连接，节省开销
     *
     * @param keys   the keys
     * @param values the values
     */
    public void set(final String[] keys, final Object[] values) {
        for (int i = 0; i < keys.length; i++) {
            redisTemplate.opsForValue().set(keys[i], values[i]);
        }
    }


    /**
     * 添加到缓存
     *
     * @param key   the key
     * @param value the value
     */
    public void set(final String key, final Object value) {
        redisTemplate.opsForValue().set(key, value);
    }

    /**
     * 查询在以keyPatten的所有  key
     *
     * @param keyPatten the key patten
     * @return the set
     */
    public Set<String> keys(final String keyPatten) {
        return redisTemplate.keys(keyPatten + "*");
    }

    /**
     * 根据key获取对象
     *
     * @param key the key
     * @return the byte [ ]
     */
    public byte[] get(final byte[] key) {
        return redisTemplate.execute((RedisCallback<byte[]>) connection -> connection.get(key));
    }

    /**
     * 根据key获取对象
     *
     * @param key the key
     * @return the string
     */
    public Object get(final String key) {
        return redisTemplate.opsForValue().get(key);
    }

    /**
     * 根据key获取对象
     *
     * @param key             the key
     * @param valueSerializer 序列化
     * @return the string
     */
    public Object get(final String key, RedisSerializer<Object> valueSerializer) {
        byte[] rawKey = rawKey(key);
        return redisTemplate.execute(connection -> deserializeValue(connection.get(rawKey), valueSerializer), true);
    }

    /**
     * Ops for hash hash operations.
     *
     * @return the hash operations
     */
    public HashOperations<String, String, Object> opsForHash() {
        return redisTemplate.opsForHash();
    }

    /**
     * 对HashMap操作
     *
     * @param key       the key
     * @param hashKey   the hash key
     * @param hashValue the hash value
     */
    public void putHashValue(String key, String hashKey, Object hashValue) {
        opsForHash().put(key, hashKey, hashValue);
    }

    /**
     * 获取单个field对应的值
     *
     * @param key     the key
     * @param hashKey the hash key
     * @return the hash values
     */
    public Object getHashValues(String key, String hashKey) {
        return opsForHash().get(key, hashKey);
    }

    /**
     * 根据key值删除
     *
     * @param key      the key
     * @param hashKeys the hash keys
     */
    public void delHashValues(String key, Object... hashKeys) {
        opsForHash().delete(key, hashKeys);
    }

    /**
     * key只匹配map
     *
     * @param key the key
     * @return the hash value
     */
    public Map<String, Object> getHashValue(String key) {
        return opsForHash().entries(key);
    }

    /**
     * 批量添加
     *
     * @param key the key
     * @param map the map
     */
    public void putHashValues(String key, Map<String, Object> map) {
        opsForHash().putAll(key, map);
    }

    /**
     * 集合数量
     *
     * @return the long
     */
    public long dbSize() {
        return redisTemplate.execute(RedisServerCommands::dbSize);
    }

    /**
     * 清空redis存储的数据
     *
     * @return the string
     */
    public String flushDB() {
        return redisTemplate.execute((RedisCallback<String>) connection -> {
            connection.flushDb();
            return "ok";
        });
    }

    /**
     * 判断某个主键是否存在
     *
     * @param key the key
     * @return the boolean
     */
    public boolean exists(final String key) {
        return redisTemplate.hasKey(key);
    }


    /**
     * 删除key
     *
     * @param keys the keys
     * @return the long
     */
    public boolean del(final String... keys) {
        boolean result = false;
        for (String key : keys) {
            result = redisTemplate.delete(key);
        }
        return result;
    }

    /**
     * 对某个主键对应的值加一,value值必须是全数字的字符串
     *
     * @param key the key
     * @return the long
     */
    public long incr(final String key) {
        return redisTemplate.opsForValue().increment(key);
    }

    /**
     * redis List 引擎
     *
     * @return the list operations
     */
    public ListOperations<String, Object> opsForList() {
        return redisTemplate.opsForList();
    }

    /**
     * redis List数据结构 : 将一个或多个值 value 插入到列表 key 的表头
     *
     * @param key   the key
     * @param value the value
     * @return the long
     */
    public Long leftPush(String key, Object value) {
        return opsForList().leftPush(key, value);
    }

    /**
     * redis List数据结构 : 移除并返回列表 key 的头元素
     *
     * @param key the key
     * @return the string
     */
    public Object leftPop(String key) {
        return opsForList().leftPop(key);
    }

    /**
     * redis List数据结构 :将一个或多个值 value 插入到列表 key 的表尾(最右边)。
     *
     * @param key   the key
     * @param value the value
     * @return the long
     */
    public Long in(String key, Object value) {
        return opsForList().rightPush(key, value);
    }

    /**
     * redis List数据结构 : 移除并返回列表 key 的末尾元素
     *
     * @param key the key
     * @return the string
     */
    public Object rightPop(String key) {
        return opsForList().rightPop(key);
    }


    /**
     * redis List数据结构 : 返回列表 key 的长度 ; 如果 key 不存在，则 key 被解释为一个空列表，返回 0 ; 如果 key 不是列表类型，返回一个错误。
     *
     * @param key the key
     * @return the long
     */
    public Long length(String key) {
        return opsForList().size(key);
    }


    /**
     * redis List数据结构 : 根据参数 i 的值，移除列表中与参数 value 相等的元素
     *
     * @param key   the key
     * @param i     the
     * @param value the value
     */
    public void remove(String key, long i, Object value) {
        opsForList().remove(key, i, value);
    }

    /**
     * redis List数据结构 : 将列表 key 下标为 index 的元素的值设置为 value
     *
     * @param key   the key
     * @param index the index
     * @param value the value
     */
    public void set(String key, long index, Object value) {
        opsForList().set(key, index, value);
    }

    /**
     * redis List数据结构 : 返回列表 key 中指定区间内的元素，区间以偏移量 start 和 end 指定。
     *
     * @param key   the key
     * @param start the start
     * @param end   the end
     * @return the list
     */
    public List<Object> getList(String key, int start, int end) {
        return opsForList().range(key, start, end);
    }

    /**
     * redis List数据结构 : 返回列表 key 中指定区间内的元素，区间以偏移量 start 和 end 指定。
     *
     * @param key             the key
     * @param start           the start
     * @param end             the end
     * @param valueSerializer 序列化
     * @return the list
     */
    public List<Object> getList(String key, int start, int end, RedisSerializer<Object> valueSerializer) {
        byte[] rawKey = rawKey(key);
        return redisTemplate.execute(connection -> deserializeValues(connection.lRange(rawKey, start, end), valueSerializer), true);
    }

    /**
     * redis List数据结构 : 批量存储
     *
     * @param key  the key
     * @param list the list
     * @return the long
     */
    public Long leftPushAll(String key, List<String> list) {
        return opsForList().leftPushAll(key, list);
    }

    /**
     * redis List数据结构 : 将值 value 插入到列表 key 当中，位于值 index 之前或之后,默认之后。
     *
     * @param key   the key
     * @param index the index
     * @param value the value
     */
    public void insert(String key, long index, Object value) {
        opsForList().set(key, index, value);
    }

    private byte[] rawKey(Object key) {
        Assert.notNull(key, "non null key required");

        if (key instanceof byte[]) {
            return (byte[]) key;
        }
        RedisSerializer<Object> redisSerializer = (RedisSerializer<Object>) redisTemplate.getKeySerializer();
        return redisSerializer.serialize(key);
    }

    private byte[] rawValue(Object value, RedisSerializer valueSerializer) {
        if (value instanceof byte[]) {
            return (byte[]) value;
        }

        return valueSerializer.serialize(value);
    }

    private List deserializeValues(List<byte[]> rawValues, RedisSerializer<Object> valueSerializer) {
        if (valueSerializer == null) {
            return rawValues;
        }
        return SerializationUtils.deserialize(rawValues, valueSerializer);
    }

    private Object deserializeValue(byte[] value, RedisSerializer<Object> valueSerializer) {
        if (valueSerializer == null) {
            return value;
        }
        return valueSerializer.deserialize(value);
    }
}

基于redis存储的RedisAuthorizationCodeServices

@Service
public class RedisAuthorizationCodeServices extends RandomValueAuthorizationCodeServices {

    String AUTH_CODE_PREFIX = "yiyi:code:auth:";

    private final RedisRepository redisRepository;
    private final RedisSerializer<Object> valueSerializer;

    public RedisAuthorizationCodeServices(RedisRepository redisRepository) {
        this.redisRepository = redisRepository;
        this.valueSerializer = RedisSerializer.java();
    }

    @Autowired
    private RedisTemplate<String, Object> redisTemplate;
    /**
     * 将存储code到redis，并设置过期时间，10分钟
     */
    @Override
    protected void store(String code, OAuth2Authentication authentication) {
        redisRepository.setExpire(redisKey(code), authentication, 10, TimeUnit.MINUTES, valueSerializer);
    }

    @Override
    protected OAuth2Authentication remove(final String code) {
        String codeKey = redisKey(code);
        OAuth2Authentication token = (OAuth2Authentication) redisRepository.get(codeKey, valueSerializer);
        redisRepository.del(codeKey);
        return token;
    }

    /**
     * redis中 code key的前缀
     */
    private String redisKey(String code) {
        return AUTH_CODE_PREFIX + code;
    }
}

从新注入AuthorizationCodeServices为RandomValueAuthorizationCodeServices

@Configuration
@EnableAuthorizationServer
public class Authorizationservercontig2 extends AuthorizationServerConfigurerAdapter {

    //忽略代码.....
    @Autowired
    private RandomValueAuthorizationCodeServices authorizationCodeServices;

    @Override
    public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception {
              //忽略代码....
               endpoints .authorizationCodeServices(authorizationCodeServices)
                //忽略代码....
    }
