该博客介绍Java项目搭建流程。首先需引入spring、mybatis等jar包，接着编辑sqlMapConfig.xml等配置文件，然后通过逆向工程生成mapper和实体类，完成dao、sevice、controller层开发，最后可访问页面进行操作。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

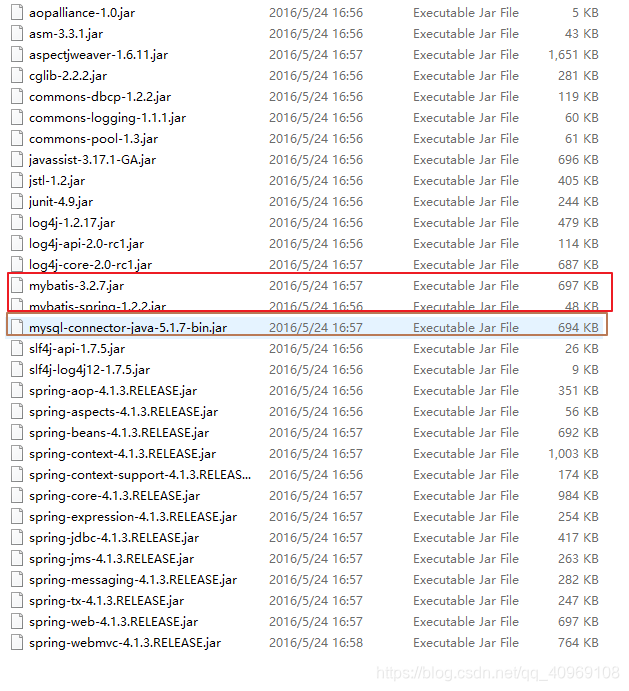

一、jar包

spring（包括springmvc）
mybatis
mybatis-spring整合包
数据库驱动
第三方连接池

二、编辑各个配置文件

sqlMapConfig.xml：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
	<!-- 设置别名 -->
	<typeAliases>
		<!-- 2. 指定扫描包，会把包内所有的类都设置别名，别名的名称就是类名，大小写不敏感 -->
		<package name="com.pojo" />
	</typeAliases>
	 <!--
	 原始DAO开发
	  <mappers>
		<mapper resource="sqlmap/User.xml"/>
	</mappers>  -->

	<!--mappter动态代理开发 【在applicationContext中已经扫描了，所以这里不需要了】 -->

	<!--
	<mappers>
		<package name="com.mapper"/>
	</mappers> -->
</configuration>

applicationContext.xml：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd
	http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.0.xsd">
	<context:property-placeholder location="classpath:jdbc.properties" />

	<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"
		destroy-method="close">
		<property name="driverClassName" value="${jdbc.driver}" />
		<property name="url" value="${jdbc.url}" />
		<property name="username" value="${jdbc.username}" />
		<property name="password" value="${jdbc.password}" />
		<property name="maxActive" value="10" />
		<property name="maxIdle" value="5" />
	</bean>


	<!-- 配置SqlSessionFactory -->
	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<!-- 配置mybatis核心配置文件 -->
		<property name="configLocation" value="classpath:SqlMapConfig.xml" />
		<!-- 配置数据源 -->
		<property name="dataSource" ref="dataSource" />
	</bean>

	<!-- Mapper代理的方式开发方式二，扫描包方式配置代理 -->
	<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
		<!-- 【sessionFactory他会自己去找spring容器中找，不需要我们用property写入】-->
		<!-- 基本包 -->
		<property name="basePackage" value="com.mapper"/>
	</bean>

     <!-- 配置@controller、@service扫扫描包 -->
	<context:component-scan base-package="com" />

	<!-- 注解事务 -->
	<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<property name="dataSource" ref="dataSource"/>
	</bean>
	<!-- 开启注解 -->
	<tx:annotation-driven transaction-manager="transactionManager"/>
</beans>

jdbc.properties：

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/springmvc?characterEncoding=utf-8
jdbc.username=root
jdbc.password=123456

springmvc.xml:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd">



	<!-- 默认的不推荐使用了 -->
	<!-- 配置处理器映射器 -->
	<!-- <bean class="org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping"></bean> -->
	<!-- 配置处理器适配器 -->
	<!-- <bean class="org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter" /> -->

	<!-- 注解驱动 替代上面两个配置 -->
	<mvc:annotation-driven/>

	<!-- 视图解析器 (这里配置之后，ItemController里面的setViewName既可以不用写一长串了)-->
	<bean
	class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<!-- 配置逻辑视图的前缀 -->
		<property name="prefix" value="/WEB-INF/jsp/" />
		<!-- 配置逻辑视图的后缀 -->
		<property name="suffix" value=".jsp" />
	</bean>

</beans>

web.xml:

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" id="WebApp_ID" version="2.5">
  <display-name>springmvc_mybatis</display-name>
  <welcome-file-list>
    <welcome-file>index.html</welcome-file>
    <welcome-file>index.htm</welcome-file>
    <welcome-file>index.jsp</welcome-file>
    <welcome-file>default.html</welcome-file>
    <welcome-file>default.htm</welcome-file>
    <welcome-file>default.jsp</welcome-file>
  </welcome-file-list>


<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>classpath:applicationContext.xml</param-value>
	</context-param>
	<!-- spring监听器 -->
	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>



  <!-- 前端控制器 -->
  <servlet>
		<servlet-name>springMVC</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<!-- 指定SpringMVC配置文件 -->
		<!-- SpringMVC的配置文件的默认路径是/WEB-INF/${servlet-name}-servlet.xml -->

		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>classpath:springmvc.xml</param-value>
		</init-param>

	</servlet>
	<servlet-mapping>
		<servlet-name>springMVC</servlet-name>
		<!-- /* 匹配所有，包括jsp、js、css
		/ 匹配所有，不包括jsp【包括js、css 】
		*.actiom *.do 匹配所有以action或者do结尾的 -->
		<url-pattern>*.action</url-pattern>
	</servlet-mapping>
</web-app>

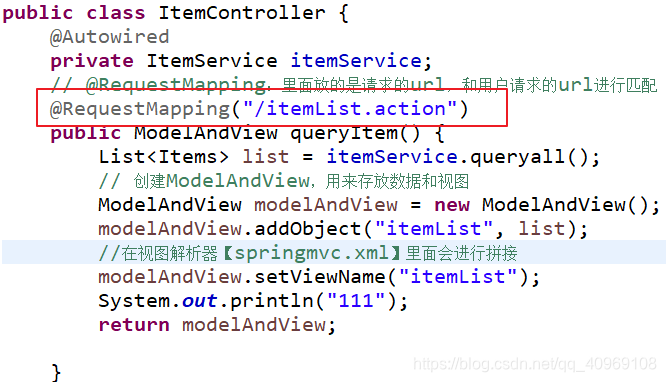

三、dao（mapper）→sevice→controller层

这里mapper和实体类是用逆向工程生成的【https://blog.youkuaiyun.com/qq_40969108/article/details/95499381】

mapper.java【能看懂就行，不用记】

package com.mapper;

import com.pojo.Items;
import com.pojo.ItemsExample;
import java.util.List;
import org.apache.ibatis.annotations.Param;

public interface ItemsMapper {
    int countByExample(ItemsExample example);

    int deleteByExample(ItemsExample example);

    int deleteByPrimaryKey(Integer id);

    int insert(Items record);

    int insertSelective(Items record);

    List<Items> selectByExampleWithBLOBs(ItemsExample example);

    List<Items> selectByExample(ItemsExample example);

    Items selectByPrimaryKey(Integer id);

    int updateByExampleSelective(@Param("record") Items record, @Param("example") ItemsExample example);

    int updateByExampleWithBLOBs(@Param("record") Items record, @Param("example") ItemsExample example);

    int updateByExample(@Param("record") Items record, @Param("example") ItemsExample example);

    int updateByPrimaryKeySelective(Items record);

    int updateByPrimaryKeyWithBLOBs(Items record);

    int updateByPrimaryKey(Items record);
}

mapper.xml【能看懂就行，不用记】

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.mapper.UserMapper" >
  <resultMap id="BaseResultMap" type="com.pojo.User" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="username" property="username" jdbcType="VARCHAR" />
    <result column="birthday" property="birthday" jdbcType="DATE" />
    <result column="sex" property="sex" jdbcType="CHAR" />
    <result column="address" property="address" jdbcType="VARCHAR" />
  </resultMap>
  <sql id="Example_Where_Clause" >
    <where >
      <foreach collection="oredCriteria" item="criteria" separator="or" >
        <if test="criteria.valid" >
          <trim prefix="(" suffix=")" prefixOverrides="and" >
            <foreach collection="criteria.criteria" item="criterion" >
              <choose >
                <when test="criterion.noValue" >
                  and ${criterion.condition}
                </when>
                <when test="criterion.singleValue" >
                  and ${criterion.condition} #{criterion.value}
                </when>
                <when test="criterion.betweenValue" >
                  and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
                </when>
                <when test="criterion.listValue" >
                  and ${criterion.condition}
                  <foreach collection="criterion.value" item="listItem" open="(" close=")" separator="," >
                    #{listItem}
                  </foreach>
                </when>
              </choose>
            </foreach>
          </trim>
        </if>
      </foreach>
    </where>
  </sql>
  <sql id="Update_By_Example_Where_Clause" >
    <where >
      <foreach collection="example.oredCriteria" item="criteria" separator="or" >
        <if test="criteria.valid" >
          <trim prefix="(" suffix=")" prefixOverrides="and" >
            <foreach collection="criteria.criteria" item="criterion" >
              <choose >
                <when test="criterion.noValue" >
                  and ${criterion.condition}
                </when>
                <when test="criterion.singleValue" >
                  and ${criterion.condition} #{criterion.value}
                </when>
                <when test="criterion.betweenValue" >
                  and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
                </when>
                <when test="criterion.listValue" >
                  and ${criterion.condition}
                  <foreach collection="criterion.value" item="listItem" open="(" close=")" separator="," >
                    #{listItem}
                  </foreach>
                </when>
              </choose>
            </foreach>
          </trim>
        </if>
      </foreach>
    </where>
  </sql>
  <sql id="Base_Column_List" >
    id, username, birthday, sex, address
  </sql>
  <select id="selectByExample" resultMap="BaseResultMap" parameterType="com.pojo.UserExample" >
    select
    <if test="distinct" >
      distinct
    </if>
    <include refid="Base_Column_List" />
    from user
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
    <if test="orderByClause != null" >
      order by ${orderByClause}
    </if>
  </select>
  <select id="selectByPrimaryKey" resultMap="BaseResultMap" parameterType="java.lang.Integer" >
    select
    <include refid="Base_Column_List" />
    from user
    where id = #{id,jdbcType=INTEGER}
  </select>
  <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer" >
    delete from user
    where id = #{id,jdbcType=INTEGER}
  </delete>
  <delete id="deleteByExample" parameterType="com.pojo.UserExample" >
    delete from user
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
  </delete>
  <insert id="insert" parameterType="com.pojo.User" >
    insert into user (id, username, birthday,
      sex, address)
    values (#{id,jdbcType=INTEGER}, #{username,jdbcType=VARCHAR}, #{birthday,jdbcType=DATE},
      #{sex,jdbcType=CHAR}, #{address,jdbcType=VARCHAR})
  </insert>
  <insert id="insertSelective" parameterType="com.pojo.User" >
    insert into user
    <trim prefix="(" suffix=")" suffixOverrides="," >
      <if test="id != null" >
        id,
      </if>
      <if test="username != null" >
        username,
      </if>
      <if test="birthday != null" >
        birthday,
      </if>
      <if test="sex != null" >
        sex,
      </if>
      <if test="address != null" >
        address,
      </if>
    </trim>
    <trim prefix="values (" suffix=")" suffixOverrides="," >
      <if test="id != null" >
        #{id,jdbcType=INTEGER},
      </if>
      <if test="username != null" >
        #{username,jdbcType=VARCHAR},
      </if>
      <if test="birthday != null" >
        #{birthday,jdbcType=DATE},
      </if>
      <if test="sex != null" >
        #{sex,jdbcType=CHAR},
      </if>
      <if test="address != null" >
        #{address,jdbcType=VARCHAR},
      </if>
    </trim>
  </insert>
  <select id="countByExample" parameterType="com.pojo.UserExample" resultType="java.lang.Integer" >
    select count(*) from user
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
  </select>
  <update id="updateByExampleSelective" parameterType="map" >
    update user
    <set >
      <if test="record.id != null" >
        id = #{record.id,jdbcType=INTEGER},
      </if>
      <if test="record.username != null" >
        username = #{record.username,jdbcType=VARCHAR},
      </if>
      <if test="record.birthday != null" >
        birthday = #{record.birthday,jdbcType=DATE},
      </if>
      <if test="record.sex != null" >
        sex = #{record.sex,jdbcType=CHAR},
      </if>
      <if test="record.address != null" >
        address = #{record.address,jdbcType=VARCHAR},
      </if>
    </set>
    <if test="_parameter != null" >
      <include refid="Update_By_Example_Where_Clause" />
    </if>
  </update>
  <update id="updateByExample" parameterType="map" >
    update user
    set id = #{record.id,jdbcType=INTEGER},
      username = #{record.username,jdbcType=VARCHAR},
      birthday = #{record.birthday,jdbcType=DATE},
      sex = #{record.sex,jdbcType=CHAR},
      address = #{record.address,jdbcType=VARCHAR}
    <if test="_parameter != null" >
      <include refid="Update_By_Example_Where_Clause" />
    </if>
  </update>
  <update id="updateByPrimaryKeySelective" parameterType="com.pojo.User" >
    update user
    <set >
      <if test="username != null" >
        username = #{username,jdbcType=VARCHAR},
      </if>
      <if test="birthday != null" >
        birthday = #{birthday,jdbcType=DATE},
      </if>
      <if test="sex != null" >
        sex = #{sex,jdbcType=CHAR},
      </if>
      <if test="address != null" >
        address = #{address,jdbcType=VARCHAR},
      </if>
    </set>
    where id = #{id,jdbcType=INTEGER}
  </update>
  <update id="updateByPrimaryKey" parameterType="com.pojo.User" >
    update user
    set username = #{username,jdbcType=VARCHAR},
      birthday = #{birthday,jdbcType=DATE},
      sex = #{sex,jdbcType=CHAR},
      address = #{address,jdbcType=VARCHAR}
    where id = #{id,jdbcType=INTEGER}
  </update>
</mapper>

package com.service;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.mapper.ItemsMapper;
import com.pojo.Items;

@Service
public class ItemServiceImpl implements ItemService{
	@Autowired
	private ItemsMapper itemsMapper;

	public List<Items> queryall() {
		List<Items> list = itemsMapper.selectByExampleWithBLOBs(null);
		return list;
		// TODO Auto-generated method stub

	}
}

package com.controller;


import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.ModelAndView;

import com.pojo.Items;
import com.service.ItemService;

@Controller
public class ItemController {
	@Autowired
	private ItemService itemService;
	// @RequestMapping：里面放的是请求的url，和用户请求的url进行匹配

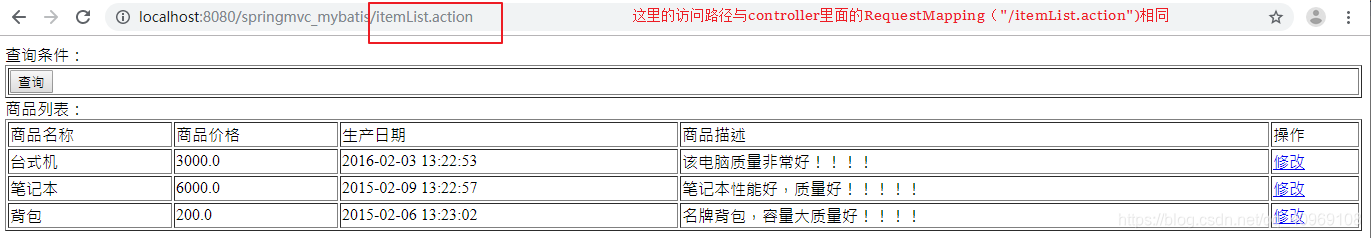

	@RequestMapping("/itemList.action")
	public ModelAndView queryItem() {
		List<Items> list = itemService.queryall();
		// 创建ModelAndView，用来存放数据和视图
		ModelAndView modelAndView = new ModelAndView();
		modelAndView.addObject("itemList", list);
		modelAndView.setViewName("itemList");
		System.out.println("111");
		return modelAndView;

	}
}

jsp页面：

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>
<%@ taglib uri="http://java.sun.com/jsp/jstl/fmt"  prefix="fmt"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>查询商品列表</title>
</head>
<body>
<form action="${pageContext.request.contextPath }/item/queryitem.action" method="post">
查询条件：
<table width="100%" border=1>
<tr>
<td><input type="submit" value="查询"/></td>
</tr>
</table>
商品列表：
<table width="100%" border=1>
<tr>
	<td>商品名称</td>
	<td>商品价格</td>
	<td>生产日期</td>
	<td>商品描述</td>
	<td>操作</td>
</tr>
<c:forEach items="${itemList }" var="item">
<tr>
	<td>${item.name }</td>
	<td>${item.price }</td>
	<td><fmt:formatDate value="${item.createtime}" pattern="yyyy-MM-dd HH:mm:ss"/></td>
	<td>${item.detail }</td>

	<td><a href="${pageContext.request.contextPath }/itemEdit.action?id=${item.id}">修改</a></td>

</tr>
</c:forEach>

</table>
</form>
</body>

</html>
