Spring笔记(三)——声明式事务TX


一、Spring 声明式事务

1.1 声明式事务概念

1.1.1 编程式事务

编程式事务是指手动编写程序来管理事务,即通过编写代码的方式直接控制事务的提交和回滚。在 Java 中,通常使用事务管理器(如 Spring 中的 PlatformTransactionManager)来实现编程式事务。

编程式事务的主要优点是灵活性高,可以按照自己的需求来控制事务的粒度、模式等等。但是,编写大量的事务控制代码容易出现问题,对代码的可读性和可维护性有一定影响。

Connection conn = ...;

try {
    // 开启事务:关闭事务的自动提交
    conn.setAutoCommit(false);
    // 核心操作
    // 业务代码
    // 提交事务
    conn.commit();

}catch(Exception e){

    // 回滚事务
    conn.rollBack();

}finally{

    // 释放数据库连接
    conn.close();

}

编程式的实现方式存在缺陷:

  • 细节没有被屏蔽:具体操作过程中,所有细节都需要程序员自己来完成,比较繁琐。
  • 代码复用性不高:如果没有有效抽取出来,每次实现功能都需要自己编写代码,代码就没有得到复用。

1.1.2 声明式事务

声明式事务是指使用注解或 XML 配置的方式来控制事务的提交和回滚。

开发者只需要添加配置即可, 具体事务的实现由第三方框架实现,避免我们直接进行事务操作!

使用声明式事务可以将事务的控制和业务逻辑分离开来,提高代码的可读性和可维护性。

区别:

  • 编程式事务需要手动编写代码来管理事务
  • 而声明式事务可以通过配置文件或注解来控制事务。

1.1.3 Spring事务管理器

  1. Spring声明式事务对应依赖

    • spring-tx: 包含声明式事务实现的基本规范(事务管理器规范接口和事务增强等等)
    • spring-jdbc: 包含DataSource方式事务管理器实现类DataSourceTransactionManager
    • spring-orm: 包含其他持久层框架的事务管理器实现类例如:Hibernate/Jpa等

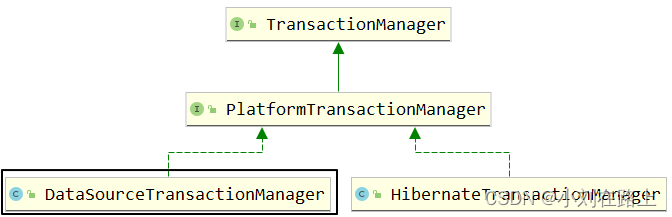

  2. Spring声明式事务对应事务管理器接口

    在这里插入图片描述

    我们现在要使用的事务管理器是org.springframework.jdbc.datasource.DataSourceTransactionManager,将来整合 JDBC方式、JdbcTemplate方式、Mybatis方式的事务实现!

    DataSourceTransactionManager类中的主要方法:

    • doBegin():开启事务
    • doSuspend():挂起事务
    • doResume():恢复挂起的事务
    • doCommit():提交事务
    • doRollback():回滚事务

1.2 基于注解的声明式事务

1.2.1 准备工作

  1. 准备项目
<dependencies>
  <!--spring context依赖-->
  <!--当你引入Spring Context依赖之后,表示将Spring的基础依赖引入了-->
  <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>6.0.6</version>
  </dependency>

  <!--junit5测试-->
  <dependency>
      <groupId>org.junit.jupiter</groupId>
      <artifactId>junit-jupiter-api</artifactId>
      <version>5.3.1</version>
  </dependency>
  <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>6.0.6</version>
      <scope>test</scope>
  </dependency>

  <dependency>
      <groupId>jakarta.annotation</groupId>
      <artifactId>jakarta.annotation-api</artifactId>
      <version>2.1.1</version>
  </dependency>

  <!-- 数据库驱动 和 连接池-->
  <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>8.0.25</version>
  </dependency>

  <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>druid</artifactId>
      <version>1.2.8</version>
  </dependency>

  <!-- spring-jdbc -->
  <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>6.0.6</version>
  </dependency>

  <!-- 声明式事务依赖-->
  <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>6.0.6</version>
  </dependency>
  <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aop</artifactId>
      <version>6.0.6</version>
  </dependency>

  <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aspects</artifactId>
      <version>6.0.6</version>
  </dependency>
</dependencies>
```
  1. 外部配置文件

    jdbc.properties

atguigu.url=jdbc:mysql://localhost:3306/studb
atguigu.driver=com.mysql.cj.jdbc.Driver
atguigu.username=root
atguigu.password=root
  1. spring配置文件
@Configuration
@ComponentScan("com.atguigu")
@PropertySource("classpath:jdbc.properties")
public class JavaConfig {

    @Value("${atguigu.driver}")
    private String driver;
    @Value("${atguigu.url}")
    private String url;
    @Value("${atguigu.username}")
    private String username;
    @Value("${atguigu.password}")
    private String password;
    //druid连接池
    @Bean
    public DataSource dataSource(){
        DruidDataSource dataSource = new DruidDataSource();
        dataSource.setDriverClassName(driver);
        dataSource.setUrl(url);
        dataSource.setUsername(username);
        dataSource.setPassword(password);
        return dataSource;
    }


    @Bean
    //jdbcTemplate
    public JdbcTemplate jdbcTemplate(DataSource dataSource){
        JdbcTemplate jdbcTemplate = new JdbcTemplate();
        jdbcTemplate.setDataSource(dataSource);
        return jdbcTemplate;
    }

}

```
  1. 准备dao/service层

    dao

@Repository
public class StudentDao {

    @Autowired
    private JdbcTemplate jdbcTemplate;

    public void updateNameById(String name,Integer id){
        String sql = "update students set name = ? where id = ? ;";
        int rows = jdbcTemplate.update(sql, name, id);
    }

    public void updateAgeById(Integer age,Integer id){
        String sql = "update students set age = ? where id = ? ;";
        jdbcTemplate.update(sql,age,id);
    }
}

service

@Service
public class StudentService {

    @Autowired
    private StudentDao studentDao;

    public void changeInfo(){
        studentDao.updateAgeById(100,1);
        System.out.println("-----------");
        studentDao.updateNameById("test1",1);
    }
}

  1. 测试环境搭建
/**
 * projectName: com.atguigu.test
 *
 * description:
 */
@SpringJUnitConfig(JavaConfig.class)
public class TxTest {

    @Autowired
    private StudentService studentService;

    @Test
    public void  testTx(){
        studentService.changeInfo();
    }
}

1.2.2 基本事务控制

  1. 配置事务管理器

    数据库相关的配置

    /**
     * projectName: com.atguigu.config
     *
     * description: 数据库和连接池配置类
     */

    @Configuration
    @ComponenScan("com.atguigu")
    @PropertySource(value = "classpath:jdbc.properties")
    @EnableTransactionManagement
    public class DataSourceConfig {

        /**
         * 实例化dataSource加入到ioc容器
         * @param url
         * @param driver
         * @param username
         * @param password
         * @return
         */
        @Bean
        public DataSource dataSource(@Value("${atguigu.url}")String url,
                                     @Value("${atguigu.driver}")String driver,
                                     @Value("${atguigu.username}")String username,
                                     @Value("${atguigu.password}")String password){
            DruidDataSource dataSource = new DruidDataSource();
            dataSource.setDriverClassName(driver);
            dataSource.setUrl(url);
            dataSource.setUsername(username);
            dataSource.setPassword(password);

            return dataSource;
        }

        /**
         * 实例化JdbcTemplate对象,需要使用ioc中的DataSource
         * @param dataSource
         * @return
         */
        @Bean
        public JdbcTemplate jdbcTemplate(DataSource dataSource){
            JdbcTemplate jdbcTemplate = new JdbcTemplate();
            jdbcTemplate.setDataSource(dataSource);
            return jdbcTemplate;
        }

        /**
         * 装配事务管理实现对象
         * @param dataSource
         * @return
         */
        @Bean
        public TransactionManager transactionManager(DataSource dataSource){
            return new DataSourceTransactionManager(dataSource);
        }

    }


  2. 使用声明事务注解@Transactional

    /**
     * projectName: com.atguigu.service
     *
     */
    @Service
    public class StudentService {

        @Autowired
        private StudentDao studentDao;

        @Transactional
        public void changeInfo(){
            studentDao.updateAgeById(100,1);
            System.out.println("-----------");
            int i = 1/0;
            studentDao.updateNameById("test1",1);
        }
    }


  3. 测试事务效果

    /**
     * projectName: com.atguigu.test
     *
     * description:
     */
    //@SpringJUnitConfig(locations = "classpath:application.xml")
    @SpringJUnitConfig(classes = DataSourceConfig.class)
    public class TxTest {

        @Autowired
        private StudentService studentService;

        @Test
        public void  testTx(){
            studentService.changeInfo();
        }
    }



1.2.3 事务属性:只读

  1. 只读介绍

    对一个查询操作来说,如果我们把它设置成只读,就能够明确告诉数据库,这个操作不涉及写操作。这样数据库就能够针对查询操作来进行优化。

  2. 设置方式

    // readOnly = true把当前事务设置为只读 默认是false!
    @Transactional(readOnly = true)

  3. 针对DML动作设置只读模式

    会抛出下面异常:

    Caused by: java.sql.SQLException: Connection is read-only. Queries leading to data modification are not allowed

  4. @Transactional注解放在类上

    1. 生效原则

      如果一个类中每一个方法上都使用了 @Transactional 注解,那么就可以将 @Transactional 注解提取到类上。反过来说:@Transactional 注解在类级别标记,会影响到类中的每一个方法。同时,类级别标记的 @Transactional 注解中设置的事务属性也会延续影响到方法执行时的事务属性。除非在方法上又设置了 @Transactional 注解。

      对一个方法来说,离它最近的 @Transactional 注解中的事务属性设置生效。

    2. 用法举例

      在类级别@Transactional注解中设置只读,这样类中所有的查询方法都不需要设置@Transactional注解了。因为对查询操作来说,其他属性通常不需要设置,所以使用公共设置即可。

      然后在这个基础上,对增删改方法设置@Transactional注解 readOnly 属性为 false。

    @Service
    @Transactional(readOnly = true)
    public class EmpService {

        // 为了便于核对数据库操作结果,不要修改同一条记录
        @Transactional(readOnly = false)
        public void updateTwice(……) {
        ……
        }

        // readOnly = true把当前事务设置为只读
        // @Transactional(readOnly = true)
        public String getEmpName(Integer empId) {
        ……
        }

    }


1.2.4 事务属性:超时时间

  1. 需求

    事务在执行过程中,有可能因为遇到某些问题,导致程序卡住,从而长时间占用数据库资源。而长时间占用资源,大概率是因为程序运行出现了问题(可能是Java程序或MySQL数据库或网络连接等等)。

    此时这个很可能出问题的程序应该被回滚,撤销它已做的操作,事务结束,把资源让出来,让其他正常程序可以执行。

    概括来说就是一句话:超时回滚,释放资源。

  2. 设置超时时间

    @Service
    public class StudentService {

        @Autowired
        private StudentDao studentDao;

        /**
         * timeout设置事务超时时间,单位秒! 默认: -1 永不超时,不限制事务时间!
         */
        @Transactional(readOnly = false,timeout = 3)
        public void changeInfo(){
            studentDao.updateAgeById(100,1);
            //休眠4秒,等待方法超时!
            try {
                Thread.sleep(4000);
            } catch (InterruptedException e) {
                throw new RuntimeException(e);
            }
            studentDao.updateNameById("test1",1);
        }
    }


  3. 测试超时效果

    执行抛出事务超时异常

    org.springframework.transaction.TransactionTimedOutException: Transaction timed out: deadline was Wed May 24 09:10:43 IRKT 2023

      at org.springframework.transaction.support.ResourceHolderSupport.checkTransactionTimeout(ResourceHolderSupport.java:155)
      at org.springframework.transaction.support.ResourceHolderSupport.getTimeToLiveInMillis(ResourceHolderSupport.java:144)
      at org.springframework.transaction.support.ResourceHolderSupport.getTimeToLiveInSeconds(ResourceHolderSupport.java:128)
      at org.springframework.jdbc.datasource.DataSourceUtils.applyTimeout(DataSourceUtils.java:341)
      at org.springframework.jdbc.core.JdbcTemplate.applyStatementSettings(JdbcTemplate.java:1467)



1.2.5 事务属性:事务异常

  1. 默认情况

    默认只针对运行时异常回滚,编译时异常不回滚。情景模拟代码如下:

    @Service
    public class StudentService {

        @Autowired
        private StudentDao studentDao;

        /**
         * timeout设置事务超时时间,单位秒! 默认: -1 永不超时,不限制事务时间!
         * rollbackFor = 指定哪些异常才会回滚,默认是 RuntimeException and Error 异常方可回滚!
         * noRollbackFor = 指定哪些异常不会回滚, 默认没有指定,如果指定,应该在rollbackFor的范围内!
         */
        @Transactional(readOnly = false,timeout = 3)
        public void changeInfo() throws FileNotFoundException {
            studentDao.updateAgeById(100,1);
            //主动抛出一个检查异常,测试! 发现不会回滚,因为不在rollbackFor的默认范围内!
            new FileInputStream("xxxx");
            studentDao.updateNameById("test1",1);
        }
    }

  2. 设置回滚异常

    rollbackFor属性:指定哪些异常类才会回滚,默认是 RuntimeException and Error 异常方可回滚!

    /**
     * timeout设置事务超时时间,单位秒! 默认: -1 永不超时,不限制事务时间!
     * rollbackFor = 指定哪些异常才会回滚,默认是 RuntimeException and Error 异常方可回滚!
     * noRollbackFor = 指定哪些异常不会回滚, 默认没有指定,如果指定,应该在rollbackFor的范围内!
     */
    @Transactional(readOnly = false,timeout = 3,rollbackFor = Exception.class)
    public void changeInfo() throws FileNotFoundException {
        studentDao.updateAgeById(100,1);
        //主动抛出一个检查异常,测试! 发现不会回滚,因为不在rollbackFor的默认范围内!
        new FileInputStream("xxxx");
        studentDao.updateNameById("test1",1);
    }

  3. 设置不回滚的异常

    在默认设置和已有设置的基础上,再指定一个异常类型,碰到它不回滚。

    noRollbackFor属性:指定哪些异常不会回滚, 默认没有指定,如果指定,应该在rollbackFor的范围内!

    @Service
    public class StudentService {

        @Autowired
        private StudentDao studentDao;

        /**
         * timeout设置事务超时时间,单位秒! 默认: -1 永不超时,不限制事务时间!
         * rollbackFor = 指定哪些异常才会回滚,默认是 RuntimeException and Error 异常方可回滚!
         * noRollbackFor = 指定哪些异常不会回滚, 默认没有指定,如果指定,应该在rollbackFor的范围内!
         */
        @Transactional(readOnly = false,timeout = 3,rollbackFor = Exception.class,noRollbackFor = FileNotFoundException.class)
        public void changeInfo() throws FileNotFoundException {
            studentDao.updateAgeById(100,1);
            //主动抛出一个检查异常,测试! 发现不会回滚,因为不在rollbackFor的默认范围内!
            new FileInputStream("xxxx");
            studentDao.updateNameById("test1",1);
        }
    }



1.2.6 事务属性:事务隔离级别

  1. 事务隔离级别

    数据库事务的隔离级别是指在多个事务并发执行时,数据库系统为了保证数据一致性所遵循的规定。常见的隔离级别包括:

    1. 读未提交(Read Uncommitted):事务可以读取未被提交的数据,容易产生脏读、不可重复读和幻读等问题。实现简单但不太安全,一般不用。
    2. 读已提交(Read Committed):事务只能读取已经提交的数据,可以避免脏读问题,但可能引发不可重复读和幻读。
    3. 可重复读(Repeatable Read):在一个事务中,相同的查询将返回相同的结果集,不管其他事务对数据做了什么修改。可以避免脏读和不可重复读,但仍有幻读的问题。
    4. 串行化(Serializable):最高的隔离级别,完全禁止了并发,只允许一个事务执行完毕之后才能执行另一个事务。可以避免以上所有问题,但效率较低,不适用于高并发场景。
      不同的隔离级别适用于不同的场景,需要根据实际业务需求进行选择和调整。
  2. 事务隔离级别设置

    package com.atguigu.service;

    import com.atguigu.dao.StudentDao;
    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.stereotype.Service;
    import org.springframework.transaction.annotation.Isolation;
    import org.springframework.transaction.annotation.Transactional;

    import java.io.FileInputStream;
    import java.io.FileNotFoundException;

    /**
     * projectName: com.atguigu.service
     */
    @Service
    public class StudentService {

        @Autowired
        private StudentDao studentDao;

        /**
         * timeout设置事务超时时间,单位秒! 默认: -1 永不超时,不限制事务时间!
         * rollbackFor = 指定哪些异常才会回滚,默认是 RuntimeException and Error 异常方可回滚!
         * noRollbackFor = 指定哪些异常不会回滚, 默认没有指定,如果指定,应该在rollbackFor的范围内!
         * isolation = 设置事务的隔离级别,mysql默认是repeatable read!
         */
        @Transactional(readOnly = false,
                       timeout = 3,
                       rollbackFor = Exception.class,
                       noRollbackFor = FileNotFoundException.class,
                       isolation = Isolation.REPEATABLE_READ)
        public void changeInfo() throws FileNotFoundException {
            studentDao.updateAgeById(100,1);
            //主动抛出一个检查异常,测试! 发现不会回滚,因为不在rollbackFor的默认范围内!
            new FileInputStream("xxxx");
            studentDao.updateNameById("test1",1);
        }
    }



1.2.7 事务属性:事务传播行为

  1. 事务传播行为要研究的问题

    举例代码:

    @Transactional
    public void MethodA(){
        // ...
        MethodB();
        // ...
    }

    //在被调用的子方法中设置传播行为,代表如何处理调用的事务! 是加入,还是新事务等!
    @Transactional(propagation = Propagation.REQUIRES_NEW)
    public void MethodB(){
        // ...
    }


  2. propagation属性

    @Transactional 注解通过 propagation 属性设置事务的传播行为。它的默认值是:

    Propagation propagation() default Propagation.REQUIRED;



    propagation 属性的可选值由 org.springframework.transaction.annotation.Propagation 枚举类提供:

    名称含义
    REQUIRED 默认值如果父方法有事务,就加入,如果没有就新建自己独立!
    REQUIRES_NEW不管父方法是否有事务,我都新建事务,都是独立的!
  3. 测试

    1. 声明两个业务方法

      @Service
      public class StudentService {

          @Autowired
          private StudentDao studentDao;

          /**
           * timeout设置事务超时时间,单位秒! 默认: -1 永不超时,不限制事务时间!
           * rollbackFor = 指定哪些异常才会回滚,默认是 RuntimeException and Error 异常方可回滚!
           * noRollbackFor = 指定哪些异常不会回滚, 默认没有指定,如果指定,应该在rollbackFor的范围内!
           * isolation = 设置事务的隔离级别,mysql默认是repeatable read!
           */
          @Transactional(readOnly = false,
                         timeout = 3,
                         rollbackFor = Exception.class,
                         noRollbackFor = FileNotFoundException.class,
                         isolation = Isolation.REPEATABLE_READ)
          public void changeInfo() throws FileNotFoundException {
              studentDao.updateAgeById(100,1);
              //主动抛出一个检查异常,测试! 发现不会回滚,因为不在rollbackFor的默认范围内!
              new FileInputStream("xxxx");
              studentDao.updateNameById("test1",1);
          }


          /**
           * 声明两个独立修改数据库的事务业务方法
           */
          @Transactional(propagation = Propagation.REQUIRED)
          public void changeAge(){
              studentDao.updateAgeById(99,1);
          }

          @Transactional(propagation = Propagation.REQUIRED)
          public void changeName(){
              studentDao.updateNameById("test2",1);
              int i = 1/0;
          }

      }

    2. 声明一个整合业务方法

      @Service
      public class TopService {

          @Autowired
          private StudentService studentService;

          @Transactional
          public void  topService(){
              studentService.changeAge();
              studentService.changeName();
          }
      }


    3. 添加传播行为测试

      @SpringJUnitConfig(classes = AppConfig.class)
      public class TxTest {

          @Autowired
          private StudentService studentService;

          @Autowired
          private TopService topService;

          @Test
          public void  testTx() throws FileNotFoundException {
              topService.topService();
          }
      }



      注意:

    在同一个类中,对于@Transactional注解的方法调用,事务传播行为不会生效。这是因为Spring框架中使用代理模式实现了事务机制,在同一个类中的方法调用并不经过代理,而是通过对象的方法调用,因此@Transactional注解的设置不会被代理捕获,也就不会产生任何事务传播行为的效果。

  4. 其他传播行为值(了解)

    1. Propagation.REQUIRED:如果当前存在事务,则加入当前事务,否则创建一个新事务。
    2. Propagation.REQUIRES_NEW:创建一个新事务,并在新事务中执行。如果当前存在事务,则挂起当前事务,即使新事务抛出异常,也不会影响当前事务。
    3. Propagation.NESTED:如果当前存在事务,则在该事务中嵌套一个新事务,如果没有事务,则与Propagation.REQUIRED一样。
    4. Propagation.SUPPORTS:如果当前存在事务,则加入该事务,否则以非事务方式执行。
    5. Propagation.NOT_SUPPORTED:以非事务方式执行,如果当前存在事务,挂起该事务。
    6. Propagation.MANDATORY:必须在一个已有的事务中执行,否则抛出异常。
    7. Propagation.NEVER:必须在没有事务的情况下执行,否则抛出异常。

如有问题,欢迎指正!

评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
