本文介绍了一个基于Apache Flink的实时登录失败报警系统。该系统通过监测用户的登录行为，在2秒内连续登录失败超过两次时发出报警。文章详细描述了如何使用Flink处理流数据，包括数据读取、时间戳分配、定时器管理和状态保存等关键步骤。

题目：

1、我们获取访问日志，如果2s内连续登录失败超过两次的用户进行报警

2、解决时效性连续失败等于两次就报警

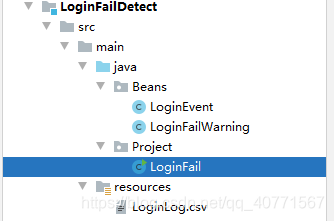

1、目录结构：

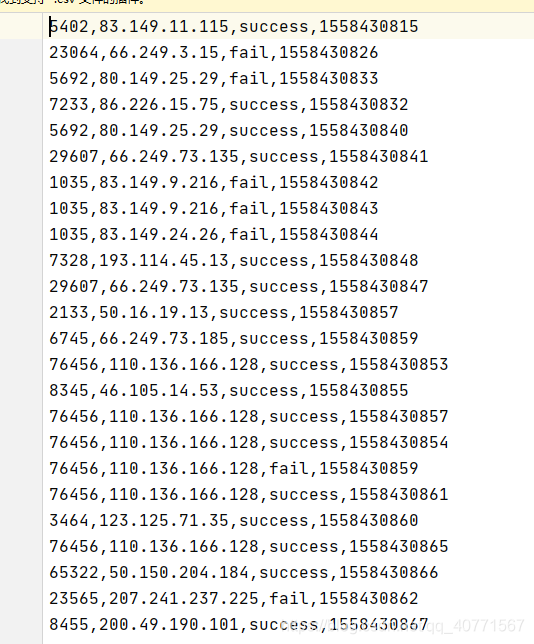

2、日志内容：

3、接收数据包装类

package Beans;

public class LoginEvent {
    private Long userId;
    private String ip;
    private String loginState;
    private Long timestamp;

    public LoginEvent() {
    }

    public LoginEvent(Long userId, String ip, String loginState, Long timestamp) {
        this.userId = userId;
        this.ip = ip;
        this.loginState = loginState;
        this.timestamp = timestamp;
    }

    public Long getUserId() {
        return userId;
    }

    public void setUserId(Long userId) {
        this.userId = userId;
    }

    public String getIp() {
        return ip;
    }

    public void setIp(String ip) {
        this.ip = ip;
    }

    public String getLoginState() {
        return loginState;
    }

    public void setLoginState(String loginState) {
        this.loginState = loginState;
    }

    public Long getTimestamp() {
        return timestamp;
    }

    public void setTimestamp(Long timestamp) {
        this.timestamp = timestamp;
    }

    @Override
    public String toString() {
        return "LoginEvent{" +
                "userId=" + userId +
                ", ip='" + ip + '\'' +
                ", loginState='" + loginState + '\'' +
                ", timestamp=" + timestamp +
                '}';
    }
}

输出报警包装类：

package Beans;

public class LoginFailWarning {
    private Long userId;
    private Long firstFailTime;
    private Long lastFailTime;
    private String warningMsg;

    public LoginFailWarning() {
    }

    public LoginFailWarning(Long userId, Long firstFailTime, Long lastFailTime, String warningMsg) {
        this.userId = userId;
        this.firstFailTime = firstFailTime;
        this.lastFailTime = lastFailTime;
        this.warningMsg = warningMsg;
    }

    public Long getUserId() {
        return userId;
    }

    public void setUserId(Long userId) {
        this.userId = userId;
    }

    public Long getFirstFailTime() {
        return firstFailTime;
    }

    public void setFirstFailTime(Long firstFailTime) {
        this.firstFailTime = firstFailTime;
    }

    public Long getLastFailTime() {
        return lastFailTime;
    }

    public void setLastFailTime(Long lastFailTime) {
        this.lastFailTime = lastFailTime;
    }

    public String getWarningMsg() {
        return warningMsg;
    }

    public void setWarningMsg(String warningMsg) {
        this.warningMsg = warningMsg;
    }

    @Override
    public String toString() {
        return "LoginFailWarning{" +
                "userId=" + userId +
                ", firstFailTime=" + firstFailTime +
                ", lastFailTime=" + lastFailTime +
                ", warningMsg='" + warningMsg + '\'' +
                '}';
    }
}

4、 2s内连续失败超过两次触发定时器报警，如果成功删除定时器

package Project;

import Beans.LoginEvent;
import Beans.LoginFailWarning;
import org.apache.flink.api.common.state.ListState;
import org.apache.flink.api.common.state.ListStateDescriptor;
import org.apache.flink.api.common.state.ValueState;
import org.apache.flink.api.common.state.ValueStateDescriptor;
import org.apache.flink.calcite.shaded.com.google.common.collect.Lists;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.TimeCharacteristic;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.KeyedProcessFunction;
import org.apache.flink.streaming.api.functions.timestamps.BoundedOutOfOrdernessTimestampExtractor;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.util.Collector;

import java.net.URL;
import java.sql.DatabaseMetaData;
import java.util.ArrayList;

public class LoginFail {
    public static void main(String[] args) throws Exception{
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);

        //读取数据
        URL resource = LoginFail.class.getResource("/LoginLog.csv");
        DataStream<LoginEvent> logEventStream = env.readTextFile(resource.getPath())
                .map(line -> {
                    String[] fields = line.split(",");
                    return new LoginEvent(new Long(fields[0]), fields[1], fields[2], new Long(fields[3]));
                })
                .assignTimestampsAndWatermarks(new BoundedOutOfOrdernessTimestampExtractor<LoginEvent>(Time.seconds(3)) {
                    @Override
                    public long extractTimestamp(LoginEvent loginEvent) {
                        return loginEvent.getTimestamp() * 1000;
                    }
                });
        //自定义处理函数
        SingleOutputStreamOperator<LoginFailWarning> warningStream = logEventStream.keyBy(LoginEvent::getUserId)
                .process(new LoginFailDetectWarning(2));
        warningStream.print();
        env.execute("login fail detect job");
    }
    //实现自定义keydprocessfunction
    public static class LoginFailDetectWarning extends KeyedProcessFunction<Long, LoginEvent, LoginFailWarning>{
        //连续登录失败次数
        private Integer maxFailTimes;

        public LoginFailDetectWarning(Integer maxFailTimes) {
            this.maxFailTimes = maxFailTimes;
        }

        //定义状态 保存2s内所有失败记录
        ListState<LoginEvent> loginFailEventListState;
        //定义状态 保存注册的定时器的时间戳
        ValueState<Long> timerTsState;

        @Override
        public void open(Configuration parameters) throws Exception {
            loginFailEventListState = getRuntimeContext().getListState(new ListStateDescriptor<LoginEvent>("login-fail-list",LoginEvent.class));
            timerTsState = getRuntimeContext().getState(new ValueStateDescriptor<Long>("timer-ts", Long.class));
        }

        @Override
        public void processElement(LoginEvent loginEvent, Context context, Collector<LoginFailWarning> collector) throws Exception {
            //判断当前登录事件类型
            if ("fail".equals(loginEvent.getLoginState())){
                //如果是失败时间 添加到列表状态
                loginFailEventListState.add(loginEvent);
                //如果没有定时器 注册一个2s之后的定时器
                if(timerTsState.value()==null){
                    Long ts = (loginEvent.getTimestamp()+2)*1000;
                    context.timerService().registerEventTimeTimer(ts);
                    timerTsState.update(ts);
                }
            }else{
                //如果是登陆成功 删除定时器 清空状态 重新开始
                if (timerTsState.value()!=null)
                    context.timerService().deleteProcessingTimeTimer(timerTsState.value());
                    loginFailEventListState.clear();
                    timerTsState.clear();
                }
        }

        @Override
        public void onTimer(long timestamp, OnTimerContext ctx, Collector<LoginFailWarning> out) throws Exception {
            //定时器触发  说明2s内没有成功事件进来 判断list中失败的个数
            ArrayList<LoginEvent> loginFailEvents = Lists.newArrayList(loginFailEventListState.get());
            Integer failTimes = loginFailEvents.size();
            if(failTimes>=maxFailTimes){
                //如果超过设定的次数 输出报警
                out.collect(new LoginFailWarning(ctx.getCurrentKey(),loginFailEvents.get(0).getTimestamp(),loginFailEvents.get(failTimes-1).getTimestamp(),"login fail in 2s for "+ failTimes+" times."));
            }
            //清空状态
            loginFailEventListState.clear();
            timerTsState.clear();
        }
    }
}

事件报警：

package Project;

import Beans.LoginEvent;
import Beans.LoginFailWarning;
import org.apache.flink.api.common.state.ListState;
import org.apache.flink.api.common.state.ListStateDescriptor;
import org.apache.flink.api.common.state.ValueState;
import org.apache.flink.api.common.state.ValueStateDescriptor;
import org.apache.flink.calcite.shaded.com.google.common.collect.Lists;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.TimeCharacteristic;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.KeyedProcessFunction;
import org.apache.flink.streaming.api.functions.timestamps.BoundedOutOfOrdernessTimestampExtractor;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.util.Collector;

import java.net.URL;
import java.sql.DatabaseMetaData;
import java.util.ArrayList;
import java.util.Iterator;

public class LoginFail {
    public static void main(String[] args) throws Exception{
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);

        //读取数据
        URL resource = LoginFail.class.getResource("/LoginLog.csv");
        DataStream<LoginEvent> logEventStream = env.readTextFile(resource.getPath())
                .map(line -> {
                    String[] fields = line.split(",");
                    return new LoginEvent(new Long(fields[0]), fields[1], fields[2], new Long(fields[3]));
                })
                .assignTimestampsAndWatermarks(new BoundedOutOfOrdernessTimestampExtractor<LoginEvent>(Time.seconds(3)) {
                    @Override
                    public long extractTimestamp(LoginEvent loginEvent) {
                        return loginEvent.getTimestamp() * 1000;
                    }
                });
        //自定义处理函数
        SingleOutputStreamOperator<LoginFailWarning> warningStream = logEventStream.keyBy(LoginEvent::getUserId)
                .process(new LoginFailDetectWarning(2));
        warningStream.print();
        env.execute("login fail detect job");
    }
    //实现自定义keydprocessfunction
    public static class LoginFailDetectWarning extends KeyedProcessFunction<Long, LoginEvent, LoginFailWarning>{
        //连续登录失败次数
        private Integer maxFailTimes;

        public LoginFailDetectWarning(Integer maxFailTimes) {
            this.maxFailTimes = maxFailTimes;
        }

        //定义状态 保存2s内所有失败记录
        ListState<LoginEvent> loginFailEventListState;

        @Override
        public void open(Configuration parameters) throws Exception {
            loginFailEventListState = getRuntimeContext().getListState(new ListStateDescriptor<LoginEvent>("login-fail-list",LoginEvent.class));

        }

        //以登录事件作为判断报警的出发条件 不再注册定时器
        @Override
        public void processElement(LoginEvent loginEvent, Context context, Collector<LoginFailWarning> collector) throws Exception {
           //判断当前事件登录状态
            if("fail".equals(loginEvent.getLoginState())){
                //如果是登录失败 继续获取状态中之前的登录失败事件 继续判断是否已有失败登录事件
                Iterator<LoginEvent> iterator = loginFailEventListState.get().iterator();
                if(iterator.hasNext()){
                    //如果已经有登录失败事件 判断是否在2s之内
                    //获取已有的登录失败事件
                    LoginEvent firstFailEvent = iterator.next();
                    if(loginEvent.getTimestamp()-firstFailEvent.getTimestamp()<=2){
                        collector.collect(new LoginFailWarning(loginEvent.getUserId(),firstFailEvent.getTimestamp(),loginEvent.getTimestamp(),"login fail in 2s"));
                    }
                    //不管报不报警  都处理完毕 更新状态
                    loginFailEventListState.clear();
                    loginFailEventListState.add(loginEvent);
                }else{
                    //如果没有登录失败 直接将当前事件存入
                    loginFailEventListState.add(loginEvent);
                }

            }else{
                //如果是登录成功 直接清空状态
                loginFailEventListState.clear();
            }
        }

        @Override
        public void onTimer(long timestamp, OnTimerContext ctx, Collector<LoginFailWarning> out) throws Exception {

        }
    }
}
