本文介绍如何在SpringBoot项目中整合CXF，创建WebService服务端和客户端。包括pom依赖配置、服务端接口及实现代码、Cxf配置类详解，以及客户端动态调用和服务接口调用方式。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

Spring Boot + cxf 整合WebService服务端和客户端

springboot 1.5.9
cxf的pom依赖

<!-- CXF webservice -->
         <dependency>
            <groupId>org.apache.cxf</groupId>
            <artifactId>cxf-rt-frontend-jaxws</artifactId>
            <version>3.1.12</version>
        </dependency>
        <dependency>
            <groupId>org.apache.cxf</groupId>
            <artifactId>cxf-rt-transports-http</artifactId>
            <version>3.1.12</version>
        </dependency>
<!-- CXF webservice -->

服务端

接口代码

@WebService
public interface ServiceDemo {

	@WebMethod
	public @WebResult(name="out") String getValue(@WebParam(name = "param")String param);

	@WebMethod
	public @WebResult(name="out") String getStatus();
}

接口实现

@WebService(serviceName = "ServiceDemo", // 与接口中指定的name一致
		targetNamespace = "http://service.xxx.com/", // 与接口中的命名空间一致,一般是接口的包名倒
endpointInterface = "com.xxx.service.ServiceDemo"// 接口地址
)
public class ServiceDemoImpl implements ServiceDemo{
	@Override
	public String getValue(String param) {
		//你的业务逻辑
		//TODO:
	}
	@Override
	public String getStatus() {
		//你的业务逻辑
		//TODO:
	}
}

cxf配置类

@Configuration
public class CxfConfig {

	@Bean("dispatcherServletCxf")
    public ServletRegistrationBean dispatcherServlet(){
        return new ServletRegistrationBean(new CXFServlet(),"/webService/services/*");//发布服务名称
	}

    @Bean(name = Bus.DEFAULT_BUS_ID)
    public SpringBus springBus() {
        return new SpringBus();
    }

    @Bean
    public ServiceDemo ServiceDemo() {
        return new ServiceDemoImpl();
    }

    @Bean
    public Endpoint endpoint() {
        EndpointImpl endpoint = new EndpointImpl(springBus(), ServiceDemo());
        endpoint.publish("/demo");
        return endpoint;
    }

}

这里需要注意的我自定义注册了一个DispatcherServlet一定要去一个其他的名字，如果也用dispatcherServlet取名就会替换掉springboot自动注入的DispatcherServlet，下面给出springboot提供的DispatcherServlet的源码

public ServletRegistrationBean dispatcherServletRegistration(DispatcherServlet dispatcherServlet) {
    ServletRegistrationBean registration = new ServletRegistrationBean(dispatcherServlet, new String[]{this.serverProperties.getServletMapping()});
    registration.setName("dispatcherServlet");
    registration.setLoadOnStartup(this.webMvcProperties.getServlet().getLoadOnStartup());
    if(this.multipartConfig != null) {
      registration.setMultipartConfig(this.multipartConfig);
    }

    return registration;
  }
}

从源码中可以看到springboot自动注入的DispatcherServlet取名是dispatcherServlet

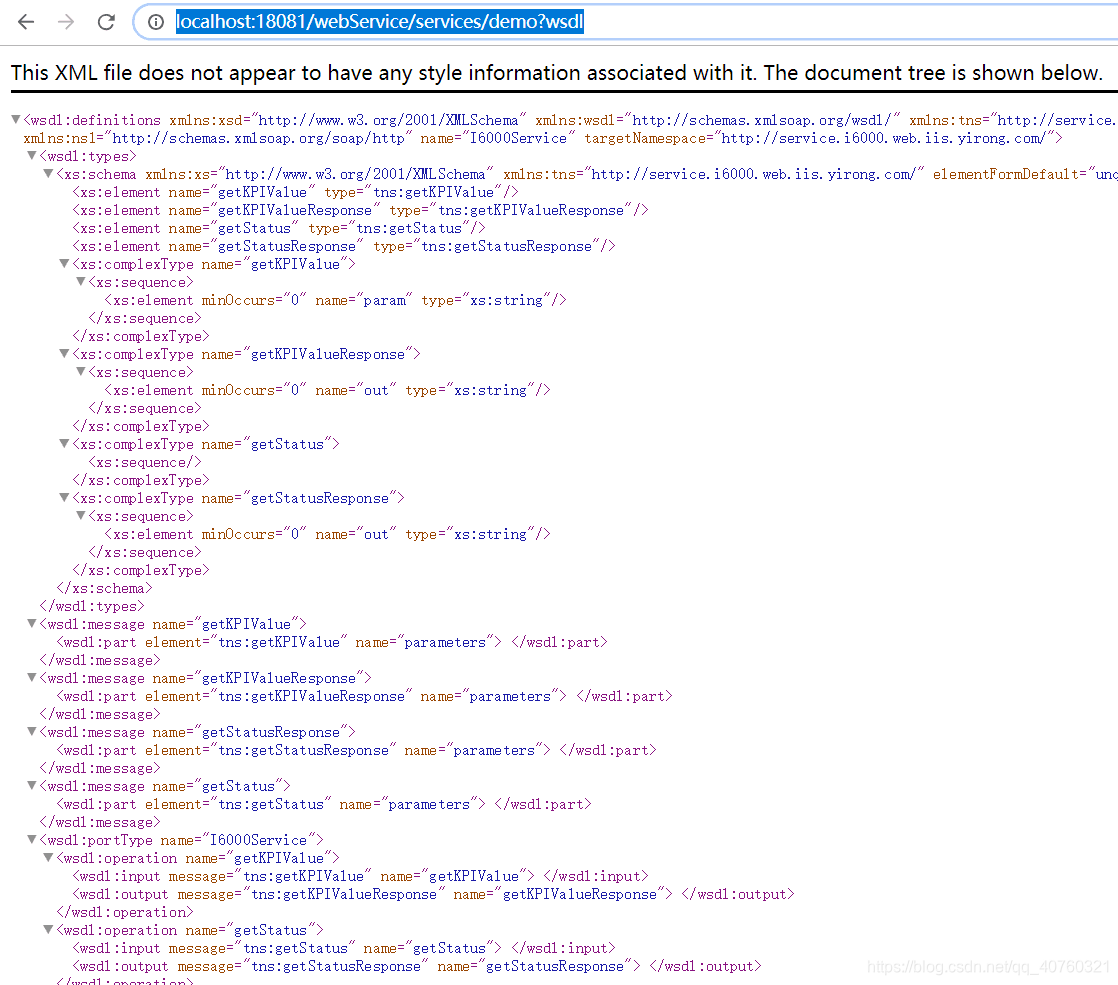

接下来启动项目在浏览器中输入http://localhost:18081/webService/services/demo?wsdl

wsdl文件如图
在这里插入图片描述

客服端

/**
	 * 动态调用
	 * @param args
	 * @throws Exception
	 */
	public static void main(String[] args) throws Exception  {
		JaxWsDynamicClientFactory dcflient=JaxWsDynamicClientFactory.newInstance();

        Client client=dcflient.createClient("http://localhost:18081/webService/services/demo?wsdl");
        Object[] objects;
        String param="<?xml version=\"1.0\" encoding=\"gb2312\"?>\n" +
                "<info>\n" +
                "\n" +
                "  <CorporationCode>63</CorporationCode>\n" +
                "\n" +
                "<Time>2019-01-17</Time>\n" +
                "<api name=\"testParam\"></api>\n" +
                "</info>";
        try {
			objects = client.invoke("getValue",param);
			System.out.println("返回结果："+objects[0].toString());
		} catch (Exception e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
			System.out.println("出错了"+e.toString());
		}
	}

//调用方式二，通过接口协议获取数据类型
    public static void main2(String[] args) throws Exception {
        JaxWsProxyFactoryBean jaxWsProxyFactoryBean=new JaxWsProxyFactoryBean();
        jaxWsProxyFactoryBean.setAddress("http://localhost:18081/webService/services/demo?wsdl");
        jaxWsProxyFactoryBean.setServiceClass(ServiceDemo.class);

        ServiceDemo userService=(ServiceDemo)jaxWsProxyFactoryBean.create();

        String param="<?xml version=\"1.0\" encoding=\"gb2312\"?>\n" +
                "<info>\n" +
                "\n" +
                "  <CorporationCode>63</CorporationCode>\n" +
                "\n" +
                "<Time>2019-01-17</Time>\n" +
                "<api name=\"testParam\"></api>\n" +
                "</info>";
        String result= userService.getValue(param);
       // System.out.println(userService.getStatus());
        System.out.println("结果1:"+result);
    }
