前言

不管是做什么项目,都避免不了一个问题,怎样合理管理以及实时查询我的接口文档呢?后台人员写好接口必然要与前台人员对接,少不了的就是沟通,有时候一句两句确实说不清楚,但是有了Swagger之后呢？接口说明一目了然,-------废话不多说,直接开始

版本对应关系

 - boot版本:2.0.8
 - cloud版本:Edgware.SR6
 - zuul版本:1.4.7.RELEASE
 - mysql版本:5.1.47
 - mybatis-plus:2.2.0

根pom(父工程)

父工程直接引用swagger相关依赖,只要是该工程下子module都会集成这个依赖

说明:
- com.spring4all 这个依赖就相当于封装了swagger的一些基础依赖

<dependencyManagement>
<dependency>
            <groupId>com.spring4all</groupId>
            <artifactId>swagger-spring-boot-starter</artifactId>
            <version>1.7.0.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>com.github.xiaoymin</groupId>
            <artifactId>swagger-bootstrap-ui</artifactId>
            <version>1.9.3</version>
        </dependency>
</dependencyManagement>

网关服务(zuul-server)

微服务中通过网关转发请求到某个服务,它的原理就是实现了反向代理及负载均衡

核心就在zuul.routes这个配置,后续会读取相关服务

核心配置文件:

server:
  port: 5555
spring:
  application:
    name: zuul-server
    #mysql基础配置
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    username: root
    password: root
    url: jdbc:mysql://localhost:3306/myxue?characterEncoding=utf-8
eureka:
  instance:
    hostname: localhost
    #指定访问本机IP
    prefer-ip-address: true
  client:
    #被注册中心eureka发现并注册
    fetch-registry: true
    register-with-eureka: true
    service-url:
      defaultZone: http://localhost:8761/eureka
zuul:
  prefix: /api
  #转发服务
  routes:
    other:
      path: /other-server/**
      serviceId: other-server
    show:
      path: /show-server/**
      serviceId: show-server
#配置mybatis-plus打印sql语句于控制台
mybatis-plus:
  configuration:
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
    #开启驼峰命名转换
    map-underscore-to-camel-case: true
  #错误响应配置时间
hystrix:
  command:
    default:
      execution:
        isolation:
          thread:
            timeoutInMilliseconds: 6000 #熔断响应时间
  #ribbon超时配置 读取和等待时间都设置6秒
ribbon:
  #熔断读取时间
  ReadTimeout: 60000
  #连接等待时间
  ConnectTimeout: 60000

配置类

package com.xwl.zuulserver.provider;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.netflix.zuul.filters.RouteLocator;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger.web.SwaggerResource;
import springfox.documentation.swagger.web.SwaggerResourcesProvider;
import springfox.documentation.swagger2.annotations.EnableSwagger2;
import java.util.ArrayList;
import java.util.List;

/**
 * @Auther: 薛
 * @Date: 2020/7/9 17:16
 * @Description:
 */
@EnableSwagger2
@Configuration
@Primary //多个bean时 此类优先使用
public class SwaggerZuulConfig implements SwaggerResourcesProvider {
    //是否开启swagger,默认true-正式环境可选false即可
    Boolean swaggerEnabled=true;
	//网关读取转发服务类
    @Autowired
    RouteLocator routeLocator;

    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2).apiInfo(apiInfo())
                // 是否开启
                .enable(swaggerEnabled).select()
                // 扫描的路径包
.apis(RequestHandlerSelectors.basePackage("com.xwl.zuulserver"))
                // 指定路径处理PathSelectors.any()代表所有的路径
                .paths(PathSelectors.any()).build().pathMapping("/");
    }
    //设置api信息-可根据爱好随意填写
    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
        //swagger 设置标题
                .title("骠骑撸码大都督API接口文档")
                //描述
                .description("整合就完事了~")
                //作者信息
                .contact(new Contact("薛文良", "https://www.baidu.com", "未知~"))
                //版本
                .version("1.0.0")
                //服务URL
                .termsOfServiceUrl("https://www.baidu.com")
                .build();
    }
//扫描上诉配置文件application.yml中的其它服务
    @Override
    public List<SwaggerResource> get() {
        //利用routeLocator动态引入微服务
        List<SwaggerResource> resources = new ArrayList<>();
        //网关服务默认添加
        resources.add(swaggerResource("网关服务","/v2/api-docs","1.0"));
        //循环 使用Lambda表达式简化代码
        routeLocator.getRoutes().forEach(route ->{
            //动态获取-过滤掉服务后缀/**
             resources.add(swaggerResource(route.getId(),route.getFullPath().replace("**", "v2/api-docs"), "1.0"));
        });
        return resources;
    }

    private SwaggerResource swaggerResource(String name,String location, String version) {
        SwaggerResource swaggerResource = new SwaggerResource();
        //这里可以忽略,我为了演示方便加了个判断业务,实际开发中应该是有一个枚举或者在配置文件中声明出服务serviceId对应服务名称
        String serverName="";
        if (name.equals("网关服务")){
            serverName="网关服务";
        }else if (name.equals("other")){
            serverName="系统服务";
        }else {
            serverName="业务服务";
        }
        swaggerResource.setName(serverName);
        swaggerResource.setLocation(location);
        swaggerResource.setSwaggerVersion(version);
        return swaggerResource;
    }
}

启动类

package com.xwl.zuulserver;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.netflix.zuul.EnableZuulProxy;
import org.springframework.context.annotation.Bean;
import org.springframework.web.cors.CorsConfiguration;
import org.springframework.web.cors.UrlBasedCorsConfigurationSource;
import org.springframework.web.filter.CorsFilter;

/**
 * 网关注入注册中心
 */
//Boot启动必须类
@SpringBootApplication
//开启网关转发服务
@EnableZuulProxy
//被注册中心发现
@EnableEurekaClient
//扫描Mapper
@MapperScan("com.xwl.zuulserver.mapper")
public class ZuulServerApplication {

    public static void main(String[] args) {
        SpringApplication.run(ZuulServerApplication.class, args);
    }
    /**
     * 跨域解决
     * @return
     */
    @Bean
    public CorsFilter corsFilter() {
        final UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource();
        final CorsConfiguration config = new CorsConfiguration();
        config.setAllowCredentials(true);
        config.addAllowedOrigin("*");
        config.addAllowedHeader("*");
        config.addAllowedMethod("*");
        config.setMaxAge(18000L);
        source.registerCorsConfiguration("/**", config);
        return new CorsFilter(source);
    }
}

添加swagger支持API
这里可以参考Swagger使用说明
给若干Class添加Swagger支持之后启动网关zuul-server

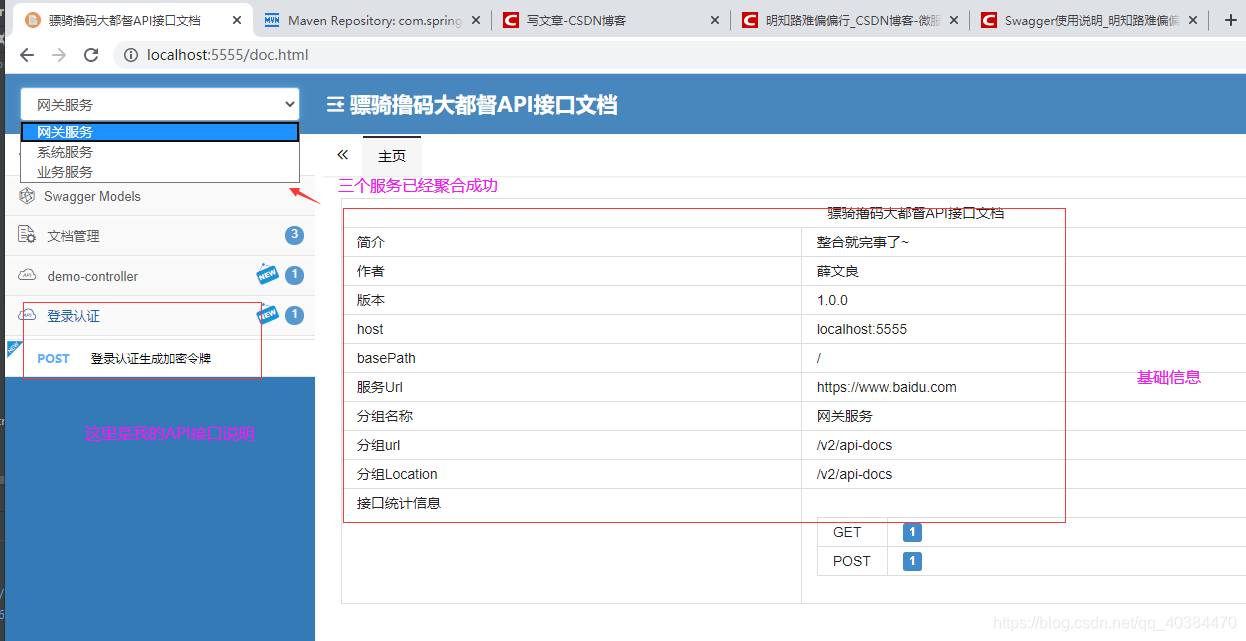

访问地址http://localhost:5555/doc.html
如图所示

show-server(业务服务)

核心配置

server:
  port: 8222
spring:
  application:
    name: show-server
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    username: root
    password: root
    url: jdbc:mysql://localhost:3306/myxue?characterEncoding=utf-8
eureka:
  instance:
    hostname: localhost
    prefer-ip-address: true
  client:
    fetch-registry: true
    register-with-eureka: true
    service-url:
      default-Zone: http://localhost:8761/eureka
#配置mybatis-plus打印sql语句于控制台
mybatis-plus:
  configuration:
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
    #开启驼峰命名转换
    map-underscore-to-camel-case: true

核心配置类

package com.xwl.showserver.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

/**
 * @Auther: 薛
 * @Date: 2020/7/9 17:07
 * @Description:
 */
@EnableSwagger2
@Configuration
public class SwaggerConfig {
    //是否开启swagger，，
    Boolean swaggerEnabled=true;

    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2).apiInfo(apiInfo())
                // 是否开启
                .enable(swaggerEnabled).select()
                // 扫描的路径包
                .apis(RequestHandlerSelectors.basePackage("com.xwl.showserver"))
                // 指定路径处理PathSelectors.any()代表所有的路径
                .paths(PathSelectors.any()).build().pathMapping("/");
    }

    //设置api信息
    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("骠骑撸码大都督API接口文档")
                .description("整合就完事了~")
                .contact(new Contact("薛文良", "https://www.baidu.com", "未知~"))
                .version("1.0.0")
                .termsOfServiceUrl("https://www.baidu.com")
                .build();
    }
}

启动类

package com.xwl.showserver;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

/**
 * @Auther: 薛
 * @Date: 2020/7/7 10:15
 * @Description:
 */
@SpringBootApplication
@EnableDiscoveryClient
public class ShowApplication {
    public static void main(String[] args) {
        SpringApplication.run(ShowApplication.class,args);
    }
}

启动show-server
然后再次启动zuul-server
再次访问swagger接口文档 http://localhost:5555/doc.html

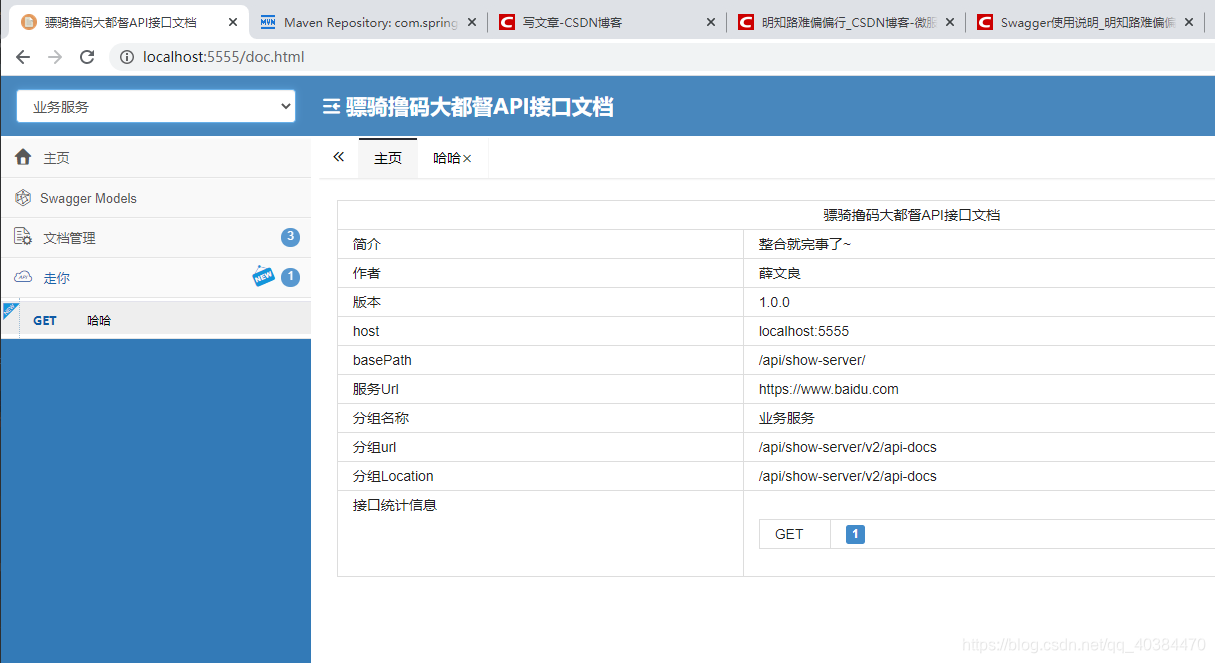

如图所示可以切换访问show-server服务的接口咯
在这里插入图片描述
other-server我就不举例了和show-server基本相同
