1. 简介
MyBatis-Plus官方文档:https://mp.baomidou.com/guide/
MyBatis-Plus(简称 MP)是一个MyBatis的增强工具,在 MyBatis 的基础上只做增强不做改变,为简化开发、提高效率而生。
特性
- 无侵入:只做增强不做改变,引入它不会对现有工程产生影响,如丝般顺滑
- 损耗小:启动即会自动注入基本 CURD,性能基本无损耗,直接面向对象操作
- 强大的 CRUD 操作:内置通用 Mapper、通用 Service,仅仅通过少量配置即可实现单表大部分 CRUD 操作,更有强大的条件构造器,满足各类使用需求
- 支持 Lambda 形式调用:通过 Lambda 表达式,方便的编写各类查询条件,无需再担心字段写错
- 支持主键自动生成:支持多达 4 种主键策略(内含分布式唯一 ID 生成器 - Sequence),可自由配置,完美解决主键问题
- 支持 ActiveRecord 模式:支持 ActiveRecord 形式调用,实体类只需继承 Model 类即可进行强大的 CRUD 操作
- 支持自定义全局通用操作:支持全局通用方法注入( Write once, use anywhere )
- 内置代码生成器:采用代码或者 Maven 插件可快速生成 Mapper 、 Model 、 Service 、 Controller 层代码,支持模板引擎,更有超多自定义配置等您来使用
- 内置分页插件:基于 MyBatis 物理分页,开发者无需关心具体操作,配置好插件之后,写分页等同于普通 List 查询
- 分页插件支持多种数据库:支持 MySQL、MariaDB、Oracle、DB2、H2、HSQL、SQLite、Postgre、SQLServer 等多种数据库
- 内置性能分析插件:可输出 Sql 语句以及其执行时间,建议开发测试时启用该功能,能快速揪出慢查询
- 内置全局拦截插件:提供全表 delete 、 update 操作智能分析阻断,也可自定义拦截规则,预防误操作
2. 快速入门
-
创建数据库mybatisplus
-
创建user表,并插入数据
DROP TABLE IF EXISTS user; CREATE TABLE user ( id BIGINT(20) NOT NULL COMMENT '主键ID', name VARCHAR(30) NULL DEFAULT NULL COMMENT '姓名', age INT(11) NULL DEFAULT NULL COMMENT '年龄', email VARCHAR(50) NULL DEFAULT NULL COMMENT '邮箱', PRIMARY KEY (id) ); -- 真实开发中,version(乐观锁)、deleted(逻辑删除)、gmt_create、gmt_modified DELETE FROM user; INSERT INTO user (id, name, age, email) VALUES (1, 'Jone', 18, 'test1@qq.com'), (2, 'Jack', 20, 'test2@qq.com'), (3, 'Tom', 28, 'test3@qq.com'), (4, 'Sandy', 21, 'test4@qq.com'), (5, 'Billie', 24, 'test5@qq.com');
-
创建项目,导入依赖
<!--数据库驱动--> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>8.0.20</version> </dependency> <!--mybatis-plus--> <dependency> <groupId>com.baomidou</groupId> <artifactId>mybatis-plus-boot-starter</artifactId> <version>3.0.5</version> </dependency> <!--lombok--> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <optional>true</optional> </dependency>
说明:我们使用mybatis-plus可以节省我们大量的代码,尽量不要同时导入mybatis和mybatis-plus!
-
application.yml文件配置数据库信息
# mysql 5 驱动不同 com.mysql.jdbc.Driver # mysql 8 驱动不同 com.mysql.cj.jdbc.Driver . 需要增加时区的配置 serverTimezone=GMT%2B8 spring: datasource: username: root password: 123456 driver-class-name: com.mysql.cj.jdbc.Driver url: jdbc:mysql://localhost:3306/mybatisplus?userSSL=true&useUnicode=true&characterEncoding=UTF-8&serverTimezone=GMT
-
使用了mybatis-plus
-
POJO层
@Data @AllArgsConstructor @NoArgsConstructor public class User { private Long id; private String name; private Integer age; private String email; }
-
Mapper层
//在对应的mapper上面继承基本的类 BaseMapper //@Repository 代表持久层 @Mapper public interface UserMapper extends BaseMapper<User> { //所有CRUD操作都已经编写完成了 }
注意点:如果不标注解,则需要在主启动类
MybatisPlusApplication
上扫描我们Mapper包下的所有接口@MapperScan("com.template.mapper")
-
测试
@Autowired private UserMapper userMapper; @Test void contextLoads() { List<User> users = userMapper.selectList(null); users.forEach(System.out::println); }
-

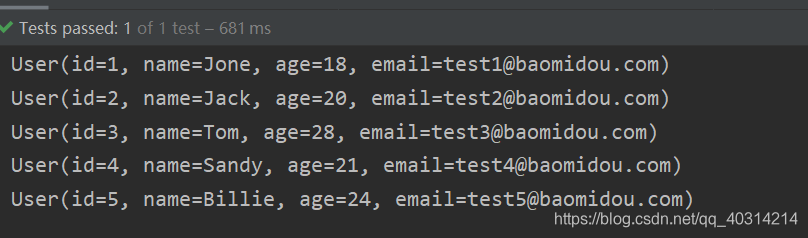

结果
-
3. 配置日志
在application.yaml文件中添加:
# 配置日志 (默认控制台输出)
mybatis-plus.configuration.log-impl=org.apache.ibatis.logging.stdout.StdOutImpl
4. CRUD扩展
4.1 插入操作
@Test
void insertTest() {
User user = new User();
user.setAge(15);
user.setName("lize");
user.setEmail("670551262@qq.com");
int res = userMapper.insert(user);//自动生成id
System.out.println(res);// 受影响的行数
System.out.println(user);// 发现: id自动回填
}
数据库插入的id默认值为:全局的唯一id
4.2 主键生成策略
分布式系统唯一id生成:https://www.cnblogs.com/haoxinyue/p/5208136.html
雪花算法:
snowflake是Twitter开源的分布式ID生成算法,结果是一个long型的ID。其核心思想是:使用41bit作为毫秒数,10bit作为机器的ID(5个bit是数据中心,5个bit的机器ID),12bit作为毫秒内的流水号(意味着每个节点在每毫秒可以产生 4096 个 ID),最后还有一个符号位,永远是0。可以保证几乎全球唯一!
主键自增
实体类字段上添加注解@TableId(type = IdType.xxx)
public enum IdType {
AUTO(0), // 数据库id自增,需要数据库字段一定是自增的
NONE(1), // 未设置主键
INPUT(2), // 手动输入,自己写id
ID_WORKER(3), // 默认的全局唯一id
UUID(4), // 全局唯一id uuid
ID_WORKER_STR(5); // ID_WORKER 字符串表示法
}
4.3 更新操作
//测试更新
@Test
public void testUpdate(){
User user = new User();
// 通过条件自动拼接动态sql
user.setId(6L);
user.setName("哈哈哈");
user.setAge(18);
// 注意: updateById 但是参数是一个 对象
int i = userMapper.updateById(user);
System.out.println(i);
}
所有的sql都是动态配置的
4.4 自动填充功能
阿里巴巴开发手册:所有的数据库表都需要字段:gmt_create .gmt_modified,而且需要自动化!

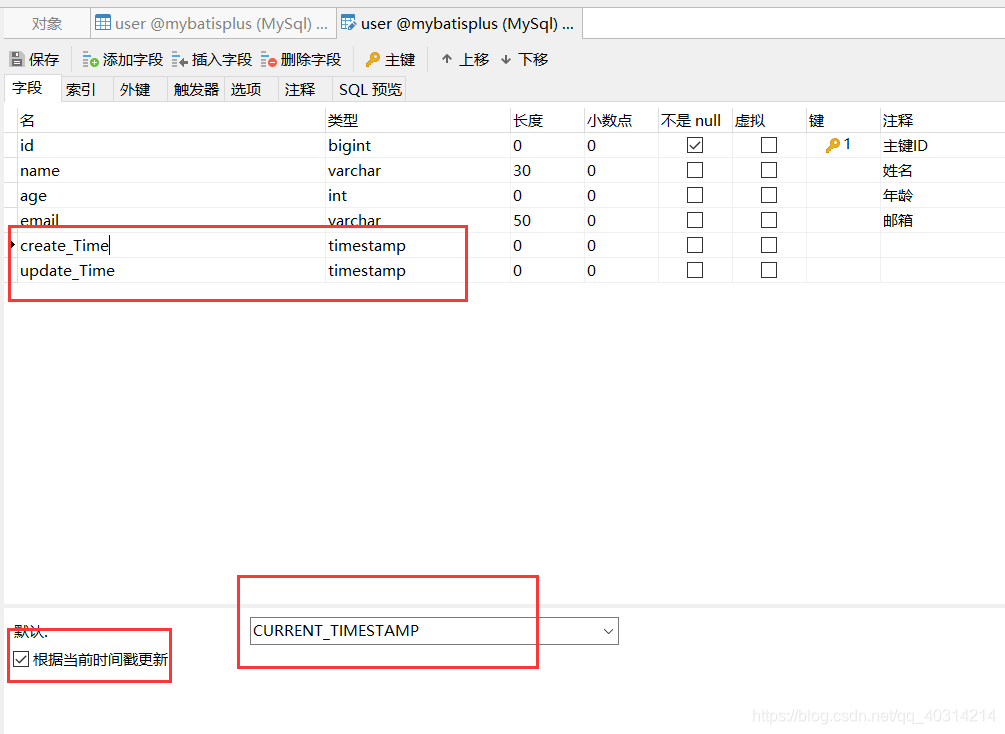

方式一:数据库级别
- 在表中新增字段create_Time和update_Time
-
实体类同步添加
private Data creatTime; private Data updateTime;
-

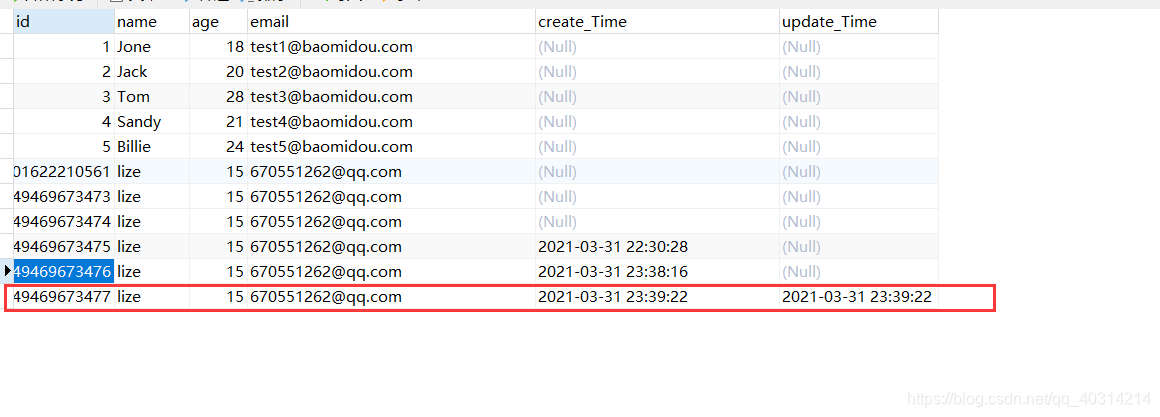

再次执行插入方法
可以发现,时间自动被填充了
方式二:代码级别
-
删除数据库默认值
-
实体类字段属性上添加注解
//记住用util包下的Date!! //字段添加填充内容 @TableField(fill = FieldFill.INSERT) private Data createTime; @TableField(fill = FieldFill.INSERT_UPDATE) private Data updateTime;
-
编写处理器来处理这个注解
package com.codeyuaiiao.handler; import com.baomidou.mybatisplus.core.handlers.MetaObjectHandler; import lombok.extern.slf4j.Slf4j; import org.apache.ibatis.reflection.MetaObject; import org.springframework.stereotype.Component; import java.util.Date; @Slf4j @Component //把处理器加到IOC容器中 public class MyMetaObjectHandler implements MetaObjectHandler { //插入时的填充策略 @Override public void insertFill(MetaObject metaObject) { log.info("Start insert fill.... "); this.setFieldValByName("createTime",new Date(),metaObject); this.setFieldValByName("updateTime",new Date(),metaObject); } //更新时的填充策略 @Override public void updateFill(MetaObject metaObject) { log.info("Start update fill.... "); this.setFieldValByName("updateTime",new Date(),metaObject); } }
-
测试插入,观察时间是否被自动填充
4.5 乐观锁
乐观锁: 顾名思义十分乐观,他总是认为不会出现问题,无论干什么都不去上锁!如果出现了问题,再次更新值测试
悲观锁;顾名思义十分悲观,他总是认为出现问题,无论干什么都会上锁!再去操作!
乐观锁实现方式:
- 取出记录时,获取当前version
- 更新时,带上这个version
- 执行更新时,set version = newVersion where version = oldVersion
- 如果version不对,就更新失败
使用乐观锁组件
-
数据库中增加version字段
-
实体类上添加对应的字段属性
@Version // 乐观锁的version注解 private Integer version;
-
注册组件
@EnableTransactionManagement @Configuration public class MyBatisPlusConfig { // 注册乐观锁插件 @Bean public OptimisticLockerInterceptor optimisticLockerInterceptor() { return new OptimisticLockerInterceptor(); } }
-
测试
// 测试乐观锁成功 @Test public void testVersionSuccess(){ // 1. 查询用户信息 User user = userMapper.selectById(1L); // 2. 修改用户信息 user.setName("fan"); user.setAge(24); // 3. 执行更新操作 userMapper.updateById(user); } // 测试乐观锁失败!多线程下,此处模拟一下 @Test public void testVersionFall(){ // 线程1 User user1 = userMapper.selectById(1L); user1.setName("fan111"); user1.setAge(14); // 线程2 User user2 = userMapper.selectById(1L); user2.setName("fan222"); user2.setAge(24); userMapper.updateById(user2); //自旋锁来多次尝试提交! userMapper.updateById(user1); //如果没有乐观锁就会覆盖插队线程的值 }
4.6 查询操作
// 测试查询
// SELECT * FROM user WHERE id=?
@Test
public void testSelectById(){
User user = userMapper.selectById(1L);
System.out.println(user);
}
// 批量查询
// SELECT * FROM user WHERE id IN ( ? , ? , ? )
@Test
public void testSelectByBatchIds(){
List<User> users = userMapper.selectBatchIds(Arrays.asList(1L, 2L, 3L));
users.forEach(System.out::println);
}
// 按照条件查询之一使用 map
// SELECT * FROM user WHERE name = ? AND age = ?
@Test
public void testSelectByMap(){
HashMap<String, Object> map = new HashMap<>();
// 自定义要查询
map.put("name","lize");
map.put("age","6");
List<User> users = userMapper.selectByMap(map);
users.forEach(System.out::println);
}
4.7 分页查询
分页方式:
- 原始使用limit进行分页
- pageHelper第三方插件
- MybatisPlus内置了分页插件
如何使用
-
配置拦截器
// 分页插件 @Bean public PaginationInterceptor paginationInterceptor() { return new PaginationInterceptor(); }
-
使用,进行测试
// 测试分页查询 @Test public void testPage(){ // 参数一: 当前页 // 参数二: 页面大小 Page<User> page = new Page<>(1,5); userMapper.selectPage(page, null); page.getRecords().forEach(System.out::println); System.out.println(page.getTotal()); }
4.8 删除操作
// 测试删除
// DELETE FROM USER WHERE ID=?
@Test
public void testdelete(){
userMapper.deleteById(6L);
}
// 测试批量删除
// DELETE FROM USER WHERE ID IN (?,?)
@Test
public void testdeleteBatchId(){
userMapper.deleteBatchIds(Arrays.asList(1L,2L));
}
//通过map删除
// DELETE FROM USER WHERE NAME=?
@Test
public void testDeleteByMap(){
HashMap<String, Object> map = new HashMap<>();
map.put("name","lize");
userMapper.deleteByMap(map);
}

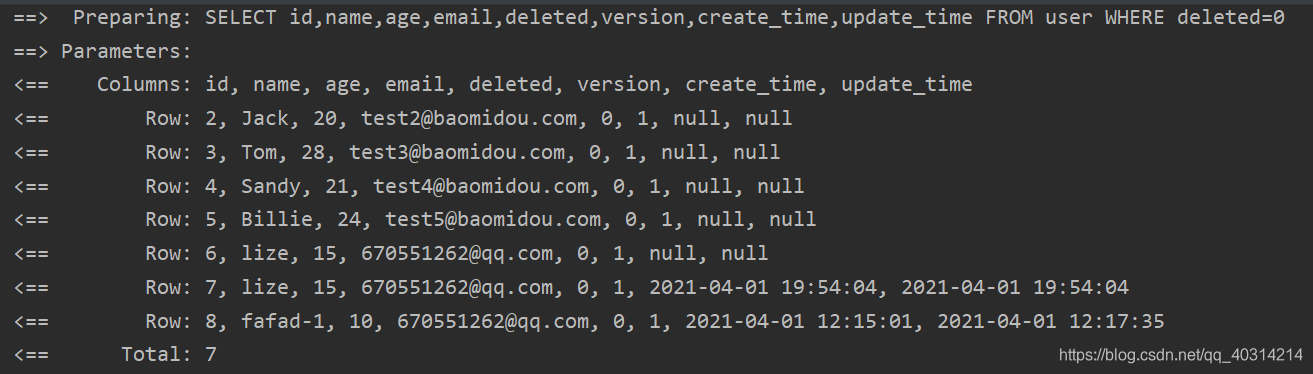

4.9 逻辑删除
物理删除:从数据库中直接移除
逻辑删除:在数据库中没有被移除,而是通过一个变量让他生效!deleted=0 --> deleted=1
-
在数据表中增加一个deleted字段
-
实体类中增加属性
@TableLogic // 逻辑删除 private Integer deleted;
-
配置
mybatis-plus: global-config: db-config: logic-delete-value: 1 # 逻辑已删除值(默认为 1) logic-not-delete-value: 0 # 逻辑未删除值(默认为 0)
-
测试
// UPDATE user SET deleted=1 WHERE id=? AND deleted=0 // SELECT * FROM user WHERE id=? AND deleted=0 @Test public void testLoginDelete(){ userMapper.deleteById(1L); User user = userMapper.selectById(1L); System.out.println(user); }

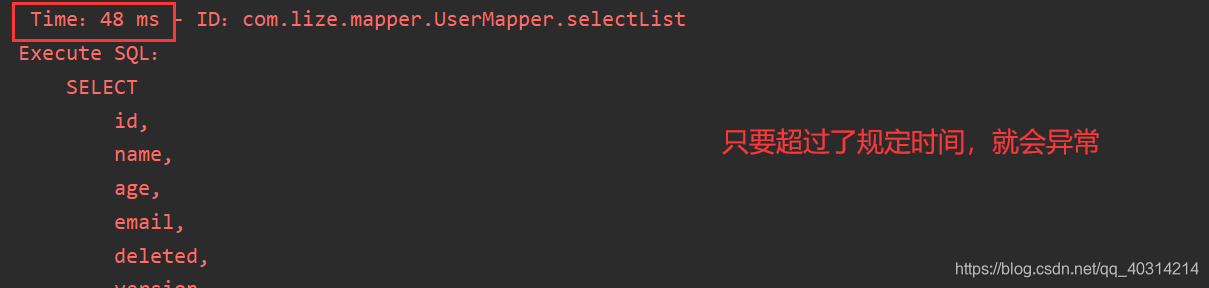

4.10 性能分析插件
作用:性能分析拦截器,用于输出每条SQL语句及其执行时间
-
导入插件
记住,要在SpringBoot中配置环境为dev或者test环境!
// SQL执行效率插件 @Bean @Profile({"dev","test"}) public PerformanceInterceptor performanceInterceptor(){ PerformanceInterceptor performanceInterceptor = new PerformanceInterceptor(); performanceInterceptor.setMaxTime(100); //ms 设置sql执行的最大时间,如果超过了则不执行 performanceInterceptor.setFormat(true); // 是否格式化 return performanceInterceptor; }
-
测试使用
// 测试查询 @Test public void testSelectById(){ User user = userMapper.selectById(3); System.out.println(user); }
4.11 条件构造器
AutoGenerator 是 MyBatis-Plus 的代码生成器,通过 AutoGenerator 可以快速生成 Entity、Mapper、Mapper XML、Service、Controller 等各个模块的代码,极大的提升了开发效率。
@Test
void contextLoads(){
// 查询name不为null的用户,并且邮箱不为null的永不,年龄大于等于20的用户
QueryWrapper<User> wrapper =new QueryWrapper<>();
wrapper.isNotNull("name");
wrapper.isNotNull("email");
wrapper.ge("age",12);
userMapper.selectList(wrapper).forEach(System.out::println);
}
@Test
void test2(){
// 查询name为shuishui的用户
QueryWrapper<User> wrapper =new QueryWrapper<>();
wrapper.eq("name","shuishui");
User user=userMapper.selectList(wrapper)
System.out.println(user);
}
@Test
void test3(){
// 查询年龄在20~30岁之间的用户
QueryWrapper<User> wrapper =new QueryWrapper<>();
wrapper.between("age",20,30);
Integer count =userMapper.selectCount(wrapper);//查询结果数
System.out.println(count);
}
//模糊查询
@Test
void test4(){
QueryWrapper<User> wrapper =new QueryWrapper<>();
wrapper.notLike("name",“s”);//相当于NOT LIKE '%s%'
wrapper.likeRight("email",“s”);//相当于LIKE 's%'
List<Map<String,Object>>maps =userMapper.selectMaps(wrapper);//查询结果数
maps.forEach(System.out::println);
}
@Test
void test5(){
QueryWrapper<User> wrapper =new QueryWrapper<>();
//子查询
wrapper.insql("id","select id from user where id<3");
List<Object> objects =userMapper.selectobjs(wrapper);/
objects.forEach(System.out::println);
@Test
void test6(){
QueryWrapper<User> wrapper =new QueryWrapper<>();
//通过id进行排序
wrapper.orderByAsc("id");
List<User> users =userMapper.selectList(wrapper);/
objects.forEach(System.out::println);
}
4.12 代码自动生成器
// 代码自动生成器
public class AutoCode{
public static void main(String[] args) {
// 需要构建一个 代码自动生成器 对象
AutoGenerator mpg = new AutoGenerator();
// 配置策略
// 1、全局配置
GlobalConfig gc = new GlobalConfig();
String projectPath = System.getProperty("user.dir");
gc.setOutputDir(projectPath+"/src/main/java");
gc.setAuthor("xxx");
gc.setOpen(false);
gc.setFileOverride(false); // 是否覆盖
gc.setServiceName("%sService"); // 去Service的I前缀
gc.setIdType(IdType.ID_WORKER);
gc.setDateType(DateType.ONLY_DATE);
gc.setSwagger2(true);
mpg.setGlobalConfig(gc);
//2、设置数据源
DataSourceConfig dsc = new DataSourceConfig(); dsc.setUrl("jdbc:mysql://localhost:3306/kuang_community? useSSL=false&useUnicode=true&characterEncoding=utf-8&serverTimezone=GMT%2B8");
dsc.setDriverName("com.mysql.cj.jdbc.Driver");
dsc.setUsername("root");
dsc.setPassword("123456");
dsc.setDbType(DbType.MYSQL);
mpg.setDataSource(dsc);
//3、包的配置
PackageConfig pc = new PackageConfig();
pc.setModuleName("blog");
pc.setParent("com.template");
pc.setEntity("entity");
pc.setMapper("mapper");
pc.setService("service");
pc.setController("controller");
mpg.setPackageInfo(pc);
//4、策略配置
StrategyConfig strategy = new StrategyConfig();
strategy.setInclude("blog_tags","course","links","sys_settings","user_record"," user_say"); // 设置要映射的表名,只需要改这个地方即可
strategy.setNaming(NamingStrategy.underline_to_camel);
strategy.setColumnNaming(NamingStrategy.underline_to_camel);
// 自动lombok
strategy.setEntityLombokModel(true);
strategy.setLogicDeleteFieldName("deleted");
// 自动填充配置
TableFill gmtCreate = new TableFill("gmt_create", FieldFill.INSERT);
TableFill gmtModified = new TableFill("gmt_modified", FieldFill.INSERT_UPDATE);
ArrayList<TableFill> tableFills = new ArrayList<>();
tableFills.add(gmtCreate);
tableFills.add(gmtModified);
strategy.setTableFillList(tableFills);
// 乐观锁
strategy.setVersionFieldName("version");
strategy.setRestControllerStyle(true);
strategy.setControllerMappingHyphenStyle(true);
// localhost:8080/hello_id_2
mpg.setStrategy(strategy);
mpg.execute(); //执行
}
}
更多的方法都在官方文档里https://mp.baomidou.com/guide/
