<template>
<div id="ploygon">
<div
v-if="isUsePath"
class="bs-example form-group dispatch-active active"
esapp-id="vehicle_trajectory_form"
xmlns="http://www.w3.org/1999/html"
>
<div class="input-group">
<label class="control-label">车牌号</label>
<div>
<input
class="form-control"
type="text"
esapp-id="vehicle_trajectory_blno"
v-model="trunkNumber"
name="vclN"
v-on:keyup.enter="queryResult"
/>
</div>
</div>
<div class="input-group boxTimeRadioList">
<label class="control-label">行驶日期</label>
<div class="input-container">
<input
class="form-control"
type="text"
v-on:keyup.enter="queryResult"
esapp-id="vehicle_trajectory_plan_arrive_date_from_start"
name="dateStart"
readonly
/>
<input
class="form-control"
type="text"
v-on:keyup.enter="queryResult"
esapp-id="vehicle_trajectory_plan_arrive_time_from_start"
name="timeStart"
readonly
/>
<span>-</span>
<input
class="form-control"
type="text"
v-on:keyup.enter="queryResult"
esapp-id="vehicle_trajectory_plan_arrive_date_from_end"
name="dateEnd"
readonly
/>
<input
class="form-control"
type="text"
v-on:keyup.enter="queryResult"
esapp-id="vehicle_trajectory_plan_arrive_time_from_end"
name="timeEnd"
readonly
/>
</div>
</div>
<div class="input-group btn-form">
<button
type="button"
class="btn btn-info btn-sm"
esapp-id="vehicle_trajectory_search"
@click="queryData"
>
搜索
</button>
</div>
</div>
<div :id="mapName" :style="{ height: mapHeight + 'px' }"></div>
</div>
</template>
<script>
// var res = require('./line.json')
export default {
props: {
mapName: {
type: String,
default: 'map',
},
isUsePath: {
type: Boolean,
default: true,
},
doorAddress: {
type: String,
default: '',
},
mapHeight: {
type: Number,
default: 400,
},
// 是否计算停车点
calParking: {
type: Boolean,
default: true,
},
// 车牌号
trunkNumber: {
type: String,
default: '',
},
// 时间日期
timeInfo: {
type: Object,
default: {
startDate: '',
endDate: '',
startTime: '',
endTime: '',
},
},
id: {
type: String,
default: '',
},
},
watch: {},
data() {
return {
addressInfo: {},
doorCircle: {},
lnglatMaker: {},
doorMarker: {},
lnglatMaker: {},
map: undefined,
path: undefined,
doorInfoWindow: {},
cilckDoorInfoWindow: {},
clickMaker: null,
trackList: [],
stopList: [],
markerStart: undefined,
markerEnd: undefined,
trunkNumber: '',
// 行驶时间控件
travelDateCtro: '',
travelTimeStartCtro: '',
travelTimeEndCtro: '',
travelDateStart: '',
travelDateEnd: '',
travelTimeStart: '',
travelTimeEnd: '',
isNull: false,
timer: null,
}
},
mounted() {},
destroyed() {
clearTimeout(this.timer)
},
methods: {
baseData() {
_.ui.mask()
if (this.isUsePath) {
// 初始化时间
this.$nextTick(() => {
this.initDatePicker()
this.travelDateCtro.setValue('')
this.travelTimeStartCtro.clearValue()
this.travelTimeEndCtro.clearValue()
this.travelTimeStart = ''
this.travelTimeEnd = ''
this.travelDateCtro.setValue({
startDate: this.timeInfo.startDate,
endDate: this.timeInfo.endDate,
})
$('[esapp-id=vehicle_trajectory_plan_arrive_time_from_start]').val(
this.timeInfo.startTime
)
$('[esapp-id=vehicle_trajectory_plan_arrive_time_from_end]').val(
this.timeInfo.endTime
)
this.travelTimeStart = this.timeInfo.startTime
this.travelTimeEnd = this.timeInfo.endTime
})
}
this.init()
window.initMap_line()
this.timer = setTimeout(() => {
this.doorAddressInit()
if (this.isUsePath) {
this.queryData()
}
}, 500)
},
init() {
let that = this
this.map = undefined
var script = document.createElement('script')
script.type = 'text/javascript'
script.src =
'//webapi.amap.com/maps?v=1.4.2&key=47be8e6664c78cfdbc3a8172cbcb1106&callback=initMap_line'
document.head.appendChild(script)
// 使用经纬度
window.sureLngLat = (e, lon, lat, num) => {
console.log(e, lon, lat)
this.setCircle(lon, lat, 200)
if (num == 0) {
this.doorInfoWindow.close()
} else {
this.cilckDoorInfoWindow.close()
}
this.$emit('freshlnglat', { lon: lon, lat: lat, isFirst: false })
}
// 使用该位置
window.sureAdd = (e, lon, lat) => {
console.log(e, lon, lat)
this.setCircle(lon, lat, 200)
this.doorInfoWindow.close()
this.$emit('freshadd', e.regeocode.formattedAddress)
}
window.sureAddOnly = (e, lon, lat, num) => {
console.log(e, lon, lat)
this.setCircle(lon, lat, 200)
this.cilckDoorInfoWindow.close()
if (num == 0) {
this.$emit('freshadd', e.regeocode.formattedAddress)
} else if (num == 1) {
this.$emit('freshadd', e.geocodes[0].formattedAddress)
}
}
// 使用该位置与经纬度
/* window.sureAddress = (e, lon, lat) => {
console.log(e, lon, lat)
this.setCircle(lon, lat, 200)
this.doorInfoWindow.close()
this.$emit('freshaddress', {
add: e.regeocode.formattedAddress,
lon: lon,
lat: lat,
})
}
window.sureAddressLonLat = (e, lon, lat, num) => {
console.log(e, lon, lat)
this.setCircle(lon, lat, 200)
this.cilckDoorInfoWindow.close()
if (num == 0) {
this.$emit('freshaddress', {
add: e.regeocode.formattedAddress,
lon: lon,
lat: lat,
})
} else if (num == 1) {
this.$emit('freshaddress', {
add: e.geocodes[0].formattedAddress,
lon: lon,
lat: lat,
})
}
} */
//初始化地图
window.initMap_line = function () {
that.map = new AMap.Map(that.mapName, {
doubleClickZoom: false,
resizeEnable: true,
center: [116.397428, 39.90923],
zoom: 10,
})
that.map.plugin(
[
'AMap.ToolBar',
'AMap.Scale',
'AMap.Driving',
'AMap.Geocoder',
'AMap.PlaceSearch',
'AMap.Marker',
'AMap.Icon',
'AMap.Size',
'AMap.Pixel',
'AMap.AdvancedInfoWindow',
],
function () {
that.map.addControl(new AMap.ToolBar())
that.map.addControl(new AMap.Scale())
that.map.addControl(new AMap.Marker())
}
)
that.map.on('click', (e) => {
console.log(e.lnglat.getLng(), e.lnglat.getLat())
that.clickPoint(e.lnglat.getLng(), e.lnglat.getLat())
})
}
},
// 日期控件
intDateCtro(idStart, idEnd) {
let ctro = esWidget.esDateToDate({
startId: idStart,
endId: idEnd,
format: 'yyyy-mm-dd',
})
return ctro
},
// 时间控件
intTimeCtro(id, key) {
let that = this
let ctro = esWidget.esDate({
id: id,
dateType: 'time',
onChange: function (val) {
that[key] = val
},
})
this.clearTime = ctro
return ctro
},
//初始化时间控件
initDatePicker() {
this.travelDateCtro = this.intDateCtro(
'vehicle_trajectory_plan_arrive_date_from_start',
'vehicle_trajectory_plan_arrive_date_from_end'
)
this.travelTimeStartCtro = this.intTimeCtro(
'vehicle_trajectory_plan_arrive_time_from_start',
'travelTimeStart'
)
this.travelTimeEndCtro = this.intTimeCtro(
'vehicle_trajectory_plan_arrive_time_from_end',
'travelTimeEnd'
)
},
// 重置
clearValue() {
this.travelDateCtro.setValue('')
this.travelTimeStartCtro.clearValue()
this.travelTimeEndCtro.clearValue()
this.travelTimeStart = ''
this.travelTimeEnd = ''
$('[esapp-id=vehicle_trajectory_blno]').val('')
},
// 请求轨迹信息
queryData() {
_.ui.mask()
let that = this
// 不允许日期为空
if (!this.travelTimeStart) this.travelTimeStart = '00:00:00'
if (!this.travelTimeEnd) this.travelTimeEnd = '23:59:59'
if (!this.travelDateCtro.getValue().dateStart || !this.trunkNumber) {
_.ui.notify({
message: '车牌号和开始日期不允许为空',
type: 'warning',
})
this.isNull = true
_.ui.unmask()
return
}
this.travelDateStart = this.travelDateCtro.getValue().dateStart
this.travelDateEnd = this.travelDateCtro.getValue().dateEnd
let sendStartDate = this.travelDateStart.split(' ')[0]
let sendEndDate = this.travelDateEnd.split(' ')[0]
let sendStartTime = this.travelTimeStart
? ' ' + this.travelTimeStart
: this.travelTimeStart
let sendEndTime = this.travelTimeEnd
? ' ' + this.travelTimeEnd
: this.travelTimeEnd
let hours = Math.floor(
(new Date(sendEndDate + sendEndTime).getTime() -
new Date(sendStartDate + sendStartTime).getTime()) /
1000 /
60 /
60
)
if (hours >= 24) {
this.travelDateCtro.setValue('')
this.travelTimeStartCtro.clearValue()
this.travelTimeEndCtro.clearValue()
this.travelTimeStart = ''
this.travelTimeEnd = ''
let newStart =
new Date(sendEndDate + sendEndTime).getTime() - 24 * 60 * 60 * 1000
sendStartDate = this.timestampToTime(newStart).split(' ')[0]
sendStartTime = ' ' + this.timestampToTime(newStart).split(' ')[1]
this.travelDateCtro.setValue({
startDate: sendStartDate,
endDate: sendEndDate,
})
$('[esapp-id=vehicle_trajectory_plan_arrive_time_from_start]').val(
sendStartTime
)
$('[esapp-id=vehicle_trajectory_plan_arrive_time_from_end]').val(
sendEndTime
)
this.travelTimeStart = sendStartTime
this.travelTimeEnd = sendEndTime
// _.ui.notify({
// message: '时间段间隔不能超过 24 小时',
// type: 'warning',
// })
// this.isNull = true
// _.ui.unmask()
// return
}
let param = {
qryBtm: sendStartDate + sendStartTime,
qryEtm: sendEndDate + sendEndTime,
vclN: this.trunkNumber,
}
param.calParking = this.calParking
param.coords = 'wgs84'
console.log(param, 'params')
_.util.ajax_get_factory(
'/gw/gis-gps-serve/vHistoryTrack',
param,
function (res) {
if (res.success) {
that.isNull = false
that.ployLine(res)
} else {
that.isNull = true
_.ui.unmask()
}
}
)
},
// 年月日时分秒
timestampToTime(time) {
let date = new Date(time)
var Y = date.getFullYear() + '-'
var M =
(date.getMonth() + 1 < 10
? '0' + (date.getMonth() + 1)
: date.getMonth() + 1) + '-'
var D =
(date.getDate() < 10 ? '0' + date.getDate() : date.getDate()) + ' '
var h =
(date.getHours() < 10 ? '0' + date.getHours() : date.getHours()) + ':'
var m =
(date.getMinutes() < 10 ? '0' + date.getMinutes() : date.getMinutes()) +
':'
var s =
date.getSeconds() < 10 ? '0' + date.getSeconds() : date.getSeconds()
let strDate = Y + M + D + h + m + s
return strDate
},

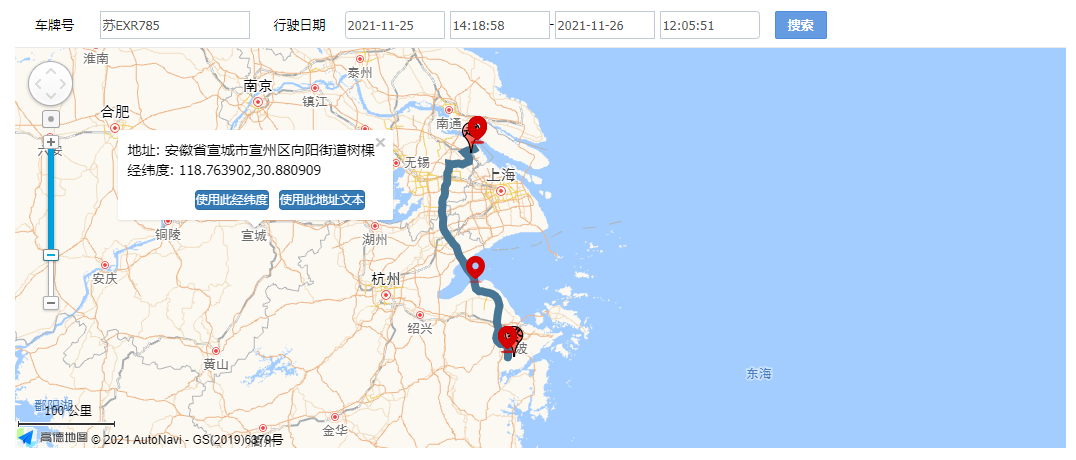

// 绘制轨迹
ployLine(res) {
let that = this
if (res.data.track.length !== 0) {
this.trackList = res.data.track
// 信息窗
this.doorInfoWindow = new AMap.InfoWindow({})
function clickMarker(e) {
that.doorInfoWindow.setContent(e.target.content)
that.doorInfoWindow.open(that.map, e.target.getPosition())
}
// 轨迹
this.path = new AMap.Polyline({
path: null,
isOutline: false, //线条是否带描边,默认false
outlineColor: '#ffeeff', //线条描边颜色,此项仅在isOutline为true时有效,默认:#000000
borderWeight: 5, //描边的宽度,默认为1
strokeColor: '#477694', //线条颜色,使用16进制颜色代码赋值。默认值为#006600
strokeOpacity: 1, //线条透明度,取值范围[0,1],0表示完全透明,1表示不透明。默认为0.9
strokeWeight: 8, //线条宽度,单位:像素
// 折线样式还支持 'dashed'
strokeStyle: 'solid', //线样式,实线:solid,虚线:dashed
// strokeStyle是dashed时有效
strokeDasharray: [10, 5], //勾勒形状轮廓的虚线和间隙的样式,此属性在strokeStyle 为dashed 时有效
lineJoin: 'miter', //折线拐点的绘制样式,默认值为'miter'尖角,其他可选值:'round'圆角、'bevel'斜角
lineCap: 'round', //折线两端线帽的绘制样式,默认值为'butt'无头,其他可选值:'round'圆头、'square'方头
zIndex: 50, //折线覆盖物的叠加顺序。默认叠加顺序,先添加的线在底层,后添加的线在上层。通过该属性可调整叠加顺序,使级别较高的折线覆盖物在上层显示默认zIndex:50、
})
// 将折线添加至地图实例
console.log(this.map, this.map.add)
this.map.add(this.path)
// 起点
this.markerStart = new AMap.Marker({
position: null,
icon: new AMap.Icon({
size: new AMap.Size(30, 31),
image: '../images/OpenLayers/begin.png',
}),
})
// 终点
this.markerEnd = new AMap.Marker({
position: null,
icon: new AMap.Icon({
size: new AMap.Size(30, 31),
image: '../images/OpenLayers/end.png',
}),
})
let trackPath = []
this.trackList.forEach((item, index) => {
trackPath.push(new AMap.LngLat(item.lon, item.lat))
})
this.path.setPath(trackPath)
this.path.show()
let startTrack = new AMap.LngLat(
this.trackList[0].lon,
this.trackList[0].lat
)
this.markerStart.setPosition(startTrack)
this.markerStart.show()
let endTrack = new AMap.LngLat(
this.trackList[this.trackList.length - 1].lon,
this.trackList[this.trackList.length - 1].lat
)
this.map.setZoomAndCenter(10, endTrack)
this.markerEnd.setPosition(endTrack)
this.markerEnd.show()
// 起点与终点的信息窗
AMap.service('AMap.Geocoder', function () {
var geocoder = new AMap.Geocoder({})
geocoder.getAddress(startTrack, function (status, result) {
that.markerStart.content =
"<div style='font-size:14px'>地址: " +
result.regeocode.formattedAddress +
'</div>' +
"<div style='font-size:14px'>经纬度: " +
that.trackList[0].lon +
',' +
that.trackList[0].lat +
'</div>' +
"<div style='text-align:right;margin-top:10px'>" +
"<button type='button' class='btn btn-primary btn-close point-btn btn-add' οnclick=sureLngLat(" +
JSON.stringify(result) +
',' +
that.trackList[0].lon +
',' +
that.trackList[0].lat +
0 +
')>使用此经纬度</button>' +
"<button type='button' class='btn btn-primary btn-close point-btn btn-add' οnclick=sureadd(" +
JSON.stringify(result) +
',' +
that.trackList[0].lon +
',' +
that.trackList[0].lat +
')>使用此地址文本</button>' +
'</div>'
/* "<button type='button' class='btn btn-primary btn-close btn-add' οnclick=sureAddress(" +
JSON.stringify(result) +
',' +
that.trackList[0].lon +
',' +
that.trackList[0].lat +
')>使用此地址与经纬度</button>' +'</div>'*/
that.markerStart.on('click', clickMarker)
that.map.add([that.markerStart])
})
})
AMap.service('AMap.Geocoder', function () {
var geocoder = new AMap.Geocoder({})
geocoder.getAddress(endTrack, function (status, result) {
that.markerEnd.content =
"<div style='font-size:14px'>地址: " +
result.regeocode.formattedAddress +
'</div>' +
"<div style='font-size:14px'>经纬度: " +
that.trackList[that.trackList.length - 1].lon +
',' +
that.trackList[that.trackList.length - 1].lat +
"<div style='text-align:right;margin-top:10px'>" +
"<button type='button' class='btn btn-primary btn-close point-btn btn-add' οnclick=sureLngLat(" +
JSON.stringify(result) +
',' +
that.trackList[that.trackList.length - 1].lon +
',' +
that.trackList[that.trackList.length - 1].lat +
+','
0 +
')>使用此经纬度</button>' +
"<button type='button' class='btn btn-primary btn-close point-btn btn-add' οnclick=sureAdd(" +
JSON.stringify(result) +
',' +
that.trackList[that.trackList.length - 1].lon +
',' +
that.trackList[that.trackList.length - 1].lat +
')>使用此地址文本</button>' +
'</div>'
/* "<button type='button' class='btn btn-primary btn-close btn-add' οnclick=sureAddress(" +
JSON.stringify(result) +
',' +
that.trackList[that.trackList.length - 1].lon +
',' +
that.trackList[that.trackList.length - 1].lat +
')>使用此地址与经纬度</button>' +'</div>'*/
that.markerEnd.on('click', clickMarker)
})
that.map.add([that.markerEnd])
})
} else {
_.ui.notify({
message: '暂无轨迹信息',
type: 'warning',
})
}
_.ui.unmask()
this.stopPoint(res)
},
// 绘制停车点
stopPoint(res) {
let that = this
// 停车点的信息窗
that.doorInfoWindow = new AMap.InfoWindow({})
function clickMarker(e) {
that.doorInfoWindow.setContent(e.target.content)
that.doorInfoWindow.open(that.map, e.target.getPosition())
}
if (res.data.stops.length !== 0) {
this.stopList = res.data.stops
this.stopList.forEach((e, i) => {
// 停车时间大于15分钟
if (e.duration >= 900) {
AMap.service('AMap.Geocoder', function () {
let geocoder = new AMap.Geocoder({})
let point = new AMap.LngLat(e.lon, e.lat)
geocoder.getAddress(point, function (status, result) {
console.log(result)
let doorMarker = new AMap.Marker({
position: [that.stopList[i].lon, that.stopList[i].lat],
icon: new AMap.Icon({
size: new AMap.Size(19, 31),
image: '../images/OpenLayers/marker_red_point.png',
}),
})
doorMarker.content =
"<div style='font-size:14px'>停留时长: " +
that.computedSecond(e.duration) +
"<div style='font-size:14px'>地址: " +
result.regeocode.formattedAddress +
'</div>' +
"<div style='font-size:14px'>经纬度: " +
that.stopList[i].lon +
',' +
that.stopList[i].lat +
'</div>' +
"<div style='text-align:right;margin-top:10px'>" +
"<button type='button' class='btn btn-primary btn-close point-btn btn-add' οnclick=sureLngLat(" +
JSON.stringify(result) +
',' +
that.stopList[i].lon +
',' +
that.stopList[i].lat +
',' +
0 +
')>使用此经纬度</button>' +
"<button type='button' class='btn btn-primary btn-close point-btn btn-add' οnclick=sureAdd(" +
JSON.stringify(result) +
',' +
that.stopList[i].lon +
',' +
that.stopList[i].lat +
',' +
')>使用此地址文本</button>' +
'</div>'
/* "<button type='button' class='btn btn-primary btn-close btn-add' οnclick=sureAddress(" +
JSON.stringify(result) +
',' +
that.stopList[i].lon +
',' +
that.stopList[i].lat +
',' +
')>使用此地址与经纬度</button>'+ '</div>'*/
doorMarker.on('click', clickMarker)
that.map.add([doorMarker])
})
})
}
})
}
},
// 门点地址初始化
doorAddressInit() {
let that = this
if (that.clickMaker) {
that.map.remove(that.clickMaker)
that.clickMaker.setMap(null)
that.clickMaker = null
that.cilckDoorInfoWindow.close()
}
AMap.service('AMap.Geocoder', function () {
let geocoder = new AMap.Geocoder({})
_.ui.unmask()
geocoder.getLocation(that.doorAddress, function (status, result) {
console.log(result, 'result', status)
if (Object.keys(result).length == 0) {
_.ui.notify({
type: 'warning',
message: '请按照省市区划逐级填写详细地址',
})
_.ui.unmask()
return
}
if (status == 'complete') {
let portPoint = {
latitude: result.geocodes[0].location.lat,
longitude: result.geocodes[0].location.lng,
}
that.clickMaker = new AMap.Marker({
position: [portPoint.longitude, portPoint.latitude],
icon: new AMap.Icon({
size: new AMap.Size(19, 31),
image: '//webapi.amap.com/theme/v1.3/markers/n/mark_b.png',
}),
zIndex: 111,
})
// 将更改的标记添加到地图上
that.map.add([that.clickMaker])
// 初始化一个信息窗
that.cilckDoorInfoWindow = new AMap.InfoWindow({
content:
"<div style='font-size:14px'>地址: " +
result.geocodes[0].formattedAddress +
'</div>' +
"<div style='font-size:14px'>经纬度: " +
portPoint.longitude +
',' +
portPoint.latitude +
'</div>' +
"<div style='text-align:right;margin-top:10px'>" +
"<button type='button' class='btn btn-primary btn-close point-btn btn-add' οnclick=sureLngLat(" +
JSON.stringify(result) +
',' +
portPoint.longitude +
',' +
portPoint.latitude +
',' +
1 +
')>使用此经纬度</button>' +
"<button type='button' class='btn btn-primary btn-close point-btn btn-add' οnclick=sureAddOnly(" +
JSON.stringify(result) +
',' +
portPoint.longitude +
',' +
portPoint.latitude +
',' +
1 +
')>使用此地址文本</button>' +
'</div>',
/* "<button type='button' class='btn btn-primary btn-close btn-add' οnclick=sureAddressLonLat(" +
JSON.stringify(result) +
',' +
portPoint.longitude +
',' +
portPoint.latitude +
',' +
1 +
')>使用此地址与经纬度</button>'+ '</div>'*/
})
that.map.setZoomAndCenter(
11,
new AMap.LngLat(portPoint.longitude, portPoint.latitude)
)
// 初始化的时候打开信息窗
that.cilckDoorInfoWindow.open(that.map, [
portPoint.longitude,
portPoint.latitude,
])
// 点击标记的时候还能打开信息窗
that.clickMaker.on('click', (e) => {
that.cilckDoorInfoWindow.open(that.map, [
portPoint.longitude,
portPoint.latitude,
])
})
that.$emit('freshlnglat', {
lon: portPoint.longitude,
lat: portPoint.latitude,
isFirst: true,
})
}
})
})
},
// 点击地图跟换经纬度
clickPoint(lon, lat) {
let that = this
if (that.clickMaker) {
that.map.remove(that.clickMaker)
that.clickMaker.setMap(null)
that.clickMaker = null
that.cilckDoorInfoWindow.close()
}
AMap.service('AMap.Geocoder', function () {
let geocoder = new AMap.Geocoder({})
let point = new AMap.LngLat(lon, lat)
geocoder.getAddress(point, function (status, result) {
console.log(result)
let portPoint = {
latitude: lat,
longitude: lon,
}
that.clickMaker = new AMap.Marker({
position: [portPoint.longitude, portPoint.latitude],
icon: new AMap.Icon({
size: new AMap.Size(19, 31),
image: '//webapi.amap.com/theme/v1.3/markers/n/mark_b.png',
}),
zIndex: 111,
})
// 将更改的标记添加到地图上
that.map.add([that.clickMaker])
// 初始化一个信息窗
that.cilckDoorInfoWindow = new AMap.InfoWindow({
content:
"<div style='font-size:14px'>地址: " +
result.regeocode.formattedAddress +
'</div>' +
"<div style='font-size:14px'>经纬度: " +
portPoint.longitude +
',' +
portPoint.latitude +
'</div>' +
"<div style='text-align:right;margin-top:10px'>" +
"<button type='button' class='btn btn-primary btn-close point-btn btn-add' οnclick=sureLngLat(" +
JSON.stringify(result) +
',' +
portPoint.longitude +
',' +
portPoint.latitude +
',' +
1 +
')>使用此经纬度</button>' +
"<button type='button' class='btn btn-primary btn-close point-btn btn-add' οnclick=sureAddOnly(" +
JSON.stringify(result) +
',' +
portPoint.longitude +
',' +
portPoint.latitude +
',' +
0 +
')>使用此地址文本</button>' +
'</div>',
/* "<button type='button' class='btn btn-primary btn-close btn-add' οnclick=sureAddressLonLat(" +
JSON.stringify(result) +
',' +
portPoint.longitude +
',' +
portPoint.latitude +
',' +
0 +
')>使用此地址与经纬度</button>' +'</div>'*/
})
// 初始化的时候打开信息窗
that.cilckDoorInfoWindow.open(that.map, [
portPoint.longitude,
portPoint.latitude,
])
// 点击标记的时候还能打开信息窗
that.clickMaker.on('click', (e) => {
that.cilckDoorInfoWindow.open(that.map, [
portPoint.longitude,
portPoint.latitude,
])
})
})
})
},
// 停车时间换算
computedSecond(secondTime) {
let min, second, h
min = parseInt(secondTime / 60) //获取分钟,除以60取整数,得到整数分钟
second = parseInt(secondTime % 60) //获取秒数,秒数取佘,得到整数秒数
if (min > 60) {
//如果分钟大于60,将分钟转换成小时
h = parseInt(min / 60) //获取小时,获取分钟除以60,得到整数小时
min = parseInt(min % 60) //获取小时后取佘的分,获取分钟除以60取佘的分
}
return (
(h > 0 ? h + '小时' : '') +
(min > 0 ? min + '分钟' : '') +
(second > 0 ? second + '秒' : '')
)
},
// 圆
setCircle(lon, lat, radius) {
let that = this
that.map.remove(that.doorCircle)
that.map.remove(that.lnglatMaker)
that.lnglatMaker = new AMap.Marker({
position: [lon, lat],
icon: new AMap.Icon({
image: '../../images/map-pin.png',
offset: new AMap.Pixel(20, 0),
imageSize: new AMap.Size(34, 34),
}),
zIndex: 110,
})
// 构造矢量圆形
that.doorCircle = new AMap.Circle({
center: new AMap.LngLat(lon, lat), // 圆心位置
radius: radius, //半径
strokeColor: '#409eff', //线颜色
strokeOpacity: 1, //线透明度
strokeWeight: 1, //线粗细度
fillColor: '#409eff', //填充颜色
fillOpacity: 0.35, //填充透明度
zIndex: 100,
})
that.map.add([that.lnglatMaker, that.doorCircle])
// that.map.setFitView()
this.map.setZoomAndCenter(15, new AMap.LngLat(lon, lat))
},
},
}
</script>
<style>
#ploygon .baseBox {
background-color: #fefefe;
border: 1px solid #bfd6e1;
border-radius: 5px;
color: #444;
font: 14px 'Microsoft YaHei', '���ź�';
margin: 0 auto;
width: 300px;
top: 10px;
z-index: 9000;
overflow: hidden;
}
#ploygon .baseBox .baseBoxTitle {
border-bottom: 1px solid #dde0e8;
text-align: center;
line-height: 30px;
}
#ploygon .baseBox .baseBoxCenter {
border-bottom: 1px solid #dde0e8;
padding: 0px 24px 2px 24px;
}
#ploygon .baseBox .baseBoxCenter p {
margin-bottom: 10px;
}
#ploygon .baseBox .baseBoxButtons {
background-color: #f0f4f6;
border-top: 1px solid #fff;
border-bottom-left-radius: 5px;
border-bottom-right-radius: 5px;
line-height: 20px;
overflow: hidden;
padding: 5px 24px;
}
#ploygon .baseBox .baseInput {
border: 1px solid #d2d9dc;
border-radius: 2px;
color: #444;
font: 14px;
padding: 5px;
margin-bottom: 8px;
width: 90%;
}
#ploygon .baseBox .baseInput:focus {
border: 1px solid #b7d4ea;
box-shadow: 0 0 8px #b7d4ea;
}
#ploygon .baseBox .baseBtn {
background-image: -moz-linear-gradient(to bottom, #b5def2, #85cfee);
border: 1px solid #98cce7;
border-radius: 20px;
box-shadow: inset rgba(255, 255, 255, 0.6) 0 1px 1px,
rgba(0, 0, 0, 0.1) 0 1px 1px;
color: #111;
cursor: pointer;
float: right;
font: bold 12px 'Microsoft YaHei', '���ź�';
padding: 5px 14px;
}
#ploygon .baseBox .baseBtn:hover {
background-image: -moz-linear-gradient(to top, #b5def2, #85cfee);
}
#ploygon .baseBox a.forgetLink {
color: #ababab;
cursor: pointer;
float: right;
font: 11px/20px Arial;
text-decoration: none;
vertical-align: middle;
}
#ploygon .baseBox a.forgetLink:hover {
text-decoration: underline;
}
#ploygon .baseBox input#remember {
vertical-align: middle;
}
#ploygon .baseBox label[for='remember'] {
font: 11px Arial;
}
#ploygon .baseBox .baseCheckbox {
margin-bottom: 8px;
}
#ploygon .map {
width: 100%;
position: relative;
height: 100%;
padding: 0px;
}
#ploygon #navigation {
position: absolute;
bottom: 70px;
left: 10px;
z-index: 1000;
}
#ploygon #loadingDiv {
position: absolute;
z-index: 9001;
background-color: #bfd6e1;
opacity: 0.8;
display: none;
}
#ploygon .ajax-loader {
cursor: wait;
background: #ffffff;
-ms-filter: 'progid:DXImageTransform.Microsoft.Alpha(Opacity=75)';
filter: alpha(opacity=75);
opacity: 0.75;
position: absolute;
}
#ploygon div.olControlZoom {
position: absolute;
top: 8px;
left: 8px;
background: rgba(255, 255, 255, 0.4);
border-radius: 4px;
padding: 2px;
}
* {
-webkit-tap-highlight-color: rgba(0, 0, 0, 0);
}
#ploygon div.olControlZoom a {
display: block;
margin: 1px;
padding: 0;
color: white;
font-size: 28px;
font-family: sans-serif;
font-weight: bold;
text-decoration: none;
text-align: center;
height: 32px;
width: 32px;
line-height: 28px;
text-shadow: 0 0 3px rgba(0, 0, 0, 0.8);
background: #130085;
/* fallback for IE - IE6 requires background shorthand*/
background: rgba(0, 60, 136, 0.5);
filter: alpha(opacity=80);
}
#ploygon a.olControlZoomIn {
border-radius: 4px 4px 0 0;
}
#ploygon a.olControlZoomOut {
border-radius: 0 0 4px 4px;
}
#ploygon div.olControlZoom a:hover {
background: #130085;
/* fallback for IE */
background: rgba(0, 60, 136, 0.7);
filter: alpha(opacity=100);
}
@media only screen and (max-width: 600px) {
div.olControlZoom a:hover {
background: rgba(0, 60, 136, 0.5);
}
}
#ploygon div.olMapViewport {
-ms-touch-action: none;
}
#ploygon .olLayerGrid .olTileImage {
-webkit-transition: opacity 0.2s linear;
-moz-transition: opacity 0.2s linear;
-o-transition: opacity 0.2s linear;
transition: opacity 0.2s linear;
}
/* Turn on GPU support where available */
#ploygon .olTileImage {
-webkit-transform: translateZ(0);
-moz-transform: translateZ(0);
-o-transform: translateZ(0);
-ms-transform: translateZ(0);
transform: translateZ(0);
-webkit-backface-visibility: hidden;
-moz-backface-visibility: hidden;
-ms-backface-visibility: hidden;
backface-visibility: hidden;
-webkit-perspective: 1000;
-moz-perspective: 1000;
-ms-perspective: 1000;
perspective: 1000;
}
#ploygon #div_map {
display: flex;
flex: 1;
justify-content: center;
align-items: center;
font-size: 20px;
min-height: 150px;
}
#ploygon #msgDiv {
position: absolute;
top: 70px;
left: 60px;
}
#ploygon .input-group.btn-form {
float: left;
}
#ploygon .boxTimeRadioList .input-container .form-control {
width: 100px;
margin-right: 5px;
}
#ploygon .boxTimeRadioList .input-container span {
float: left;
margin: 4px 0 0 -5px;
}
.point-btn {
margin-right: 10px;
}
.btn-add {
padding: 0 !important;
font-size: 10px !important;
}
</style>```
效果:

高德地图使用轨迹加坐标拾取加位置信息
最新推荐文章于 2025-03-21 09:32:30 发布
