rcu锁原理以及rcu example学习

rcu参考资料：
https://airekans.github.io/c/2016/05/10/dive-into-liburcu
https://lwn.net/Articles/262464/
https://cloud.tencent.com/developer/article/1684477
https://www.cnblogs.com/LoyenWang/p/12681494.html

userspace rcu:
https://github.com/urcu/userspace-rcu
内核rcu实现不太一样，但是原理类似

rcu的原理：

rcu会维护一个全局的数据结构rcu_gp

struct rcu_gp {
    unsigned long ctr;
    int32_t futex;
} __attribute__((aligned(CAA_CACHE_LINE_SIZE)));
extern struct rcu_gp rcu_gp;

他是通过ctr成员变量来实现一写多读操作

假设一个写线程，4个读线程
读线程ctr可能的值:
读线程1:rcu_register_thread，会获取ctr的值，假设此时为10
读线程2:rcu_register_thread，会获取ctr的值，假设此时为11(可能发生在synchronize_rcu之后，获取到了新的值)
读线程3:rcu_register_thread，会获取ctr的值，假设此时为10
读线程4:rcu_register_thread，会获取ctr的值，假设此时为10

rcu_quiescent_state:
1、如果将全局g_ctr的值等于读线程的ctr值，直接唤醒写线程(写线程等待的读线程数减一)
2、不相等的话直接把全局g_ctr的值赋值给读线程的ctr

/*
 * This is a helper function for _rcu_quiescent_state().
 * The first cmm_smp_mb() ensures memory accesses in the prior read-side
 * critical sections are not reordered with store to
 * URCU_TLS(urcu_qsbr_reader).ctr, and ensures that mutexes held within an
 * offline section that would happen to end with this
 * urcu_qsbr_quiescent_state() call are not reordered with
 * store to URCU_TLS(urcu_qsbr_reader).ctr.
 */
static inline void _urcu_qsbr_quiescent_state_update_and_wakeup(unsigned long gp_ctr)
{
	cmm_smp_mb();
	_CMM_STORE_SHARED(URCU_TLS(urcu_qsbr_reader).ctr, gp_ctr);
	cmm_smp_mb();	/* write URCU_TLS(urcu_qsbr_reader).ctr before read futex */
	urcu_qsbr_wake_up_gp();
	cmm_smp_mb();
}

/*
 * Inform RCU of a quiescent state.
 *
 * This function is less than 10 lines long.  The intent is that this
 * function meets the 10-line criterion for LGPL, allowing this function
 * to be invoked directly from non-LGPL code.
 *
 * We skip the memory barriers and gp store if our local ctr already
 * matches the global urcu_qsbr_gp.ctr value: this is OK because a prior
 * _rcu_quiescent_state() or _rcu_thread_online() already updated it
 * within our thread, so we have no quiescent state to report.
 */
static inline void _urcu_qsbr_quiescent_state(void)
{
	unsigned long gp_ctr;

	urcu_assert_debug(URCU_TLS(urcu_qsbr_reader).registered);
	if ((gp_ctr = CMM_LOAD_SHARED(urcu_qsbr_gp.ctr)) == URCU_TLS(urcu_qsbr_reader).ctr)
		return;
	_urcu_qsbr_quiescent_state_update_and_wakeup(gp_ctr);
}

写线程1:synchronize_rcu会将ctr的值加1，ctr的值为11，并且会等待所有读线程的值都为11（即所有读线程都执行完一次rcu_quiescent_state）才会执行下一个步骤

所以可以理解为临界区间在rcu_register_thread开始，到rcu_quiescent_state结束，写线程可以继续执行

rcu锁example：

#include <stdio.h>
#include <stdlib.h>
#include <pthread.h>
#include <urcu-qsbr.h>

struct foo
{
    int a;
    int b;
    int c;
};

static struct foo *g_foo;

void g_foo_init()
{
    g_foo = (struct foo *)malloc(sizeof(struct foo));
    g_foo->a = 1;
    g_foo->b = 1;
    g_foo->c = 1;
}

void g_foo_release()
{
    free(g_foo);
    g_foo = NULL;
}

void do_something(struct foo *l_foo)
{
    int i = 0;
    int j = 0;
    long sum = 0;
    for (i = 0; i < 10000; i++) {
        for (j = 0; j < 100000; j++) {
            // 加锁或者不加锁都ok，rcu_read_lock内部实现为NULL
            // rcu_read_lock();
            if (l_foo) {
                sum = sum + l_foo->a + l_foo->b + l_foo->c;
            }
            // rcu_read_unlock();
        }
    }
    printf("sum:%ld\n", sum);
}

void * reader_thread()
{
    rcu_register_thread();
    struct foo *l_foo = rcu_dereference(g_foo);
    if (l_foo) {
        do_something(l_foo);
    }
    rcu_quiescent_state();
	rcu_unregister_thread();
}

void * writer_thread()
{
    struct foo *old_foo = g_foo;
    struct foo *new_foo = (struct foo *)malloc(sizeof(struct foo));
    new_foo->a = 10;
    new_foo->b = 11;
    new_foo->c = 12;
    rcu_xchg_pointer(&g_foo, new_foo);
    synchronize_rcu();
    if (old_foo) {
        free(old_foo);
    }
}

/**
 * rcu，一写多读需要遵循的规则
 *
 * 读线程：
 * 1、rcu_register_thread    将改线程加入rcu链表，synchronize_rcu判断的时候会用到
 * 2、rcu_unregister_thread  将改线程从rcu链表中移除
 * 3、rcu_quiescent_state    读线程主动通知写线程已经结束一批临界区
 * 4、rcu_dereference        读线程获取被保护的共享指针需要用该API
 * 5、rcu_read_lock/rcu_read_unlock 可选API，实际什么都没做
 *
 * 写线程：
 * 1、rcu_xchg_pointer       写线程更新指针需要用到该API
 * 2、synchronize_rcu        等待Grace Period结束(所有读线程都已经调用过rcu_quiescent_state)
 */
int main()
{
    pthread_t reader1, reader2, reader3, reader4, writer;
    g_foo_init();

    pthread_create(&writer, NULL, writer_thread, NULL);
    pthread_create(&reader1, NULL, reader_thread, NULL);
    pthread_create(&reader2, NULL, reader_thread, NULL);
    pthread_create(&reader3, NULL, reader_thread, NULL);
    pthread_create(&reader4, NULL, reader_thread, NULL);

    pthread_join(writer, NULL);
    pthread_join(reader1, NULL);
    pthread_join(reader2, NULL);
    pthread_join(reader3, NULL);
    pthread_join(reader4, NULL);
    g_foo_release();
    return 0;
}

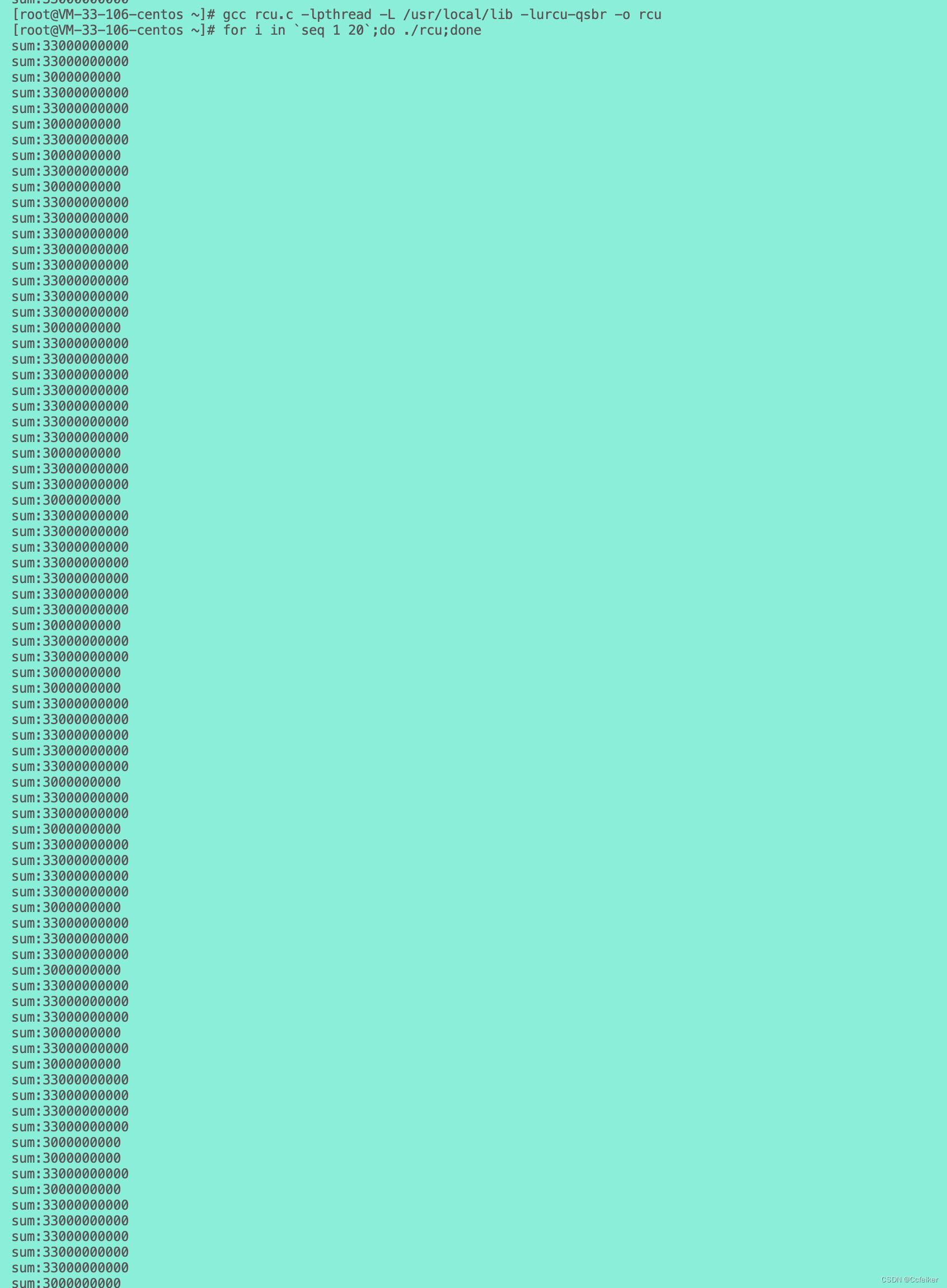

运行结果：

从上图也可以看出来，rcu锁并不保证每次读到的数据到底是旧数据还是新数据，但是会保证旧数据和新数据都能正常访问到
