本文深入探讨了FB_EcCoESdoReadEx与FB_EcCoESdoWriteEx功能块的使用，详细解析了C++调用PLC功能块的方法，包括TcQueryInterface的实现细节与cycleUpdate()函数的应用。此外，还介绍了PLC资源库的综合调试过程，涵盖了从网络配置到状态获取的一系列操作。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

1. FB_EcCoESdoReadEx功能块

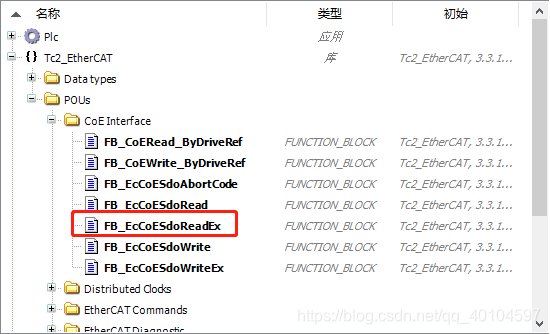

功能块位置

在这里插入图片描述

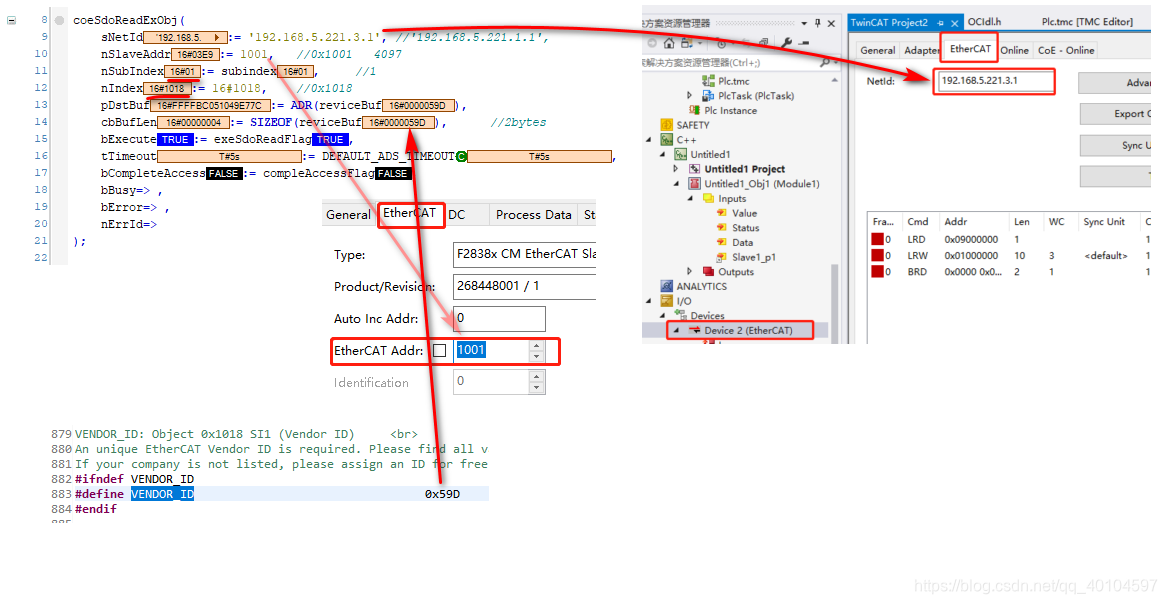

实验结果

在这里插入图片描述

2. FB_EcCoESdoWriteEx

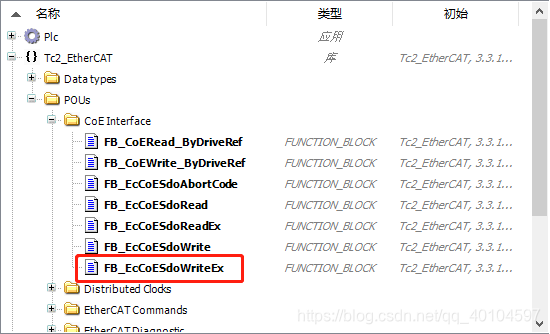

功能块位置

在这里插入图片描述

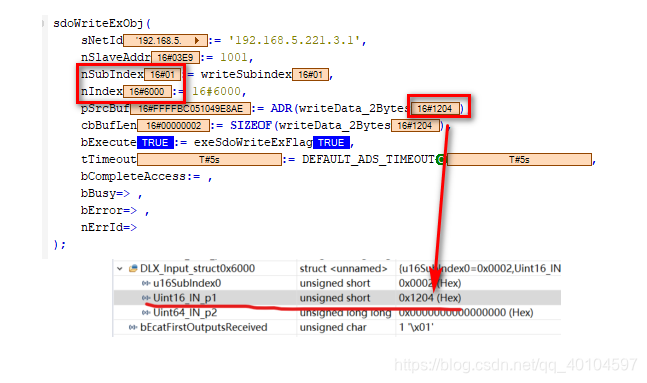

实验结果

在这里插入图片描述

3. C++调用PLC功能块

相关代码（仅供参考）

PLC:TcQueryInterface
变量定义区：

{attribute 'c++_compatible'}
{attribute 'minimal_input_size' := '4'}
{attribute 'pack_mode' := '4'}
//{error '添加方法实现或删除属性以使用基本实现'}
METHOD TcQueryInterface : HRESULT
VAR_INPUT
	iid	: REFERENCE TO IID;
	pipItf	: POINTER TO PVOID;
	ipCalc: I_Calculation;
END_VAR

程序区：

IF GuidsEqual(pGuidA:= ADR(iid),
		      pGuidB:= ADR(TC_GLOBAL_IID_LIST.IID_I_Calculation)) THEN
	ipCalc := THIS^;
	pipItf^ := ITCUNKNOWN_TO_PVOID(ipCalc);
	TcAddRef();
	TcQueryInterface := S_OK;
ELSE
	TcQueryInterface := SUPER^.TcQueryInterface(iid,pipItf);
END_IF

C++: cycleUpdate()

	if ((m_spCalculation == NULL) && m_Inputs.oidProvider != 0) {
		m_spCalculation.SetOID(m_Inputs.oidProvider);
		m_spSrv->TcQuerySmartObjectInterface(m_spCalculation);
	}
	if (m_spCalculation != NULL) {
		m_spCalculation->Addition(m_Inputs.nln1,m_Inputs.nln2,m_Outputs.m_resAdd);
		m_spCalculation->Subtraction(m_Inputs.nln1, m_Inputs.nln2, m_Outputs.m_resSub);
	}

4. PLC资源库综合调试

变量声明区

PROGRAM MAIN
VAR
	netId:T_AmsNetId;
	SlaveAddrArray : ARRAY[1..2] OF UINT;
	getAllSlaveAddrExe,getAllSlaveStateExe,getMasterStateExe,getSlaveStateExe,reqMasterStateExe,setMasterStateExe,getAllSlaveAbnormalStateExe,getAllSyncUnitSalveAddrExe : BOOL;
	timeOut:TIME;
	slavStateArray: ARRAY[1..2] OF ST_EcSlaveState;
	slaveAbnormalStateArray : ARRAY [1..2] OF UDINT;
	allSyncUnitSlaveAddrArray : ARRAY [1..2] OF UINT;



	getAllSlaveAddr: FB_EcGetAllSlaveAddr;
	getAllSlaveStates: FB_EcGetAllSlaveStates;
	getMasterState: FB_EcGetMasterState;
	getSlaveState: FB_EcGetSlaveState;
	reqMasterState: FB_EcReqMasterState;
	setMasterState: FB_EcSetMasterState;


	getAllSlaveAbnormalState: FB_EcGetAllSlaveAbnormalStateChanges;

	getAllSyncUnitSalveAddr: FB_EcGetAllSyncUnitSlaveAddr;

	objID: OTCID;
END_VAR

程序区

netId := '192.168.5.221.3.1';
timeOut := T#5S;
objID := 16#03040020;
getAllSlaveAddr(
	sNetId:= netId,
	pAddrBuf:= ADR(SlaveAddrArray),
	cbBufLen:= SIZEOF(SlaveAddrArray),
	bExecute:= getAllSlaveAddrExe,
	tTimeout:= timeOut,
	bBusy=> ,
	bError=> ,
	nErrId=> ,
	nSlaves=> );


getAllSlaveStates(
	sNetId:= netId,
	pStateBuf:= ADR(slavStateArray),
	cbBufLen:= SIZEOF(slavStateArray),
	bExecute:= getAllSlaveStateExe,
	tTimeout:= timeOut,
	bBusy=> ,
	bError=> ,
	nErrId=> ,
	nSlaves=> );



getMasterState(
	sNetId:= netId,
	bExecute:= getMasterStateExe,
	tTimeout:= timeOut,
	bBusy=> ,
	bError=> ,
	nErrId=> ,
	state=> );


getSlaveState(
	sNetId:= netId,
	nSlaveAddr:= SlaveAddrArray[1],
	bExecute:= getSlaveStateExe,
	tTimeout:= timeOut,
	bBusy=> ,
	bError=> ,
	nErrId=> ,
	state=> );


reqMasterState(
	sNetId:= netId,
	bExecute:= reqMasterStateExe,
	tTimeout:= timeOut,
	state:= EC_DEVICE_STATE_SAFEOP,
	bBusy=> ,
	bError=> ,
	nErrId=> );



setMasterState(
	sNetId:= netId,
	bExecute:= setMasterStateExe,
	tTimeout:= timeOut,
	reqState:= EC_DEVICE_STATE_OP,
	bBusy=> ,
	bError=> ,
	nErrId=> ,
	currState=> );


getAllSlaveAbnormalState(
	sNetId:=netId ,
	pAddrBuf:= ADR(slaveAbnormalStateArray),
	cbBufLen:= SIZEOF(slaveAbnormalStateArray),
	bExecute:= getAllSlaveAbnormalStateExe,
	tTimeout:= timeOut,
	bBusy=> ,
	bError=> ,
	nErrId=> ,
	nSlaves=> );


getAllSyncUnitSalveAddr(
	sNetId:= netId,
	nObjectId:= objID,
	pAddrBuf:= ADR(allSyncUnitSlaveAddrArray),
	cbBufLen:= SIZEOF(allSyncUnitSlaveAddrArray),
	bExecute:= getAllSyncUnitSalveAddrExe,
	tTimeout:= timeOut,
	bBusy=> ,
	bError=> ,
	nErrId=> ,
	nSlaves=> );
