webservice服务端demo

1. 定义输入输出实体

输入实体 InputEntity

import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlType;

@XmlAccessorType(XmlAccessType.FIELD)
@XmlType(
    name = "InputEntity",
    propOrder = {"id", "data"}
)
public class InputEntity {
    @XmlElement(
        name = "id",
        required = true
    )
    protected Integer jszt;
    @XmlElement(
        name = "data",
        required = true
    )
    protected Object data;

    public InputEntity() {
    }

    public Integer getId() {
        return this.id;
    }

    public void setId(Integer id) {
        this.id= id;
    }

    public Object getData() {
        return this.data;
    }

    public void setData(Object data) {
        this.data= data;
    }
}

输出实体 OutputEntity

import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlType;

@XmlAccessorType(XmlAccessType.FIELD)
@XmlType(
    name = "OutputEntity",
    propOrder = {"code", "msg"}
)
public class OutputEntity {
    @XmlElement(
        name = "code",
        required = true
    )
    protected Integer jszt;
    @XmlElement(
        name = "msg",
        required = true
    )
    protected String msg;

    public OutputEntity() {
    }

    public Integer getCode() {
        return this.code;
    }

    public void setCode(Integer code) {
        this.code= code;
    }

    public String getMsg() {
        return this.msg;
    }

    public void setMsg(String msg) {
        this.msg= msg;
    }
}

2. 定义暴露的接口 myService.interface

import java.util.List;
import javax.jws.WebMethod;
import javax.jws.WebParam;
import javax.jws.WebService;
import javax.jws.soap.SOAPBinding;
import javax.jws.soap.SOAPBinding.ParameterStyle;

@WebService(
    name = "myService",
    targetNamespace = "http://test.ws.com"
)
@SOAPBinding(
    parameterStyle = ParameterStyle.BARE
)
public interface myService {
    @WebMethod(
        operationName = "getInfo"
    )
    OutputEntity getInfo(@WebParam(name = "item",targetNamespace = "http://test.ws.com") Object item);
}

3. 定义具体实现类 myServiceImpl.class

import com.ws.test.utils.JsonUtils;
import java.time.LocalDateTime;
import java.time.format.DateTimeFormatter;
import java.util.List;
import java.util.logging.Logger;
import javax.jws.WebParam;
import javax.jws.WebService;

@WebService(
    serviceName = "myService",
    name = "myService",
    portName = "myPortName",
    targetNamespace = "http://test.ws.com",
    endpointInterface = "com.ws.test.myService"
)
public class myServiceImpl implements myService {
    private static final Logger logger = Logger.getLogger(myServiceImpl.class.getName());

    public myServiceImpl() {
    }

    public OutputEntity getInfo(@WebParam(name = "item",targetNamespace = "http://test.ws.com") InputEntity item) {
        String result = "数据为空，请重新发送!";
        OutputEntity outres = new OutputEntity();
        outres.setCode(-1);
        if (null != outres) {
            result = "数据接收成功,提交线程处理中!";
            outres.setCode(0);
        }
        String str = "id: " + item.getId() + "data: " + item.getData();
        logger.info(LocalDateTime.now().format(DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss")) + " <<<< Server >>>> received parameters: " + str);
        outres.setMsg(result);
        return outres;
    }
}

4. 定义发布类 Config.class

import com.ws.test.myService;
import com.ws.test.myServiceImpl;
import javax.xml.ws.Endpoint;
import org.apache.cxf.bus.spring.SpringBus;
import org.apache.cxf.jaxws.EndpointImpl;
import org.apache.cxf.transport.servlet.CXFServlet;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class Config {
    public Config() {
    }

    @Bean(
        name = {"cxf"}
    )
    public SpringBus springBus() {
        return new SpringBus();
    }

    @Bean(
        name = {"wsBean"}
    )
    public ServletRegistrationBean dispatcherServlet() {
        ServletRegistrationBean wbsServlet = new ServletRegistrationBean(new CXFServlet(), new String[]{"/ws/*"});
        return wbsServlet;
    }

    @Bean
    public myService myService() {
        return new myServiceImpl();
    }

    @Bean
    public Endpoint endpoint() {
        EndpointImpl endpoint = new EndpointImpl(this.springBus(), new myServiceImpl());
        //发布wsdl文件
        endpoint.publish("/mywsdl");
        return endpoint;
    }
}

↑↑ 服务端代码编写完，可以写一个Controller类模拟客户端向服务端接口发送请求自测一下 ↓↓

import com.ws.test.utils.JsonUtils;
import com.ws.test.workorder.yxfk.InputEntity;
import com.ws.test.OutputEntity;
import com.ws.test.myService;
import java.net.MalformedURLException;
import java.net.URL;
import java.util.List;
import java.util.logging.Logger;
import javax.xml.namespace.QName;
import javax.xml.ws.Service;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping({"/test"})
public class testController {
    private static final Logger logger = Logger.getLogger(testController.class.getName());

    public testController() {
    }

    @RequestMapping({"/send.do"})
    public String sendInfo(@RequestBody InputEntity item) throws MalformedURLException {
        URL url = new URL("http://localhost:8080/ws/mywsdl?wsdl");
        QName qName = new QName("http://test.ws.com", "myService");
        Service service = Service.create(url, qName);
        myService ms = (myService)service.getPort(new QName("http://test.ws.com", "myPortName"), myService.class);
        OutputEntity out = ms.getInfo(item);
        //String res = JsonUtils.getJson(out);
        String res = "code: " + out.getCode() + "msg: " + out.getMsg();
        return res;
    }
}

也可以使用JDK自带wsimport.exe根据wsdl文件生成客户端代码

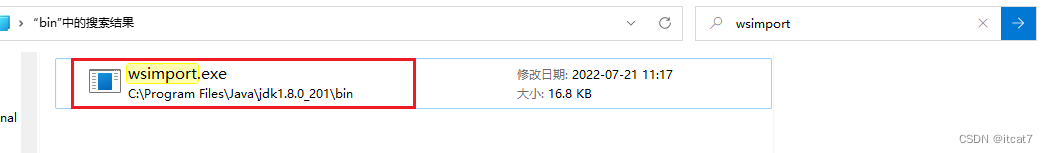

cd到jdk的bin目录下，wsimport.exe在bin目录下
创建一个用来存放要生成客户端代码的文件夹，例如我创建的是d:\webservice\src
执行命令

wsimport -s d:\webservice\src -keep -p com.ws.test.client -verbose -Xnocompile d:\webservice\mywsdl.wsdl

参数说明：
-s：指定java文件的输出目录（代码生成在哪个文件夹，需要提前创建好）
-keep：是否生成java源文件
-p：定义生成类的包名，不定义则默认生成
-verbose：在控制台显示输出信息
-Xnocompile：表示不需要编译
最后 d:\webservice\mywsdl.wsdl 表示wsdl文件的存放位置，可以替换成发布的wsdl地址如 http://localhost:8080/ws/myservice?wsdl

使用客户端代码编写调用方法

可以新启一个Springboot项目，导入前面生成的客户端代码文件，写一个Controller类来测试调用服务端的方法，代码大致如下：


import com.ws.client.*;
import com.ws.utils.JsonUtils;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;


@RestController
@RequestMapping("/client")
public class ClientController {

    @RequestMapping("/test")
    public String test(@RequestBody InputEntityArray inList){
        myServiceImpl impl = new myServiceImpl();
        myService service = impl.getInfoPortName();
        OutputEntity out = service.getInfo(inList);
        String res = JsonUtils.getJson(out);//将结果转换为字符串
        return res;
    }

}

JsonUtils工具类：

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;

public class JsonUtils {

    public static String getJson(Object object) {
        ObjectMapper mapper = new ObjectMapper();
        try {
            return mapper.writeValueAsString(object);
        } catch (JsonProcessingException e) {
            e.printStackTrace();
        }
        return null;
    }
}
