Java集合-基于JDK11（1）

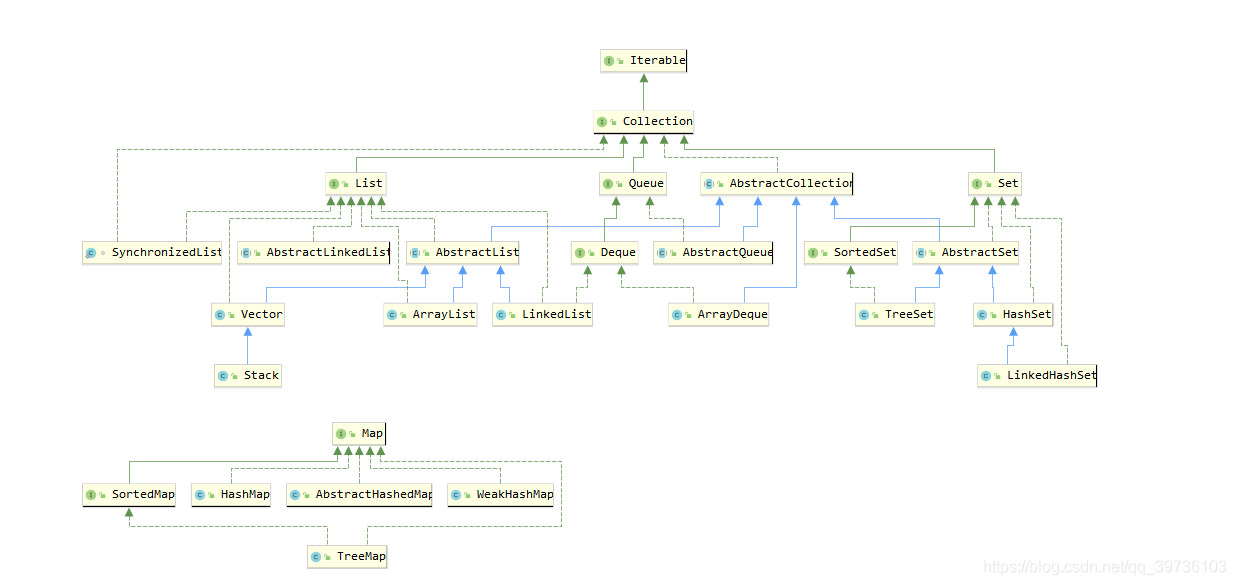

Java集合体系一览图（UML）

1.Iterable 接口

  Iterable，即迭代器的意思。其作用是为集合类提供for-each循环遍历的支持，只要让一个类实现这个接口，该类的对象就可以成为for-each循环遍历的目标。换句话说，想让一个Java对象支持for-each遍历，只要让它的类实现Iterable接口即可。而这具体又是如何做到的呢？我们来看下它的源码。

public interface Iterable<T> {
    /**
     * Returns an iterator over elements of type {@code T}.
     * 返回建立在类型为T的元素之上的一个Iterator对象
     * @return an Iterator.
        此方法是Iterable接口的主要方法。我们知道，想让一个类实现Iterable接口，其对象就可以使
        用for-each遍历。而具体如何做到就是通过此方法。比如说，我们可以通过 Iterator iterator
        = strings.iterator(); 的方式取得集合的Iterator对象，然后就可以利用Iterator对象对集合
        元素进行遍历了。
     */
    Iterator<T> iterator();

    /**
     * Performs the given action for each element of the {@code Iterable}
     * until all elements have been processed or the action throws an
     * exception.  Actions are performed in the order of iteration, if that
     * order is specified.  Exceptions thrown by the action are relayed to the
     * caller.
     * <p>
     * The behavior of this method is unspecified if the action performs
     * side-effects that modify the underlying source of elements, unless an
     * overriding class has specified a concurrent modification policy.
     *
     * @implSpec
     * <p>The default implementation behaves as if:
     * <pre>{@code
     *     for (T t : this)
     *         action.accept(t);
     * }</pre>
     *
     * @param action The action to be performed for each element
     * @throws NullPointerException if the specified action is null
     * @since 1.8
       将集合中的每个元素作为参数传递给action执行特定的操作，直到所有元素都被处理过或者某个元
       素在被处理的过程中抛出异常。

        执行顺序：除非实现类另有所指，否则各个元素被执行action操作时，会按照元素被迭代时的次序
        执行。

        异常抛出：元素被执行action操作时，如果抛出异常，异常将会被中继到方法的调用方。
     */
    default void forEach(Consumer<? super T> action) {
        Objects.requireNonNull(action);
        for (T t : this) {
            action.accept(t);
        }
    }

    /**
     * Creates a {@link Spliterator} over the elements described by this
     * {@code Iterable}.
     *
     * @implSpec
     * The default implementation creates an
     * <em><a href="../util/Spliterator.html#binding">early-binding</a></em>
     * spliterator from the iterable's {@code Iterator}.  The spliterator
     * inherits the <em>fail-fast</em> properties of the iterable's iterator.
     *
     * @implNote
     * The default implementation should usually be overridden.  The
     * spliterator returned by the default implementation has poor splitting
     * capabilities, is unsized, and does not report any spliterator
     * characteristics. Implementing classes can nearly always provide a
     * better implementation.
     *
     * @return a {@code Spliterator} over the elements described by this
     * {@code Iterable}.
     * @since 1.8
       创建一个作用在迭代器的元素之上的Spliterator。
     */
    default Spliterator<T> spliterator() {
        return Spliterators.spliteratorUnknownSize(iterator(), 0);
    }
}

2.Iterator接口



public interface Iterator<E> {
    /**
     * Returns {@code true} if the iteration has more elements.
     * (In other words, returns {@code true} if {@link #next} would
     * return an element rather than throwing an exception.)
     *
     * @return {@code true} if the iteration has more elements
       判断一个对象集合是否还有下一个元素。
       当迭代器中还有元素时，返回true。即，当如果再调用next()方法还可以返回一个元素，而不是抛
       出异常时，返回true。
     */
    boolean hasNext();

    /**
     * Returns the next element in the iteration.
     *
     * @return the next element in the iteration
     * @throws NoSuchElementException if the iteration has no more elements
       获取迭代器中的下一个元素
       当迭代器中没有元素时，调用此方法会抛出NoSuchElementException异常。
     */
    E next();

    /**
     * Removes from the underlying collection the last element returned
     * by this iterator (optional operation).  This method can be called
     * only once per call to {@link #next}.
     * <p>
     * The behavior of an iterator is unspecified if the underlying collection
     * is modified while the iteration is in progress in any way other than by
     * calling this method, unless an overriding class has specified a
     * concurrent modification policy.
     * <p>
     * The behavior of an iterator is unspecified if this method is called
     * after a call to the {@link #forEachRemaining forEachRemaining} method.
     *
     * @implSpec
     * The default implementation throws an instance of
     * {@link UnsupportedOperationException} and performs no other action.
     *
     * @throws UnsupportedOperationException if the {@code remove}
     *         operation is not supported by this iterator
     *
     * @throws IllegalStateException if the {@code next} method has not
     *         yet been called, or the {@code remove} method has already
     *         been called after the last call to the {@code next}
     *         method
       删除最后一个元素
       可以看到方法里面直接抛出异常，也就是默认是不支持删除操作的。为什么要这样做，是因为在很
       多情况下执行删除操作其结果不可预测，比如，当执行删除操作时，数据集合正好被修改中
     */
    default void remove() {
        throw new UnsupportedOperationException("remove");
    }

    /**
     * Performs the given action for each remaining element until all elements
     * have been processed or the action throws an exception.  Actions are
     * performed in the order of iteration, if that order is specified.
     * Exceptions thrown by the action are relayed to the caller.
     * <p>
     * The behavior of an iterator is unspecified if the action modifies the
     * collection in any way (even by calling the {@link #remove remove} method
     * or other mutator methods of {@code Iterator} subtypes),
     * unless an overriding class has specified a concurrent modification policy.
     * <p>
     * Subsequent behavior of an iterator is unspecified if the action throws an
     * exception.
     *
     * @implSpec
     * <p>The default implementation behaves as if:
     * <pre>{@code
     *     while (hasNext())
     *         action.accept(next());
     * }</pre>
     *
     * @param action The action to be performed for each element
     * @throws NullPointerException if the specified action is null
     * @since 1.8
       此方法主要是将迭代器中剩下的还没遍历到的每个元素都发给action来执行特定操作
     */
    default void forEachRemaining(Consumer<? super E> action) {
        Objects.requireNonNull(action);
        while (hasNext())
            action.accept(next());
    }
}

3.ListIterator接口

 ListIterator既然是继承Iterator接口，所以自然就有Iterator的所有方法。我们只需要关注它在Iterator的基础上新增加的方法即可。不过，要注意到ListIterator重写了Iterator的remove()方法。

public interface ListIterator<E> extends Iterator<E> {
    // Query Operations

    /**
     * Returns {@code true} if this list iterator has more elements when
     * traversing the list in the forward direction. (In other words,
     * returns {@code true} if {@link #next} would return an element rather
     * than throwing an exception.)
     *
     * @return {@code true} if the list iterator has more elements when
     *         traversing the list in the forward direction
     */
    boolean hasNext();

    /**
     * Returns the next element in the list and advances the cursor position.
     * This method may be called repeatedly to iterate through the list,
     * or intermixed with calls to {@link #previous} to go back and forth.
     * (Note that alternating calls to {@code next} and {@code previous}
     * will return the same element repeatedly.)
     *
     * @return the next element in the list
     * @throws NoSuchElementException if the iteration has no next element
     */
    E next();

    /**
     * Returns {@code true} if this list iterator has more elements when
     * traversing the list in the reverse direction.  (In other words,
     * returns {@code true} if {@link #previous} would return an element
     * rather than throwing an exception.)
     *
     * @return {@code true} if the list iterator has more elements when
     *         traversing the list in the reverse direction
       判断逆向遍历时，前面是否还有元素未遍历
     */
    boolean hasPrevious();

    /**
     * Returns the previous element in the list and moves the cursor
     * position backwards.  This method may be called repeatedly to
     * iterate through the list backwards, or intermixed with calls to
     * {@link #next} to go back and forth.  (Note that alternating calls
     * to {@code next} and {@code previous} will return the same
     * element repeatedly.)
     *
     * @return the previous element in the list
     * @throws NoSuchElementException if the iteration has no previous
     *         element
       获取前一个元素
     */
    E previous();

    /**
     * Returns the index of the element that would be returned by a
     * subsequent call to {@link #next}. (Returns list size if the list
     * iterator is at the end of the list.)
     *
     * @return the index of the element that would be returned by a
     *         subsequent call to {@code next}, or list size if the list
     *         iterator is at the end of the list
       获取正向遍历时下一个元素的位置
       如果到达列表的末端，就返回列表的大小
     */
    int nextIndex();

    /**
     * Returns the index of the element that would be returned by a
     * subsequent call to {@link #previous}. (Returns -1 if the list
     * iterator is at the beginning of the list.)
     *
     * @return the index of the element that would be returned by a
     *         subsequent call to {@code previous}, or -1 if the list
     *         iterator is at the beginning of the list
       获取逆向遍历时前一个元素的位置
       如果到达列表大前端，就返回-1
     */
    int previousIndex();


    // Modification Operations

    /**
     * Removes from the list the last element that was returned by {@link
     * #next} or {@link #previous} (optional operation).  This call can
     * only be made once per call to {@code next} or {@code previous}.
     * It can be made only if {@link #add} has not been
     * called after the last call to {@code next} or {@code previous}.
     *
     * @throws UnsupportedOperationException if the {@code remove}
     *         operation is not supported by this list iterator
     * @throws IllegalStateException if neither {@code next} nor
     *         {@code previous} have been called, or {@code remove} or
     *         {@code add} have been called after the last call to
     *         {@code next} or {@code previous}
        ListIterator的remove()方法不再是默认抛出一个异常，也就是说，实现ListIterator的集合默
        认可以删除元素。
        此方法可以删除next()或者previous()返回的元素（可选操作）
     */
    void remove();

    /**
     * Replaces the last element returned by {@link #next} or
     * {@link #previous} with the specified element (optional operation).
     * This call can be made only if neither {@link #remove} nor {@link
     * #add} have been called after the last call to {@code next} or
     * {@code previous}.
     *
     * @param e the element with which to replace the last element returned by
     *          {@code next} or {@code previous}
     * @throws UnsupportedOperationException if the {@code set} operation
     *         is not supported by this list iterator
     * @throws ClassCastException if the class of the specified element
     *         prevents it from being added to this list
     * @throws IllegalArgumentException if some aspect of the specified
     *         element prevents it from being added to this list
     * @throws IllegalStateException if neither {@code next} nor
     *         {@code previous} have been called, or {@code remove} or
     *         {@code add} have been called after the last call to
     *         {@code next} or {@code previous}
       替换next()或者previous()返回的最后一个元素（可选操作），此方法只能在没有调用
       remove()、add()方法时调用
     */
    void set(E e);

    /**
     * Inserts the specified element into the list (optional operation).
     * The element is inserted immediately before the element that
     * would be returned by {@link #next}, if any, and after the element
     * that would be returned by {@link #previous}, if any.  (If the
     * list contains no elements, the new element becomes the sole element
     * on the list.)  The new element is inserted before the implicit
     * cursor: a subsequent call to {@code next} would be unaffected, and a
     * subsequent call to {@code previous} would return the new element.
     * (This call increases by one the value that would be returned by a
     * call to {@code nextIndex} or {@code previousIndex}.)
     *
     * @param e the element to insert
     * @throws UnsupportedOperationException if the {@code add} method is
     *         not supported by this list iterator
     * @throws ClassCastException if the class of the specified element
     *         prevents it from being added to this list
     * @throws IllegalArgumentException if some aspect of this element
     *         prevents it from being added to this list
       添加一个元素
       将元素添加在next()返回的元素的前面，或者previous()返回的元素的后面（可选操作）
     */
    void add(E e);
}

4.Collection源码

public interface Collection<E> extends Iterable<E> {
    //返回集合的元素个数
    int size();

    //判断集合是否为空
    boolean isEmpty();

  // 如果这个集合至少包含一个指定的元素就返回true，
  //如果指定的元素和集合中的元素不兼容，会抛出 ClassCastException
  // 如果指定的元素为空并且该集合不允许元素为空时，会抛出 NullPointerException
    boolean contains(Object o);

    // 返回集合中元素的迭代器，它不保证元素的有序性 (除非该集合本身的实现可以保证元素的顺序)
    Iterator<E> iterator();

    // 返回一个包含集合中所有元素的数组，元素的顺序性和 iterator 一样，由集合实现类本身决定
    // 这个方法返回的数组时安全的，因为集合不用保留对返回数组的引用，我们可以任意修改而不影响集合本身
    Object[] toArray();

    // 返回包含该集合中所有元素的数组，数组的运行时类型是指定数组的类型，
    // 如果指定的数组适合集合的大小，直接返回其中，否则重新创建数组
    <T> T[] toArray(T[] a);

    //返回集合的所有元素
    default <T> T[] toArray(IntFunction<T[]> generator) {
        return toArray(generator.apply(0));
    }

    //往集合中添加一个元素，如果集合允许更改就返回true，如果集合不允许元素重复并且已经包含了此元素，则返回false
    boolean add(E e);

    //从集合中删除指定元素的单个实例 如果集合允许改变就返回true
    boolean remove(Object o);




    // 如果该集合包含指定集合的所有元素 则返回true
    boolean containsAll(Collection<?> c);

    // 添加指定集合的所有元素到该集合中
    // 如果在添加操作的过程中修改了指定的集合 ，则此操作的行为是不确定的，不安全
    boolean addAll(Collection<? extends E> c);

    //在该集合中删除指定集合的所有元素，反方法成功返回后，该集合中将不再包含任何指定集合中的元素
    boolean removeAll(Collection<?> c);

     // 删除满足给定条件的所有元素，如果在迭代期间发生运行时异常，那么将返回给调用者
    // 注意：这是JDK1.8 的新特性，在接口中也有方法实现，实现类调用时的默认实现逻辑
    default boolean removeIf(Predicate<? super E> filter) {
        Objects.requireNonNull(filter);
        boolean removed = false;
        final Iterator<E> each = iterator();
        while (each.hasNext()) {
            if (filter.test(each.next())) {
                each.remove();
                removed = true;
            }
        }
        return removed;
    }

   // 从集合中删除不包含在指定集合中的所有元素
    boolean retainAll(Collection<?> c);

   // 清空集合中的所有元素，该方法返回后，集合将为空
    void clear();

    // 将指定的对象与集合进行比较
    boolean equals(Object o);

    // 返回在这个集合的hashCode值
    int hashCode();

   // 在此集合中的元素上创建Spliterator/
    @Override
    default Spliterator<E> spliterator() {
        return Spliterators.spliterator(this, 0);
    }

   // 返回以此集合为源的顺序Stream。/
    default Stream<E> stream() {
        return StreamSupport.stream(spliterator(), false);
    }


    // 以此集合作为源返回可能并行的Stream。 此方法允许返回顺序流。
    default Stream<E> parallelStream() {
        return StreamSupport.stream(spliterator(), true);
    }
}
