一、试验环境

	IP地址	备注
Win server 2019	2.2.2.2	AWS上的一台Active Directory域主机
USG6300	1.1.1.1	华为USG 防火墙

以上IP地址1.1.1.1和2.2.2.2并非真实环境中的公网IP地址

二、前提

1、USG和Active Directory域的主机之间可以ping通
2、Active Directory域主机的安全组放通了88和389端口
3、Active Directory域主机也关闭了本地防火墙
4、Active Directory域主机的安全组放通了USG防火墙所在的公网ip地址段
5、PC上telnet Active Directory域主机的2.2.2.2:88，2.2.2.2:389可以通

三、故障现象

1、防火墙上telnet -a 1.1.1.1 2.2.2.2 88 不通
2、防火墙上telnet -a 1.1.1.1 2.2.2.2 389 不通
3、使用kangbao.wu 账号进行验证，报错为:Active Directory票据授权失败
4、使用kangbao.it账号进行验证，报错为:Active Directory管理员绑定失败

四、排查思路

针对"防火墙上telnet -a 1.1.1.1 2.2.2.2 88 不通"
针对"防火墙上telnet -a 1.1.1.1 2.2.2.2 389 不通"

1、查看Active Directory域安全组和防火墙是否放通了地址和接口---->全部放通
2、查看USG防火墙的域间策略是否配置正确---->默认全部放通
我没辙了，居然内心想来一句"卧槽"，
然后我拨打了华为400，结果告知我 华为的网络设备除了22 23端口可用于telnet 测试，其他的端口不能通过telnet ip:port这种测试端口可用性

针对"使用kangbao.wu 账号进行验证，报错为:Active Directory票据授权失败"
针对"使用kangbao.it账号进行验证，报错为:Active Directory管理员绑定失败"

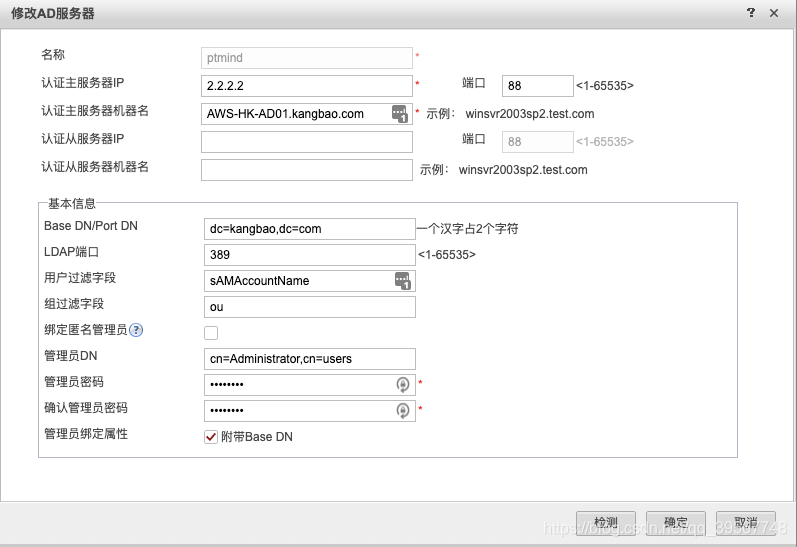

配置如下：
在这里插入图片描述

通过在USG防火墙上查看
t m
t d
debugging ad all

Jan 14 2020 10:43:06.940.2+08:00 Office_vpn AD/7/debug:[AD(Evt):] Initialize AD server to primary.
Jan 14 2020 10:43:06.940.3+08:00 Office_vpn AD/7/debug:[AD(pkt):] Make UDP kerbores AS Request packet successfully,username: kangbao.wu
Jan 14 2020 10:43:06.940.4+08:00 Office_vpn AD/7/debug:[AD(Pkt):] Send packet to AD-server(ServerIP:18.162.178.138,Port:88)
Jan 14 2020 10:43:06.940.5+08:00 Office_vpn AD/7/debug:send ad UDP packet success :228

Jan 14 2020 10:43:06.940.6+08:00 Office_vpn AD/7/debug:[AD(Pkt):] Send UDP kerbores AS request packet successfully.
Jan 14 2020 10:43:07.60.1+08:00 Office_vpn AD/7/debug:[AD(Pkt):] Recevied kerbores packet successfully, username: kangbao.wu.
Jan 14 2020 10:43:07.60.2+08:00 Office_vpn AD/7/debug:[AD(Pkt):] Kerberos server's response is bad, ErrorCode: 24.
Jan 14 2020 10:43:07.60.3+08:00 Office_vpn AD/7/debug:[AD(Err):] Kerberos server's response is bad, ErrorCode: 24.
Jan 14 2020 10:43:07.60.4+08:00 Office_vpn AD/7/debug:[AD(Pkt):] Pre-authentication information was invalid.
Jan 14 2020 10:43:07.60.5+08:00 Office_vpn AD/7/debug:AS-REP Parse ERROR .error is [24]!

Jan 14 2020 10:43:07.60.6+08:00 Office_vpn AD/7/debug:AS-REP Parse ERROR!

Jan 14 2020 10:43:07.60.7+08:00 Office_vpn AD/7/debug:[AD(Err):] Make kerbores TGS Request packet by UDP failed, so try TCP .username: kangbao.wu
Jan 14 2020 10:43:07.60.8+08:00 Office_vpn AD/7/debug:[AD(Err):] parse  server As Response error,but error code is not AD_KRB5_ERROR_REPONSE_TOO_BIG(52)!
Jan 14 2020 10:43:07.60.9+08:00 Office_vpn AD/7/debug:[AD(Evt):]  kerbores authenication reject.
Jan 14 2020 10:43:07.60.10+08:00 Office_vpn AD/7/debug: free AD connect success !

<Office_vpn>
Jan 14 2020 10:43:37.290.1+08:00 Office_vpn AD/7/debug:[AD(Evt):] Initialize AD server to primary.
Jan 14 2020 10:43:37.290.2+08:00 Office_vpn AD/7/debug:[AD(pkt):] Make UDP kerbores AS Request packet successfully,username: kangbao.it
Jan 14 2020 10:43:37.290.3+08:00 Office_vpn AD/7/debug:[AD(Pkt):] Send packet to AD-server(ServerIP:18.162.178.138,Port:88)
Jan 14 2020 10:43:37.290.4+08:00 Office_vpn AD/7/debug:send ad UDP packet success :226

Jan 14 2020 10:43:37.290.5+08:00 Office_vpn AD/7/debug:[AD(Pkt):] Send UDP kerbores AS request packet successfully.
Jan 14 2020 10:43:37.400.1+08:00 Office_vpn AD/7/debug:[AD(Pkt):] Recevied kerbores packet successfully, username: kangbao.it.
Jan 14 2020 10:43:37.400.2+08:00 Office_vpn AD/7/debug:[AD(Pkt):] check tag 2 err, may don't have tag 2.
Jan 14 2020 10:43:37.400.3+08:00 Office_vpn AD/7/debug:AD Make Tgs Req OK!

Jan 14 2020 10:43:37.400.4+08:00 Office_vpn AD/7/debug:[AD(Pkt):] check tag 2 err, may don't have tag 2.
Jan 14 2020 10:43:37.400.5+08:00 Office_vpn AD/7/debug:AD Make Tgs Req OK!

Jan 14 2020 10:43:37.400.6+08:00 Office_vpn AD/7/debug:[AD(Pkt):] Make UDP kerbores TGS Request packet successfully,username: kangbao.it
Jan 14 2020 10:43:37.400.7+08:00 Office_vpn AD/7/debug:[AD(Pkt):] Send packet to AD-server(ServerIP:18.162.178.138,Port:88)
Jan 14 2020 10:43:37.400.8+08:00 Office_vpn AD/7/debug:send ad UDP packet success :1331

Jan 14 2020 10:43:37.400.9+08:00 Office_vpn AD/7/debug:[AD(Pkt):] Send kerbores TGS Request packet successfully.
Jan 14 2020 10:43:37.510.1+08:00 Office_vpn AD/7/debug:[AD(Pkt):] Recevied kerbores packet successfully, username: kangbao.it.
Jan 14 2020 10:43:37.510.2+08:00 Office_vpn AD/7/debug:[AD(Pkt):] check tag 2 err, may don't have tag 2.
Jan 14 2020 10:43:37.510.3+08:00 Office_vpn AD/7/debug:[AD(Pkt):] Give the Kerberos Ticket to LDAP for verifying.Length is [1231]
Jan 14 2020 10:43:37.510.4+08:00 Office_vpn AD/7/debug:[AD(Evt):]  kerbores authenication accept.
Jan 14 2020 10:43:37.510.5+08:00 Office_vpn AD/7/debug: free AD connect success !

sys
diagnose
display ad statistics error
[Office_vpn-diagnose]display ad statistics error
2020-01-14 10:43:58.630 +08:00
 mng-plane:
  Server_Down_Err_Static                   = 0
  Server_Unavailable_Err_Static            = 0
  NoServer_Exist_Err_Static                = 0
  Memory_Application_Err_Static            = 0
  Memory_Free_Err_Static                   = 0
  IPC_Message_Translate_Err_Static         = 0
  Server_Client_Time_Not_Match             = 0
  Server_Timeout_Err_Static                = 0
  Make_Pack_Fail_Err_Static                = 1
  Abnormal_Err_Static                      = 0
  AS_Reject_Err_Static                     = 0
  TS_Reject_Err_Static                     = 1
  APR_Reject_Err_Static                    = 0

 ctrl-plane:
  Server_Down_Err_Static                   = 0
  Server_Unavailable_Err_Static            = 0
  NoServer_Exist_Err_Static                = 0
  Memory_Application_Err_Static            = 0
  Memory_Free_Err_Static                   = 0
  IPC_Message_Translate_Err_Static         = 0
  Server_Client_Time_Not_Match             = 0
  Server_Timeout_Err_Static                = 0
  Make_Pack_Fail_Err_Static                = 0
  Abnormal_Err_Static                      = 0
  AS_Reject_Err_Static                     = 0
  TS_Reject_Err_Static                     = 0
  APR_Reject_Err_Static                    = 0

1、通过debug信息和ad erro信息得知，Active Directory认证有问题，故进一步排查
2、通过查找资料得知，USG对Active Directory密码有要求，不能有空格和?字符

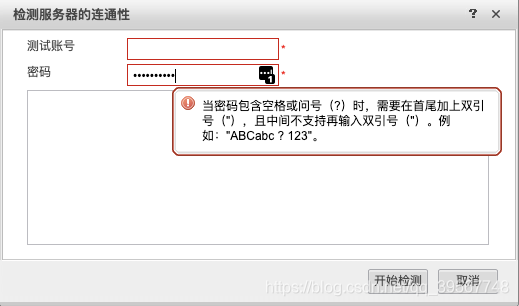

注意，华为针对Active Directory用户的密码是有要求的，不能有空格和?字符出现，不然就要使用双引号

在这里插入图片描述

注意，这里并没有说administrator的密码也不可以包含空格和字符，然而我Active Directory的administrator的密码就碰巧有?字符的存在，我萎蔫了

更改了Active Directory域的管理员的密码后，至此，终于解决了所有的问题
