本文介绍如何在Spring Boot项目中整合MyBatis，包括搭建Maven项目、配置数据源、编写启动类及持久层配置等关键步骤。

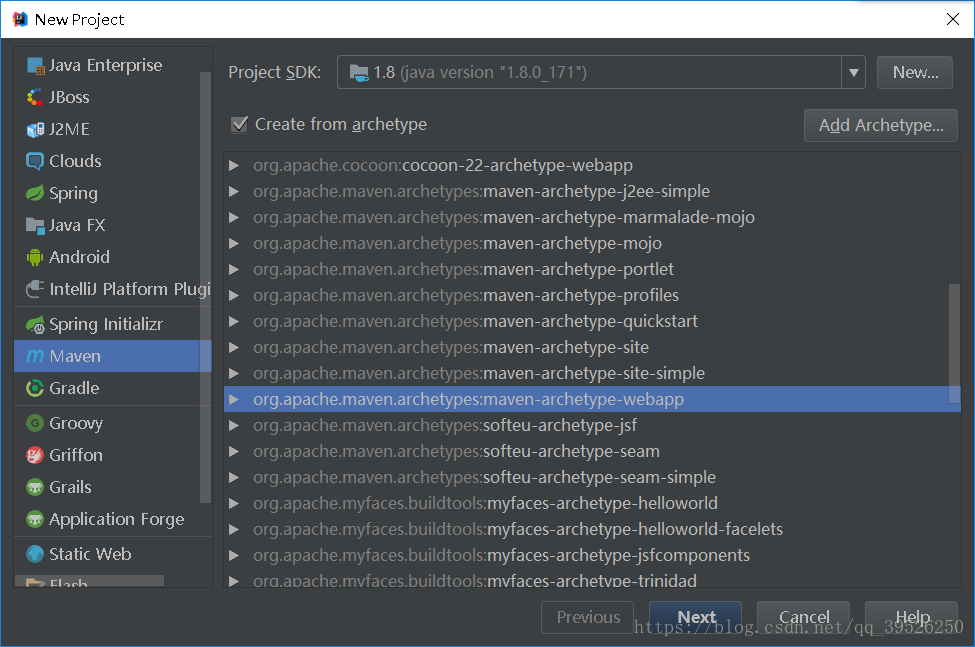

1.首先打开idea新建maven项目

2.打开pom.xml文件放入如下内容

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.bctc</groupId>
    <artifactId>springbootmybatis</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>war</packaging>

    <name>springbootmybatis</name>
    <!-- FIXME change it to the project's website -->
    <url>http://www.example.com</url>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.5.8.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.3.1</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <!-- 排除内置容器，排除内置容器导出成war包可以让外部容器运行spring-boot项目-->
            <exclusions>
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-tomcat</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.bouncycastle/bcprov-jdk16 加密sm2 3 4 用-->
        <dependency>
            <groupId>org.bouncycastle</groupId>
            <artifactId>bcprov-jdk16</artifactId>
            <version>1.46</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-test</artifactId>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>


        <!--下面都不是必须的请自行选择 https://mvnrepository.com/artifact/com.google.code.gson/gson json转 对象 -->
        <dependency>
            <groupId>com.google.code.gson</groupId>
            <artifactId>gson</artifactId>
            <version>2.8.5</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.json/json -->
        <dependency>
            <groupId>org.json</groupId>
            <artifactId>json</artifactId>
            <version>20160810</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/net.sf.json-lib/json-lib -->
        <dependency>
            <groupId>net.sf.json-lib</groupId>
            <artifactId>json-lib</artifactId>
            <version>2.4</version>
        </dependency>


        <!-- 支持jsp的jar包 -->
        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-jasper</artifactId>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
        </dependency>
        <!-- 支持jsp的jar包 end-->

        <!-- servlet 依赖 -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <scope>provided</scope>
        </dependency>
 <!--html--> <!--<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-thymeleaf</artifactId> </dependency>-->
    </dependencies>
    <build>
        <finalName>springbootmybatis</finalName>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

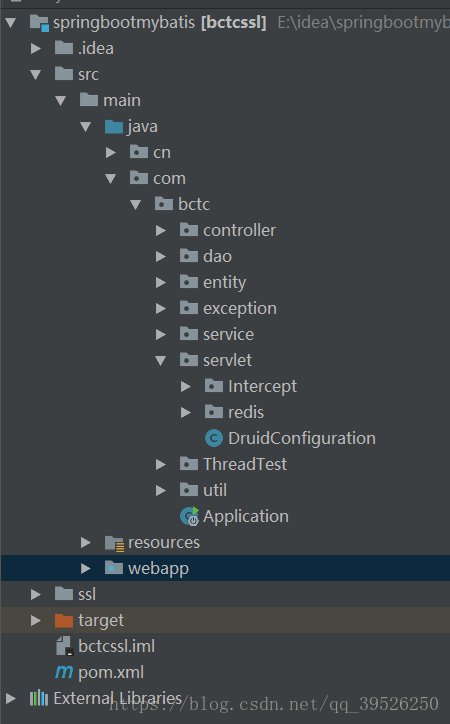

3.项目结构

4.Application最基本启动类

package com.bctc;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.web.servlet.ServletComponentScan;
import org.springframework.boot.web.support.SpringBootServletInitializer;

import org.springframework.transaction.annotation.EnableTransactionManagement;


@SpringBootApplication
/*@SpringBootApplication 被 @Configuration、@EnableAutoConfiguration、@ComponentScan 注解所修饰，
/换言之 Springboot 提供了统一的注解来替代以上三个注解，简化程序的配置*/
//@ComponentScan(basePackages = {"com.bctc"})//自动扫描组件(可以不加会扫描全部包)
@EnableTransactionManagement //如果mybatis中service实现类中加入事务注解，需要此处添加该注解
@MapperScan("com.bctc.dao")//扫描dao层
@ServletComponentScan(value = "com.bctc.servlet")//servlet的扫描注解(druid监控用)
public class Application extends SpringBootServletInitializer {
    public static void main(String[] args) {
        SpringApplication.run(Application.class, args);
    }





}

5.application.properties配置文件##### spring.datasource.username=*** spring.datasource.password=*** spring.datasource.url=jdbc:mysql://***:3306/***?characterEncoding=utf-8 spring.datasource.driver-class-name=com.mysql.jdbc.Driver ########---------------######## # 初始化大小，最小，最大 spring.datasource.initialSize=5 spring.datasource.minIdle=5 spring.datasource.maxActive=20 # 配置获取连接等待超时的时间 spring.datasource.maxWait=60000 # 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒 spring.datasource.timeBetweenEvictionRunsMillis=60000 # 配置一个连接在池中最小生存的时间，单位是毫秒 spring.datasource.minEvictableIdleTimeMillis=300000 spring.datasource.validationQuery=SELECT 1 FROM DUAL spring.datasource.testWhileIdle=true spring.datasource.testOnBorrow=false spring.datasource.testOnReturn=false # 打开PSCache，并且指定每个连接上PSCache的大小 spring.datasource.poolPreparedStatements=true spring.datasource.maxPoolPreparedStatementPerConnectionSize=20 # 配置监控统计拦截的filters，去掉后监控界面sql无法统计，'wall'用于防火墙 spring.datasource.filters=stat,wall,log4j # 通过connectProperties属性来打开mergeSql功能；慢SQL记录 spring.datasource.connectionProperties=druid.stat.mergeSql=true;druid.stat.slowSqlMillis=5000 # 合并多个DruidDataSource的监控数据 #spring.datasource.useGlobalDataSourceStat=true spring.datasource.cachePrepStmts=true ########---------------######## mybatis.config-locations=classpath:mybatis-config.xml ##指向mapper的xml文件位置 mybatis.mapper-locations=classpath:/mapper/*.xml #Model包扫描位置 mybatis.type-aliases-package=com.bctc.entity

7.mybatis-config.xml配置文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <!-- 设置运行参数 -->
    <settings>
        <!-- 全局映射器启用缓存 -->
        <setting name="cacheEnabled" value="true" />
        <!-- 查询时,关闭关联对象及时加载以提高性能 -->
        <setting name="lazyLoadingEnabled" value="false" />
        <!-- 设置关联对象加载的形态,此处为按需加载字段(加载字段由SQL指定),不会加载关联表的所有字段,以提高性能 -->
        <setting name="aggressiveLazyLoading" value="false" />
        <!-- 对于位置的SQL查询,允许返回不同的结果集以达到通用的效果 -->
        <setting name="multipleResultSetsEnabled" value="true" />
        <!-- 允许使用列标签代替列明 -->
        <setting name="useColumnLabel" value="true" />
        <!-- 允许使用自定义的主键值(比如由程序生成的UUID 32位编码作为键值), 数据表的pk生成策略将被覆盖 -->
        <setting name="useGeneratedKeys" value="true" />
        <!-- 给予被嵌套的resultMap以字段-属性的映射支持 -->
        <setting name="autoMappingBehavior" value="PARTIAL" />
        <!-- 对于批量更新操作缓存SQL以提高性能 -->
        <setting name="defaultExecutorType" value="REUSE" />
        <!-- 数据库超过25000秒仍未响应则超时 -->
        <setting name="defaultStatementTimeout" value="25000" />
        <!-- 打印查询语句 -->
        <setting name="logImpl" value="STDOUT_LOGGING" />
    </settings>
</configuration>

8.logback.xml日志配置文件（放在resources下，注意文件名不能乱改）

<?xml version="1.0" encoding="UTF-8"?>
<configuration scan="true" scanPeriod="10 seconds">
    <!-- 控制台输出 -->
    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder>
            <pattern>
                [ %-5level] [%date{yyyy-MM-dd HH:mm:ss}] %logger{96} [%line] - %msg%n
            </pattern>
            <charset>UTF-8</charset>
        </encoder>
    </appender>

    <!-- 按照每天生成日志文件 -->
    <appender name="FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <encoder>
            <pattern>
                [ %-5level] [%date{yyyy-MM-dd HH:mm:ss}] %logger{96} [%line] - %msg%n
            </pattern>
            <charset>UTF-8</charset>
        </encoder>

        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <!--日志文件输出的文件名-->
            <fileNamePattern>/root/logs/springbootmybatis/springbootmybatis-%d{yyyy-MM-dd}.%i.log</fileNamePattern>
            <!--日志文件保留天数-->
            <MaxHistory>300</MaxHistory>
            <timeBasedFileNamingAndTriggeringPolicy
                    class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
                <!-- 日志文件大小 64 MB -->
                <maxFileSize>50 MB</maxFileSize>
            </timeBasedFileNamingAndTriggeringPolicy>
        </rollingPolicy>
        <prudent>true</prudent>
    </appender>
    <!-- SQL相关日志输出-->
    <!--additivity="false"表示只在logDirfile输出，不在其他输出台输出，如果设置为true，表示要在其他地方也输出-->
    <logger name="com.basewin.tms.dao" level="DEBUG" additivity="true"/>
    <!--优先级-->
    <root level="INFO">
        <appender-ref ref="FILE"/>
        <appender-ref ref="STDOUT"/>
    </root>
</configuration>

9.配置tomca7 启动运行即可

另附加使用springboot内置tomcat，jar包启动

1.首先修改

<groupId>com.bctc</groupId>
<artifactId>springbootmybatis</artifactId>
<version>1.0-SNAPSHOT</version>
<packaging>war</packaging> 的war 改为jar

2.在将

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
    <!-- 排除内置容器，排除内置容器导出成war包可以让外部容器运行spring-boot项目-->
    <exclusions>
        <exclusion>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
        </exclusion>
    </exclusions>
</dependency>

改为

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>

3.最后将启动类

public class Application extends SpringBootServletInitializer {

改为

public class Application  {

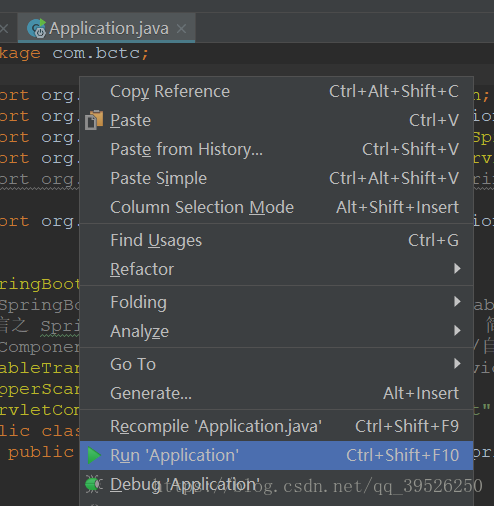

运行
