docker部署seata 2.0.0

2024.11.08更新

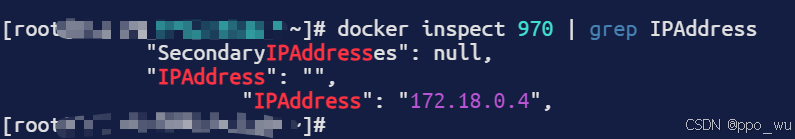

云服务器上使用docker network inspect bridge命令可能会查询不到某些容器（比如mysql）的ip地址，这时可使用以下命令查看容器ip地址：

docker inspect <container_id_or_name> | grep IPAddress

环境准备

当前使用的环境：
MySQL：8.0+
nacos：2.2.3

关于如何在docker中部署nacos 2.2.3，请参考之前文章：
docker部署nacos 2.2.3

拉取镜像

docker pull seataio/seata-server:2.0.0

查看nacos、mysql、宿主机的ip

docker network inspect bridge

结果如下图：

宿主机ip为：192.168.246.128
nacos为：172.17.0.6
mysql为：172.17.0.3
请记住这几个ip地址，之后创建配置文件时要用

建立数据库

在mysql中新建seata数据库，并使用以下SQL创建表：

-- -------------------------------- The script used when storeMode is 'db' --------------------------------
-- the table to store GlobalSession data
CREATE TABLE IF NOT EXISTS `global_table`
(
  `xid`                       VARCHAR(128) NOT NULL,
  `transaction_id`            BIGINT,
  `status`                    TINYINT      NOT NULL,
  `application_id`            VARCHAR(32),
  `transaction_service_group` VARCHAR(32),
  `transaction_name`          VARCHAR(128),
  `timeout`                   INT,
  `begin_time`                BIGINT,
  `application_data`          VARCHAR(2000),
  `gmt_create`                DATETIME,
  `gmt_modified`              DATETIME,
  PRIMARY KEY (`xid`),
  KEY `idx_status_gmt_modified` (`status` , `gmt_modified`),
  KEY `idx_transaction_id` (`transaction_id`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8mb4;

-- the table to store BranchSession data
CREATE TABLE IF NOT EXISTS `branch_table`
(
  `branch_id`         BIGINT       NOT NULL,
  `xid`               VARCHAR(128) NOT NULL,
  `transaction_id`    BIGINT,
  `resource_group_id` VARCHAR(32),
  `resource_id`       VARCHAR(256),
  `branch_type`       VARCHAR(8),
  `status`            TINYINT,
  `client_id`         VARCHAR(64),
  `application_data`  VARCHAR(2000),
  `gmt_create`        DATETIME(6),
  `gmt_modified`      DATETIME(6),
  PRIMARY KEY (`branch_id`),
  KEY `idx_xid` (`xid`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8mb4;

-- the table to store lock data
CREATE TABLE IF NOT EXISTS `lock_table`
(
  `row_key`        VARCHAR(128) NOT NULL,
  `xid`            VARCHAR(128),
  `transaction_id` BIGINT,
  `branch_id`      BIGINT       NOT NULL,
  `resource_id`    VARCHAR(256),
  `table_name`     VARCHAR(32),
  `pk`             VARCHAR(36),
  `status`         TINYINT      NOT NULL DEFAULT '0' COMMENT '0:locked ,1:rollbacking',
  `gmt_create`     DATETIME,
  `gmt_modified`   DATETIME,
  PRIMARY KEY (`row_key`),
  KEY `idx_status` (`status`),
  KEY `idx_branch_id` (`branch_id`),
  KEY `idx_xid` (`xid`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8mb4;

CREATE TABLE IF NOT EXISTS `distributed_lock`
(
  `lock_key`       CHAR(20) NOT NULL,
  `lock_value`     VARCHAR(20) NOT NULL,
  `expire`         BIGINT,
  primary key (`lock_key`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8mb4;

INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('AsyncCommitting', ' ', 0);
INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('RetryCommitting', ' ', 0);
INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('RetryRollbacking', ' ', 0);
INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('TxTimeoutCheck', ' ', 0);

创建application.yml

在/mydata/seata-server/resources目录下新建文件application.yml ，/mydata/seata-server/resources是自定义挂载目录，可修改。

# Copyright 1999-2019 Seata.io Group.

#
#  Licensed under the Apache License, Version 2.0 (the "License");
#  you may not use this file except in compliance with the License.
#  You may obtain a copy of the License at
#
#  http://www.apache.org/licenses/LICENSE-2.0
#
#  Unless required by applicable law or agreed to in writing, software
#  distributed under the License is distributed on an "AS IS" BASIS,
#  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
#  See the License for the specific language governing permissions and
#  limitations under the License.

server:
  port: 7091

spring:
  application:
    name: seata-server

logging:
  config: classpath:logback-spring.xml
  file:
    path: ${log.home:${user.home}/logs/seata}
  extend:
    logstash-appender:
      destination: 127.0.0.1:4560
    kafka-appender:
      bootstrap-servers: 127.17.0.1:9092
      topic: logback_to_logstash

console:
  user:
    username: seata
    password: seata

seata:
  config:
    type: nacos
    nacos:
      server-addr: 172.17.0.6:8848
      namespace:
      group: DEFAULT_GROUP #后续自己在nacos里面新建,不想新建SEATA_GROUP，就写DEFAULT_GROUP
      username: nacos
      password: nacos
  registry:
    type: nacos
    nacos:
      application: seata-server
      server-addr: 172.17.0.6:8848
      group: DEFAULT_GROUP #后续自己在nacos里面新建,不想新建SEATA_GROUP，就写DEFAULT_GROUP
      namespace:
      cluster: default
      username: nacos
      password: nacos
  store:
    mode: db
    db:
      datasource: druid
      db-type: mysql
      driver-class-name: com.mysql.cj.jdbc.Driver
      url: jdbc:mysql://172.17.0.3:3306/seata?characterEncoding=utf8&useSSL=false&serverTimezone=GMT%2B8&rewriteBatchedStatements=true&allowPublicKeyRetrieval=true
      user: root
      password: root
      min-conn: 10
      max-conn: 100
      global-table: global_table
      branch-table: branch_table
      lock-table: lock_table
      distributed-lock-table: distributed_lock
      query-limit: 1000
      max-wait: 5000

  #  server:
  #    service-port: 8091 #If not configured, the default is '${server.port} + 1000'
  security:
    secretKey: SeataSecretKey0c382ef121d778043159209298fd40bf3850a017
    tokenValidityInMilliseconds: 1800000
    ignore:
      urls: /,/**/*.css,/**/*.js,/**/*.html,/**/*.map,/**/*.svg,/**/*.png,/**/*.jpeg,/**/*.ico,/api/v1/auth/login,/metadata/v1/**

注意：要将该文件中的mysql地址和nacos地址修改成你自己的

运行seata容器

docker run --name seata-server \
-itd \
-p 8091:8091 \
-p 7091:7091 \
-e SEATA_IP="192.168.246.128" \
-e SEATA_PORT=8091 \
-v "/mydata/seata-server/resources/application.yml:/seata-server/resources/application.yml" \
seataio/seata-server:2.0.0

其中SEATA_IP：192.168.246.128为之前查到的宿主机ip

检验seata部署情况

访问网页：http://192.168.246.128:7091

nacos网页上查看seata服务详情，注意：ip要为宿主机ip，不是docker容器内网ip

以上两步都成功的情况下则部署成功
