环境

DISTRIB_ID=Ubuntu
DISTRIB_RELEASE=16.04
DISTRIB_CODENAME=xenial
DISTRIB_DESCRIPTION=“Ubuntu 16.04.3 LTS”

Linux ubuntu 4.10.0-28-generic #32~16.04.2-Ubuntu SMP Thu Jul 20 10:19:48 UTC 2017 x86_64 x86_64 x86_64 GNU/Linux

工具链

arm-himix100-linux

目标板

hi3516ev200

配置工具链

sudo vim /etc/profile

source /etc/profile

编译tslib

获取tslib源码

git clone https://github.com/kergoth/tslib

下载太慢我这里直接用的正点原子->【正点原子】阿尔法Linux开发板（A盘）-基础资料\【正点原子】阿尔法Linux开发板（A盘）-基础资料\1、例程源码\7、第三方库源码->tslib-1.21.tar.bz2

配置make

配置源码生成 Makefile，执行前先安装 automake 工具

kerson@ubuntu:~/hi3516/qt_all/tslib-1.21$ sudo apt-get install autoconf automake libtool

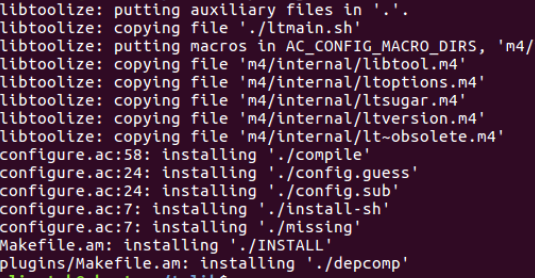

kerson@ubuntu:~/hi3516/qt_all/tslib-1.21$./autogen.sh

创建一个用来存放交叉编译输出的目录

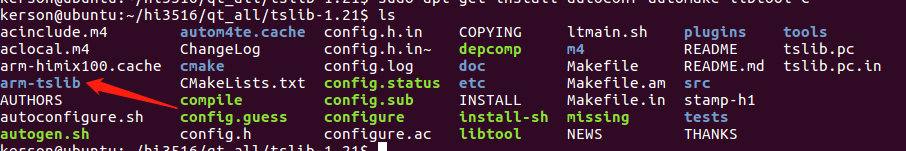

 kerson@ubuntu:~/hi3516/qt_all/tslib-1.21$sudo mkdir arm-tslib

配置make

 kerson@ubuntu:~/hi3516/qt_all/tslib-1.21$

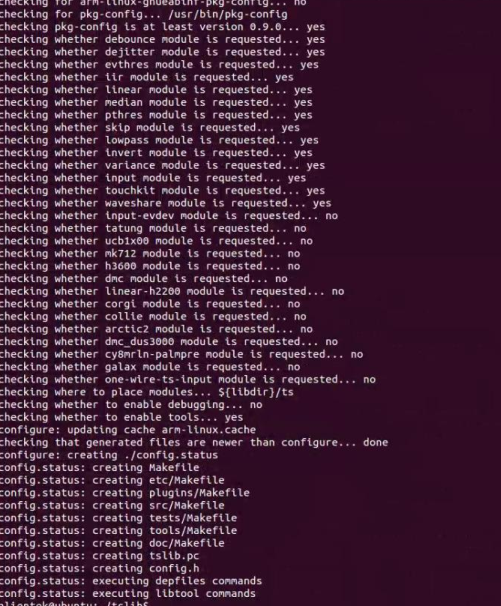

sudo ./configure \
CC="/opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-gcc" \
CXX=CC="/opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-g++" \
AR=/opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-ar \
READELF="/opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-readelf" \
STRIP="/opt/hisi-linux/x86-arm/arm-himix100-linux/bin-linux/aarch64-poky-linux-strip" \
--host=arm-himix100-linux \
--build=arm-himix100-linux-gnu \
--target=arm-himix100-linux \
--cache-file=arm-himix100.cache \
--prefix=/home/kerson/hi3516/qt_all/tslib-1.21/arm-tslib \
ac_cv_func_malloc_0_nonnull=yes

make编译

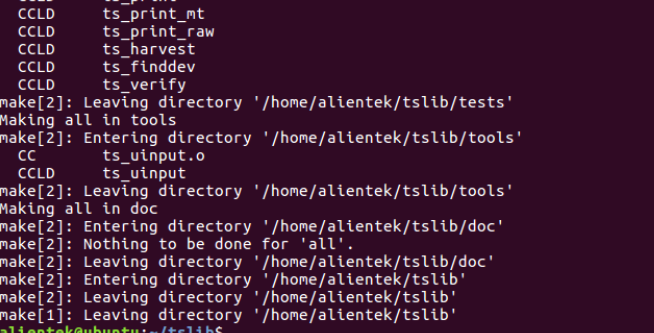

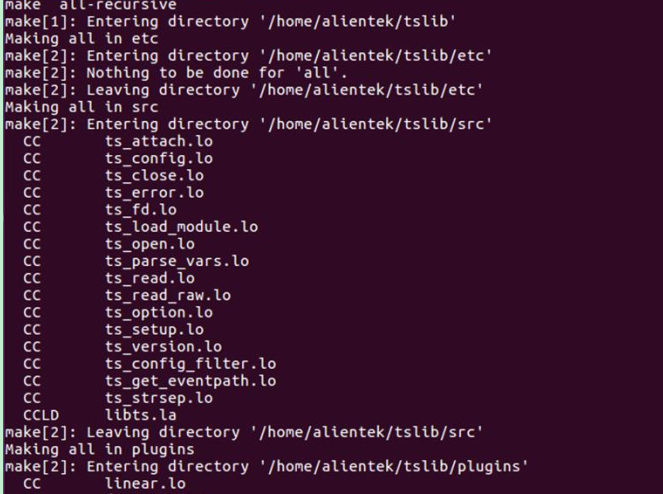

 kerson@ubuntu:~/hi3516/qt_all/tslib-1.21$sudo make -j4

安装

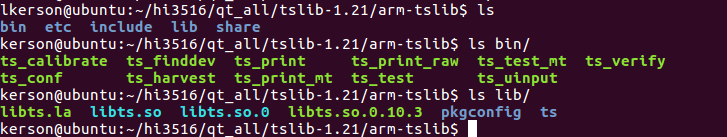

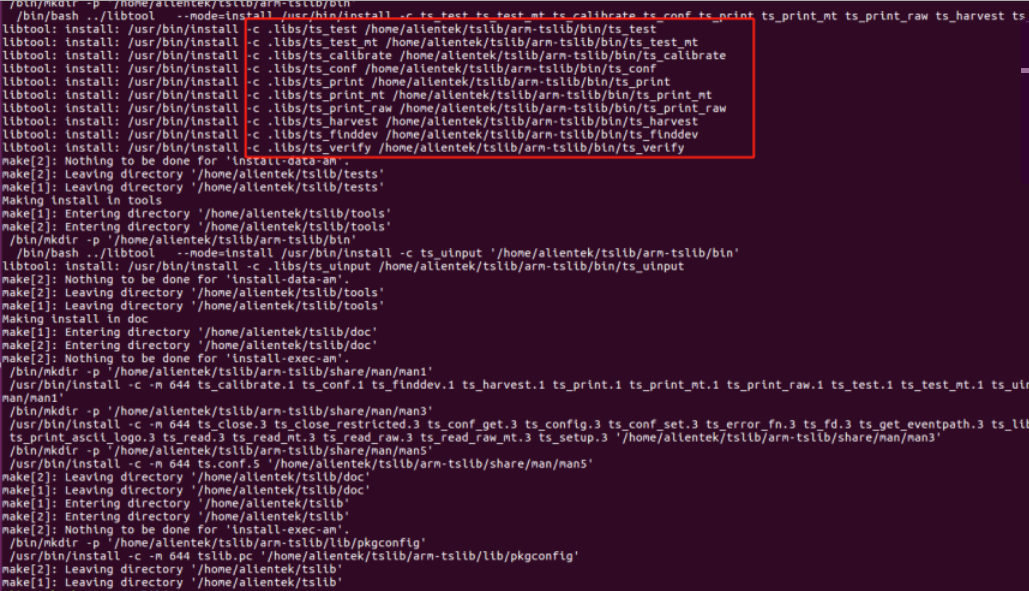

  kerson@ubuntu:~/hi3516/qt_all/tslib-1.21$ sudo make install

编译 Qt 源码

下载源码

wget http://download.qt.io/new_archive/qt/5.5/5.5.1/single/qt-everywhere-opensource-src-5.5.1.tar.xz

下载太慢 http://download.qt.io/new_archive/qt/5.5/5.5.1/single/ 可以win去官网下载

解压

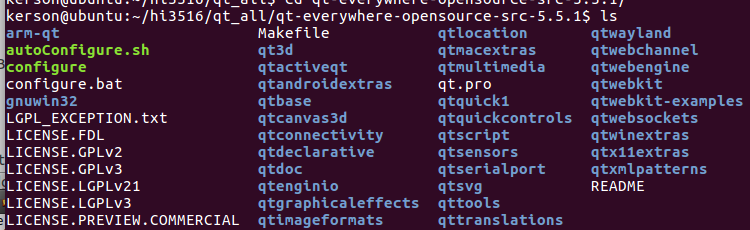

tar xf qt-everywhere-opensource-src-5.5.1.tar.xz

指定交叉编译工具

因为qtbase/mkspecs/目录下只有linux-arm-gnueabi-g++没有arm-hisiv100-linux-g++所以我们手动拷贝一份

kerson@ubuntu:~/hi3516/qt_all/qt-everywhere-opensource-src-5.5.1$ sudo cp qtbase/mkspecs/linux-arm-gnueabi-g++/ qtbase/mkspecs/arm-hisiv100-linux-g++/ -r

编辑qmake.cnf

kerson@ubuntu:~/hi3516/qt_all/qt-everywhere-opensource-src-5.5.1$ sudo vim qtbase/mkspecs/arm-hisiv100-linux-g++/qmake.conf

QT_QPA_DEFAULT_PLATFORM = linuxfb                 #指定Qt显示驱动方式
QMAKE_CFLAGS_RELEASE   += -O2 -march=armv7-a      #指定处理器架构
QMAKE_CXXFLAGS_RELEASE += -O2 -march=armv7-a

include(../common/linux.conf)
include(../common/gcc-base-unix.conf)
include(../common/g++-unix.conf)

# modifications to g++.conf
QMAKE_CC                = /opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-gcc
QMAKE_CXX               = /opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-g++
QMAKE_LINK              = /opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-g++
QMAKE_LINK_SHLIB        = /opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-g++
# modifications to linux.conf
QMAKE_AR                = /opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-ar cqs
QMAKE_OBJCOPY           = /opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-objcopy
QMAKE_NM                = /opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-nm -P
QMAKE_STRIP             = /opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-strip
QMAKE_INCDIR += /home/kerson/hi3516/qt_all/tslib-1.21/arm-tslib/include
QMAKE_LIBDIR += /home/kerson/hi3516/qt_all/tslib-1.21/arm-tslib/lib
load(qt_config)

配置make

注意：-xplatform arm-hisiv100-linux-g++ 名字就是qtbase/mkspecs/目录下arm-hisiv100-linux-g++

kerson@ubuntu:~/hi3516/qt_all/qt-everywhere-opensource-src-5.5.1$

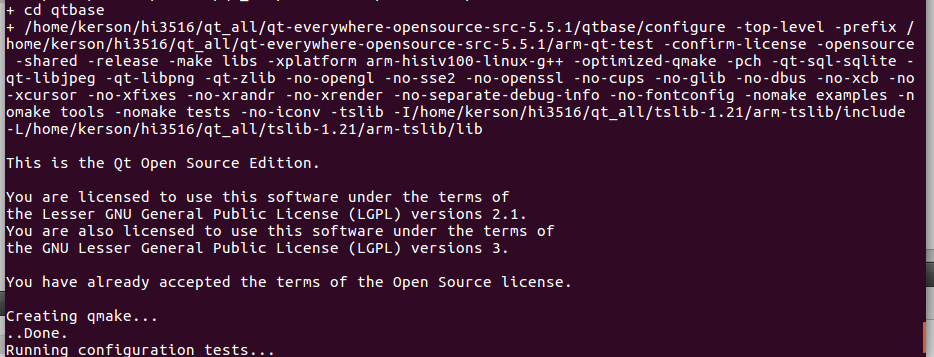

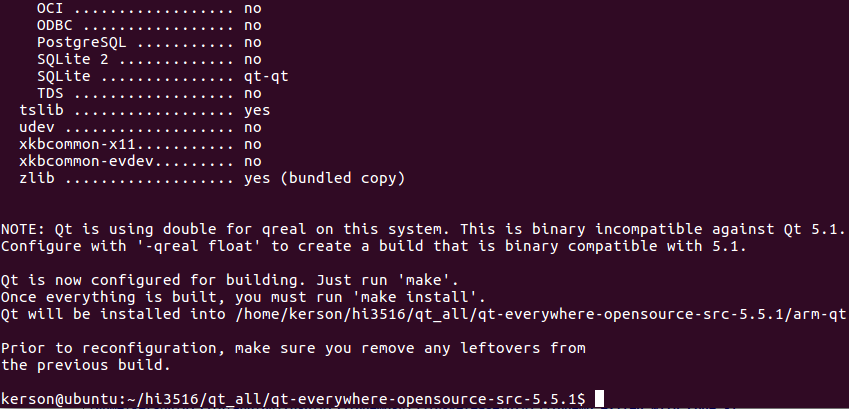

sudo ./configure \
-prefix /home/kerson/hi3516/qt_all/qt-everywhere-opensource-src-5.5.1/arm-qt \
-confirm-license \
-opensource \
-shared \
-release \
-make libs \
-xplatform arm-hisiv100-linux-g++ \
-optimized-qmake \
-pch \
-qt-sql-sqlite \
-qt-libjpeg \
-qt-libpng \
-qt-zlib \
-no-opengl \
-no-sse2 \
-no-openssl \
-no-cups \
-no-glib \
-no-dbus \
-no-xcb \
-no-xcursor -no-xfixes -no-xrandr -no-xrender \
-no-separate-debug-info \
-no-fontconfig \
-nomake examples -nomake tools -nomake tests -no-iconv \
-tslib \
-I/home/kerson/hi3516/qt_all/tslib-1.21/arm-tslib/include \
-L/home/kerson/hi3516/qt_all/tslib-1.21/arm-tslib/lib

执行 make 编译

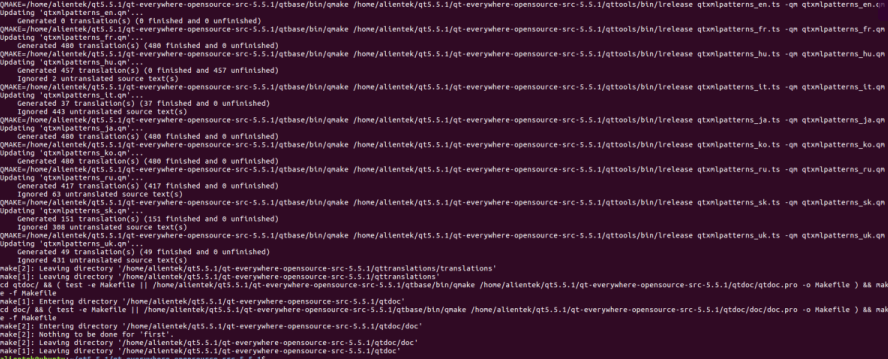

kerson@ubuntu:~/hi3516/qt_all/qt-everywhere-opensource-src-5.5.1$ sudo make -j4

漫长等待中…我的电脑垃圾等了三个小时

执行 make install 安装

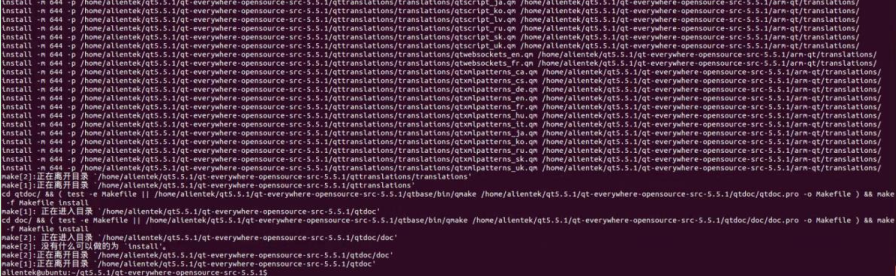

kerson@ubuntu:~/hi3516/qt_all/qt-everywhere-opensource-src-5.5.1$ sudo make install

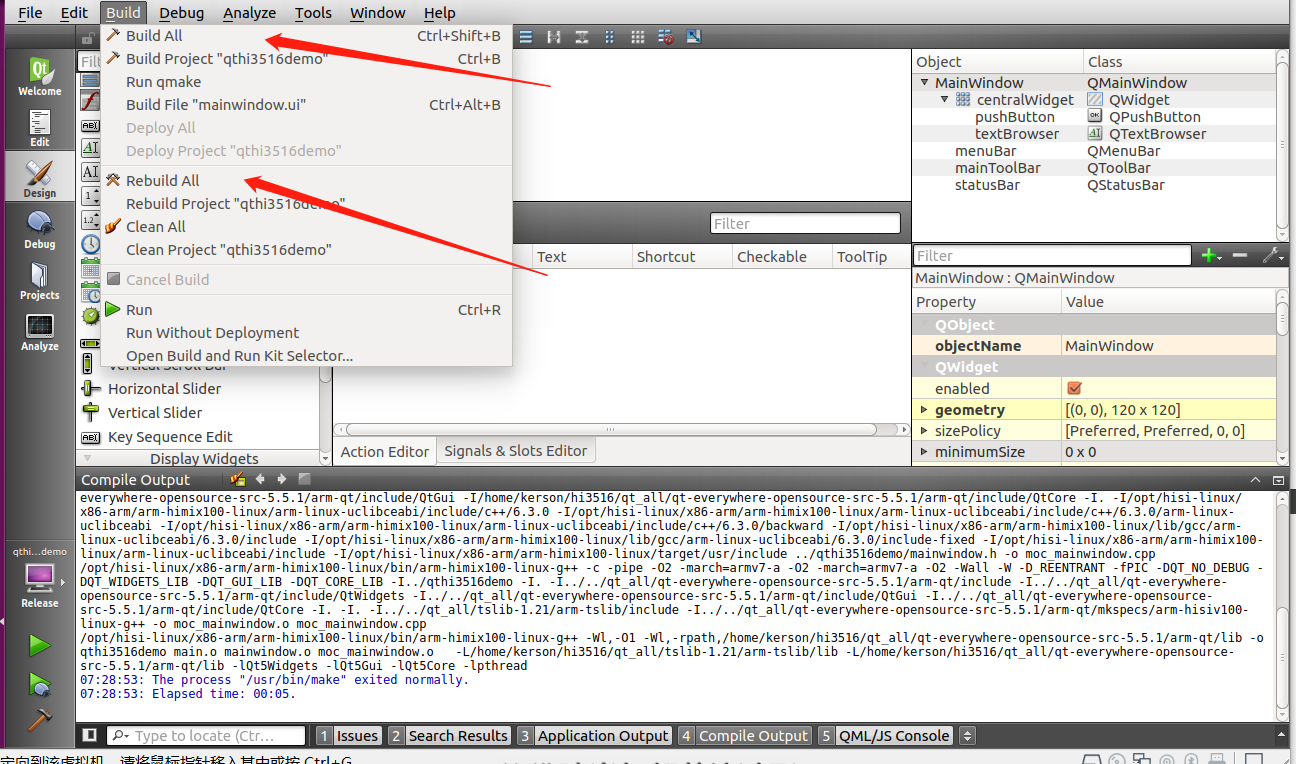

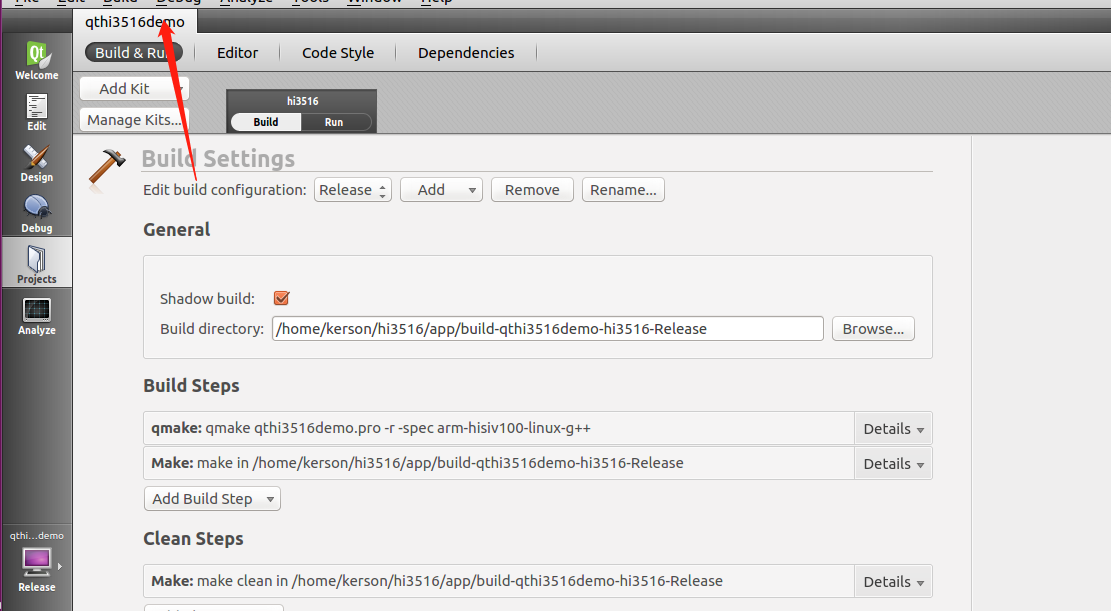

搭建 Qt Creator 的交叉编译环境

需要注意

如果用的是我们配置好的arm交叉环境直接build就会生成目标板用的执行文件不用点运行

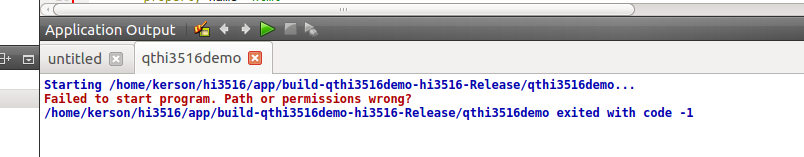

点击运行会输出

目标平台hi3516运行qt

网络文件系统

虚拟机

sudo vi /etc/exports

/home/kerson/hi3516/nfs *(rw,nohide,insecure,no_subtree_check,async,no_root_squash)

sudo /etc/init.d/nfs-kernel-server  restart

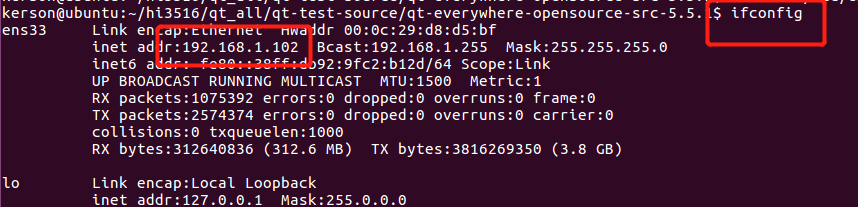

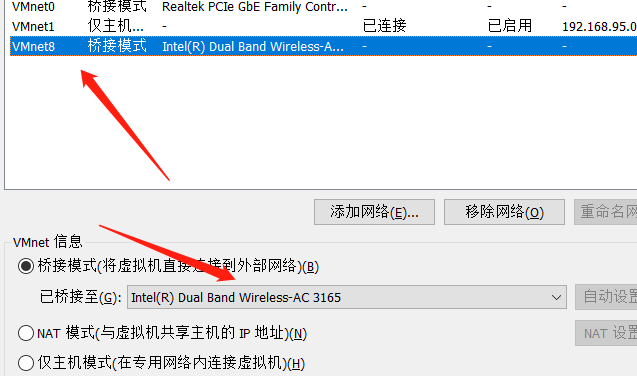

因为我目标机器使用的是wifi所以这里选择wifi

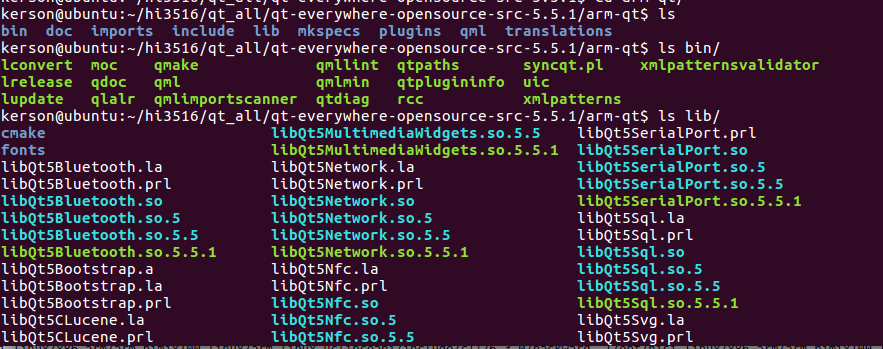

把我们前面配置输出/home/kerson/hi3516/qt_all/qt-everywhere-opensource-src-5.5.1/目录下的arm-qt和交叉编译的demo拷贝到nfs

hi3516ev200目标板

可以先与虚拟机互ping一下看是否连通

挂载

ifconfig eth0 192.168.1.16 netmask 255.255.255.0 up
mount -t nfs -o nolock 192.168.1.103:/home/kerson/hi3516/nfs  /mnt
mount -t nfs -o nolock 192.168.1.26:/home/kerson/hi3516/nfs  /mnt


sudo cp sample_venc /home/kerson/hi3516/nfs/testvenc/

配置环境

vi /etc/profile

export TSLIB_ROOT=/mmt/arm-tslib
export TSLIB_CONSOLEDEVICE=none
export TSLIB_FBDEVICE=/dev/fb0
export TSLIB_TSDEVICE=/dev/input/event1
export TSLIB_CONFFILE=$TSLIB_ROOT/etc/ts.conf
export TSLIB_PLUGINDIR=$TSLIB_ROOT/lib/ts
export TSLIB_CALIBFILE=/etc/pointercal
export LD_PRELOAD=$TSLIB_ROOT/lib/libts.so
export QT_QPA_FB_TSLIB=1

export QT_ROOT=/mnt/arm-qt
export QT_QPA_GENERIC_PLUGINS=tslib:/dev/input/event1:edevmouse:/dev/input/event3
export QT_QPA_FONTDIR=/mnt/arm-qt/lib/fonts
export QT_QPA_PLATFORM_PLUGIN_PATH=$QT_ROOT/plugins
export QT_QPA_PLATFORM=linuxfb:tty=/dev/fb0
export QT_PLUGIN_PATH=$QT_ROOT/plugins
export LD_LIBRARY_PATH=$QT_ROOT/lib:$QT_ROOT/plugins/platforms
#这里特别关键不能路径不能出错

运行出错

This application failed to start because it could not find or load the Qt platform plugin "fb0".

Available platform plugins are: linuxfb, minimal, offscreen.

Reinstalling the application may fix this problem.
Aborted

//出错位置是在下面三个文件，通过在里面添加打印信息，发现是我配置了触屏但是我又没有屏幕驱动
sudo vim qtbase/src/gui/kernel/qplatformintegrationfactory.cpp

sudo vim qtbase/src/gui/kernel/qguiapplication.cpp

sudo vim qtbase/src/corelib/kernel/qcoreapplication.cpp

从新交叉编译不带触摸

./configure \
-prefix $PWD/qt-arm \
-confirm-license \
-opensource \
-shared \
-release \
-make libs \
-xplatform arm-hisiv100-linux-g++ \
-optimized-qmake \
-pch \
-qt-sql-sqlite \
-qt-libjpeg \
-qt-libpng \
-qt-zlib \
-no-opengl \
-no-sse2 \
-no-openssl \
-no-cups \
-no-glib \
-no-dbus \
-no-xcb \
-no-xcursor -no-xfixes -no-xrandr -no-xrender \
-no-separate-debug-info \
-no-fontconfig \
-nomake examples -nomake tools -nomake tests -no-iconv

#qmake.conf改成在从新上面编译
MAKEFILE_GENERATOR      = UNIX
CONFIG                 += incremental
QMAKE_INCREMENTAL_STYLE = sublib

include(../common/linux.conf)
include(../common/gcc-base-unix.conf)
include(../common/g++-unix.conf)

# modifications to g++.conf
QMAKE_CC                = /opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-gcc
QMAKE_CXX               = /opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-g++
QMAKE_LINK              = /opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-g++
QMAKE_LINK_SHLIB        = /opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-g++

# modifications to linux.conf
QMAKE_AR                = /opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-ar cqs
QMAKE_OBJCOPY           = /opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-objcopy
QMAKE_NM                = /opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-nm -P
QMAKE_STRIP             = /opt/hisi-linux/x86-arm/arm-himix100-linux/bin/arm-himix100-linux-strip
load(qt_config)

从新运行就成功了，当时网络跑到比较慢可以用U盘

挂载U盘

vfat方式挂载（这里有个问题就是vfat不能软链接会出下面错误所以我们用GPated改成ext4）

mount -t vfat   /dev/mmcblk0p1 /mnt/sd

虚拟机把qt和tslib压缩成tar拷贝到SD卡解压出错
# tar xvf arm-tsli.tar
tar: can't create symlink from arm-tslib/lib/libts.so.0 to libts.so.0.10.3: Operation not permitted
查看文件系统格式
# df -T
Filesystem           Type       1K-blocks      Used Available Use% Mounted on
/dev/root            yaffs2        125440     33276     92164  27% /
devtmpfs             devtmpfs       16504         0     16504   0% /dev
/dev/mmcblk0p1       vfat        15540224    313000  15227224   2% /mnt/sd

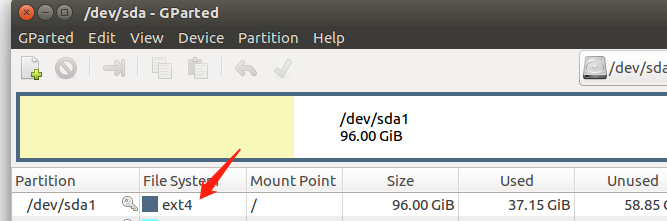

改为ext4格式

虚拟机挂载U盘

https://blog.youkuaiyun.com/dbdd_cf/article/details/88864381

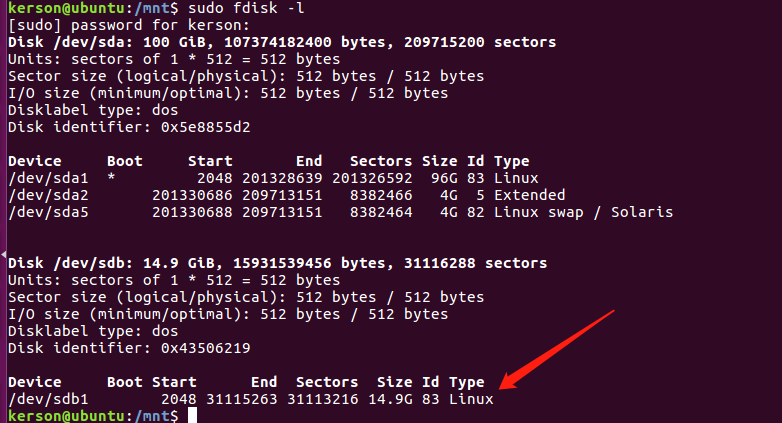

sudo fdisk -l

sudo mount /dev/sdb1 /mnt/usb/

ext4格式挂载目标机

mount -t ext4   /dev/mmcblk0p1 /mnt/sd

编译mmp(这不是必须我这里是用到)

选择linux版本的sdk
kerson@ubuntu:/mnt/hgfs/ubuntushare/Hi3516/Hi3516EV200_SDK_V1.0.1.0/mpp/sample$ ls
audio                   hifb     lsc_online_cali  region        uvc_app
awb_online_calibration  ir_auto  Makefile         scene_auto    venc
bcd                     ive      Makefile.param   tde           vio
common                  ivp      quickstart       up_linux.mak  vo
进入要编译的目录运行make 例如摄像头venc
kerson@ubuntu:/mnt/hgfs/ubuntushare/Hi3516/Hi3516EV200_SDK_V1.0.1.0/mpp/sample/venc$ make

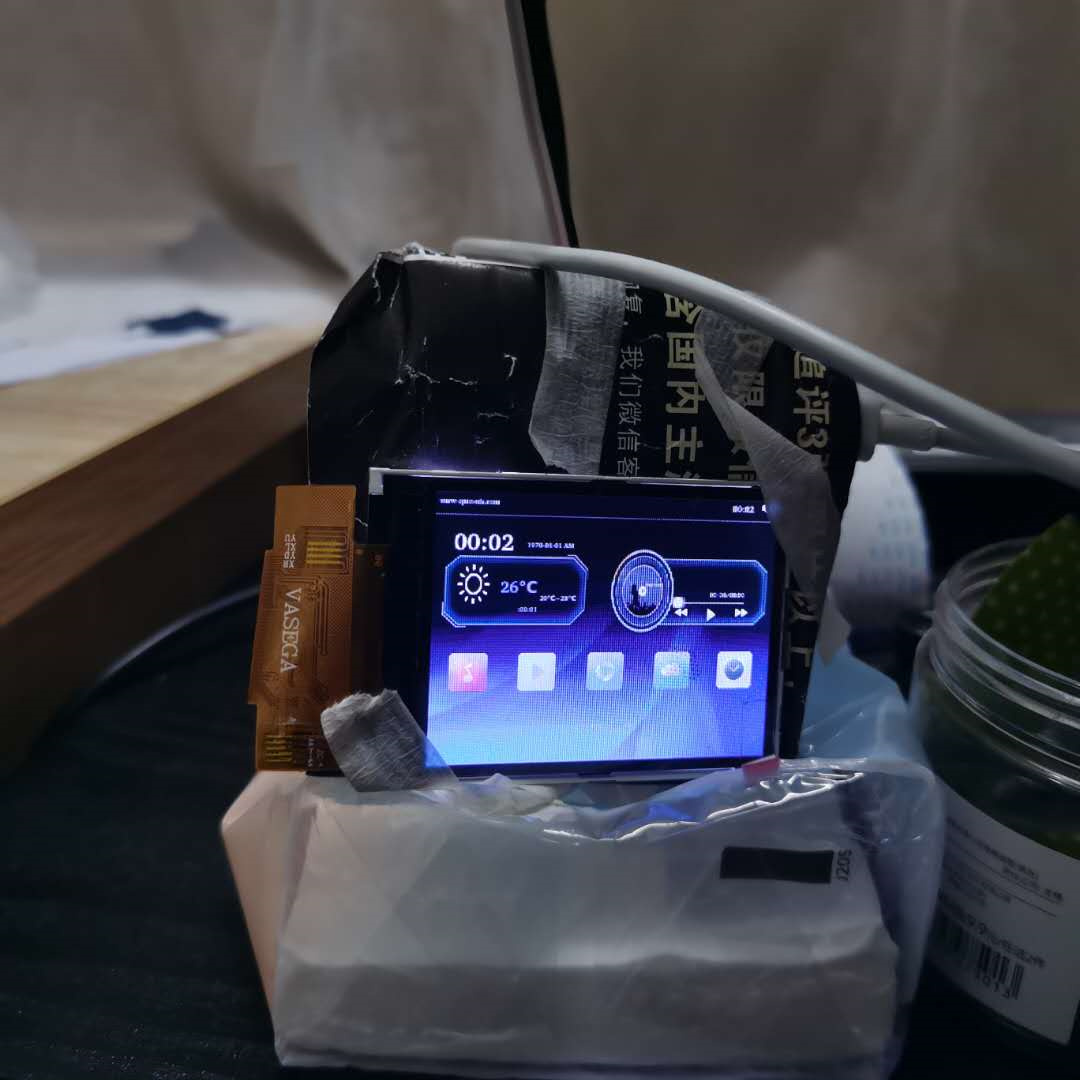

成功预览
