Mylog大数据离线计算分析项目流程

本文详细介绍了一套从数据收集、清洗、存储到分析及可视化的完整流程,涵盖Flume日志收集、Hadoop清洗、HBase存储、Hive统计分析及数据可视化等关键环节。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

ZJF

一 、数据收集部分

1.1 收集什么数据

应用用户操作日志

1.2 数据源

日志生产

访问首页,用户点击感兴趣得图片后产生操作日志

egg:

不忍直视.jpg this'is'zjf~log

不忍直视.jpg this'is'zjf~log

不忍直视.jpg this'is'zjf~log

FrameworkServlet 'dispatcherServlet': initialization started

日志存储
log4j.rootLogger=INFO,stdout,file
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Threshold=INFO
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%m%n
#one log file a day
log4j.appender.file=org.apache.log4j.DailyRollingFileAppender
log4j.appender.file.Threshold=INFO
log4j.appender.file.File=/home/logs/access.tmp
log4j.appender.file.DatePattern=yyyy-MM-dd-hh-mm'.log'
log4j.appender.file.layout=org.apache.log4j.PatternLayout
log4j.appender.file.layout.ConversionPattern=%m%n

通过上述配置文件可以看到是将日志存储在/home/logs/,当前分钟数日志为access.tmp 日志按照相应的规则进行滚动

收集方式

使用Flume进行收集

收集方案
TAILDIR 类型的Source
memeory 类型的Channel
HDFS    类型的Sink
架构

暂使用单节点

Flume配置方式
# Name the components on this agent
a1.sources = r1
a1.sinks = k1
a1.channels = c1

# Describe/configure the source
a1.sources.r1.type = TAILDIR
a1.sources.r1.filegroups = f1
a1.sources.r1.filegroups.f1 = /home/logs/.*log.*

# Describe the sink
a1.sinks.k1.type = hdfs
a1.sinks.k1.hdfs.path =hdfs://192.168.64.30:9000/access_log/%y-%m-%d/%H-%M
a1.sinks.k1.hdfs.filePrefix = access_log
a1.sinks.k1.hdfs.fileSuffix = .log
a1.sinks.k1.hdfs.batchSize= 5
a1.sinks.k1.hdfs.fileType = DataStream
a1.sinks.k1.hdfs.writeFormat =Text

# roll:滚动切换:控制写文件的切换规则
a1.sinks.k1.hdfs.rollSize = 100
a1.sinks.k1.hdfs.rollCount = 1000000
a1.sinks.k1.hdfs.rollInterval = 10

a1.sinks.k1.hdfs.round = true
a1.sinks.k1.hdfs.roundValue = 1
a1.sinks.k1.hdfs.roundUnit = minute

a1.sinks.k1.hdfs.useLocalTimeStamp = true

# Use a channel which buffers events in memory
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100

# Bind the source and sink to the channel
a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1

二 、数据清洗部分

2.1、清洗的数据类型

不忍直视.jpg this'is'zjf~log

不忍直视.jpg this'is'zjf~log

不忍直视.jpg this'is'zjf~log

FrameworkServlet 'dispatcherServlet': initialization started

​ 将带有 this’is’zjf~log 日志标识的行日志摘出来 并用UUID作为单行日志的唯一标识

,并去掉 this’is’zjf~log

2.2 、怎么去清洗

public static class CleanMapper extends Mapper<LongWritable, Text, NullWritable, Text> {

        @Override
        protected void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {

            boolean contains = value.toString().contains("this'is'zjf~log");

            if (contains) {
                String s = value.toString().split("this'is'zjf~log")[0];
                context.write(NullWritable.get(), new Text(s));
            }
        }
    }

    public static void main(String[] args) throws Exception {

        //准备conf对象
        Configuration configuration = new Configuration();
        configuration.set("mapreduce.app-submission.cross-platform", "true");
        System.setProperty("HADOOP_USER_NAME", "root");
        configuration.addResource("core-site.xml");
        configuration.addResource("hdfs-site.xml");
        configuration.addResource("yarn-site.xml");
        configuration.addResource("mapred-site.xml");
        configuration.set(MRJobConfig.JAR, "E:\\大数据\\自己\\IDEA_WSCode\\MR\\target\\MR-0.0.1-SNAPSHOT.jar");

        // 准备Job对象
        Job job = Job.getInstance(configuration);

        //
        job.setJarByClass(App.class);

        //配置读数据组件
        //job.setInputFormatClass(TextInputFormat.class);
        job.setInputFormatClass(CombineTextInputFormat.class);
        CombineTextInputFormat.setMinInputSplitSize(job, 4194304);// 4M
        //配置写数据组件
        job.setOutputFormatClass(TextOutputFormat.class);

        // job.setCombinerClass(WCReducer.class);

        //数据源 路径
        TextInputFormat.addInputPath(job, new Path ("/access_log/19-07-31/23-13"));

        //数据写出  路径

        TextOutputFormat.setOutputPath(job, new Path("/access_log/19-07-30clean3"));

        // 设置作业 map 和 reduce 逻辑处理类jpo

        job.setMapperClass(CleanMapper.class);

        //5.设置Mapper和Reducer输出泛型
        job.setMapOutputKeyClass(NullWritable.class);
        job.setMapOutputValueClass(Text.class);

        job.setOutputKeyClass(NullWritable.class);
        job.setOutputValueClass(Text.class);

        //job.submit();

        job.waitForCompletion(true);
    }

清洗展示
6ba75815-ba8e-47b0-80d4-9a281d1755ab 不忍直视.jpg
c8d8b2b6-479c-4963-9781-2955b4a79fc9 不忍直视.jpg
8b53f1d9-43bf-48b5-bb4e-beccc59723f1 不忍直视.jpg
31bc16f5-2ead-4fb8-bc25-1e76062ebb49 惊悚.jpg
18cd2d83-cf93-4768-9874-f5a3b2de7d3e 美艳.jpg

三、数据存储

3.1、java代码 将hdfs文件转存hbase

package com.mapreduce;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.hbase.client.Put;
import org.apache.hadoop.hbase.mapreduce.TableMapReduceUtil;
import org.apache.hadoop.hbase.mapreduce.TableOutputFormat;
import org.apache.hadoop.hbase.mapreduce.TableReducer;
import org.apache.hadoop.io.LongWritable;
import org.apache.hadoop.io.NullWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.MRJobConfig;
import org.apache.hadoop.mapreduce.Mapper;
import org.apache.hadoop.mapreduce.lib.input.TextInputFormat;

import java.io.IOException;

public class HDFSStore {
    public static class MyMapper extends Mapper<LongWritable, Text, NullWritable, Text> {

        @Override
        protected void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {

            context.write(NullWritable.get(), value);

        }
    }

    public static class MyReducer extends TableReducer<NullWritable, Text, NullWritable> {

        @Override
        protected void reduce(NullWritable key, Iterable<Text> values, Context context) throws IOException, InterruptedException {

            for (Text log : values) {
                String[] lines = log.toString().split(" ");
                Put put = new Put(lines[0].getBytes()); // uuid

                //put.addColumn("cf1".getBytes(), "imgId".getBytes(), lines[1].getBytes());
                put.addColumn("cf1".getBytes(), "imgName".getBytes(), lines[1].getBytes());


                context.write(NullWritable.get(), put);
            }
        }
    }

    public static void main(String[] args) throws Exception {
        System.setProperty("HADOOP_USER_NAME", "root");

        //1.封装job对象
        Configuration conf = new Configuration();
        conf.addResource("core-site.xml");
        conf.addResource("hdfs-site.xml");
        conf.addResource("yarn-site.xml");
        conf.addResource("mapred-site.xml");
        conf.set("mapreduce.app-submission.cross-platform", "true");

        conf.set("hbase.zookeeper.quorum", "Hadoop00");
        conf.set("hbase.zookeeper.property.clientPort", "2181");


        conf.set(MRJobConfig.JAR, "E:\\大数据\\自己\\IDEA_WSCode\\MR\\target\\MR-0.0.1-SNAPSHOT.jar");
        Job job = Job.getInstance(conf);

        //2.设置数据读入和写出格式
        job.setInputFormatClass(TextInputFormat.class);

        TextInputFormat.addInputPath(job, new Path ("/access_log/19-07-31clean"));

        //设置mapper格式
        job.setMapperClass(MyMapper.class);

        job.setMapOutputKeyClass(NullWritable.class);
        job.setMapOutputValueClass(Text.class);


        job.setOutputFormatClass(TableOutputFormat.class);


        //存储的表
        TableMapReduceUtil.initTableReducerJob(
                "zjf:t_log",
                MyReducer.class,
                job);

        //6.提交任务
        //job.submit();
        job.waitForCompletion(true);
    }
}

3.2 、准备数据

hbase 建表建库
zjf   namespace
t_log table

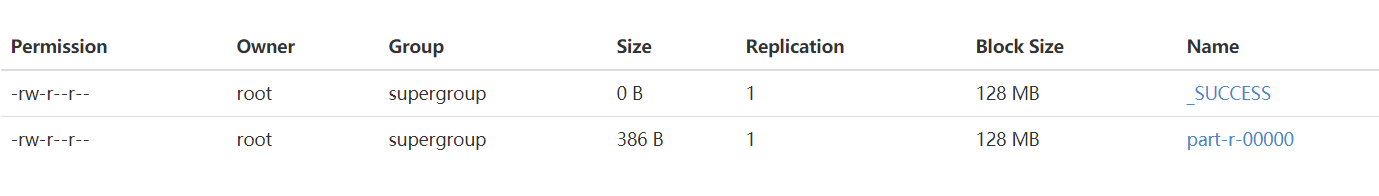

HDFS数据

[外链图片转存失败(img-UgPJn8VI-1565187117929)(C:\Users\ZHANGJ~1\AppData\Local\Temp\1565021358425.png)]

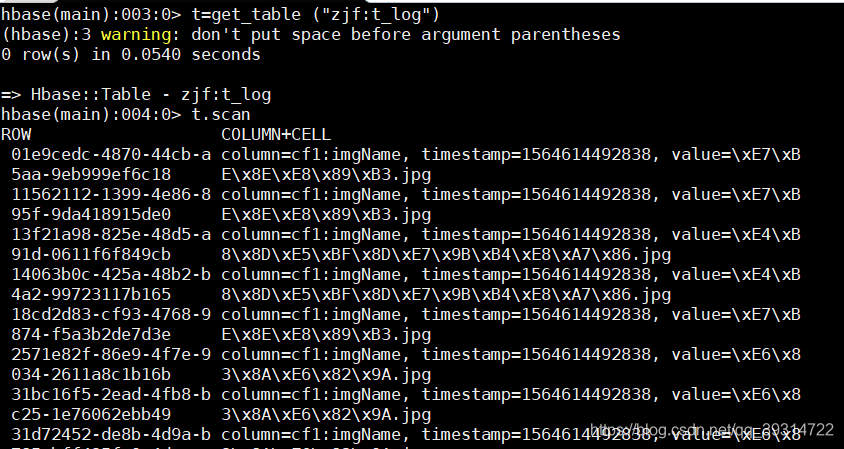

3.3 提交job,查看结果

成功执行
在这里插入图片描述

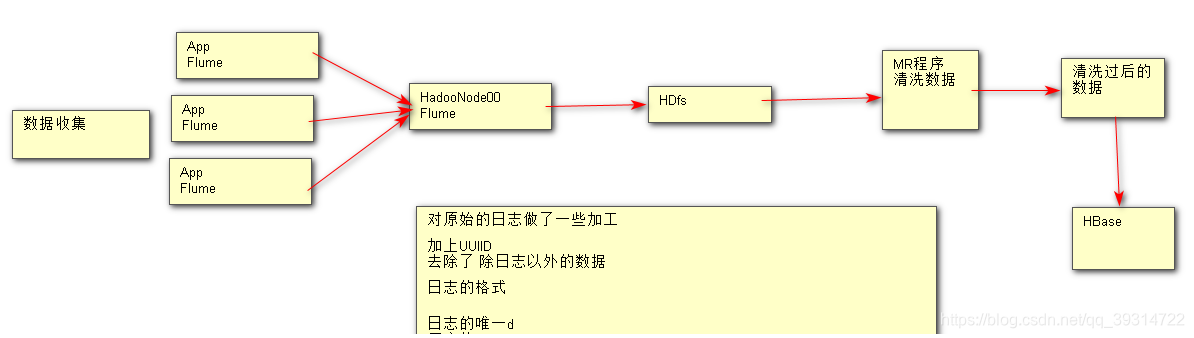

四 、数据分析

在这里插入图片描述

统计内容
  • 统计某个图片的点击量,分析用户的喜好
统计方式

使用Hive 统计

优点:

逻辑清晰

SQL便于理解和学习

成本低

Hive统计
数据萃取 Extract

即对所需的数据进行清洗

建立数据库基础存储表
drop tables logs;
create table mylog(
    uuid string,
    imgname string
)
partitioned BY (day string)
row format delimited fields terminated
by ' '
lines terminated by '\n';
数据导入
load data  inpath '/access_log/19-07-31clean'   into table mylog  partition(day='19-07-30');

[外链图片转存失败(img-pxzE1Jjb-1565187117933)(C:\Users\ZHANGJ~1\AppData\Local\Temp\1565025472623.png)]

数据Transform

统计单个图片点击量

由于数量量较少,直接用mylog作为单维度表

创建维度信息表

create table dim_img_go
(
   imgName   string,
   count int
)
partitioned by (day  string,dim string)
row format delimited fields terminated
by ' ';

维度统计

from mylog
insert into dim_img_go  PARTITION( day ='19-08-04',dim = '00')
SELECT 'all'
       ,count(1)
WHERE day = '19-08-04'

INSERT INTO TABLE dim_img_go PARTITION (
    day = '19-08-04'
    ,dim = '01'
    )
SELECT
    imgName
    ,count(1)
WHERE day = '19-08-04'
GROUP BY (imgName)

数据统计结果

[外链图片转存失败(img-jMmewrSS-1565187117934)(C:\Users\ZHANGJ~1\AppData\Local\Temp\1565028476895.png)]

五、数据导出

数据提取
分区,多重分区需要注意的细节

1> 将图片点击量的两级分区改为一级分区
create table dim_img_go_1p
(
   imgName   string,
   count int ,
   dayString  string,
   dimString string
)
partitioned by (day  string)
row format delimited fields terminated
by ' ';

2> 导入数据

insert into table dim_img_go_1p partition(day = '19-08-04')
select
imgName   ,
count   ,
day  ,
dim
from
 dim_img_go
where day = '19-08-04';

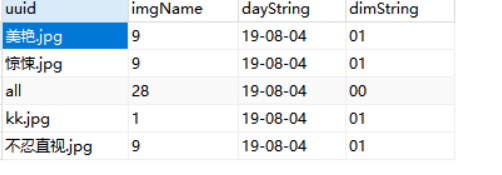

导出数据 &结果
./sqoop export \
--connect "jdbc:mysql://192.168.64.30:3306/mylog?useUnicode=true&characterEncoding=UTF-8" \
--username root \
--password root \
--table Mylog \
--export-dir  /user/hive/warehouse/dim_img_go_1p/day=19-08-04     \
--input-fields-terminated-by ' ' \
;

在这里插入图片描述

六、数据可视化展示

day = ‘19-08-04’)
select
imgName ,
count ,
day ,
dim
from
dim_img_go
where day = ‘19-08-04’;


##### 导出数据 &结果

./sqoop export
–connect “jdbc:mysql://192.168.64.30:3306/mylog?useUnicode=true&characterEncoding=UTF-8”
–username root
–password root
–table Mylog
–export-dir /user/hive/warehouse/dim_img_go_1p/day=19-08-04
–input-fields-terminated-by ’ ’
;


![数据从HDFS转存到RDMS](https://img-blog.csdnimg.cn/20190807224211735.png)

## 六、数据可视化展示
