# HDLbits 刷题 自用 # 第二章——Verilog Laguage【2.4.1~2.4.8】

第二章 Verilog Laguage

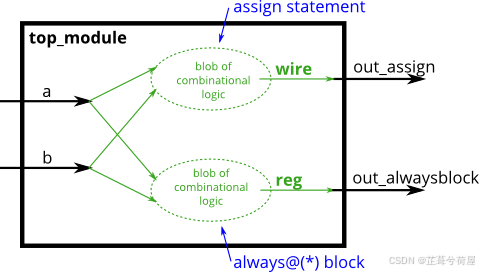

2.4.1 Always block (combitional)

// synthesis verilog_input_version verilog_2001
module top_module(
    input a,
    input b,
    output wire out_assign,
    output reg out_alwaysblock
);
 		assign out_assign = a & b;
    always@(*)begin
        out_alwaysblock   = a & b;
    end
endmodule

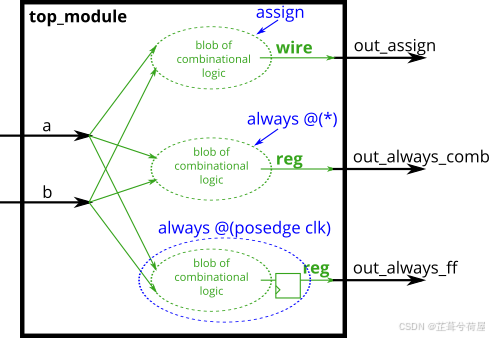

2.4.2 Always block (clock)

clock 块 输出生成了一个触发器，触发器是存储数据的基本单元，可以存储一位二进制代码；一/多个触发器可以组成1/多位寄存器，都是由时钟触发，锁存器由电平触发。
时钟信号：有低电平和高电平两个状态，是有固定周期的方波信号；
电平信号：只有高电平或者低电平一个状态；

// synthesis verilog_input_version verilog_2001
module top_module(
    input clk,
    input a,
    input b,
    output wire out_assign,
    output reg out_always_comb,
    output reg out_always_ff   );
 reg out;
 		assign out_assign = a ^ b;
    always@(*)begin
        out_always_comb   = a ^ b;
    end
    always@(posedge clk)begin
        out_always_ff    <= a ^ b;
    end
endmodule

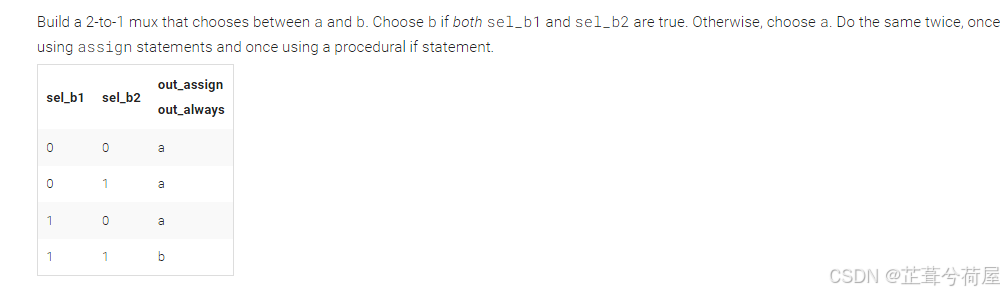

2.4.3 Always if

// synthesis verilog_input_version verilog_2001
module top_module(
    input a,
    input b,
    input sel_b1,
    input sel_b2,
    output wire out_assign,
    output reg out_always   );
    	assign out_assign = (sel_b1 & sel_b2) ? b : a;
    always@(*)
      	begin
            if(!(sel_b1 & sel_b2))
               out_always <= a;
    		else
             out_always <= b;
        end
endmodule

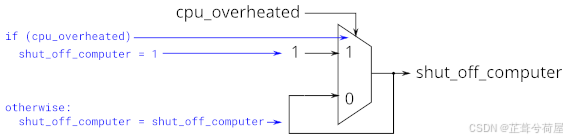

2.4.4 Always if 2

// synthesis verilog_input_version verilog_2001
module top_module (
    input      cpu_overheated,
    output reg shut_off_computer,
    input      arrived,
    input      gas_tank_empty,
    output reg keep_driving  ); //

    always @(*)
    begin
        if (cpu_overheated)
           shut_off_computer = 1;

        else
           shut_off_computer = 0;
    end

    always @(*) begin
        if (~arrived)
           keep_driving = ~gas_tank_empty;
        else
           keep_driving = 0;
    end

endmodule

2.4.5 Always case

// synthesis verilog_input_version verilog_2001
module top_module (
    input [2:0] sel,
    input [3:0] data0,
    input [3:0] data1,
    input [3:0] data2,
    input [3:0] data3,
    input [3:0] data4,
    input [3:0] data5,
    output reg [3:0] out   );//

    always@(*) begin  // This is a combinational circuit
        case(sel)
            3'd0: out = data0;
            3'd1: out = data1;
            3'd2: out = data2;
            3'd3: out = data3;
            3'd4: out = data4;
            3'd5: out = data5;
            default :out = 1'b0;
        endcase

    end

endmodule

2.4.6 Priority encoder

4-2 编码器

// synthesis verilog_input_version verilog_2001
module top_module (
    input [3:0] in,
    output reg [1:0] pos  );
    always @(*)begin
        case(1)
            in[0] : pos = 2'd0;
            in[1] : pos = 2'd1;
            in[2] : pos = 2'd2;
            in[3] : pos = 2'd3;
       		default : pos = 2'd0;
        endcase
    end
endmodule

// synthesis verilog_input_version verilog_2001
module top_module (
    input [3:0] in,
    output reg [1:0] pos  );
    always @(*)
    begin
        if(in[0])
         pos = 2'd0;
        else if(in[1])
          pos = 2'd1;
        else if(in[2])
          pos = 2'd2;
        else if(in[3])
          pos = 2'd3;
        else
       	  pos = 2'd0;
    end
endmodule

2.4.7 Priority encoder with casez

8-3 编码器

// synthesis verilog_input_version verilog_2001
module top_module (
    input [7:0] in,
    output reg [2:0] pos );
    always @(*)
    	begin
            casez(1)
                in[0]: pos = 3'd0;
                in[1]: pos = 3'd1;
                in[2]: pos = 3'd2;
                in[3]: pos = 3'd3;
                in[4]: pos = 3'd4;
                in[5]: pos = 3'd5;
                in[6]: pos = 3'd6;
                in[7]: pos = 3'd7;
                default:pos = 3'd0;
            endcase
        end
endmodule

// synthesis verilog_input_version verilog_2001
module top_module (
    input [7:0] in,
    output reg [2:0] pos );
    always @(*)
    	begin
            casez(in[7:0])
                8'bzzzzzzz1: pos = 3'd0;
                8'bzzzzzz1z: pos = 3'd1;
                8'bzzzzz1zz: pos = 3'd2;
                8'bzzzz1zzz: pos = 3'd3;
                8'bzzz1zzzz: pos = 3'd4;
                8'bzz1zzzzz: pos = 3'd5;
                8'bz1zzzzzz: pos = 3'd6;
               	8'b1zzzzzzz: pos = 3'd7;
                default:pos = 3'd0;
            endcase
        end
endmodule

2.4.8 Always nolatches

// synthesis verilog_input_version verilog_2001
module top_module (
    input [15:0] scancode,
    output reg left,
    output reg down,
    output reg right,
    output reg up  );
    always@(*)
        begin
            left = 1'b0; down = 1'b0; right = 1'b0; up = 1'b0;
            case(scancode)
               16'HE06B	: left  = 1'b1;
			   16'he072	: down  = 1'b1;
			   16'he074	: right = 1'b1;
			   16'he075 :  up   = 1'b1;
            endcase
        end
endmodule
