安卓开发:Android开发技术学习之popupwindow的弹窗实现

本文介绍了Android开发中PopupWindow的使用,通过实例展示了如何创建并展示PopupWindow,将其灵活应用于屏幕顶部,类似于微信和QQ中的弹窗效果。主要步骤包括设置MainActivity布局以及对触发按钮的监听处理。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

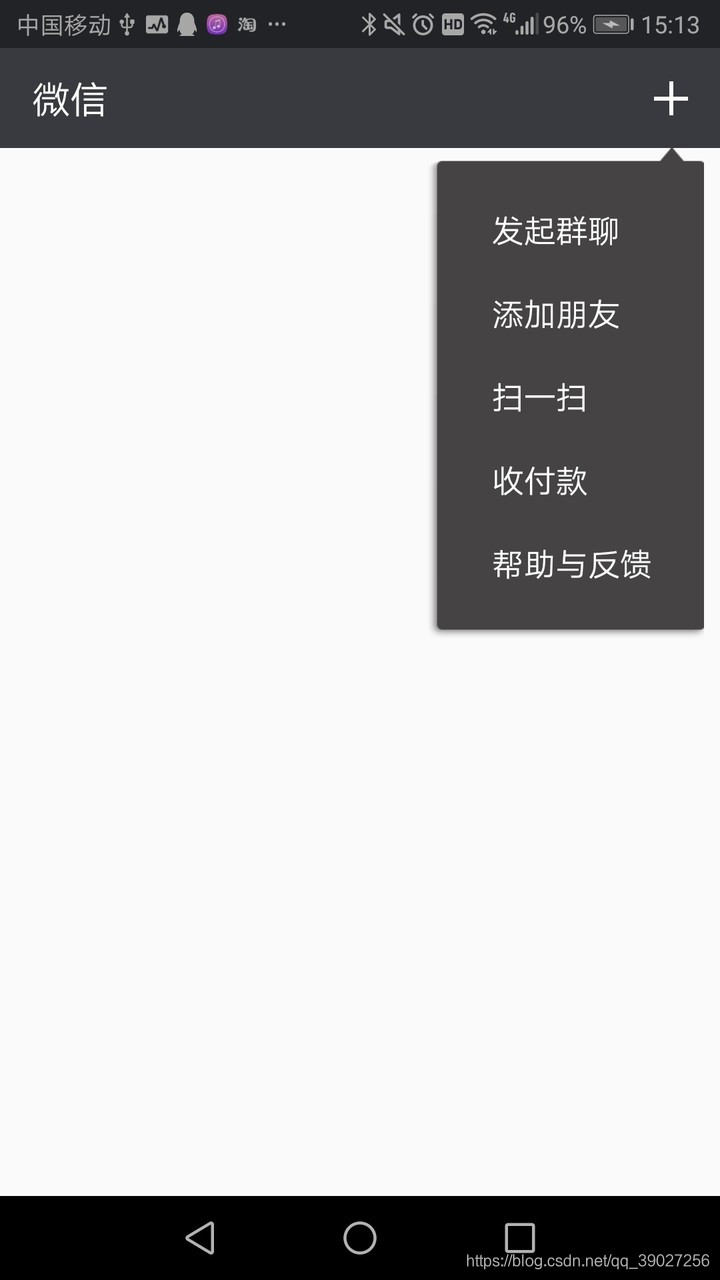

popupwindow在我们的一些大型手机app上经常出现,例如微信、QQ等。它和Dialog相似,但是位置摆放好像更加灵活。俩者区别详细咨询百度。popupwindow效果如下图,点击加号弹出一个popupwindow显示于屏幕最上方

1.先创建mainActivity的布局

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/rl_main"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="com.lzf.popupwindow.MainActivity">

    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="74dp"
        android:background="@color/colorWeChat"
        android:gravity="center_vertical"
        android:orientation="horizontal"
        android:paddingTop="24dp">

        <TextView
            android:id="@+id/tv_title"
            android:layout_width="wrap_content"
            android:layout_height="match_parent"
            android:gravity="center_vertical"
            android:paddingEnd="16dp"
            android:paddingStart="16dp"
            android:text="微信"
            android:textColor="@color/colorWhite"
            android:textSize="19sp"/>

        <ImageView
            android:id="@+id/iv_add"
            android:layout_width="wrap_content"
            android:layout_height="match_parent"
            android:layout_alignParentEnd="true"
            android:background="@drawable/selector_bg_img"
            android:paddingEnd="16dp"
            android:paddingStart="16dp"
            android:src="@drawable/icon_add"/>

    </RelativeLayout>
</RelativeLayout>

2.在mainActivity代码中对加号按钮进行监听

public class MainActivity extends AppCompatActivity implements View.OnClickListener {

    private ImageView iv_add;
    private TextView tv_1, tv_2, tv_3, tv_4, tv_5;
    private PopupWindow mPopupWindow;
    public static Toast toast;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.KITKAT) {
            // 实现透明状态栏
            getWindow().addFlags(WindowManager.LayoutParams.FLAG_TRANSLUCENT_STATUS);
        }
        setContentView(R.layout.activity_main);

        init();
    }

    private void init() {

        mPopupWindow = new PopupWindow(this);
        iv_add = findViewById(R.id.iv_add);
        iv_add.setOnClickListener(this);
    }

    @Override
    public void onClick(View view) {
        switch (view.getId()) {
            case R.id.iv_add:
                showPop();显示popupwindow
                break;
            case R.id.tv_1:
                mPopupWindow.dismiss();
                showToast(MainActivity.this, "添加联系人");
                break;
            case R.id.tv_2:
                mPopupWindow.dismiss();
                Toast.makeText(this, tv_2.getText(), Toast.LENGTH_SHORT).show();
                break;
            case R.id.tv_3:
                mPopupWindow.dismiss();
                Toast.makeText(this, tv_3.getText(), Toast.LENGTH_SHORT).show();
                break;
            case R.id.tv_4:
                mPopupWindow.dismiss();
                Toast.makeText(this, tv_4.getText(), Toast.LENGTH_SHORT).show();
                break;
            case R.id.tv_5:
                mPopupWindow.dismiss();
                Toast.makeText(this, tv_5.getText(), Toast.LENGTH_SHORT).show();
                break;
            default:
                break;
        }
    }

    private void showPop() {
        // 设置布局文件
        mPopupWindow.setContentView(LayoutInflater.from(this).inflate(R.layout.pop_add, null));
        // 为了避免部分机型不显示,我们需要重新设置一下宽高
        mPopupWindow.setWidth(ViewGroup.LayoutParams.WRAP_CONTENT);
        mPopupWindow.setHeight(ViewGroup.LayoutParams.WRAP_CONTENT);
        // 设置pop透明效果
        mPopupWindow.setBackgroundDrawable(new ColorDrawable(0x0000));
        // 设置pop出入动画
        mPopupWindow.setAnimationStyle(R.style.pop_add);
        // 设置pop获取焦点,如果为false点击返回按钮会退出当前Activity,如果pop中有Editor的话,focusable必须要为true
        mPopupWindow.setFocusable(true);
        // 设置pop可点击,为false点击事件无效,默认为true
        mPopupWindow.setTouchable(true);
        // 设置点击pop外侧消失,默认为false;在focusable为true时点击外侧始终消失
        mPopupWindow.setOutsideTouchable(true);
        // 相对于 + 号正下面,同时可以设置偏移量
        mPopupWindow.showAsDropDown(iv_add, -100, 0);
        // 设置pop关闭监听,用于改变背景透明度
        mPopupWindow.setOnDismissListener(new PopupWindow.OnDismissListener() {
            @Override
            public void onDismiss() {

               // toggleBright();
            }
        });

        tv_1 = mPopupWindow.getContentView().findViewById(R.id.tv_1);
        tv_2 = mPopupWindow.getContentView().findViewById(R.id.tv_2);
        tv_3 = mPopupWindow.getContentView().findViewById(R.id.tv_3);
        tv_4 = mPopupWindow.getContentView().findViewById(R.id.tv_4);
        tv_5 = mPopupWindow.getContentView().findViewById(R.id.tv_5);

        tv_1.setOnClickListener(this);
        tv_2.setOnClickListener(this);
        tv_3.setOnClickListener(this);
        tv_4.setOnClickListener(this);
        tv_5.setOnClickListener(this);
    }

public static void showToast(Context context, String string) {
    // TODO Auto-generated method stub
    if(toast == null){
        // 如果Toast对象为空了,那么需要创建一个新的Toast对象
        toast = Toast.makeText(context, string, Toast.LENGTH_LONG);
    }else {
        // 如果toast对象还存在,那么就不再创建新的Toast对象
        toast.setText(string);
    }
    // 最后调用show方法吐丝
    toast.show();
}


}
其中R.layout.pop_add.xml是popupwindow的布局文件



<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@color/transparent"
    android:orientation="vertical">

    <LinearLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginEnd="8dp"
        android:background="@drawable/icon_other_9"
        android:orientation="vertical"
        android:paddingBottom="20dp"
        android:paddingEnd="16dp"
        android:paddingStart="26dp"
        android:paddingTop="20dp">

        <TextView
            android:id="@+id/tv_1"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:padding="10dp"
            android:text="发起群聊"
            android:textColor="@color/colorWhite"
            android:textSize="16sp"/>

        <TextView
            android:id="@+id/tv_2"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:padding="10dp"
            android:text="添加朋友"
            android:textColor="@color/colorWhite"
            android:textSize="16sp"/>

        <TextView
            android:id="@+id/tv_3"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:padding="10dp"
            android:text="扫一扫"
            android:textColor="@color/colorWhite"
            android:textSize="16sp"/>

        <TextView
            android:id="@+id/tv_4"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:padding="10dp"
            android:text="收付款"
            android:textColor="@color/colorWhite"
            android:textSize="16sp"/>

        <TextView
            android:id="@+id/tv_5"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:padding="10dp"
            android:text="帮助与反馈"
            android:textColor="@color/colorWhite"
            android:textSize="16sp"/>
    </LinearLayout>

</LinearLayout>
