docker-compose部署frp

一. frp服务端

1.1 初始化配置文件

mkdir -p /root/i/docker-compose/frps && cd /root/i/docker-compose/frps

cat <<EOF> frps.ini
[common]
bind_port = 7000
vhost_http_port = 8080
vhost_https_port = 8081
dashboard_addr = 0.0.0.0
dashboard_port = 7500
dashboard_user = admin
dashboard_pwd = www19930327
EOF

1.2 docker-compose.yaml

cat <<EOF> /root/i/docker-compose/frps/docker-compose.yaml
version: '3'
services:
  frps:
    restart: always
    image: snowdreamtech/frps
    container_name: frps
    volumes:
      - /root/i/docker-compose/frps/frps.ini:/etc/frp/frps.ini
    ports:
      - 7000:7000
      - 7500:7500
      - 8080:8080
      - 8081:8081

  frpc-web-nginx:
    restart: always
    image: nginx:1.19.3
    container_name: frpc-web-nginx
    volumes:
      - /root/i/docker-compose/frps/nginx-conf:/etc/nginx/conf.d
    ports:
      - 80:80
EOF

1.3 部署

docker-compose -f /root/i/docker-compose/frps/docker-compose.yaml up -d

1.4 卸载

docker-compose -f /root/i/docker-compose/frps/docker-compose.yaml down

1.5 web-nginx域名去除端口

因为80端口被使用，所以http使用了8080端口，使用域名时还需要在后面加上8080端口才能内网穿透，所以使用nginx监听端口，直接使用域名内网穿透

portal-dev.wanfei.wang

cat <<EOF> /root/i/docker-compose/frps/nginx-conf/portal-dev.wanfei.wang.conf
server {
    listen  80;
    server_name  portal-dev.wanfei.wang;

    location / {
        proxy_set_header  Host  \$http_host;
        proxy_set_header  X-Real-IP  \$remote_addr;
        proxy_set_header  X-Forwarded-For \$proxy_add_x_forwarded_for;
        proxy_pass  http://frps:8080/;
    }
}
EOF

重启frpc-web-nginx服务

docker-compose -f /root/i/docker-compose/frps/docker-compose.yaml restart frpc-web-nginx

二. frp客户端

2.1 frpc客户端使用参考

参考 https://blog.youkuaiyun.com/qq_38983728/article/details/103595506

2.2 frpc客户端-Mac

2.2.1 下载客户端

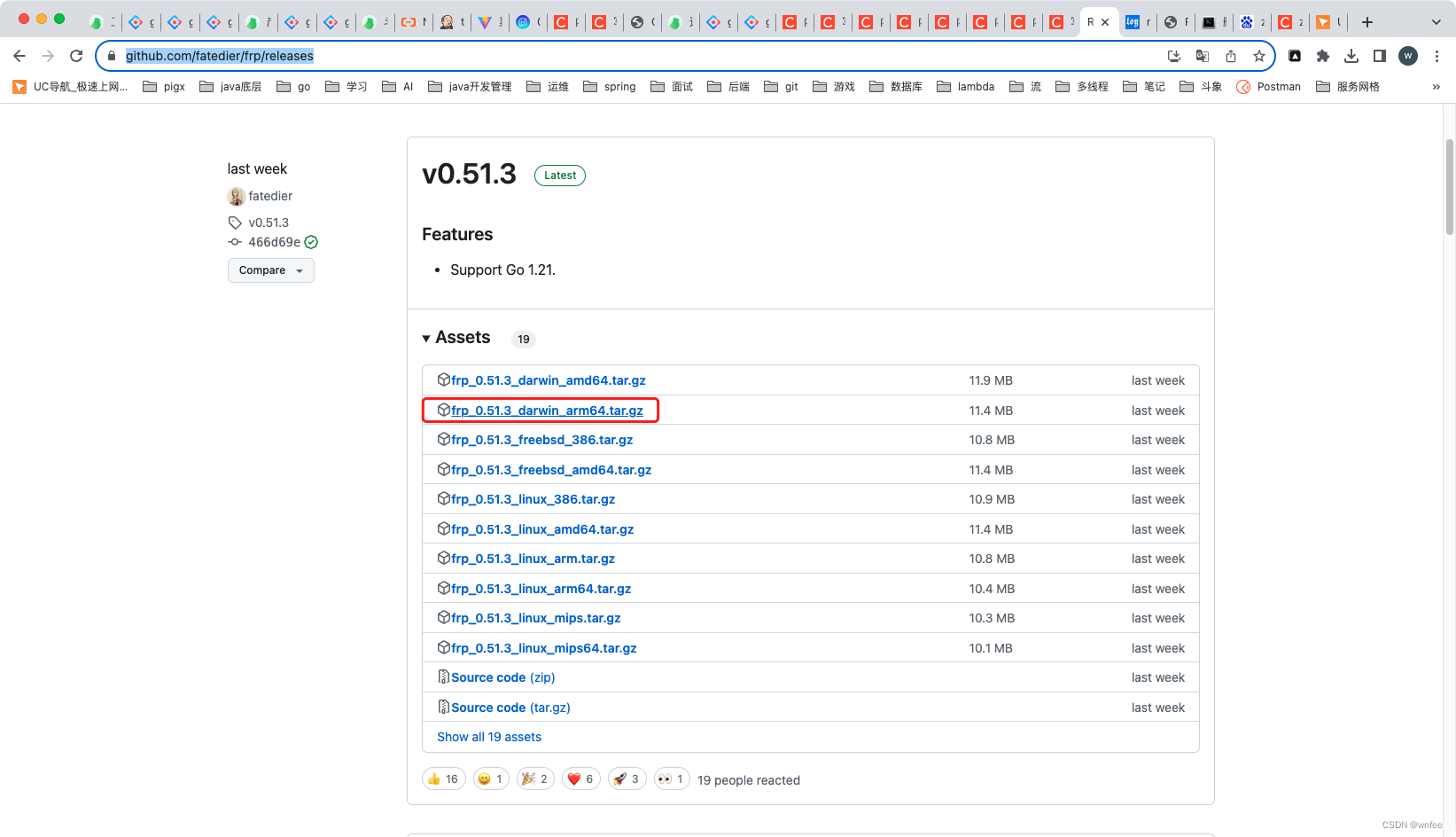

地址 https://github.com/fatedier/frp/releases

首先下载frpc，选择darwin的arm64，Darwin是指macOS，适配m1，m2芯片

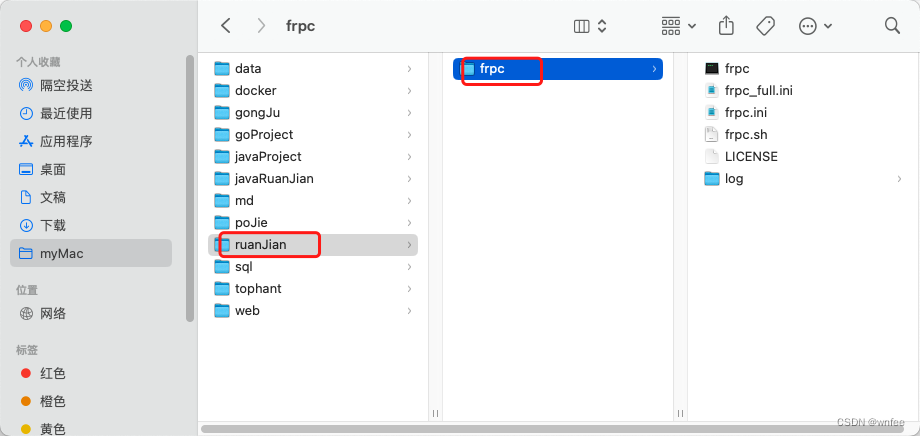

解压后修改文件夹为frpc，删除frps相关的文件，再创建一个log文件夹

路径/Users/wanfei/myMac/ruanJian/frpc

2.2.2 创建frpc.sh脚本

vi frpc.sh
# 复制下面

#!/bin/bash

FRPC_HOME="/Users/wanfei/myMac/ruanJian/frpc"
client="$FRPC_HOME/frpc"
ini="$FRPC_HOME/frpc.ini"
log="$FRPC_HOME/log"

if [ "$1" = "start" ];then
  nohup $client -c $ini > "$log/nohup_frpc.log" 2>&1 &
  echo "frpc start success"
elif [ "$1" = "status" ];then
   ps aux | grep frpc |  grep -v grep | grep -v $1
   echo "frpc status success"
elif [ "$1" = "reload" ];then
  echo "frpc" `$client reload -c $ini`
elif [ "$1" = "restart" ];then
  ps aux | grep frpc | grep -v grep | grep -v $1 | awk '{print $2}' | xargs kill -9
  rm -rf "$log/frpc.log"
  rm -rf "$log/nohup_frpc.log"
  nohup $client -c $ini > "$log/nohup_frpc.log" 2>&1 &
  echo "frpc restart success"
elif [ "$1" = "stop" ];then
  ps aux | grep frpc | grep -v grep | grep -v $1 | awk '{print $2}' | xargs kill -9
  rm -rf "$log/frpc.log"
  rm -rf "$log/nohup_frpc.log"
  echo "frpc stop success"
else
  other_commands="$client $@"
  $other_commands
fi

2.2.3 添加脚本权限

打开终端，获得文件夹的权限

chmod u+x /Users/wanfei/myMac/ruanJian/frpc

添加软链到系统变量

sudo ln -s /Users/wanfei/myMac/ruanJian/frpc/frpc.sh /usr/local/bin/frpc

2.2.4 编辑frpc.ini

cat <<EOF> frpc.ini
[common]
server_addr = 公网ip
server_port = 7000

[mac-web]
type = http
local_port = 8089
custom_domains = frp.xxx.xxx
EOF

2.2.5 启动

frpc start

其他命令

• 重启：frpc restart
• 状态：frpc status
• 停止: frpc stop
• 查看日志：tail -f /Users/wanfei/myMac/ruanJian/frpc/log/nohup_frpc.log

参考 https://www.yii666.com/blog/394785.html
