基础组件：Image

   @Composable
    @NonRestartableComposable
    fun Image(
        bitmap: ImageBitmap,//bitmap
        contentDescription: String?,//无障碍内容描述
        modifier: Modifier = Modifier,
        alignment: Alignment = Alignment.Center,//摆放位置
        contentScale: ContentScale = ContentScale.Fit,//缩放类型
        alpha: Float = DefaultAlpha,//透明度
        colorFilter: ColorFilter? = null,//颜色渲染
        filterQuality: FilterQuality = DefaultFilterQuality
    )

 @Composable
    fun Image(
        painter: Painter,
        contentDescription: String?,
        modifier: Modifier = Modifier,
        alignment: Alignment = Alignment.Center,
        contentScale: ContentScale = ContentScale.Fit,
        alpha: Float = DefaultAlpha,
        colorFilter: ColorFilter? = null
    )

 @Composable
    @NonRestartableComposable
    fun Image(
        imageVector: ImageVector,
        contentDescription: String?,
        modifier: Modifier = Modifier,
        alignment: Alignment = Alignment.Center,
        contentScale: ContentScale = ContentScale.Fit,
        alpha: Float = DefaultAlpha,
        colorFilter: ColorFilter? = null
    )

调用ImageBitmap和ImageVector最终都会调用Painter的方法

缩放类型ContentScale

ContentScale.Fit//均匀缩放图片，并保持宽高比（默认）。如果内容小于指定大小，系统会放大图片以适应边界。
ContentScale.Crop //将图片居中裁剪到可用空间。
ContentScale.Inside //缩放来源图片，使宽高保持在目标边界内。如果来源图片在两个维度上都小于或等于目标，则其行为类似于“None”。内容始终包含在边界内。如果内容小于边界，则不会应用缩放。
ContentScale.FillWidth //缩放来源图片，保持宽高比不变，使边界与目标宽度匹配。
ContentScale.FillHeight //缩放来源图片，保持宽高比不变，使边界与目标高度匹配。
ContentScale.FillBounds //以非均匀方式垂直和水平缩放内容，以填充目标边界。（注意：如果将图片放入与其宽高比不完全相符的容器中，则图片会失真）
ContentScale.None //不对来源图片应用任何缩放。如果内容小于目标边界，则不会缩放以适应相应区域。

位置类型Alignment

Alignment.TopStart
Alignment.TopCenter
Alignment.TopEnd
Alignment.CenterStart
Alignment.Center
Alignment.CenterEnd
Alignment.BottomStart
Alignment.BottomCenter
Alignment.BottomEnd

1.加载本地图片资源

（1）加载本地图片资源

Image(
        painter = painterResource(id = R.drawable.img1),
        contentDescription = "这是加载本地的图片",
         )

（2）加载本地图片资源bitmap

val bitmap = ImageBitmap.imageResource(id = R.drawable.img2)
        Image(
            bitmap = bitmap, contentDescription = "这是加载本地bitmap",
        )

（3）加载ImageVector

val imageVector = ImageVector.vectorResource(id = R.drawable.ic_tab_project)
        Image(
            imageVector = imageVector,
            contentDescription = "")

3.设置自定义图片裁剪、边框样式

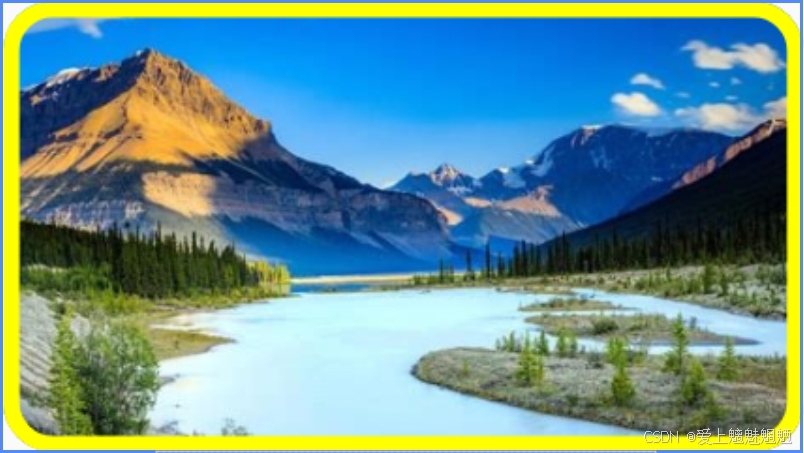

（1）Image内部使用Modifier设置样式

Image(
            painter = painterResource(id = R.drawable.img1),
            modifier = Modifier
                .size(160.dp, 90.dp)
                .border(3.dp, color = Color.Yellow, RoundedCornerShape(10.dp))
                .clip(RoundedCornerShape(10.dp)),
            contentDescription = "这是加载本地的图片",
            contentScale = ContentScale.Crop
        )

在这里插入图片描述

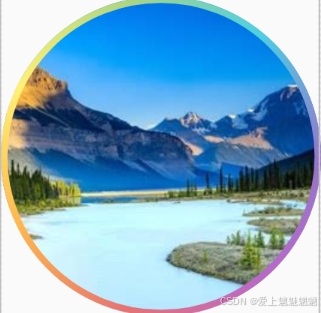

（2）渐变边框样式

val rainbowColorsBrush = remember {
            Brush.sweepGradient(
                listOf(
                    Color(0xFF9575CD),
                    Color(0xFFBA68C8),
                    Color(0xFFE57373),
                    Color(0xFFFFB74D),
                    Color(0xFFFFF176),
                    Color(0xFFAED581),
                    Color(0xFF4DD0E1),
                    Color(0xFF9575CD)
                )
            )
        }
        Image(
            painter = painterResource(id = R.drawable.img1),
            modifier = Modifier
                .size(200.dp)
                .border(3.dp, rainbowColorsBrush, CircleShape)
                .clip(CircleShape),
            contentDescription = "这是加载本地的图片",
            contentScale = ContentScale.Crop
        )

在这里插入图片描述

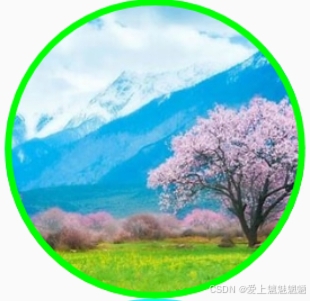

（3）Image外部使用Surface

Surface(
            shape = CircleShape,
            border = BorderStroke(2.dp, Color.Green)
        ) {
            Image(
                painter = painterResource(id = R.drawable.img2), contentDescription = "",
                modifier = Modifier.size(100.dp),
                contentScale = ContentScale.Crop
            )
        }

在这里插入图片描述

（4）自定义裁剪路径

class SquashedOval : Shape {
    override fun createOutline(
        size: Size,
        layoutDirection: LayoutDirection,
        density: Density
    ): Outline {
        val path = Path().apply {
            // We create an Oval that starts at ¼ of the width, and ends at ¾ of the width of the container.
            addOval(
                Rect(
                    left = size.width / 4f,
                    top = 0f,
                    right = size.width * 3 / 4f,
                    bottom = size.height
                )
            )
        }
        return Outline.Generic(path = path)
    }
}

Image(
            painter = painterResource(id = R.drawable.img2),
            alignment = Alignment.Center,
            contentScale = imageContentScale,//缩放类型，默认ContentScale.Fit
            modifier = Modifier
                .fillMaxWidth()
                .height(200.dp)
                .clip(SquashedOval()),
            contentDescription = "这是加载本地的图片",
        )

（5）设置自定义图片宽高比

Image(
    painter = painterResource(id = R.drawable.img1),
    contentDescription = "",
    modifier = Modifier.aspectRatio(16f / 9f)
)

（6）颜色滤镜 - 转换图片的像素颜色

Image(
    painter = painterResource(id = R.drawable.ic_tab_home),
    contentDescription = "",
    colorFilter = ColorFilter.tint(color = Color.Red, blendMode =  BlendMode.SrcIn)
)

在这里插入图片描述

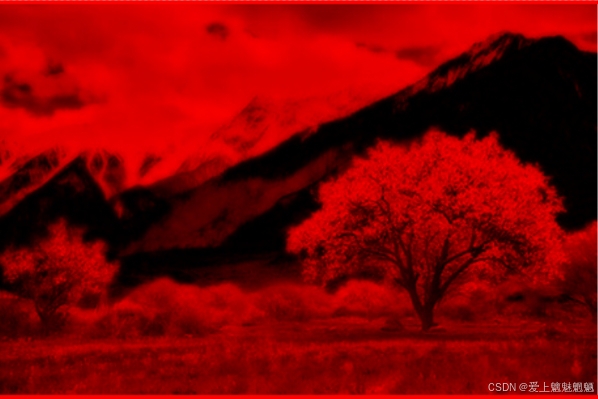

不同的BlendMode显示不同的效果
官网Api：“BlendMode”

Image(
    painter = painterResource(id = R.drawable.img1),
    contentDescription = "",
    colorFilter = ColorFilter.tint(color = Color.Red, blendMode =  BlendMode.Darken)
)

在这里插入图片描述

（7）通过颜色矩阵应用 Image 滤镜

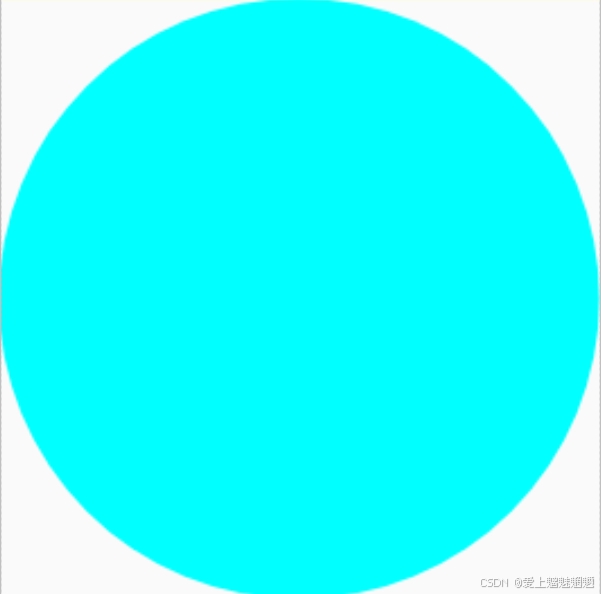

4.自定义Painter加载

val customPainter = remember {
        object : Painter() {
            override val intrinsicSize: Size get() = Size(100.0f, 100.0f)
            override fun DrawScope.onDraw() {
                drawCircle(color = Color.Cyan)
            }
        }
    }

Image(
            painter = customPainter,
            contentDescription = "",
            modifier = Modifier.size(100.dp, 100.dp)
        )

在这里插入图片描述

5.加载网络图片 Coil

添加依赖

implementation 'io.coil-kt.coil3:coil-compose:3.1.0'//compose
implementation 'io.coil-kt.coil3:coil-network-okhttp:3.1.0'//加载网络图片
implementation "io.coil-kt.coil3:coil-svg:3.1.0"//加载svg

（1）基础使用AsyncImage

AsyncImage是一个可组合组件，它异步执行图像请求并呈现结果。它支持与标准composable相同的参数，此外，它还支持设置 painter(placeholder/error/fallback)和回调(onLoading/onSuccess/onError)。

在大多数情况下更喜欢使用AsyncImage。它根据可组合的约束和提供的ContentScale正确地确定图像应该加载的大小。

AsyncImage(
            modifier = Modifier
                .size(160.dp, 90.dp)
                .background(Color.LightGray),
            model = "xxxxx图片url",
            contentDescription = "这是加载网络图片",
            contentScale = ContentScale.Crop

        )

AsyncImage(
            modifier = Modifier
                .size(90.dp, 160.dp)
                .background(Color.LightGray),
            contentScale = ContentScale.Crop,
            model = ImageRequest.Builder(LocalContext.current)
                .data("xxxxx")
                .crossfade(true)
                .error(R.drawable.ic_error)
                .build(),
            contentDescription = "",
            onState = { state ->//状态
                onState = { state ->
                when (state) {
                    is AsyncImagePainter.State.Loading -> {

                    }
                    is AsyncImagePainter.State.Error->{

                    }
                    is AsyncImagePainter.State.Empty->{

                    }
                    is AsyncImagePainter.State.Success->{

                    }
                }

            },
          )

（2）使用rememberAsyncImagePainter

AsyncImage和SubcomposeAsyncImage内部使用rememberAsyncImagePainter加载model，如果需要的是一个Painter而不是composable组件，则可以使用rememberAsyncImagePainter去加载，并且可以观察AsyncImagePainter.state状态，根据不同状态显示不同的composable，或者可以手动的进行图像的重新加载（AsyncImagePainter.restart）

val painterOnly = rememberAsyncImagePainter(
            "https://xxx.png"
        )

        Image(
            painter = painterOnly,
            contentDescription = "",
            modifier = Modifier.size(160.dp,90.dp),
            contentScale = ContentScale.Crop)

rememberAsyncImagePainter比AsyncImage和SubcomposeAsyncImage更灵活，但是也有缺点。
缺点1：
它不检测图像在屏幕上加载的大小，总是以其原始尺寸加载图像，可以通过使用自定义的SizeResolver或使用rememberConstraintsSizeResolver来解决。

val sizeResolver = rememberConstraintsSizeResolver()
        val painter = rememberAsyncImagePainter(
            model = ImageRequest.Builder(LocalPlatformContext.current)
                .data("xxxxx.png")
                .size(sizeResolver)
                .build(),
        )

        Image(
            painter = painter,
            contentDescription = null,
            modifier = Modifier.then(sizeResolver),
        )

缺点2：
当使用rememberAsyncImagePainter时，即使图像在内存缓存中，它刚开始绘制时始终是AsyncImagePainter.State.Empty状态

（3）SubcomposeAsyncImage

SubcomposeAsyncImage是AsyncImage的变体，提供许多API，可以监听不同状态回调，还可以在不同状态显示不同的composable组件，但是它加载比普通的AsyncImage要慢，性能较差。

SubcomposeAsyncImage(
    model = "xxx.jpg",
    loading = {
        CircularProgressIndicator()
    },
     error = {
                Text(text = "出错了")
            },
     success = {
                Image(painter = painterResource(id = R.drawable.ic_placeholder), contentDescription = "")
            },

    contentDescription = stringResource(R.string.description),
)

（5）订阅观察状态AsyncImagePainter.state

val painter = rememberAsyncImagePainter("https://xxx.png")
        val state by painterForState.state.collectAsState()

        when (state) {
            is AsyncImagePainter.State.Empty,
            is AsyncImagePainter.State.Loading -> {
                CircularProgressIndicator()
            }
            is AsyncImagePainter.State.Success -> {
                Image(
                    painter = painter,
                    contentDescription =""
                )
            }
            is AsyncImagePainter.State.Error -> {
                // Show some error UI.
            }
        }

（6）使用Transitions crossfade

自定义的Transitions 不能在AsyncImage、SubcomposeAsyncImage、rememberAsyncImagePainter中使用，因为他们需要一个View的引用，只是crossfade在内部做了支持。

AsyncImage(
    model = ImageRequest.Builder(LocalContext.current)
        .data("https://xxxx.jpg")
        .crossfade(true)
        .build(),
    contentDescription = null,
)

（6）ImageLoader解析

imageloader是执行imagerequest的服务对象。它们处理缓存、数据获取、图像解码、请求管理、内存管理等等。当创建单个ImageLoader并在整个应用程序中共享它时，Coil表现最好。这是因为每个ImageLoader都有自己的内存缓存，磁盘缓存和OkHttpClient。
Coil3默认会创建一个单例的ImageLoader，可以通过多种方式进行配置

//setSafe方法确保它不会覆盖已创建的现有ImageLoader
        val context= LocalContext.current
        SingletonImageLoader.setSafe {
            ImageLoader.Builder(context)
                .crossfade(true)
                .build()
        }
        //用于多平台
        setSingletonImageLoaderFactory { context ->
            ImageLoader.Builder(context)
                .crossfade(true)
                .build()
        }
//在Android中，尽可能早的，可以在Application中创建
class App :Application(),SingletonImageLoader.Factory {

    override fun onCreate() {
        super.onCreate()
    }

    override fun newImageLoader(context: PlatformContext): ImageLoader {
        return ImageLoader.Builder(context)
            .crossfade(true)
            .build()
    }
}

ImageLoader缓存配置

每个ImageLoader都保留了最近解码的位图Bitmap的内存缓存，以及从互联网加载的任何图像的磁盘缓存。两者都可以在创建ImageLoader时配置。

class App : Application(), SingletonImageLoader.Factory {

    override fun onCreate() {
        super.onCreate()
    }

    override fun newImageLoader(context: PlatformContext): ImageLoader {
        return ImageLoader.Builder(context)
            .crossfade(true)
            .memoryCache {
                MemoryCache.Builder()
                    .maxSizePercent(context,0.25)
                    .build()
            }
            .diskCache {
                DiskCache.Builder()
                    .directory(context.cacheDir.resolve("image_cache"))
                    .maxSizePercent(0.02)
                    .build()
            }
            .build()
    }
}

（7）ImageRequests解析

ImageRequests为ImageLoader加载图像提供了所有必要的信息。

val imageRequest = ImageRequest.Builder(LocalContext.current)
            .data("https://xxx.jpg")
            .error(R.drawable.ic_error)
            .diskCacheKey("Test_disk_cache_image")
            .memoryCacheKey("Test_memory_cache_image")
            .crossfade(true)
            .build()
 imageLoader.enqueue(imageRequest)
