Oracle 19c静默安装教程

Oracle 19c静默安装教程

---

一、虚拟机环境配置准备

Oracle安装软件包
通过网盘分享的文件：LINUX.X64_193000_db_home.zip
https://pan.baidu.com/s/1Z2nmIGQxoeBdI27XgE_LSw?pwd=9dk9

将软件上传到/opt目录下

1.配置yum源

Centos换源教程

2.host文件配置

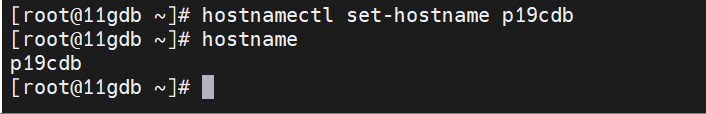

hostnamectl set-hostname p19cdb

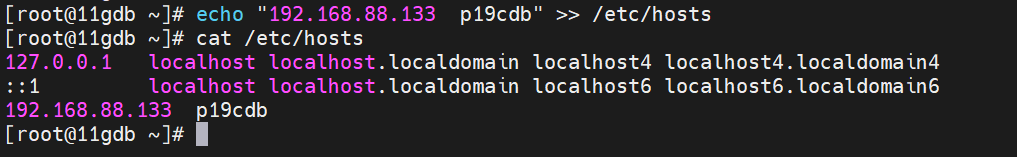

echo "192.168.88.133  p19cdb" >> /etc/hosts

二、Oracle环境配置

1.下载依赖包

yum -y install bc
yum -y install binutils
yum -y install compat-libcap1
yum -y install compat-libstdc++-33
yum -y install elfutils-libelf
yum -y install elfutils-libelf-devel
yum -y install fontconfig-devel
yum -y install glibc
yum -y install glibc-devel
yum -y install ksh
yum -y install libaio
yum -y install libaio-devel
yum -y install libX11
yum -y install libXau
yum -y install libXi
yum -y install libXtst
yum -y install libXrender
yum -y install libXrender-devel
yum -y install libgcc
yum -y install libstdc++
yum -y install libstdc++-Devel
yum -y install libxcb
yum -y install make
yum -y install smartmontools
yum -y install sysstat

2.创建用户和用户组

groupadd -g 60001 oinstall
groupadd -g 60002 dba
groupadd -g 60003 backupdba
groupadd -g 60004 dgdba
groupadd -g 60005 kmdba
groupadd -g 60006 racdba
groupadd -g 60007 asm
groupadd -g 60008 oper
useradd -u 61001 -g oinstall -G dba,backupdba,dgdba,kmdba,racdba,asm,oper  oracle

3.创建目录并赋予权限

mkdir -p /u01/app/oracle/product/19.3.0
chown -R oracle:oinstall /u01
chmod -R 775 /u01
su - oracle
cd /opt/
ls

4.修改资源限制参数

su - root
 vi /etc/security/limits.conf

 #ORACLE SETTING
 @oinstall    soft      nproc               16384
 @oinstall    hard      nproc 	            16384
 @oinstall    soft      nofile 	            16384
 @oinstall    hard      nofile              65536
 @oinstall    soft      stack               10240
 @oinstall 	  hard      stack               32768
 @oinstall 	  soft	    memlock             unlimit
 @oinstall	  hard      memlock             unlimit

5.修改内核参数

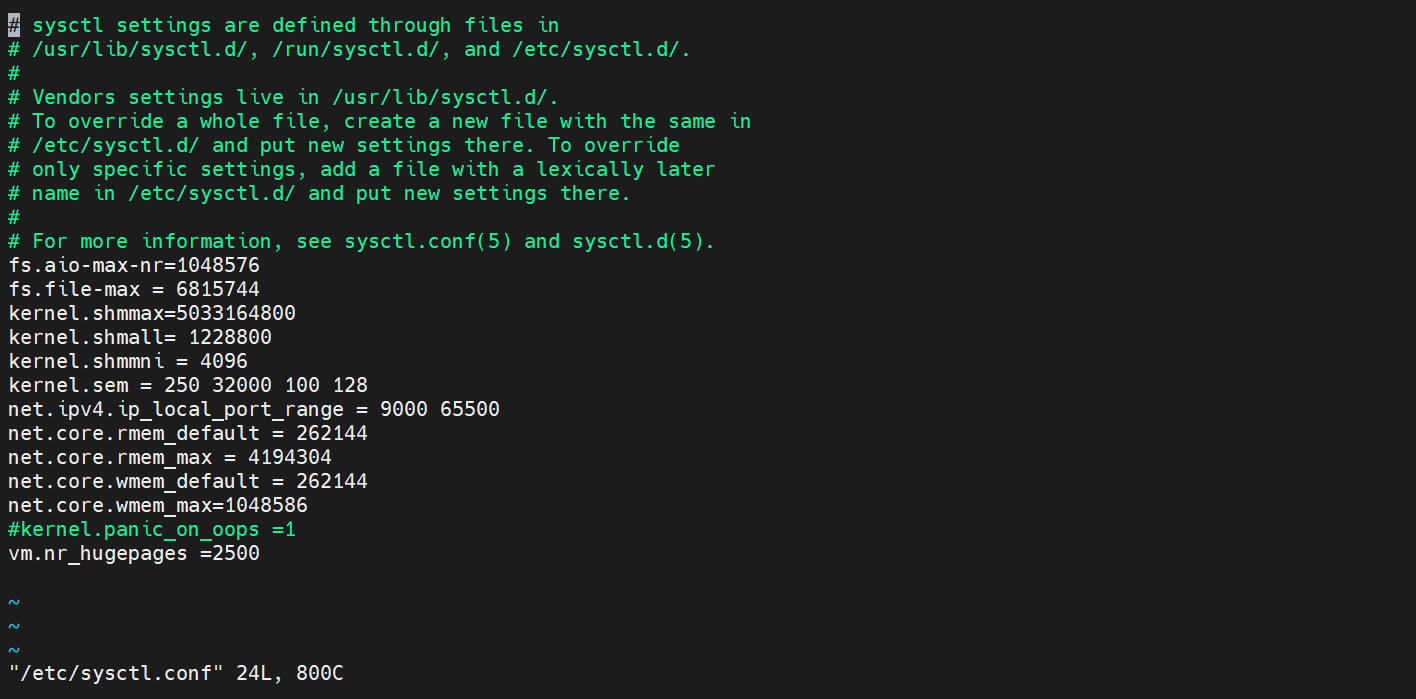

vi /etc/sysctl.conf

fs.aio-max-nr=1048576
fs.file-max = 6815744
kernel.shmmax=5033164800
kernel.shmall= 1228800
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max=1048586
#kernel.panic_on_oops =1
vm.nr_hugepages =2500

让其生效

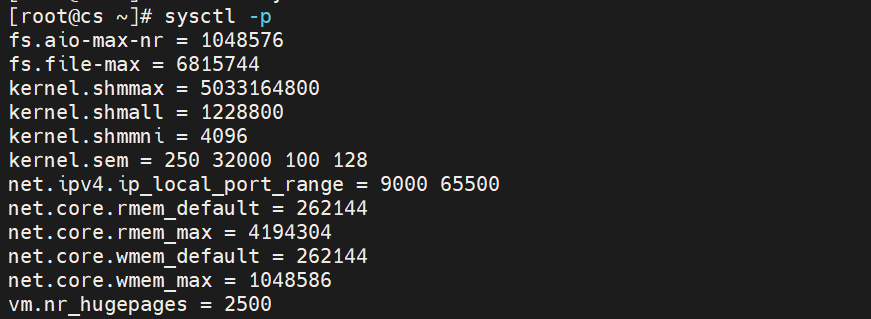

sysctl -p

6.配置安全

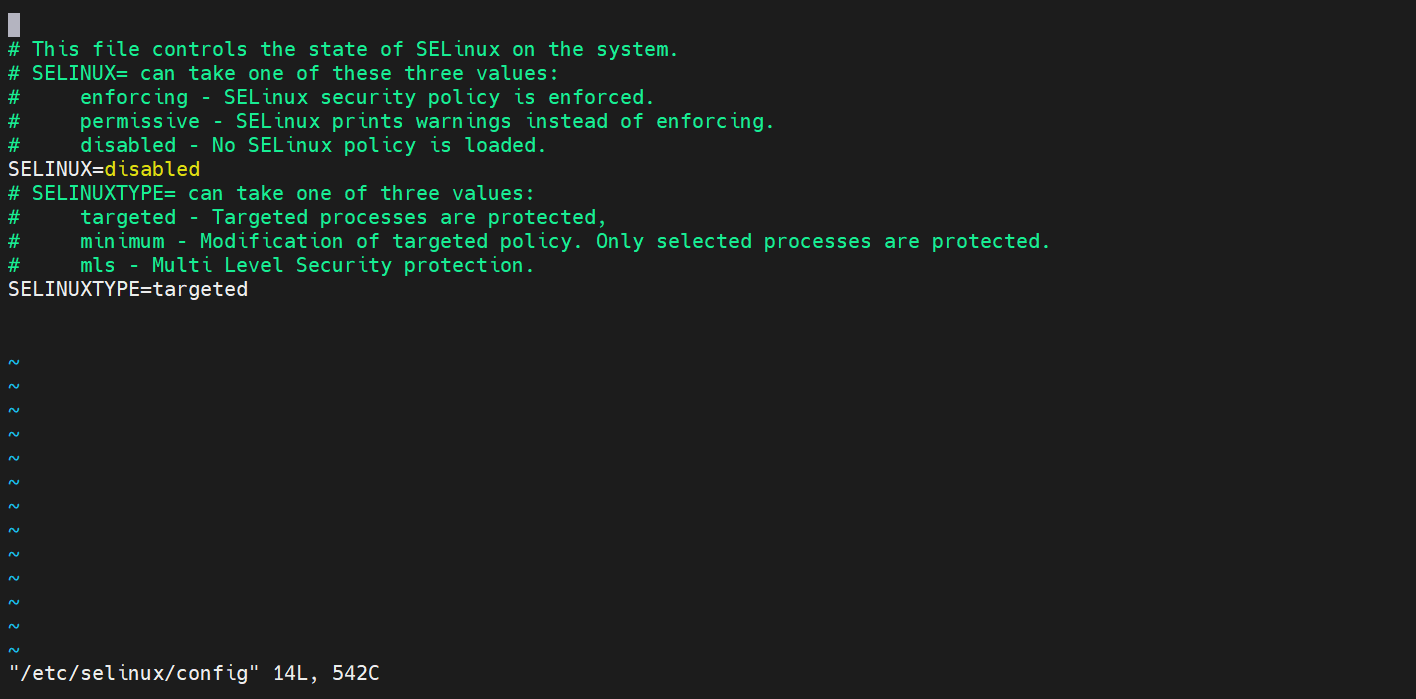

vi /etc/selinux/config

修改SELINUX=enforceing使其等于SELINUX=disabled

setenforce 0

7.配置Oracle环境变量

su - oracle
vi ~/.bash_profile

export PS1="[`whoami`@`hostname`:"'$PWD]$'
export ORACLE_BASE=/u01/app/oracle
export ORACLE_HOME=/u01/app/oracle/product/19.3.0
export PATH=$PATH:$ORACLE_HOME/bin:/usr/local/bin
export ORACLE_HOSTNAME=p19cdb
export ORACLE_SID=p19cdb
export LD_LIBRARY_PATH=$ORACLE_HOME/lib:$ORACLE_HOME/rdbms/lib:$ORACLE_HOME/network/lib:/lib:/usr/lib
export CLASSPATH=$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib:$ORACLE_HOME/network/jlib
export NLS_LANG="SIMPLIFIED CHINESE_CHINA.AL32UTF8"

使环境变量生效

. .bash_profile

三、安装Oracle数据库

1.解压到Oracle安装目录

cd /opt
unzip -q LINUX.X64_193000_db_home.zip -d $ORACLE_HOME
cd $ORACLE_HOME/install/response
cp db_install.rsp db_install.rsp.bak

2.编辑响应文件

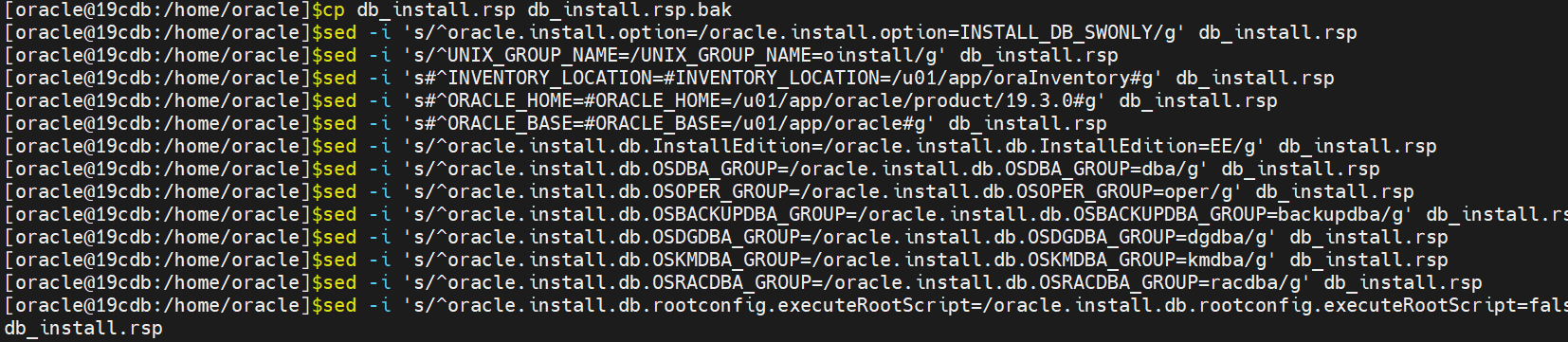

sed -i 's/^oracle.install.option=/oracle.install.option=INSTALL_DB_SWONLY/g' db_install.rsp
sed -i 's/^UNIX_GROUP_NAME=/UNIX_GROUP_NAME=oinstall/g' db_install.rsp
sed -i 's#^INVENTORY_LOCATION=#INVENTORY_LOCATION=/u01/app/oraInventory#g' db_install.rsp
sed -i 's#^ORACLE_HOME=#ORACLE_HOME=/u01/app/oracle/product/19.3.0#g' db_install.rsp
sed -i 's#^ORACLE_BASE=#ORACLE_BASE=/u01/app/oracle#g' db_install.rsp
sed -i 's/^oracle.install.db.InstallEdition=/oracle.install.db.InstallEdition=EE/g' db_install.rsp
sed -i 's/^oracle.install.db.OSDBA_GROUP=/oracle.install.db.OSDBA_GROUP=dba/g' db_install.rsp
sed -i 's/^oracle.install.db.OSOPER_GROUP=/oracle.install.db.OSOPER_GROUP=oper/g' db_install.rsp
sed -i 's/^oracle.install.db.OSBACKUPDBA_GROUP=/oracle.install.db.OSBACKUPDBA_GROUP=backupdba/g' db_install.rsp
sed -i 's/^oracle.install.db.OSDGDBA_GROUP=/oracle.install.db.OSDGDBA_GROUP=dgdba/g' db_install.rsp
sed -i 's/^oracle.install.db.OSKMDBA_GROUP=/oracle.install.db.OSKMDBA_GROUP=kmdba/g' db_install.rsp
sed -i 's/^oracle.install.db.OSRACDBA_GROUP=/oracle.install.db.OSRACDBA_GROUP=racdba/g' db_install.rsp
sed -i 's/^oracle.install.db.rootconfig.executeRootScript=/oracle.install.db.rootconfig.executeRootScript=false/g' db_install.rsp

3.查看是否编辑成功

cat db_install.rsp | grep 'oracle.install.option'
cat db_install.rsp | grep 'UNIX_GROUP_NAME'
cat db_install.rsp | grep 'INVENTORY_LOCATION'
cat db_install.rsp | grep 'ORACLE_HOME'
cat db_install.rsp | grep 'ORACLE_BASE'
cat db_install.rsp | grep 'oracle.install.db.InstallEdition'
cat db_install.rsp | grep 'oracle.install.db.OSDBA_GROUP'
cat db_install.rsp | grep 'oracle.install.db.OSOPER_GROUP'
cat db_install.rsp | grep 'oracle.install.db.OSBACKUPDBA_GROUP'
cat db_install.rsp | grep 'oracle.install.db.OSDGDBA_GROUP'
cat db_install.rsp | grep 'oracle.install.db.OSKMDBA_GROUP'
cat db_install.rsp | grep 'oracle.install.db.OSRACDBA_GROUP'
cat db_install.rsp | grep 'oracle.install.db.rootconfig.executeRootScript'

4.使用响应文件运行Oracle Universal Installer

cd $ORACLE_HOME
./runInstaller -silent -responseFile /u01/app/oracle/product/19.3.0/install/response/db_install.rsp

在root用户下执行

/u01/app/oraInventory/orainstRoot.sh
/u01/app/oracle/product/19.3.0/root.sh

四、创建Oracle实例

1.配置监听

netca /silent /responseFile /u01/app/oracle/product/19.3.0/assistants/netca/netca.rsp

2.创建数据库

cd /u01/app/oracle/product/19.3.0/assistants/dbca
cp dbca.rsp dbca.rsp.bak

sed -i 's/^gdbName=/gdbName=p19cdb/g' dbca.rsp
sed -i 's/^sid=/sid=p19cdb/g' dbca.rsp

sed -i 's/^databaseConfigType=/databaseConfigType=SI/g' dbca.rsp
sed -i 's/^templateName=/templateName=General_Purpose.dbc/g' dbca.rsp

sed -i 's/^sysPassword=/sysPassword=123/g' dbca.rsp
sed -i 's/^systemPassword=/systemPassword=123/g' dbca.rsp

sed -i 's/^emConfiguration=/emConfiguration=DBEXPRESS/g' dbca.rsp
sed -i 's/^dbsnmpPassword=/dbsnmpPassword=123/g' dbca.rsp
sed -i 's#^datafileDestination=#datafileDestination=/u01/app/oracle/oradata#g' dbca.rsp
sed -i 's/^characterSet=/characterSet=AL32UTF8/g' dbca.rsp
sed -i 's/^totalMemory=/totalMemory=3100/g' dbca.rsp

执行安装

dbca -silent -createDatabase -responseFile /u01/app/oracle/product/19.3.0/assistants/dbca/dbca.rsp

这是密码的格式问题不用管

五.启动数据库

sqlplus / as sysdba

查看实例状态

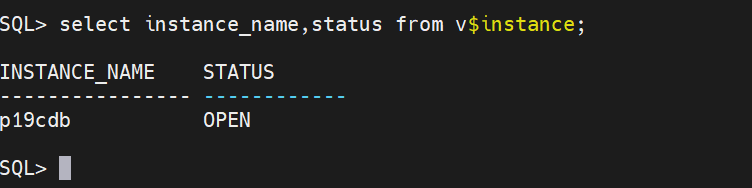

select instance_name,status from v$instance;

查看数据库状态

select name,open_mode from v$database;

创建表测试一下

create table cs (
 id number ,
 name varchar2(10)
  );
insert into cs values (1,'a');
insert into cs values (2,'b');
commit;
select * from cs;

测试完成，数据库创建完成。
结束
