DAY–30–saas-export项目–项目搭建（父子项目）

（一）导入数据库

-（1）数据库sql文件
sql

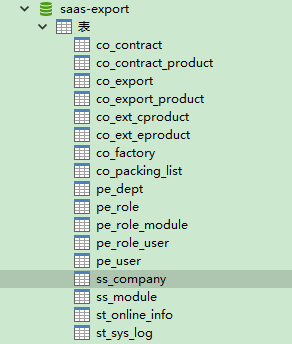

（2）执行SQL文件，查看生成的数据库与表

（二）创建父项目parent

（1）export_parent

删除父项目中的src文件
（2）添加pom.xml依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.lxy</groupId>
    <artifactId>export_parent</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>export_dao</module>
        <module>export_domain</module>
        <module>export_system_service</module>
        <module>export_web_manager</module>
    </modules>

    <!-- 定义依赖的版本号 -->
    <properties>


        <junit.version>4.12</junit.version>
        <spring.version>5.2.9.RELEASE</spring.version>
        <pagehelper.version>5.1.8</pagehelper.version>
        <servlet-api.version>2.5</servlet-api.version>
        <dubbo.version>2.8.4</dubbo.version>
        <zookeeper.version>3.4.7</zookeeper.version>
        <zkclient.version>0.1</zkclient.version>
        <mybatis.version>3.4.5</mybatis.version>
        <mybatis.spring.version>1.3.1</mybatis.spring.version>
        <mybatis.paginator.version>1.2.15</mybatis.paginator.version>
        <mysql.version>5.1.32</mysql.version>
        <druid.version>1.0.9</druid.version>
        <commons-fileupload.version>1.3.1</commons-fileupload.version>
        <jackson.version>2.9.5</jackson.version>
    </properties>
    <!-- 定义依赖 -->
    <dependencies>
        <!-- Spring -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aspects</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!-- Dubbo依赖包 -->
        <dependency>
            <groupId>javassist</groupId>
            <artifactId>javassist</artifactId>
            <version>3.11.0.GA</version>
        </dependency>
        <dependency>
            <groupId>commons-codec</groupId>
            <artifactId>commons-codec</artifactId>
            <version>1.10</version>
        </dependency>

        <!--web基础包 -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.5</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.0</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>jstl</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>

        <!-- Mybatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>${mybatis.version}</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>${mybatis.spring.version}</version>
        </dependency>
        <!-- mybatis分页插件 -->
        <dependency>
            <groupId>com.github.miemiedev</groupId>
            <artifactId>mybatis-paginator</artifactId>
            <version>${mybatis.paginator.version}</version>
        </dependency>
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper</artifactId>
            <version>${pagehelper.version}</version>
        </dependency>


        <!-- MySql -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>${mysql.version}</version>
        </dependency>
        <!-- 连接池 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>${druid.version}</version>
        </dependency>


        <!-- 文件上传组件 -->
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>${commons-fileupload.version}</version>
        </dependency>

        <!-- spring整合rabbitmq -->
        <dependency>
            <groupId>org.springframework.amqp</groupId>
            <artifactId>spring-rabbit</artifactId>
            <version>2.0.1.RELEASE</version>
        </dependency>

        <!-- xml解析器通用包：CXF WebService框架 -->
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpcore</artifactId>
            <version>4.4.4</version>
        </dependency>
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
            <version>4.5.3</version>
        </dependency>
        <dependency>
            <groupId>dom4j</groupId>
            <artifactId>dom4j</artifactId>
            <version>1.6.1</version>
        </dependency>
        <dependency>
            <groupId>xml-apis</groupId>
            <artifactId>xml-apis</artifactId>
            <version>1.4.01</version>
        </dependency>

        <!--shiro-->
        <!--shiro和spring整合-->
        <dependency>
            <groupId>org.apache.shiro</groupId>
            <artifactId>shiro-spring</artifactId>
            <version>1.3.2</version>
        </dependency>
        <!--shiro核心包-->
        <dependency>
            <groupId>org.apache.shiro</groupId>
            <artifactId>shiro-core</artifactId>
            <version>1.3.2</version>
        </dependency>

        <!--测试-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <scope>test</scope>
        </dependency>

        <!-- jackson支持包 -->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-core</artifactId>
            <version>${jackson.version}</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-annotations</artifactId>
            <version>${jackson.version}</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>${jackson.version}</version>
        </dependency>

        <!--日志包-->
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>1.7.25</version>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.17</version>
        </dependency>
    </dependencies>
</project>

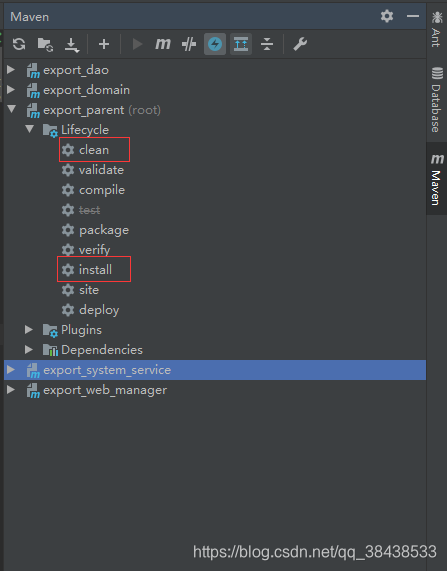

（3）在新建每一个父子工程时，给每个父子工程执行clean还有install，生成jar
（4）规划其他工程
<packaging>pom</packaging>
export_parent

<packaging>jar</packaging>
export_domain
export_dao
export_system_service

<packaging>war</packaging>
export_web_manager

创建子项目们

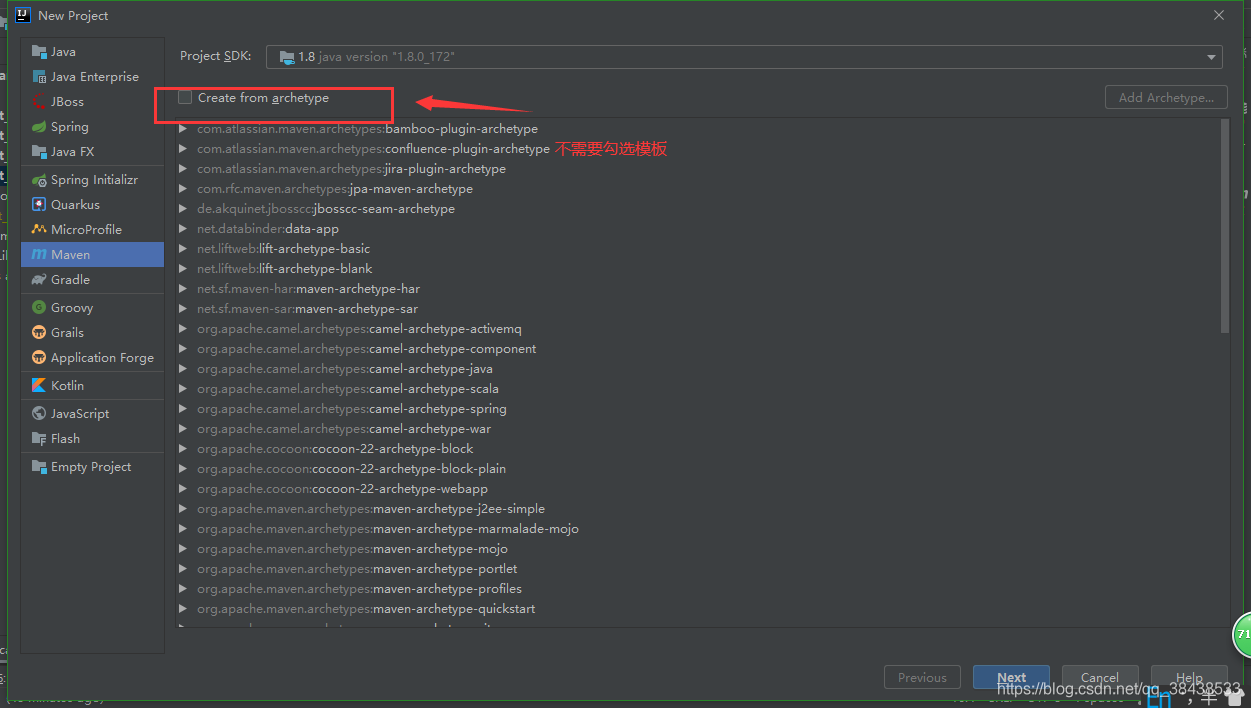

（1）创建子工程，不需要使用模板，最后一个web选一下，删除其他标签
（2）一定要选中parent 为【export_parent】
（3）每个模块创建完，第一次，要执行clean与install
（4）定义Company类即公司类
（5）通过dependencies完web依赖 service,service依赖dao,dao依赖domain
（6）建包，先分层再分模块
com.lxy.domain
现在
com.lxy.domain.company
com.lxy.domain.user

子项目之间依赖关系

dao依赖domain

 <dependencies>
        <dependency>
            <artifactId>export_domain</artifactId>
            <groupId>com.lxy</groupId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>

service依赖dao

 <dependencies>
        <dependency>
            <artifactId>export_dao</artifactId>
            <groupId>com.lxy</groupId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>

web依赖service

<dependency>
            <artifactId>export_system_service</artifactId>
            <groupId>com.lxy</groupId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
