本文介绍如何在VSCode中配置Electron应用的调试环境。通过创建tasks.json来定义调试任务，并修改launch.json来启动Electron主进程和服务。此外，还介绍了如何设置断点进行调试。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

.vscode目录添加tasks.json文件

{
  // See https://go.microsoft.com/fwlink/?LinkId=733558
  // for the documentation about the tasks.json format
  "version": "2.0.0",
  "tasks": [
    {
      "label": "electron-debug",
      "type": "process",
      "command": "./node_modules/.bin/vue-cli-service",
      "windows": {
        "command": "./node_modules/.bin/vue-cli-service.cmd"
      },
      "isBackground": true,
      "args": ["electron:serve", "--debug"],
      "problemMatcher": {
        "owner": "custom",
        "pattern": {
          "regexp": ""
        },
        "background": {
          "beginsPattern": "Starting development server\\.\\.\\.",
          "endsPattern": "Not launching electron as debug argument was passed\\."
        }
      }
    }
  ]
}

将.vscode目录下的launch.json文件修改如下

{
  "version": "0.2.0",
  "configurations": [
    {
      "name": "Electron: Main",
      "type": "node",
      "request": "launch",
      "protocol": "inspector",
      "runtimeExecutable": "${workspaceRoot}/node_modules/.bin/electron",
      "windows": {
        "runtimeExecutable": "${workspaceRoot}/node_modules/.bin/electron.cmd"
      },
      "preLaunchTask": "electron-debug",
      "args": ["--remote-debugging-port=9223", "./dist_electron"],
      "outFiles": ["${workspaceFolder}/dist_electron/**/*.js"]
    },
    {
      "name": "Electron: Renderer",
      "type": "chrome",
      "request": "attach",
      "port": 9223,
      "urlFilter": "http://localhost:*",
      "timeout": 30000,
      "webRoot": "${workspaceFolder}/src",
      "sourceMapPathOverrides": {
        "webpack:///./src/*": "${webRoot}/*"
      }
    }
  ],
  "compounds": [
    {
      "name": "Electron: All",
      "configurations": ["Electron: Main", "Electron: Renderer"]
    }
  ]
}

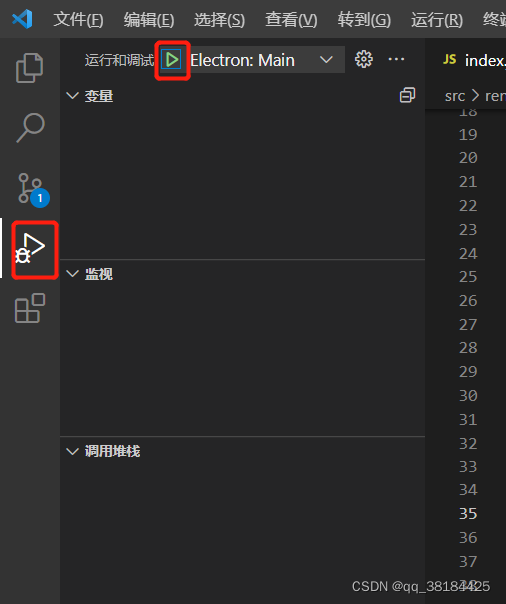

断点启动
在这里插入图片描述
