linux中安装seata，并且集成到nacos

1，下载seata1.4压缩包：

https://github.com/seata/seata/releases

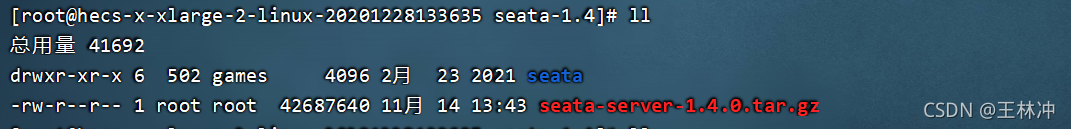

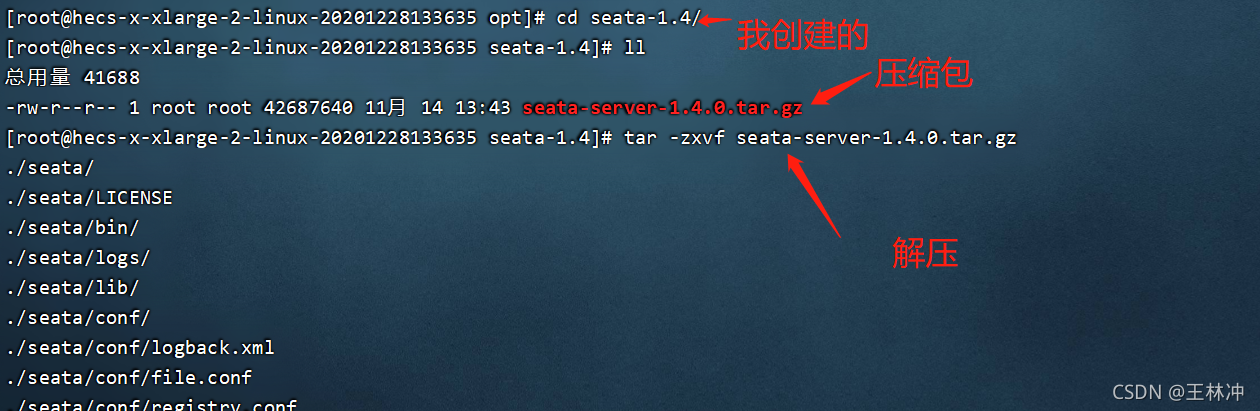

上传带linux服务器，并且解压，我上传到/opt/seata-1.4下

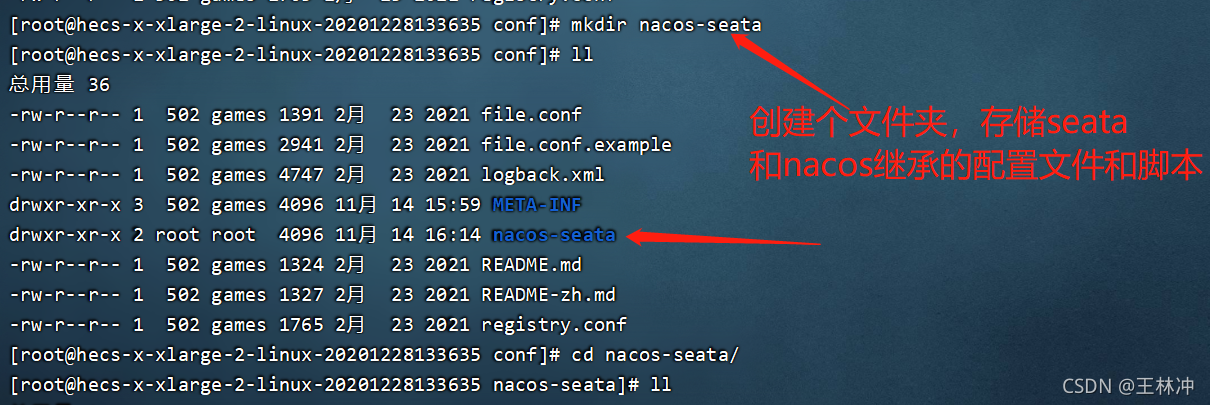

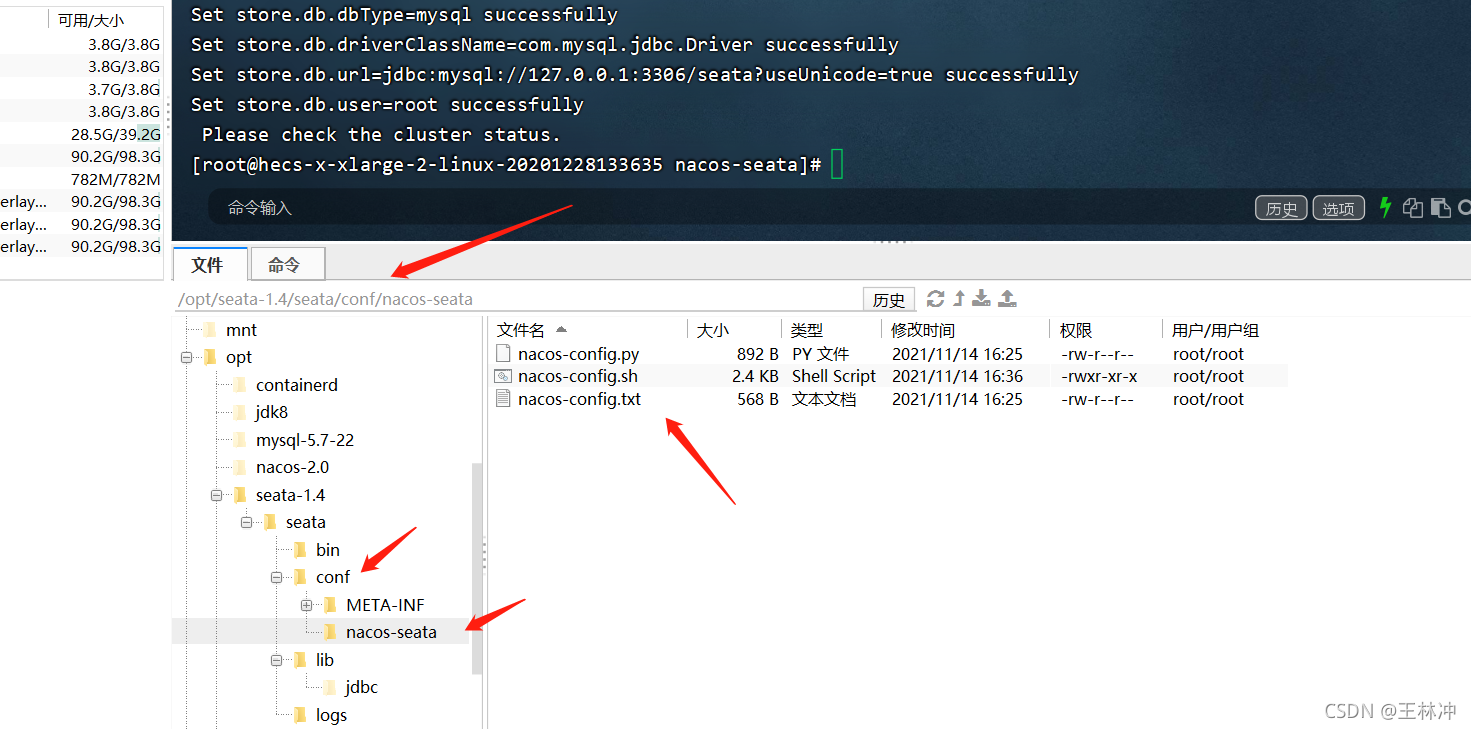

2，创建nacos-seata文件夹，存储nacos的脚本和配置

3，创建 nacos-config.sh，和 nacos-config.txt

我的在一个目录下的，一会儿改下nacos-config.sh的扫描nacos-config.txt路径就行

创建seata数据库：在你的mysql创建个seata数据库，执行下sql语句

-- -------------------------------- The script used when storeMode is 'db' --------------------------------
-- the table to store GlobalSession data
CREATE TABLE IF NOT EXISTS `global_table`
(
    `xid`                       VARCHAR(128) NOT NULL,
    `transaction_id`            BIGINT,
    `status`                    TINYINT      NOT NULL,
    `application_id`            VARCHAR(32),
    `transaction_service_group` VARCHAR(32),
    `transaction_name`          VARCHAR(128),
    `timeout`                   INT,
    `begin_time`                BIGINT,
    `application_data`          VARCHAR(2000),
    `gmt_create`                DATETIME,
    `gmt_modified`              DATETIME,
    PRIMARY KEY (`xid`),
    KEY `idx_gmt_modified_status` (`gmt_modified`, `status`),
    KEY `idx_transaction_id` (`transaction_id`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;

-- the table to store BranchSession data
CREATE TABLE IF NOT EXISTS `branch_table`
(
    `branch_id`         BIGINT       NOT NULL,
    `xid`               VARCHAR(128) NOT NULL,
    `transaction_id`    BIGINT,
    `resource_group_id` VARCHAR(32),
    `resource_id`       VARCHAR(256),
    `branch_type`       VARCHAR(8),
    `status`            TINYINT,
    `client_id`         VARCHAR(64),
    `application_data`  VARCHAR(2000),
    `gmt_create`        DATETIME(6),
    `gmt_modified`      DATETIME(6),
    PRIMARY KEY (`branch_id`),
    KEY `idx_xid` (`xid`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;

-- the table to store lock data
CREATE TABLE IF NOT EXISTS `lock_table`
(
    `row_key`        VARCHAR(128) NOT NULL,
    `xid`            VARCHAR(96),
    `transaction_id` BIGINT,
    `branch_id`      BIGINT       NOT NULL,
    `resource_id`    VARCHAR(256),
    `table_name`     VARCHAR(32),
    `pk`             VARCHAR(36),
    `gmt_create`     DATETIME,
    `gmt_modified`   DATETIME,
    PRIMARY KEY (`row_key`),
    KEY `idx_branch_id` (`branch_id`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;

nacos-config.txt内容：

#我的只是mysql的DB模式，就需要这些，你若是用其他的，可以保留其他配置
service.vgroupMapping.my_test_tx_group=default
service.default.grouplist=127.0.0.1:8091
service.enableDegrade=false
service.disableGlobalTransaction=false
store.mode=db
store.db.datasource=druid
store.db.dbType=mysql
store.db.driverClassName=com.mysql.jdbc.Driver
store.db.url=jdbc:mysql://127.0.0.1:3306/seata?useUnicode=true
store.db.user=root
store.db.password=xxxxxxxx123456@
store.db.minConn=5
store.db.maxConn=30
store.db.globalTable=global_table
store.db.branchTable=branch_table
store.db.queryLimit=100
store.db.lockTable=lock_table
store.db.maxWait=5000

nacos-config.sh内容：

#!/usr/bin/env bash
# Copyright 1999-2019 Seata.io Group.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at、
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

while getopts ":h:p:g:t:u:w:" opt
do
  case $opt in
  h)
    host=$OPTARG
    ;;
  p)
    port=$OPTARG
    ;;
  g)
    group=$OPTARG
    ;;
  t)
    tenant=$OPTARG
    ;;
  u)
    username=$OPTARG
    ;;
  w)
    password=$OPTARG
    ;;
  ?)
    echo " USAGE OPTION: $0 [-h host] [-p port] [-g group] [-t tenant] [-u username] [-w password] "
    exit 1
    ;;
  esac
done

if [[ -z ${host} ]]; then
    host=localhost
fi
if [[ -z ${port} ]]; then
    port=8848
fi
if [[ -z ${group} ]]; then
    group="SEATA_GROUP"
fi
if [[ -z ${tenant} ]]; then
    tenant=""
fi
if [[ -z ${username} ]]; then
    username=""
fi
if [[ -z ${password} ]]; then
    password=""
fi

nacosAddr=$host:$port
contentType="content-type:application/json;charset=UTF-8"

echo "set nacosAddr=$nacosAddr"
echo "set group=$group"

failCount=0
tempLog=$(mktemp -u)
function addConfig() {
  curl -X POST -H "${contentType}" "http://$nacosAddr/nacos/v1/cs/configs?dataId=$1&group=$group&content=$2&tenant=$tenant&username=$username&password=$password" >"${tempLog}" 2>/dev/null
  if [[ -z $(cat "${tempLog}") ]]; then
    echo " Please check the cluster status. "
    exit 1
  fi
  if [[ $(cat "${tempLog}") =~ "true" ]]; then
    echo "Set $1=$2 successfully "
  else
    echo "Set $1=$2 failure "
    (( failCount++ ))
  fi
}

count=0
# 刚刚$(dirname "$PWD")/nacos-seata/nacos-config.txt所在的路径，你的不一样，可以自己修改
for line in $(cat $(dirname "$PWD")/nacos-seata/nacos-config.txt | sed s/[[:space:]]//g); do
  (( count++ ))
 key=${line%%=*}
    value=${line#*=}
 addConfig "${key}" "${value}"
done

echo "========================================================================="
echo " Complete initialization parameters,  total-count:$count ,  failure-count:$failCount "
echo "========================================================================="

if [[ ${failCount} -eq 0 ]]; then
 echo " Init nacos config finished, please start seata-server. "
else
 echo " init nacos config fail. "
fi

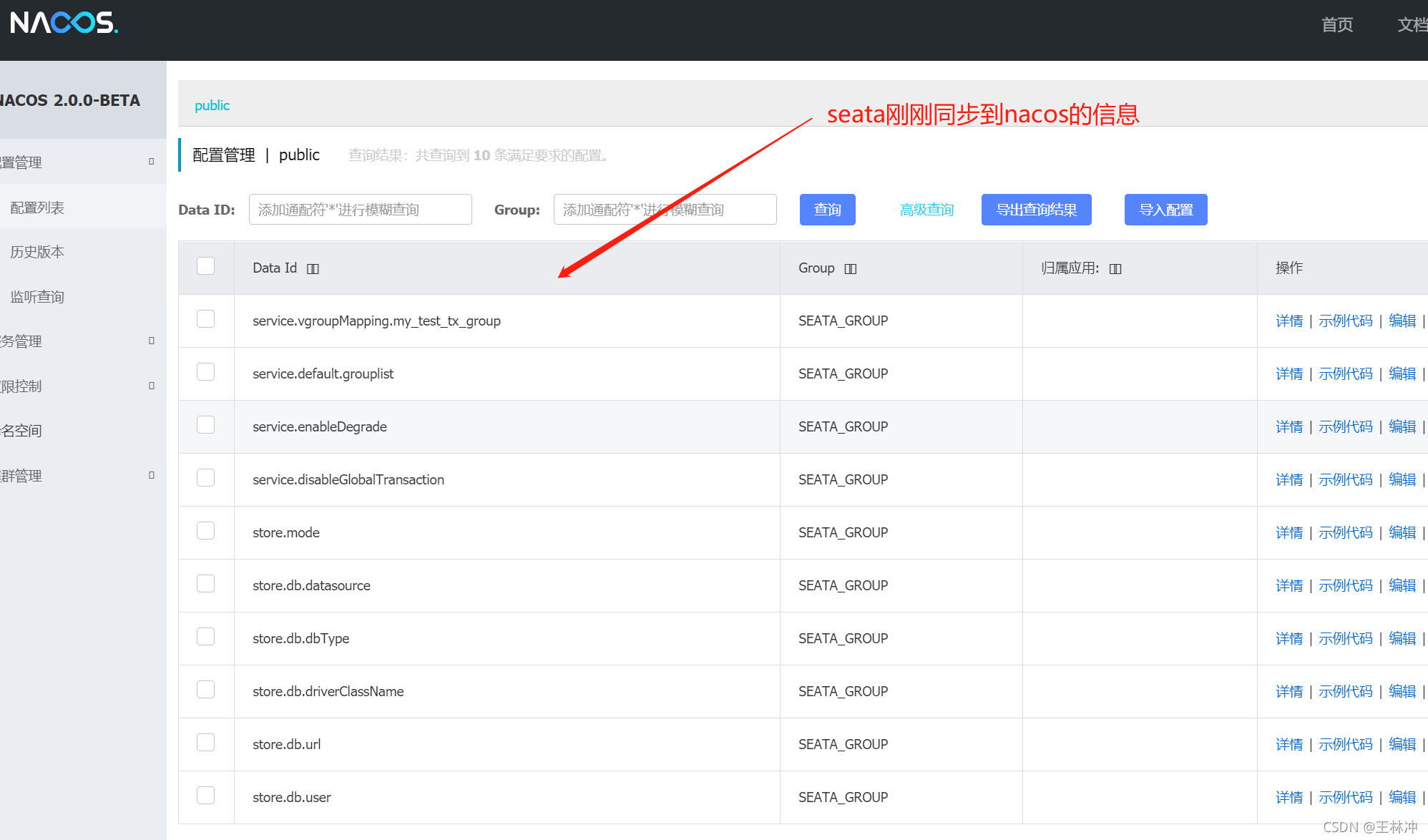

然后给nacos-config.sh执行权限即可，在执行如下命令：

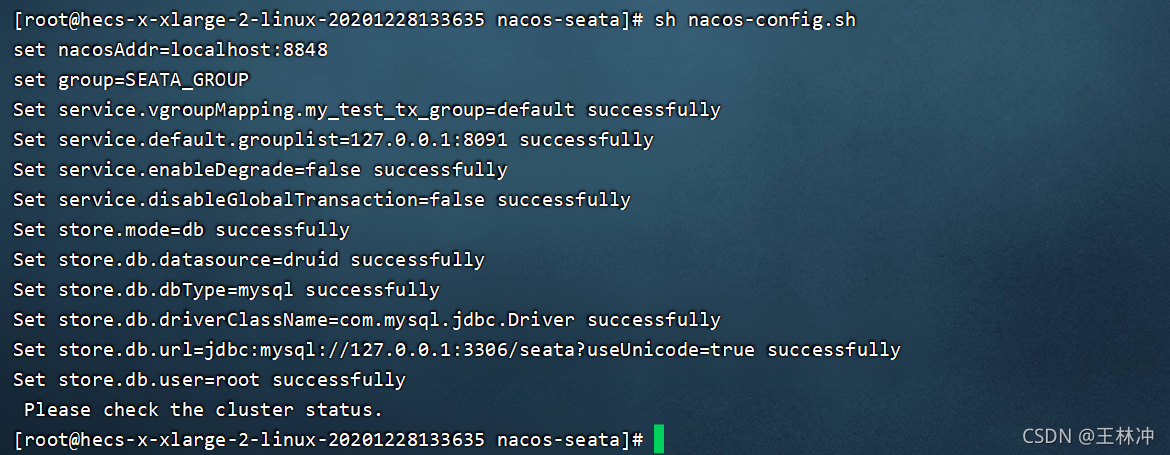

sh nacos-config.sh

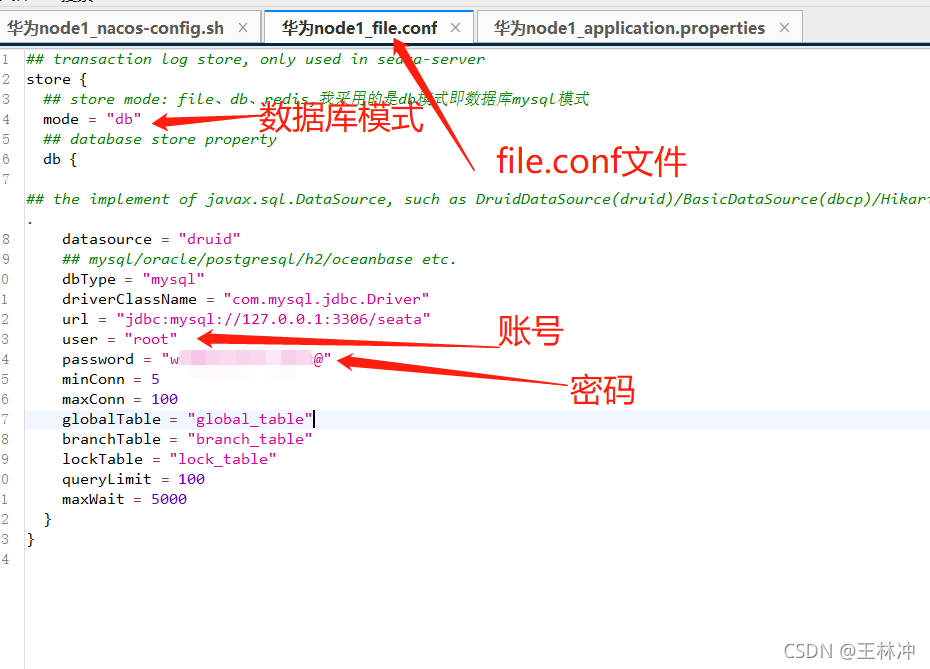

修改 seata/conf 目录中的 file.conf

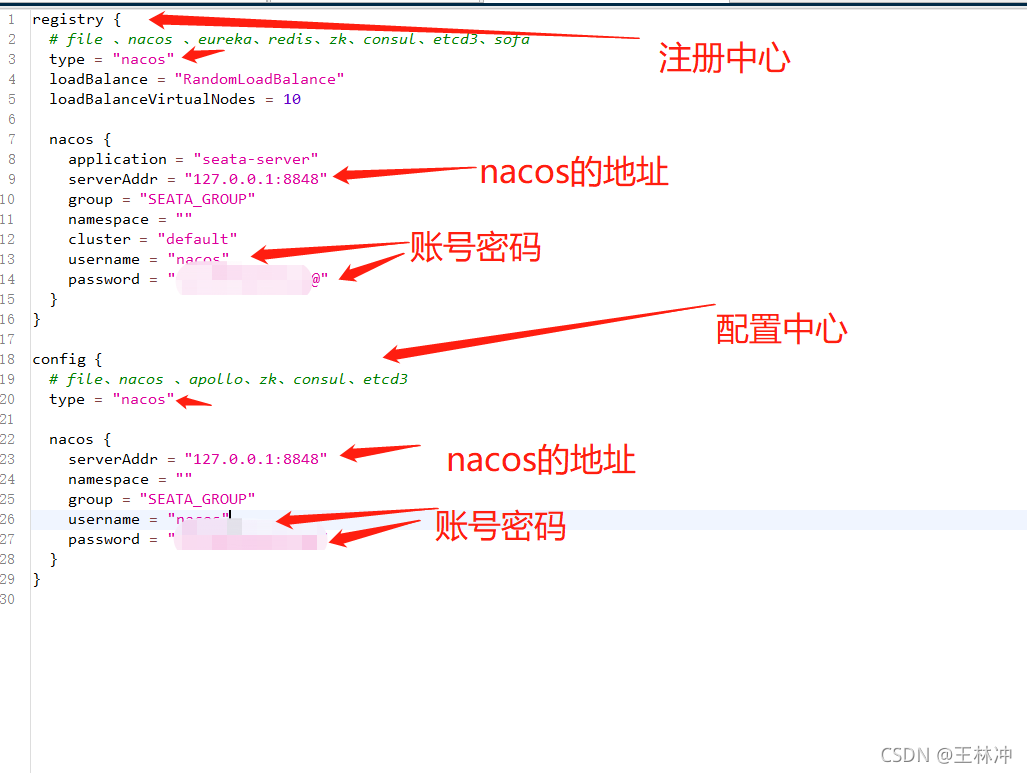

修改 seata/conf 目录中的 registry.conf，注册中心的配置，我们这边采用的nacos

 type 值改为 nacos

application 是注册到nacos的seata服务名称，默认即可

serverAddr 是 nacos 服务地址

group 是 seata 在 nacos上注册服务的分组

namespace 是 nacos 命名空间ID（如果使用默认的 public 命名空间，可以注掉这行）

username和password是nacos验证，没有开启就可以注掉

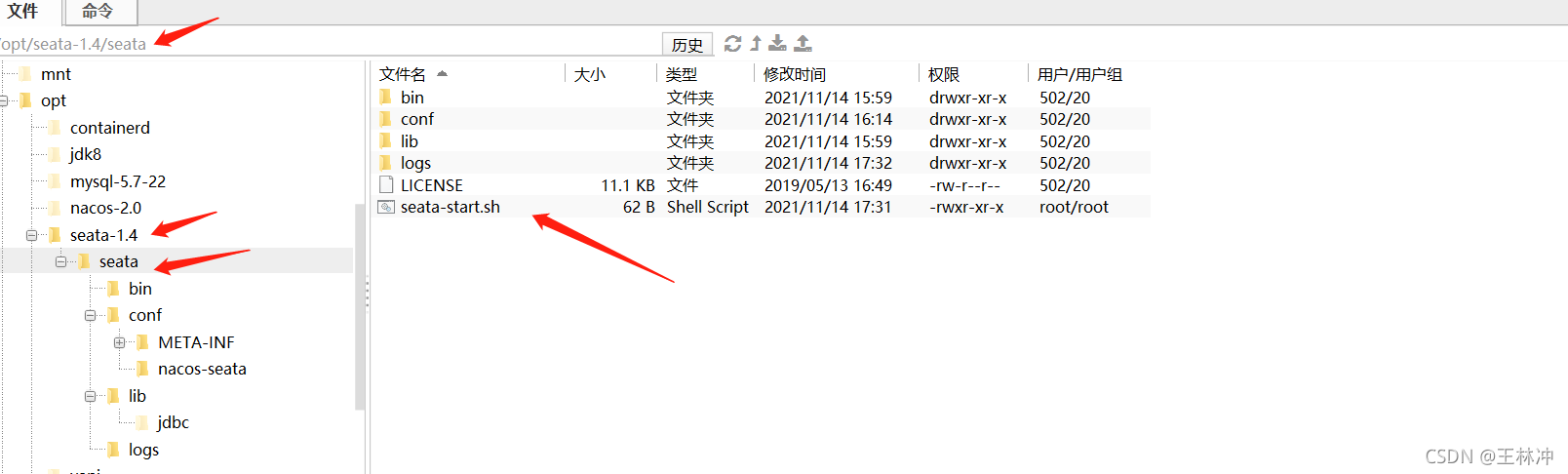

创建seata的启动sh脚本

touch seata-start.sh

脚本让内容如下：
nohup ./bin/seata-server.sh -p 8091 > ./logs/seata.log 2>&1 &  后台启动

给予seata-start.sh执行权限，

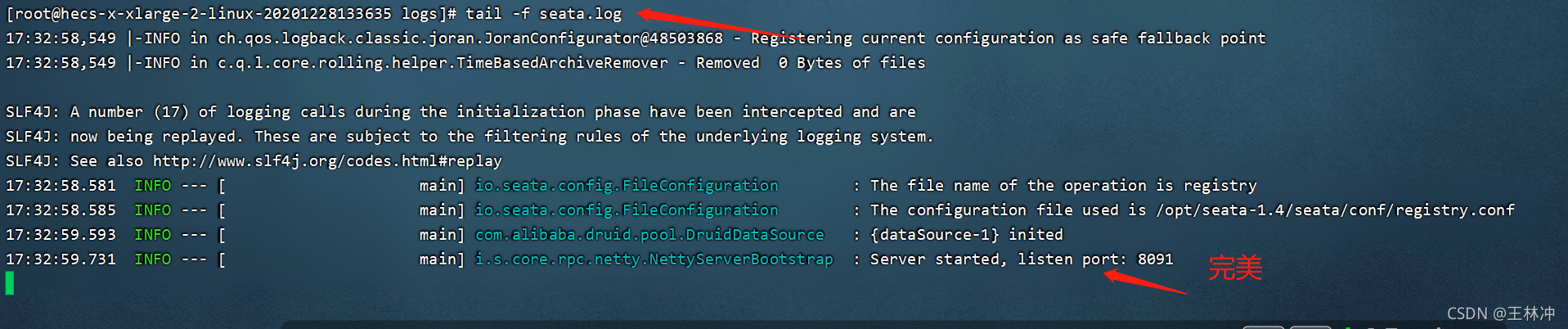

启动seata即可

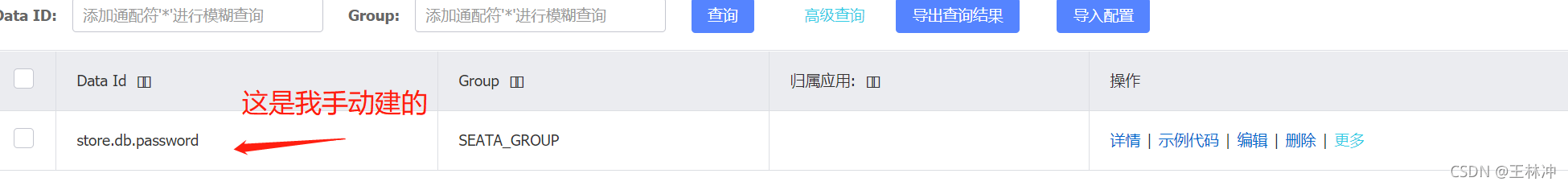

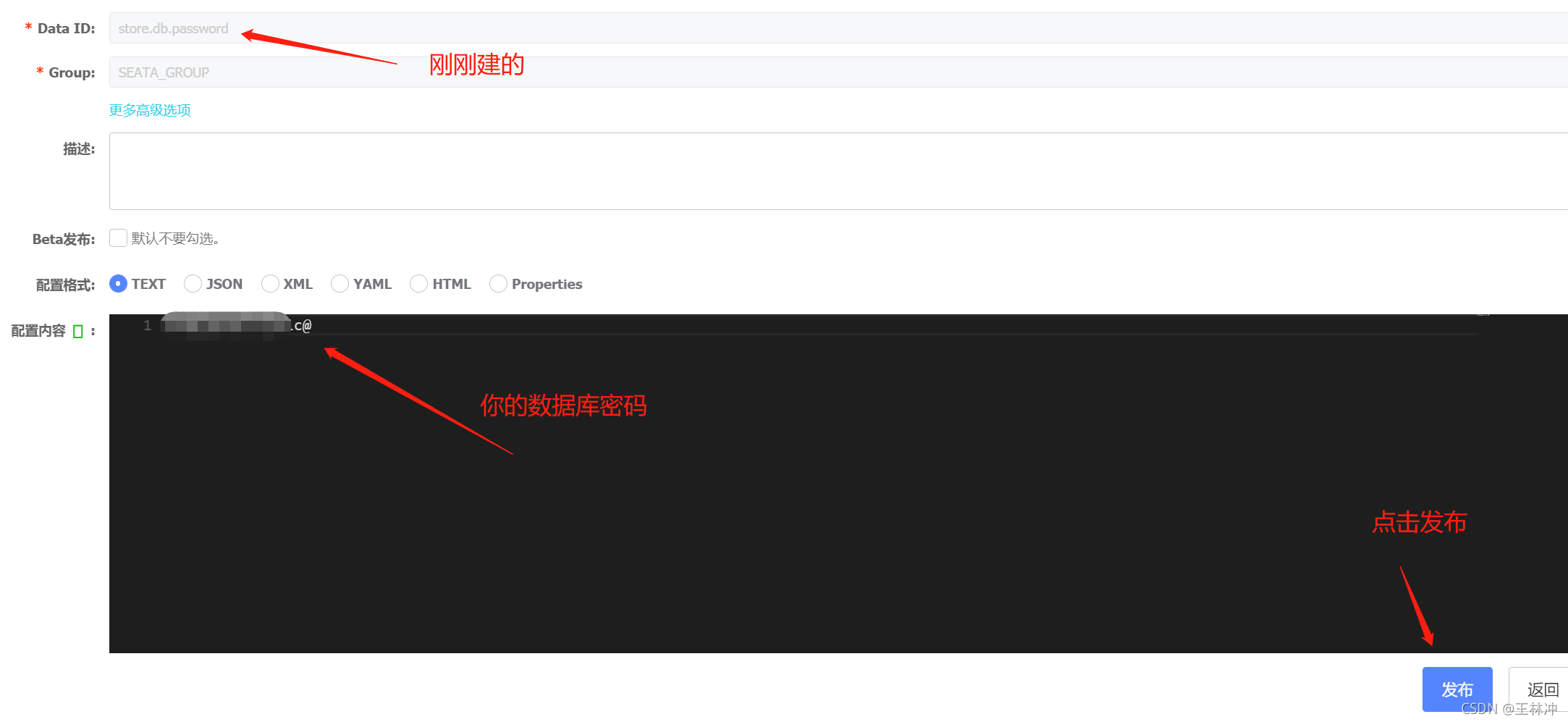

 我的一开始起不起来，是因为seata用nacos-config.sh同步nacos-config.txt是，数据库的密码总是同步步到nacos中，不得已手动在nacos上建了一个 store.db.password

 点击编辑，进去把你的数据库密码放进去就行，在点击发布

 在重新启动seata即可

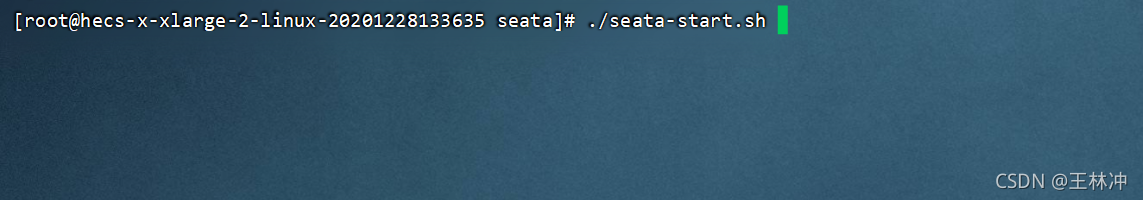

./seata-start.sh

为了方便对seata的管理，有了启动脚本，怎么没有停止和重启脚本，自己搞一个

我这里先创建一个根据进程名kill进程的一个脚本，取名 = kill-process.sh；

#!/bin/sh
#根据进程名杀死进程
if [ $# -lt 1 ]
then
  echo "缺少参数：procedure_name"
  exit 1
fi

PROCESS=`ps -ef|grep $1|grep -v grep|grep -v PPID|awk '{ print $2}'`
for i in $PROCESS
do
  echo "Kill the $1 process [ $i ]"
  kill -9 $i
done

再创建一个seata的stop脚本，取名 = seata-sop.sh，里面就是调用  kill-process.sh

seata-sop.sh：

#杀死进程名字 = seata 的进程
./kill-process.sh seata

再创建一个seata-restart.sh的脚本，处理seata的重启，里面就是调用 seata-stop.sh，再调用 seata-start.sh而已；

seata-restart.sh：

#执行停止脚本
./seata-stop.sh
echo "seata正在启动......"
#执行启动脚本
./seata-start.sh
# $?代表上个命令执行状态，如果 = 0，则说明执行成功
if [ $? -eq 0 ];then
    sleep 5s
    echo "seata启动成功......"
else
    echo "seata启动失败......"
fi

分别给这几个sh脚本执行权限，就可以直接执行对应脚本，来启动，停止，重启seata了
