1 前言

本章介绍下使用mic录制音频存放到tf卡中。
使用的是官方示例：https://gitee.com/EspressifSystems/esp-idf/tree/master/examples/peripherals/i2s/i2s_audio_recorder_sdcard

2 硬件

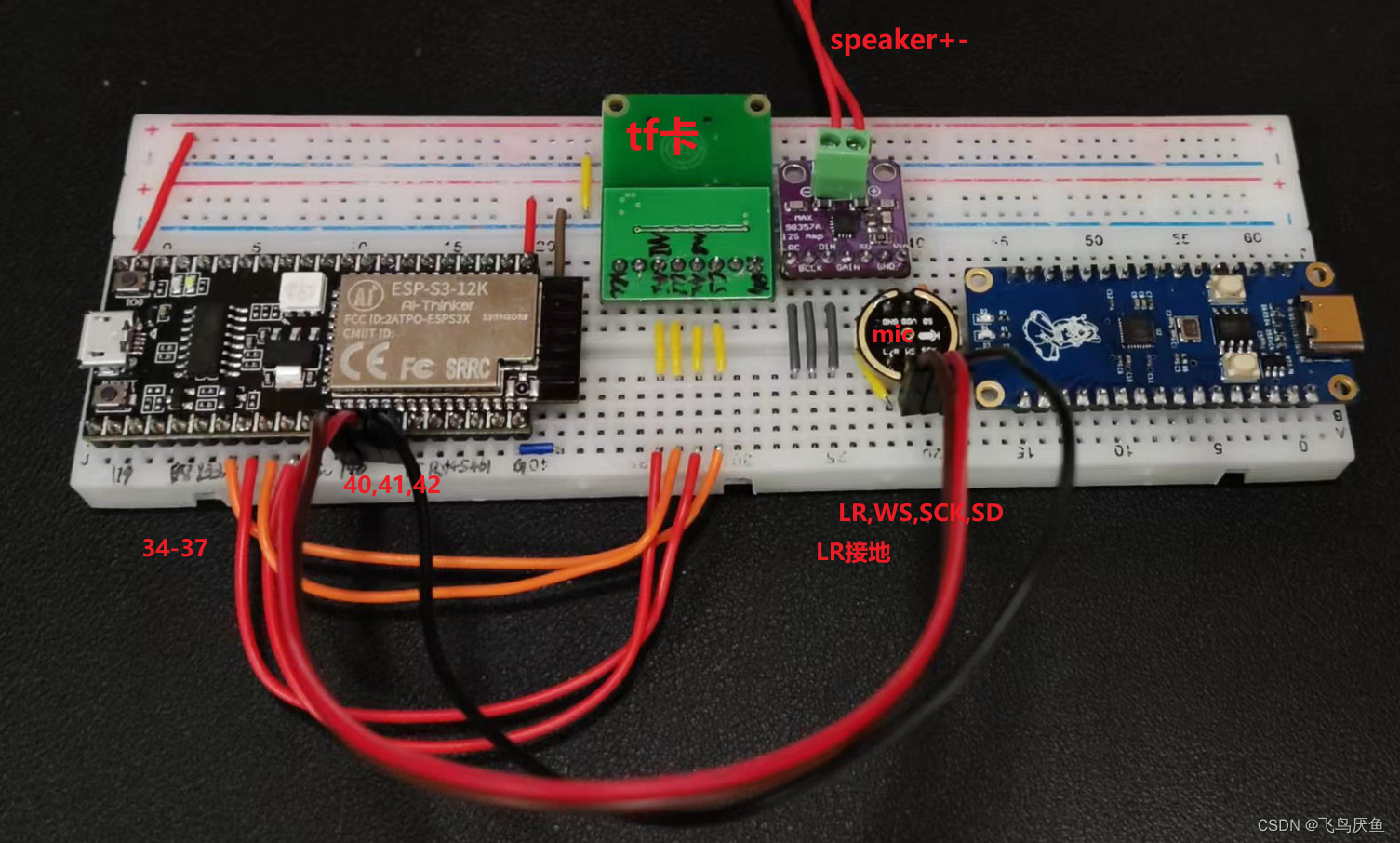

在这里插入图片描述

主要两块，tf卡的spi接线，mic的i2s接线

SPI_MOSI_GPIO 35
SPI_MISO_GPIO 37
SPI_SCLK_GPIO 36
SPI_CS_GPIO 34

I2S_BCK_GPIO 41
I2S_WS_GPIO 40
I2S_DATA_GPIO 42

3 代码

/* I2S Digital Microphone Recording Example

   This example code is in the Public Domain (or CC0 licensed, at your option.)

   Unless required by applicable law or agreed to in writing, this
   software is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR
   CONDITIONS OF ANY KIND, either express or implied.
*/
#include <stdio.h>
#include <string.h>
#include <math.h>
#include <sys/unistd.h>
#include <sys/stat.h>
#include "esp_log.h"
#include "esp_err.h"
#include "esp_system.h"
#include "esp_vfs_fat.h"
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "driver/i2s.h"
#include "driver/gpio.h"
#include "driver/spi_common.h"
#include "sdmmc_cmd.h"
#include "sdkconfig.h"

static const char* TAG = "pdm_rec_example";

#define SPI_DMA_CHAN        SPI_DMA_CH_AUTO
#define SD_MOUNT_POINT      "/sdcard"

#define NUM_CHANNELS        (1) // For mono recording only!
#define CONFIG_EXAMPLE_BIT_SAMPLE (16)
#define CONFIG_EXAMPLE_SAMPLE_RATE (36000)
#define SAMPLE_SIZE         (CONFIG_EXAMPLE_BIT_SAMPLE * 1024)
#define BYTE_RATE           (CONFIG_EXAMPLE_SAMPLE_RATE * (CONFIG_EXAMPLE_BIT_SAMPLE / 8)) * NUM_CHANNELS

#define CONFIG_EXAMPLE_I2S_CH 0

#define CONFIG_EXAMPLE_REC_TIME 2

#define CONFIG_EXAMPLE_I2S_BCK_GPIO 41
#define CONFIG_EXAMPLE_I2S_WS_GPIO 40
#define CONFIG_EXAMPLE_I2S_DATA_GPIO 42

// When testing SD and SPI modes, keep in mind that once the card has been
// initialized in SPI mode, it can not be reinitialized in SD mode without
// toggling power to the card.
sdmmc_host_t host = SDSPI_HOST_DEFAULT();
sdmmc_card_t* card;

#define CONFIG_EXAMPLE_SPI_MOSI_GPIO 35
#define CONFIG_EXAMPLE_SPI_MISO_GPIO 37
#define CONFIG_EXAMPLE_SPI_SCLK_GPIO 36
#define CONFIG_EXAMPLE_SPI_CS_GPIO 34

static int16_t i2s_readraw_buff[SAMPLE_SIZE];
size_t bytes_read;
const int WAVE_HEADER_SIZE = 44;

void mount_sdcard(void)
{
    esp_err_t ret;
    // Options for mounting the filesystem.
    // If format_if_mount_failed is set to true, SD card will be partitioned and
    // formatted in case when mounting fails.
    esp_vfs_fat_sdmmc_mount_config_t mount_config = {
        .format_if_mount_failed = true,
        .max_files = 5,
        .allocation_unit_size = 8 * 1024
    };
    ESP_LOGI(TAG, "Initializing SD card");

    spi_bus_config_t bus_cfg = {
        .mosi_io_num = CONFIG_EXAMPLE_SPI_MOSI_GPIO,
        .miso_io_num = CONFIG_EXAMPLE_SPI_MISO_GPIO,
        .sclk_io_num = CONFIG_EXAMPLE_SPI_SCLK_GPIO,
        .quadwp_io_num = -1,
        .quadhd_io_num = -1,
        .max_transfer_sz = 4000,
    };
    ret = spi_bus_initialize(host.slot, &bus_cfg, SPI_DMA_CHAN);
    if (ret != ESP_OK) {
        ESP_LOGE(TAG, "Failed to initialize bus.");
        return;
    }

    // This initializes the slot without card detect (CD) and write protect (WP) signals.
    // Modify slot_config.gpio_cd and slot_config.gpio_wp if your board has these signals.
    sdspi_device_config_t slot_config = SDSPI_DEVICE_CONFIG_DEFAULT();
    slot_config.gpio_cs = CONFIG_EXAMPLE_SPI_CS_GPIO;
    slot_config.host_id = host.slot;

    ret = esp_vfs_fat_sdspi_mount(SD_MOUNT_POINT, &host, &slot_config, &mount_config, &card);

    if (ret != ESP_OK) {
        if (ret == ESP_FAIL) {
            ESP_LOGE(TAG, "Failed to mount filesystem.");
        } else {
            ESP_LOGE(TAG, "Failed to initialize the card (%s). "
                "Make sure SD card lines have pull-up resistors in place.", esp_err_to_name(ret));
        }
        return;
    }

    // Card has been initialized, print its properties
    sdmmc_card_print_info(stdout, card);
}

void generate_wav_header(char* wav_header, uint32_t wav_size, uint32_t sample_rate){

    // See this for reference: http://soundfile.sapp.org/doc/WaveFormat/
    uint32_t file_size = wav_size + WAVE_HEADER_SIZE - 8;
    uint32_t byte_rate = BYTE_RATE;

    const char set_wav_header[] = {
        'R','I','F','F', // ChunkID
        file_size, file_size >> 8, file_size >> 16, file_size >> 24, // ChunkSize
        'W','A','V','E', // Format
        'f','m','t',' ', // Subchunk1ID
        0x10, 0x00, 0x00, 0x00, // Subchunk1Size (16 for PCM)
        0x01, 0x00, // AudioFormat (1 for PCM)
        0x01, 0x00, // NumChannels (1 channel)
        sample_rate, sample_rate >> 8, sample_rate >> 16, sample_rate >> 24, // SampleRate
        byte_rate, byte_rate >> 8, byte_rate >> 16, byte_rate >> 24, // ByteRate
        0x02, 0x00, // BlockAlign
        0x10, 0x00, // BitsPerSample (16 bits)
        'd','a','t','a', // Subchunk2ID
        wav_size, wav_size >> 8, wav_size >> 16, wav_size >> 24, // Subchunk2Size
    };

    memcpy(wav_header, set_wav_header, sizeof(set_wav_header));
}

void record_wav(uint32_t rec_time)
{
    // Use POSIX and C standard library functions to work with files.
    int flash_wr_size = 0;
    ESP_LOGI(TAG, "Opening file");

    char wav_header_fmt[WAVE_HEADER_SIZE];

    uint32_t flash_rec_time = BYTE_RATE * rec_time;
    generate_wav_header(wav_header_fmt, flash_rec_time, CONFIG_EXAMPLE_SAMPLE_RATE);

    // First check if file exists before creating a new file.
    struct stat st;
    if (stat(SD_MOUNT_POINT"/record.wav", &st) == 0) {
        // Delete it if it exists
        unlink(SD_MOUNT_POINT"/record.wav");
    }

    // Create new WAV file
    FILE* f = fopen(SD_MOUNT_POINT"/record.wav", "a");
    if (f == NULL) {
        ESP_LOGE(TAG, "Failed to open file for writing");
        return;
    }

    // Write the header to the WAV file
    fwrite(wav_header_fmt, 1, WAVE_HEADER_SIZE, f);

    // Start recording
    while (flash_wr_size < flash_rec_time) {
        // Read the RAW samples from the microphone (char *)
        i2s_read(CONFIG_EXAMPLE_I2S_CH, i2s_readraw_buff, SAMPLE_SIZE, &bytes_read, 100);
        // Write the samples to the WAV file
        // printf("%ls\n",i2s_readraw_buff);
        fwrite(i2s_readraw_buff, 1, bytes_read, f);
        flash_wr_size += bytes_read;

        printf("flash_wr_size = %d\n",flash_wr_size);
    }

    ESP_LOGI(TAG, "Recording done!");
    fclose(f);
    ESP_LOGI(TAG, "File written on SDCard");

    // All done, unmount partition and disable SPI peripheral
    esp_vfs_fat_sdcard_unmount(SD_MOUNT_POINT, card);
    ESP_LOGI(TAG, "Card unmounted");
    // Deinitialize the bus after all devices are removed
    spi_bus_free(host.slot);
}

void init_microphone(void)
{
    // Set the I2S configuration as PDM and 16bits per sample
    i2s_config_t i2s_config = {
        .mode = I2S_MODE_MASTER | I2S_MODE_RX , // | I2S_MODE_PDM,
        .sample_rate = CONFIG_EXAMPLE_SAMPLE_RATE,
        .bits_per_sample = I2S_BITS_PER_SAMPLE_16BIT,
        .channel_format = I2S_CHANNEL_FMT_ONLY_LEFT,
        .communication_format = I2S_COMM_FORMAT_STAND_I2S,
        .intr_alloc_flags = ESP_INTR_FLAG_LEVEL2,
        .dma_buf_count = 8,
        .dma_buf_len = 1024,
        .use_apll = 0,
    };

    // Set the pinout configuration (set using menuconfig)
    i2s_pin_config_t pin_config = {
        .mck_io_num = I2S_PIN_NO_CHANGE,
        .bck_io_num = CONFIG_EXAMPLE_I2S_BCK_GPIO,
        .ws_io_num = CONFIG_EXAMPLE_I2S_WS_GPIO,
        .data_out_num = I2S_PIN_NO_CHANGE,
        .data_in_num = CONFIG_EXAMPLE_I2S_DATA_GPIO,
    };

    // Call driver installation function before any I2S R/W operation.
    ESP_ERROR_CHECK( i2s_driver_install(CONFIG_EXAMPLE_I2S_CH, &i2s_config, 0, NULL) );
    ESP_ERROR_CHECK( i2s_set_pin(CONFIG_EXAMPLE_I2S_CH, &pin_config) );
    ESP_ERROR_CHECK( i2s_set_clk(CONFIG_EXAMPLE_I2S_CH, CONFIG_EXAMPLE_SAMPLE_RATE, I2S_BITS_PER_SAMPLE_16BIT, I2S_CHANNEL_MONO) );
}

void app_main(void)
{
    ESP_LOGI(TAG, "PDM microphone recording Example start");
    // Mount the SDCard for recording the audio file
    mount_sdcard();
    // Init the PDM digital microphone
    init_microphone();
    ESP_LOGI(TAG, "Starting recording for %d seconds!", CONFIG_EXAMPLE_REC_TIME);
    // Start Recording
    record_wav(CONFIG_EXAMPLE_REC_TIME);
    // Stop I2S driver and destroy
    ESP_ERROR_CHECK( i2s_driver_uninstall(CONFIG_EXAMPLE_I2S_CH) );
}
