项目介绍

目前，很多的软件在功能模块都会展示很多的功能按钮，并且支持根据自己的使用习惯进行排列。

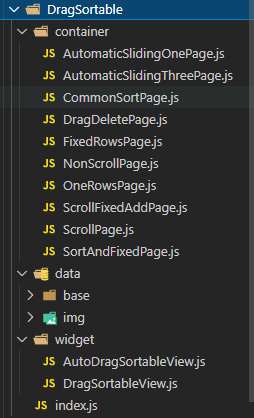

在Git hub上找到一个可以实现功能图标自由拖动的开源代码，主要的结构为container为各种模式的图标拖动界面，data为测试数据，widget为主要的依赖组件源代码。

先放上源码链接：GitHub源码
image-20210406143636497

主要功能代码：

图标拖动主要依赖以下两个组件，

AutoDragSortableView. js
import React, {Component} from 'react'
import {Animated, Dimensions, Easing, PanResponder, StyleSheet, TouchableOpacity, View, ScrollView,Platform} from 'react-native'
const PropTypes = require('prop-types')
const {width,height} = Dimensions.get('window')
const defaultZIndex = 8
const touchZIndex = 99
export default class AutoDragSortableView extends Component{
    constructor(props) {
        super(props)
        this.sortRefs = new Map()
        const itemWidth = props.childrenWidth+props.marginChildrenLeft+props.marginChildrenRight
        const itemHeight = props.childrenHeight + props.marginChildrenTop + props.marginChildrenBottom

        // this.reComplexDataSource(true,props) // react < 16.3
        // react > 16.3 Fiber
        const rowNum = parseInt(props.parentWidth / itemWidth);
        const dataSource = props.dataSource.map((item, index) => {
            const newData = {}
            const left = (index % rowNum) * itemWidth
            const top = parseInt((index / rowNum)) * itemHeight
            newData.data = item
            newData.originIndex = index
            newData.originLeft = left
            newData.originTop = top
            newData.position = new Animated.ValueXY({
                x: parseInt(left + 0.5),
                y: parseInt(top + 0.5),
            })
            newData.scaleValue = new Animated.Value(1)
            return newData
        });
        this.state = {
            dataSource: dataSource,
            curPropsDataSource: props.dataSource,
            height: Math.ceil(dataSource.length / rowNum) * itemHeight,
            itemWidth,
            itemHeight,
        };
        this._panResponder = PanResponder.create({
            onStartShouldSetPanResponder: (evt, gestureState) => true,
            onStartShouldSetPanResponderCapture: (evt, gestureState) => {
                this.isMovePanResponder = false
                return false
            },
            onMoveShouldSetPanResponder: (evt, gestureState) => this.isMovePanResponder,
            onMoveShouldSetPanResponderCapture: (evt, gestureState) => this.isMovePanResponder,
            onPanResponderGrant: (evt, gestureState) => {},
            onPanResponderMove: (evt, gestureState) => this.moveTouch(evt, gestureState),
            onPanResponderRelease: (evt, gestureState) => this.endTouch(evt),
            onPanResponderTerminationRequest: (evt, gestureState) => false,
            onShouldBlockNativeResponder: (evt, gestureState) => false,
        })
    }
    // react > 16.3 Fiber
    static getDerivedStateFromProps(nextprops, prevState) {
        const itemWidth = nextprops.childrenWidth + nextprops.marginChildrenLeft + nextprops.marginChildrenRight
        const itemHeight = nextprops.childrenHeight + nextprops.marginChildrenTop + nextprops.marginChildrenBottom
        if (nextprops.dataSource != prevState.curPropsDataSource || itemWidth !== prevState.itemWidth || itemHeight !== prevState.itemHeight) {

            const rowNum = parseInt(nextprops.parentWidth / itemWidth);
            const dataSource = nextprops.dataSource.map((item, index) => {
                const newData = {};
                const left = index % rowNum * itemWidth;
                const top = parseInt(index / rowNum) * itemHeight;
                newData.data = item;
                newData.originIndex = index;
                newData.originLeft = left;
                newData.originTop = top;
                newData.position = new Animated.ValueXY({
                    x: parseInt(left + 0.5),
                    y: parseInt(top + 0.5),
                });
                newData.scaleValue = new Animated.Value(1);
                return newData;
            });
            return {
                dataSource: dataSource,
                curPropsDataSource: nextprops.dataSource,
                height: Math.ceil(dataSource.length / rowNum) * itemHeight,
                itemWidth,
                itemHeight,
            }
        }
        return null;
    }
    componentDidMount() {
        this.initTag()
        this.autoMeasureHeight()
    }
    componentDidUpdate() {
        this.autoMeasureHeight()
    }
    // Compatible with different systems and paging loading
    autoMeasureHeight = () => {
        if (!this.isHasMeasure) {
            setTimeout(()=>{
                this.scrollTo(1, false)
                this.scrollTo(0, false)
            }, 30)
        }
    }
    // Initialization tag
    initTag = () => {
        this.clearAutoInterval();
        this.autoObj = {
            curDy: 0,
            scrollDx: 0,
            scrollDy: 0,
            hasScrollDy: null,
            forceScrollStatus: 0, // 0: NONE 1: DOWN 2: ONLY_DOWN -1: UP -2: ONLY_UP
        }
    }
    // Unified processing
    dealtScrollStatus = () => {
        const scrollData = this.curScrollData;
        if (scrollData == null || scrollData.offsetY == null) return;
        const { totalHeight, windowHeight, offsetY } = scrollData;
        if (totalHeight <= windowHeight + offsetY) {
            this.autoObj.forceScrollStatus = -2;
        } else if (offsetY <= 0) {
            this.autoObj.forceScrollStatus = 2;
        }
    }
    // Handle automatic slide timer
    clearAutoInterval = () => {
        if (this.autoInterval) {
            clearInterval(this.autoInterval);
            this.autoInterval = null;
        }
    }
    startAutoScroll = () => {
        if (this.autoInterval != null) {
            return;
        }
        // Start automatic swipe
        this.autoInterval = setInterval(() => {
            if (this.autoObj.forceScrollStatus === 0 ||
                this.autoObj.forceScrollStatus === 2 ||
                this.autoObj.forceScrollStatus === -2) {
                this.clearAutoInterval();
                return;
            }
            // Anti-shake 1.x1
            if (!this.curScrollData.hasScroll) {
                return;
            }
            if (this.autoObj.forceScrollStatus === 1) {
                this.autoObj.scrollDy = this.autoObj.scrollDy + this.props.autoThrottle;
            } else if (this.autoObj.forceScrollStatus === -1){
                this.autoObj.scrollDy = this.autoObj.scrollDy - this.props.autoThrottle;
            }
            this.scrollTo(this.autoObj.scrollDy, false);
            this.dealtScrollStatus();
            // Android slide time 30ms-50ms, iOS close to 0ms, optimize Android jitter
            if (Platform.OS === 'android') {
                setTimeout(()=>{
                    if (this.isHasMove) this.moveTouch(null,{dx: this.autoObj.scrollDx, dy: this.autoObj.curDy + this.autoObj.scrollDy})
                },1)
            } else {
                this.moveTouch(null,{dx: this.autoObj.scrollDx, dy: this.autoObj.curDy + this.autoObj.scrollDy})
            }

        }, this.props.autoThrottleDuration)
    }
    startTouch(touchIndex) {
        //Prevent drag
        const fixedItems = this.props.fixedItems;
        if (fixedItems.length > 0 && fixedItems.includes(touchIndex)){
            return;
        }
        this.isHasMove = false
        this.isHasMeasure = true

        if (!this.props.sortable) return

        const key = this._getKey(touchIndex);
        if (this.sortRefs.has(key)) {
            // Initialization data
            if (this.isStartupAuto()) {
                this.autoObj.scrollDy = this.autoObj.hasScrollDy = this.curScrollData.offsetY;
            }

            this.setState({
                scrollEnabled: false
            })
            if (this.props.onDragStart) {
                this.props.onDragStart(touchIndex)
            }
            Animated.timing(
                this.state.dataSource[touchIndex].scaleValue,
                {
                    toValue: this.props.maxScale,
                    duration: this.props.scaleDuration,
                    useNativeDriver: false,
                }
            ).start(()=>{
                this.touchCurItem = {
                    ref: this.sortRefs.get(key),
                    index: touchIndex,
                    originLeft: this.state.dataSource[touchIndex].originLeft,
                    originTop: this.state.dataSource[touchIndex].originTop,
                    moveToIndex: touchIndex,
                }
                this.isMovePanResponder = true
            })
        }
    }

    moveTouch (nativeEvent,gestureState) {
        this.isHasMove = true;
        if (this.touchCurItem) {
            let {dx, dy, vy} = gestureState;
            const itemWidth = this.state.itemWidth;
            const itemHeight = this.state.itemHeight;
            const rowNum = parseInt(this.props.parentWidth/itemWidth);
            const maxWidth = this.props.parentWidth-itemWidth;
            const maxHeight = itemHeight*Math.ceil(this.state.dataSource.length/rowNum) - itemHeight;
            // Is it free to drag
            if (!this.props.isDragFreely) {
                // Maximum or minimum after out of bounds
                if (this.touchCurItem.originLeft + dx < 0) {
                    dx = -this.touchCurItem.originLeft
                } else if (this.touchCurItem.originLeft + dx > maxWidth) {
                    dx = maxWidth - this.touchCurItem.originLeft
                }
                if (!this.isStartupAuto()) {
                    if (this.touchCurItem.originTop + dy < 0) {
                        dy = -this.touchCurItem.originTop
                    } else if (this.touchCurItem.originTop + dy > maxHeight) {
                        dy = maxHeight - this.touchCurItem.originTop
                    }
                }
            }
            if (this.isStartupAuto()) {
                const curDis = this.touchCurItem.originTop + dy - this.autoObj.hasScrollDy;
                if (nativeEvent != null) {
                    const tempStatus = this.autoObj.forceScrollStatus;
                    // Automatic sliding
                    const minDownDiss = curDis + this.props.childrenHeight * (1 + (this.props.maxScale - 1) / 2) + this.props.marginChildrenTop + this.props.headerViewHeight;
                    const maxUpDiss = curDis + this.props.marginChildrenTop + this.props.headerViewHeight;
                    if ((tempStatus === 0 || tempStatus === 2) && vy > 0.01 && minDownDiss > this.curScrollData.windowHeight) {
                        this.autoObj.curDy = dy;
                        this.autoObj.forceScrollStatus = 1;
                        this.startAutoScroll();
                    } else if ((tempStatus === 0 || tempStatus === -2) && -vy > 0.01 && maxUpDiss < 0) {
                        this.autoObj.curDy = dy;
                        this.autoObj.forceScrollStatus = -1;
                        this.startAutoScroll();
                    }
                }
                // Determine whether to change steering
                if (vy != null) {
                    // Slide down 1、2
                    if (this.autoObj.forceScrollStatus >= 1 && -vy > 0.01) {
                        this.autoObj.forceScrollStatus = 0;
                        // Slide up -1、-2
                    } else if (this.autoObj.forceScrollStatus <= -1 && vy > 0.01) {
                        this.autoObj.forceScrollStatus = 0;
                    }
                }
                // Remember the X axis
                this.autoObj.scrollDx = dx;
                // Correction data 1
                dy = dy - this.autoObj.hasScrollDy;
                if (nativeEvent != null) {
                    // Correction data 2
                    dy = dy + this.autoObj.scrollDy;
                    // Prevent fingers from sliding when sliding automatically
                    if (this.autoObj.forceScrollStatus === 1 || this.autoObj.forceScrollStatus === -1) {
                        return;
                    }
                }
            }
            const left = this.touchCurItem.originLeft + dx;
            const top = this.touchCurItem.originTop + dy;
            this.touchCurItem.ref.setNativeProps({
                style: {
                    zIndex: touchZIndex,
                }
            })
            this.state.dataSource[this.touchCurItem.index].position.setValue({
                x: left,
                y: top,
            })
            let moveToIndex = 0
            let moveXNum = dx/itemWidth
            let moveYNum = dy/itemHeight
            if (moveXNum > 0) {
                moveXNum = parseInt(moveXNum+0.5)
            } else if (moveXNum < 0) {
                moveXNum = parseInt(moveXNum-0.5)
            }
            if (moveYNum > 0) {
                moveYNum = parseInt(moveYNum+0.5)
            } else if (moveYNum < 0) {
                moveYNum = parseInt(moveYNum-0.5)
            }
            moveToIndex = this.touchCurItem.index+moveXNum+moveYNum*rowNum
            if (moveToIndex > this.state.dataSource.length-1) {
                moveToIndex = this.state.dataSource.length-1
            } else if (moveToIndex < 0) {
                moveToIndex = 0;
            }
            if (this.props.onDragging) {
                this.props.onDragging(gestureState, left, top, moveToIndex)
            }
            if (this.touchCurItem.moveToIndex != moveToIndex ) {
                const fixedItems = this.props.fixedItems;
                if (fixedItems.length > 0 && fixedItems.includes(moveToIndex)) return;
                this.touchCurItem.moveToIndex = moveToIndex
                this.state.dataSource.forEach((item,index)=>{

                    let nextItem = null
                    if (index > this.touchCurItem.index && index <= moveToIndex) {
                        nextItem = this.state.dataSource[index-1]

                    } else if (index >= moveToIndex && index < this.touchCurItem.index) {
                        nextItem = this.state.dataSource[index+1]

                    } else if (index != this.touchCurItem.index &&
                        (item.position.x._value != item.originLeft ||
                            item.position.y._value != item.originTop)) {
                        nextItem = this.state.dataSource[index]

                    } else if ((this.touchCurItem.index-moveToIndex > 0 && moveToIndex == index+1) ||
                        (this.touchCurItem.index-moveToIndex < 0 && moveToIndex == index-1)) {
                        nextItem = this.state.dataSource[index]
                    }
                    if (nextItem != null) {
                        Animated.timing(
                            item.position,
                            {
                                toValue: {x: parseInt(nextItem.originLeft+0.5),y: parseInt(nextItem.originTop+0.5)},
                                duration: this.props.slideDuration,
                                easing: Easing.out(Easing.quad),
                                useNativeDriver: false,
                            }
                        ).start()
                    }
                })
            }
        }
    }
    endTouch (nativeEvent) {
        this.isHasMove = false;
        this.initTag()
        //clear
        if (this.touchCurItem) {
            this.setState({
                scrollEnabled: true
            })
            if (this.props.onDragEnd) {
                this.props.onDragEnd(this.touchCurItem.index,this.touchCurItem.moveToIndex)
            }
            //this.state.dataSource[this.touchCurItem.index].scaleValue.setValue(1)
            Animated.timing(
                this.state.dataSource[this.touchCurItem.index].scaleValue,
                {
                    toValue: 1,
                    duration: this.props.scaleDuration,
                    useNativeDriver: false,
                }
            ).start(()=>{
                if (this.touchCurItem) {
                    this.touchCurItem.ref.setNativeProps({
                        style: {
                            zIndex: defaultZIndex,
                        }
                    })
                    this.changePosition(this.touchCurItem.index,this.touchCurItem.moveToIndex)
                    this.touchCurItem = null
                }
            })
        }
    }
    onPressOut () {
        this.isScaleRecovery = setTimeout(()=> {
            if (this.isMovePanResponder && !this.isHasMove) {
                this.endTouch()
            }
        },220)
    }
    changePosition(startIndex,endIndex) {

        if (startIndex == endIndex) {
            const curItem = this.state.dataSource[startIndex]
            if (curItem != null) {
                curItem.position.setValue({
                    x: parseInt(curItem.originLeft + 0.5),
                    y: parseInt(curItem.originTop + 0.5),
                })
            }
            return;
        }
        let isCommon = true
        if (startIndex > endIndex) {
            isCommon = false
            let tempIndex = startIndex
            startIndex = endIndex
            endIndex = tempIndex
        }
        const newDataSource = [...this.state.dataSource].map((item,index)=>{
            let newIndex = null
            if (isCommon) {
                if (endIndex > index && index >= startIndex) {
                    newIndex = index+1
                } else if (endIndex == index) {
                    newIndex = startIndex
                }
            } else {
                if (endIndex >= index && index > startIndex) {
                    newIndex = index-1
                } else if (startIndex == index) {
                    newIndex = endIndex
                }
            }
            if (newIndex != null) {
                const newItem = {...this.state.dataSource[newIndex]}
                newItem.originLeft = item.originLeft
                newItem.originTop = item.originTop
                newItem.position = new Animated.ValueXY({
                    x: parseInt(item.originLeft+0.5),
                    y: parseInt(item.originTop+0.5),
                })
                item = newItem
            }
            return item
        })
        this.setState({
            dataSource: newDataSource
        },()=>{
            if (this.props.onDataChange) {
                this.props.onDataChange(this.getOriginalData())
            }
            // Prevent RN from drawing the beginning and end
            const startItem = this.state.dataSource[startIndex]
            this.state.dataSource[startIndex].position.setValue({
                x: parseInt(startItem.originLeft+0.5),
                y: parseInt(startItem.originTop+0.5),
            })
            const endItem = this.state.dataSource[endIndex]
            this.state.dataSource[endIndex].position.setValue({
                x: parseInt(endItem.originLeft+0.5),
                y: parseInt(endItem.originTop+0.5),
            })
        })
    }
    reComplexDataSource(isInit,props) {
        const itemWidth = this.state.itemWidth;
        const itemHeight = this.state.itemHeight;
        const rowNum = parseInt(props.parentWidth/itemWidth);
        const dataSource = props.dataSource.map((item,index)=>{
            const newData = {}
            const left = (index%rowNum)*itemWidth
            const top = parseInt((index/rowNum))*itemHeight
            newData.data = item
            newData.originIndex = index
            newData.originLeft = left
            newData.originTop = top
            newData.position = new Animated.ValueXY({
                x: parseInt(left+0.5),
                y: parseInt(top+0.5),
            })
            newData.scaleValue = new Animated.Value(1)
            return newData
        })
        if (isInit) {
            this.state = {
                scrollEnabled: true,
                dataSource: dataSource,
                height: Math.ceil(dataSource.length/rowNum)*itemHeight
            }
        } else {
            this.setState({
                dataSource: dataSource,
                height: Math.ceil(dataSource.length/rowNum)*itemHeight
            })
        }
    }
    getOriginalData () {
        return this.state.dataSource.map((item,index)=> item.data)
    }

    isStartupAuto = () => {
        if (this.curScrollData == null) {
            return false;
        }
        return true;
    }

    scrollTo = (height, animated = true) => {
        // Prevent iOS from sliding when elastically sliding negative numbers
        if (this.curScrollData) {
            if (this.autoObj.forceScrollStatus < 0 && this.curScrollData.offsetY <= 0) {
                this.autoObj.scrollDy = 0; // Correcting data system deviations
                return;
            } else if (this.autoObj.forceScrollStatus > 0 && this.curScrollData.windowHeight + this.curScrollData.offsetY >= this.curScrollData.totalHeight) {
                this.autoObj.scrollDy = this.curScrollData.offsetY; //Correcting data system deviations
                return;
            }
            //Barrel effect, the slowest is 1.x1
            this.curScrollData.hasScroll = false;
        }
        this.scrollRef && this.scrollRef.scrollTo({x: 0, y: height, animated});
    }

    onScrollListener = (event) => {
        const nativeEvent = event.nativeEvent
        this.curScrollData = {
            totalHeight: nativeEvent.contentSize.height,
            windowHeight: nativeEvent.layoutMeasurement.height,
            offsetY: nativeEvent.contentOffset.y,
            hasScroll: true,
        }
        if (nativeEvent.contentOffset.y !== 0) this.isHasMeasure = true
        if (this.props.onScrollListener) this.props.onScrollListener(event);
    }

    render() {
        return (
            <ScrollView
                bounces={false}
                scrollEventThrottle={1}
                scrollIndicatorInsets={this.props.scrollIndicatorInsets}
                ref={(scrollRef)=> {
                    if (this.props.onScrollRef) this.props.onScrollRef(scrollRef)
                    this.scrollRef = scrollRef
                    return this.scrollRef
                }}
                scrollEnabled = {this.state.scrollEnabled}
                onScroll={this.onScrollListener}
                style={styles.container}>
                {this.props.renderHeaderView ? this.props.renderHeaderView : null}
                <View
                    //ref={(ref)=>this.sortParentRef=ref}
                    style={[styles.swipe,{
                        width: this.props.parentWidth,
                        height: this.state.height,
                    }]}
                    //onLayout={()=> {}}
                    >
                    {this._renderItemView()}
                </View>
                {this.props.renderBottomView ? this.props.renderBottomView : null}
            </ScrollView>
        )
    }

    _getKey = (index) => {
        const item = this.state.dataSource[index];
        return this.props.keyExtractor ? this.props.keyExtractor(item.data, index) : item.originIndex;
    }

    _renderItemView = () => {
        const {maxScale, minOpacity} = this.props
        const inputRange = maxScale >= 1 ? [1, maxScale] : [maxScale, 1]
        const outputRange = maxScale >= 1 ? [1, minOpacity] : [minOpacity, 1]
        return this.state.dataSource.map((item,index)=>{
            const transformObj = {}
            transformObj[this.props.scaleStatus] = item.scaleValue
            const key = this.props.keyExtractor ? this.props.keyExtractor(item.data,index) : item.originIndex
            return (
                <Animated.View
                    key={key}
                    ref={(ref) => this.sortRefs.set(key,ref)}
                    {...this._panResponder.panHandlers}
                    style={[styles.item,{
                        marginTop: this.props.marginChildrenTop,
                        marginBottom: this.props.marginChildrenBottom,
                        marginLeft: this.props.marginChildrenLeft,
                        marginRight: this.props.marginChildrenRight,
                        left: item.position.x,
                        top: item.position.y,
                        opacity: item.scaleValue.interpolate({inputRange,outputRange}),
                        transform: [transformObj]
                    }]}>
                    <TouchableOpacity
                        activeOpacity = {1}
                        delayLongPress={this.props.delayLongPress}
                        onPressOut={()=> this.onPressOut()}
                        onLongPress={()=>this.startTouch(index)}
                        onPress={()=>{
                            if (this.props.onClickItem) {
                                this.isHasMeasure = true
                                this.props.onClickItem(this.getOriginalData(),item.data,index)
                            }
                        }}>
                        {this.props.renderItem(item.data,index)}
                    </TouchableOpacity>
                </Animated.View>
            )
        })
    }

    componentWillUnmount() {
        if (this.isScaleRecovery) clearTimeout(this.isScaleRecovery)
        this.clearAutoInterval()
    }

}

AutoDragSortableView.propTypes = {
    dataSource: PropTypes.array.isRequired,
    parentWidth: PropTypes.number,
    childrenHeight: PropTypes.number.isRequired,
    childrenWidth: PropTypes.number.isRequired,

    marginChildrenTop: PropTypes.number,
    marginChildrenBottom: PropTypes.number,
    marginChildrenLeft: PropTypes.number,
    marginChildrenRight: PropTypes.number,

    sortable: PropTypes.bool,

    onClickItem: PropTypes.func,
    onDragStart: PropTypes.func,
    onDragEnd: PropTypes.func,
    onDataChange: PropTypes.func,
    renderItem: PropTypes.func.isRequired,
    scaleStatus: PropTypes.oneOf(['scale','scaleX','scaleY']),
    fixedItems: PropTypes.array,
    keyExtractor: PropTypes.func,
    delayLongPress: PropTypes.number,
    isDragFreely: PropTypes.bool,
    onDragging: PropTypes.func,
    maxScale: PropTypes.number,
    minOpacity: PropTypes.number,
    scaleDuration: PropTypes.number,
    slideDuration: PropTypes.number,
    autoThrottle: PropTypes.number,
    autoThrottleDuration: PropTypes.number,
    renderHeaderView: PropTypes.element,
    scrollIndicatorInsets: PropTypes.shape({
      top: PropTypes.number,
      left: PropTypes.number,
      bottom: PropTypes.number,
      right: PropTypes.number,
    }),
    headerViewHeight: PropTypes.number,
    renderBottomView: PropTypes.element,
    bottomViewHeight: PropTypes.number,
    onScrollListener: PropTypes.func,
    onScrollRef: PropTypes.func
}

AutoDragSortableView.defaultProps = {
    marginChildrenTop: 0,
    marginChildrenBottom: 0,
    marginChildrenLeft: 0,
    marginChildrenRight: 0,
    parentWidth: width,
    sortable: true,
    scaleStatus: 'scale',
    fixedItems: [],
    isDragFreely: false,
    maxScale: 1.1,
    minOpacity: 0.8,
    scaleDuration: 100,
    slideDuration: 300,
    autoThrottle: 2,
    autoThrottleDuration: 10,
    scrollIndicatorInsets: {
      top: 0,
      left: 0,
      bottom: 0,
      right: 1,
    },
    headerViewHeight: 0,
    bottomViewHeight: 0,
}

const styles = StyleSheet.create({
    container: {
        flex: 1,
    },
    swipe: {
        flexWrap: 'wrap',
        flexDirection: 'row',
    },
    item: {
        position: 'absolute',
        zIndex: defaultZIndex,
    },
})
DragSortableView.js
import React, {Component} from 'react'
import {Animated, Dimensions, Easing, PanResponder, StyleSheet, TouchableOpacity, View} from 'react-native'

const PropTypes = require('prop-types')
const {width} = Dimensions.get('window')

const defaultZIndex = 8
const touchZIndex = 99

export default class DragSortableView extends Component{

    constructor(props) {
        super(props)

        this.sortRefs = new Map()

        const itemWidth = props.childrenWidth+props.marginChildrenLeft+props.marginChildrenRight
        const itemHeight = props.childrenHeight+props.marginChildrenTop+props.marginChildrenBottom

        // this.reComplexDataSource(true,props) // react < 16.3
        // react > 16.3 Fiber
        const rowNum = parseInt(props.parentWidth/itemWidth);
        const dataSource = props.dataSource.map((item,index)=>{
            const newData = {}
            const left = (index%rowNum)*itemWidth
            const top = parseInt((index/rowNum))*itemHeight

            newData.data = item
            newData.originIndex = index
            newData.originLeft = left
            newData.originTop = top
            newData.position = new Animated.ValueXY({
                x: parseInt(left+0.5),
                y: parseInt(top+0.5),
            })
            newData.scaleValue = new Animated.Value(1)
            return newData
        });
        this.state = {
            dataSource: dataSource,
            curPropsDataSource: props.dataSource,
            height: Math.ceil(dataSource.length / rowNum) * itemHeight,
            itemWidth,
            itemHeight,
        };

        this._panResponder = PanResponder.create({
            onStartShouldSetPanResponder: (evt, gestureState) => true,
            onStartShouldSetPanResponderCapture: (evt, gestureState) => {
                this.isMovePanResponder = false
                return false
            },
            onMoveShouldSetPanResponder: (evt, gestureState) => this.isMovePanResponder,
            onMoveShouldSetPanResponderCapture: (evt, gestureState) => this.isMovePanResponder,

            onPanResponderGrant: (evt, gestureState) => {},
            onPanResponderMove: (evt, gestureState) => this.moveTouch(evt,gestureState),
            onPanResponderRelease: (evt, gestureState) => this.endTouch(evt),

            onPanResponderTerminationRequest: (evt, gestureState) => false,
            onShouldBlockNativeResponder: (evt, gestureState) => false,
        })
    }

    // react < 16.3
    // componentWillReceiveProps(nextProps) {
    //     if (this.props.dataSource != nextProps.dataSource) {
    //         this.reComplexDataSource(false,nextProps)
    //     }
    // }

    // react > 16.3 Fiber
    static getDerivedStateFromProps(nextprops, prevState) {
        const itemWidth = nextprops.childrenWidth + nextprops.marginChildrenLeft + nextprops.marginChildrenRight
        const itemHeight = nextprops.childrenHeight + nextprops.marginChildrenTop + nextprops.marginChildrenBottom
        if (nextprops.dataSource != prevState.curPropsDataSource || itemWidth !== prevState.itemWidth || itemHeight !== prevState.itemHeight) {

            const rowNum = parseInt(nextprops.parentWidth / itemWidth);
            const dataSource = nextprops.dataSource.map((item, index) => {
                const newData = {};
                const left = index % rowNum * itemWidth;
                const top = parseInt(index / rowNum) * itemHeight;

                newData.data = item;
                newData.originIndex = index;
                newData.originLeft = left;
                newData.originTop = top;
                newData.position = new Animated.ValueXY({
                    x: parseInt(left + 0.5),
                    y: parseInt(top + 0.5),
                });
                newData.scaleValue = new Animated.Value(1);
                return newData;
            });
            return {
                dataSource: dataSource,
                curPropsDataSource: nextprops.dataSource,
                height: Math.ceil(dataSource.length / rowNum) * itemHeight,
                itemWidth,
                itemHeight,
            }
        }
        return null;
    }

    startTouch(touchIndex) {

        //防止拖动
        const fixedItems = this.props.fixedItems;
        if (fixedItems.length > 0 && fixedItems.includes(touchIndex)){
            return;
        }

        this.isHasMove = false

        if (!this.props.sortable) return

        const key = this._getKey(touchIndex);
        if (this.sortRefs.has(key)) {
            if (this.props.onDragStart) {
                this.props.onDragStart(touchIndex)
            }
            Animated.timing(
                this.state.dataSource[touchIndex].scaleValue,
                {
                    toValue: this.props.maxScale,
                    duration: this.props.scaleDuration,
                    useNativeDriver: false,
                }
            ).start(()=>{
                this.touchCurItem = {
                    ref: this.sortRefs.get(key),
                    index: touchIndex,
                    originLeft: this.state.dataSource[touchIndex].originLeft,
                    originTop: this.state.dataSource[touchIndex].originTop,
                    moveToIndex: touchIndex,
                }
                this.isMovePanResponder = true
            })
        }
    }



    moveTouch (nativeEvent,gestureState) {

        this.isHasMove = true

        //if (this.isScaleRecovery) clearTimeout(this.isScaleRecovery)

        if (this.touchCurItem) {

            let dx = gestureState.dx
            let dy = gestureState.dy
            const itemWidth = this.state.itemWidth;
            const itemHeight = this.state.itemHeight;

            const rowNum = parseInt(this.props.parentWidth/itemWidth);
            const maxWidth = this.props.parentWidth-itemWidth
            const maxHeight = itemHeight*Math.ceil(this.state.dataSource.length/rowNum) - itemHeight

            // Is it free to drag
            if (!this.props.isDragFreely) {
                // Maximum or minimum after out of bounds
                if (this.touchCurItem.originLeft + dx < 0) {
                    dx = -this.touchCurItem.originLeft
                } else if (this.touchCurItem.originLeft + dx > maxWidth) {
                    dx = maxWidth - this.touchCurItem.originLeft
                }
                if (this.touchCurItem.originTop + dy < 0) {
                    dy = -this.touchCurItem.originTop
                } else if (this.touchCurItem.originTop + dy > maxHeight) {
                    dy = maxHeight - this.touchCurItem.originTop
                }
            }

            let left = this.touchCurItem.originLeft + dx
            let top = this.touchCurItem.originTop + dy

            this.touchCurItem.ref.setNativeProps({
                style: {
                    zIndex: touchZIndex,
                }
            })

            this.state.dataSource[this.touchCurItem.index].position.setValue({
                x: left,
                y: top,
            })

            let moveToIndex = 0
            let moveXNum = dx/itemWidth
            let moveYNum = dy/itemHeight
            if (moveXNum > 0) {
                moveXNum = parseInt(moveXNum+0.5)
            } else if (moveXNum < 0) {
                moveXNum = parseInt(moveXNum-0.5)
            }
            if (moveYNum > 0) {
                moveYNum = parseInt(moveYNum+0.5)
            } else if (moveYNum < 0) {
                moveYNum = parseInt(moveYNum-0.5)
            }

            moveToIndex = this.touchCurItem.index+moveXNum+moveYNum*rowNum

            if (moveToIndex > this.state.dataSource.length-1) {
                moveToIndex = this.state.dataSource.length-1
            } else if (moveToIndex < 0) {
                moveToIndex = 0;
            }

            if (this.props.onDragging) {
                this.props.onDragging(gestureState, left, top, moveToIndex)
            }

            if (this.touchCurItem.moveToIndex != moveToIndex ) {
                const fixedItems = this.props.fixedItems;
                if (fixedItems.length > 0 && fixedItems.includes(moveToIndex)) return;
                this.touchCurItem.moveToIndex = moveToIndex
                this.state.dataSource.forEach((item,index)=>{

                    let nextItem = null
                    if (index > this.touchCurItem.index && index <= moveToIndex) {
                        nextItem = this.state.dataSource[index-1]

                    } else if (index >= moveToIndex && index < this.touchCurItem.index) {
                        nextItem = this.state.dataSource[index+1]

                    } else if (index != this.touchCurItem.index &&
                        (item.position.x._value != item.originLeft ||
                            item.position.y._value != item.originTop)) {
                        nextItem = this.state.dataSource[index]

                    } else if ((this.touchCurItem.index-moveToIndex > 0 && moveToIndex == index+1) ||
                        (this.touchCurItem.index-moveToIndex < 0 && moveToIndex == index-1)) {
                        nextItem = this.state.dataSource[index]
                    }

                    if (nextItem != null) {
                        Animated.timing(
                            item.position,
                            {
                                toValue: {x: parseInt(nextItem.originLeft+0.5),y: parseInt(nextItem.originTop+0.5)},
                                duration: this.props.slideDuration,
                                easing: Easing.out(Easing.quad),
                                useNativeDriver: false,
                            }
                        ).start()
                    }

                })
            }

        }
    }

    endTouch (nativeEvent) {

        //clear
        if (this.touchCurItem) {
            if (this.props.onDragEnd) {
                this.props.onDragEnd(this.touchCurItem.index,this.touchCurItem.moveToIndex)
            }
            //this.state.dataSource[this.touchCurItem.index].scaleValue.setValue(1)
            Animated.timing(
                this.state.dataSource[this.touchCurItem.index].scaleValue,
                {
                    toValue: 1,
                    duration: this.props.scaleDuration,
                    useNativeDriver: false,
                }
            ).start(()=>{
                this.touchCurItem.ref.setNativeProps({
                    style: {
                        zIndex: defaultZIndex,
                    }
                })
                this.changePosition(this.touchCurItem.index,this.touchCurItem.moveToIndex)
                this.touchCurItem = null
            })

        }
    }

    onPressOut () {
        this.isScaleRecovery = setTimeout(()=> {
            if (this.isMovePanResponder && !this.isHasMove) {
                this.endTouch()
            }
        },220)
    }

    changePosition(startIndex,endIndex) {

        if (startIndex == endIndex) {
            const curItem = this.state.dataSource[startIndex]
            if (curItem != null) {
                curItem.position.setValue({
                    x: parseInt(curItem.originLeft + 0.5),
                    y: parseInt(curItem.originTop + 0.5),
                })
            }
            return;
        }

        let isCommon = true
        if (startIndex > endIndex) {
            isCommon = false
            let tempIndex = startIndex
            startIndex = endIndex
            endIndex = tempIndex
        }

        const newDataSource = [...this.state.dataSource].map((item,index)=>{
            let newIndex = null
            if (isCommon) {
                if (endIndex > index && index >= startIndex) {
                    newIndex = index+1
                } else if (endIndex == index) {
                    newIndex = startIndex
                }
            } else {
                if (endIndex >= index && index > startIndex) {
                    newIndex = index-1
                } else if (startIndex == index) {
                    newIndex = endIndex
                }
            }

            if (newIndex != null) {
                const newItem = {...this.state.dataSource[newIndex]}
                newItem.originLeft = item.originLeft
                newItem.originTop = item.originTop
                newItem.position = new Animated.ValueXY({
                    x: parseInt(item.originLeft+0.5),
                    y: parseInt(item.originTop+0.5),
                })
                item = newItem
            }

            return item
        })

        this.setState({
            dataSource: newDataSource
        },()=>{
            if (this.props.onDataChange) {
                this.props.onDataChange(this.getOriginalData())
            }
            // Prevent RN from drawing the beginning and end
            const startItem = this.state.dataSource[startIndex]
            this.state.dataSource[startIndex].position.setValue({
                x: parseInt(startItem.originLeft+0.5),
                y: parseInt(startItem.originTop+0.5),
            })
            const endItem = this.state.dataSource[endIndex]
            this.state.dataSource[endIndex].position.setValue({
                x: parseInt(endItem.originLeft+0.5),
                y: parseInt(endItem.originTop+0.5),
            })
        })

    }

    reComplexDataSource(isInit,props) {
        const itemWidth = this.state.itemWidth;
        const itemHeight = this.state.itemHeight;
        const rowNum = parseInt(props.parentWidth/itemWidth);
        const dataSource = props.dataSource.map((item,index)=>{
            const newData = {}
            const left = (index%rowNum)*itemWidth
            const top = parseInt((index/rowNum))*itemHeight

            newData.data = item
            newData.originIndex = index
            newData.originLeft = left
            newData.originTop = top
            newData.position = new Animated.ValueXY({
                x: parseInt(left+0.5),
                y: parseInt(top+0.5),
            })
            newData.scaleValue = new Animated.Value(1)
            return newData
        })

        if (isInit) {
            this.state = {
                dataSource: dataSource,
                height: Math.ceil(dataSource.length/rowNum)*itemHeight
            }
        } else {
            this.setState({
                dataSource: dataSource,
                height: Math.ceil(dataSource.length/rowNum)*itemHeight
            })
        }

    }

    getOriginalData () {
        return this.state.dataSource.map((item,index)=> item.data)
    }

    render() {
        return (
            <View
                //ref={(ref)=>this.sortParentRef=ref}
                style={[styles.container,{
                    width: this.props.parentWidth,
                    height: this.state.height,
                }]}
                //onLayout={()=> {}}
                >
                {this._renderItemView()}
            </View>
        )
    }

    _getKey = (index) => {
        const item = this.state.dataSource[index];
        return this.props.keyExtractor ? this.props.keyExtractor(item.data, index) : item.originIndex;
    }

    _renderItemView = () => {
        const {maxScale, minOpacity} = this.props
        const inputRange = maxScale >= 1 ? [1, maxScale] : [maxScale, 1]
        const outputRange = maxScale >= 1 ? [1, minOpacity] : [minOpacity, 1]
        return this.state.dataSource.map((item,index)=>{
            const transformObj = {}
            transformObj[this.props.scaleStatus] = item.scaleValue
            const key = this._getKey(index);
            return (
                <Animated.View
                    key={key}
                    ref={(ref) => this.sortRefs.set(key,ref)}
                    {...this._panResponder.panHandlers}
                    style={[styles.item,{
                        marginTop: this.props.marginChildrenTop,
                        marginBottom: this.props.marginChildrenBottom,
                        marginLeft: this.props.marginChildrenLeft,
                        marginRight: this.props.marginChildrenRight,
                        left: item.position.x,
                        top: item.position.y,
                        opacity: item.scaleValue.interpolate({inputRange,outputRange}),
                        transform: [transformObj]
                    }]}>
                    <TouchableOpacity
                        activeOpacity = {1}
                        delayLongPress={this.props.delayLongPress}
                        onPressOut={()=> this.onPressOut()}
                        onLongPress={()=>this.startTouch(index)}
                        onPress={()=>{
                            if (this.props.onClickItem) {
                                this.props.onClickItem(this.getOriginalData(),item.data,index)
                            }
                        }}>
                        {this.props.renderItem(item.data,index)}
                    </TouchableOpacity>
                </Animated.View>
            )
        })
    }

    componentWillUnmount() {
        if (this.isScaleRecovery) clearTimeout(this.isScaleRecovery)
    }

}

DragSortableView.propTypes = {
    dataSource: PropTypes.array.isRequired,
    parentWidth: PropTypes.number,
    childrenHeight: PropTypes.number.isRequired,
    childrenWidth: PropTypes.number.isRequired,

    marginChildrenTop: PropTypes.number,
    marginChildrenBottom: PropTypes.number,
    marginChildrenLeft: PropTypes.number,
    marginChildrenRight: PropTypes.number,

    sortable: PropTypes.bool,

    onClickItem: PropTypes.func,
    onDragStart: PropTypes.func,
    onDragEnd: PropTypes.func,
    onDataChange: PropTypes.func,
    renderItem: PropTypes.func.isRequired,
    scaleStatus: PropTypes.oneOf(['scale','scaleX','scaleY']),
    fixedItems: PropTypes.array,
    keyExtractor: PropTypes.func,
    delayLongPress: PropTypes.number,
    isDragFreely: PropTypes.bool,
    onDragging: PropTypes.func,
    maxScale: PropTypes.number,
    minOpacity: PropTypes.number,
    scaleDuration: PropTypes.number,
    slideDuration: PropTypes.number
}

DragSortableView.defaultProps = {
    marginChildrenTop: 0,
    marginChildrenBottom: 0,
    marginChildrenLeft: 0,
    marginChildrenRight: 0,
    parentWidth: width,
    sortable: true,
    scaleStatus: 'scale',
    fixedItems: [],
    isDragFreely: false,
    maxScale: 1.1,
    minOpacity: 0.8,
    scaleDuration: 100,
    slideDuration: 300,
}

const styles = StyleSheet.create({
    container: {
        flexWrap: 'wrap',
        flexDirection: 'row',
    },
    item: {
        position: 'absolute',
        zIndex: defaultZIndex,
    },
})

组件使用

使用时，在页面js代码内，使用该组件并配置相关数据信息即可。

界面展示

image-20210406151023727

组件使用代码展示

引入组件

import DragSortableView from '../widget/DragSortableView'

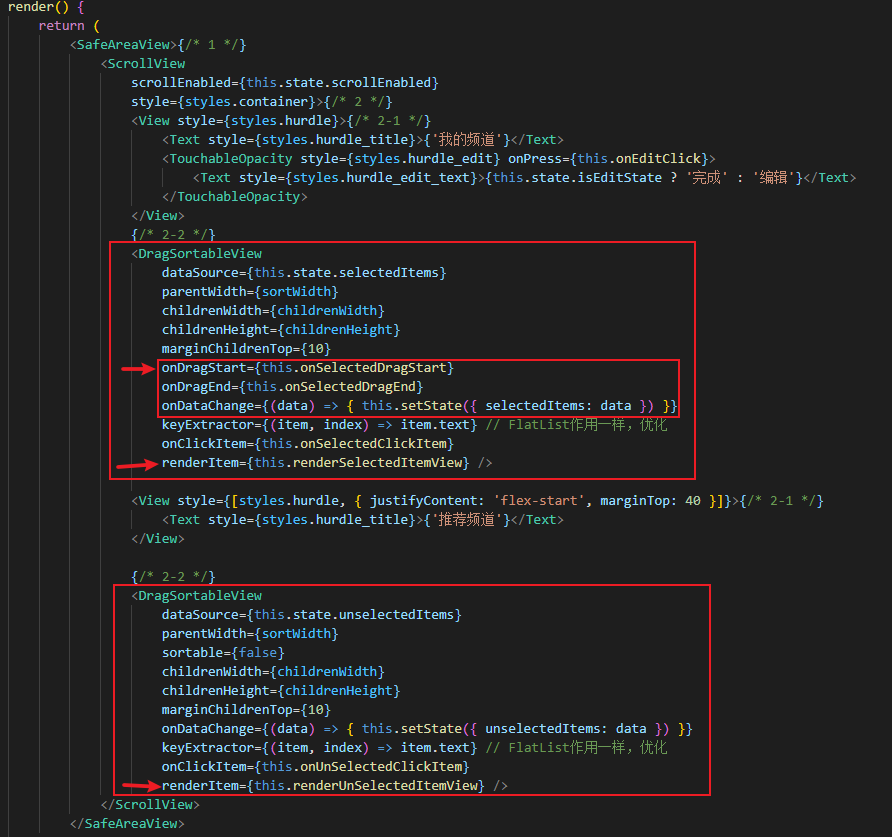

组件调用

image-20210406150710356

数据加载部分代码
image-20210406150800358
点击操作

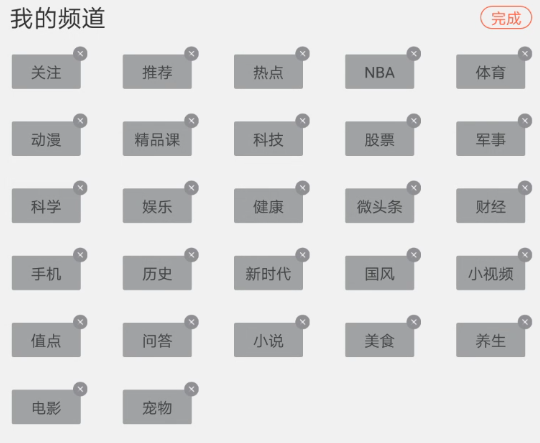

点击编辑时，再次点击标签会将此标签从当前列表中删除。

image-20210406151056510

image-20210406150918236

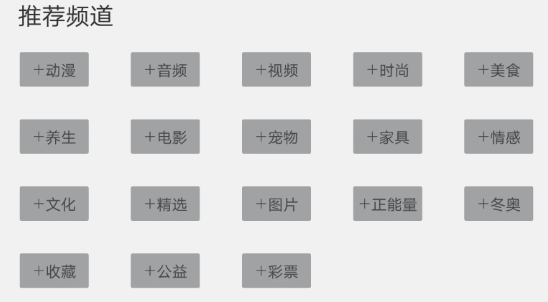

从下方推荐频道里点击标签会添加到我的频道。

image-20210406153335948

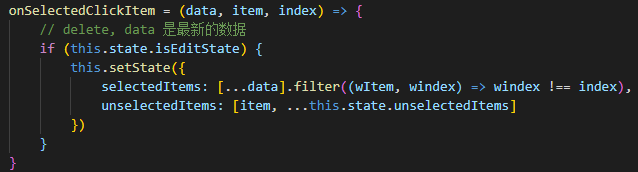

点击时经过的代码操作：

image-20210406153413103

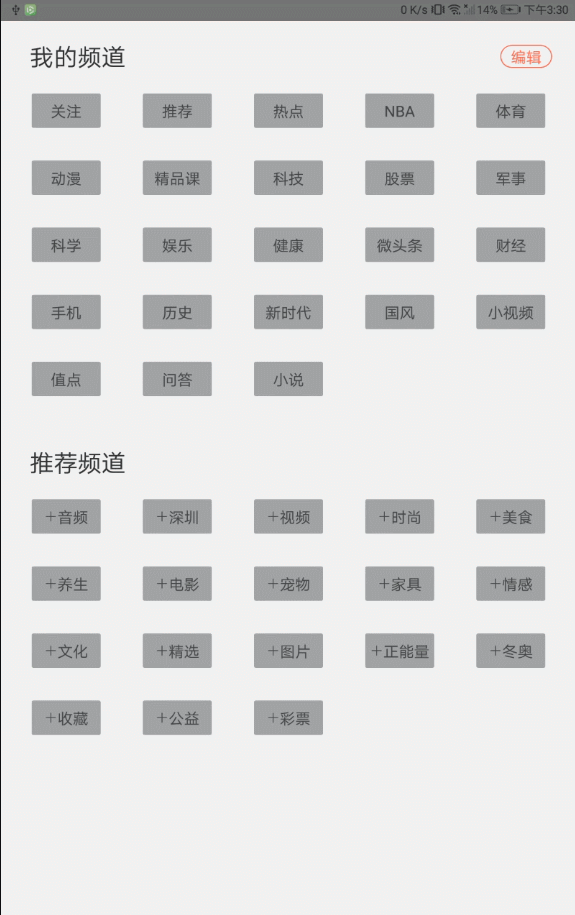

整体页面效果

图标拖动

整体页面代码
import React, { Component } from 'react'
import {
    View,
    Text,
    StyleSheet,
    Dimensions,
    TouchableOpacity,
    Image,
    ScrollView,
    SafeAreaView,
} from 'react-native'
import DragSortableView from '../widget/DragSortableView'
const marginwidth = 10;
const deviceWidth = Dimensions.get('window').width
const childrenWidth = (deviceWidth - marginwidth * 2) / 5;
const childrenHeight = deviceWidth / 10;
const itemWidth = 72
const itemHeight = 36
const sortWidth = deviceWidth
const items = [
    { text: '关注', isSelect: true },
    { text: '推荐', isSelect: true },
    { text: '热点', isSelect: true },
    { text: 'NBA', isSelect: true },
    { text: '体育', isSelect: true },
    { text: '动漫', isSelect: true },
    { text: '精品课', isSelect: true },
    { text: '科技', isSelect: true },
    { text: '股票', isSelect: true },
    { text: '军事', isSelect: true },
    { text: '科学', isSelect: true },
    { text: '娱乐', isSelect: true },
    { text: '健康', isSelect: true },
    { text: '微头条', isSelect: true },
    { text: '财经', isSelect: true },
    { text: '手机', isSelect: true },
    { text: '历史', isSelect: true },
    { text: '新时代', isSelect: true },
    { text: '国风', isSelect: true },
    { text: '小视频', isSelect: true },
    { text: '值点', isSelect: true },
    { text: '问答', isSelect: true },
    { text: '小说', isSelect: true },
    { text: '音频', isSelect: false },
    { text: '深圳', isSelect: false },
    { text: '视频', isSelect: false },
    { text: '时尚', isSelect: false },
    { text: '美食', isSelect: false },
    { text: '养生', isSelect: false },
    { text: '电影', isSelect: false },
    { text: '宠物', isSelect: false },
    { text: '家具', isSelect: false },
    { text: '情感', isSelect: false },
    { text: '文化', isSelect: false },
    { text: '精选', isSelect: false },
    { text: '图片', isSelect: false },
    { text: '正能量', isSelect: false },
    { text: '冬奥', isSelect: false },
    { text: '收藏', isSelect: false },
    { text: '公益', isSelect: false },
    { text: '彩票', isSelect: false },
]

export default class CommonSortPage extends Component {

    constructor(props) {
        super(props)

        this.state = {
            scrollEnabled: true,
            isEditState: false,
            selectedItems: items.filter((item, index) => item.isSelect),
            unselectedItems: items.filter((item, index) => !item.isSelect)
        }
    }

    render() {
        return (
            <SafeAreaView>{/* 1 */}
                <ScrollView
                    scrollEnabled={this.state.scrollEnabled}
                    style={styles.container}>{/* 2 */}
                    <View style={styles.hurdle}>{/* 2-1 */}
                        <Text style={styles.hurdle_title}>{'我的频道'}</Text>
                        <TouchableOpacity style={styles.hurdle_edit} onPress={this.onEditClick}>
                            <Text style={styles.hurdle_edit_text}>{this.state.isEditState ? '完成' : '编辑'}</Text>
                        </TouchableOpacity>
                    </View>
                    {/* 2-2 */}
                    <DragSortableView
                        dataSource={this.state.selectedItems}
                        parentWidth={sortWidth}
                        childrenWidth={childrenWidth}
                        childrenHeight={childrenHeight}
                        marginChildrenTop={10}
                        onDragStart={this.onSelectedDragStart}
                        onDragEnd={this.onSelectedDragEnd}
                        onDataChange={(data) => { this.setState({ selectedItems: data }) }}
                        keyExtractor={(item, index) => item.text} // FlatList作用一样，优化
                        onClickItem={this.onSelectedClickItem}
                        renderItem={this.renderSelectedItemView} />

                    <View style={[styles.hurdle, { justifyContent: 'flex-start', marginTop: 40 }]}>{/* 2-1 */}
                        <Text style={styles.hurdle_title}>{'推荐频道'}</Text>
                    </View>

                    {/* 2-2 */}
                    <DragSortableView
                        dataSource={this.state.unselectedItems}
                        parentWidth={sortWidth}
                        sortable={false}
                        childrenWidth={childrenWidth}
                        childrenHeight={childrenHeight}
                        marginChildrenTop={10}
                        onDataChange={(data) => { this.setState({ unselectedItems: data }) }}
                        keyExtractor={(item, index) => item.text} // FlatList作用一样，优化
                        onClickItem={this.onUnSelectedClickItem}
                        renderItem={this.renderUnSelectedItemView} />
                </ScrollView>
            </SafeAreaView>
        )
    }

    renderSelectedItemView = (item, index) => {
        const clearIcon = this.state.isEditState ?
            <Image style={styles.selected_item_icon} source={require('../data/img/clear.png')} /> : undefined
        return (
            <View style={styles.selected_container}>{/* 2-2 */}
                <View style={styles.selected_item}>
                    <Text style={styles.selected_item_text}>{item.text}</Text>
                </View>
                {clearIcon}
            </View>
        )
    }

    renderUnSelectedItemView = (item, index) => {
        return (
            <View style={styles.selected_container}>
                <View style={styles.unselected_item}>
                    <Image style={styles.unselected_item_icon} source={require('../data/img/add.png')} />
                    <Text style={styles.selected_item_text}>{item.text}</Text>
                </View>
            </View>
        )
    }

    onSelectedDragEnd = () => this.setState({ scrollEnabled: true })

    onSelectedDragStart = () => {
        if (!this.state.isEditState) {
            this.setState({
                isEditState: true,
                scrollEnabled: false
            })
        } else {
            this.setState({
                scrollEnabled: false
            })
        }
    }

    onSelectedClickItem = (data, item, index) => {
        // delete, data 是最新的数据
        if (this.state.isEditState) {
            this.setState({
                selectedItems: [...data].filter((wItem, windex) => windex !== index),
                unselectedItems: [item, ...this.state.unselectedItems]
            })
        }
    }

    onUnSelectedClickItem = (data, item, index) => {
        this.setState({
            selectedItems: [...this.state.selectedItems, item],
            unselectedItems: [...data].filter((wItem, windex) => windex !== index)
        })
    }

    onEditClick = () => {
        this.setState({ isEditState: !this.state.isEditState })
    }

}

const styles = StyleSheet.create({
    container: {
        // backgroundColor: '#fff',
        marginRight: marginwidth,
        marginLeft: marginwidth
    },
    hurdle: {
        flexDirection: 'row',
        alignItems: 'center',
        justifyContent: 'space-between',
        marginTop: 20,
        // backgroundColor: '#154'
    },
    hurdle_title: {
        color: '#333',
        fontSize: 25,
        marginLeft: 20
    },
    hurdle_edit: {
        height: 24,
        paddingLeft: 10,
        paddingRight: 10,
        justifyContent: 'center',
        borderWidth: 1,
        borderColor: '#ff6548',
        marginRight: 15,
        borderRadius: 12
    },
    hurdle_edit_text: {
        color: '#ff6548',
        fontSize: 16
    },
    selected_container: {
        width: childrenWidth,
        height: childrenHeight,
        alignItems: 'center',
        justifyContent: 'center',
        // backgroundColor: '#fff',
    },
    selected_item: {
        width: 72,
        height: 36,
        backgroundColor: '#a1a3a6',
        borderRadius: 2,
        alignItems: 'center',
        justifyContent: 'center'
    },
    selected_item_text: {
        fontSize: 16,
        color: '#444'
    },
    selected_item_icon: {
        width: 16,
        height: 16,
        resizeMode: 'contain',
        position: 'absolute',
        top: (childrenHeight - itemHeight - 25) / 2 + 15 * 0.25, //下移点
        left: (childrenWidth + itemWidth - 10) / 2 - 15 * 0.25 //右移点，也可以换个布局
    },
    unselected_item: {
        width: 72,
        height: 36,
        backgroundColor: '#a1a3a6',
        borderRadius: 2,
        alignItems: 'center',
        justifyContent: 'center',
        flexDirection: 'row'
    },
    unselected_item_icon: {
        width: 14,
        height: 14,
        resizeMode: 'contain',
        // marginLeft: 2
    }
})

DragSortableView.js详解

代码内封装了一套组件移动的转换逻辑，使用了PanResponder，Animated，Dimensions等主要知识点。组件运行首先获取设置的props信息，用来初始化标签显示。然后封装了startTouch，moveTouch、endTouch，changePosition四个主要函数。

PanResponder

PanResponder类可以将多点触摸操作协调成一个手势。它使得一个单点触摸可以接受更多的触摸操作，也可以用于识别简单的多点触摸手势。

默认情况下PanResponder会通过InteractionManager来阻止长时间运行的 JS 事件打断当前的手势活动。

它提供了一个对触摸响应系统响应器的可预测的包装。对于每一个处理函数，它在原生事件之外提供了一个新的gestureState对象：

onPanResponderMove: (event, gestureState) => {}

原生事件是指由以下字段组成的合成触摸事件：

  • nativeEvent
    • changedTouches - 在上一次事件之后，所有发生变化的触摸事件的数组集合（即上一次事件后，所有移动过的触摸点）
    • identifier - 触摸点的 ID
    • locationX - 触摸点相对于父元素的横坐标
    • locationY - 触摸点相对于父元素的纵坐标
    • pageX - 触摸点相对于根元素的横坐标
    • pageY - 触摸点相对于根元素的纵坐标
    • target - 触摸点所在的元素 ID
    • timestamp - 触摸事件的时间戳，可用于移动速度的计算
    • touches - 当前屏幕上的所有触摸点的集合

一个gestureState对象有如下的字段：

  • stateID - 触摸状态的 ID。在屏幕上有至少一个触摸点的情况下，这个 ID 会一直有效。
  • moveX - 最近一次移动时的屏幕横坐标
  • moveY - 最近一次移动时的屏幕纵坐标
  • x0 - 当响应器产生时的屏幕坐标
  • y0 - 当响应器产生时的屏幕坐标
  • dx - 从触摸操作开始时的累计横向路程
  • dy - 从触摸操作开始时的累计纵向路程
  • vx - 当前的横向移动速度
  • vy - 当前的纵向移动速度
  • numberActiveTouches - 当前在屏幕上的有效触摸点的数量
可拖动的悬浮按钮
海阔天空
04-23 411
public class CustomFloatActionButton extends AppCompatButton { private float mX, mY; private int mParentWidth, mParentHeight; private boolean mScrollEnable = true; private int mScrollLeft, mScrollRight, mScrollTop, mScrollBottom; priva
基于C++(QT框架)设计的网络摄像头项目(支持跨平台运行)
08-20 7668
当前软件是基于Qt设计的一个网络摄像头分享功能（也就是局域网共享自己电脑的摄像头），利用Qt搭建一个HTTP服务器，处理浏览器的请求，当浏览器访问过来时，就将本地采集到的摄像头画面发送给浏览器，与浏览器建立长连接通信，直接传输JPG图片，实现摄像头画面实时显示效果。支持登录页面，做了一个账号登录界面，访问服务器之后需要输入账号密码才可以正常进入服务器查看共享的画面。如果分享个摄像头画面，那是非常的方便的，想要查看分享的摄像头画面只需要浏览器里输入服务器的IP地址登录进去就可以看画面了
react-native(RN)实现可拖动的悬浮按钮
Crazy程序猿
08-23 1632
react-native(RN)使用PanResponder实现可拖动的悬浮按钮。
React Native实现应用中心图标拖动功能
money9sun的博客
03-26 5804
      React Native (简称RN)是Facebook于2015年4月开源的跨平台移动应用开发框架，是Facebook早先开源的UI框架 React 在原生移动应用平台的衍生产物，目前支持iOS和安卓两大平台。RN使用Javascript语言，类似于HTML的JSX，以及CSS来开发移动应用，因此熟悉Web前端开发的技术人员只需很少的学习就可以进入移动应用开发领域。（百度百科）  ...
RN仿微信朋友圈图片拖拽删除
爬不上树的小松鼠
05-12 519
之前负责的一个需求，让在RN端做仿微信朋友圈的图片删除和排序，由于经验和时间限制，就跟PM协商改为点击删除，由此欠下一个技术栈，今天是来还债的。本文基于transform实现，而非定位。
Gallery可拖动的图标
04-15 121
package com.zgj; import android.app.Activity; import android.os.Bundle; import android.view.View; import android.widget.AdapterView; import android.widget.Gallery; import android.widget.Toast;...
android+图标自动排列,Android用RecyclerView实现图标拖拽排序以及增删管理
weixin_39727934的博客
05-25 909
1. 效果图2. 基本的功能在非编辑状态下可以直接点击图标进行跳转在编辑状态可以拖拽、添加、删除操作已被添加过的不能再次添加3. 实现的思路用两个RecyclerView实现，同时维护两个数据源，上部是常用应用，最多可以放8个；下部是全部应用。1. 每个应用图标的状态用枚举Option表示// 当前的操作状态enum class Option {ADD, REMOVE, NONE}2. 在处于编辑...
RN项目实战笔记持续汇总
斗师——Ace
10-29 410
【代码】RN项目实战笔记持续汇总。
某东滑块验证逆向分析与算法还原
最新发布
吴秋霖的博客
04-05 2万+
京东滑块参数逆向分析与算法还原！协议过滑块验证爬虫必备技能～
react-native-draggable：可拖动项
02-05
React本机可拖动 UPDATE DEC 2019（v3.0.0）-此存储库刚刚被完全刷新，并且包含非常不同的功能，请在下面查看新的道具和用法 用于本机React的可拖动项！ npm install react-native-draggable import Draggable from 'react-native-draggable'; 如何使用 return ( <View> <Draggable x={75} y={100} renderSize={56} renderColor='black' renderText='A' isCircle shouldR
react-native-drag-resize:React Native组件用于可拖动和可调整大小的操作
05-24
React本机拖动调整大小 React Native组件，用于可拖动和可调整大小的操作。 展示案例 入门 安装 $ npm i react-native-drag-resize --save 基本用法 安装react-native-drag-resize软件包以进行项目 导入模块到文件 import { DragResizeBlock , } from 'react-native-drag-resize' ; 然后，使用如下组件： < DragResizeBlock xss=removed xss=removed> < View xss=removed> < / DragResize
react-native-drag-to-sort-tags:平稳拖动以将标签组件排序为react-native。 （iOS和Android）
05-09
react-native-drag-to-sort-tags react-native-drag-to-sort-tags 是一个可拖动排序的标签组件(iOS & Android)，并且在安卓上做了性能优化，滑动的流畅度表现良好。 功能 拖动标签排序 在安卓上更好的性能表现，更流畅的滑动响应 较完善的自定义功能 支持单击选择以选中标签，标签自动排序 支持屏幕旋转 支持TypeScript 预览 接入步骤 该项目依赖 , 在接入本库之前请先阅读正确接入react-native-gesture-handler 大概步骤就是： yarn add react-native-gesture-handler react-native link react-native-gesture-handler 如果不是是用native-navigation或者react-native-navigation则可以
react-native-drag-sort：reactreact-native的拖放排序控制
02-05
React本机拖动排序 拖放排序控件可用于本机 版本迭代 安装 yarn add react-native-drag-sort or npm i react-native-drag-sort --save export { DragSortableView, AutoDragSortableView } 性能（GIF） API AutoDragSortableView，DragSortableView 如果名称字段中有*，则为isRequired 名称 道具类型 描述 数据源* 数组 parentWidth 数 父母宽度 儿童身高* 数 每件高度 childrenWidth * 数
react-native-floatWindow:RN仿微信悬浮窗口
04-30
react-native-floatWindow 纯RN仿微信悬浮窗口 运行这个项目 npm install react-native run-ios或react-native run-android 用法 步骤1 npm install react-native-root-siblings 第2步 将SuspensionWindow浮动块拖动到自己的浮动块上 第三步 import React , { Component } from 'react' import { StyleSheet , Text , View , TouchableOpacity } from 'react-native' import SuspendScreen from './SuspensionWindow/index' import RootSibling from 'react-na
React-Native RN 列表拖拽交换Item功能
Min_nna的博客
08-30 1038
开发米家项目使用RN框架，需要要写一个手法编辑可拖动删除的组件页面，记录一下；可按住右边图标进行拖动，左边删除图标删除当前项。
React Draggable 实现图片拖拽
weixin_62889848的博客
02-24 1422
React Draggable 实现拖拽
React 拖动图片
Kmnyed的博客
06-11 243
【代码】React 拖动图片。
Taor Picker 运行RN拖动会回弹
weixin_43797914的博客
02-17 293
在picker属性里面加上Value就行了！！！
Windows下RN开发环境搭建及常见问题解决方案
本文档详细介绍了在Windows环境下如何搭建React Native (RN) 开发环境，包括必要的软件安装、配置步骤以及遇到常见问题的解决方案。以下是关键知识点的详细说明： 1. 安装Node.js： 首先，要确保安装了Node.js，...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
