spring boot 1.5.x系统怎么使用spring boot admin 2.0

本文链接：https://blog.youkuaiyun.com/qq_37616173/article/details/83014952

用过spring boot admin2.0的人再回去用spring boot admin 1.5 就会感觉像是退化了一样，但是默认情况下spring boot 1.5.x不能使用 admin2.0的内容

下面是页面对比

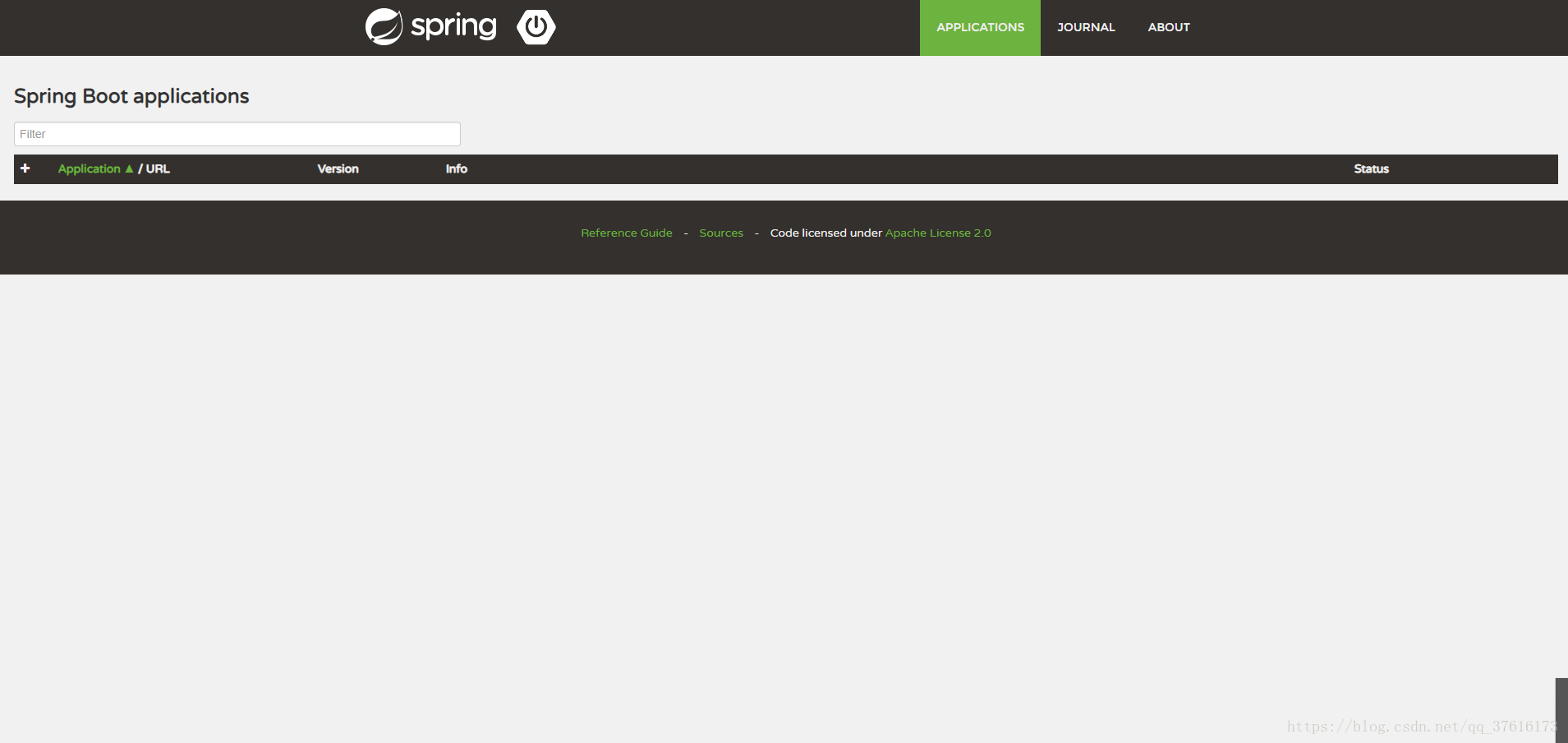

这是admin1.5的页面用angular.js写的虽然功能都有但是页面难看

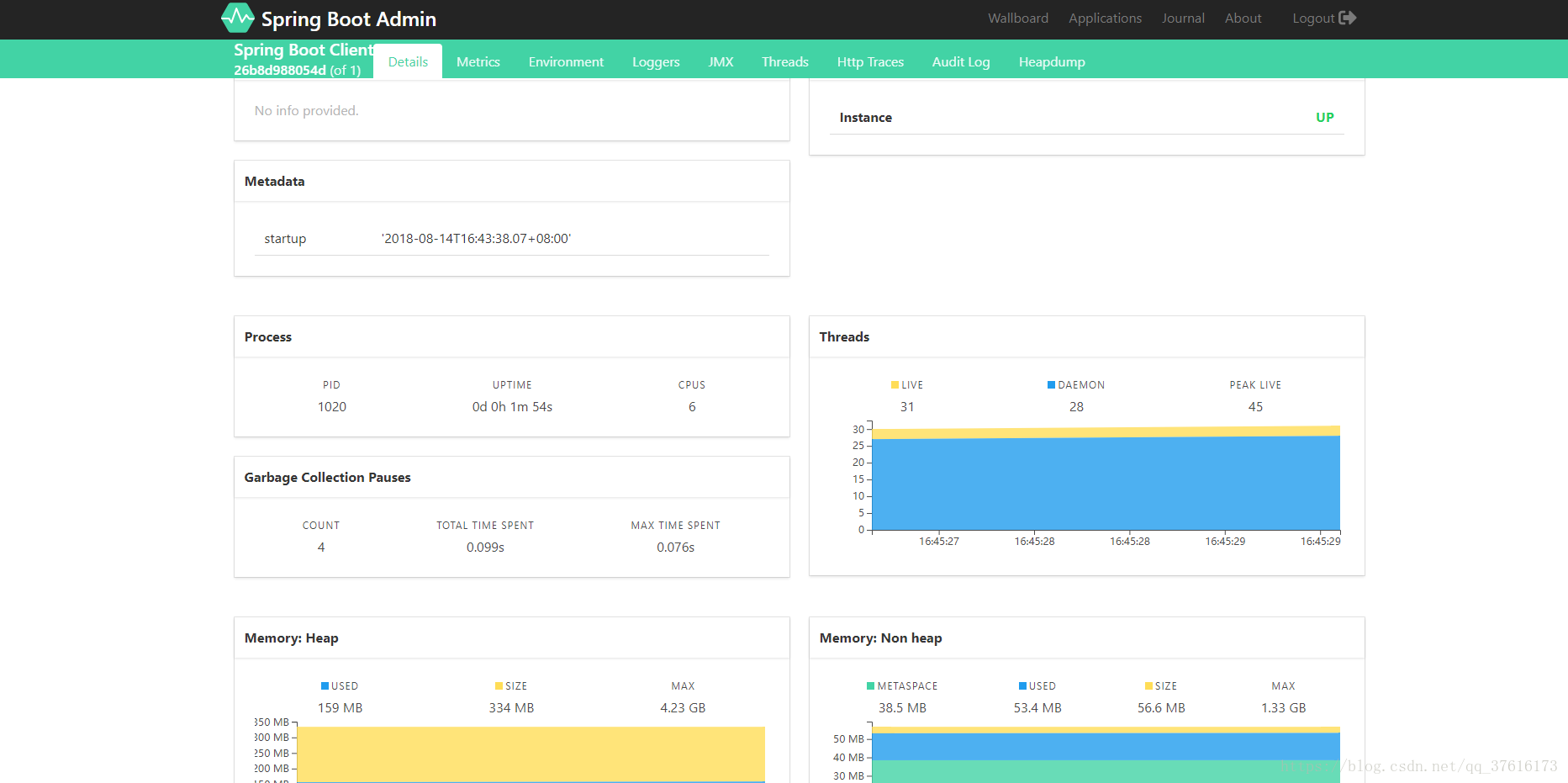

这是2.0的页面是不是比1.5好看不少

我现在的想法是还是用spring boot1.5 但是使用admin2.0的功能
首先创建一个spring boot项目作为admin的server端
pom文件如下

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.example</groupId>
    <artifactId>admin</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>dev-admin</name>
    <description>Demo project for Spring Boot</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.3.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>de.codecentric</groupId>
            <artifactId>spring-boot-admin-starter-server</artifactId>
            <version>2.0.1</version>
        </dependency>
        <dependency>
            <groupId>de.codecentric</groupId>
            <artifactId>spring-boot-admin-server-ui</artifactId>
            <version>2.0.1</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-mail</artifactId>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <executions>
                    <execution>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

启动类上加上spring-boot-admin的配置

package com.example.demo;

import de.codecentric.boot.admin.server.config.EnableAdminServer;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.EnableAutoConfiguration;
import org.springframework.context.annotation.Configuration;

@Configuration
@EnableAutoConfiguration
@EnableAdminServer
public class DemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(DemoApplication.class, args);
    }

}

application.properties配置如下

server.port=1125
spring.application.name= admin2.0

接下来再创建一个spring boot项目使用spring boot 1.5版本
pom文件如下

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.example</groupId>
    <artifactId>admin1.5-client</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>admin1.5-client</name>
    <description>Demo project for Spring Boot</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.5.14.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>de.codecentric</groupId>
            <artifactId>spring-boot-admin-starter-client</artifactId>
            <version>1.5.6</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

启动类上不需要做任何配置
重点说一下application.properties配置

spring.boot.admin.auto-registration = true
spring.boot.admin.url = http://localhost:1125
spring.boot.admin.api-path = instances
management.security.enabled = false

注意，这里的配置严格按照这种写法。当然application.name和server.port还是要自己指定。
现在启动admin-server和当前这个spirng boot1.5项目（我自己做了一个基于spirng boot 2.0的例子做对比）

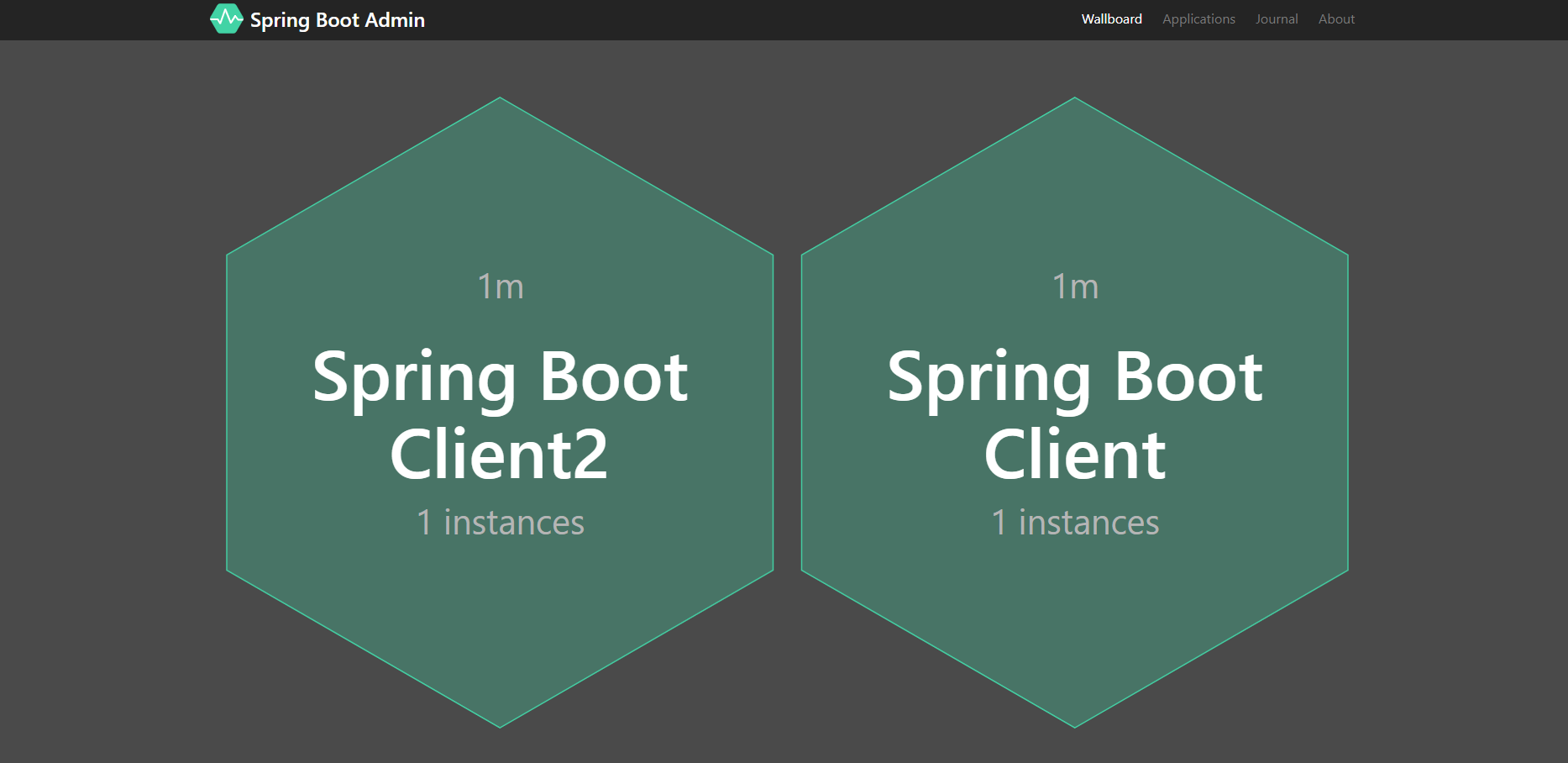

左边的是基于spring boot 1.5 右边的服务基于spring boot 2.0

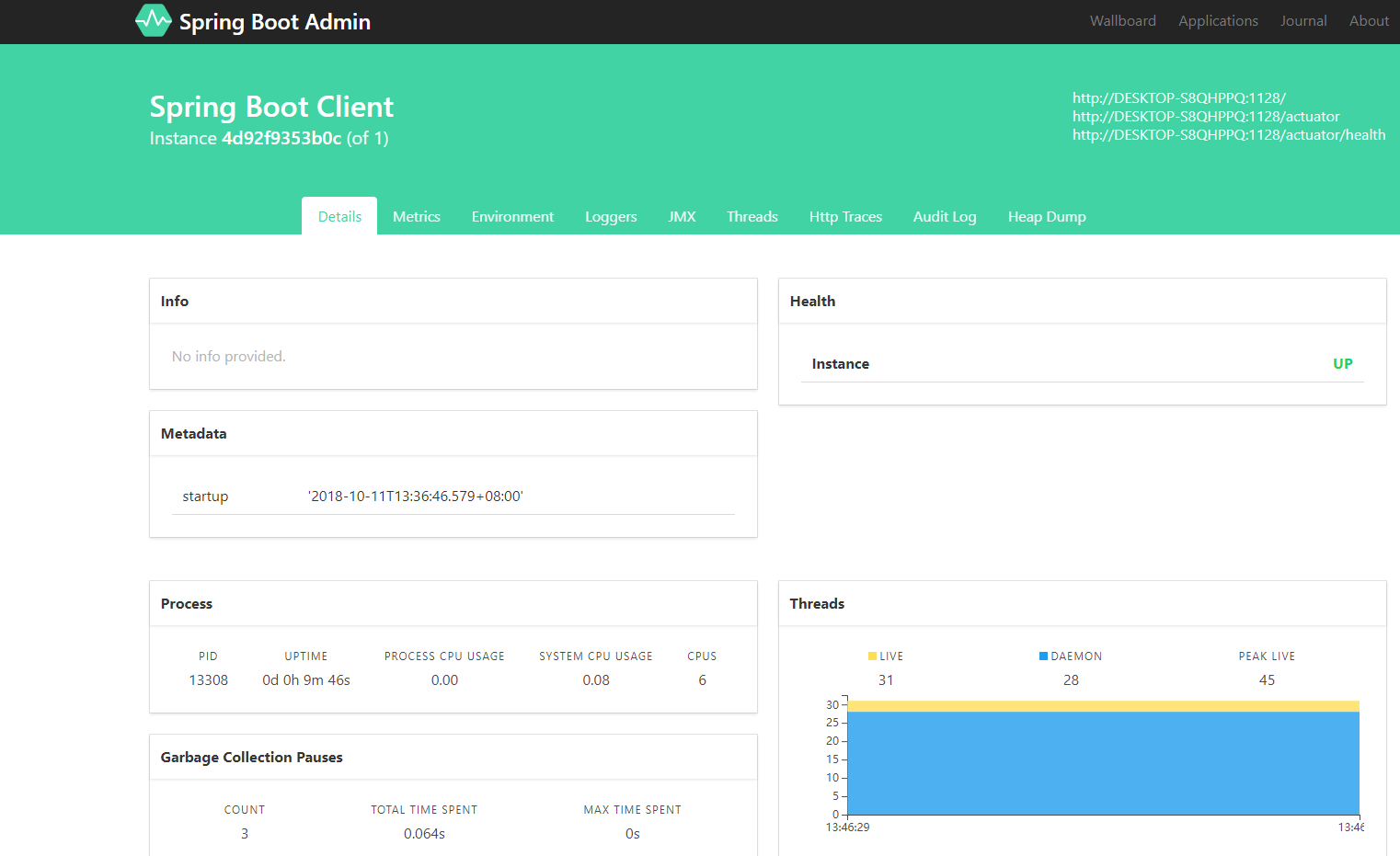

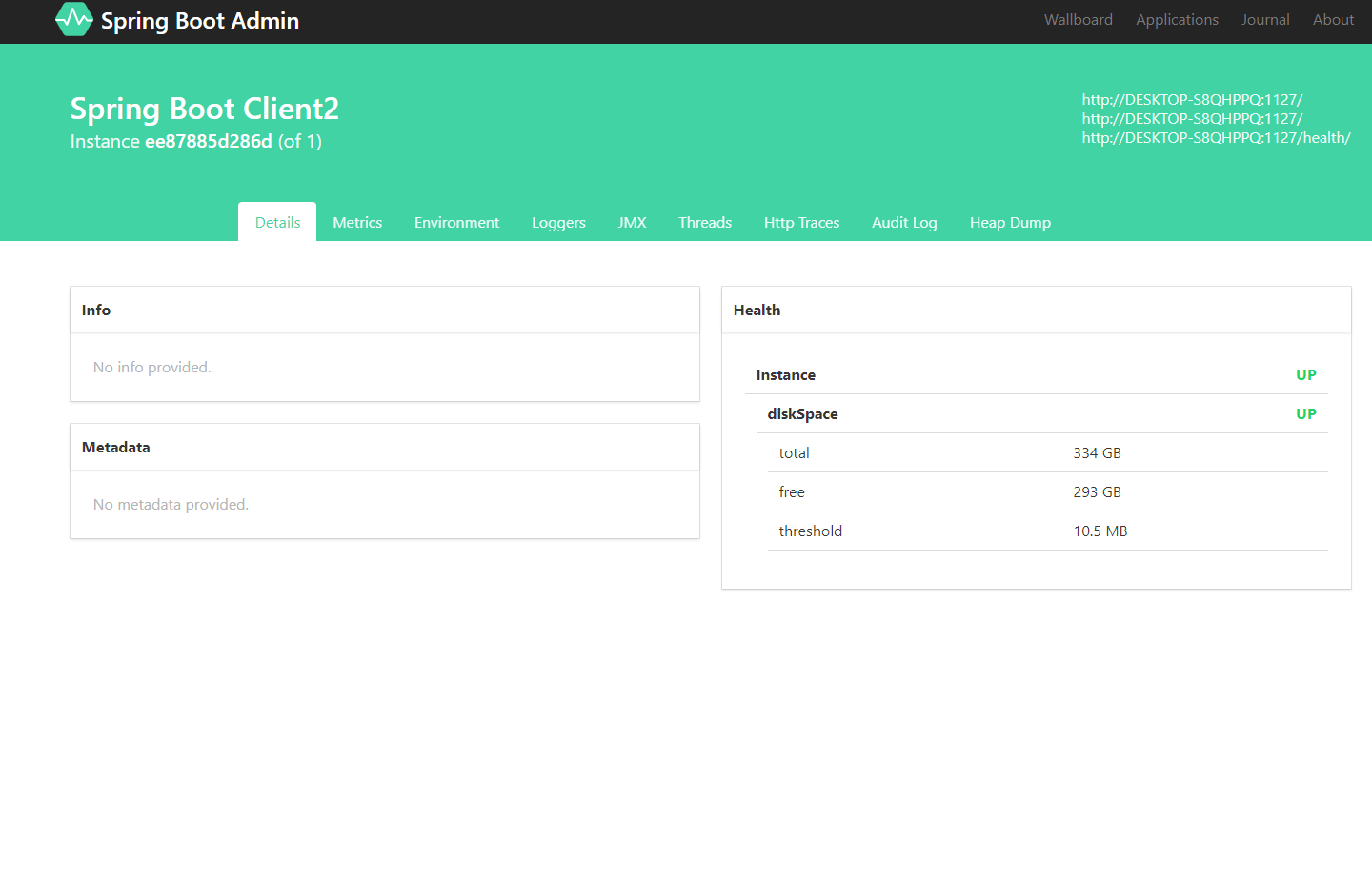

可以看到spring boot1.5的被注册上来了，分别点击详情

可以发现他们还是有一定的区别，一些spring boot admin 2.0的功能 spring boot 1.5 不能用，但是原先spring boot admin 1.5 的功能全部保留。可以自己发掘一下。
我将这些示例的代码都放到了github上，down下来就可以直接运行看效果。欢迎star和fork。
地址：
github https://github.com/p555iii/spring-boot-admin1.5to2.0
码云 https://gitee.com/github-p555iii/spring-boot-admin1.5to2.0
