全连接神经网络反向传播数学推导及代码实现

损失函数L对参数的梯度推导：

损失函数L对全连接层W、X、b的梯度
激活层为softmax时，CrossEntropy损失函数对激活层输入Z的梯度

代码实现：

network.py

import time
from collections import OrderedDict

import numpy as np


# 参数初始化
class HeUniform:
    def __call__(self, weight_shape):
        n_in = weight_shape[0]
        b = np.sqrt(6 / n_in)
        return np.random.uniform(-b, b, size=weight_shape)


class SGD:
    def __init__(self, lr):
        self.lr = lr

    def __call__(self, params, params_grad):
        return params - self.lr * params_grad


class Sigmoid:
    def __call__(self, z):
        return self.forward(z)

    def forward(self, z):
        return 1 / (1 + np.exp(-z))

    def grad(self, x):
        ex = np.exp(-x)
        return ex / ((1 + ex) ** 2)


def softmax(x):
    e_x = np.exp(x)
    # e_x.sum(axis=-1, keepdims=True)逐行求和
    # e_x / e_x.sum(axis=-1, keepdims=True) 每行逐元素除以该行之和
    return e_x / e_x.sum(axis=-1, keepdims=True)


def minibatch(X, batch_size, shuffle=True):
    n = X.shape[0]
    n_batches = int(np.ceil(n / batch_size))
    idx = np.arange(n)
    if shuffle:
        np.random.shuffle(idx)

    def mb_generator():
        for i in range(n_batches):
            yield idx[i * batch_size: (i + 1) * batch_size]

    return mb_generator(), n_batches


class FullyConnected:
    def __init__(self, n_out, acti_fn=None):
        self.X = None  # 模型输入
        self.params = {}  # 参数（W、b）值
        self.gradients = {}  # 参数（W、b）的梯度
        self.optimizer = SGD(lr=0.01)

        self.n_in = None  # 输入维度，等于X.shape[1]，即feature数
        self.n_out = n_out  # 输出维度
        self.acti_fn = Sigmoid() if acti_fn else None  # 激活函数
        self.init_weight = HeUniform()
        self.is_initialized = False

    def _init_params(self):
        b = np.zeros((1, self.n_out))
        W = self.init_weight((self.n_in, self.n_out))
        self.gradients = {'W': np.zeros_like(W), 'b': np.zeros_like(b)}
        self.params = {'W': W, 'b': b}
        self.is_initialized = True

    def forward(self, X):
        if not self.is_initialized:
            self.n_in = X.shape[1]
            self._init_params()
        W = self.params['W']
        b = self.params['b']
        Z = X @ W + b
        a = self.acti_fn.forward(Z) if self.acti_fn else Z
        self.X = X
        return a

    # 关键部分，推导过程见 https://blog.youkuaiyun.com/qq_37613112/article/details/148426857
    def backward(self, dLda):
        dx, dw, db = self._bwd(dLda)
        self.gradients['W'] += dw
        self.gradients['b'] += db
        return dx

    def _bwd(self, dLda):
        W = self.params['W']
        b = self.params['b']
        Z = self.X @ W + b
        dz = dLda * self.acti_fn.grad(Z) if self.acti_fn else dLda
        dx = dz @ W.T
        dw = self.X.T @ dz
        db = np.sum(dz, axis=0)
        return dx, dw, db

    # 处理完一个batch后清空梯度
    def flush_gradients(self):
        self.X = None
        for k, v in self.gradients.items():
            self.gradients[k] = np.zeros_like(v)

    # SGD更新参数
    def update(self):
        for k, v in self.gradients.items():
            if k in self.params:
                self.params[k] = self.optimizer(self.params[k], v)


class CrossEntropy:
    def __call__(self, y_pred, y_true):
        return self.loss(y_pred, y_true)

    def loss(self, y_pred, y_true):
        eps = np.finfo(float).eps
        return -np.sum(y_true * np.log(y_pred + eps))

    # 推导过程见 https://blog.youkuaiyun.com/qq_37613112/article/details/148710092
    def grad(self, y_pred, y_true):
        return y_pred - y_true


class DFN(object):
    # 两层神经网络
    def __init__(self, hidden_dims_1=None, hidden_dims_2=None, loss=CrossEntropy()):
        self.hidden_dim1 = hidden_dims_1
        self.hidden_dim2 = hidden_dims_2
        self.loss = loss
        self.is_initialized = False

    def _set_params(self):
        self.layers = OrderedDict()
        self.layers['FC1'] = FullyConnected(
            n_out=self.hidden_dim1,
            acti_fn='sigmoid'
        )
        self.layers['FC2'] = FullyConnected(
            n_out=self.hidden_dim2
        )
        self.is_initialized = True

    def forward(self, X):
        out = X
        for k, v in self.layers.items():
            out = v.forward(out)
        return out

    def backward(self, grad):
        out = grad
        for k, v in reversed(list(self.layers.items())):
            out = v.backward(out)

    def update(self):
        for k, v in reversed(list(self.layers.items())):
            v.update()
        self.flush_gradients()

    def flush_gradients(self):
        for k, v in self.layers.items():
            v.flush_gradients()

    def fit(self, X_train, Y_train, n_epochs=20, batch_size=64):
        if not self.is_initialized:
            self._set_params()

        pre_loss = np.inf
        for i in range(n_epochs):
            start_time = time.time()
            epoch_loss = 0.0
            batch_generator, n_batches = minibatch(X_train, batch_size)
            for j, batch_idx in enumerate(batch_generator):
                X_batch, Y_batch = X_train[batch_idx], Y_train[batch_idx]
                out = self.forward(X_batch)
                y_pred = softmax(out)
                batch_loss = self.loss(y_pred, Y_batch)
                grad = self.loss.grad(y_pred, Y_batch)
                self.backward(grad)
                self.update()
                epoch_loss += batch_loss
            epoch_loss /= X_train.shape[0]
            print(
                f'[Epoch: {i}] Avg. loss: {epoch_loss} Delta: {pre_loss - epoch_loss} ({(time.time() - start_time) / 60.0}m/epoch)')
            pre_loss = epoch_loss

    def evaluate(self, X_test, Y_test, batch_size=128):
        batch_generator, n_batches = minibatch(X_test, batch_size)
        acc = 0.0
        for j, batch_idx in enumerate(batch_generator):
            X_batch, Y_batch = X_test[batch_idx], Y_test[batch_idx]
            out = self.forward(X_batch)
            y_pred = np.argmax(out, axis=1)
            Y_batch = np.argmax(Y_batch, axis=1)
            acc += np.sum(y_pred == Y_batch)
        return acc / X_test.shape[0]

util.py

import numpy as np

def load_data(path='./data/mnist/mnist.npz'):
    f = np.load(path)
    X_train, y_train = f['x_train'], f['y_train']
    X_test, y_test = f['x_test'], f['y_test']
    f.close()
    return (X_train, y_train), (X_test, y_test)


def pre_process():
    (X_train, y_train), (X_test, y_test) = load_data()

    # np.eye(10)：生成10x10单位矩阵
    # 假设y_train.astype(int)为[2, 3, 0, ……]
    # 则y_train为
    # [
    #   [0, 0, 1, ……],
    #   [0, 0, 0, 1, ……],
    #   [1, ……]
    # ]
    # 从而实现one-hot
    y_train = np.eye(10)[y_train.astype(int)]
    y_test = np.eye(10)[y_test.astype(int)]

    # X_train.shape[0]：样本数
    # 以下操作使三维数据变成二维
    X_train = X_train.reshape(-1, X_train.shape[1] * X_train.shape[2]).astype('float32')
    X_test = X_test.reshape(-1, X_test.shape[1] * X_test.shape[2]).astype('float32')

    indices = np.random.permutation(range(X_train.shape[0]))[:20000]
    X_train, y_train = X_train[indices], y_train[indices]

    X_train /= 255
    X_train = (X_train - 0.5) * 2
    X_test /= 255
    X_test = (X_test - 0.5) * 2
    return X_train, y_train, X_test, y_test

manual.py

import random

import numpy as np

from network import DFN
from util import pre_process

np.random.seed(42)
random.seed(42)

if __name__ == "__main__":
    model = DFN(hidden_dims_1=200, hidden_dims_2=10)

    X_train, y_train, X_test, y_test = pre_process()

    model.fit(X_train, y_train, n_epochs=20)
    evaluate = model.evaluate(X_test, y_test)
    print(evaluate)

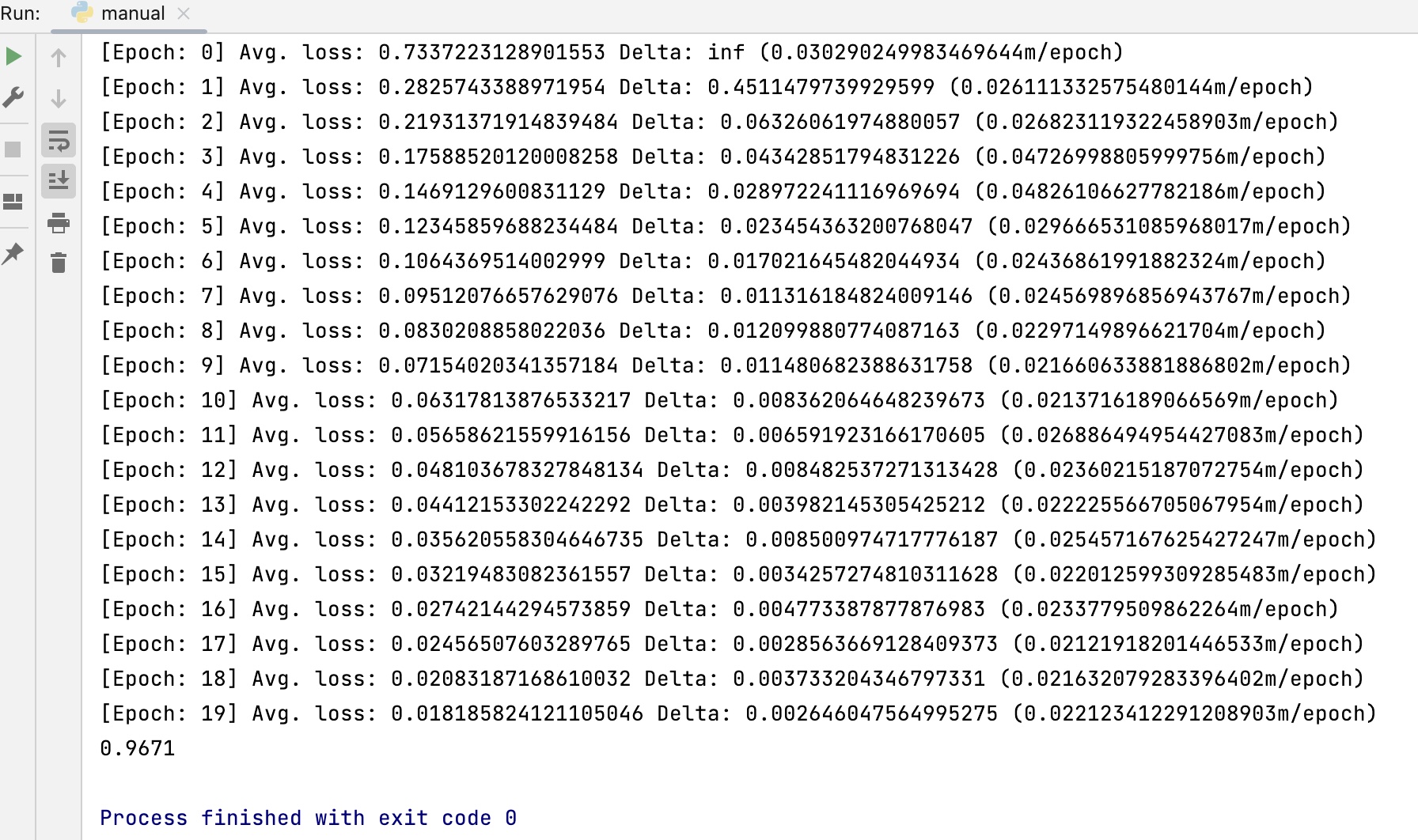

运行结果：

与pytorch版本的代码运行结果对比：

代码

import random
import time

import numpy as np
import torch
import torch.nn as nn
from util import pre_process
from torch.utils.data import DataLoader, TensorDataset

torch.manual_seed(42)
random.seed(42)
np.random.seed(42)


class NNDFN(nn.Module):
    def __init__(self, hidden_dims_1=100, hidden_dims_2=10):
        super(NNDFN, self).__init__()
        self.fc1 = nn.Linear(784, hidden_dims_1)
        self.sigmoid = nn.Sigmoid()
        self.fc2 = nn.Linear(hidden_dims_1, hidden_dims_2)
        self.slope = 1
        self.intercept = 0
        for m in self.modules():
            if isinstance(m, nn.Linear):
                nn.init.kaiming_uniform_(m.weight, mode='fan_in')
                nn.init.zeros_(m.bias)

    def forward(self, X):
        return self.fc2(self.sigmoid(self.fc1(X)))


if __name__ == '__main__':
    X_train, y_train, X_test, y_test = pre_process()

    X_train = torch.tensor(X_train, dtype=torch.float32)
    y_train = torch.tensor(y_train, dtype=torch.float32)
    X_test = torch.tensor(X_test, dtype=torch.float32)
    y_test = torch.tensor(y_test, dtype=torch.float32)

    train_dataset = TensorDataset(X_train, y_train)
    train_loader = DataLoader(train_dataset)

    test_dataset = TensorDataset(X_test, y_test)
    test_loader = DataLoader(test_dataset)

    model = NNDFN()
    loss_fn = nn.CrossEntropyLoss()  # 结合了softmax和交叉熵损失函数
    optimizer = torch.optim.SGD(params=model.parameters(), lr=0.01)

    pre_loss = np.inf
    for epoch in range(20):
        epoch_loss = 0.0
        start_time = time.time()
        for idx, (inputs, labels) in enumerate(train_loader):
            optimizer.zero_grad()
            y_pred = model.forward(inputs)
            loss = loss_fn(y_pred, torch.argmax(labels, dim=1))
            loss.backward()
            optimizer.step()
            epoch_loss += loss.item()
        epoch_loss /= X_train.shape[0]
        print(
            f'[Epoch: {epoch}] Avg. loss: {epoch_loss} Delta: {pre_loss - epoch_loss} ({(time.time() - start_time) / 60.0}m/epoch)')
        pre_loss = epoch_loss

    acc = 0
    for idx, (inputs, labels) in enumerate(test_loader):
        out = model.forward(inputs)
        _, pred = torch.max(out, dim=1)  # 求每行最大值及位置，返回最大值及其索引，pred大小为n x 1

        acc += (pred == torch.argmax(labels, dim=1)).sum().item()
    print(f'acc:{acc / X_test.shape[0]}')

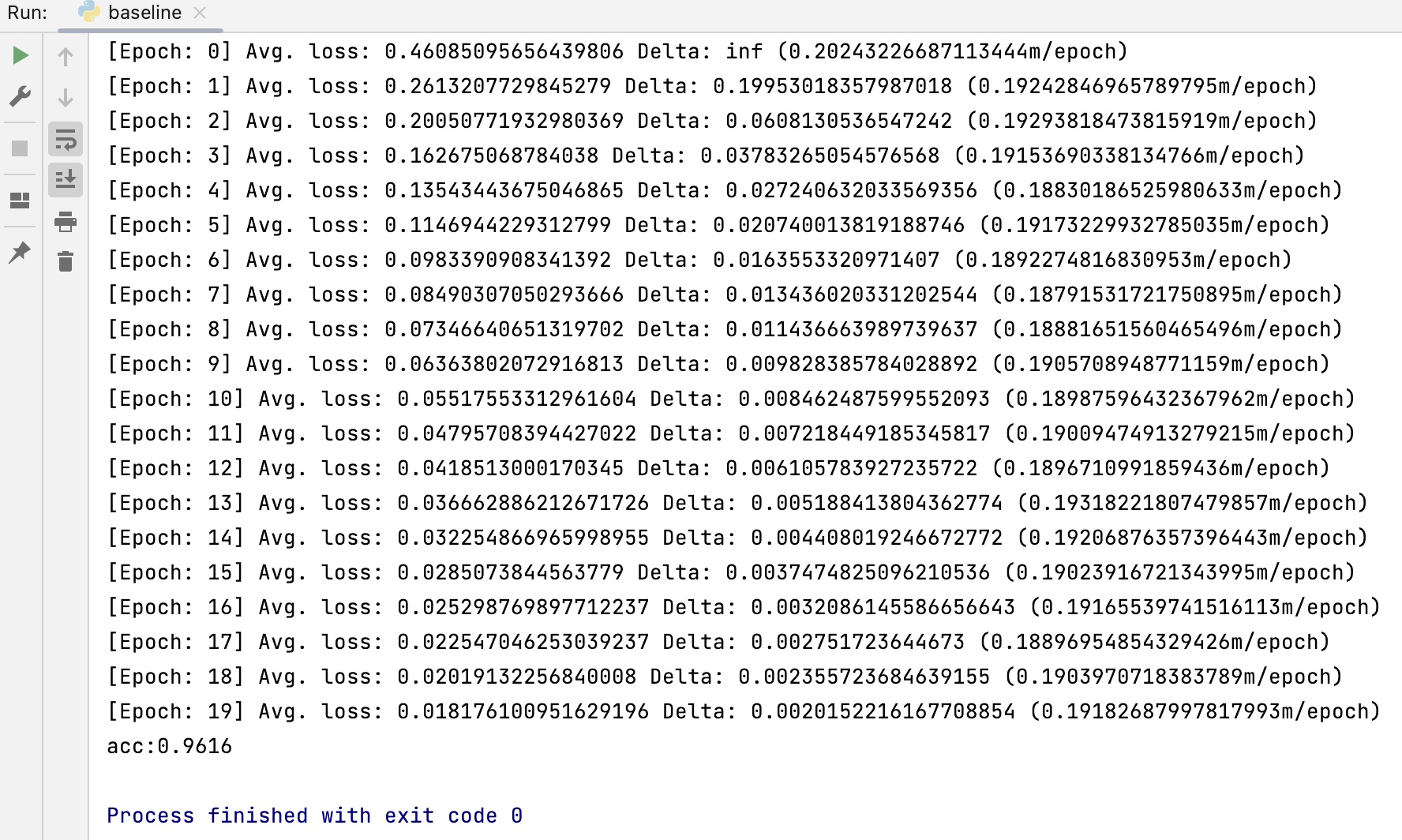

运行结果（在CPU上）：
