13爬虫：使用scrapy实现图片之家中男明星专辑中图片的下载

qq_37587269

于 2024-12-18 17:29:24 发布

阅读量328

点赞数 3

文章标签： scrapy

本文链接：https://blog.youkuaiyun.com/qq_37587269/article/details/144564347

版权

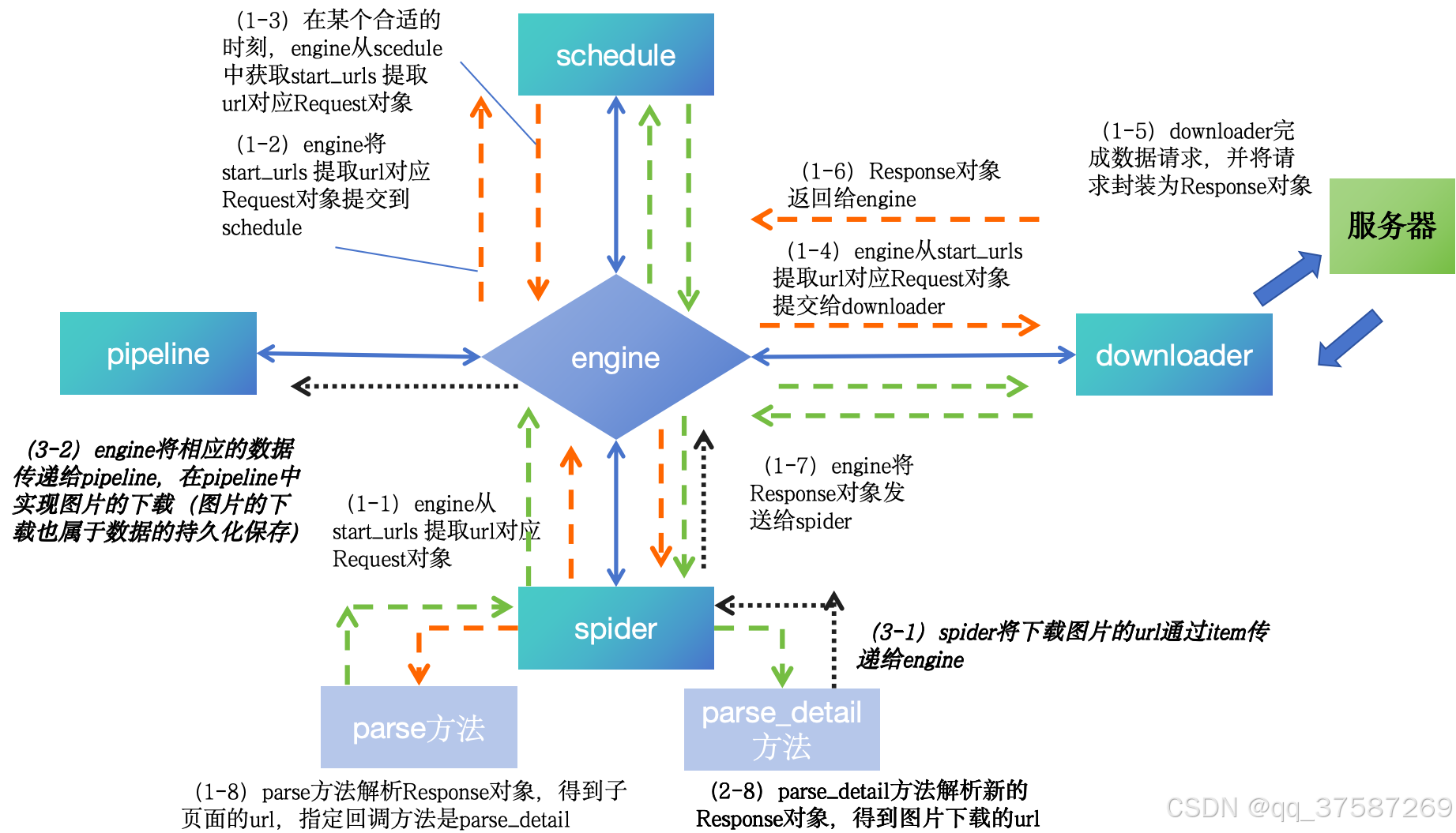

流程框架

在这个案例中，我们使用scrapy抓取图片之间某个模块的图片，整个框架的工作流程如上图所示。橘色线表示scrapy对初始url所在的服务器发起请求，绿色线表示scrapy对子页面url所在的服务器发起请求，黑色线表示scarpy下载图片的流程。

对应的步骤如下：

（1-1）engine从spider中提取初始url的Request对象，随后将该对象放入schedule中；

（1-2）某时刻，engine将该Request对象从schedule中提取出来，发送至downloader中；

（1-3）downloader完成数据请求，获取的相应封装为Response对象，将Response对象发送至engine；

（1-4）engine将Response对象发送至spider，spider中的parse方法完成Response对象的解析；

（2-1）因为解析出来子页面的url，所以spider将子页面的url封装成Request对象并将其提交至engine，接下来的流程就是重复（1-2）、（1-3）；

（2-4）engine将子页面url对应的Response对象发送至spider，由于初始url和子页面url对应的html不一样，所以新建一个Response对象解析方法parse_detail，得到图片下载地址。

（3-1）由于下载图片属于数据的持久化保存，engine通过item将图片下载链接发送至pipeline中，在pipeline中实现图片的下载。（item是scrapy中一种传递数据的格式，我们可以将其看作字典。）

创建runner.py用于scrapy的运行

from scrapy.cmdline import execute

if __name__ == '__main__':
    execute("scrapy crawl imageDownload".split())

scrapy主体代码

（1）spider

import scrapy
from picture.items import PictureItem
'''
（1）创建runner文件，方便我们运行imageDownload爬虫程序
（2）修改settings.py文件
            修改告警级别：LOG_LEVEL = "WARNING"
            修改robots协议：ROBOTSTXT_OBEY = False
            修改爬虫程序请求响应之间的等待时间：DOWNLOAD_DELAY = 3
（3）修改start_uls，scrapy框架自动生成的，很有可能不是我们需要的起始url

目的：获取图片之间（‘https://www.tpzj.com/’）中娱乐八卦中的男明星专辑
'''

class ImagedownloadSpider(scrapy.Spider):
    name = "imageDownload"
    allowed_domains = ["tpzj.com"]
    start_urls = ["https://www.tpzj.com/"]

    def parse(self, response, **kwargs): # parse方法默认处理其一次响应的方法
        ls = response.xpath('//div[@class="warpbox bgff"][1]//div[@class="list_menu"]/a[6]')
        for l in ls:
            href = l.xpath('./@href').extract_first()
            name = l.xpath('./text()').extract_first()
            # 拼接子url的地址
            # https://www.tpzj.com/mingxing/xiezhen/
            # https://www.tpzj.com/
            child_url = response.urljoin(href) # scrapy中内置的方法实现url地址的拼接
            yield scrapy.Request(
                url=child_url,
                method="GET",
                callback=self.parse_detail # 回调函数，指定网页解析的方法
            )

    def parse_detail(self, response, **kwargs):
        lis = response.xpath('//div[@id="tage9b611f8ab43453e519443ccb9a97ac0"]/li')
        for li in lis:
            src_url = li.xpath('./a/img/@src').extract_first()
            name = li.xpath('./a/@title').extract_first()
            # print(src_url)
            # print(name)
            item = PictureItem() #声明item对象
            item['src'] = src_url
            item['name'] = name
            yield item # 将数据传递给管道

（2）item

# Define here the models for your scraped items
#
# See documentation in:
# https://docs.scrapy.org/en/latest/topics/items.html

import scrapy


class PictureItem(scrapy.Item):
    # define the fields for your item here like:
    # name = scrapy.Field()
    src = scrapy.Field()
    name = scrapy.Field()

（3）pipeline

# Define your item pipelines here
#
# Don't forget to add your pipeline to the ITEM_PIPELINES setting
# See: https://docs.scrapy.org/en/latest/topics/item-pipeline.html
import scrapy
# useful for handling different item types with a single interface

from itemadapter import ItemAdapter
from scrapy.pipelines.images import ImagesPipeline # ImagesPipeline时scrapy中内置的专门用于保存图片的类
from scrapy.pipelines.files import FilesPipeline # FilesPipeline是scrapy中专门用于保存文件的类，两个类的使用方法相同
import requests

class PicturePipeline:
    def process_item(self, item, spider):
        return item

# 在settings.py中启用该管道
# 创建新的类，让他继承ImagesPipeline
'''
settings.py中的设置如下
ITEM_PIPELINES = {
   "picture.pipelines.PicturePipeline": 300,
    "picture.pipelines.PicturePipeline1":299, #数据先进入该管道
}
IMAGES_STORE = "./images" # 配置图片保存的位置
'''
class PicturePipeline1(ImagesPipeline):
    # def get_media_requests(self, item, info):
    #     yield scrapy.Request(item['src'],meta={'name':item['name']}) # scrapy中默认的发请求的方法，仅限于图片和文件的获取。
    #     # 如果觉得上述获取图片或者文件的方法不好理解，我们在这里可以自己使用requests获取图片
    # def file_path(self, request, response=None, info=None, *, item=None):
    #     title = request.meta['title']+'.jpg'
    #     return title
    # def item_completed(self, results, item, info):
    #     print(results)

    def process_item(self, item, spider):
        response = requests.get(url=item['src'])
        print(response.content)
        return item

（4）settings

# Scrapy settings for picture project
#
# For simplicity, this file contains only settings considered important or
# commonly used. You can find more settings consulting the documentation:
#
#     https://docs.scrapy.org/en/latest/topics/settings.html
#     https://docs.scrapy.org/en/latest/topics/downloader-middleware.html
#     https://docs.scrapy.org/en/latest/topics/spider-middleware.html

BOT_NAME = "picture"

SPIDER_MODULES = ["picture.spiders"]
NEWSPIDER_MODULE = "picture.spiders"


# Crawl responsibly by identifying yourself (and your website) on the user-agent
#USER_AGENT = "picture (+http://www.yourdomain.com)"

# Obey robots.txt rules
ROBOTSTXT_OBEY = False

# Configure maximum concurrent requests performed by Scrapy (default: 16)
#CONCURRENT_REQUESTS = 32

# Configure a delay for requests for the same website (default: 0)
# See https://docs.scrapy.org/en/latest/topics/settings.html#download-delay
# See also autothrottle settings and docs
DOWNLOAD_DELAY = 3
# The download delay setting will honor only one of:
#CONCURRENT_REQUESTS_PER_DOMAIN = 16
#CONCURRENT_REQUESTS_PER_IP = 16

# Disable cookies (enabled by default)
#COOKIES_ENABLED = False

# Disable Telnet Console (enabled by default)
#TELNETCONSOLE_ENABLED = False

# Override the default request headers:
#DEFAULT_REQUEST_HEADERS = {
#    "Accept": "text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8",
#    "Accept-Language": "en",
#}

# Enable or disable spider middlewares
# See https://docs.scrapy.org/en/latest/topics/spider-middleware.html
#SPIDER_MIDDLEWARES = {
#    "picture.middlewares.PictureSpiderMiddleware": 543,
#}

# Enable or disable downloader middlewares
# See https://docs.scrapy.org/en/latest/topics/downloader-middleware.html
#DOWNLOADER_MIDDLEWARES = {
#    "picture.middlewares.PictureDownloaderMiddleware": 543,
#}

# Enable or disable extensions
# See https://docs.scrapy.org/en/latest/topics/extensions.html
#EXTENSIONS = {
#    "scrapy.extensions.telnet.TelnetConsole": None,
#}

# Configure item pipelines
# See https://docs.scrapy.org/en/latest/topics/item-pipeline.html
ITEM_PIPELINES = {
   "picture.pipelines.PicturePipeline": 300,
    "picture.pipelines.PicturePipeline1":299, #数据先进入该管道
}
# IMAGES_STORE = "./images" # 配置图片保存的位置
# Enable and configure the AutoThrottle extension (disabled by default)
# See https://docs.scrapy.org/en/latest/topics/autothrottle.html
#AUTOTHROTTLE_ENABLED = True
# The initial download delay
#AUTOTHROTTLE_START_DELAY = 5
# The maximum download delay to be set in case of high latencies
#AUTOTHROTTLE_MAX_DELAY = 60
# The average number of requests Scrapy should be sending in parallel to
# each remote server
#AUTOTHROTTLE_TARGET_CONCURRENCY = 1.0
# Enable showing throttling stats for every response received:
#AUTOTHROTTLE_DEBUG = False

# Enable and configure HTTP caching (disabled by default)
# See https://docs.scrapy.org/en/latest/topics/downloader-middleware.html#httpcache-middleware-settings
#HTTPCACHE_ENABLED = True
#HTTPCACHE_EXPIRATION_SECS = 0
#HTTPCACHE_DIR = "httpcache"
#HTTPCACHE_IGNORE_HTTP_CODES = []
#HTTPCACHE_STORAGE = "scrapy.extensions.httpcache.FilesystemCacheStorage"

# Set settings whose default value is deprecated to a future-proof value
REQUEST_FINGERPRINTER_IMPLEMENTATION = "2.7"
TWISTED_REACTOR = "twisted.internet.asyncioreactor.AsyncioSelectorReactor"
FEED_EXPORT_ENCODING = "utf-8"
LOG_LEVEL = "WARNING"
