Docker私有仓库的搭建及TLS加密，用户认证，远程登陆私人仓库

由于docker hub为官方仓库，速度较慢，虽然可以配置加速器，但对于隐密性，安全性来说，私有仓库会更加方便。

创建私有仓库

1.下载registry镜像
虚拟机联网

[root@server1 ~]# docker pull registry:2

[root@server1 ~]# docker images
REPOSITORY                  TAG                 IMAGE ID            CREATED             SIZE
registry                    2                   f32a97de94e1        4 months ago        25.8MB

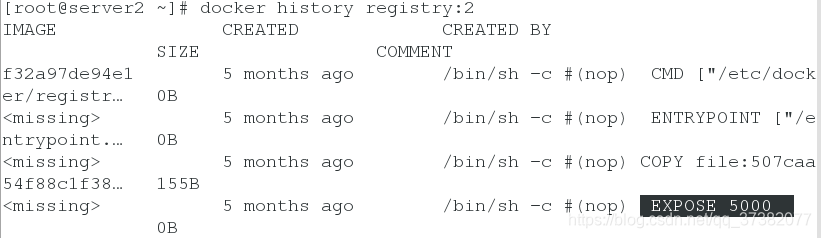

查看镜像封装是暴露的端口，以便于端口映射

[root@server1 ~]# docker run -d --name registry -p 5000:5000 -v /opt/registry:/var/lib/registry registry:2
f0fe21e6d5f6c739ba972187b2e099eed8b28f96c7494a9690d0cb9446e95e8b
[root@server1 ~]# docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS                    NAMES
4bdb8de8ef34        registry:2          "/entrypoint.sh /etc…"   32 seconds ago      Up 31 seconds       0.0.0.0:5000->5000/tcp   registry

[root@server1 ~]# netstat -ntlp | grep 5000
tcp6       0      0 :::5000                 :::*                    LISTEN      12350/docker-proxy
[root@server1 ~]# docker load -i game2048.tar
[root@server1 ~]# docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE
registry            2                   f32a97de94e1        5 months ago        25.8MB
registry            latest              f32a97de94e1        5 months ago        25.8MB
game2048            latest              19299002fdbe        2 years ago         55.5MB
[root@server1 ~]# docker tag game2048:latest localhost:5000/game2048 修改game2048:latest镜像名，要上传到主机
[root@server1 ~]# docker images
REPOSITORY                TAG                 IMAGE ID            CREATED             SIZE
registry                  2                   f32a97de94e1        5 months ago        25.8MB
registry                  latest              f32a97de94e1        5 months ago        25.8MB
game2048                  latest              19299002fdbe        2 years ago         55.5MB
localhost:5000/game2048   latest              19299002fdbe        2 years ago         55.5MB
[root@server1 ~]# docker push localhost:5000/game2048 #将命名的镜像上传到本机5000端口，也就是容器端口内

[root@server1 ~]# curl localhost:5000/v2/_catalog #查看私人仓库是否有game2048
{"repositories":["game2048"]}

[root@serve1 repositories]# ls
game2048
[root@server2 repositories]# pwd #根据挂载位置查看是否存在game数据
/opt/registry/docker/registry/v2/repositories

此时创建的私有仓库远程主机无法使用，并且不够安全，此时则可以采用私有仓库加证书加密的方式来创建私有仓库

私有仓库的TLS加密

生成证书

[root@server1 ~]# mkdir -p certs #创建加密证书存放目录
[root@server1 ~]# openssl req -newkey rsa:4096 -nodes -sha256 -keyout certs/haha.com.key -x509 -days 365 -out certs/haha.com.crt
Generating a 4096 bit RSA private key
........++
.........................................................................................................................................................................++
writing new private key to 'certs/haha.com.key'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:cn
State or Province Name (full name) []:shaanxi
Locality Name (eg, city) [Default City]:xi'an
Organization Name (eg, company) [Default Company Ltd]:redhat
Organizational Unit Name (eg, section) []:linux
Common Name (eg, your name or your server's hostname) []:haha.com
Email Address []:root@haha.com
[root@server1 ~]# ls certs/ #证书和密钥生成
haha.com.crt  haha.com.key

[root@server1 ~]# vim /etc/hosts  #做好地址解析
172.25.25.1     server1   haha.com

构建加密仓库

docker rm -f registry
docker run -d --restart=always --name registry -v "$(pwd)"/certs:/certs -e REGISTRY_HTTP_ADDR=0.0.0.0:443 -e REGISTRY_HTTP_TLS_CERTIFICATE=/certs/haha.com.crt -e REGISTRY_HTTP_TLS_KEY=/certs/haha.com.key -p 443:443 registry
#以加密方式运行仓库，并进行端口映射
docker ps   #查看进程
cd /etc/docker/
mkdir certs.d/haha.com #创建docker TSL认证证书
cd certs.d/haha.com/
cp /root/certs/haha.com.crt ca.crt #复制认证证书到当前文件，并改名
systemctl restart docker #重启docker服务，由于重新加入认证证书

验证部署是否成功

docker images
docker load -i ubuntu.tar #加载镜像
docker tag ubuntu:latest haha.com/ubuntu:latest  #修改镜像名为仓库名
docker push haha.com/ubuntu#上传镜像

Docker仓库添加用户认证功能

1.创建认证功能

[root@server1 ~]# mkdir auth #创建用户认证目录
[root@server1 ~]# docker run --rm --entrypoint htpasswd registry -Bbn admin redhat > auth/htpasswd
  #容器运行认证用户admin信息存放到auth/htpasswd
[root@server1 ~]# cat auth/htpasswd
admin:$2y$05$MrxBOhunWu.VfMkPr2lKG.QleK6d8CBocYD7Jv6Wt6cE62i.agJ8q
[root@server1 ~]# docker run --rm --entrypoint htpasswd registry -Bbn xixi redhat >> auth/htpasswd  ##追加认证用户及密码

[root@server1 ~]# docker ps  ##查看当前docker容器进程
[root@server1 ~]# docker rm -f ef61c36b8c89  ##删除原有的registry，否则再次创建registry会出现报错

[root@server1 ~]# docker run -d --restart=always --name registry -v "$(pwd)"/certs:/certs -e REGISTRY_HTTP_ADDR=0.0.0.0:443 -e REGISTRY_HTTP_TLS_CERTIFICATE=/certs/haha.com.crt -e REGISTRY_HTTP_TLS_KEY=/certs/haha.com.key -p 443:443 -v "$(pwd)"/auth:/auth -e "REGISTRY_AUTH=htpasswd" -e "REGISTRY_AUTH_HTPASSWD_REALM=Registry Realm" -e REGISTRY_AUTH_HTPASSWD_PATH=/auth/htpasswd registry

[root@server1 ~]# docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS                            NAMES
bea51c3c3c50        registry            "/entrypoint.sh /etc…"   42 seconds ago      Up 41 seconds       0.0.0.0:443->443/tcp, 5000/tcp   registry

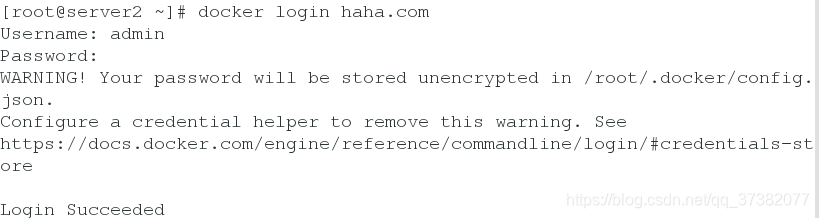

[root@server1 ~]# docker login haha.com
 #用户认证登陆

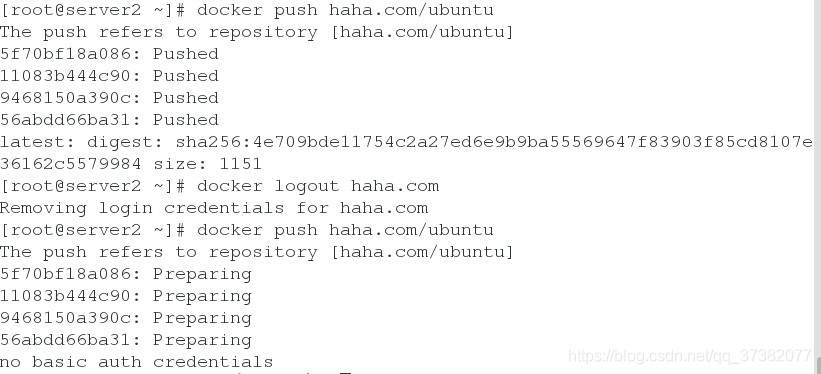

[root@server1 ~]# docker push haha.com/ubuntu  #上传镜像
[root@server1 ~]# docker logout haha.com  #退出
[root@server1 ~]# docker push westos.org/nginx  #镜像上传不成功，原因是没有登录

远程主机连接当前仓库

远程登陆：
条件：远程主机必须要有域名解析，以及生成docker的密钥证书。

仓库（server2）：

vim /etc/hosts
		172.25.25.2     server2 haha.com
		172.25.25.3     server3

scp -r /etc/docker/certs.d/ server3:/etc/docker/

远程主机：

配置yum源
安装docker
vim /etc/hosts
		172.25.25.2     server2 haha.com
		172.25.25.3     server3

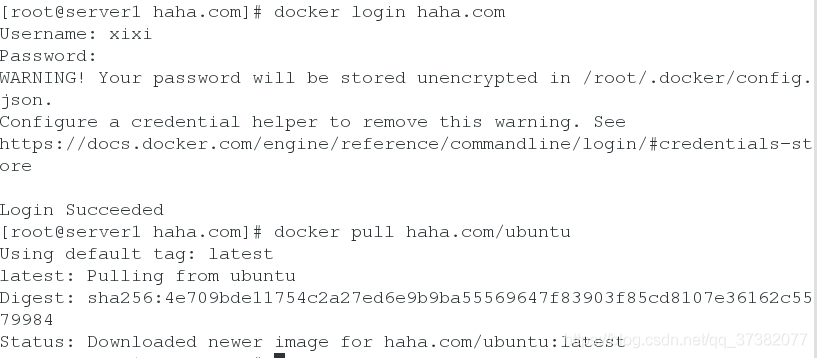

docker login haha.com				#由于使用了用户认证，就必须先登陆，后拉取
docker pull haha.com/ubuntu		#下载镜像

[root@server3 docker]# docker images  ##查看镜像拉取是否成功
