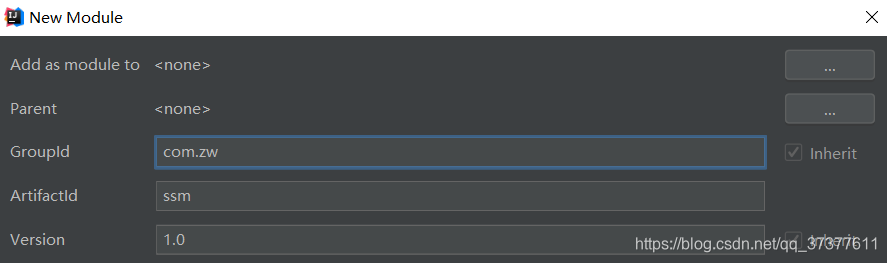

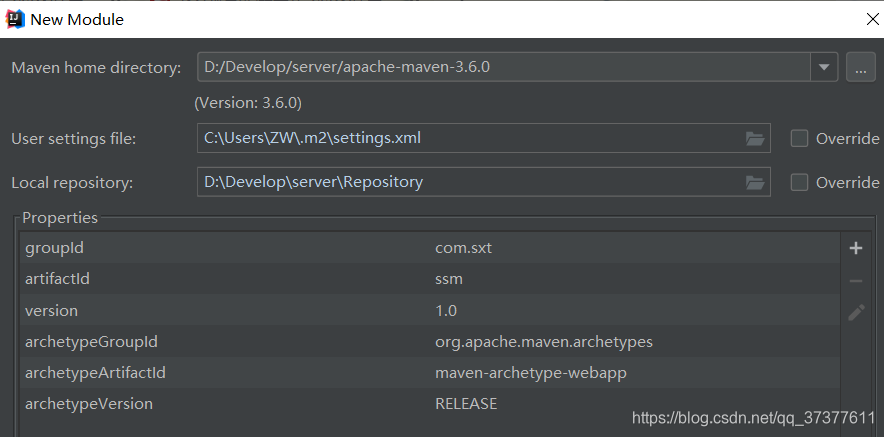

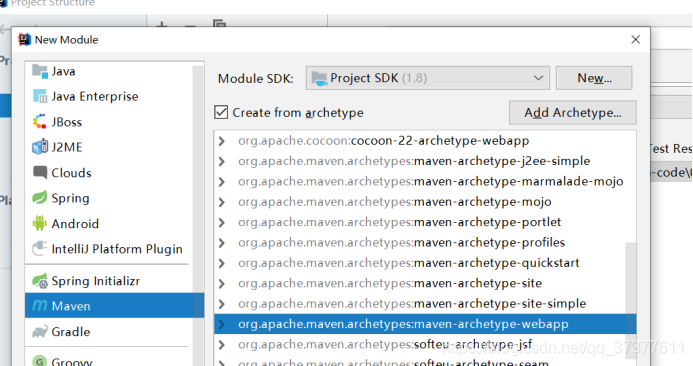

一.创建项目

二.修改pom.xml引入相关包

https://mvnrepository.com/

servlet
jsp
spring
jackson
mybatis
mybatis-spring
pagehelper
mysql
druid
fileupload
logging
log4j

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.zw</groupId>
  <artifactId>ssm</artifactId>
  <version>1.0</version>
  <packaging>war</packaging>

  <name>ssm Maven Webapp</name>
  <url>http://www.example.com</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <servlet.version>3.1.0</servlet.version>
    <jsp.version>2.3.1</jsp.version>
    <spring.version>4.3.24.RELEASE</spring.version>
    <jackson.version>2.10.0</jackson.version>
    <mybatis.version>3.5.4</mybatis.version>
    <mybatis-spring.version>2.0.3</mybatis-spring.version>
    <pagehelper.version>5.1.11</pagehelper.version>
    <mysql.version>8.0.19</mysql.version>
    <druid.version>1.1.21</druid.version>
    <fileupload.version>1.4</fileupload.version>
    <logging.version>1.2</logging.version>
    <log4j.version>1.2.17</log4j.version>
  </properties>

  <dependencies>
    <!--servlet -->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>${servlet.version}</version>
      <scope>provided</scope>
    </dependency>
    <!-- javax.servlet.jsp -->
    <dependency>
      <groupId>javax.servlet.jsp</groupId>
      <artifactId>javax.servlet.jsp-api</artifactId>
      <version>${jsp.version}</version>
      <scope>provided</scope>
    </dependency>
    <!--spring的引入-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aop</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aspects</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context-support</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-orm</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-oxm</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- mybatis -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>${mybatis.version}</version>
    </dependency>

    <!-- mybatis-spring -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>${mybatis-spring.version}</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/com.github.pagehelper/pagehelper -->
    <dependency>
      <groupId>com.github.pagehelper</groupId>
      <artifactId>pagehelper</artifactId>
      <version>${pagehelper.version}</version>
    </dependency>

    <!-- mysql-connector-java -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>${mysql.version}</version>
    </dependency>

    <!-- https://mvnrepository.com/artifact/com.alibaba/druid -->
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>druid</artifactId>
      <version>${druid.version}</version>
    </dependency>

    <!-- https://mvnrepository.com/artifact/commons-fileupload/commons-fileupload -->
    <dependency>
      <groupId>commons-fileupload</groupId>
      <artifactId>commons-fileupload</artifactId>
      <version>${fileupload.version}</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/commons-logging/commons-logging -->
    <dependency>
      <groupId>commons-logging</groupId>
      <artifactId>commons-logging</artifactId>
      <version>${logging.version}</version>
    </dependency>

    <dependency>
      <groupId>log4j</groupId>
      <artifactId>log4j</artifactId>
      <version>${log4j.version}</version>
    </dependency>
  </dependencies>

  <build>
    <finalName>ssm</finalName>
    <plugins>
      <!--加入tomcat运行插件-->
      <plugin>
        <groupId>org.apache.tomcat.maven</groupId>
        <artifactId>tomcat7-maven-plugin</artifactId>
        <version>2.2</version>
        <configuration>
          <!--解决页面提交数据乱码问题-->
          <uriEncoding>UTF-8</uriEncoding>
          <!--tomcat插件的请求端口-->
          <port>8080</port>
          <!--项目的请求路径-->
          <path>/zw</path>
        </configuration>
      </plugin>
    </plugins>
  </build>
</project>

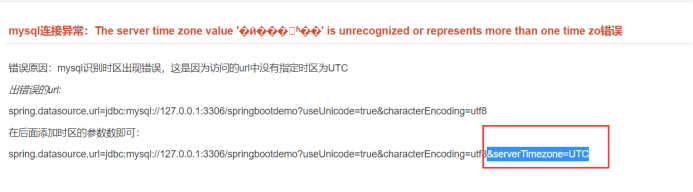

三.创建db.properties

driverClassName=com.mysql.jdbc.Driver
url=jdbc:mysql://127.0.0.1:3306/shiro?useUnicode=true&characterEncoding=UTF-8&serverTimezone=UTC
username=root
password=root

initialSize=5
maxActive=10
minIdle=3

四.创建log4j.properties

# Global logging configuration
log4j.rootLogger=DEBUG, stdout
# MyBatis logging configuration...
log4j.logger.org.mybatis.example.BlogMapper=TRACE
# Console output...
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%5p [%t] - %m%n

五.创建application-dao.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd">

    <!--加载db.properties-->
    <context:property-placeholder location="classpath*:db.properties" system-properties-mode="FALLBACK"></context:property-placeholder>

    <!--配置数据源-->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" init-method="init">
        <property name="driverClassName" value="${driverClassName}"></property>
        <property name="url" value="${url}"></property>
        <property name="username" value="${username}"></property>
        <property name="password" value="${password}"></property>
        <property name="initialSize" value="${initialSize}"></property>
        <property name="maxActive" value="${maxActive}"></property>
        <property name="minIdle" value="${minIdle}"></property>
    </bean>

    <!--声明配置对象-->
    <bean id="configuration" class="org.apache.ibatis.session.Configuration">
        <!--在控制台输出sql-->
        <property name="logImpl" value="org.apache.ibatis.logging.stdout.StdOutImpl"></property>
    </bean>

    <!--声明sqlSessionFactory-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!--注入数据源-->
        <property name="dataSource" ref="dataSource"></property>
        <!--加入配置文件-->
       <!-- <property name="configLocation" value="classpath*:mybatis.cfg.xml"></property>-->
        <property name="configuration" ref="configuration"></property>
        <!--配置mapper.xml的扫描-->
        <property name="mapperLocations" value="classpath*:mapper/*Mapper.xml"></property>
        <!--配置分页插件-->
        <property name="plugins">
            <bean class="com.github.pagehelper.PageInterceptor"></bean>
        </property>
    </bean>

    <!--配置mapper接口的扫描-->
    <bean id="mapperScannerConfigurer" class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.zw.mapper"></property>
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"></property>
    </bean>


</beans>

六.创建application-service.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:jdbc="http://www.springframework.org/schema/jdbc"
       xmlns:tx="http://www.springframework.org/schema/tx" xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/cache http://www.springframework.org/schema/cache/spring-cache.xsd http://www.springframework.org/schema/jdbc http://www.springframework.org/schema/jdbc/spring-jdbc.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd http://www.springframework.org/schema/aop https://www.springframework.org/schema/aop/spring-aop.xsd"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
    <!--扫描service.impl-->
    <context:component-scan base-package="com.zw.service.impl"/>
    <!--配置事务管理器-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"></property>
    </bean>
    <!--配置事务的传播特性-->
    <tx:advice id="advise" transaction-manager="transactionManager">
        <tx:attributes>
            <tx:method name="insert" propagation="REQUIRED"/>
            <tx:method name="save" propagation="REQUIRED"/>
            <tx:method name="update" propagation="REQUIRED"/>
            <tx:method name="delete" propagation="REQUIRED"/>
            <tx:method name="del" propagation="REQUIRED"/>
            <tx:method name="change" propagation="REQUIRED"/>
            <tx:method name="add" propagation="REQUIRED"/>
            <tx:method name="get" read-only="true"/>
            <tx:method name="load" read-only="true"/>
            <tx:method name="query" read-only="true"/>
        </tx:attributes>
    </tx:advice>

    <!--配置切面-->
    <aop:config>
        <!--声明切面-->
        <aop:pointcut id="pc" expression="execution(* com.zw.service.impl.*.*(..))"></aop:pointcut>
        <!--织入-->
        <aop:advisor advice-ref="advise" pointcut-ref="pc"></aop:advisor>
    </aop:config>
</beans>

七.创建applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">

    <import resource="classpath*:application-dao.xml"></import>
    <import resource="classpath*:application-service.xml"></import>

</beans>

八.创建springmvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
      http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd">
    <!--扫描controller-->
    <context:component-scan base-package="com.zw.controller"></context:component-scan>
    <!--配置映射器和适配器-->
    <mvc:annotation-driven></mvc:annotation-driven>
    <!--配置视图解析器的前后缀-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <!--注入前后缀-->
        <property name="prefix" value="/WEB-INF/view/"></property>
        <property name="suffix" value=".jsp"></property>
    </bean>
    <!--配置文件上传-->
    <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <property name="defaultEncoding" value="UTF-8"></property>
        <property name="maxUploadSize" value="20971520"></property>
        <property name="uploadTempDir" value="/WEB-INF/temp"></property>
    </bean>
    <!--拦截器-->

    <!--配置静态文件放行-->
    <mvc:default-servlet-handler/>
</beans>

九.创建web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         id="WebApp_ID" version="3.1">


  <!--配置编码过滤器开始-->
  <filter>
    <filter-name>encFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>UTF-8</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>encFilter</filter-name>
    <servlet-name>springmvc</servlet-name>
  </filter-mapping>
  <!--配置编码过滤器结束-->


  <!--配置加载applicationContext 监听器开始-->
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath*:applicationContext.xml</param-value>
  </context-param>
  <!--配置加载applicationContext 监听器结束-->


  <!--配置前端控制器开始-->
  <servlet>
    <servlet-name>springmvc</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath*:springmvc.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>

  <servlet-mapping>
    <servlet-name>springmvc</servlet-name>
    <url-pattern>*.do</url-pattern>
  </servlet-mapping>
  <!--配置编码过滤器结束-->


  <!--配置durid的监控页面 开始-->
  <servlet>
    <servlet-name>duridServlet</servlet-name>
    <servlet-class>com.alibaba.druid.support.http.StatViewServlet</servlet-class>
    <init-param>
      <param-name>loginUsername</param-name>
      <param-value>admin</param-value>
    </init-param>
    <init-param>
      <param-name>loginPassword</param-name>
      <param-value>123456</param-value>
    </init-param>
  </servlet>
  <servlet-mapping>
    <servlet-name>duridServlet</servlet-name>
    <url-pattern>/durid/*</url-pattern>
  </servlet-mapping>
  <!--配置durid的监控页面 结束-->

</web-app>
