【2】SpringBoot集成MyBatis入门案例（Eclipse版本）

1.创建Maven工程

2.添加pom.xml的配置

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.zit</groupId>
  <artifactId>springboot-web-hello</artifactId>
  <packaging>war</packaging>
  <version>0.0.1-SNAPSHOT</version>
  <name>springboot-web-hello Maven Webapp</name>
  <url>http://maven.apache.org</url>


  	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.0.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-jdbc</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>org.mybatis.spring.boot</groupId>
  			<artifactId>mybatis-spring-boot-starter</artifactId>
  			<version>1.2.0</version>
		</dependency>
	</dependencies>
  <build>
  <plugins>
  	<plugin>
  		<groupId>org.springframework.boot</groupId>
  		<artifactId>spring-boot-maven-plugin</artifactId>
  	</plugin>
  </plugins>
  <finalName>springboot-web-hello</finalName>
  </build>
</project>

3.使用navicat创建数据库

在这里执行一下脚本即可

/*
Navicat MySQL Data Transfer

Source Server         : abc
Source Server Version : 50724
Source Host           : localhost:3306
Source Database       : spring_boot

Target Server Type    : MYSQL
Target Server Version : 50724
File Encoding         : 65001

Date: 2018-11-27 21:48:43
*/

SET FOREIGN_KEY_CHECKS=0;

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `name` varchar(255) COLLATE utf8_bin DEFAULT NULL,
  `age` int(255) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8 COLLATE=utf8_bin;

-- ----------------------------
-- Records of user
-- ----------------------------
INSERT INTO `user` VALUES ('1', 'summer', '12');
INSERT INTO `user` VALUES ('2', 'xiatian', '13');



4.增加application.properties的配置

##Tomcat端口号
server.port=80
##SpringMVC
spring.mvc.view.prefix=/WEB-INF/jsp/
spring.mvc.view.suffix=.jsp

##配置数据源
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.url=jdbc:mysql://localhost:3306/spring_boot?useUnicode=true&characterEncoding=UTF-8&serverTimezone=UTC
spring.datasource.username=root
spring.datasource.password=Rfid123456

##MyBatis相关配置
mybatis.mapperLocations=classpath:mapper/*.xml
mybatis.typeAliasesPackage=com.zit.springboot.entity

5.创建实体类

6.创建Mapper接口

package com.zit.springboot.mapper;

import java.util.List;

import org.apache.ibatis.annotations.Mapper;

import com.zit.springboot.entity.User;

@Mapper
public interface UserMapper {

	/**
	 *
	 * @return
	 */
	List<User> selectAll();

}

7.创建UserMapper.xml映射文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
				"http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.zit.springboot.mapper.UserMapper">
<select id="selectAll" resultType="User">
	select id,name from user
</select>
</mapper>

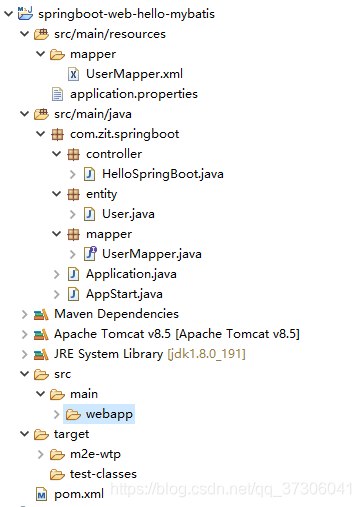

如图：

8.创建启动类测试

package com.zit.springboot;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

import com.zit.springboot.entity.User;
import com.zit.springboot.mapper.UserMapper;

@SpringBootApplication
public class Application implements CommandLineRunner {
	@Autowired
	private UserMapper userMapper;

	public static void main(String[] args) {
		SpringApplication.run(Application.class, args);
	}

	@Override
	public void run(String... args) throws Exception {
		List<User> userList = userMapper.selectAll();

		for (User user : userList) {

			System.out.println("用户名："+user.getName());

		}
	}

}

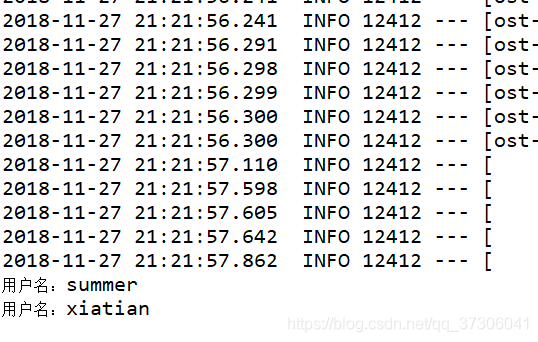

9.控制台打印结果

下载此工程源代码点击此处下载
