TapToView
一个用于手指短按触发,松开释放的Library。有效解决与父级View的事件冲突

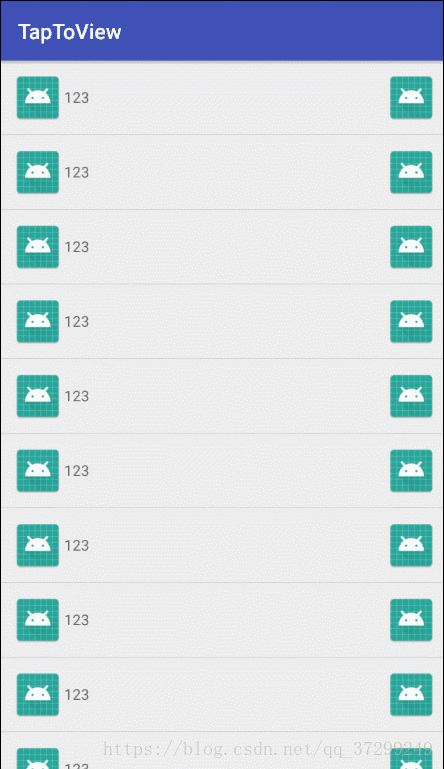

- 效果图
使用步骤
引用
Step 1.Add it in your root build.gradle at the end of repositories:
allprojects {
repositories {
maven { url 'https://jitpack.io' }
}
}
Step 2. Add the dependency
dependencies {
implementation 'com.github.Vove7:TapToView:1.0.0'
}
使用
这里均使用Kotlin
就不客气了,直接上代码
- Custom View
class MainActivity : AppCompatActivity(), OnTapEvent {
lateinit var btn: Button
lateinit var popW: PopupWindow
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_main)
btn = findViewById(R.id.button)
//注意tapEvent
Tap2View(targetView = btn, tapEvent = this).register()
}
override fun onTapSuccess(tap2View: Tap2View, triggerX: Int, triggerY: Int) {
popW = PopUtil.createPopCard(this, "I am here - ?")
popW.animationStyle = R.style.pop_anim
popW.contentView.measure(100, 100)
popW.showAtLocation(btn2, Gravity.TOP or Gravity.START, 0, 0)
//...
Thread.sleep(300)
updatePop(triggerX, triggerY)
}
override fun onClick(v: View, tap2View: Tap2View) {
//Vog.d(this, "点击")
}
override fun onMove(tap2View: Tap2View, event: MotionEvent, dx: Double, dy: Double) {
updatePop(event.rawX.toInt(), event.rawY.toInt())
}
override fun onTapRelease(tap2View: Tap2View) {
popW.dismiss()
}
fun updatePop(x: Int, y: Int) {
popW.update(x - (popW.contentView.width / 2),
y - popW.contentView.height - 20,
ViewGroup.LayoutParams.WRAP_CONTENT, ViewGroup.LayoutParams.WRAP_CONTENT
)
}
}
- ListView
ListAdapter
fun testData() {
//注意itemTapEvent
listView.adapter = DemoListAdapter(this, list, itemTapEvent = object : OnItemTapEvent {
override fun onClick(position: Int, v: View, tap2View: Tap2View) {
Toast.makeText(this@ListActivity, "点击$position", Toast.LENGTH_SHORT).show()
}
override fun onTapSuccess(position: Int, tap2View: Tap2View, triggerX: Int, triggerY: Int) {
popW = PopUtil.createPreViewImage(this@ListActivity, getDrawable(R.drawable.a))
popW.showAtLocation(listView, Gravity.CENTER, 0, 0)
}
override fun onTapCancel(position: Int, tap2View: Tap2View) {
Toast.makeText(this@ListActivity, "let it go", Toast.LENGTH_SHORT).show()
}
override fun onTapRelease(position: Int, tap2View: Tap2View) {
popW.dismiss()
}
override fun onMove(position: Int, tap2View: Tap2View, event: MotionEvent, dx: Double, dy: Double) {
}
}, listView = listView)
}
class DemoListAdapter(private val context: Context, dataSet: List<Data>,
private val itemTapEvent: OnItemTapEvent, val listView: ListView) :
BaseListAdapter<DemoHolder, Data>(context, dataSet) {
override fun onCreateViewHolder(parent: ViewGroup): DemoHolder {
return DemoHolder(inflater.inflate(R.layout.demo_list_item, null))
}
override fun onBindView(holder: DemoHolder, pos: Int, item: Data) {
holder.textView.text = item.text
holder.imgView1.setImageResource(item.imgId)
Tap2View(
targetView = holder.imgView1,
position = pos,
itemTapEvent = itemTapEvent,
delayTime = 400
).register()
}
}
class DemoHolder(itemView: View) : BaseListAdapter.ViewHolder(itemView) {
var textView: TextView = itemView.findViewById(R.id.text)
var imgView1: ImageView = itemView.findViewById(R.id.img1)
}
class Data(var text: String, var imgId: Int)
PopUtil
package cn.vove7.tap2view
object PopUtil {
/**
* Create a PopupWindow with a layoutRes
*/
fun createPop(context: Context, @LayoutRes resId: Int, w: Int = ViewGroup.LayoutParams.WRAP_CONTENT,
h: Int = ViewGroup.LayoutParams.WRAP_CONTENT): PopupWindow
/**
* Create a PopupWindow with a View
*/
fun createPop(contentView: View, w: Int = ViewGroup.LayoutParams.WRAP_CONTENT,
h: Int = ViewGroup.LayoutParams.WRAP_CONTENT): PopupWindow
/**
* Create a PopupWindow
* which like @Toast with @CardView
*/
fun createPopCard(context: Context, content: String): PopupWindow
/**
* gasBlur : 背景使用高斯模糊
* background 背景 Activity==null时启用
*/
fun createPreViewImage(context: Context, previewDrawable: Drawable,
gasBlur:Boolean = true, background: Drawable? = null): PopupWindow
}
已知 ‘Bug’
- 1、同时触摸注册Tap2View事件的多个View就会挂挂。如有需求,各位可自行加’锁’控制。?
