GameFramWork框架下XLUA使用的无限列表
GitHub原文件地址
网上查找到的Scrollview扩展文件，支持无限列表
以前一直使用FGUI，导致UGUI反而不会用了，项目中经常要使用到虚拟列表和无限列表，习惯了FGUI的虚拟列表后，看到UGUI的列表有些头疼，于是在网上查找到了这个组件，然后基于使用的GameFramWork和XLua框架进行修改，并修改了脚本中一些小bug。
这是我的第一篇文章，markdown已经忘了怎么用了，望理解……主要也是做一个记录，以后自己要用的话方便自己查找。
组件脚本源码（这是我修改后的，直接复制吧）
* Unity Module By Garson(https://github.com/garsonlab)
* -------------------------------------------------------------------
* FileName: MyScrollView
* Date : 2020/05/16
* Version : v1.0
* Describe: 无线滚动列表，添加onItemRender事件后，设置numItems数量后自动渲染
* 常用方法：
* ScrollTo（int index，folat time）（定位显示）
* BackTop()
* ResetList()
* RefreshList()
*/
using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine.Events;
using UnityEngine.EventSystems;
namespace UnityEngine.UI
{
[AddComponentMenu("UI/Scroll View", 38)]
[SelectionBase]
[ExecuteInEditMode]
[DisallowMultipleComponent]
[RequireComponent(typeof(RectTransform))]
public class MyScrollView : UIBehaviour, IInitializePotentialDragHandler, IBeginDragHandler, IEndDragHandler, IDragHandler, IScrollHandler, ICanvasElement, ILayoutGroup
{
#region 定义结构
[Serializable]
public class ScrollRectEvent : UnityEvent<Vector2> { }
[Serializable]
public class ScrollRenderEvent : UnityEvent<int, Transform> { }
public Transform ParenForm;
//当前滑动到的列表项
private int presentIndex = 0;
public int PresentIndex { get { return presentIndex; } }
public void OnItemRander(int index,Transform trans)
{
Rhapsody.LuaFormDelegate.Instance.luaOnItemRander(ParenForm.name, index, trans);
}
private void Start()
{
onItemRender.AddListener(OnItemRander);
}
public enum MovementType
{
Unrestricted, // Unrestricted movement -- can scroll forever
Elastic, // Restricted but flexible -- can go past the edges, but springs back in place
Clamped, // Restricted movement where it's not possible to go past the edges
}
public enum ScrollbarVisibility
{
Permanent,
AutoHide,
AutoHideAndExpandViewport,
}
/// <summary>
/// 滚动方向
/// </summary>
public enum MotionType
{
/// <summary>
/// 横向
/// </summary>
Horizontal = 0,
/// <summary>
/// 竖向
/// </summary>
Vertical = 1
}
/// <summary>
/// 自动吸附滑动
/// </summary>
[Serializable]
public struct AttachSnap
{
/// <summary>
/// 速度阈值
/// </summary>
public float VelocityThreshold;
/// <summary>
///
/// </summary>
public float Duration;
}
/// <summary>
/// 自动滚动状态
/// </summary>
private class AutoScrollState
{
public bool Enable;
public float Duration;
public float StartTime;
public Vector2 EndScrollPosition;
}
/// <summary>
/// 单个渲染信息
/// </summary>
private class ItemInfo
{
public RectTransform transform;
public int virtualIndex;
public int actualIndex;
public bool active;
public bool renderable;
public ItemInfo(RectTransform trans)
{
transform = trans;
trans.anchorMin = Vector2.up;
trans.anchorMax = Vector2.up;
trans.pivot = Vector2.one * 0.5f;
trans.gameObject.SetActive(false);
virtualIndex = int.MaxValue;
actualIndex = int.MaxValue;
active = false;
}
public Vector3 position
{
set
{
if (transform != null)
transform.anchoredPosition = value;
}
}
public float scale
{
set
{
if (transform != null)
transform.localScale = Vector3.one * value;
}
}
public void UpdateActive()
{
if (transform.gameObject.activeSelf != active)
transform.gameObject.SetActive(active);
}
public void UpdateIndex(int virIdx, uint len)
{
virtualIndex = virIdx;
int length = (int)len;
if (length == 0)
{
actualIndex = 0;
return;
}
if (virIdx < 0)
{
actualIndex = (length - 1) + (virIdx + 1) % length;
}
else if (virIdx > len - 1)
{
actualIndex = virIdx % length;
}
else
{
actualIndex = virIdx;
}
transform.gameObject.name = actualIndex.ToString();
}
public void Destroy()
{
if (transform != null)
UnityEngine.Object.Destroy(transform.gameObject);
}
}
#endregion
#region 属性
[SerializeField]
private RectTransform m_ViewPort;
public RectTransform viewport { get { return m_ViewPort; } set { m_ViewPort = value; SetDirtyCaching(); } }
[SerializeField]
private RectTransform m_Content;
public RectTransform content { get { return m_Content; } set { m_Content = value; } }
[SerializeField]
private RectTransform m_Prefab;
public RectTransform prefab { get { return m_Prefab; } set { SetPrefab(value); } }
[SerializeField]
private uint m_NumItems;
public uint numItems { get { return m_NumItems; } set { SetNumItems(value); } }
[SerializeField]
private MotionType m_MotionType = MotionType.Vertical;
public MotionType motionType { get { return m_MotionType; } set { m_MotionType = value; } }
[SerializeField]
private MovementType m_MovementType = MovementType.Elastic;
public MovementType movementType { get { return m_MovementType; } set { m_MovementType = value; } }
[SerializeField]
private float m_Elasticity = 0.1f; // Only used for MovementType.Elastic
public float elasticity { get { return m_Elasticity; } set { m_Elasticity = value; } }
[SerializeField]
private bool m_Inertia = true;
public bool inertia { get { return m_Inertia; } set { m_Inertia = value; } }
[SerializeField]
private float m_DecelerationRate = 0.135f; // Only used when inertia is enabled
public float decelerationRate { get { return m_DecelerationRate; } set { m_DecelerationRate = value; } }
[SerializeField]
private float m_ScrollSensitivity = 1.0f;
public float scrollSensitivity { get { return m_ScrollSensitivity; } set { m_ScrollSensitivity = value; } }
[SerializeField]
private RectOffset m_Margin;
public RectOffset margin { get { return m_Margin; } set { m_Margin = value; } }
[SerializeField]
private uint m_FixedCount = 1;
public uint fixedCount { get { return m_FixedCount; } set { m_FixedCount = value; } }
[SerializeField]
private Vector2 m_ItemSize;
public Vector2 itemSize { get { return m_ItemSize; } set { m_ItemSize = value; } }
[SerializeField]
private Vector2 m_Space;
public Vector2 space { get { return m_Space; } set { m_Space = value; } }
[SerializeField]
private bool m_Loop;
public bool loop { get { return m_Loop; } set { SetLoop(value); } }
[SerializeField]
private bool m_AutoAttach;
public bool autoAttach { get { return m_AutoAttach; } set { m_AutoAttach = value; } }
[SerializeField]
private AttachSnap m_AttachSnap = new AttachSnap() { VelocityThreshold = 0.5f, Duration = 0.3f };
public AttachSnap attachSnap { get { return m_AttachSnap; } set { m_AttachSnap = value; } }
[SerializeField]
private bool m_ScaleCurve;
public bool scaleCurve { get { return m_ScaleCurve; } set { m_ScaleCurve = value; } }
[SerializeField]
private AnimationCurve m_ScaleAnimation = new AnimationCurve(new Keyframe[] { new Keyframe(0, 1), new Keyframe(1, 0.5f) });
public AnimationCurve scaleAnimation { get { return m_ScaleAnimation; } set { m_ScaleAnimation = value; } }
[SerializeField]
private Scrollbar m_HorizontalScrollbar;
public Scrollbar horizontalScrollbar
{
get
{
return m_HorizontalScrollbar;
}
set
{
if (m_HorizontalScrollbar)
m_HorizontalScrollbar.onValueChanged.RemoveListener(SetHorizontalNormalizedPosition);
m_HorizontalScrollbar = value;
if (m_HorizontalScrollbar)
m_HorizontalScrollbar.onValueChanged.AddListener(SetHorizontalNormalizedPosition);
SetDirtyCaching();
}
}
[SerializeField]
private Scrollbar m_VerticalScrollbar;
public Scrollbar verticalScrollbar
{
get
{
return m_VerticalScrollbar;
}
set
{
if (m_VerticalScrollbar)
m_VerticalScrollbar.onValueChanged.RemoveListener(SetVerticalNormalizedPosition);
m_VerticalScrollbar = value;
if (m_VerticalScrollbar)
m_VerticalScrollbar.onValueChanged.AddListener(SetVerticalNormalizedPosition);
SetDirtyCaching();
}
}
[SerializeField]
private ScrollbarVisibility m_HorizontalScrollbarVisibility;
public ScrollbarVisibility horizontalScrollbarVisibility { get { return m_HorizontalScrollbarVisibility; } set { m_HorizontalScrollbarVisibility = value; SetDirtyCaching(); } }
[SerializeField]
private ScrollbarVisibility m_VerticalScrollbarVisibility;
public ScrollbarVisibility verticalScrollbarVisibility { get { return m_VerticalScrollbarVisibility; } set { m_VerticalScrollbarVisibility = value; SetDirtyCaching(); } }
[SerializeField]
private float m_HorizontalScrollbarSpacing;
public float horizontalScrollbarSpacing { get { return m_HorizontalScrollbarSpacing; } set { m_HorizontalScrollbarSpacing = value; SetDirty(); } }
[SerializeField]
private float m_VerticalScrollbarSpacing;
public float verticalScrollbarSpacing { get { return m_VerticalScrollbarSpacing; } set { m_VerticalScrollbarSpacing = value; SetDirty(); } }
[SerializeField]
private ScrollRectEvent m_OnValueChanged = new ScrollRectEvent();
public ScrollRectEvent onValueChanged { get { return m_OnValueChanged; } set { m_OnValueChanged = value; } }
[SerializeField]

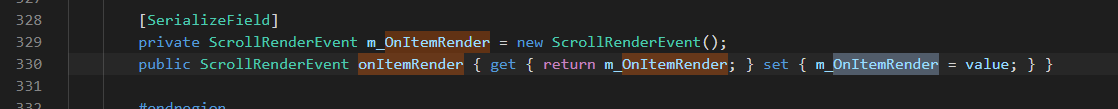

private ScrollRenderEvent m_OnItemRender = new ScrollRenderEvent();
public ScrollRenderEvent onItemRender { get { return m_OnItemRender; } set { m_OnItemRender = value; } }
#endregion
#region 滑动重构
// The offset from handle position to mouse down position
private Vector2 m_PointerStartLocalCursor = Vector2.zero;
private Vector2 m_ContentStartPosition = Vector2.zero;
private Bounds m_ContentBounds;
private Bounds m_ViewBounds;
private Vector2 m_Velocity;
public Vector2 velocity { get { return m_Velocity; } set { m_Velocity = value; } }
private bool m_Dragging;
private Vector2 m_PrevPosition = Vector2.zero;
private Bounds m_PrevContentBounds;
private Bounds m_PrevViewBounds;
[NonSerialized]
private bool m_HasRebuiltLayout = false;
private bool m_HSliderExpand;
private bool m_VSliderExpand;
private float m_HSliderHeight;
private float m_VSliderWidth;
[NonSerialized]
private RectTransform m_Rect;
private RectTransform rectTransform
{
get
{
if (m_Rect == null)
m_Rect = GetComponent<RectTransform>();
return m_Rect;
}
}
private RectTransform m_HorizontalScrollbarRect;
private RectTransform m_VerticalScrollbarRect;
private DrivenRectTransformTracker m_Tracker;
#endregion
#region 虚拟列表数据
private bool m_HasInit;//在点击运行后是否初始化
private int m_TotalLine;//总行或列数
private int m_MaxInit;//最大实例化数量
private int m_StartIdx;//开始序号
private int m_EndIdx;//结束序号
private int m_CurLine;//当前行
private List<ItemInfo> m_VirtualItems = new List<ItemInfo>();
readonly AutoScrollState autoScrollState = new AutoScrollState();
readonly Dictionary<int, ItemInfo> tmpContains = new Dictionary<int, ItemInfo>();
readonly Queue<ItemInfo> tmpPool = new Queue<ItemInfo>();
#endregion
#region 列表重载
protected MyScrollView() { }
void ICanvasElement.Rebuild(CanvasUpdate executing)
{
if (executing == CanvasUpdate.Prelayout)
{
UpdateCachedData();
}
if (executing == CanvasUpdate.PostLayout)
{
UpdateBounds();
UpdateScrollbars(Vector2.zero);
UpdatePrevData();
m_HasRebuiltLayout = true;
}
}
void ICanvasElement.LayoutComplete()
{
//初始化RebuildList
if (IsActive() && !m_HasInit && m_ViewPort.rect.size.x > 0 && m_ViewPort.rect.size.y > 0)
{
StartCoroutine(RebuildList());
}
}
void ICanvasElement.GraphicUpdateComplete() { }
void UpdateCachedData()
{
if (m_ViewPort == null)
return;
Transform transform = this.transform;
m_HorizontalScrollbarRect = m_HorizontalScrollbar == null ? null : m_HorizontalScrollbar.transform as RectTransform;
m_VerticalScrollbarRect = m_VerticalScrollbar == null ? null : m_VerticalScrollbar.transform as RectTransform;
// These are true if either the elements are children, or they don't exist at all.
bool viewIsChild = (m_ViewPort.parent == transform);
bool hScrollbarIsChild = (!m_HorizontalScrollbarRect || m_HorizontalScrollbarRect.parent == transform);
bool vScrollbarIsChild = (!m_VerticalScrollbarRect || m_VerticalScrollbarRect.parent == transform);
bool allAreChildren = (viewIsChild && hScrollbarIsChild && vScrollbarIsChild);
m_HSliderExpand = allAreChildren && m_HorizontalScrollbarRect && horizontalScrollbarVisibility == ScrollbarVisibility.AutoHideAndExpandViewport;
m_VSliderExpand = allAreChildren && m_VerticalScrollbarRect && verticalScrollbarVisibility == ScrollbarVisibility.AutoHideAndExpandViewport;
m_HSliderHeight = (m_HorizontalScrollbarRect == null ? 0 : m_HorizontalScrollbarRect.rect.height);
m_VSliderWidth = (m_VerticalScrollbarRect == null ? 0 : m_VerticalScrollbarRect.rect.width);
}
protected override void OnDestroy()
{
base.OnDestroy();
onItemRender.RemoveListener(OnItemRander);
}
protected override void OnEnable()
{
base.OnEnable();
if (m_HorizontalScrollbar)
m_HorizontalScrollbar.onValueChanged.AddListener(SetHorizontalNormalizedPosition);
if (m_VerticalScrollbar)
m_VerticalScrollbar.onValueChanged.AddListener(SetVerticalNormalizedPosition);
if (m_ViewPort == null)
{
var view = transform.Find("Viewport");
if (view)
m_ViewPort = view as RectTransform;
else
m_ViewPort = rectTransform;
}
CanvasUpdateRegistry.RegisterCanvasElementForLayoutRebuild(this);
}
protected override void OnDisable()
{
CanvasUpdateRegistry.UnRegisterCanvasElementForRebuild(this);
if (m_HorizontalScrollbar)
m_HorizontalScrollbar.onValueChanged.RemoveListener(SetHorizontalNormalizedPosition);
if (m_VerticalScrollbar)
m_VerticalScrollbar.onValueChanged.RemoveListener(SetVerticalNormalizedPosition);
m_HasRebuiltLayout = false;
m_Tracker.Clear();
m_Velocity = Vector2.zero;
LayoutRebuilder.MarkLayoutForRebuild(rectTransform);
base.OnDisable();
}
public override bool IsActive()
{
return base.IsActive() && m_Content != null;
}
private void EnsureLayoutHasRebuilt()
{
if (!m_HasRebuiltLayout && !CanvasUpdateRegistry.IsRebuildingLayout())
Canvas.ForceUpdateCanvases();
}
public void StopMovement()
{
m_Velocity = Vector2.zero;
}
void IScrollHandler.OnScroll(PointerEventData data)
{
if (!IsActive())
return;
EnsureLayoutHasRebuilt();
UpdateBounds();
Vector2 delta = data.scrollDelta;
// Down is positive for scroll events, while in UI system up is positive.
delta.y *= -1;
if (m_MotionType == MotionType.Vertical)
{
if (Mathf.Abs(delta.x) > Mathf.Abs(delta.y))
delta.y = delta.x;
delta.x = 0;
}
if (m_MotionType == MotionType.Horizontal)
{
if (Mathf.Abs(delta.y) > Mathf.Abs(delta.x))
delta.x = delta.y;
delta.y = 0;
}
Vector2 position = m_Content.anchoredPosition;
position += delta * m_ScrollSensitivity;
if (m_MovementType == MovementType.Clamped)
position += CalculateOffset(position - m_Content.anchoredPosition);
SetContentAnchoredPosition(position);
UpdateBounds();
}
void IInitializePotentialDragHandler.OnInitializePotentialDrag(PointerEventData eventData)
{
if (eventData.button != PointerEventData.InputButton.Left)
return;
m_Velocity = Vector2.zero;
}
void IBeginDragHandler.OnBeginDrag(PointerEventData eventData)
{
if (eventData.button != PointerEventData.InputButton.Left)
return;
if (!IsActive())
return;
UpdateBounds();
m_PointerStartLocalCursor = Vector2.zero;
RectTransformUtility.ScreenPointToLocalPointInRectangle(m_ViewPort, eventData.position, eventData.pressEventCamera, out m_PointerStartLocalCursor);
m_ContentStartPosition = m_Content.anchoredPosition;
m_Dragging = true;
}
void IEndDragHandler.OnEndDrag(PointerEventData eventData)
{
if (eventData.button != PointerEventData.InputButton.Left)
return;
m_Dragging = false;
}
void IDragHandler.OnDrag(PointerEventData eventData)
{
if (eventData.button != PointerEventData.InputButton.Left)
return;
if (!IsActive())
return;
Vector2 localCursor;
if (!RectTransformUtility.ScreenPointToLocalPointInRectangle(m_ViewPort, eventData.position, eventData.pressEventCamera, out localCursor))
return;
UpdateBounds();
var pointerDelta = localCursor - m_PointerStartLocalCursor;
Vector2 position = m_ContentStartPosition + pointerDelta;
// Offset to get content into place in the view.
Vector2 offset = CalculateOffset(position - m_Content.anchoredPosition);
position += offset;
if (m_MovementType == MovementType.Elastic)
{
if (offset.x != 0)
position.x = position.x - RubberDelta(offset.x, m_ViewBounds.size.x);
if (offset.y != 0)
position.y = position.y - RubberDelta(offset.y, m_ViewBounds.size.y);
}
SetContentAnchoredPosition(position);
}
protected void SetContentAnchoredPosition(Vector2 position)
{
if (m_MotionType != MotionType.Horizontal)
position.x = m_Content.anchoredPosition.x;
if (m_MotionType != MotionType.Vertical)
position.y = m_Content.anchoredPosition.y;
if (position != m_Content.anchoredPosition)
{
m_Content.anchoredPosition = position;
UpdateBounds();
}
}
protected void LateUpdate()
{
if (!m_Content)
return;
EnsureLayoutHasRebuilt();
UpdateScrollbarVisibility();
UpdateBounds();
float deltaTime = Time.unscaledDeltaTime;
Vector2 offset = CalculateOffset(Vector2.zero);
if (autoScrollState.Enable)//设置自动滚动
{
var alpha = Mathf.Clamp01((Time.unscaledTime - autoScrollState.StartTime) / Mathf.Max(autoScrollState.Duration, float.Epsilon));
var interp = EaseInOutCubic(0, 1, alpha);
var position = Vector2.Lerp(m_Content.anchoredPosition, autoScrollState.EndScrollPosition, interp);
SetContentAnchoredPosition(position);
if (Vector2.Distance(m_Content.anchoredPosition, autoScrollState.EndScrollPosition) <= 1)
{
SetContentAnchoredPosition(autoScrollState.EndScrollPosition);
autoScrollState.Enable = false;
}
}
else if (!m_Dragging && (offset != Vector2.zero || m_Velocity != Vector2.zero))
{
Vector2 position = m_Content.anchoredPosition;
if (m_MovementType == MovementType.Elastic && offset != Vector2.zero)
{
if (m_AutoAttach)//自动吸附时滚动
{
ScrollTo(int.MaxValue, m_AttachSnap.Duration);
}
else
{
var speed = m_Velocity;
position = Vector2.SmoothDamp(m_Content.anchoredPosition, m_Content.anchoredPosition + offset, ref speed,
m_Elasticity, Mathf.Infinity, deltaTime);
m_Velocity = speed;
}
}
else if (m_Inertia)
{
m_Velocity.x *= Mathf.Pow(m_DecelerationRate, deltaTime);
m_Velocity.y *= Mathf.Pow(m_DecelerationRate, deltaTime);
if (m_Velocity.sqrMagnitude < 10)
m_Velocity = Vector2.zero;
position += m_Velocity * deltaTime;
if (m_AutoAttach && m_Velocity.magnitude < m_AttachSnap.VelocityThreshold)
{
//中部滚动中，滚动速度小于预设值自动吸附
ScrollTo(int.MaxValue, m_AttachSnap.Duration);
}
}
else
{
m_Velocity = Vector2.zero;
}
if (m_Velocity != Vector2.zero)
{
if (m_MovementType == MovementType.Clamped)
{
offset = CalculateOffset(position - m_Content.anchoredPosition);
position += offset;
}
SetContentAnchoredPosition(position);
}
}
if (m_Dragging && m_Inertia)
{
Vector3 newVelocity = (m_Content.anchoredPosition - m_PrevPosition) / deltaTime;
m_Velocity = Vector3.Lerp(m_Velocity, newVelocity, deltaTime * 10);
}
if (m_ViewBounds != m_PrevViewBounds || m_ContentBounds != m_PrevContentBounds || m_Content.anchoredPosition != m_PrevPosition)
{
UpdateScrollbars(offset);
m_OnValueChanged.Invoke(normalizedPosition);
UpdatePrevData();
UpdatePosition();
if (m_ScaleCurve)
{
float viewSize = GetViewSize();
int count = m_VirtualItems.Count;
for (int i = 0; i < count; i++)
{
var item = m_VirtualItems[i];
if (item.active)
{
Bounds bounds = RectTransformUtility.CalculateRelativeRectTransformBounds(m_ViewPort, item.transform);
var ratio = Mathf.Abs(m_MotionType == MotionType.Horizontal ? bounds.center.x : bounds.center.y) / viewSize;
item.scale = m_ScaleAnimation.Evaluate(ratio);
}
}
}
}
}
#endregion
#region 列表数据更新
private void UpdatePrevData()
{
if (m_Content == null)
m_PrevPosition = Vector2.zero;
else
m_PrevPosition = m_Content.anchoredPosition;
m_PrevViewBounds = m_ViewBounds;
m_PrevContentBounds = m_ContentBounds;
}
private void UpdateScrollbars(Vector2 offset)
{
if (m_HorizontalScrollbar)
{
if (m_ContentBounds.size.x > 0)
m_HorizontalScrollbar.size = Mathf.Clamp01((m_ViewBounds.size.x - Mathf.Abs(offset.x)) / m_ContentBounds.size.x);
else
m_HorizontalScrollbar.size = 1;
m_HorizontalScrollbar.value = horizontalNormalizedPosition;
}
if (m_VerticalScrollbar)
{
if (m_ContentBounds.size.y > 0)
m_VerticalScrollbar.size = Mathf.Clamp01((m_ViewBounds.size.y - Mathf.Abs(offset.y)) / m_ContentBounds.size.y);
else
m_VerticalScrollbar.size = 1;
m_VerticalScrollbar.value = verticalNormalizedPosition;
}
}
public Vector2 normalizedPosition
{
get
{
return new Vector2(horizontalNormalizedPosition, verticalNormalizedPosition);
}
set
{
SetNormalizedPosition(value.x, 0);
SetNormalizedPosition(value.y, 1);
}
}
public float horizontalNormalizedPosition
{
get
{
UpdateBounds();
if (m_ContentBounds.size.x <= m_ViewBounds.size.x)
return (m_ViewBounds.min.x > m_ContentBounds.min.x) ? 1 : 0;
return (m_ViewBounds.min.x - m_ContentBounds.min.x) / (m_ContentBounds.size.x - m_ViewBounds.size.x);
}
set
{
SetNormalizedPosition(value, 0);
}
}
public float verticalNormalizedPosition
{
get
{
UpdateBounds();
if (m_ContentBounds.size.y <= m_ViewBounds.size.y)
return (m_ViewBounds.min.y > m_ContentBounds.min.y) ? 1 : 0;
;
return (m_ViewBounds.min.y - m_ContentBounds.min.y) / (m_ContentBounds.size.y - m_ViewBounds.size.y);
}
set
{
SetNormalizedPosition(value, 1);
}
}
private void SetHorizontalNormalizedPosition(float value) { SetNormalizedPosition(value, 0); }
private void SetVerticalNormalizedPosition(float value) { SetNormalizedPosition(value, 1); }
private void SetNormalizedPosition(float value, int axis)
{
EnsureLayoutHasRebuilt();
UpdateBounds();
// How much the content is larger than the view.
float hiddenLength = m_ContentBounds.size[axis] - m_ViewBounds.size[axis];
// Where the position of the lower left corner of the content bounds should be, in the space of the view.
float contentBoundsMinPosition = m_ViewBounds.min[axis] - value * hiddenLength;
// The new content localPosition, in the space of the view.
float newLocalPosition = m_Content.localPosition[axis] + contentBoundsMinPosition - m_ContentBounds.min[axis];
Vector3 localPosition = m_Content.localPosition;
if (Mathf.Abs(localPosition[axis] - newLocalPosition) > 0.01f)
{
localPosition[axis] = newLocalPosition;
m_Content.localPosition = localPosition;
m_Velocity[axis] = 0;
UpdateBounds();
}
}
private static float RubberDelta(float overStretching, float viewSize)
{
return (1 - (1 / ((Mathf.Abs(overStretching) * 0.55f / viewSize) + 1))) * viewSize * Mathf.Sign(overStretching);
}
protected override void OnRectTransformDimensionsChange()
{
SetDirty();
}
private bool hScrollingNeeded
{
get
{
if (Application.isPlaying)
return m_ContentBounds.size.x > m_ViewBounds.size.x + 0.01f;
return true;
}
}
private bool vScrollingNeeded
{
get
{
if (Application.isPlaying)
return m_ContentBounds.size.y > m_ViewBounds.size.y + 0.01f;
return true;
}
}
public virtual void SetLayoutHorizontal()
{
m_Tracker.Clear();
if (m_HSliderExpand || m_VSliderExpand)
{
m_Tracker.Add(this, m_ViewPort,
DrivenTransformProperties.Anchors |
DrivenTransformProperties.SizeDelta |
DrivenTransformProperties.AnchoredPosition);
// Make view full size to see if content fits.
m_ViewPort.anchorMin = Vector2.zero;
m_ViewPort.anchorMax = Vector2.one;
m_ViewPort.sizeDelta = Vector2.zero;
m_ViewPort.anchoredPosition = Vector2.zero;
// Recalculate content layout with this size to see if it fits when there are no scrollbars.
LayoutRebuilder.ForceRebuildLayoutImmediate(content);
m_ViewBounds = new Bounds(m_ViewPort.rect.center, m_ViewPort.rect.size);
m_ContentBounds = GetBounds();
}
// If it doesn't fit vertically, enable vertical scrollbar and shrink view horizontally to make room for it.
if (m_VSliderExpand && vScrollingNeeded)
{
m_ViewPort.sizeDelta = new Vector2(-(m_VSliderWidth + m_VerticalScrollbarSpacing), m_ViewPort.sizeDelta.y);
// Recalculate content layout with this size to see if it fits vertically
// when there is a vertical scrollbar (which may reflowed the content to make it taller).
LayoutRebuilder.ForceRebuildLayoutImmediate(content);
m_ViewBounds = new Bounds(m_ViewPort.rect.center, m_ViewPort.rect.size);
m_ContentBounds = GetBounds();
}
// If it doesn't fit horizontally, enable horizontal scrollbar and shrink view vertically to make room for it.
if (m_HSliderExpand && hScrollingNeeded)
{
m_ViewPort.sizeDelta = new Vector2(m_ViewPort.sizeDelta.x, -(m_HSliderHeight + m_HorizontalScrollbarSpacing));
m_ViewBounds = new Bounds(m_ViewPort.rect.center, m_ViewPort.rect.size);
m_ContentBounds = GetBounds();
}
// If the vertical slider didn't kick in the first time, and the horizontal one did,
// we need to check again if the vertical slider now needs to kick in.
// If it doesn't fit vertically, enable vertical scrollbar and shrink view horizontally to make room for it.
if (m_VSliderExpand && vScrollingNeeded && m_ViewPort.sizeDelta.x == 0 && m_ViewPort.sizeDelta.y < 0)
{
m_ViewPort.sizeDelta = new Vector2(-(m_VSliderWidth + m_VerticalScrollbarSpacing), m_ViewPort.sizeDelta.y);
}
}
public virtual void SetLayoutVertical()
{
UpdateScrollbarLayout();
m_ViewBounds = new Bounds(m_ViewPort.rect.center, m_ViewPort.rect.size);
m_ContentBounds = GetBounds();
}
void UpdateScrollbarVisibility()
{
if (m_VerticalScrollbar && m_VerticalScrollbarVisibility != ScrollbarVisibility.Permanent && m_VerticalScrollbar.gameObject.activeSelf != vScrollingNeeded)
m_VerticalScrollbar.gameObject.SetActive(vScrollingNeeded);
if (m_HorizontalScrollbar && m_HorizontalScrollbarVisibility != ScrollbarVisibility.Permanent && m_HorizontalScrollbar.gameObject.activeSelf != hScrollingNeeded)
m_HorizontalScrollbar.gameObject.SetActive(hScrollingNeeded);
}
void UpdateScrollbarLayout()
{
if (m_VSliderExpand && m_HorizontalScrollbar)
{
m_Tracker.Add(this, m_HorizontalScrollbarRect,
DrivenTransformProperties.AnchorMinX |
DrivenTransformProperties.AnchorMaxX |
DrivenTransformProperties.SizeDeltaX |
DrivenTransformProperties.AnchoredPositionX);
m_HorizontalScrollbarRect.anchorMin = new Vector2(0, m_HorizontalScrollbarRect.anchorMin.y);
m_HorizontalScrollbarRect.anchorMax = new Vector2(1, m_HorizontalScrollbarRect.anchorMax.y);
m_HorizontalScrollbarRect.anchoredPosition = new Vector2(0, m_HorizontalScrollbarRect.anchoredPosition.y);
if (vScrollingNeeded)
m_HorizontalScrollbarRect.sizeDelta = new Vector2(-(m_VSliderWidth + m_VerticalScrollbarSpacing), m_HorizontalScrollbarRect.sizeDelta.y);
else
m_HorizontalScrollbarRect.sizeDelta = new Vector2(0, m_HorizontalScrollbarRect.sizeDelta.y);
}
if (m_HSliderExpand && m_VerticalScrollbar)
{
m_Tracker.Add(this, m_VerticalScrollbarRect,
DrivenTransformProperties.AnchorMinY |
DrivenTransformProperties.AnchorMaxY |
DrivenTransformProperties.SizeDeltaY |
DrivenTransformProperties.AnchoredPositionY);
m_VerticalScrollbarRect.anchorMin = new Vector2(m_VerticalScrollbarRect.anchorMin.x, 0);
m_VerticalScrollbarRect.anchorMax = new Vector2(m_VerticalScrollbarRect.anchorMax.x, 1);
m_VerticalScrollbarRect.anchoredPosition = new Vector2(m_VerticalScrollbarRect.anchoredPosition.x, 0);
if (hScrollingNeeded)
m_VerticalScrollbarRect.sizeDelta = new Vector2(m_VerticalScrollbarRect.sizeDelta.x, -(m_HSliderHeight + m_HorizontalScrollbarSpacing));
else
m_VerticalScrollbarRect.sizeDelta = new Vector2(m_VerticalScrollbarRect.sizeDelta.x, 0);
}
}
private void UpdateBounds()
{
if (m_ViewPort == null)
return;
m_ViewBounds = new Bounds(m_ViewPort.rect.center, m_ViewPort.rect.size);
m_ContentBounds = GetBounds();
if (m_Content == null)
return;
// Make sure content bounds are at least as large as view by adding padding if not.
// One might think at first that if the content is smaller than the view, scrolling should be allowed.
// However, that's not how scroll views normally work.
// Scrolling is *only* possible when content is *larger* than view.
// We use the pivot of the content rect to decide in which directions the content bounds should be expanded.
// E.g. if pivot is at top, bounds are expanded downwards.
// This also works nicely when ContentSizeFitter is used on the content.
Vector3 contentSize = m_ContentBounds.size;
Vector3 contentPos = m_ContentBounds.center;
Vector3 excess = m_ViewBounds.size - contentSize;
if (excess.x > 0)
{
contentPos.x -= excess.x * (m_Content.pivot.x - 0.5f);
contentSize.x = m_ViewBounds.size.x;
}
if (excess.y > 0)
{
contentPos.y -= excess.y * (m_Content.pivot.y - 0.5f);
contentSize.y = m_ViewBounds.size.y;
}
m_ContentBounds.size = contentSize;
m_ContentBounds.center = contentPos;
}
private readonly Vector3[] m_Corners = new Vector3[4];
private Bounds GetBounds()
{
if (m_Content == null)
return new Bounds();
var vMin = new Vector3(float.MaxValue, float.MaxValue, float.MaxValue);
var vMax = new Vector3(float.MinValue, float.MinValue, float.MinValue);
var toLocal = m_ViewPort.worldToLocalMatrix;
m_Content.GetWorldCorners(m_Corners);
for (int j = 0; j < 4; j++)
{
Vector3 v = toLocal.MultiplyPoint3x4(m_Corners[j]);
vMin = Vector3.Min(v, vMin);
vMax = Vector3.Max(v, vMax);
}
var bounds = new Bounds(vMin, Vector3.zero);
bounds.Encapsulate(vMax);
return bounds;
}
private Vector2 CalculateOffset(Vector2 delta)
{
Vector2 offset = Vector2.zero;
if (m_MovementType == MovementType.Unrestricted)
return offset;
Vector2 min = m_ContentBounds.min;
Vector2 max = m_ContentBounds.max;
if (m_MotionType == MotionType.Horizontal)
{
min.x += delta.x;
max.x += delta.x;
if (min.x > m_ViewBounds.min.x)
offset.x = m_ViewBounds.min.x - min.x;
else if (max.x < m_ViewBounds.max.x)
offset.x = m_ViewBounds.max.x - max.x;
}
if (m_MotionType == MotionType.Vertical)
{
min.y += delta.y;
max.y += delta.y;
if (max.y < m_ViewBounds.max.y)
offset.y = m_ViewBounds.max.y - max.y;
else if (min.y > m_ViewBounds.min.y)
offset.y = m_ViewBounds.min.y - min.y;
}
return offset;
}
protected void SetDirty()
{
if (!IsActive())
return;
LayoutRebuilder.MarkLayoutForRebuild(rectTransform);
}
protected void SetDirtyCaching()
{
if (!IsActive())
return;
CanvasUpdateRegistry.RegisterCanvasElementForLayoutRebuild(this);
LayoutRebuilder.MarkLayoutForRebuild(rectTransform);
}
#if UNITY_EDITOR
protected override void OnValidate()
{
SetDirtyCaching();
}
#endif
#endregion
#region 无限、虚拟列表重构
private float GetViewSize()
{
return m_MotionType == MotionType.Vertical ? m_ViewPort.rect.height : m_ViewPort.rect.width;
}
private float GetCellSize(int axis = -1)
{
if (axis == -1)
{
axis = m_MotionType == MotionType.Horizontal ? 0 : 1;
}
return m_ItemSize[axis] + m_Space[axis];
}
private void UpdatePosition(bool forceRender = false)
{
int index = GetLoopIndex();
if (index == m_CurLine && !forceRender)
return;
m_CurLine = index;
m_StartIdx = m_CurLine * (int)m_FixedCount;
m_EndIdx = m_StartIdx + m_MaxInit;
if (!m_Loop)
{
if (m_EndIdx >= m_NumItems)
m_EndIdx = (int)m_NumItems;
}
tmpContains.Clear();
tmpPool.Clear();
int num = m_VirtualItems.Count;
if (num <= 0)
return;
for (int i = 0; i < num; i++)
{
var item = m_VirtualItems[i];
if (item.virtualIndex < m_StartIdx || item.virtualIndex >= m_EndIdx)
{
tmpPool.Enqueue(item);
item.active = false;
}
else
{
tmpContains.Add(item.virtualIndex, item);
item.active = true;
}
item.renderable = false;
}
//Debug.Log(string.Format("##渲染{0}\t({1}---{2})\t{3},{4}", m_CurLine, m_StartIdx, m_EndIdx, tmpPool.Count, tmpContains.Count));
#region 渲染
int line = m_CurLine;
for (int i = m_StartIdx; i < m_EndIdx;)
{
for (int j = 0; j < m_FixedCount; j++)
{
int virIdx = i + j;
if (virIdx >= m_EndIdx)
break;
if (!tmpContains.ContainsKey(virIdx))
{
var item = tmpPool.Dequeue();
if (m_MotionType == MotionType.Vertical)
{
Vector2 offset = new Vector2((j + 0.5f) * itemSize.x + j * m_Space.x,
-(line + 0.5f) * itemSize.y - line * m_Space.y);
if (!m_Loop)
item.position = new Vector2(margin.left, -margin.top) + offset;
else
item.position = new Vector2(margin.left, 0) + offset;
}
else
{
Vector2 offset = new Vector2((line + 0.5f) * itemSize.x + line * m_Space.x,
-(j + 0.5f) * itemSize.y - j * m_Space.y);
if (!m_Loop)
item.position = new Vector2(margin.left, margin.top) + offset;
else
item.position = new Vector2(0, margin.top) + offset;
}
item.UpdateIndex(virIdx, m_NumItems);
item.active = true;
item.renderable = true;
}
else
{
var item = tmpContains[virIdx];
item.active = true;
item.renderable = forceRender;
}
}
line++;
i += (int)m_FixedCount;
}
#endregion
for (int i = 0; i < num; i++)
{
var item = m_VirtualItems[i];
item.UpdateActive();
// Render在Active后
if (item.renderable)

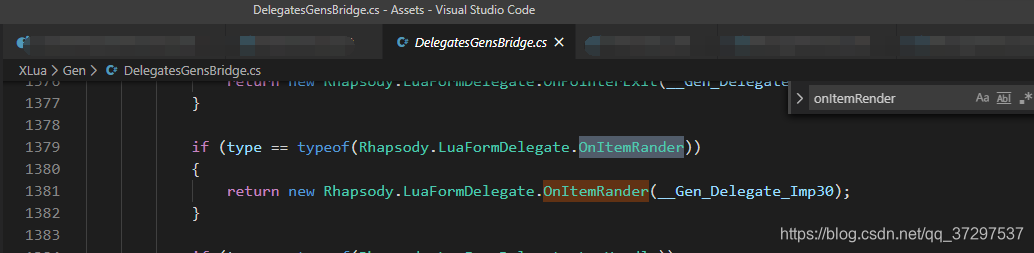

m_OnItemRender.Invoke(item.actualIndex, item.transform);
item.renderable = false;
}
}
private Vector2 CalculateClosestPosition(int target)
{
Vector2 offset = Vector2.zero;
if (m_Loop)
{
if (m_MotionType == MotionType.Horizontal)
{
int index = target != int.MaxValue
? GetClosestLoopIndex(target)
: GetLoopIndex(-GetCellSize(0) * 0.5f);
offset.x = -(itemSize.x * index + (index - 1) * m_Space.x);
}
else
{
int index = target != int.MaxValue
? GetClosestLoopIndex(target)
: GetLoopIndex(GetCellSize(1) * 0.5f);
offset.y = itemSize.y * index + (index - 1) * m_Space.y;
}
}
else
{
if (m_MotionType == MotionType.Horizontal)
{
int index = target != int.MaxValue ? target: GetLoopIndex(-GetCellSize(0) * 0.5f);
offset.x = -(margin.left + itemSize.x * index + (index - 1) * m_Space.x);
}
else
{
int index = target != int.MaxValue
? target
: GetLoopIndex(GetCellSize(1) * 0.5f);
offset.y =margin.top + itemSize.y * index + (index - 1) * m_Space.y;
}
}
return offset;
}
private int GetClosestLoopIndex(int index)
{
Vector2 offset = Vector2.zero;
var diff = GetLoopPosition(index, (int)m_NumItems) - GetLoopPosition(m_CurLine, (int)m_NumItems);
if (Mathf.Abs(diff) > m_NumItems / 2)
diff = (int)Mathf.Sign(-diff) * ((int)m_NumItems - Mathf.Abs(diff));
return diff + m_CurLine;
}
//回到顶点
public void BackTop()
{
ScrollTo(0, 0);
}
//定位显示到某个item
public void ScrollTo(int index, float duration)
{
velocity = Vector2.zero;
autoScrollState.Enable = true;
autoScrollState.Duration = duration;
autoScrollState.StartTime = Time.unscaledTime;
autoScrollState.EndScrollPosition = CalculateClosestPosition(index);
}
private int GetLoopPosition(int index, int length)
{
if (index < 0)
{
index = (length - 1) + (index + 1) % length;
}
else if (index > length - 1)
{
index = index % length;
}
return index;
}
private void SetPrefab(RectTransform rt)
{
//清理掉现在所有的预制
//创建新的
int num = m_VirtualItems.Count;
for (int i = 0; i < num; i++)
{
if (m_VirtualItems.Count > 0)
{
var item = m_VirtualItems[0];
m_VirtualItems.RemoveAt(0);
item.Destroy();
}
}
m_ItemSize = Vector2.zero;
m_Prefab = rt;
if (rt == null)
return;
rt.gameObject.SetActive(false);
Vector2 size = rt.sizeDelta;
m_ItemSize.x = m_ItemSize.x > 0 ? m_ItemSize.x : size.x;
m_ItemSize.y = m_ItemSize.y > 0 ? m_ItemSize.y : size.y;
}
private void SetNumItems(uint num)
{
m_NumItems = num;
if (!Application.isPlaying || !m_HasInit || !m_Content || !m_Prefab || !m_ViewPort)
return;
int count = m_VirtualItems.Count;
int init = 0;
if (m_Loop)
init = m_MaxInit;
else
init = Mathf.Min((int)num, m_MaxInit);
if (count < init)
{
for (int i = count; i < init; i++)
{
RectTransform item = CreateItem();
m_VirtualItems.Add(new ItemInfo(item));
}
}
m_TotalLine = Mathf.CeilToInt(num * 1.0f / m_FixedCount);
if (m_MotionType == MotionType.Horizontal)
{
float x = margin.left + margin.right + m_ItemSize.x * m_TotalLine +
m_Space.x * Mathf.Clamp(m_TotalLine, 0, m_TotalLine - 1);
float y = margin.top + margin.bottom + m_ItemSize.y * m_FixedCount +
m_Space.y * Mathf.Clamp(m_FixedCount, 0, m_FixedCount - 1);
m_Content.sizeDelta = new Vector2(x, m_ViewPort.rect.height > y ? m_ViewPort.rect.height : y);
if (m_Content.sizeDelta.x < 0)
{
m_Content.sizeDelta = new Vector2(m_ViewPort.rect.width > x ? m_ViewPort.rect.width : 0, y);
}
}
else
{
float x = margin.left + margin.right + m_ItemSize.x * m_FixedCount +
m_Space.x * Mathf.Clamp(m_FixedCount, 0, m_FixedCount - 1);
float y = margin.top + margin.bottom + m_ItemSize.y * m_TotalLine +
m_Space.y * Mathf.Clamp(m_TotalLine, 0, m_TotalLine - 1);
m_Content.sizeDelta = new Vector2(m_ViewPort.rect.width > x ? m_ViewPort.rect.width : x, y);
if (m_Content.sizeDelta.y<0)
{
m_Content.sizeDelta = new Vector2(m_ViewPort.rect.width > x ? m_ViewPort.rect.width : x,0);
}
}
RefreshList();
}
private void SetLoop(bool isLoop)
{
if (isLoop)
{
int count = m_VirtualItems.Count;
if (count < m_MaxInit)
{
for (int i = count; i < m_MaxInit; i++)
{
RectTransform item = CreateItem();
m_VirtualItems.Add(new ItemInfo(item));
}
}
}
m_Loop = isLoop;
RefreshList();
}
private IEnumerator RebuildList()
{
if (!Application.isPlaying || !m_HasInit || !m_Content || !m_Prefab || !m_ViewPort)
yield return null;
yield return new WaitForEndOfFrame();
m_Content.anchorMin = new Vector2(0, 1);
m_Content.anchorMax = new Vector2(0, 1);
m_Content.pivot = new Vector2(0, 1);
SetPrefab(m_Prefab);
m_MaxInit = Mathf.CeilToInt(GetViewSize() / GetCellSize()) + 1;
m_MaxInit *= (int)m_FixedCount;
ContentSizeFitter filter = content.GetComponent<ContentSizeFitter>();
if (filter != null)
filter.enabled = false;
LayoutGroup layout = content.GetComponent<LayoutGroup>();
if (layout != null)
layout.enabled = false;
m_HasInit = true;
SetNumItems(m_NumItems);
}
public void ResetList()
{
StartCoroutine(RebuildList());
}
public void RefreshList()
{
UpdatePosition(true);
}
private int GetLoopIndex(float offset = 0)
{
int index = 0;
float pos = m_MotionType == MotionType.Horizontal
? m_Content.anchoredPosition.x
: m_Content.anchoredPosition.y;
pos = Mathf.Round(pos) + offset;
if (m_Loop)
{
if (m_MotionType == MotionType.Horizontal)
{
index = Mathf.FloorToInt(-pos / GetCellSize(0));
}
else
{
index = Mathf.FloorToInt(pos / GetCellSize(1));
}
}
else
{
if (m_MotionType == MotionType.Horizontal)
{
if (pos >= 0)
index = 0;
else
index = Mathf.FloorToInt(Mathf.Abs(pos + m_Margin.left) / GetCellSize(0));
}
else
{
if (pos < 0)
index = 0;
else
index = Mathf.FloorToInt(Mathf.Abs(pos - m_Margin.top) / GetCellSize(1));
}
}
presentIndex = index;
return index;
}
private RectTransform CreateItem()
{
if (m_Prefab)
{
GameObject obj = GameObject.Instantiate(m_Prefab.gameObject) as GameObject;
obj.transform.SetParent(m_Content);
obj.transform.localScale = Vector3.one;
obj.transform.SetLocalPositionZ(0);
return obj.transform as RectTransform;
}
return null;
}
private float EaseInOutCubic(float start, float end, float value)//滑动曲线
{
value /= 0.5f;
end -= start;
if (value < 1f)
{
return end * 0.5f * value * value * value + start;
}
value -= 2f;
return end * 0.5f * (value * value * value + 2f) + start;
}
#endregion
}
}
操作步骤

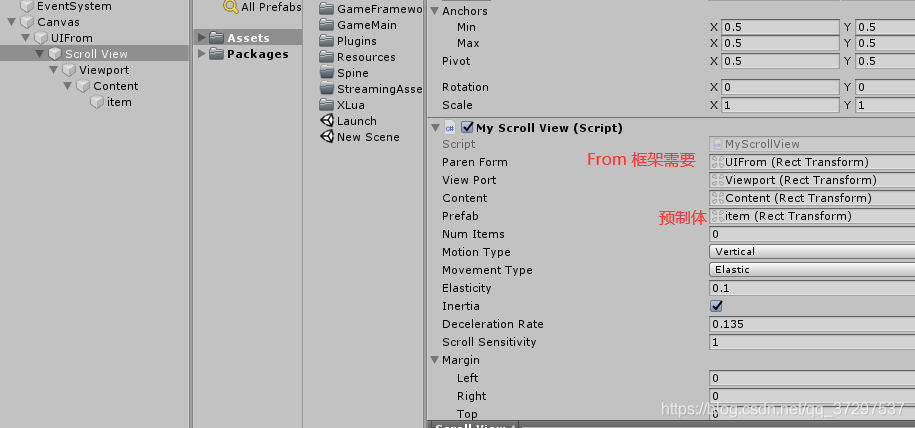

1.新建一个scrollview，移除原生那个列表组件，然后该挂的东西挂上去（content上面啥都不用挂，脚本会自动计算）
列表的横竖自己设置
注意设置item的大小，最好大小刚好，不用去管间隔什么的，fixedcount表示每行/列显示多少个组件
item可以做成预制件，也可以直接放content下面，只是要记得隐藏
如果没有使用lua脚本，直接注释或者删除下面的代码
public void OnItemRander(int index,Transform trans)
{
//Rhapsody.LuaFormDelegate.Instance.luaOnItemRander(ParenForm.name, index, trans);
}
private void Start()
{
//onItemRender.AddListener(OnItemRander);
}
protected override void OnDestroy()
{
base.OnDestroy();
// onItemRender.RemoveListener(OnItemRander);
}
然后再在界面脚本里监听这个事件就好了
和我一样用了XLua+GameFramWork框架的话
LuaFormDelegate类中添加
EelegatesGensBridge添加委托
XLuaCustomExport中加入MyScrollView
lua 的main函数里引用一下
MyScrollView = CS.UnityEngine.UI.MyScrollView -- 引用C#无限列表
具体每个窗口类中获取到组件，然后添加 this:OnItemRander(index, transform)
function this:OnInit(transform, uiform)
self = this
m_root = transform
--获取组件
goodsScroll = m_root:GetTransform("RoleScroll"):GetComponent("MyScrollView")
end
只要使用了MyScrolloView这个组件的话，窗口中这个方法必须存在，不然会报错（这是渲染item内容的方法,也就是C#那边监听调用的方法）
--列表渲染
function this:OnItemRander(index, transform)
local backageitem = require("BackageItem")
backageitem.InitItem(transform, goods[index + 1])
end
最后在需要刷新的地方设置一下列表的总长度
goodsScroll.numItems = #tabele{信息}
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
