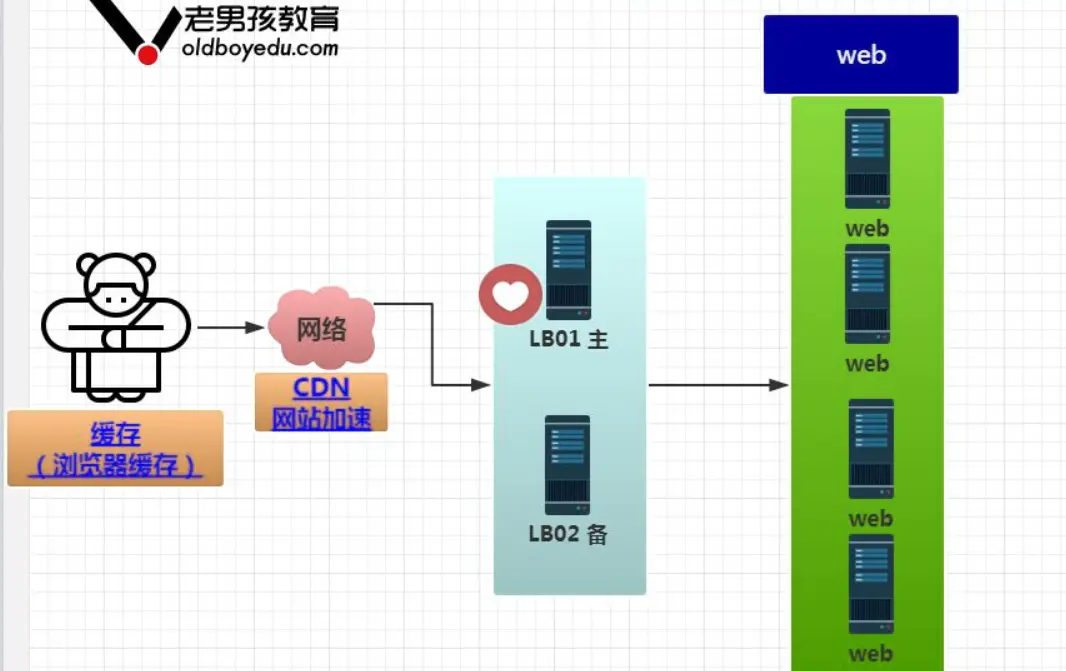

Keepalived高可用软件

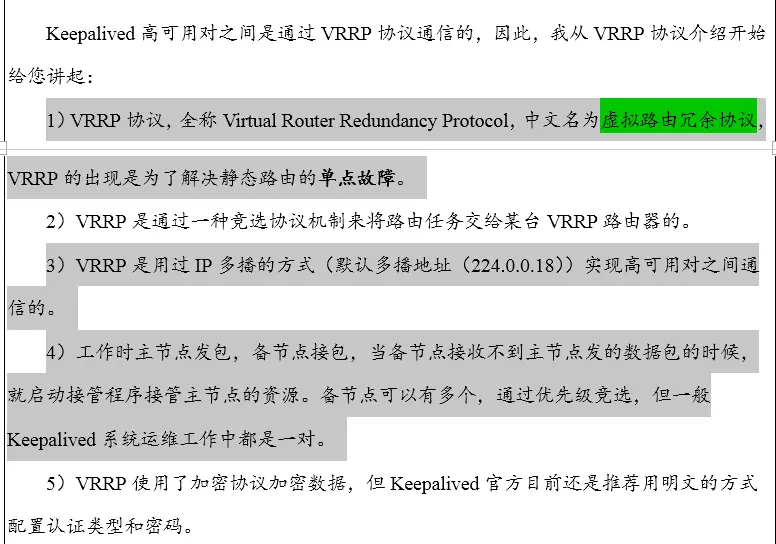

VRRP

1.准备环境

准备机器lb01 lb02 web01 web02
lb01 lb02 安装软件
yum install keepalived -y

[root@lb01 nginx]# rpm -qa keepalived
keepalived-1.3.5-8.el7_6.x86_64

[root@lb02 ~]# rpm -qa keepalived
keepalived-1.3.5-8.el7_6.x86_64

2.开启服务与自启动

lb01:
[root@lb01 nginx]# systemctl start keepalived.service
[root@lb01 nginx]# systemctl enable keepalived.service

lb02:
[root@lb02 ~]# systemctl start keepalived.service
[root@lb02 ~]# systemctl enable keepalived.service

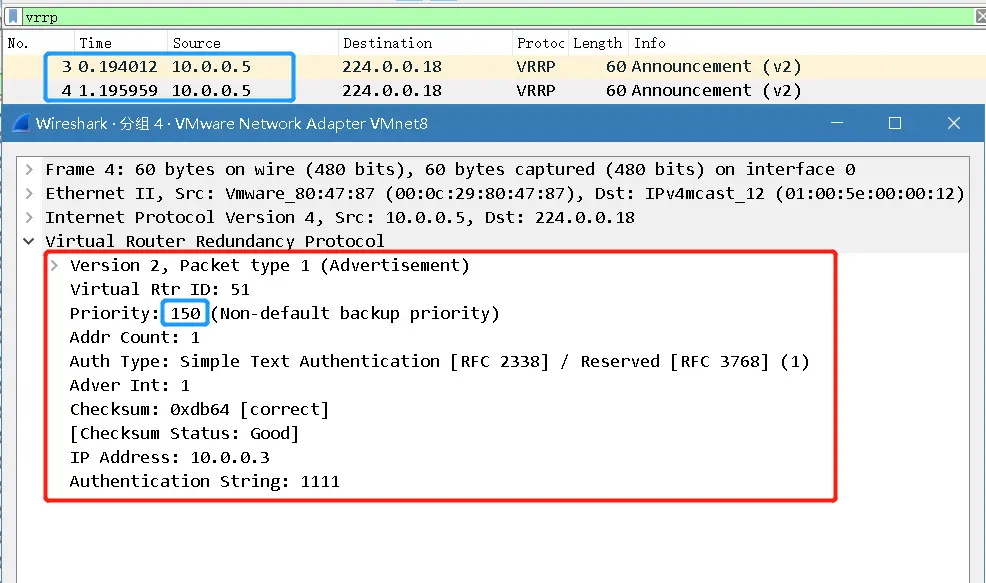

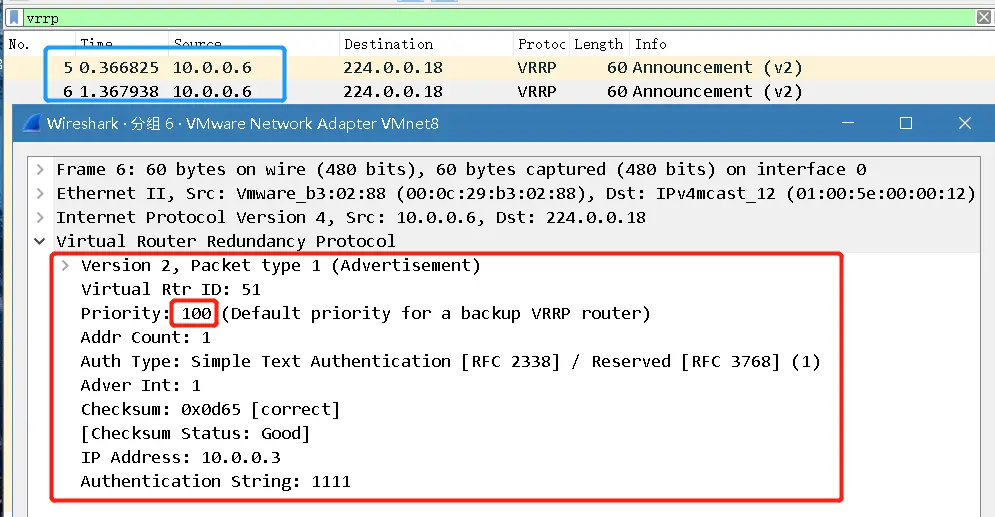

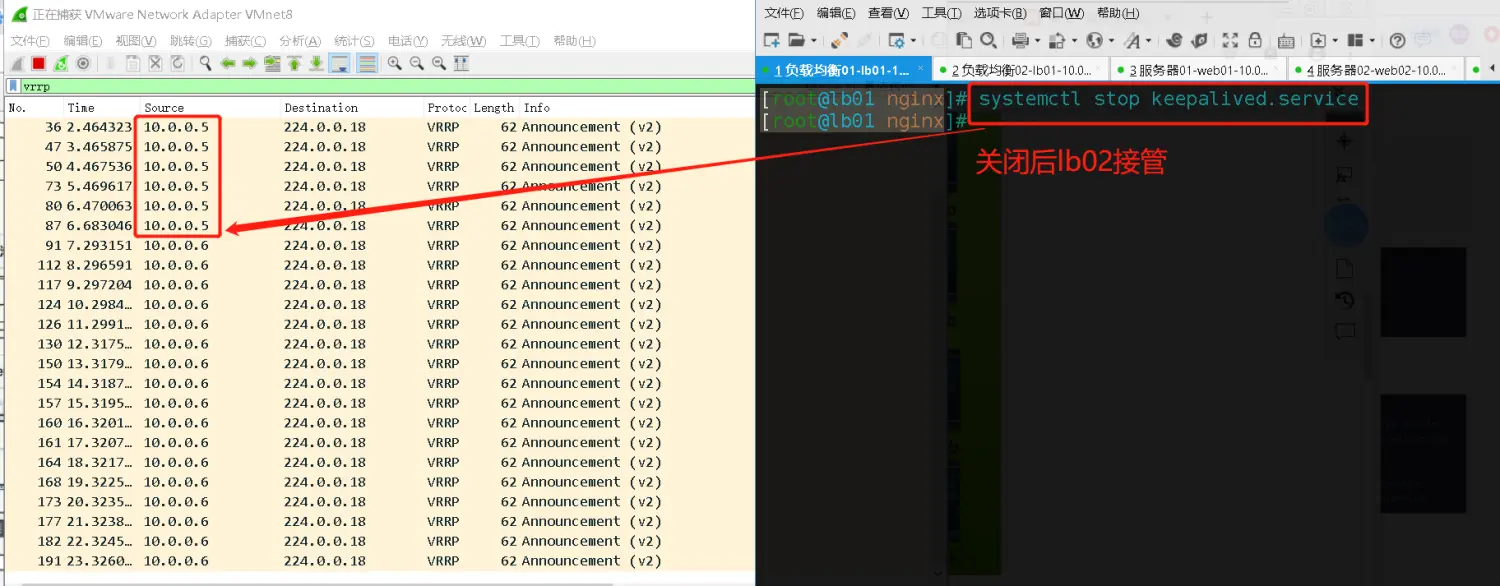

2.利用Wireshark抓包

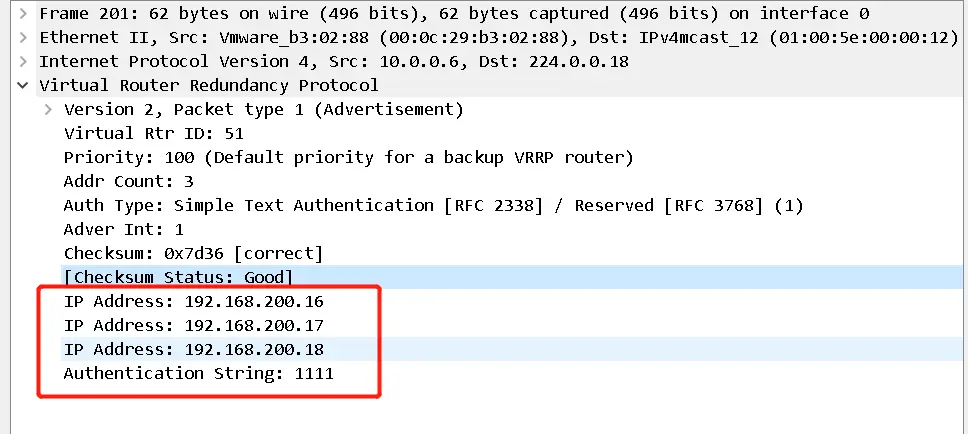

随便抓个包看看：

3.配置文件

/etc/keepalived/keepalived.conf

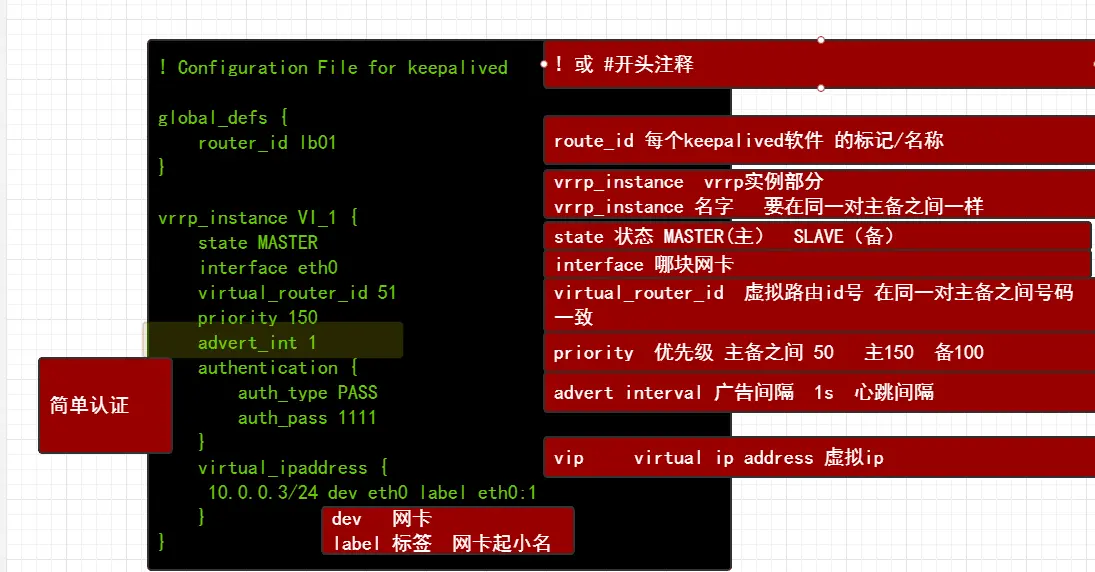

配置文件格式：

修改前将源配置文件备份

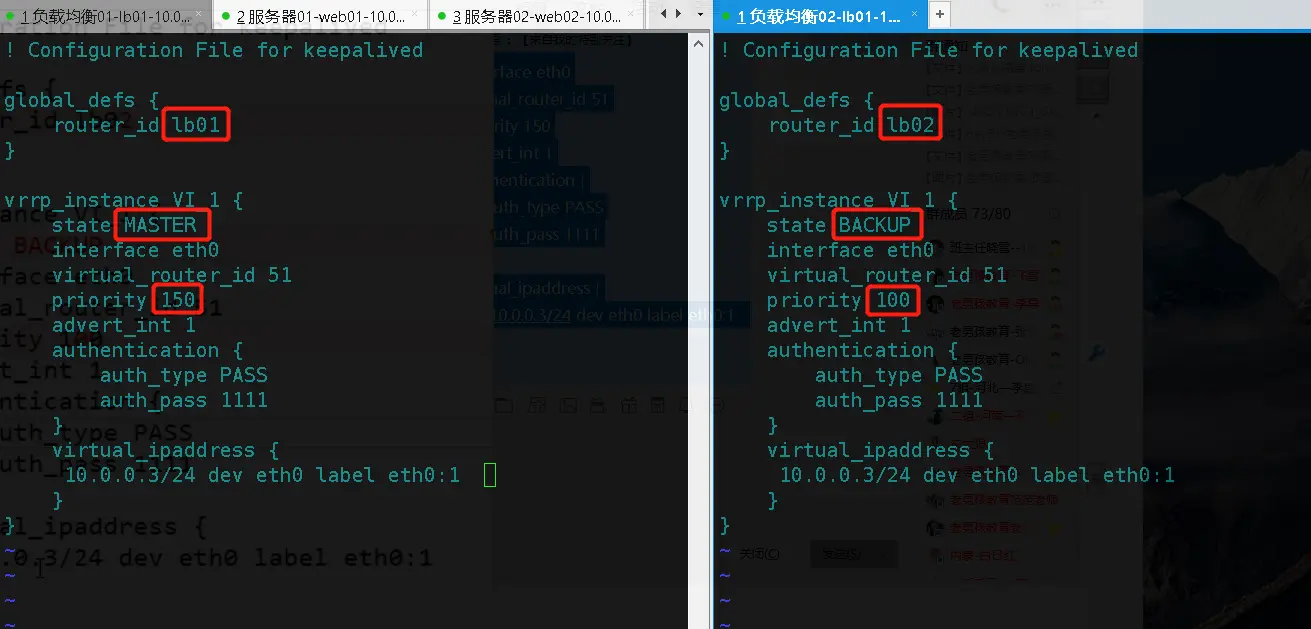

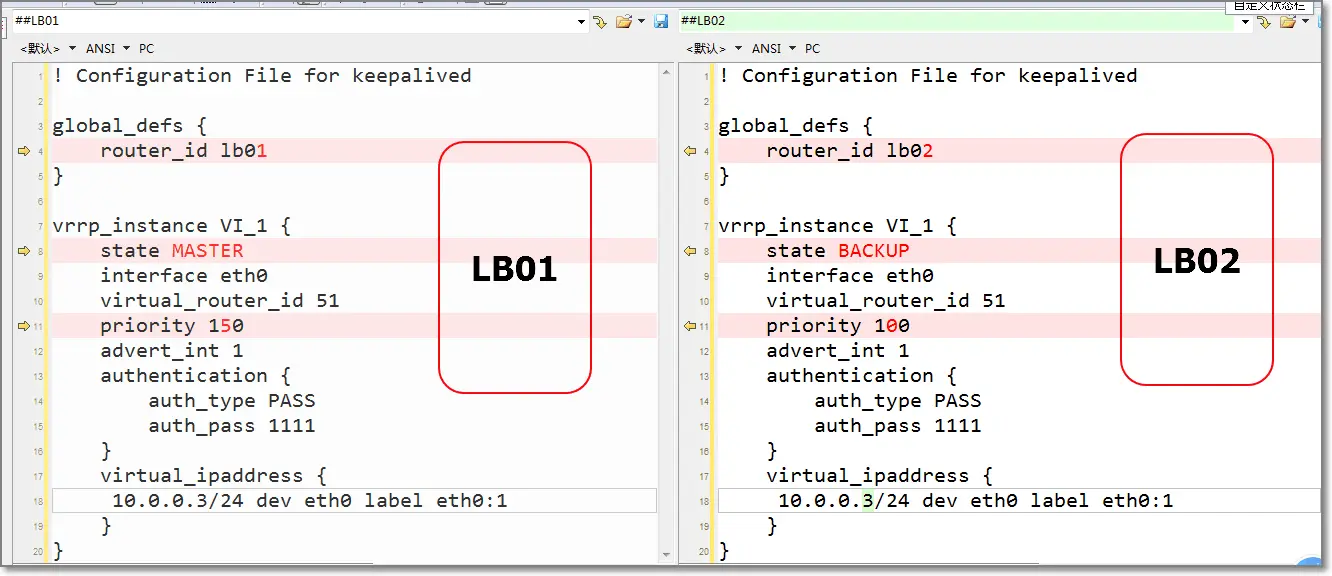

[root@lb01 nginx]# vim  /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
    router_id lb01
}

vrrp_instance VI_1 {
    state MASTER
    interface eth0
    virtual_router_id 51
    priority 150
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
     10.0.0.3/24 dev eth0 label eth0:1
    }
}
