hdfs3.1.3——hdfs上传源码解析

一、前言

本篇文章是分析从客户端上传到hdfs的具体流程

二、从代码具体示例来分析

2.1.Datanode向Namenode发起创建请求

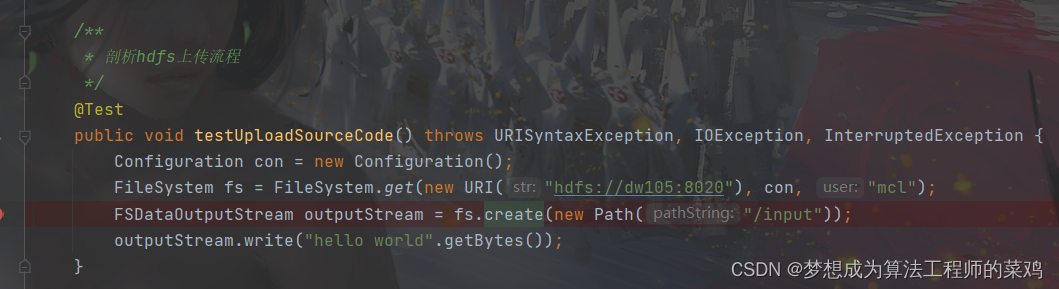

用户自己写的代码

这里我们想要创建一个目录/input，并且向这个目录下写入数据。

 点击create

FileSystem.java

public FSDataOutputStream create(Path f) throws IOException {
    return create(f, true);
  }

public FSDataOutputStream create(Path f, boolean overwrite)
      throws IOException {
    return create(f, overwrite,
                  getConf().getInt(IO_FILE_BUFFER_SIZE_KEY,
                      IO_FILE_BUFFER_SIZE_DEFAULT),
                  getDefaultReplication(f),
                  getDefaultBlockSize(f));
  }

public FSDataOutputStream create(Path f,
      boolean overwrite,
      int bufferSize,
      short replication,
      long blockSize) throws IOException {
    return create(f, overwrite, bufferSize, replication, blockSize, null);
  }

public FSDataOutputStream create(Path f,
                                            boolean overwrite,
                                            int bufferSize,
                                            short replication,
                                            long blockSize,
                                            Progressable progress
                                            ) throws IOException {
    return this.create(f, FsCreateModes.applyUMask(
        FsPermission.getFileDefault(), FsPermission.getUMask(getConf())),
        overwrite, bufferSize, replication, blockSize, progress);
  }

public abstract FSDataOutputStream create(Path f,
      FsPermission permission,
      boolean overwrite,
      int bufferSize,
      short replication,
      long blockSize,
      Progressable progress) throws IOException;

然后ctrl+alt+b，找到实现类DistributedFileSystem.java中的create方法

@Override
  public FSDataOutputStream create(Path f, FsPermission permission,
      boolean overwrite, int bufferSize, short replication, long blockSize,
      Progressable progress) throws IOException {
    return this.create(f, permission,
        overwrite ? EnumSet.of(CreateFlag.CREATE, CreateFlag.OVERWRITE)
            : EnumSet.of(CreateFlag.CREATE), bufferSize, replication,
        blockSize, progress, null);
  }

@Override
  public FSDataOutputStream create(final Path f, final FsPermission permission,
      final EnumSet<CreateFlag> cflags, final int bufferSize,
      final short replication, final long blockSize,
      final Progressable progress, final ChecksumOpt checksumOpt)
      throws IOException {
    statistics.incrementWriteOps(1);
    storageStatistics.incrementOpCounter(OpType.CREATE);
    Path absF = fixRelativePart(f);
    return new FileSystemLinkResolver<FSDataOutputStream>() {
      @Override
      public FSDataOutputStream doCall(final Path p) throws IOException {
        //获取一个输出流
        final DFSOutputStream dfsos = dfs.create(getPathName(p), permission,
            cflags, replication, blockSize, progress, bufferSize,
            checksumOpt);
        //并封装这个输出流返回
        return dfs.createWrappedOutputStream(dfsos, statistics);
      }
      @Override
      public FSDataOutputStream next(final FileSystem fs, final Path p)
          throws IOException {
        return fs.create(p, permission, cflags, bufferSize,
            replication, blockSize, progress, checksumOpt);
      }
    }.resolve(this, absF);
  }

DFSClient.java

public DFSOutputStream create(String src, FsPermission permission,
      EnumSet<CreateFlag> flag, short replication, long blockSize,
      Progressable progress, int buffersize, ChecksumOpt checksumOpt)
      throws IOException {
    return create(src, permission, flag, true,
        replication, blockSize, progress, buffersize, checksumOpt, null);
  }

public DFSOutputStream create(String src, FsPermission permission,
      EnumSet<CreateFlag> flag, boolean createParent, short replication,
      long blockSize, Progressable progress, int buffersize,
      ChecksumOpt checksumOpt, InetSocketAddress[] favoredNodes)
      throws IOException {
    return create(src, permission, flag, createParent, replication, blockSize,
        progress, buffersize, checksumOpt, favoredNodes, null);
  }

public DFSOutputStream create(String src, FsPermission permission,
      EnumSet<CreateFlag> flag, boolean createParent, short replication,
      long blockSize, Progressable progress, int buffersize,
      ChecksumOpt checksumOpt, InetSocketAddress[] favoredNodes,
      String ecPolicyName) throws IOException {
    checkOpen();
    final FsPermission masked = applyUMask(permission);
    LOG.debug("{}: masked={}", src, masked);
    //通过newStreamForCreate返回输出流
    final DFSOutputStream result = DFSOutputStream.newStreamForCreate(this,
        src, masked, flag, createParent, replication, blockSize, progress,
        dfsClientConf.createChecksum(checksumOpt),
        getFavoredNodesStr(favoredNodes), ecPolicyName);
    beginFileLease(result.getFileId(), result);
    return result;
  }

static DFSOutputStream newStreamForCreate(DFSClient dfsClient, String src,
      FsPermission masked, EnumSet<CreateFlag> flag, boolean createParent,
      short replication, long blockSize, Progressable progress,
      DataChecksum checksum, String[] favoredNodes, String ecPolicyName)
      throws IOException {
    try (TraceScope ignored =
             dfsClient.newPathTraceScope("newStreamForCreate", src)) {
      HdfsFileStatus stat = null;

      // Retry the create if we get a RetryStartFileException up to a maximum
      // number of times
      boolean shouldRetry = true;
      int retryCount = CREATE_RETRY_COUNT;
      while (shouldRetry) {
        shouldRetry = false;
        try {
          //通过namenodeRPC的客户端远程调用RPC方法
          stat = dfsClient.namenode.create(src, masked, dfsClient.clientName,
              new EnumSetWritable<>(flag), createParent, replication,
              blockSize, SUPPORTED_CRYPTO_VERSIONS, ecPolicyName);
          break;
        } catch (RemoteException re) {
          ...
          if (e instanceof RetryStartFileException) {
            if (retryCount > 0) {
              shouldRetry = true;
              retryCount--;
            } else {
              throw new IOException("Too many retries because of encryption" +
                  " zone operations", e);
            }
          } else {
            throw e;
          }
        }
      }
      Preconditions.checkNotNull(stat, "HdfsFileStatus should not be null!");
      final DFSOutputStream out;
      if(stat.getErasureCodingPolicy() != null) {
        out = new DFSStripedOutputStream(dfsClient, src, stat,
            flag, progress, checksum, favoredNodes);
      } else {
        out = new DFSOutputStream(dfsClient, src, stat,
            flag, progress, checksum, favoredNodes, true);
      }
      //开启线程 Streamer 用于分配dataQueue内存接收packet
      out.start();
      return out;
    }
  }

2.2.Namenode处理Client的创建请求

从ClientProtocal.javaRPC协议接口中找到create接口方法

HdfsFileStatus create(String src, FsPermission masked,
      String clientName, EnumSetWritable<CreateFlag> flag,
      boolean createPar
