Cesium构造popup弹窗函数

初学Cesium，发现没有自带的popup方法，从网上找资料自己写了一个，供大家参考

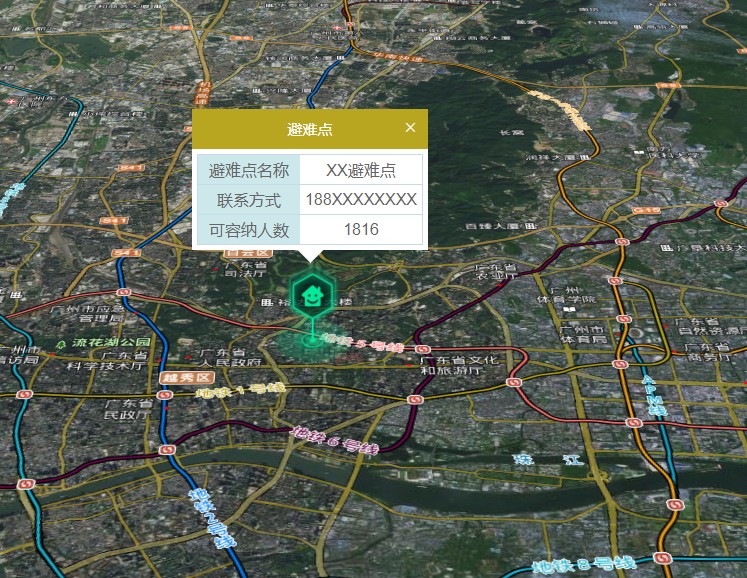

先上效果，样式方面大家可以自行发挥

 构造函数

class Popup {
  constructor(info) {
    this.id = 0;
    //如果有div就移除
    if (document.getElementsByClassName("bx-popup-ctn").length > 0) {
      document.getElementsByClassName("bx-popup-ctn").remove();
    }
    this.viewer = info.viewer; //弹窗创建的viewer
    this.geometry = info.geometry; //弹窗挂载的位置
    this.id = "popup_" + this.__proto__.id++;
    this.ctn = document.createElement("div");
    this.ctn.classList.add("bx-popup-ctn");
    this.ctn.id = this.id;
    this.viewer.container.append(this.ctn);
    //创建Html
    this.ctn.innerHTML = this.createHtml(info.name, info.properties);
    this.render(this.geometry);
    //添加监听拖动重新渲染位置
    this.eventListener = this.viewer.clock.onTick.addEventListener(clock => {
      this.render(this.geometry);
    });
    //绑定关闭事件
    document.getElementsByClassName(
      "leaflet-popup-close-button"
    )[0].onclick = () => {
      this.close();
    };
  }
  //渲染位置
  render(geometry) {
    var position = Cesium.SceneTransforms.wgs84ToWindowCoordinates(
      this.viewer.scene,
      geometry
    );
    this.ctn.style.left = position.x - this.ctn.offsetWidth / 2 + "px";
    this.ctn.style.top = position.y - this.ctn.offsetHeight - 30 + "px";
  }
  createHtml(header, content) {
    var html =
      '<div class="bx-popup-header-ctn">' +
      header +
      '<span class="leaflet-popup-close-button" ><i class="el-icon-close"></i></span>' +
      "</div>" +
      '<div class="bx-popup-content-ctn" >' +
      '<div class="bx-popup-content" >' +
      this.createTable(content) +
      "</div>" +
      "</div>" +
      '<div class="bx-popup-tip-container" >' +
      '<div class="bx-popup-tip" >' +
      "</div>" +
      "</div>";
    return html;
  }
  createTable(content) {
    let html = '<table class="table-popup">';
    for (let key in content) {
      html += `<tr><td class="title-popup">${key}</td>
           <td class="value-popup">${content[key]}</td></tr>`;
    }
    html += "</table>";
    return html;
  }
  close() {
    this.ctn.remove();
    this.viewer.clock.onTick.removeEventListener(this.eventListener);
  }
}
export default Popup;

样式代码

.bx-popup-ctn {
  position: absolute;
  z-index: 999;
  background: #fff;
}

.bx-popup-tip-container {
  width: 40px;
  height: 20px;
  position: absolute;
  left: 50%;
  margin-left: -20px;
  overflow: hidden;
  pointer-events: none;
}

.bx-popup-tip {
  width: 17px;
  background: #fff;
  height: 17px;
  padding: 1px;
  margin: -10px auto 0;
  -webkit-transform: rotate(45deg);
  -moz-transform: rotate(45deg);
  -ms-transform: rotate(45deg);
  transform: rotate(45deg);
}

.bx-popup-header-ctn {
  background: #b9a620;
  color: #fff;
  font-size: 15px;
  padding: 10px;
  text-align: center;
}

.bx-popup-content-ctn {
  padding: 5px;
}

.leaflet-popup-close-button {
  position: absolute;
  right: 10px;
  cursor: pointer;
}

.table-popup {
  border-collapse: collapse;
  text-align: center;
}

.table-popup tr {
  border: 1px solid #cad9ea;
  color: #666;
  height: 30px;
  padding: 5px;
}

.table-popup .title-popup {
  width: 100px;
  background-color: #CCE8EB;
}

.table-popup .value-popup {
  width: 120px;
}

调用方式

通过点击实体传参数，将属性传入popup动态生成表格

参数设定为四个 （标题，viewer，属性对象，geometry）

handler.setInputAction(function(movement) {
  var pick = _this.viewer.scene.pick(movement.position);
  var point = new Cesium.Cartesian2(
    movement.position.x,
    movement.position.y
  );
  if (Cesium.defined(pick) && pick.id.id === "id") {
    let properties = {};
    let name = pick.id.name;
    for (let key in pick.id.properties._propertyNames) {
      let title = pick.id.properties._propertyNames[key];
      let value = pick.id.properties[title]._value;
      properties[title] = value;
    }
    let popup = new Popup({
      name: name,
      viewer: _this.viewer,
      properties: properties,
      geometry: _this.viewer.scene.globe.pick(
        _this.viewer.camera.getPickRay(point),
        _this.viewer.scene
      )
    });
  }
}, Cesium.ScreenSpaceEventType.LEFT_CLICK);

来源网站：Cesium构造popup弹窗函数

参考文章：https://blog.youkuaiyun.com/u012632557/article/details/105204972
