django 基于 channels 实现实时聊天和后台主动推送

源码地址：https://download.youkuaiyun.com/download/qq_37049050/11453395

0.环境

python>3.6
django==2.2

1.安装包

pip install redis
pip install -U channels
pip install channels_redis

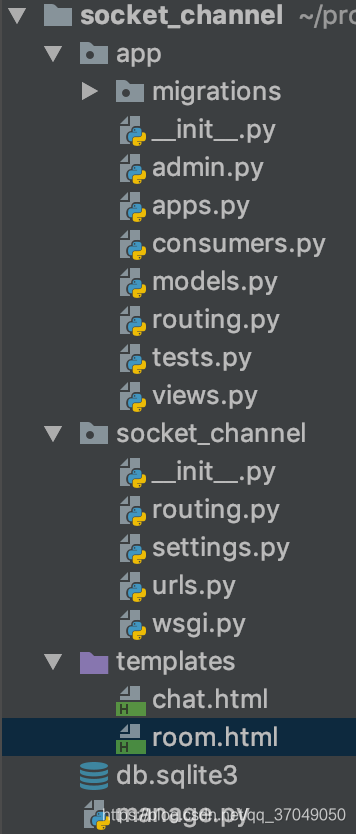

2.创建项目

3.socket_channel/settings.py

INSTALLED_APPS = [
    'django.contrib.admin',
    'django.contrib.auth',
    'django.contrib.contenttypes',
    'django.contrib.sessions',
    'django.contrib.messages',
    'django.contrib.staticfiles',
    'channels',
    'app',
]
ASGI_APPLICATION = 'socket_channel.routing.application'
CHANNEL_LAYERS = {
    'default': {
        'BACKEND': "channels_redis.core.RedisChannelLayer",
        'CONFIG': {
            "hosts": [('127.0.0.1', 6379)],
        }
    },
}

4.app/consumers.py

from asgiref.sync import async_to_sync
from channels.generic.websocket import WebsocketConsumer
import json
import redis

pool = redis.ConnectionPool(
    host='localhost',
    port=6379,
    max_connections=10,
    decode_responses=True
)
conn = redis.Redis(connection_pool=pool, decode_responses=True)


class ChatConsumer(WebsocketConsumer):
    def connect(self):
        self.room_name = self.scope['url_route']['kwargs']['room_name']
        self.room_group_name = 'chat_%s' % self.room_name

        # Join room group
        async_to_sync(self.channel_layer.group_add)(
            self.room_group_name,
            self.channel_name
        )

        self.accept()

    def disconnect(self, close_code):
        # Leave room group
        async_to_sync(self.channel_layer.group_discard)(
            self.room_group_name,
            self.channel_name
        )

    # Receive message from WebSocket
    def receive(self, text_data):
        print(self.room_group_name)
        text_data_json = json.loads(text_data)
        message = text_data_json['message']

        # Send message to room group
        async_to_sync(self.channel_layer.group_send)(
            self.room_group_name,
            {
                'type': 'chat_messages',  # 调用的发送方法
                'message': message
            }
        )

    # Receive message from room group
    def chat_messages(self, event):
        message = event['message']

        # Send message to WebSocket
        self.send(text_data=json.dumps({
            'message': message
        }))


class Tuisong(WebsocketConsumer):
    def connect(self):
        self.room_group_name = self.scope['url_route']['kwargs']['room_name']

        # Join room group
        async_to_sync(self.channel_layer.group_add)(
            self.room_group_name,
            self.channel_name
        )


        self.accept()



    def disconnect(self, close_code):
        # Leave room group
        async_to_sync(self.channel_layer.group_discard)(
            self.room_group_name,
            self.channel_name
        )

    # 主动推送
    def tui_song(self, event):
        ggg = event['msg']
        self.send(text_data=json.dumps({
            'message': ggg
        }))

5.app/routing.py

from django.urls import path
from . import consumers

websocket_urlpatterns = [
    path('ws/chat/<room_name>', consumers.ChatConsumer),
    path('ws/tuisong/<room_name>', consumers.Tuisong),
]

6.app/views.py

from django.http import JsonResponse
from django.shortcuts import render
import time,json
# Create your views here.
from django.utils.safestring import mark_safe
from channels.layers import get_channel_layer
from asgiref.sync import async_to_sync



def aaa(request):
    return render(request,'chat.html')


def room(request, room_name):
    return render(request, 'room.html', {
        'room_name_json': mark_safe(json.dumps(room_name))
    })

def pushRedis(request):
    room = request.GET.get('room')


    def push(msg):
        channel_layer = get_channel_layer()
        async_to_sync(channel_layer.group_send)(
            room,
            {
                "type": "tui.song",
                'msg':msg
            }
        )

    push('推送测试！')
    return JsonResponse({'1':1})

7.socket_channel/routing.py

from channels.auth import AuthMiddlewareStack
from channels.routing import ProtocolTypeRouter, URLRouter
import app.routing

application = ProtocolTypeRouter({
    # (http->django views is added by default)
    'websocket': AuthMiddlewareStack(
        URLRouter(
            app.routing.websocket_urlpatterns
        )
    ),
})

8.socket_channel/urls.py

from django.contrib import admin
from django.urls import path
from app.views import *
urlpatterns = [
    path('admin/', admin.site.urls),
    path('', aaa),
    path('chat/<room_name>', room, name='room'),
    path('pushRedis',pushRedis)
]

9.templates/chat.html

<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8"/>
    <title>Chat Rooms</title>
</head>
<body>
What chat room would you like to enter?<br/>
<input id="room-name-input" type="text" size="100"/><br/>
<input id="room-name-submit" type="button" value="Enter"/>

<script>
    document.querySelector('#room-name-input').focus();
    document.querySelector('#room-name-input').onkeyup = function(e) {
        if (e.keyCode === 13) {  // enter, return
            document.querySelector('#room-name-submit').click();
        }
    };

    document.querySelector('#room-name-submit').onclick = function(e) {
        var roomName = document.querySelector('#room-name-input').value;
        window.location.pathname = '/chat/' + roomName;
    };
</script>
</body>
</html>

10.templates/room.html

<!-- chat/templates/chat/room.html -->
<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8"/>
    <title>Chat Room</title>
</head>
<body>
<textarea id="chat-log" cols="100" rows="20"></textarea><br/>
<input id="chat-message-input" type="text" size="100"/><br/>
<input id="chat-message-submit" type="button" value="Send"/>
</body>
<script>
    var roomName = {{ room_name_json }};

    var chatSocket = new WebSocket(
        'ws://' + window.location.host +
        '/ws/chat/' + roomName);

    var chatSocketa = new WebSocket(
        'ws://' + window.location.host +
        '/ws/tuisong/' + roomName);

    chatSocket.onmessage = function(e) {
        var data = JSON.parse(e.data);
        var message = data['message'];
        document.querySelector('#chat-log').value += (message + '\n');
    };
    chatSocketa.onmessage = function(e) {
        var data = JSON.parse(e.data);
        var message = data['message'];
        document.querySelector('#chat-log').value += (message + '\n');
    };
    chatSocket.onclose = function(e) {
        console.error('Chat socket closed unexpectedly');
    };
    chatSocketa.onclose = function(e) {
        console.error('Chat socket closed unexpectedly');
    };

    document.querySelector('#chat-message-input').focus();
    document.querySelector('#chat-message-input').onkeyup = function(e) {
        if (e.keyCode === 13) {  // enter, return
            document.querySelector('#chat-message-submit').click();
        }
    };

    document.querySelector('#chat-message-submit').onclick = function(e) {
        var messageInputDom = document.querySelector('#chat-message-input');
        var message = messageInputDom.value;
        chatSocket.send(JSON.stringify({
            'message': message
        }));

        messageInputDom.value = '';
    };
</script>
</html>

11.启动项目

python manage.py runserver

12.聊天访问

访问

http://127.0.0.1:8000

输入房间名 test 后进入房间，这里可以开启多个页面测试。

13.后台主动推送

访问 http://127.0.0.1:8000/pushRedis?room=test （这里的room 是存在的房间名）再看房间页面后会看到推送的消息
